Modular Sample Conditioning CIRCOR Tech Thirdparty Component Development

Modular Sample Conditioning: CIRCOR Tech & Third-party Component Development 2006 CPAC Ne. SSI Center for Process Analytical Chemistry Spring 2006 Ne. SSI User Group Meeting MAY 2006 Seattle, WA Robert E. Sherman CIRCOR Tech CIRCOR Instrumentation Technologies a division of CIRCOR International, Inc.

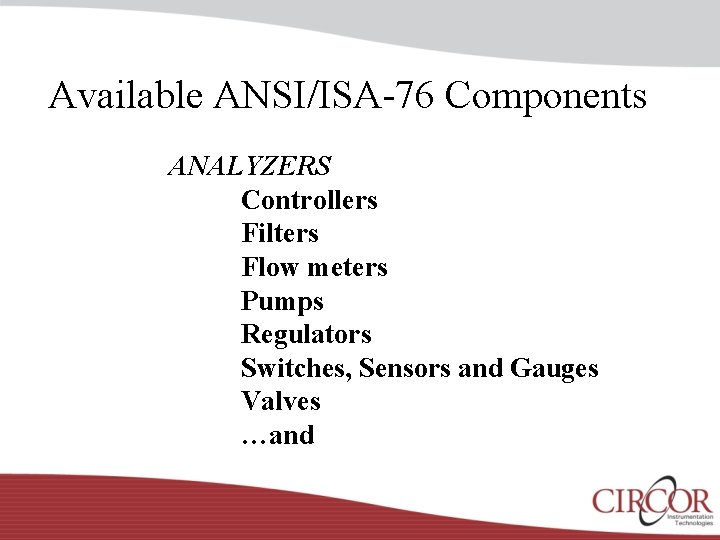

Available ANSI/ISA-76 Components ANALYZERS Controllers Filters Flow meters Pumps Regulators Switches, Sensors and Gauges Valves …and

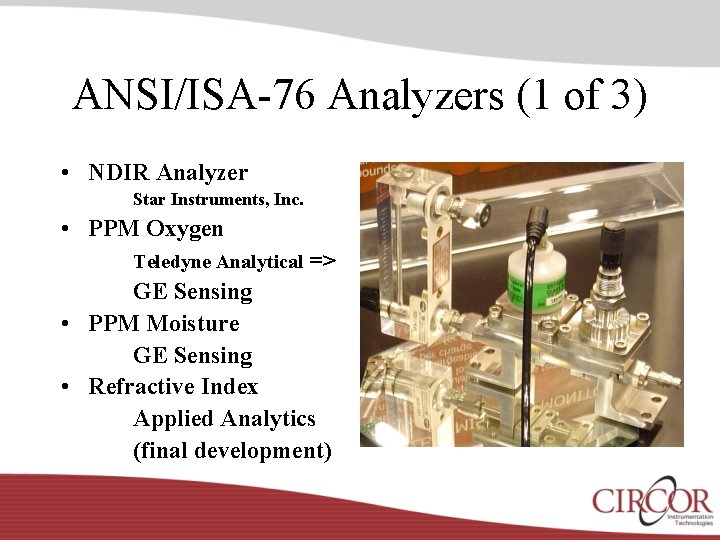

ANSI/ISA-76 Analyzers (1 of 3) • NDIR Analyzer Star Instruments, Inc. • PPM Oxygen Teledyne Analytical => GE Sensing • PPM Moisture GE Sensing • Refractive Index Applied Analytics (final development)

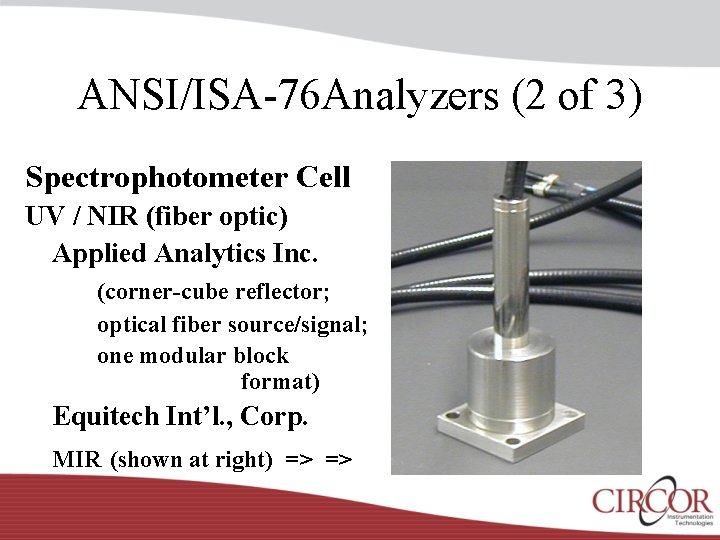

ANSI/ISA-76 Analyzers (2 of 3) Spectrophotometer Cell UV / NIR (fiber optic) Applied Analytics Inc. (corner-cube reflector; optical fiber source/signal; one modular block format) Equitech Int’l. , Corp. MIR (shown at right) => =>

ANSI/ISA-76 Analyzers (3 of 3) Other Analyzers Mettler Toledo-Ingold Gaseous O 2 and CO 2 p. H, DO, ORP and Conductivity Emerson (Brooks) GCI (Gas Characterization Instrument) (contact Dave Veltkamp-CPAC for additional info)

Available ANSI/ISA-76 Components Analyzers CONTROLLERS Filters Flowmeters Pumps Regulators Switches, Sensors and Gauges Valves …and

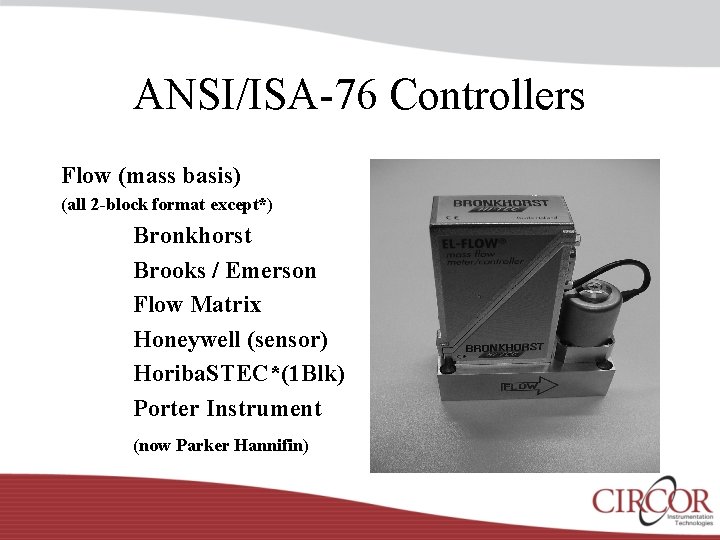

ANSI/ISA-76 Controllers Flow (mass basis) (all 2 -block format except*) Bronkhorst Brooks / Emerson Flow Matrix Honeywell (sensor) Horiba. STEC*(1 Blk) Porter Instrument (now Parker Hannifin)

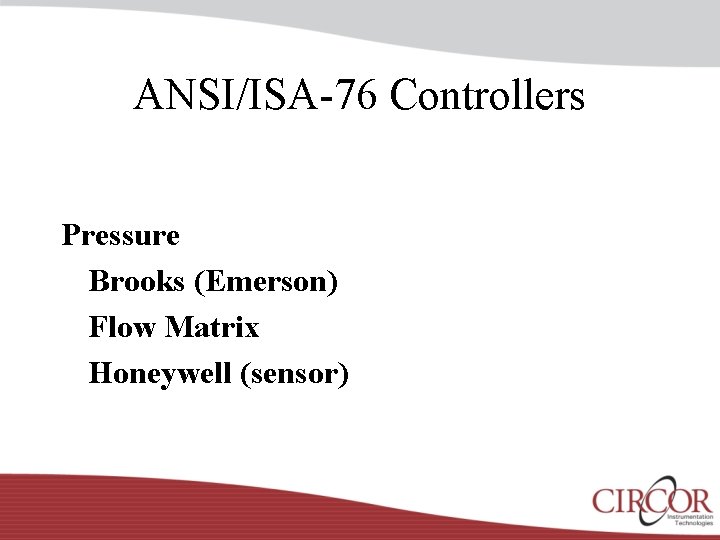

ANSI/ISA-76 Controllers Pressure Brooks (Emerson) Flow Matrix Honeywell (sensor)

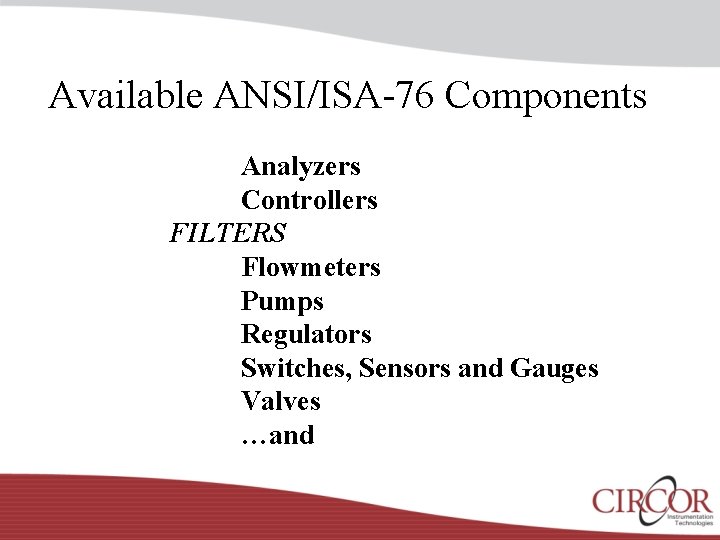

Available ANSI/ISA-76 Components Analyzers Controllers FILTERS Flowmeters Pumps Regulators Switches, Sensors and Gauges Valves …and

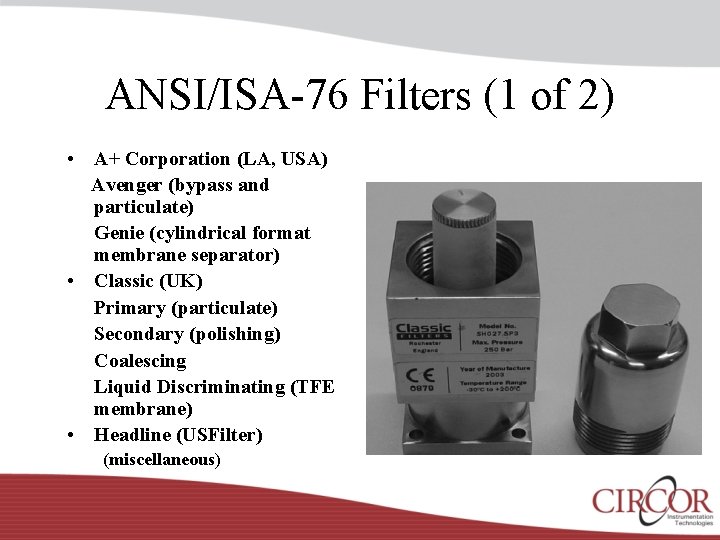

ANSI/ISA-76 Filters (1 of 2) • A+ Corporation (LA, USA) Avenger (bypass and particulate) Genie (cylindrical format membrane separator) • Classic (UK) Primary (particulate) Secondary (polishing) Coalescing Liquid Discriminating (TFE membrane) • Headline (USFilter) (miscellaneous)

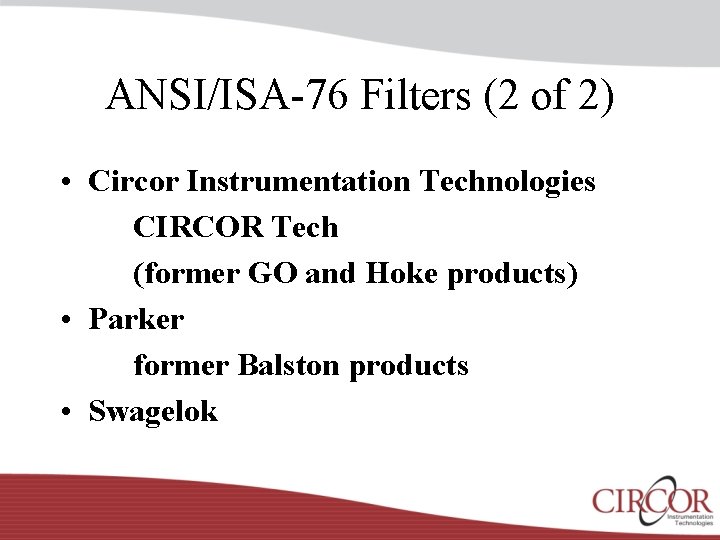

ANSI/ISA-76 Filters (2 of 2) • Circor Instrumentation Technologies CIRCOR Tech (former GO and Hoke products) • Parker former Balston products • Swagelok

Available ANSI/ISA-76 Components Analyzers Controllers Filters FLOWMETERS Pumps Regulators Switches, Sensors and Gauges Valves …and

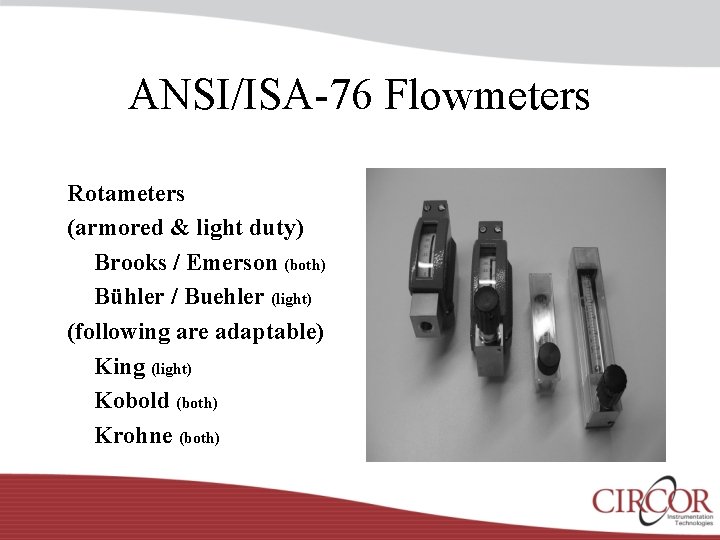

ANSI/ISA-76 Flowmeters Rotameters (armored & light duty) Brooks / Emerson (both) Bühler / Buehler (light) (following are adaptable) King (light) Kobold (both) Krohne (both)

Available ANSI/ISA-76 Components Analyzers Controllers Filters Flowmeters PUMPS Regulators Switches, Sensors and Gauges Valves …and

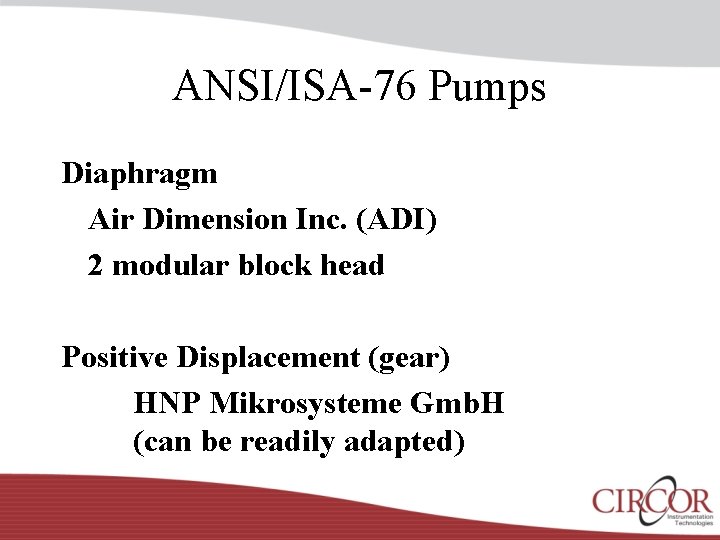

ANSI/ISA-76 Pumps Diaphragm Air Dimension Inc. (ADI) 2 modular block head Positive Displacement (gear) HNP Mikrosysteme Gmb. H (can be readily adapted)

Available ANSI/ISA-76 Components Analyzers Controllers Filters Flowmeters Pumps REGULATORS Switches, Sensors and Gauges Valves …and

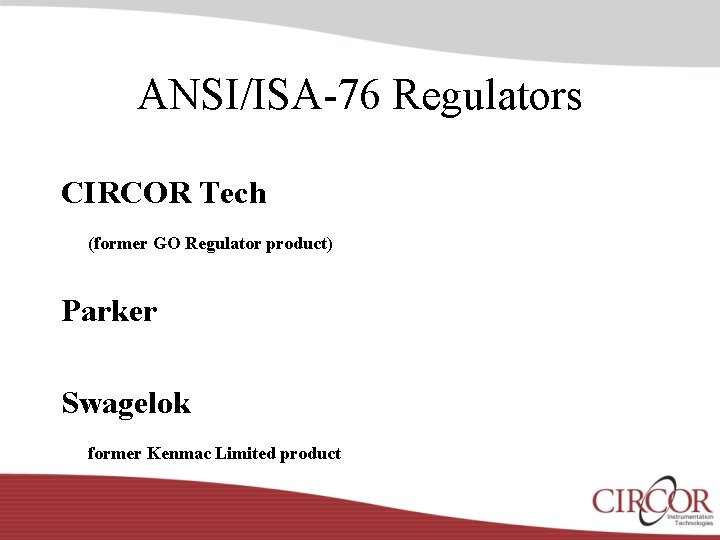

ANSI/ISA-76 Regulators CIRCOR Tech (former GO Regulator product) Parker Swagelok former Kenmac Limited product

Available ANSI/ISA-76 Components Analyzers Controllers Filters Flowmeters Pumps Regulators SWITCHES, SENSORS and GAUGES Valves …and

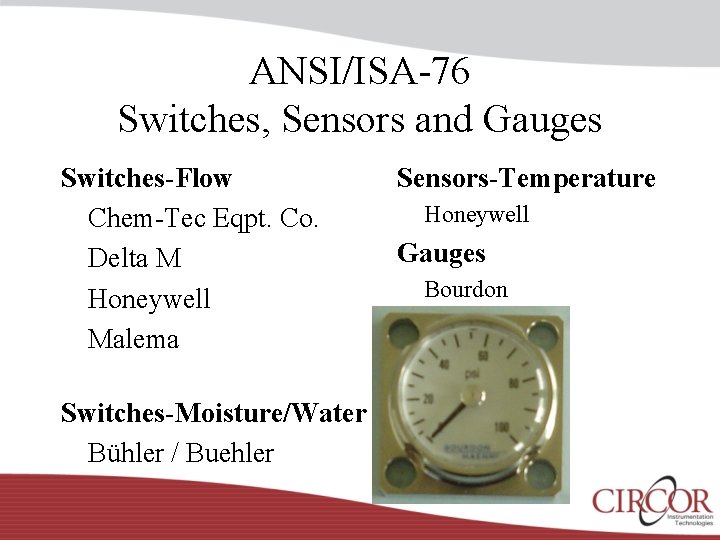

ANSI/ISA-76 Switches, Sensors and Gauges Switches-Flow Chem-Tec Eqpt. Co. Delta M Honeywell Malema Switches-Moisture/Water Bühler / Buehler Sensors-Temperature Honeywell Gauges Bourdon

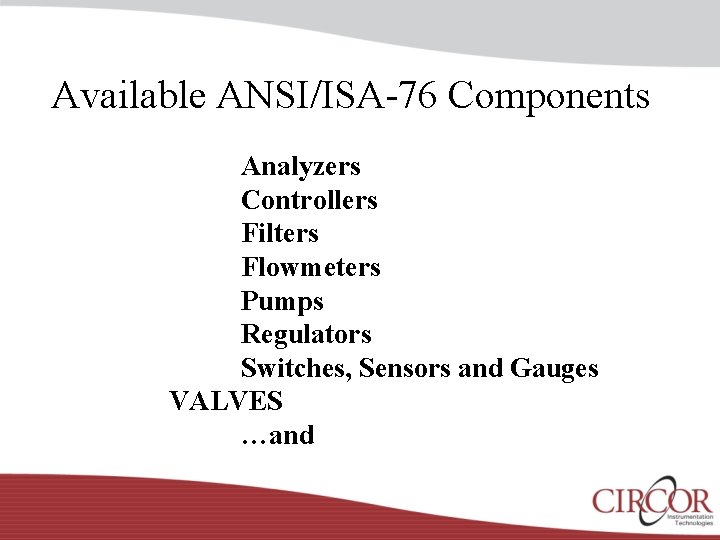

Available ANSI/ISA-76 Components Analyzers Controllers Filters Flowmeters Pumps Regulators Switches, Sensors and Gauges VALVES …and

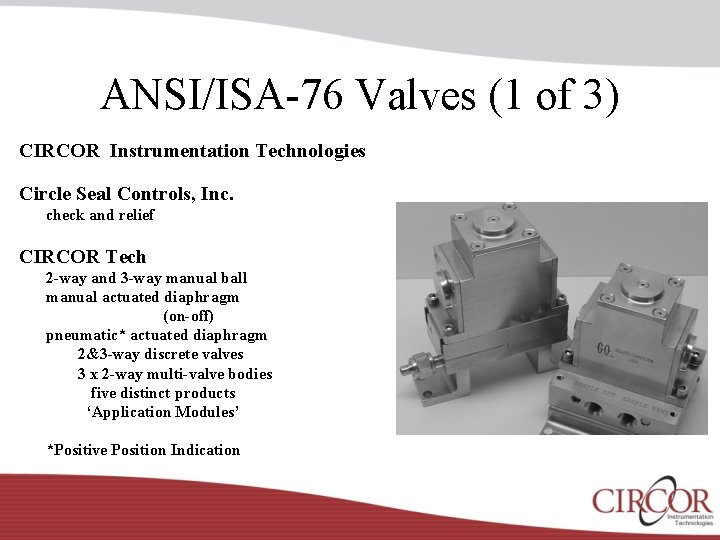

ANSI/ISA-76 Valves (1 of 3) CIRCOR Instrumentation Technologies Circle Seal Controls, Inc. check and relief CIRCOR Tech 2 -way and 3 -way manual ball manual actuated diaphragm (on-off) pneumatic* actuated diaphragm 2&3 -way discrete valves 3 x 2 -way multi-valve bodies five distinct products ‘Application Modules’ *Positive Position Indication

ANSI/ISA-76 Valves (2 of 3) Parker (m-manual or p-pneumatic) Ball (m: 2 and 3 -way) Check Diaphragm Meter Needle Relief Toggle (m and p: 2 -way) (m and p) (m)

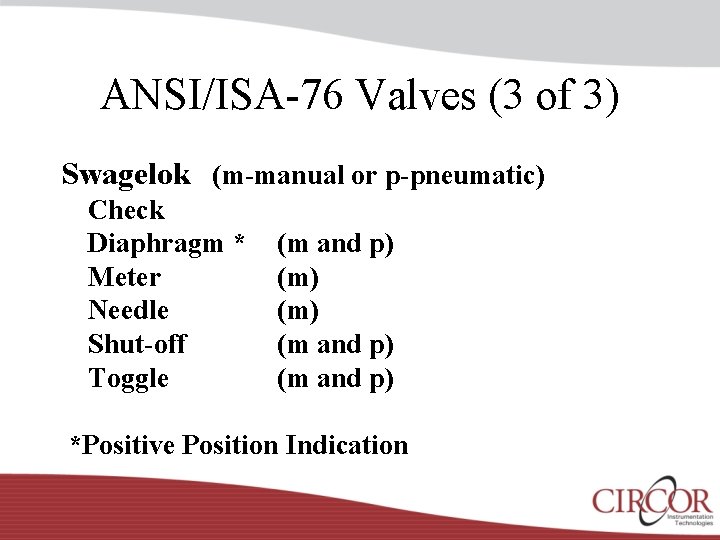

ANSI/ISA-76 Valves (3 of 3) Swagelok (m-manual or p-pneumatic) Check Diaphragm * Meter Needle Shut-off Toggle (m and p) (m) (m and p) *Positive Position Indication

Available ANSI/ISA-76 Components Analyzers Controllers Filters Flowmeters Pumps Regulators Switches, Sensors and Gauges Valves …and what else can there be?

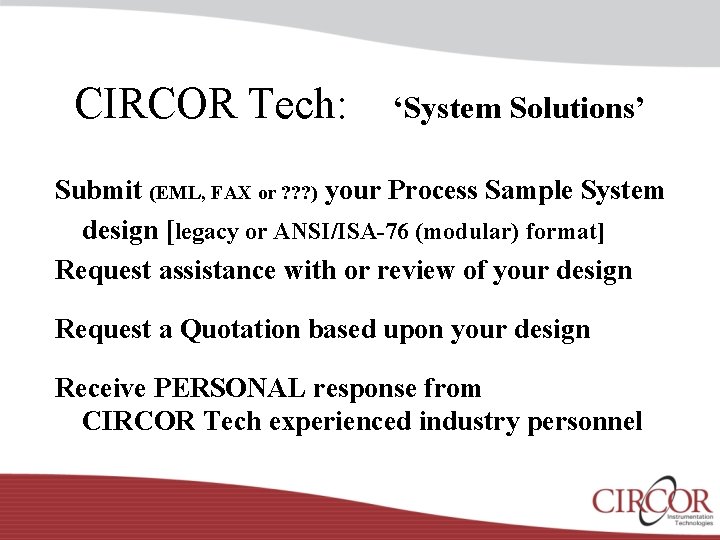

CIRCOR Tech: ‘System Solutions’ Submit (EML, FAX or ? ? ? ) your Process Sample System design [legacy or ANSI/ISA-76 (modular) format] Request assistance with or review of your design Request a Quotation based upon your design Receive PERSONAL response from CIRCOR Tech experienced industry personnel

CIRCOR Tech ANSI/ISA-76 ‘System Solutions’ Bruce Keen Bob Sherman (ISA Fellow) 1972 to current Sample Conditioning Design Experience FON: 918. 336. 4369 FAX: 918. 338. 2238 EML: bkeen@circortech. com 1969 to current Analytical System Application Experience FON: 815. 931. 9087 FAX: 815. 744. 7271 EML: rsherman@circortech. com

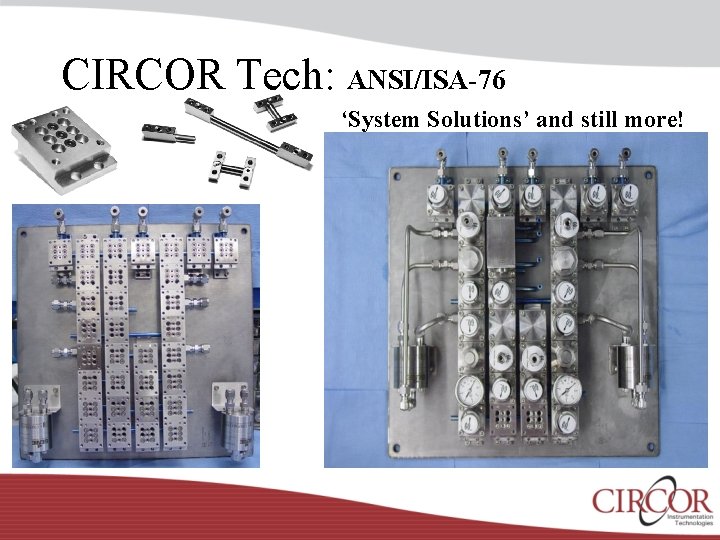

CIRCOR Tech: ANSI/ISA-76 ‘System Solutions’ and still more!

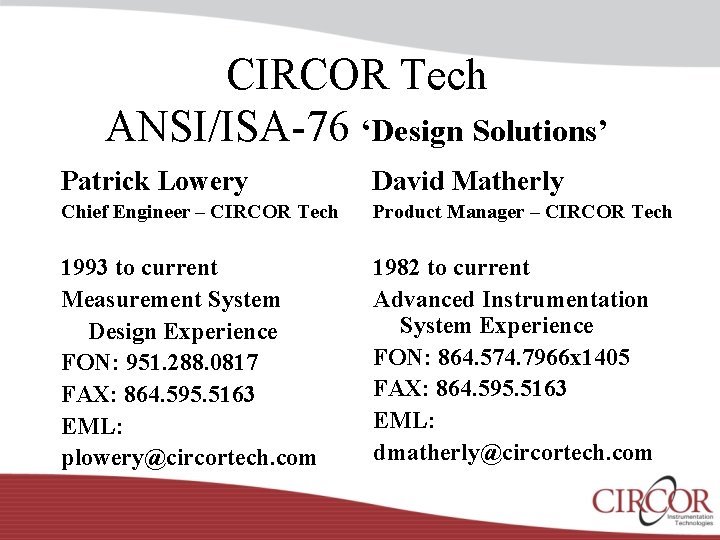

CIRCOR Tech ANSI/ISA-76 ‘Design Solutions’ Patrick Lowery David Matherly Chief Engineer – CIRCOR Tech Product Manager – CIRCOR Tech 1993 to current Measurement System Design Experience FON: 951. 288. 0817 FAX: 864. 595. 5163 EML: plowery@circortech. com 1982 to current Advanced Instrumentation System Experience FON: 864. 574. 7966 x 1405 FAX: 864. 595. 5163 EML: dmatherly@circortech. com

Ne. SSI says… “Thanks you for your Time!” “Bring more ANSI/ISA-76 equipment news on your next trip to CPAC!”
