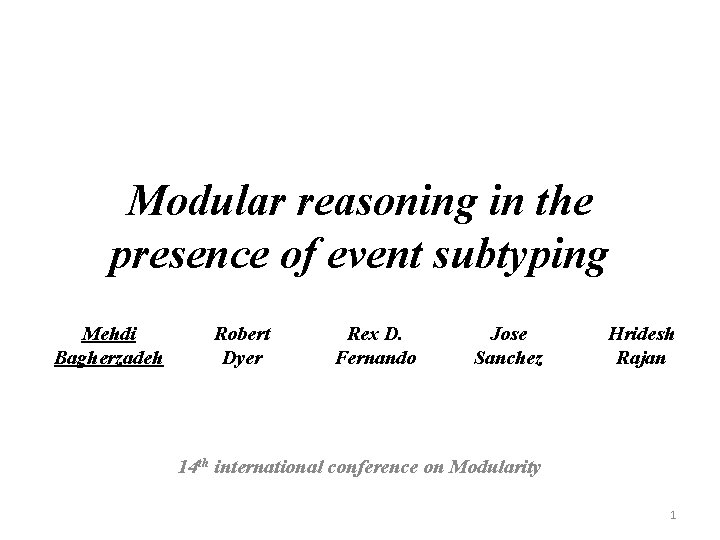

Modular reasoning in the presence of event subtyping Mehdi Bagherzadeh Robert Dyer Rex D. Fernando Jose Sanchez Hridesh Rajan 14 th international conference on Modularity 1

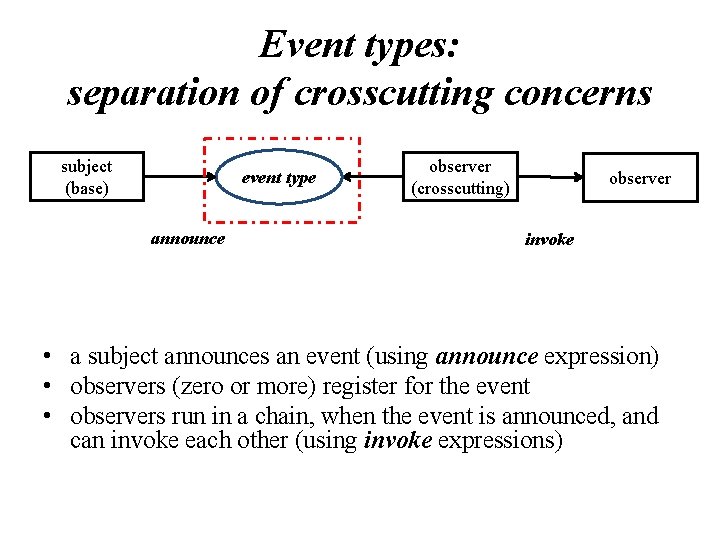

Event types: separation of crosscutting concerns subject (base) event type announce observer (crosscutting) observer invoke • a subject announces an event (using announce expression) • observers (zero or more) register for the event • observers run in a chain, when the event is announced, and can invoke each other (using invoke expressions)

Modular reasoning about behavior subject (announce ev) ev ob announce ev ev observer (invoke) observer • Modular subject reasoning : {P} announce ev {? } using only subject implementation and event ev • Modular observer reasoning : {P} invoke {? } using only observer implementation and event ev

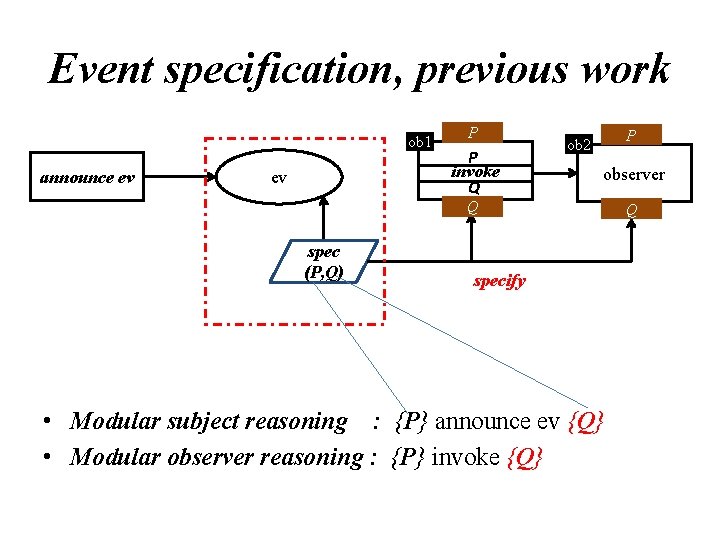

Event specification, previous work ob 1 announce ev ev P P invoke Q P ob 2 observer Q spec (P, Q) specify • Modular subject reasoning : {P} announce ev {Q} • Modular observer reasoning : {P} invoke {Q} Q

Event subtyping ev’ observer subtype announce ev ev observer For observer reuse, announcement of ev runs not only its observers but also all observers of its superevents.

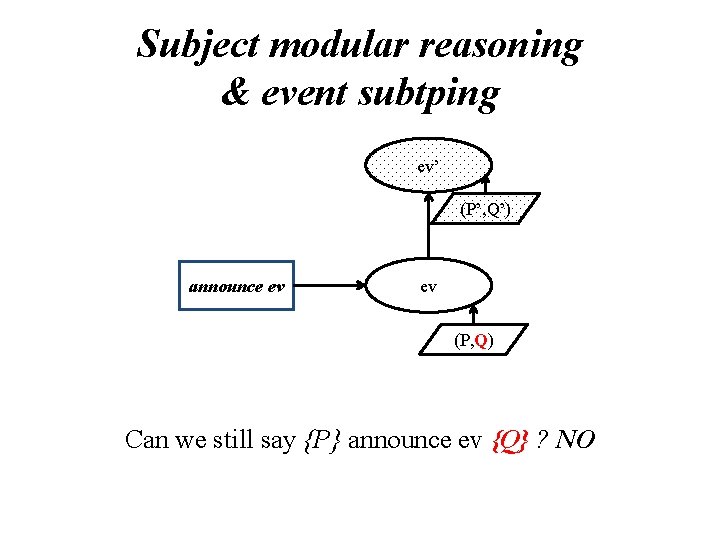

Subject modular reasoning & event subtping ev’ (P’, Q’) announce ev ev (P, Q) Can we still say {P} announce ev {Q} ? NO

Observer modular reasoning & event subtyping ev’ (P’, Q’) ob invoke ev (P, Q) Can we still say {P} invoke {Q} ? NO

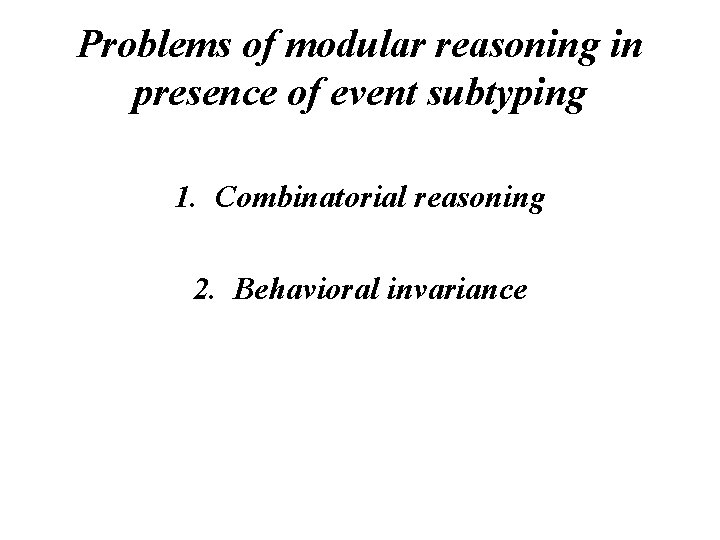

Problems of modular reasoning in presence of event subtyping 1. Combinatorial reasoning 2. Behavioral invariance

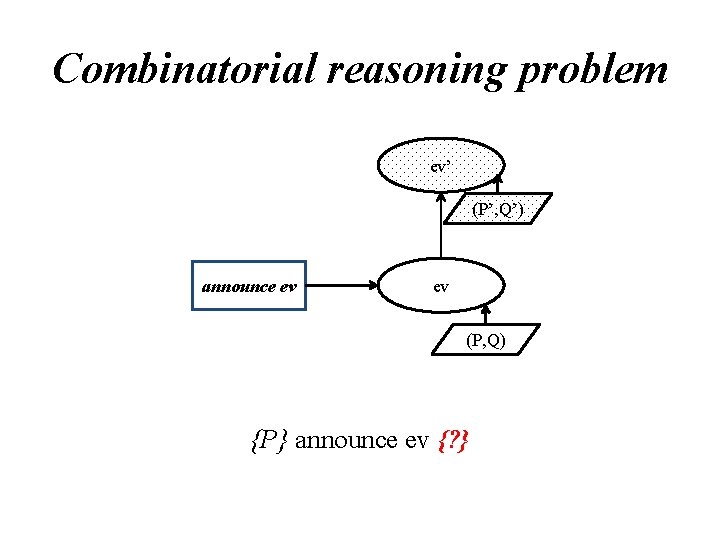

Combinatorial reasoning problem ev’ (P’, Q’) announce ev ev (P, Q) {P} announce ev {? }

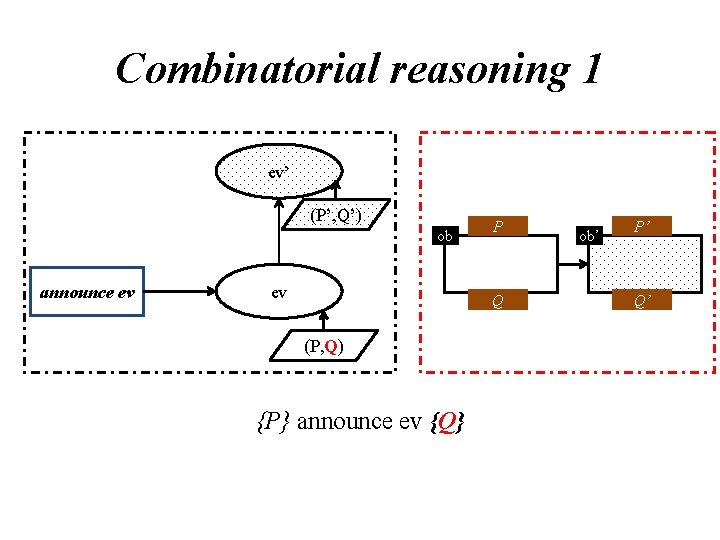

Combinatorial reasoning 1 ev’ (P’, Q’) ob announce ev ev P Q (P, Q) {P} announce ev {Q} ob’ P’ Q’

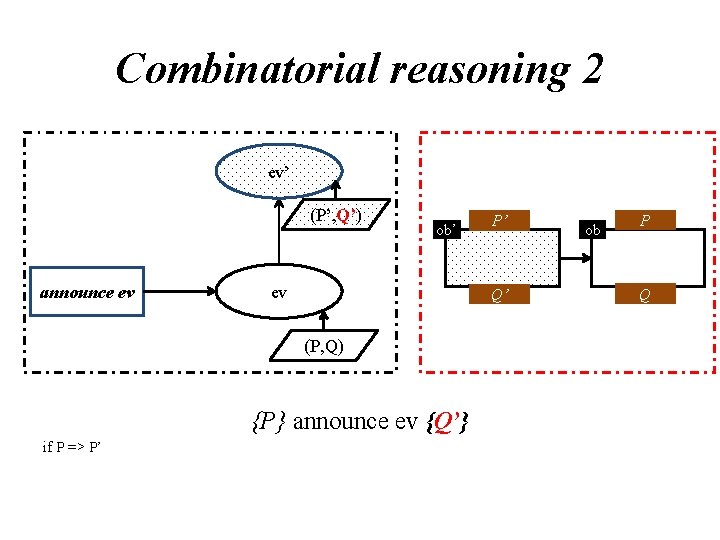

Combinatorial reasoning 2 ev’ (P’, Q’) announce ev ob’ ev Q’ (P, Q) {P} announce ev {Q’} if P => P’ P’ ob P Q

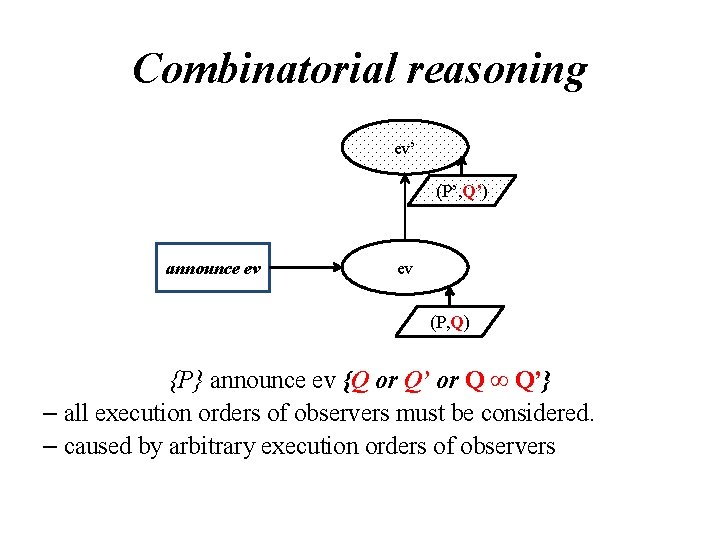

Combinatorial reasoning ev’ (P’, Q’) announce ev ev (P, Q) {P} announce ev {Q or Q’ or Q ∞ Q’} – all execution orders of observers must be considered. – caused by arbitrary execution orders of observers

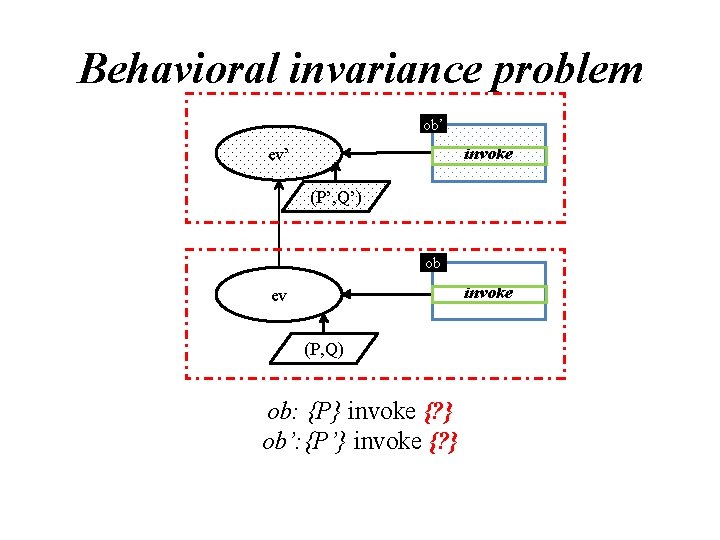

Behavioral invariance problem ob’ invoke ev’ (P’, Q’) ob invoke ev (P, Q) ob: {P} invoke {? } ob’: {P’} invoke {? }

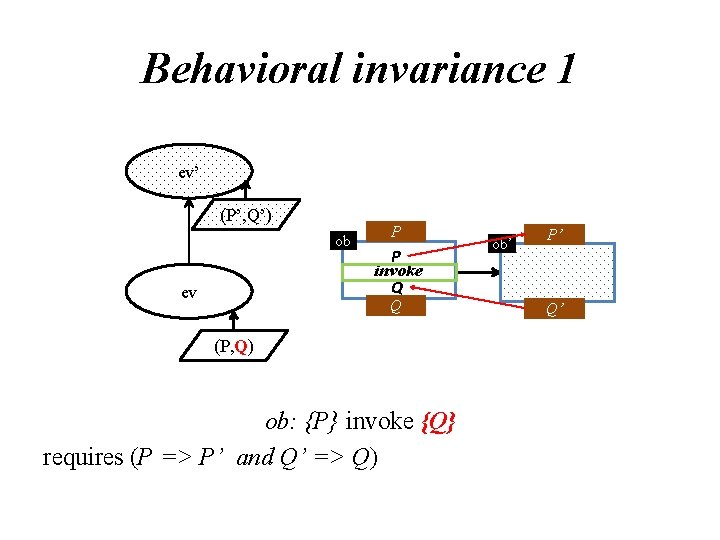

Behavioral invariance 1 ev’ (P’, Q’) ob ev P P invoke Q Q (P, Q) ob: {P} invoke {Q} requires (P => P’ and Q’ => Q) ob’ P’ Q’

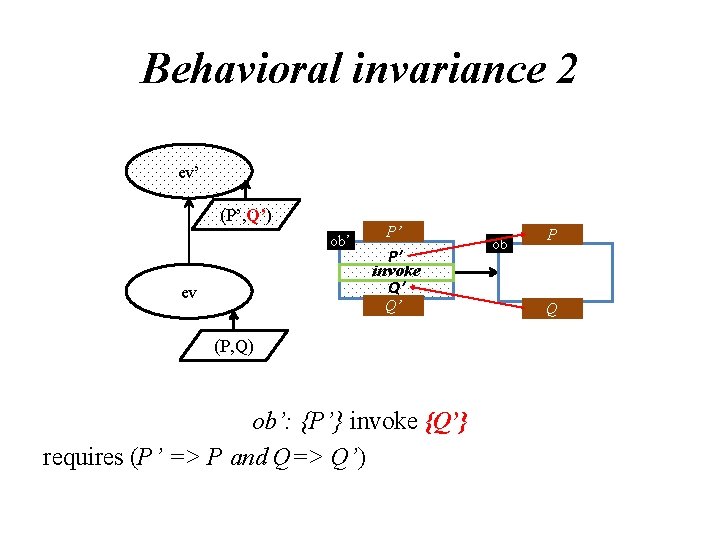

Behavioral invariance 2 ev’ (P’, Q’) ob’ ev P’ P’ invoke Q’ Q’ (P, Q) ob’: {P’} invoke {Q’} requires (P’ => P and Q=> Q’) ob P Q

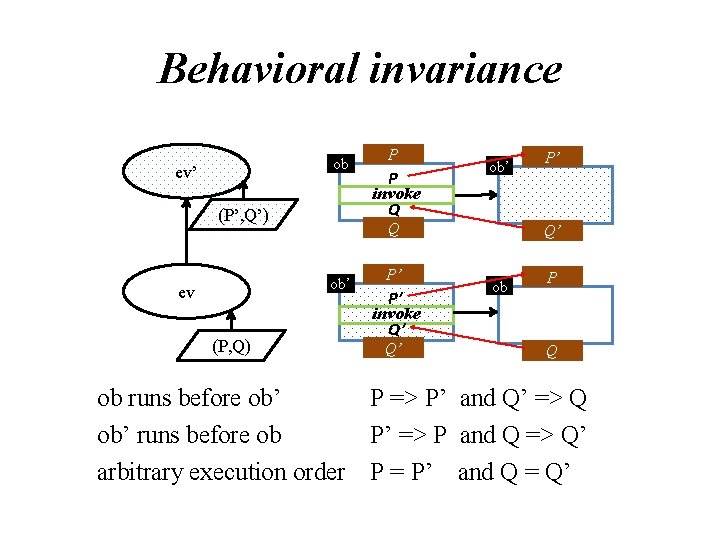

Behavioral invariance ob ev’ (P’, Q’) (P, Q) P invoke Q ob’ ev P P’ P’ invoke Q’ Q’ P’ Q’ ob P Q ob runs before ob’ P => P’ and Q’ => Q ob’ runs before ob P’ => P and Q => Q’ arbitrary execution order P = P’ and Q = Q’

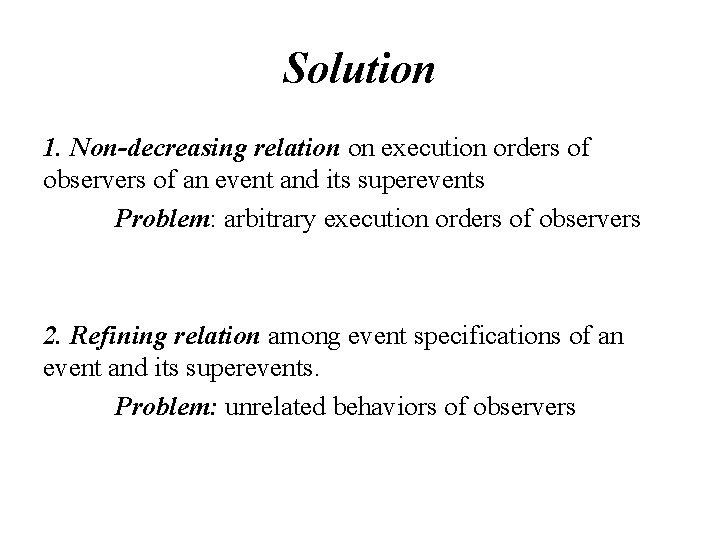

Solution 1. Non-decreasing relation on execution orders of observers of an event and its superevents Problem: arbitrary execution orders of observers 2. Refining relation among event specifications of an event and its superevents. Problem: unrelated behaviors of observers

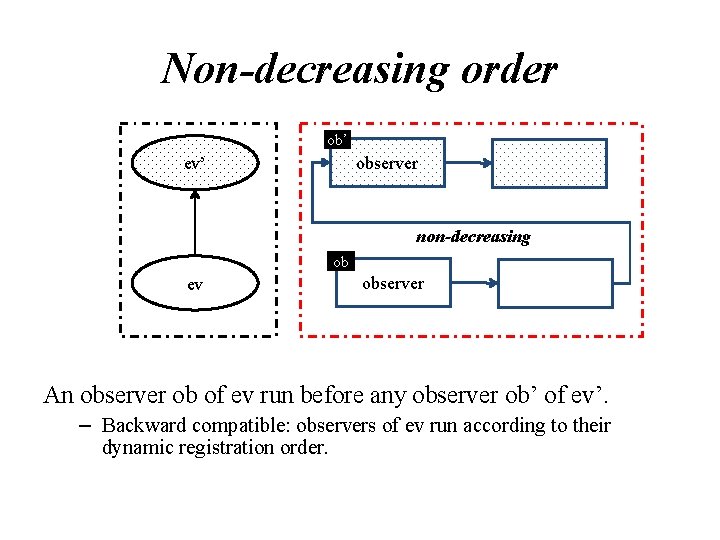

Non-decreasing order ob’ observer ev’ non-decreasing ob ev observer An observer ob of ev run before any observer ob’ of ev’. – Backward compatible: observers of ev run according to their dynamic registration order.

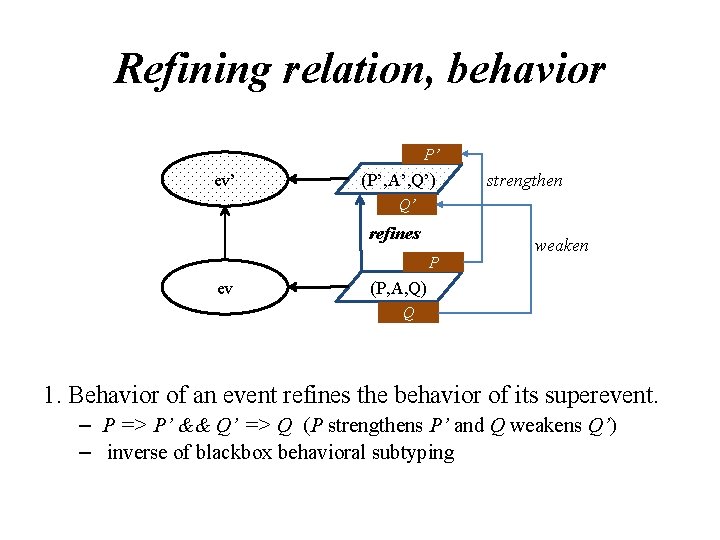

Refining relation, behavior P’ ev’ (P’, A’, Q’) strengthen Q’ refines P ev weaken (P, A, Q) Q 1. Behavior of an event refines the behavior of its superevent. – P => P’ && Q’ => Q (P strengthens P’ and Q weakens Q’) – inverse of blackbox behavioral subtyping

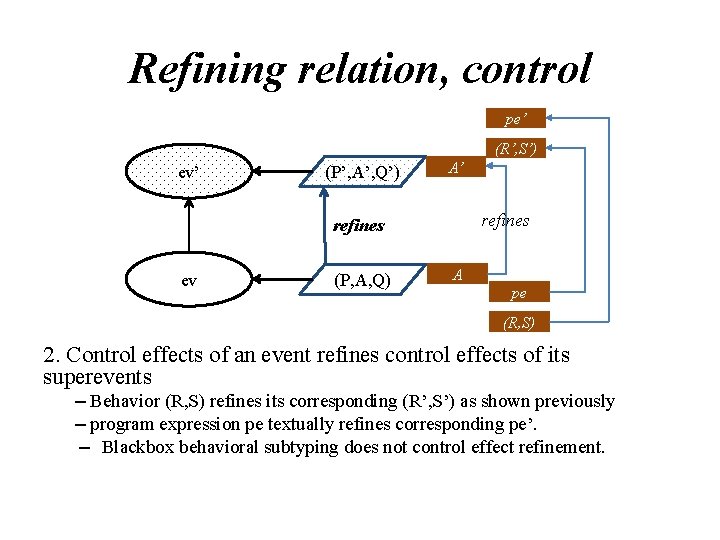

Refining relation, control pe’ (R’, S’) ev’ (P’, A’, Q’) A’ refines ev (P, A, Q) A pe (R, S) 2. Control effects of an event refines control effects of its superevents – Behavior (R, S) refines its corresponding (R’, S’) as shown previously – program expression pe textually refines corresponding pe’. – Blackbox behavioral subtyping does not control effect refinement.

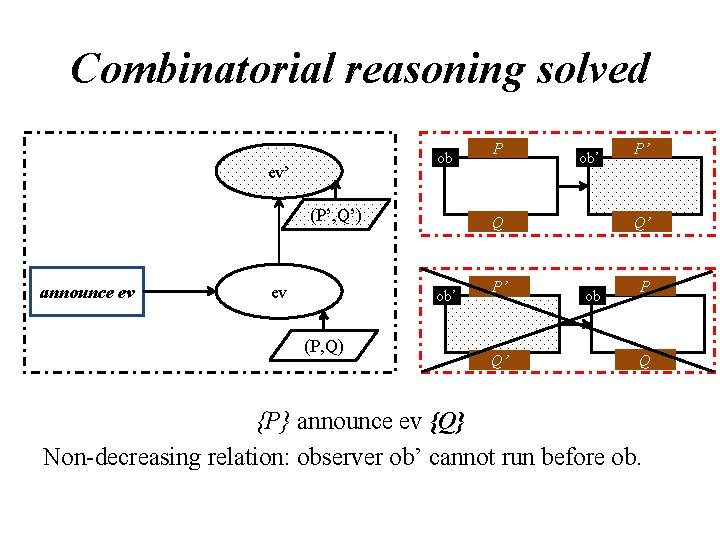

Combinatorial reasoning solved ob ev’ (P’, Q’) announce ev ev ob’ Q ob’ (P, Q) P P’ Q’ ob P Q {P} announce ev {Q} Non-decreasing relation: observer ob’ cannot run before ob.

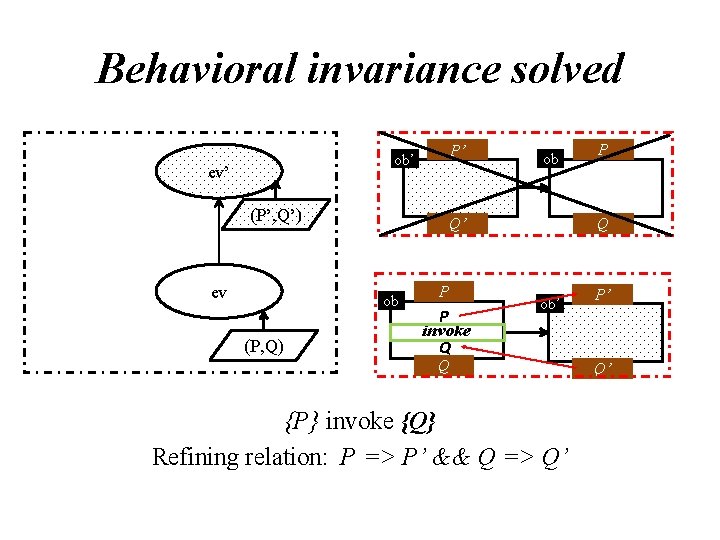

Behavioral invariance solved P’ ob’ ev’ (P’, Q’) ev P P invoke Q P Q Q’ ob (P, Q) ob ob’ Q {P} invoke {Q} Refining relation: P => P’ && Q => Q’ P’ Q’

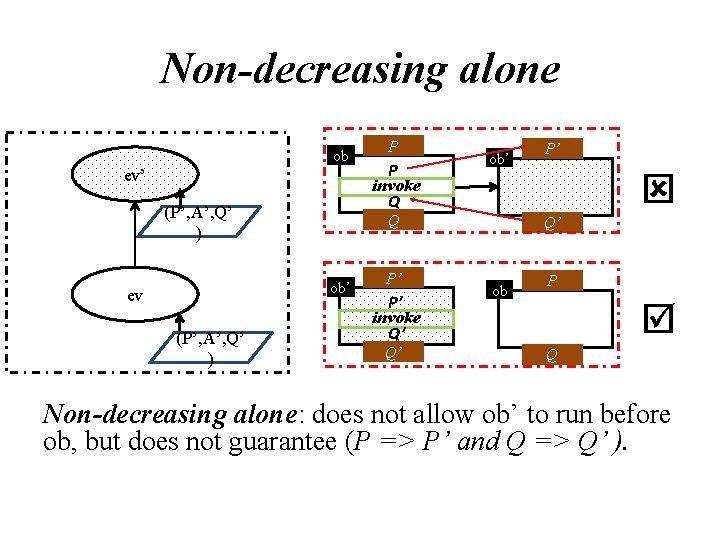

Non-decreasing alone ob ev’ (P’, A’, Q’ ) P invoke Q ob’ ev P P’ P’ invoke Q’ Q’ P’ Q’ ob P Q Non-decreasing alone: does not allow ob’ to run before ob, but does not guarantee (P => P’ and Q => Q’ ).

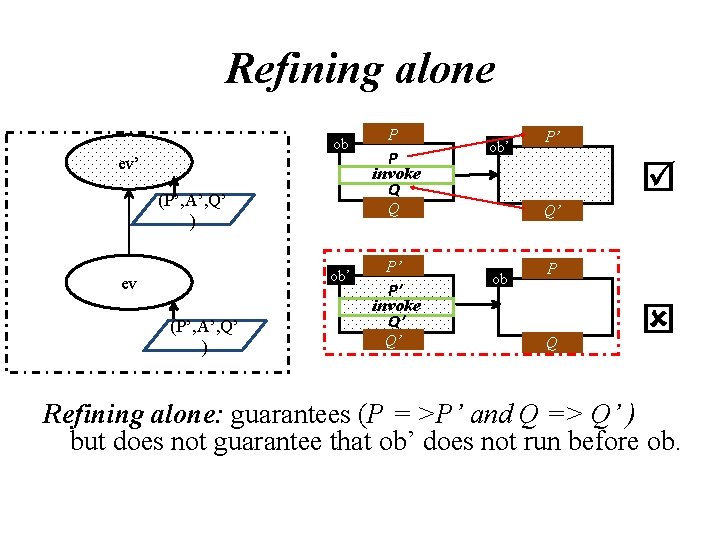

Refining alone ob ev’ (P’, A’, Q’ ) P invoke Q ob’ ev P P’ P’ invoke Q’ Q’ P’ Q’ ob P Q Refining alone: guarantees (P = >P’ and Q => Q’ ) but does not guarantee that ob’ does not run before ob.

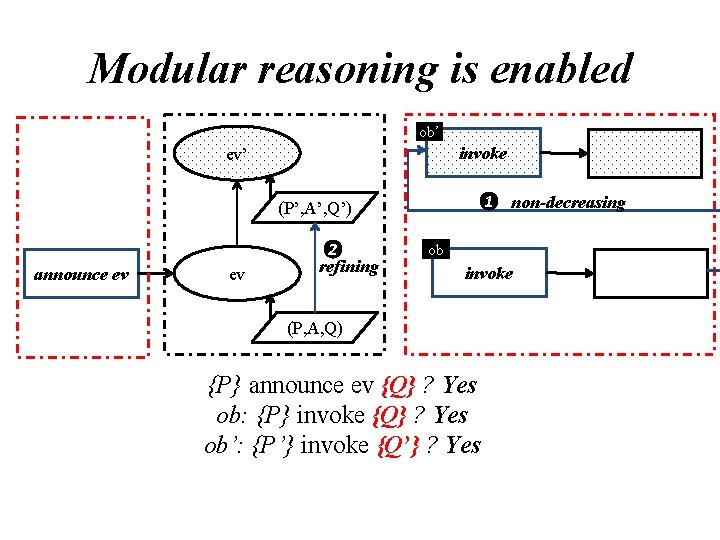

Modular reasoning is enabled ob’ invoke ev’ 1 non-decreasing (P’, A’, Q’) announce ev ev 2 refining ob invoke (P, A, Q) {P} announce ev {Q} ? Yes ob: {P} invoke {Q} ? Yes ob’: {P’} invoke {Q’} ? Yes

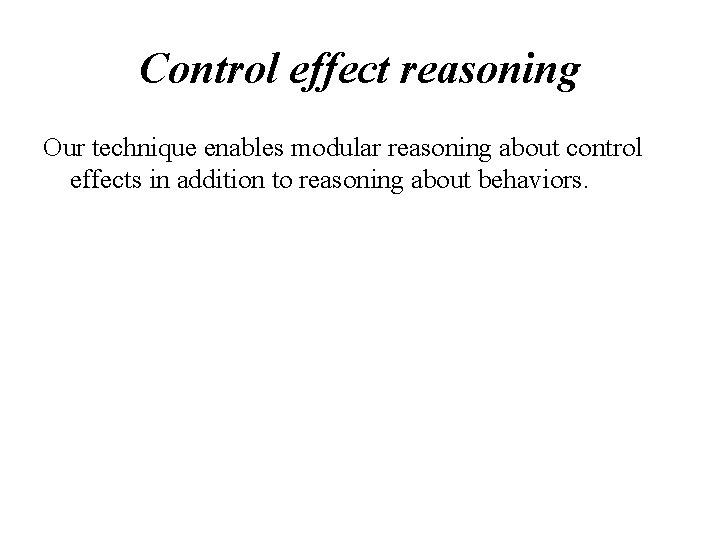

Control effect reasoning Our technique enables modular reasoning about control effects in addition to reasoning about behaviors.

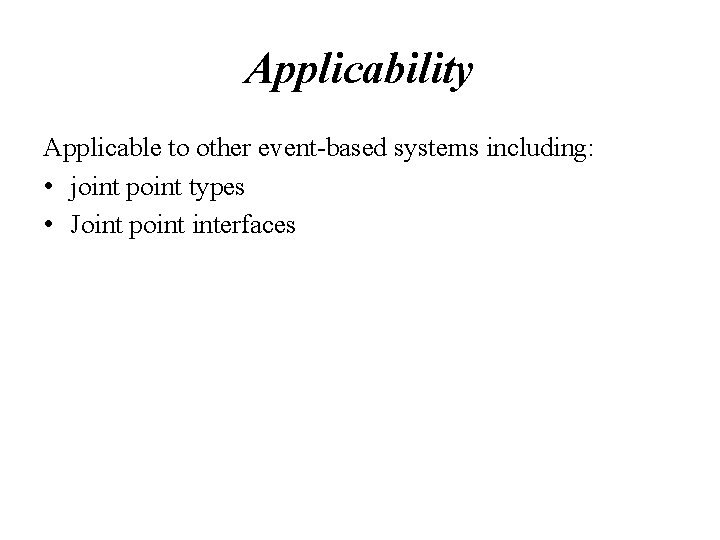

Applicability Applicable to other event-based systems including: • joint point types • Joint point interfaces

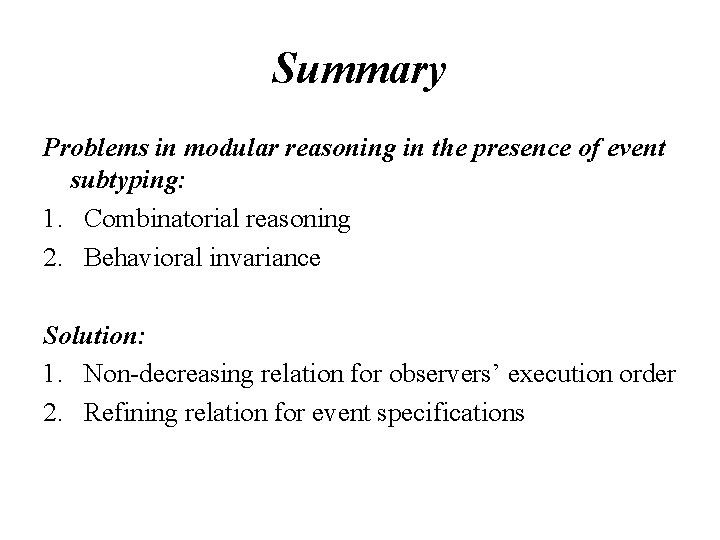

Summary Problems in modular reasoning in the presence of event subtyping: 1. Combinatorial reasoning 2. Behavioral invariance Solution: 1. Non-decreasing relation for observers’ execution order 2. Refining relation for event specifications
