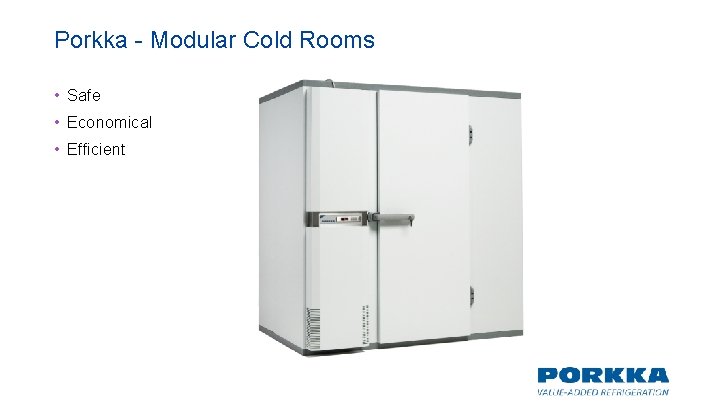

Porkka - Modular Cold Rooms • Safe • Economical • Efficient

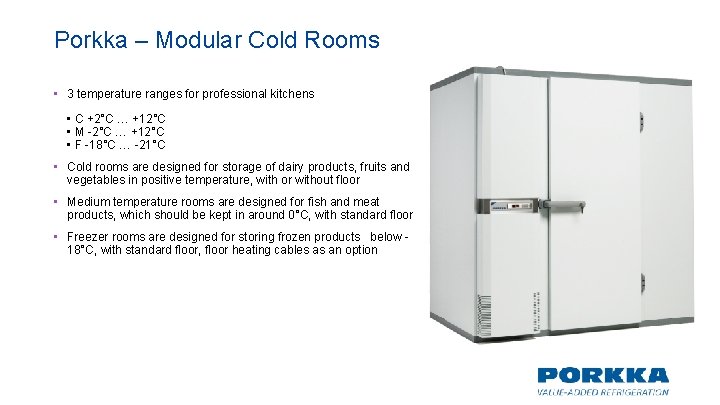

Porkka – Modular Cold Rooms • 3 temperature ranges for professional kitchens • C +2°C … +12°C • M -2°C … +12°C • F -18°C … -21°C • Cold rooms are designed for storage of dairy products, fruits and vegetables in positive temperature, with or without floor • Medium temperature rooms are designed for fish and meat products, which should be kept in around 0°C, with standard floor • Freezer rooms are designed for storing frozen products below 18°C, with standard floor, floor heating cables as an option

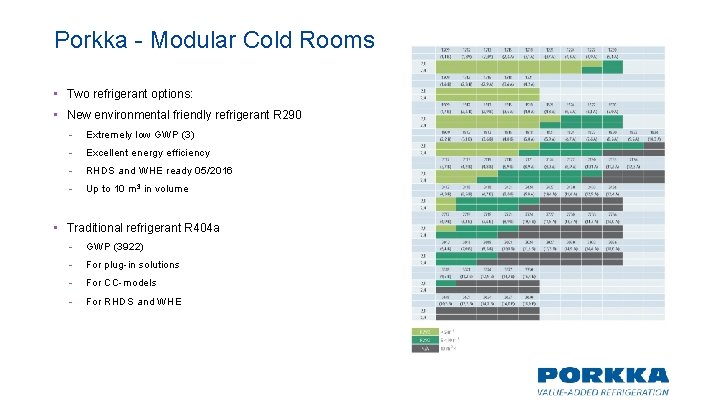

Porkka - Modular Cold Rooms • Two refrigerant options: • New environmental friendly refrigerant R 290 - Extremely low GWP (3) - Excellent energy efficiency - RHDS and WHE ready 05/2016 - Up to 10 m 3 in volume • Traditional refrigerant R 404 a - GWP (3922) - For plug-in solutions - For CC-models - For RHDS and WHE

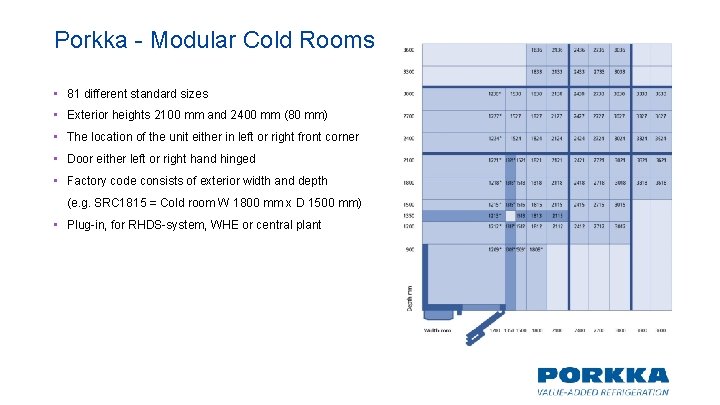

Porkka - Modular Cold Rooms • 81 different standard sizes • Exterior heights 2100 mm and 2400 mm (80 mm) • The location of the unit either in left or right front corner • Door either left or right hand hinged • Factory code consists of exterior width and depth (e. g. SRC 1815 = Cold room W 1800 mm x D 1500 mm) • Plug-in, for RHDS-system, WHE or central plant

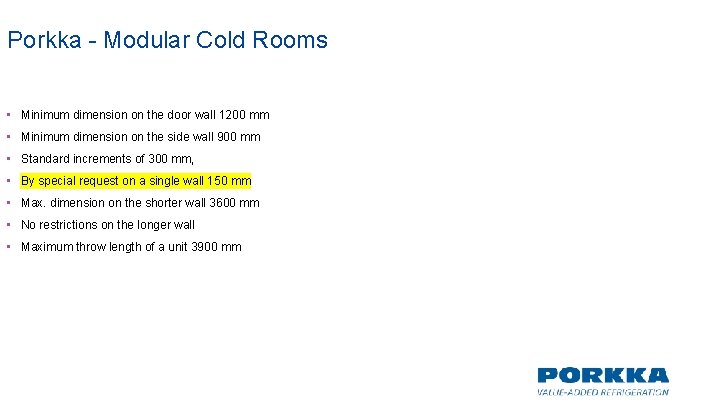

Porkka - Modular Cold Rooms • Minimum dimension on the door wall 1200 mm • Minimum dimension on the side wall 900 mm • Standard increments of 300 mm, • By special request on a single wall 150 mm • Max. dimension on the shorter wall 3600 mm • No restrictions on the longer wall • Maximum throw length of a unit 3900 mm

Porkka – Modular Cold Rooms / floor variants

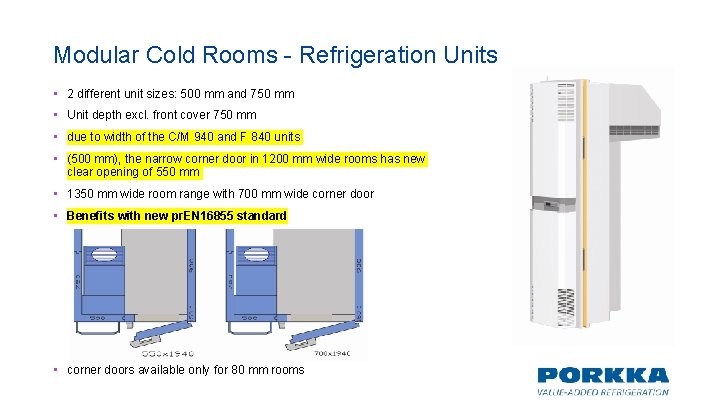

Modular Cold Rooms - Refrigeration Units • 2 different unit sizes: 500 mm and 750 mm • Unit depth excl. front cover 750 mm • due to width of the C/M 940 and F 840 units • (500 mm), the narrow corner door in 1200 mm wide rooms has new clear opening of 550 mm • 1350 mm wide room range with 700 mm wide corner door • Benefits with new pr. EN 16855 standard • corner doors available only for 80 mm rooms

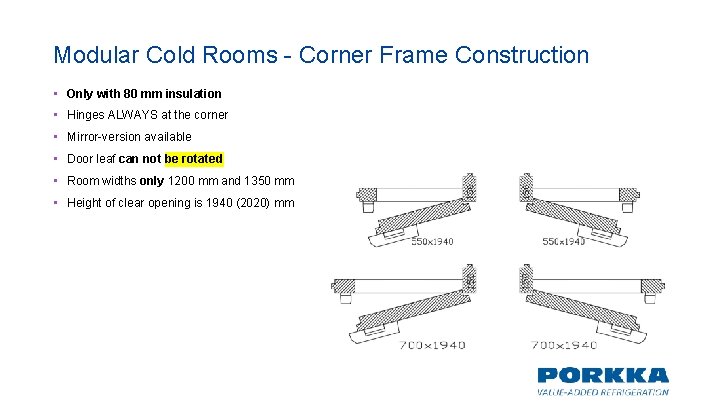

Modular Cold Rooms - Corner Frame Construction • Only with 80 mm insulation • Hinges ALWAYS at the corner • Mirror-version available • Door leaf can not be rotated • Room widths only 1200 mm and 1350 mm • Height of clear opening is 1940 (2020) mm

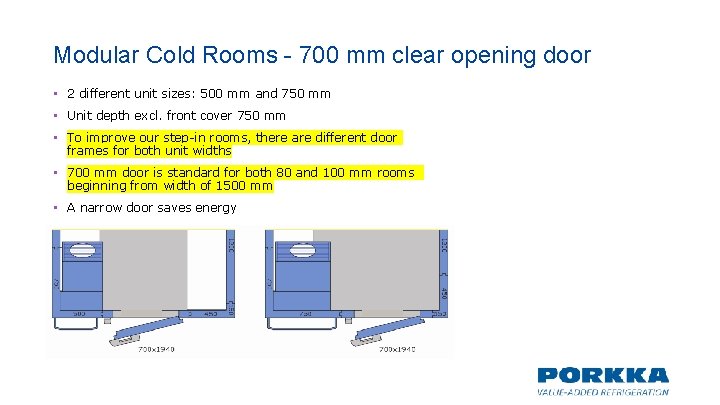

Modular Cold Rooms - 700 mm clear opening door • 2 different unit sizes: 500 mm and 750 mm • Unit depth excl. front cover 750 mm • To improve our step-in rooms, there are different door frames for both unit widths • 700 mm door is standard for both 80 and 100 mm rooms beginning from width of 1500 mm • A narrow door saves energy

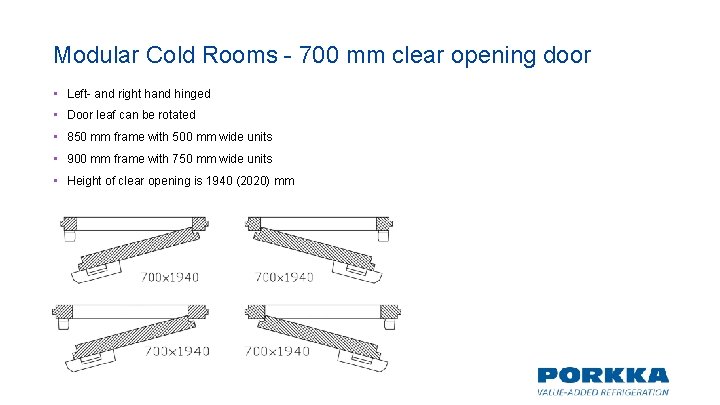

Modular Cold Rooms - 700 mm clear opening door • Left- and right hand hinged • Door leaf can be rotated • 850 mm frame with 500 mm wide units • 900 mm frame with 750 mm wide units • Height of clear opening is 1940 (2020) mm

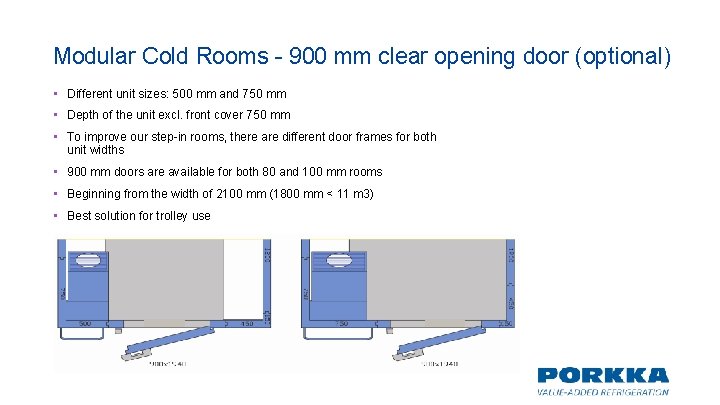

Modular Cold Rooms - 900 mm clear opening door (optional) • Different unit sizes: 500 mm and 750 mm • Depth of the unit excl. front cover 750 mm • To improve our step-in rooms, there are different door frames for both unit widths • 900 mm doors are available for both 80 and 100 mm rooms • Beginning from the width of 2100 mm (1800 mm < 11 m 3) • Best solution for trolley use

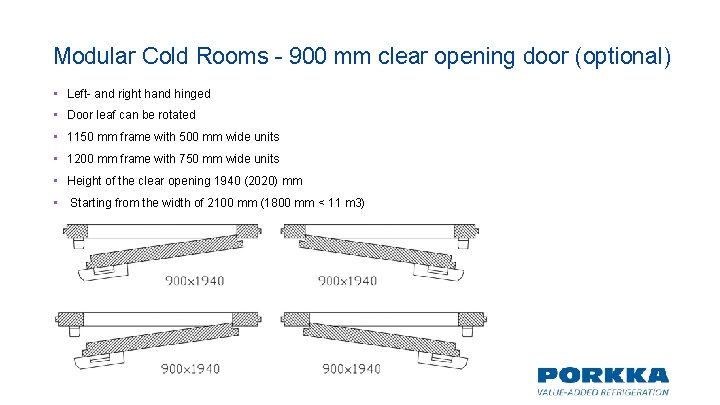

Modular Cold Rooms - 900 mm clear opening door (optional) • Left- and right hand hinged • Door leaf can be rotated • 1150 mm frame with 500 mm wide units • 1200 mm frame with 750 mm wide units • Height of the clear opening 1940 (2020) mm • Starting from the width of 2100 mm (1800 mm < 11 m 3)

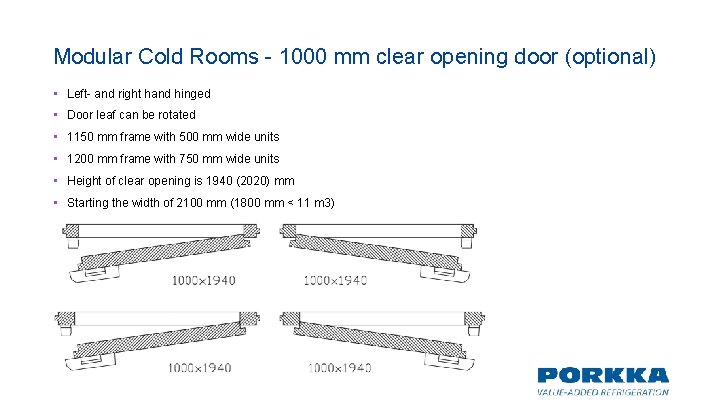

Modular Cold Rooms - 1000 mm clear opening door (optional) • Left- and right hand hinged • Door leaf can be rotated • 1150 mm frame with 500 mm wide units • 1200 mm frame with 750 mm wide units • Height of clear opening is 1940 (2020) mm • Starting the width of 2100 mm (1800 mm < 11 m 3)

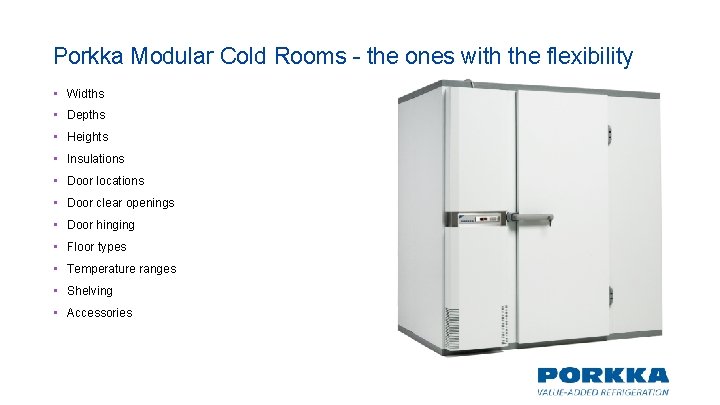

Porkka Modular Cold Rooms - the ones with the flexibility • Widths • Depths • Heights • Insulations • Door locations • Door clear openings • Door hinging • Floor types • Temperature ranges • Shelving • Accessories

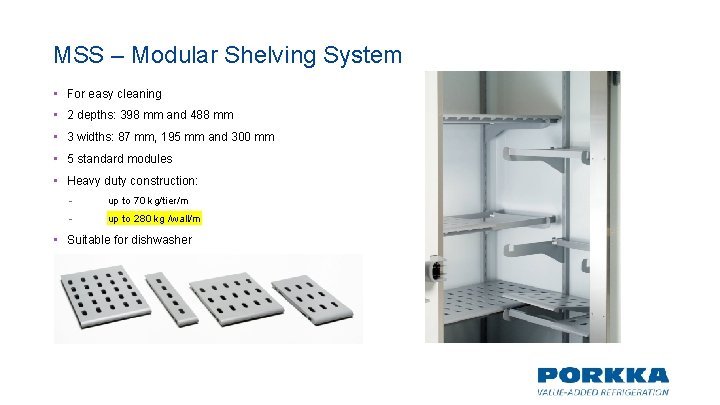

MSS – Modular Shelving System • For easy cleaning • 2 depths: 398 mm and 488 mm • 3 widths: 87 mm, 195 mm and 300 mm • 5 standard modules • Heavy duty construction: - up to 70 kg/tier/m - up to 280 kg /wall/m • Suitable for dishwasher

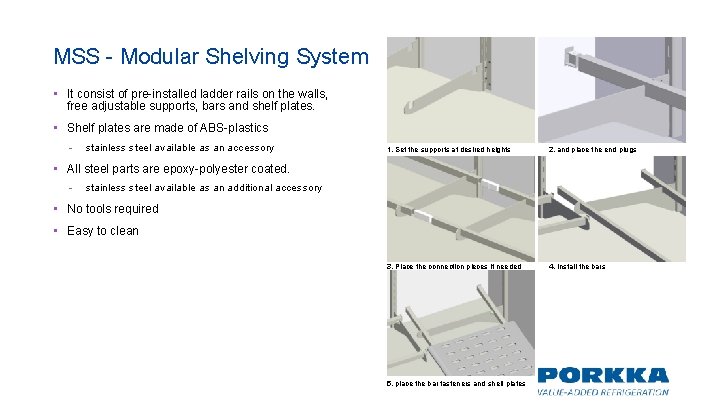

MSS - Modular Shelving System • It consist of pre-installed ladder rails on the walls, free adjustable supports, bars and shelf plates. • Shelf plates are made of ABS-plastics - stainless steel available as an accessory 1. Set the supports at desired heights 2. and place the end plugs 3. Place the connection pieces if needed 4. Install the bars • All steel parts are epoxy-polyester coated. - stainless steel available as an additional accessory • No tools required • Easy to clean 5. place the bar fasteners and shelf plates

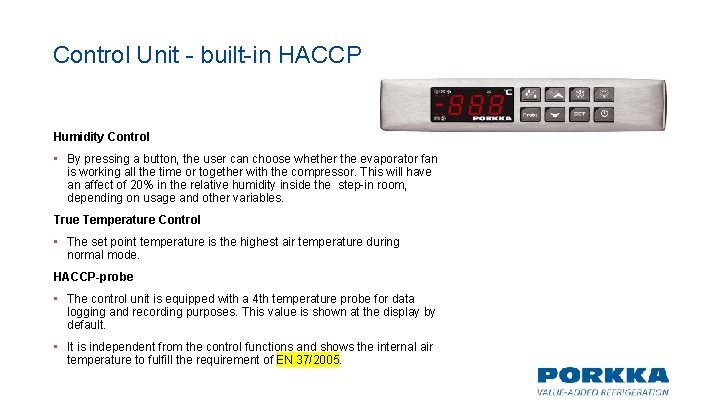

Control Unit - built-in HACCP Humidity Control • By pressing a button, the user can choose whether the evaporator fan is working all the time or together with the compressor. This will have an affect of 20% in the relative humidity inside the step-in room, depending on usage and other variables. True Temperature Control • The set point temperature is the highest air temperature during normal mode. HACCP-probe • The control unit is equipped with a 4 th temperature probe for data logging and recording purposes. This value is shown at the display by default. • It is independent from the control functions and shows the internal air temperature to fulfill the requirement of EN 37/2005.

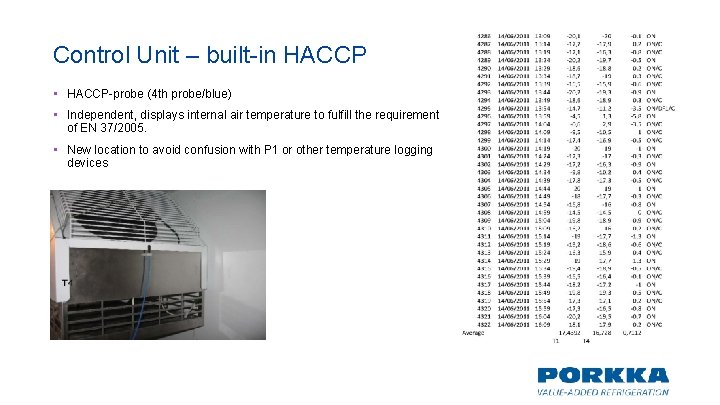

Control Unit – built-in HACCP • HACCP-probe (4 th probe/blue) • Independent, displays internal air temperature to fulfill the requirement of EN 37/2005. • New location to avoid confusion with P 1 or other temperature logging devices

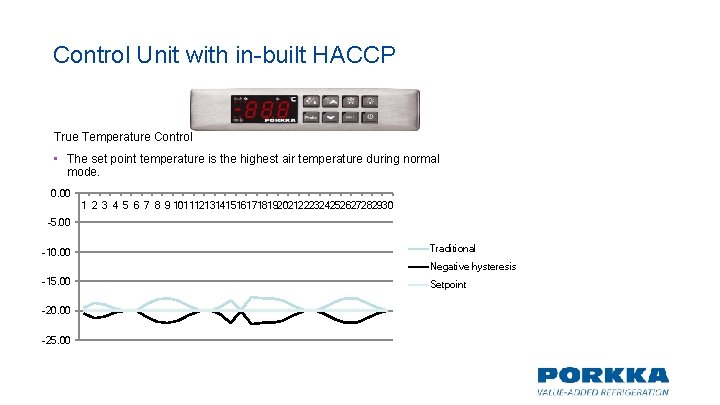

Control Unit with in-built HACCP True Temperature Control • The set point temperature is the highest air temperature during normal mode. 0. 00 1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930 -5. 00 -10. 00 Traditional Negative hysteresis -15. 00 -20. 00 -25. 00 Setpoint

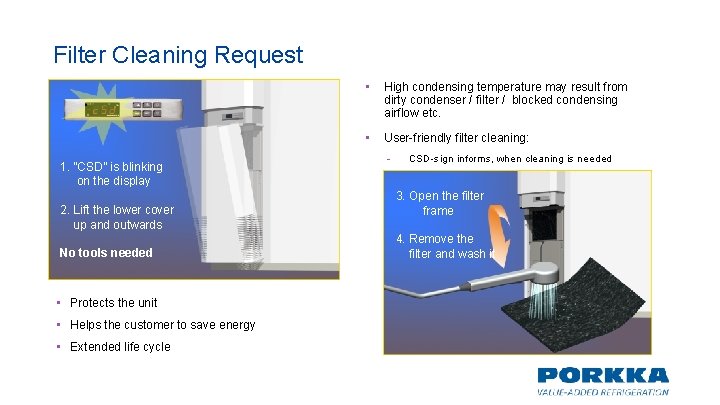

Filter Cleaning Request 1. ”CSD” is blinking on the display 2. Lift the lower cover up and outwards No tools needed • Protects the unit • Helps the customer to save energy • Extended life cycle • High condensing temperature may result from dirty condenser / filter / blocked condensing airflow etc. • User-friendly filter cleaning: - CSD-sign informs, when cleaning is needed 3. Open the filter frame 4. Remove the filter and wash it

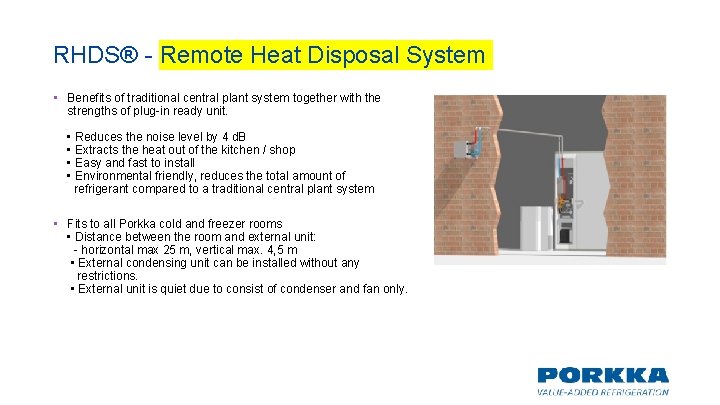

RHDS® - Remote Heat Disposal System • Benefits of traditional central plant system together with the strengths of plug-in ready unit. • Reduces the noise level by 4 d. B • Extracts the heat out of the kitchen / shop • Easy and fast to install • Environmental friendly, reduces the total amount of refrigerant compared to a traditional central plant system • Fits to all Porkka cold and freezer rooms • Distance between the room and external unit: - horizontal max 25 m, vertical max. 4, 5 m • External condensing unit can be installed without any restrictions. • External unit is quiet due to consist of condenser and fan only.

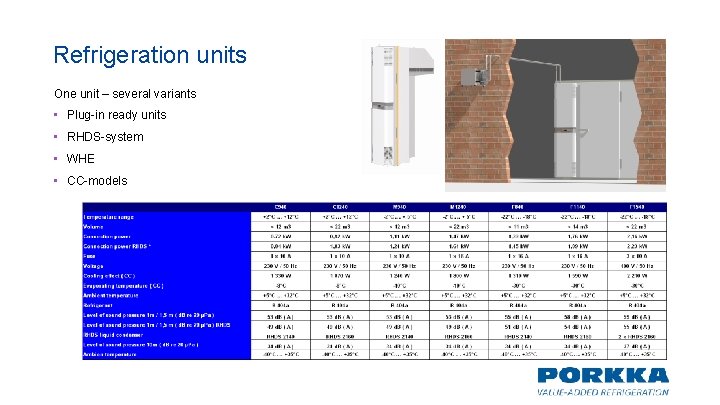

Refrigeration units One unit – several variants • Plug-in ready units • RHDS-system • WHE • CC-models
