Modular Ceiling Loudspeaker Communications Systems 1 STPRM 3
- Slides: 14
Modular Ceiling Loudspeaker Communications Systems 1 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

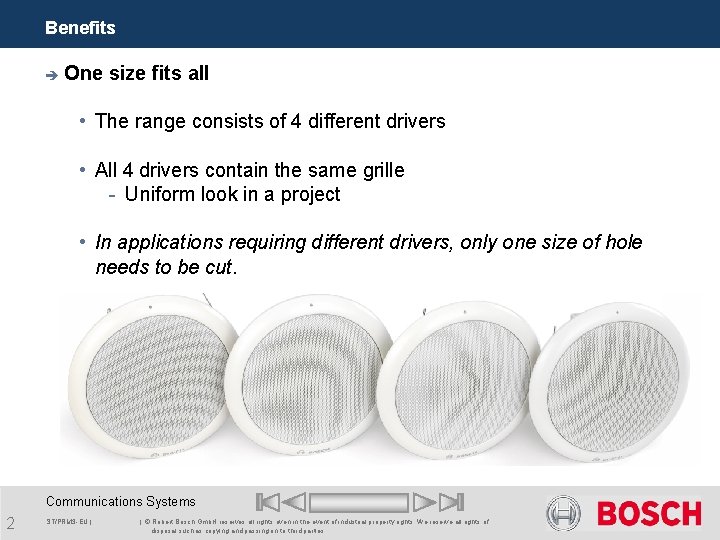

Benefits è One size fits all • The range consists of 4 different drivers • All 4 drivers contain the same grille - Uniform look in a project • In applications requiring different drivers, only one size of hole needs to be cut. Communications Systems 2 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Features 4 different loudspeaker drivers è LC 1 -WM 06 E 8 6 W è 4’’ LC 1 -UM 06 E 8 6 W è 6’’ è è What’s the difference? • LC 1 -WM 06 E 8 has a large opening angle - Low ceiling • LC 1 -UM 06 E 8 can produce a higher SPL - Normal ceiling height Communications Systems 3 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Features 4 different loudspeaker drivers LC 1 -WM 06 E 8 è è è 6 W 4’’ Large opening angle LC 1 -UM 06 E 8 è è è 6 W 6’’ Increased SPL LC 1 -UM 12 E 8 è è 12 W 6’’ Two-way coaxial Wide frequency range Communications Systems 4 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. LC 1 -UM 24 E 8 è è 24 W 6’’ Two-way coaxial Wide frequency range
Benefits è Modular design: Every accessory fits every driver. • All the preliminary work is equal when applying different drivers in a project. • Ordering and stocking is easy and simple. Communications Systems 5 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Benefits è New innovative ceramic connector • Installations with fire-resistant cables and fire domes are installed much easier. © Patent pending Communications Systems 6 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Benefits è New innovative ceramic connector • Pre-wiring only requires the connector • The stiff cable does not need to be pulled into the fire dome. Communications Systems 7 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

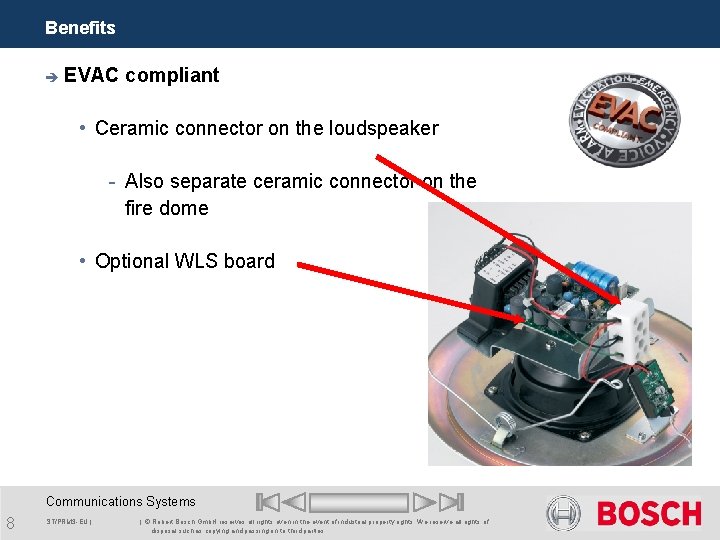

Benefits è EVAC compliant • Ceramic connector on the loudspeaker - Also separate ceramic connector on the fire dome • Optional WLS board Communications Systems 8 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Feature è Optional pilot tone indication board • Fast searching for defects in loudspeaker lines by visual check. Pilot tone indication board (optional) Light guide LED Communications Systems 9 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Installation è 4 different ceiling mounting methods • metal U-bracket • ABS mounting ring • ABS surface mounting box • Fire dome Communications Systems 10 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Installation è Metal U-bracket Fastening point for safety cord Bending area for thick ceiling Extra screw fixing holes Holes for tie-wrap fixing for strain relief Communications Systems 11 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Installation è ABS mounting ring • Optional back box Screw driven clamps Communications Systems 12 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
Installation è è ABS surface mounting box Optional kit for pendant mounting Communications Systems 13 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

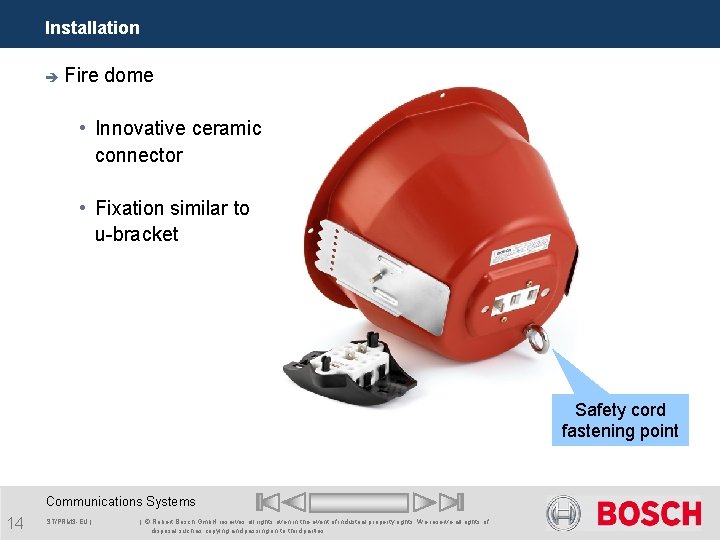

Installation è Fire dome • Innovative ceramic connector • Fixation similar to u-bracket Safety cord fastening point Communications Systems 14 ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
