Modified Variational Iteration Method for Partial Differential Equations
- Slides: 32
Modified Variational Iteration Method for Partial Differential Equations Using Ma’s Transformation SYED TAUSEEF MOHYUD-DIN
Variational Iteration Techniques for Solving Initial and Boundary Value Problems Introduction and History Use of Initial and Boundary Conditions Correction Functional Selection of Initial Value Restricted Variation Conversion to a System of Equations Identification of Lagrange Multiplier Simpler
Variational Iteration Techniques for Solving Initial and Boundary Value Problems o o o Applications of Variational Iteration Method Modifications (VIMHP and VIMAP) Applications in Singular Problems (Use of New Transformations)
Advantages of Variational Iteration Method o o o Use of Lagrange Multiplier (reduces the successive applications of integral operator) Independent of the Complexities of Adomian’s Polynomials Use of Initial Conditions only No Discretization or Linearization or Unrealistic Assumptions Independent of the Small Parameter Assumption
Applications o o o o Boundary Value Problems of various-orders Boussinesq Equations Thomas-Fermi Model Unsteady Flow of Gas through Porous Medium Boundary Layer Flows Blasius Problem Goursat Problems Laplace Problems
Applications o o o o Heat and Wave Like Models Burger Equations Parabolic Equations Kd. Vs of Third, Fourth and Seventh-orders Evolution Equations Higher-dimensional IBVPS Helmholtz Equations

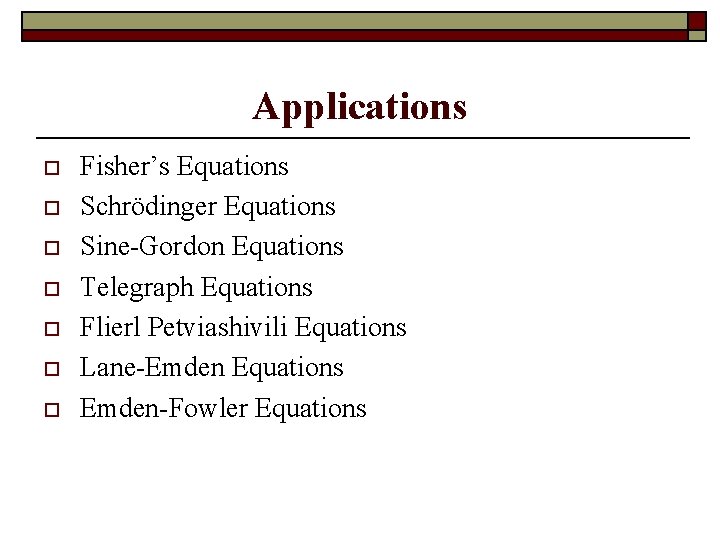

Applications o o o o Fisher’s Equations Schrödinger Equations Sine-Gordon Equations Telegraph Equations Flierl Petviashivili Equations Lane-Emden Equations Emden-Fowler Equations
Variational Iteration Method Correction functional
Variational Iteration Method Using He’s Polynomials (VIMHP)
Modified Variational Iteration Method for Partial Differential Equations Using Ma’s Transformation

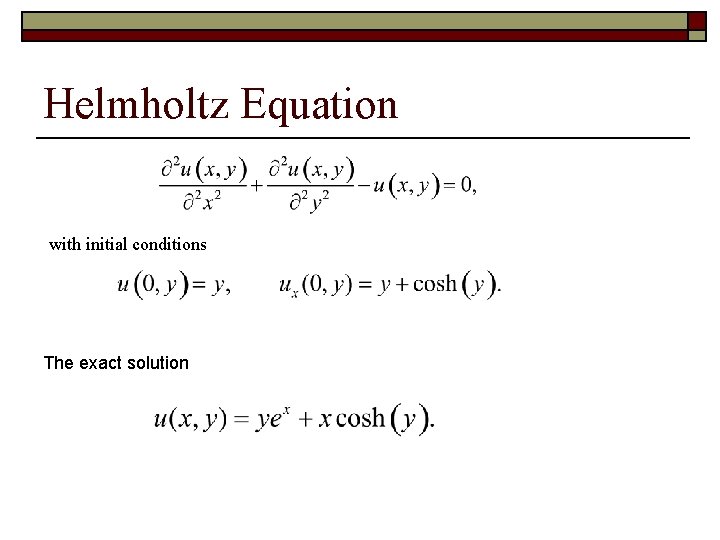

Helmholtz Equation with initial conditions The exact solution

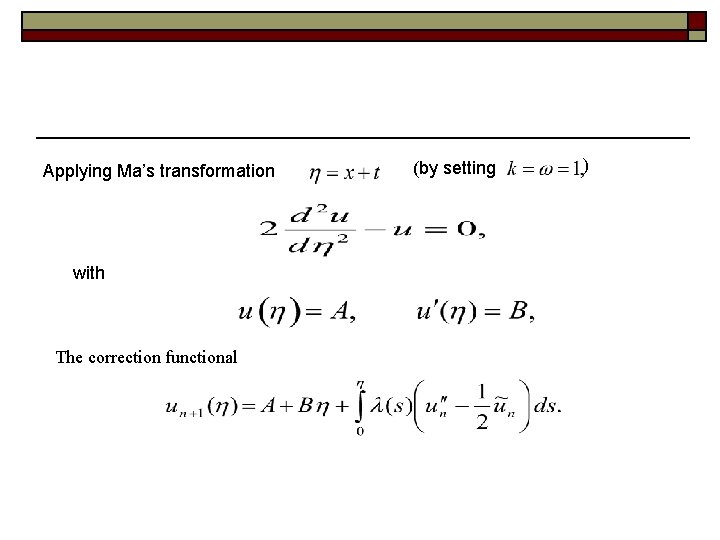

Applying Ma’s transformation with The correction functional (by setting )
Applying modified variational iteration method (MVIM)
Comparing the co-efficient of like powers of p, following approximants are obtained .

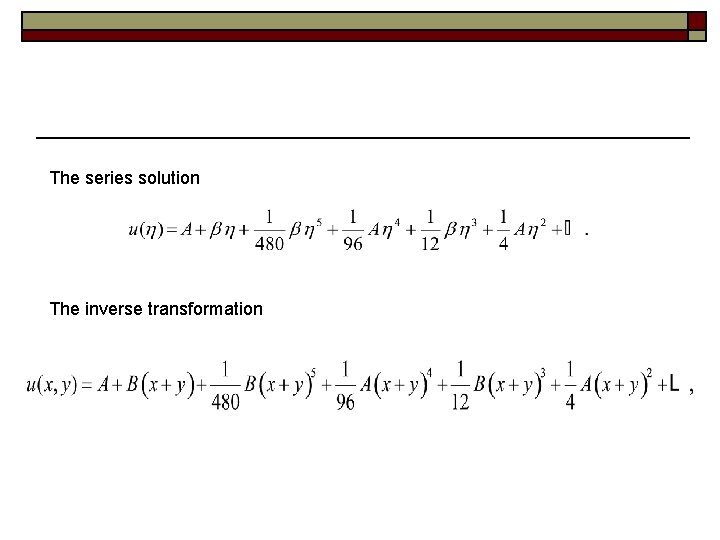

The series solution The inverse transformation
the use of initial condition The solution after two iterations is given by
Figure 3. 1 Solution by Proposed Algorithm Exact solution
Helmholtz Equation with initial conditions The exact solution for this problem is
Applying Ma’s transformation with The correction functional is given by (by setting
Applying modified variational iteration method (MVIM)

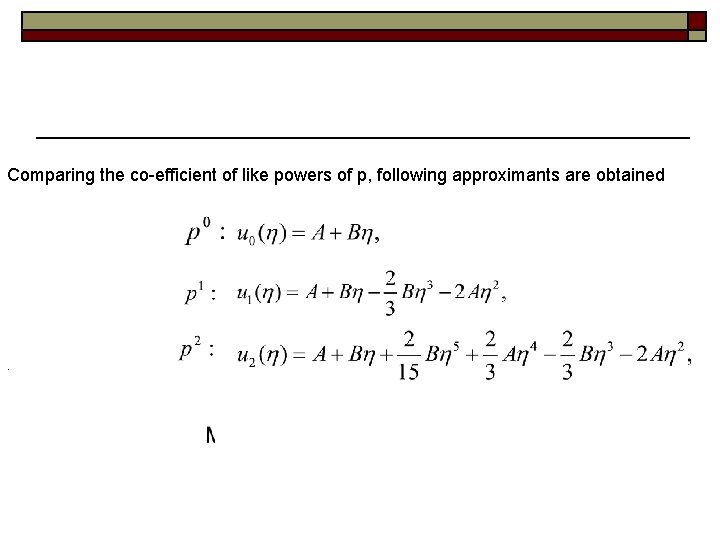

Comparing the co-efficient of like powers of p, following approximants are obtained .
The series solution is given by the inverse transformation will yield
The use of initial condition gives The solution after two iterations is given by
Table 1 (Error estimates at *Error = ) Exact solution Approx solution -1. 0 -. 0744491770 -. 082675613 8. 22 E-03 -0. 8 -. 0039143995 -. 0058010496 1. 88 E-03 -0. 6 . 0722477834 . 0719893726 2. 58 E-04 -0. 4 . 1384269365 . 1384142557 1. 26 E-05 -0. 2 . 1829867759 . 1829865713 2. 04 E-07 0 . 1986693308 0. 000000 0. 2 . 1829991064 . 1829865713 1. 25 E-05 0. 6 . 1386872460 . 1384142557 2. 72 E-04 0. 8 . 0740356935 . 0719893726 2. 04 E-03 1. 0 . 0033413560 -. 0058010496 9. 14 E-03 1. 0 -. 0526997339 -. 0826756135 2. 99 E-02 Exact solution – Approximate solution *Errors
Homogeneous Telegraph Equation. with initial and boundary conditions The exact solution for this problem is

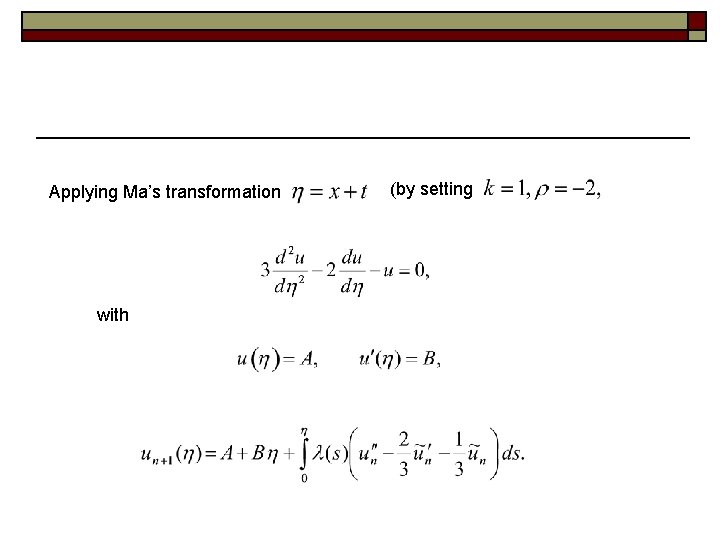

Applying Ma’s transformation with (by setting
Applying modified variational iteration method (MVIM)
Comparing the co-efficient of like powers of p, following approximants are obtained The series solution is given by
The inverse transformation would yield and use of initial condition gives
The solution after two iterations is given by . Solution by Proposed Algorithm Exact solution
CONCLUSION
THANK YOU
