MODFLOW DATA MODEL An extension of the Arc
- Slides: 36
MODFLOW DATA MODEL An extension of the Arc Hydro Groundwater Simulation feature dataset
Simulation Feature Data Set
Boundary Polygon J I
Cell 2 D and Node 2 D Features Cell 2 D Node 2 D
CELL 3 D Features
Ancestral Streams
Ancestral Streams
Ancestral Streams
Riverbank Model Layer 1 § Consists of sands, silts, and clays from floodplain and alluvial deposits § Superjacent ancestral stream channels cut across this formation creating lateral channels of gravels and unconsolidated sediments
Turlock Lake Laguna Formation Model Layers 3, 4 and 5 § § Predominantly consists of sands, silts, and clays Superjacent ancestral stream channels cut across this formation, creating lateral channels of gravels and unconsolidated sediments
Mehrten Formation Model Layers 6, 7 and 8 § Composed of two dominant units: § Black andesitic sands “salt and pepper sand” and blue and brown clays § Hard gray and black tuff-breccias “lava”
Valley Springs Formation Model Layer 9 § Consists of rhyolite ash, quartz sand , and ashy clay
Ione Formation Model Layer 10 § Consists of sandstone, silts, and clays
Interface Data Models
MODFLOW Data Model n n Data standard for storing MODFLOW models in a GIS database Importing models built externally Building new MODFLOW models inside Arc. GIS Custom scripts for analyzing/modifying models can be developed as geoprocessing tools

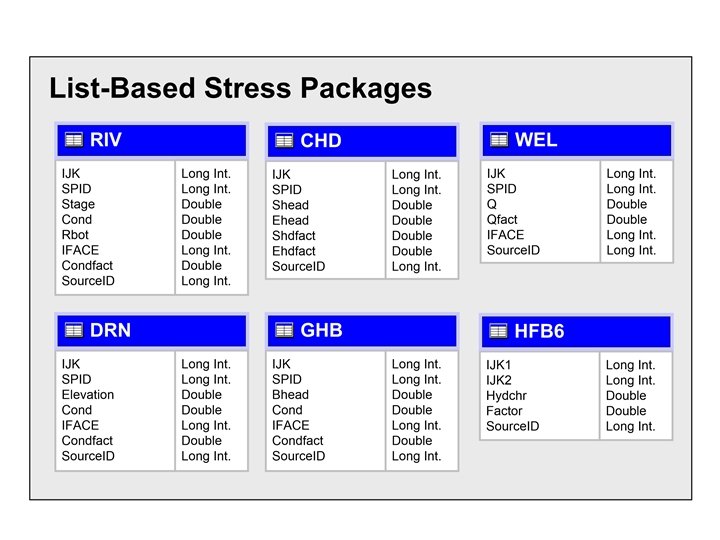

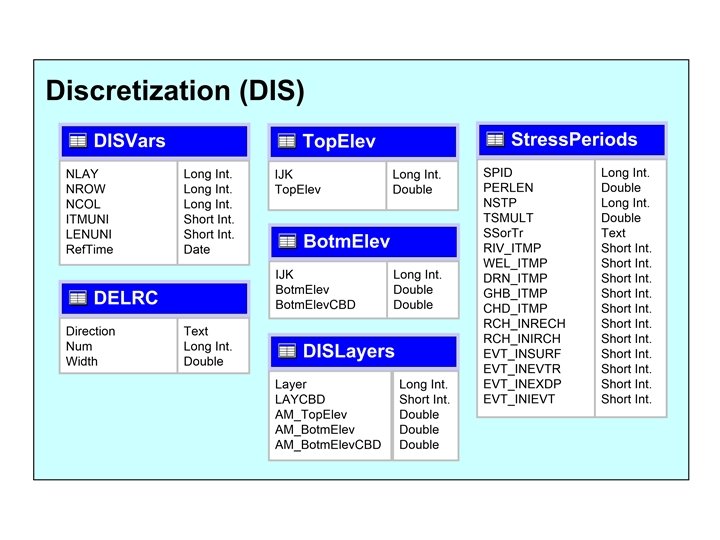

MODFLOW Data Model
MODFLOW Analyst Tools § Developed as geoprocessing (GP) tools § Classes of tools § § § Import Export Visualization/Map Layers Model editing Building package input Working with transient input/solutions
Import MODFLOW Model Tool INPUT OUTPUT
Make MODFLOW Features Tool + Or Node 2 D Cell 2 D INPUT OUTPUT
Map Layer – Computed Head
Build Package Input § Discretize: § Spatial § Polygons K zones (overlay) § Points K values (interpolate) § Polylines River cells § Points Wells § Temporal § Time Series Stress Periods
Discretization of Features
MODFLOW Array from Polygons
Geoprocessing Tools
Geoprocessing Tools

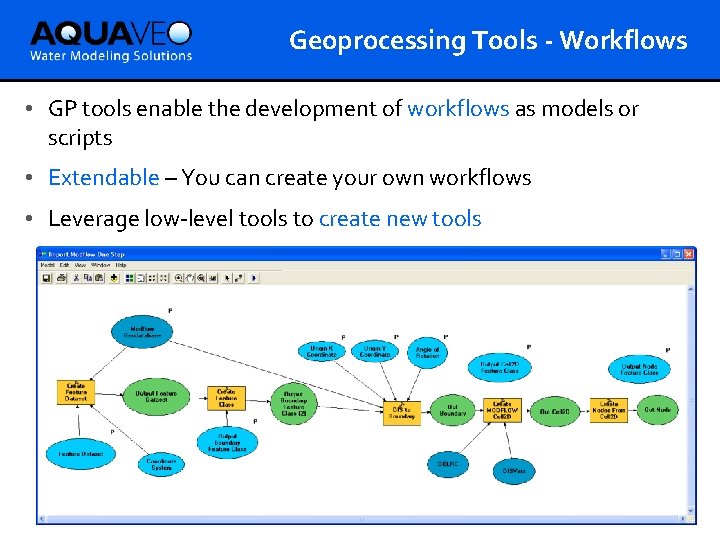

Geoprocessing Tools - Workflows • GP tools enable the development of workflows as models or scripts • Extendable – You can create your own workflows • Leverage low-level tools to create new tools
Model Domain
Land Use Patterns

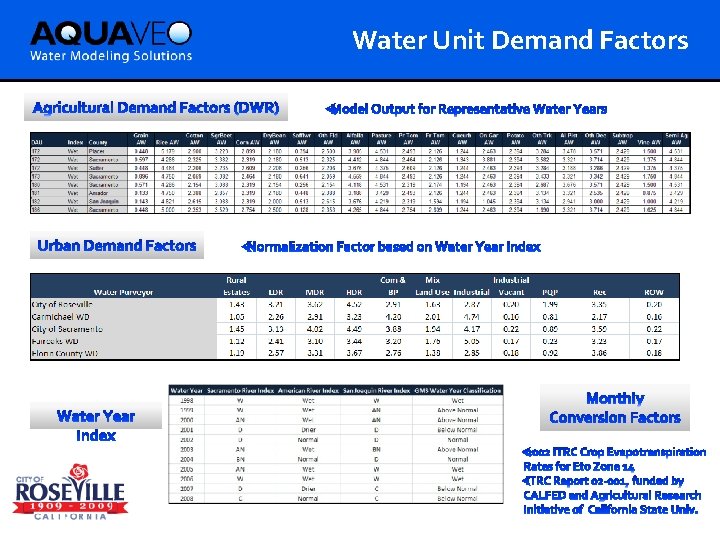

Water Unit Demand Factors
Calibration of Urban Demand Factors
GSSHA Results 1 2 3 4 5 6 7
Automated Workflow GSSHA simulations Recharge coeff. for each STLU for each water year Master Land Use Files Water Unit Demand Factors Water Year Calculate Change in Land Use Total Recharge GSSHA Simulation Recharge Coeffs Calculate Recharge Model Total Applied Water and Precip Calculate Water Demand Calculate Total Applied Water Budgeting and Accounting Recharge to MODFLOW Total Flow from Ungaged Watersheds Calculate Demand Summary Distribute Demand Lateral Inflow to MODFLOW
For more information http: //www. archydrogw. com (AHGW Wiki page) http: //www. aquaveo. com/archydro (Info on tools) Norm Jones njones@aquaveo. com
