MODFLOW DATA MODEL An extension of the Arc

MODFLOW DATA MODEL An extension of the Arc Hydro Groundwater Simulation feature dataset

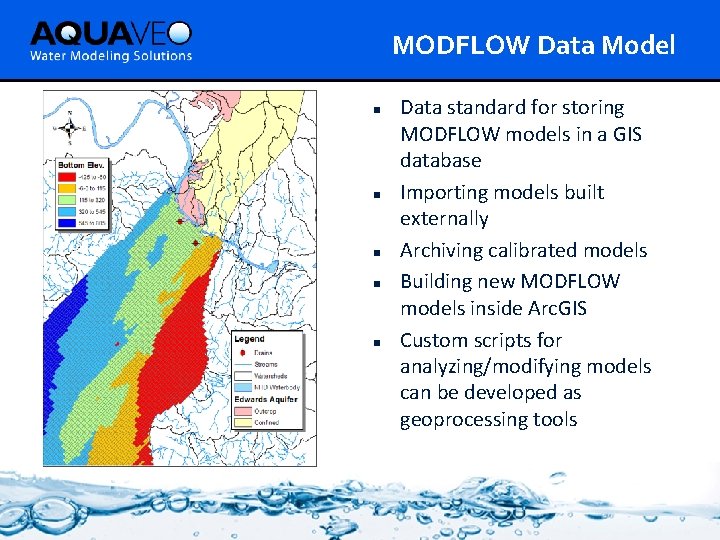

MODFLOW Data Model n n n Data standard for storing MODFLOW models in a GIS database Importing models built externally Archiving calibrated models Building new MODFLOW models inside Arc. GIS Custom scripts for analyzing/modifying models can be developed as geoprocessing tools

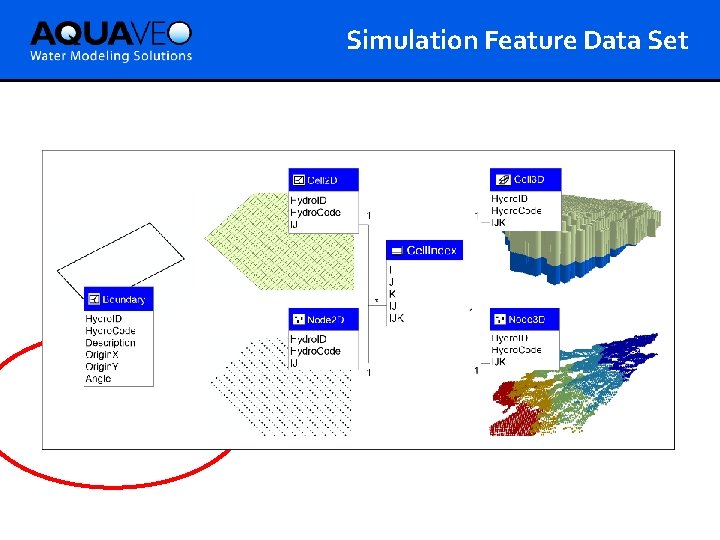

Simulation Feature Data Set

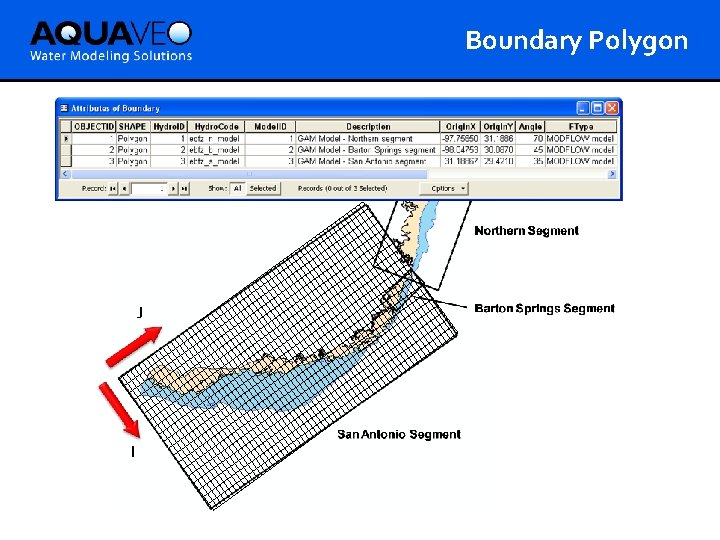

Boundary Polygon J I

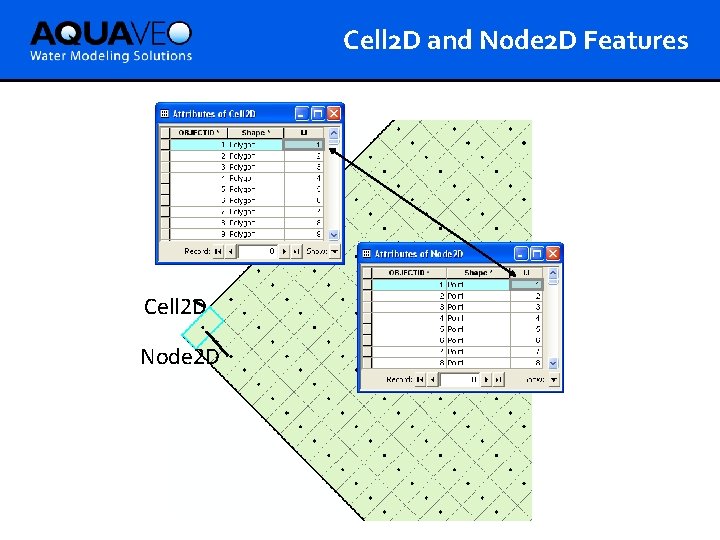

Cell 2 D and Node 2 D Features Cell 2 D Node 2 D

Arc Hydro Groundwater WPCGMP CELL 3 D ANIMATION

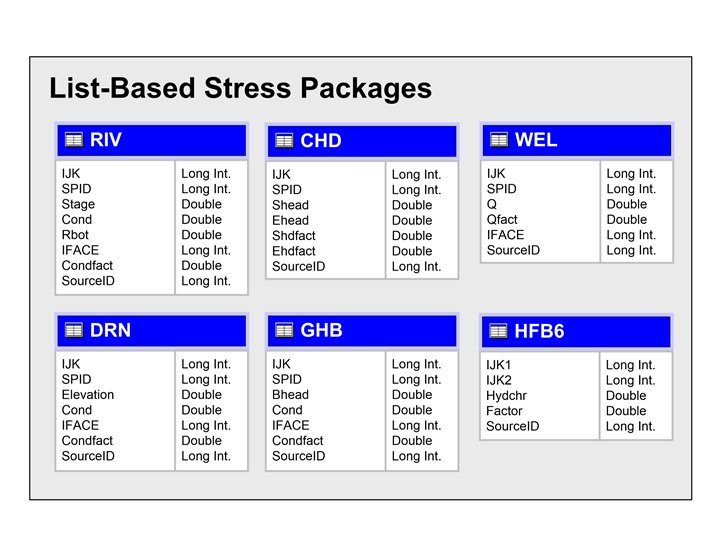

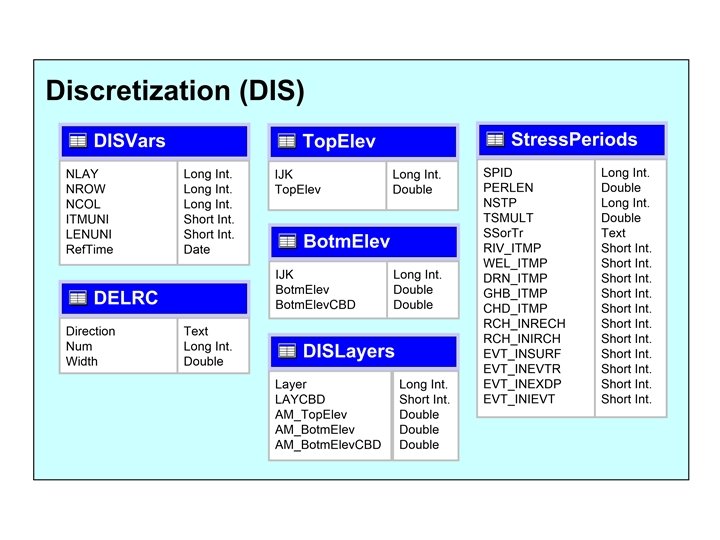

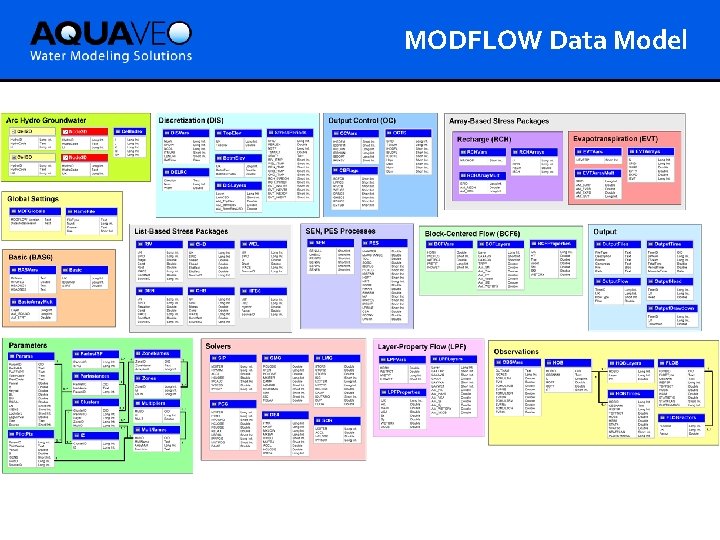

MODFLOW Data Model

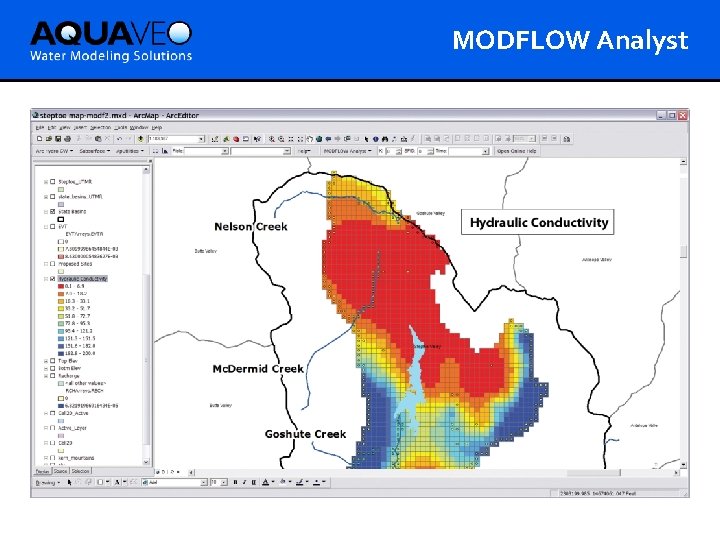

MODFLOW Analyst

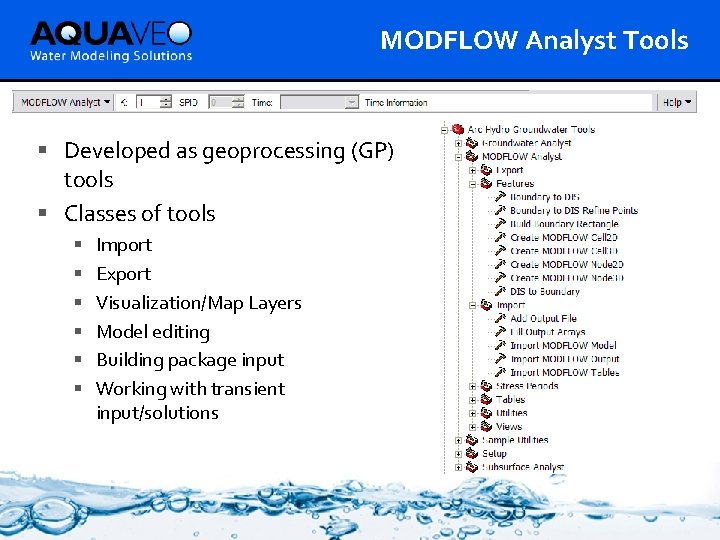

MODFLOW Analyst Tools § Developed as geoprocessing (GP) tools § Classes of tools § § § Import Export Visualization/Map Layers Model editing Building package input Working with transient input/solutions

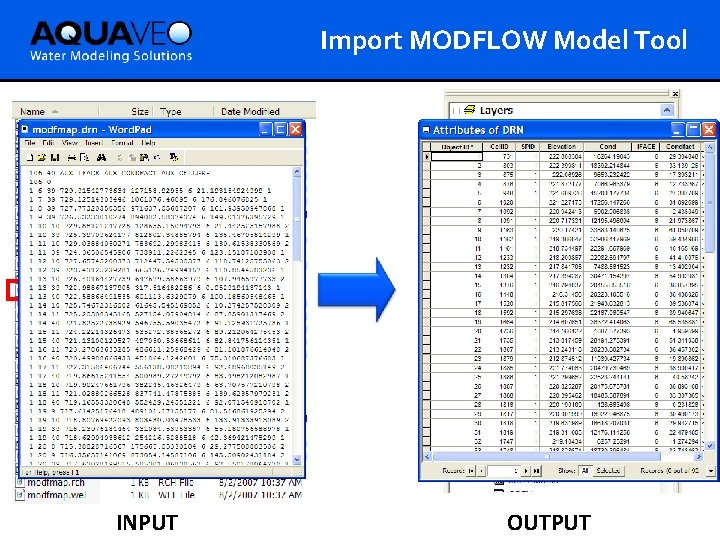

Import MODFLOW Model Tool INPUT OUTPUT

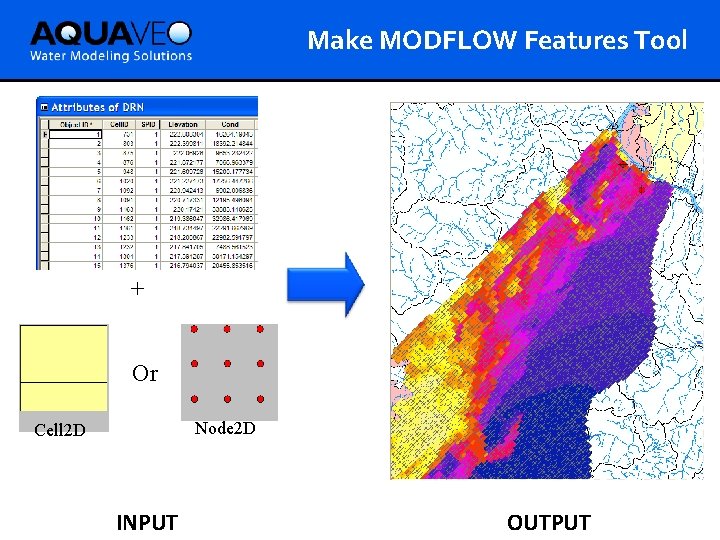

Make MODFLOW Features Tool + Or Node 2 D Cell 2 D INPUT OUTPUT

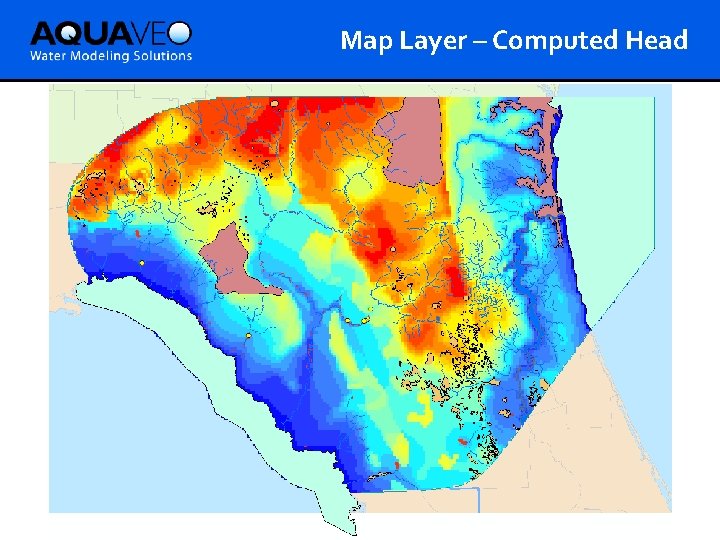

Map Layer – Computed Head

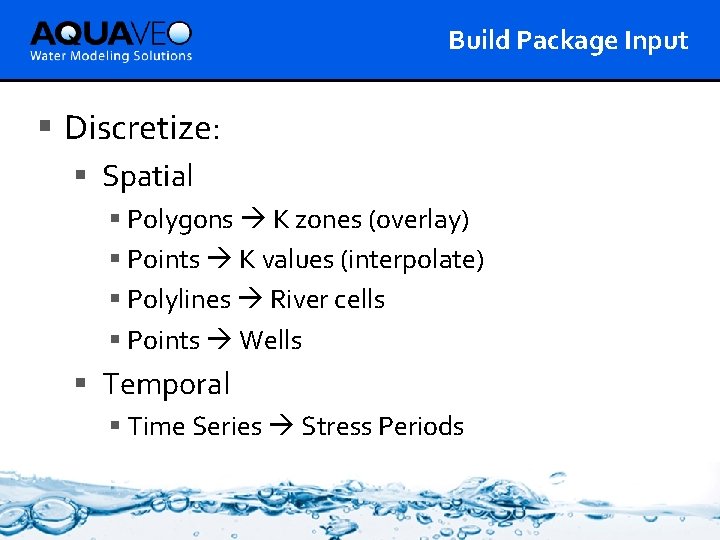

Build Package Input § Discretize: § Spatial § Polygons K zones (overlay) § Points K values (interpolate) § Polylines River cells § Points Wells § Temporal § Time Series Stress Periods

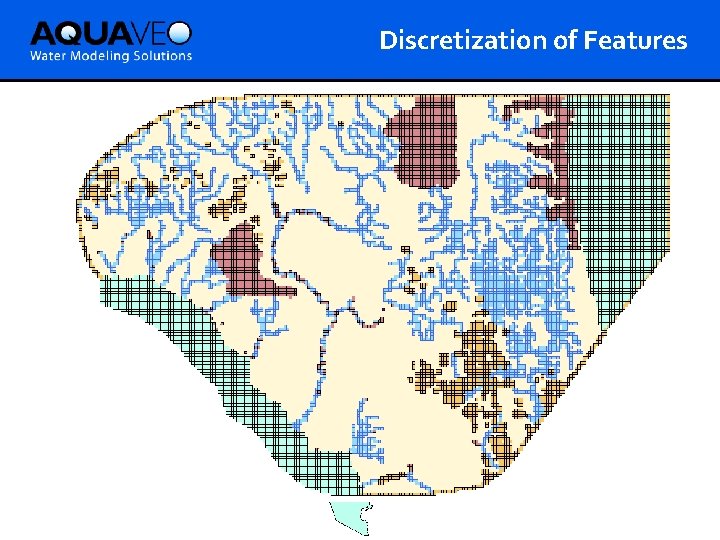

Discretization of Features

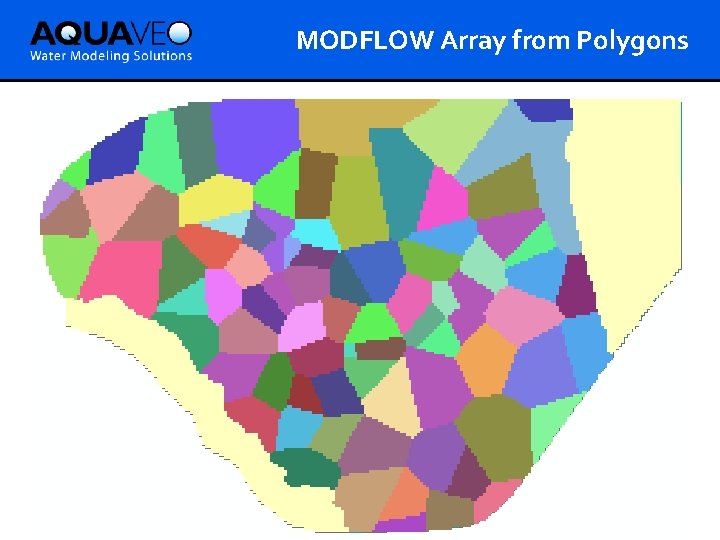

MODFLOW Array from Polygons

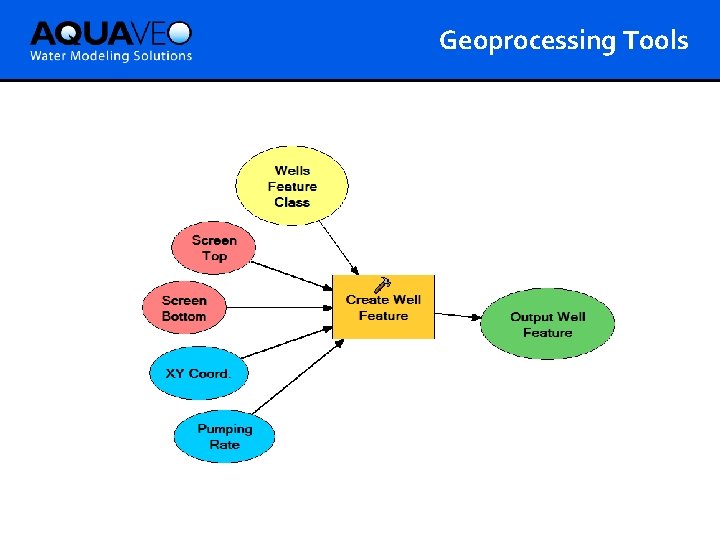

Geoprocessing Tools

Geoprocessing Tools

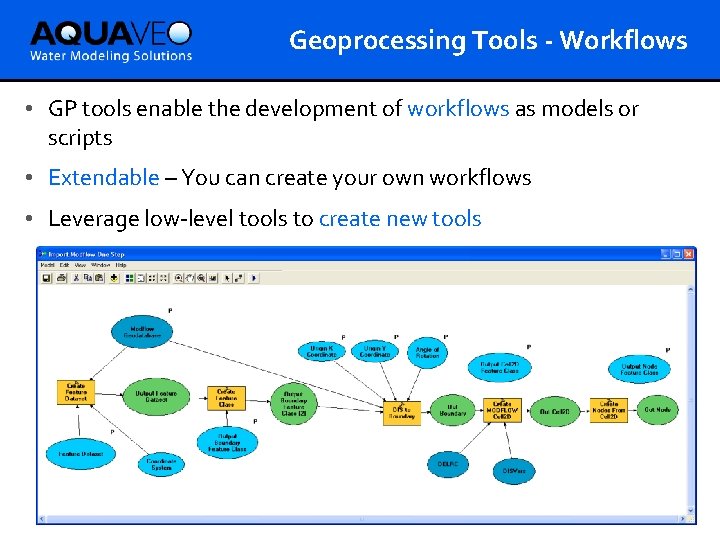

Geoprocessing Tools - Workflows • GP tools enable the development of workflows as models or scripts • Extendable – You can create your own workflows • Leverage low-level tools to create new tools

For more information http: //www. archydrogw. com (AHGW Wiki page) http: //www. aquaveo. com/archydro (Info on tools) Norm Jones njones@byu. edu 801 -422 -7569 Jeff Davis jdavis@aquaveo. com 801 -835 -7445
