Modern Classification Cladograms SB 3 c Explain the

Modern Classification: Cladograms SB 3 c Explain the evolutionary basis of modern classification systems

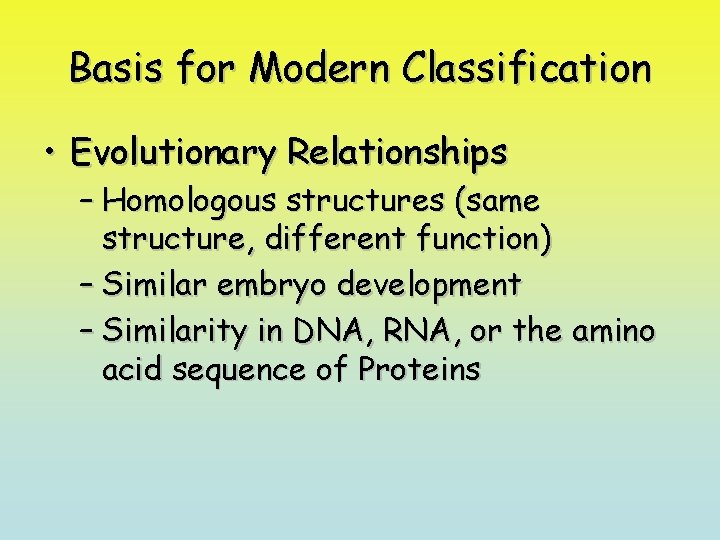

Basis for Modern Classification • Evolutionary Relationships – Homologous structures (same structure, different function) – Similar embryo development – Similarity in DNA, RNA, or the amino acid sequence of Proteins

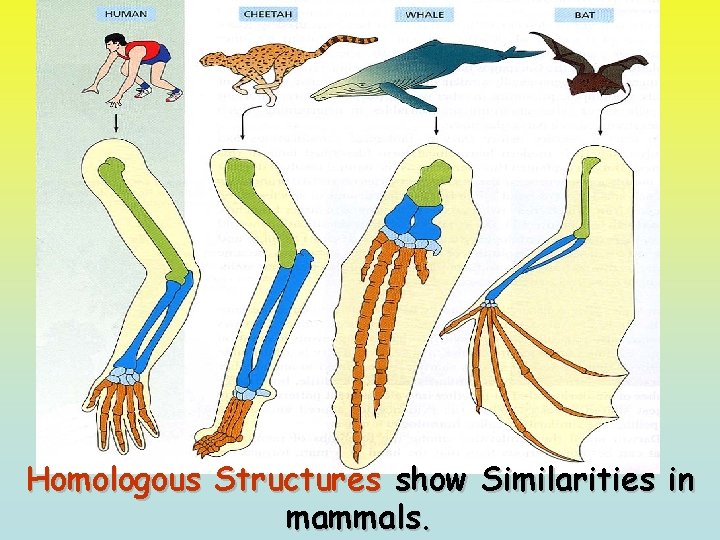

Homologous Structures show Similarities in mammals.

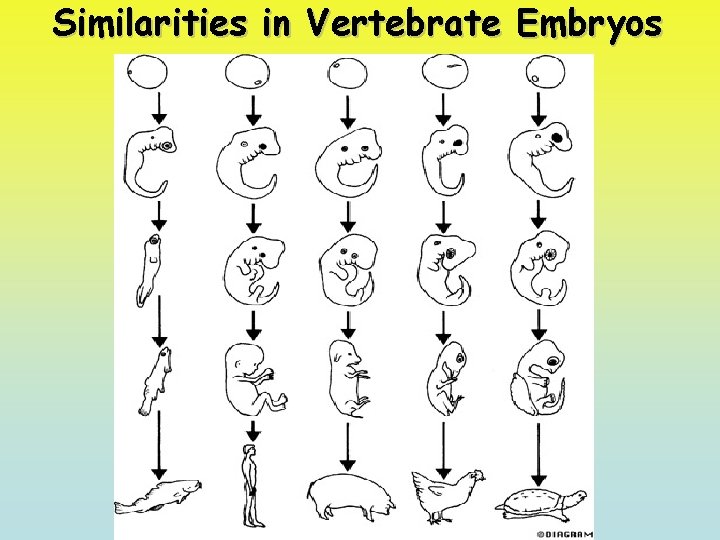

Similarities in Vertebrate Embryos

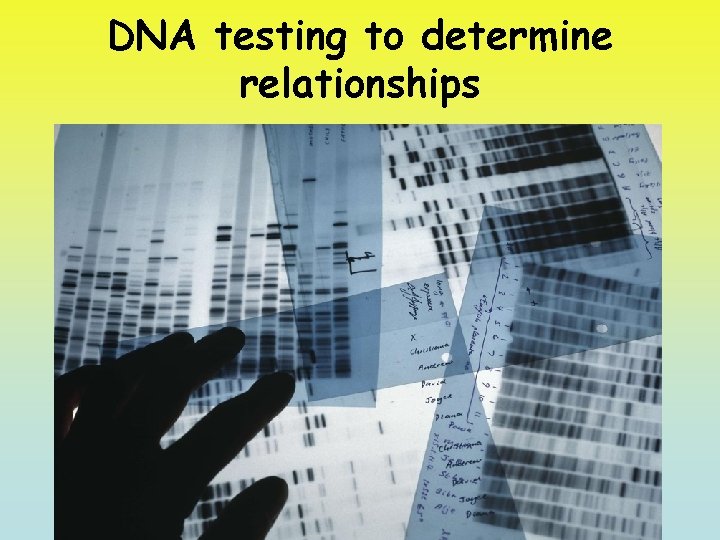

DNA testing to determine relationships

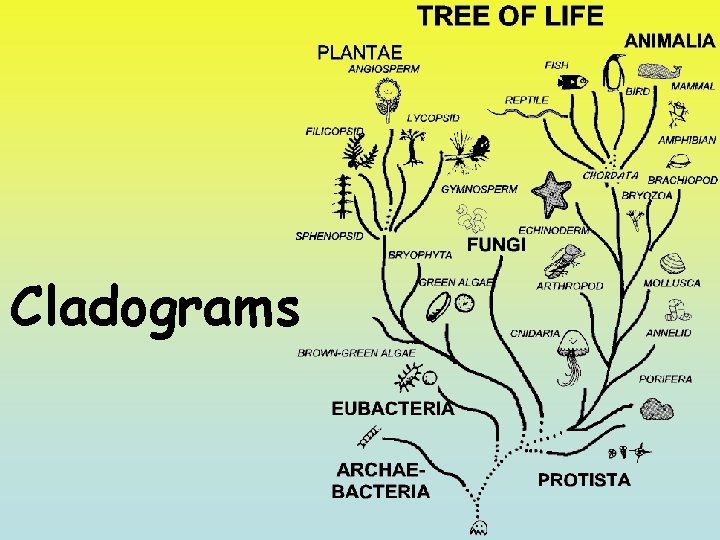

Cladograms

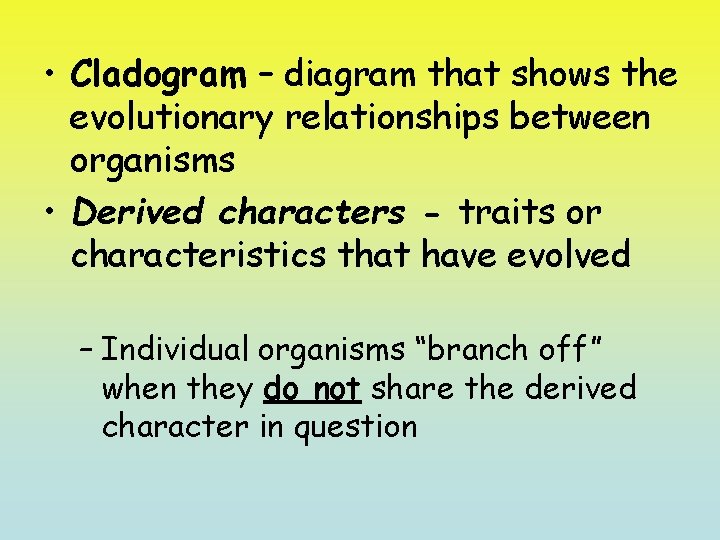

• Cladogram – diagram that shows the evolutionary relationships between organisms • Derived characters - traits or characteristics that have evolved – Individual organisms “branch off” when they do not share the derived character in question

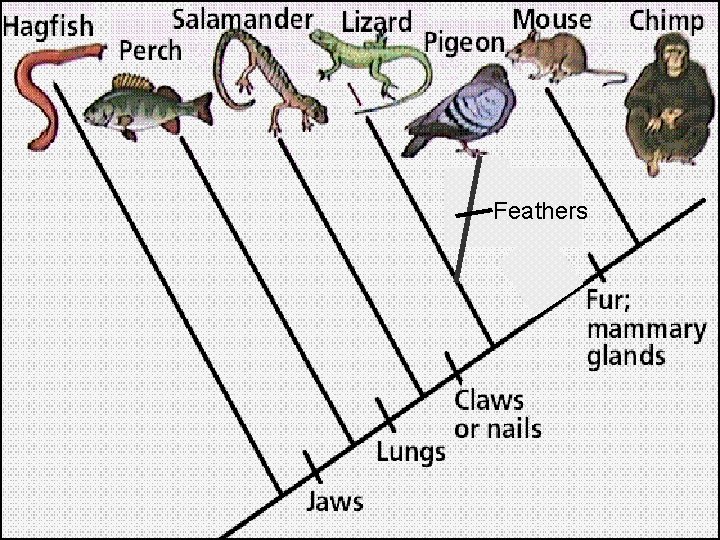

Feathers

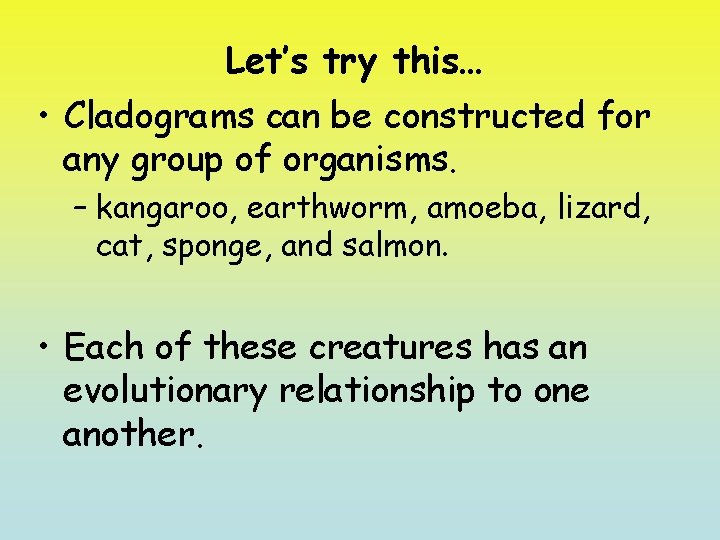

Let’s try this… • Cladograms can be constructed for any group of organisms. – kangaroo, earthworm, amoeba, lizard, cat, sponge, and salmon. • Each of these creatures has an evolutionary relationship to one another.

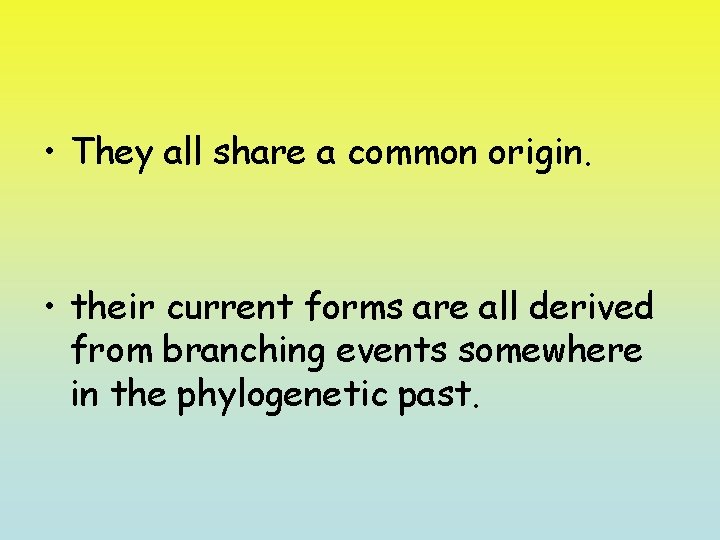

• They all share a common origin. • their current forms are all derived from branching events somewhere in the phylogenetic past.

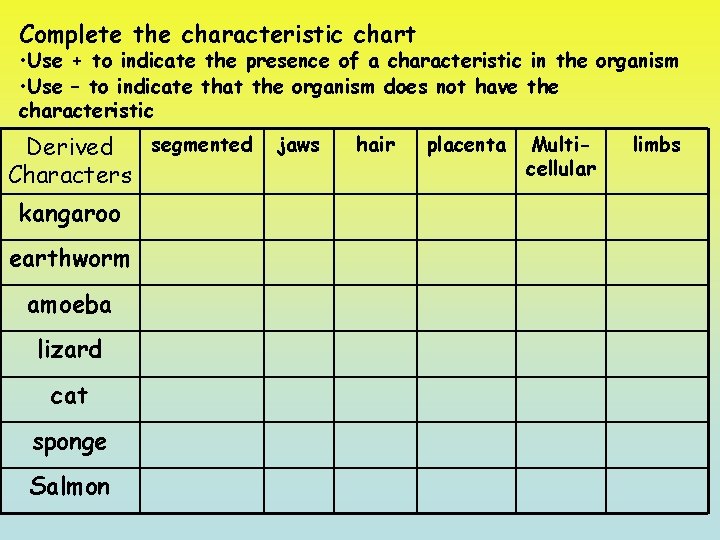

Complete the characteristic chart • Use + to indicate the presence of a characteristic in the organism • Use – to indicate that the organism does not have the characteristic segmented Derived Characters kangaroo earthworm amoeba lizard cat sponge Salmon jaws hair placenta Multicellular limbs

earthworm kangaroo

amoeba lizard

cat sponge

salmon

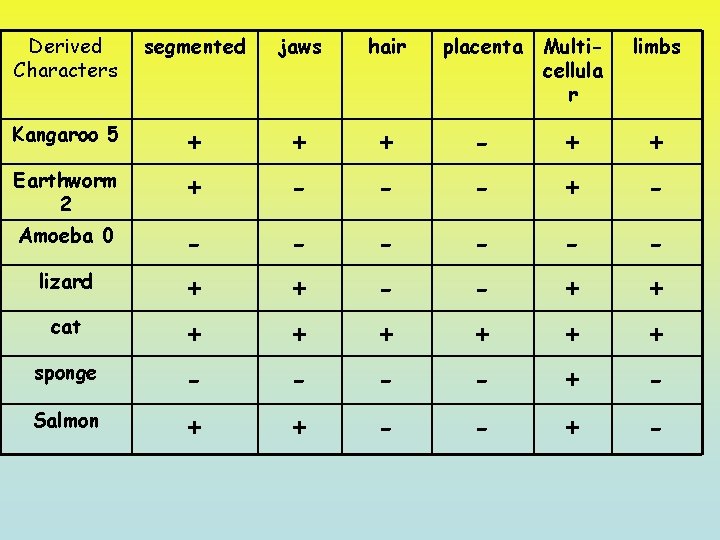

Derived Characters segmented jaws hair Kangaroo 5 + + + - - + + + + + - Earthworm 2 Amoeba 0 lizard cat sponge Salmon placenta Multicellula r limbs

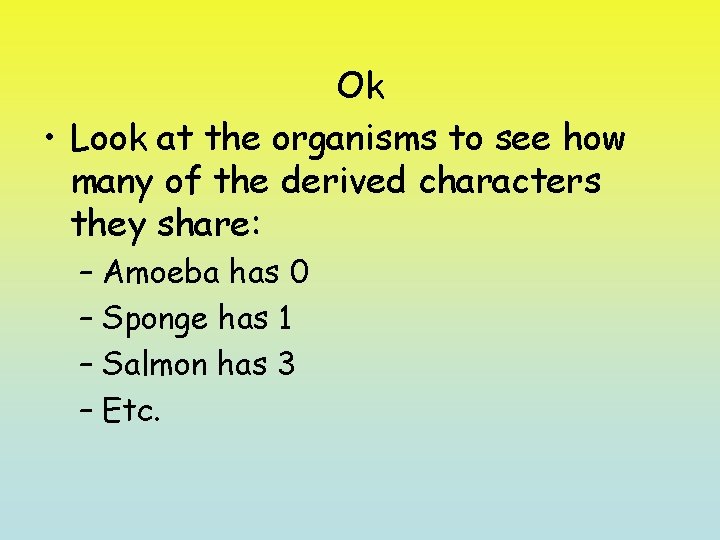

Ok • Look at the organisms to see how many of the derived characters they share: – Amoeba has 0 – Sponge has 1 – Salmon has 3 – Etc.

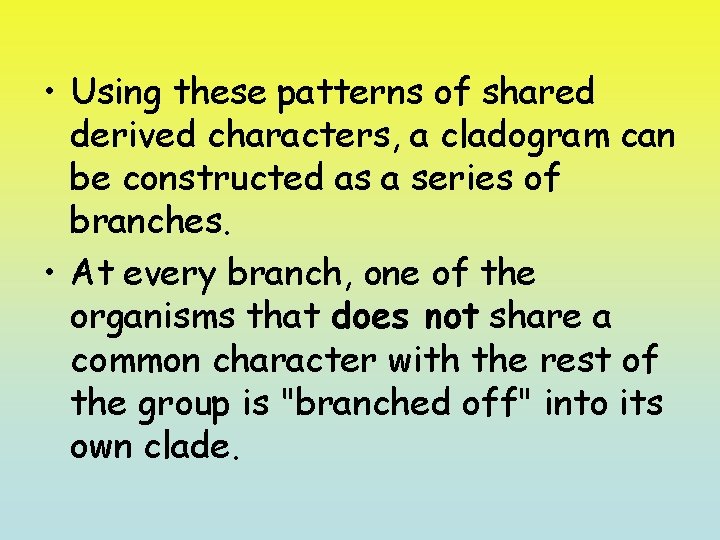

• Using these patterns of shared derived characters, a cladogram can be constructed as a series of branches. • At every branch, one of the organisms that does not share a common character with the rest of the group is "branched off" into its own clade.

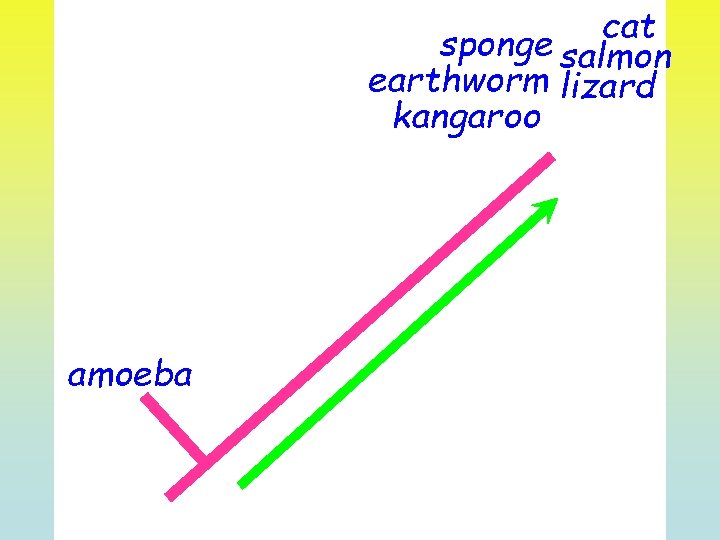

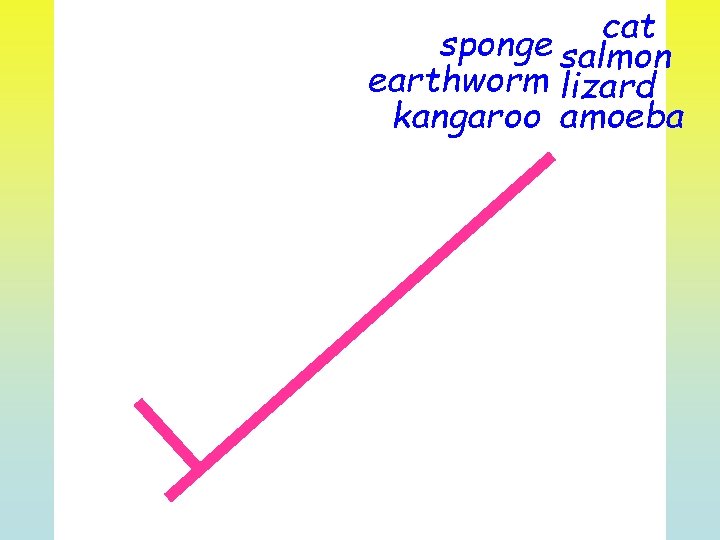

cat sponge salmon earthworm lizard kangaroo amoeba

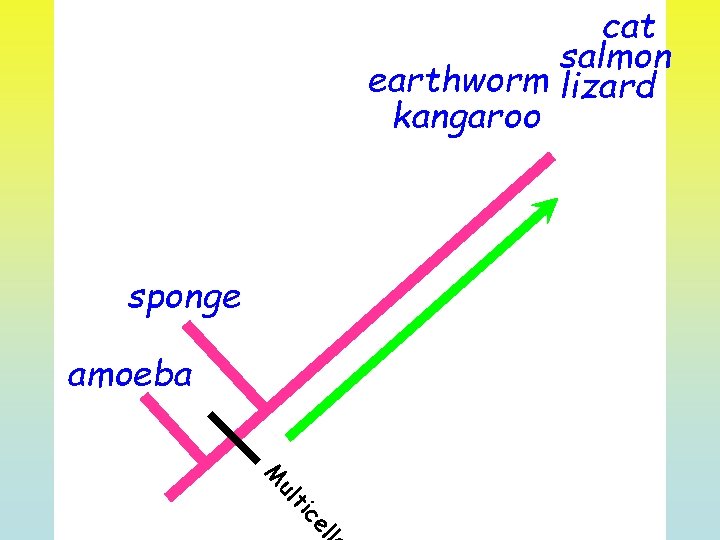

cat salmon earthworm lizard kangaroo sponge amoeba ll ce ti ul M

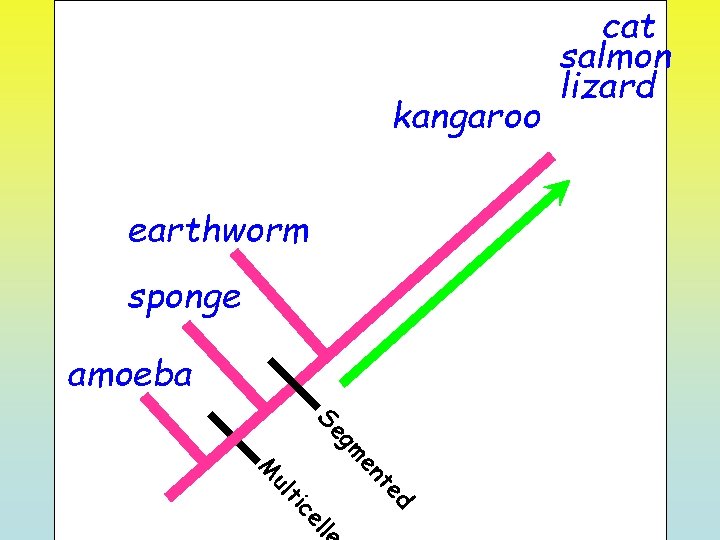

cat salmon earthworm lizard kangaroo earthworm sponge amoeba gm Se ed t en lle ce ti ul M

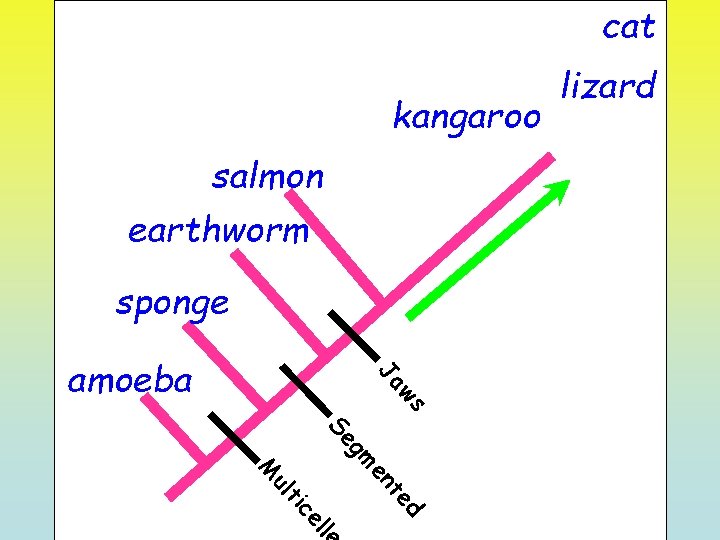

cat kangaroo salmon earthworm sponge ws Ja amoeba lizard gm Se d te lle ce ti ul en M

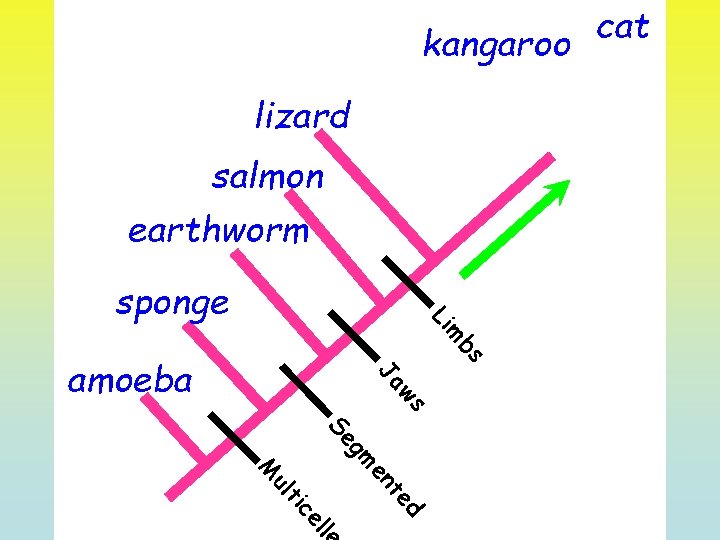

cat kangaroo lizard salmon earthworm m Li sponge bs ws Ja amoeba gm Se d te lle ce ti ul en M

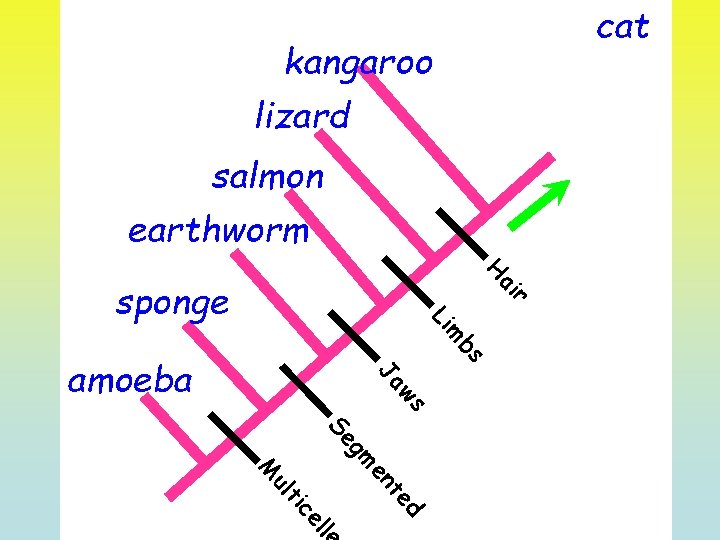

cat kangaroo lizard salmon earthworm H r ai sponge m Li bs ws Ja amoeba gm Se d te lle ce ti ul en M

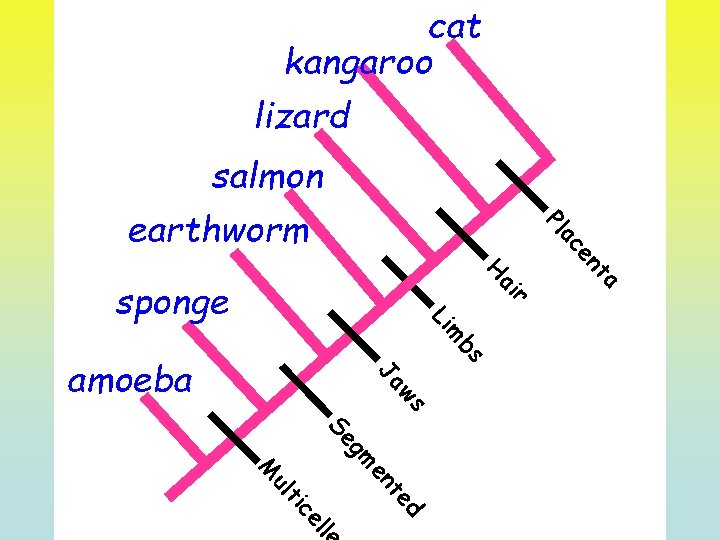

cat kangaroo lizard r ai m Li bs ws Ja amoeba ta H sponge en ac Pl salmon earthworm gm Se d te lle ce ti ul en M
