Models and Matching Methods of modeling objects and

Models and Matching Methods of modeling objects and their environments; Methods of matching models to sensed data for recogniton Stockman CSE/MSU Fall 2005

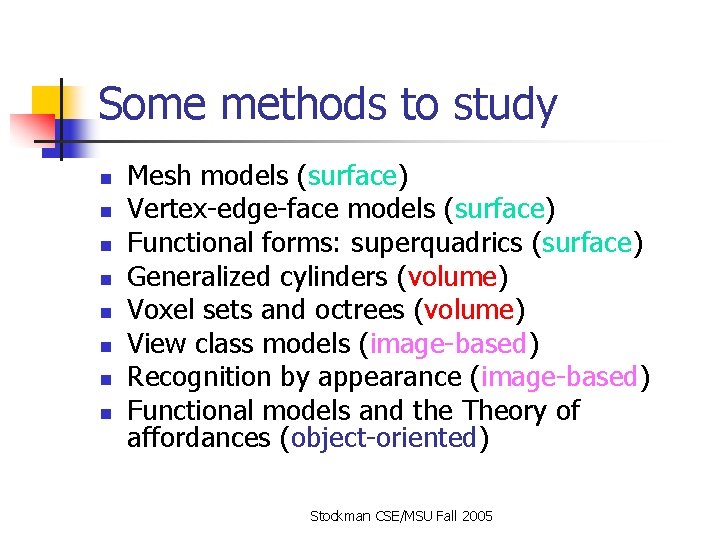

Some methods to study n n n n Mesh models (surface) Vertex-edge-face models (surface) Functional forms: superquadrics (surface) Generalized cylinders (volume) Voxel sets and octrees (volume) View class models (image-based) Recognition by appearance (image-based) Functional models and the Theory of affordances (object-oriented) Stockman CSE/MSU Fall 2005

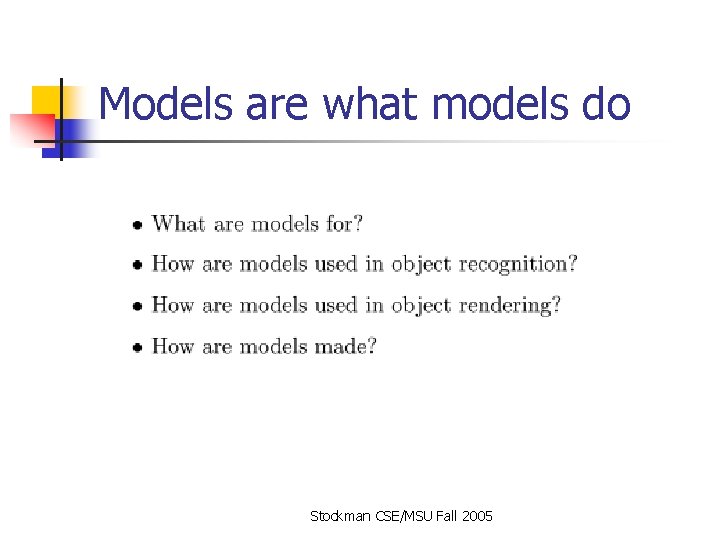

Models are what models do Stockman CSE/MSU Fall 2005

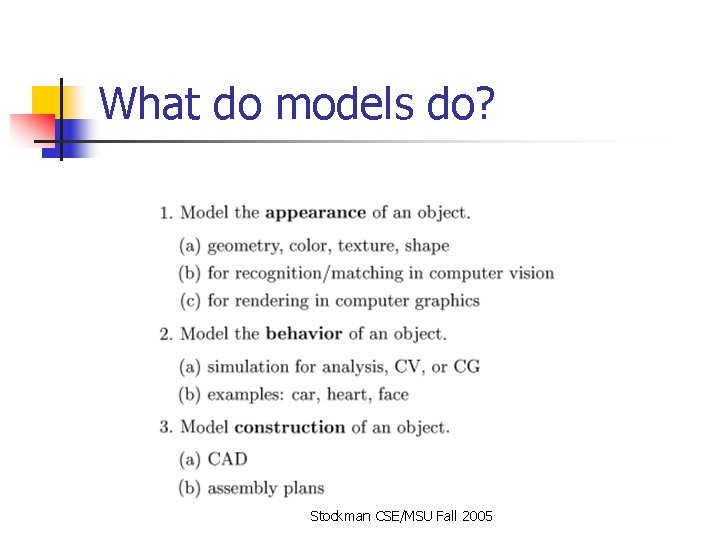

What do models do? Stockman CSE/MSU Fall 2005

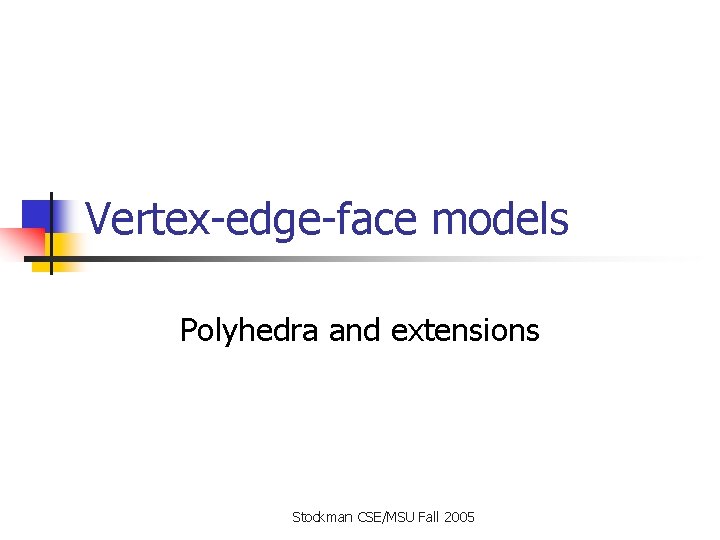

Vertex-edge-face models Polyhedra and extensions Stockman CSE/MSU Fall 2005

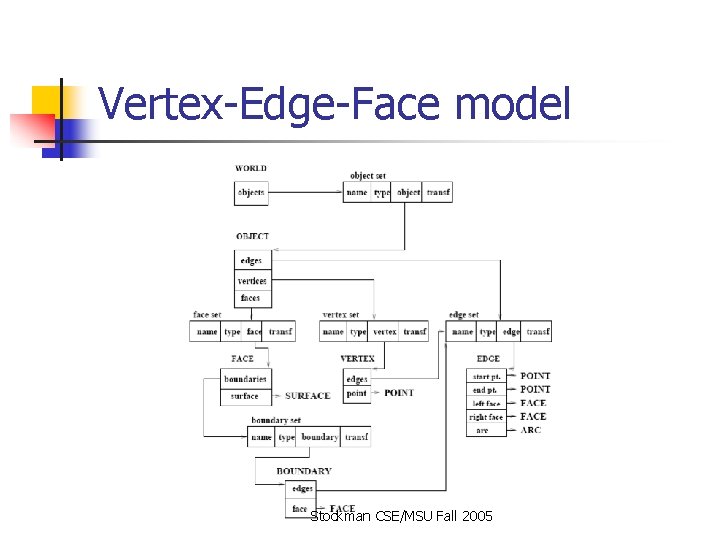

Vertex-Edge-Face model Stockman CSE/MSU Fall 2005

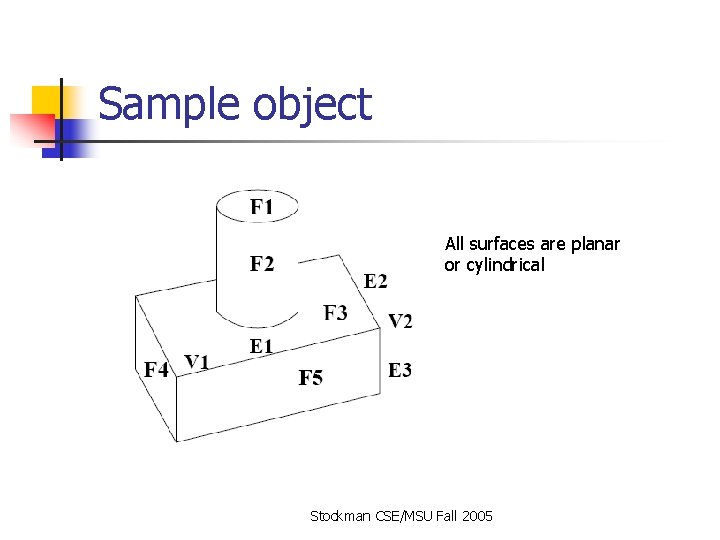

Sample object All surfaces are planar or cylindrical Stockman CSE/MSU Fall 2005

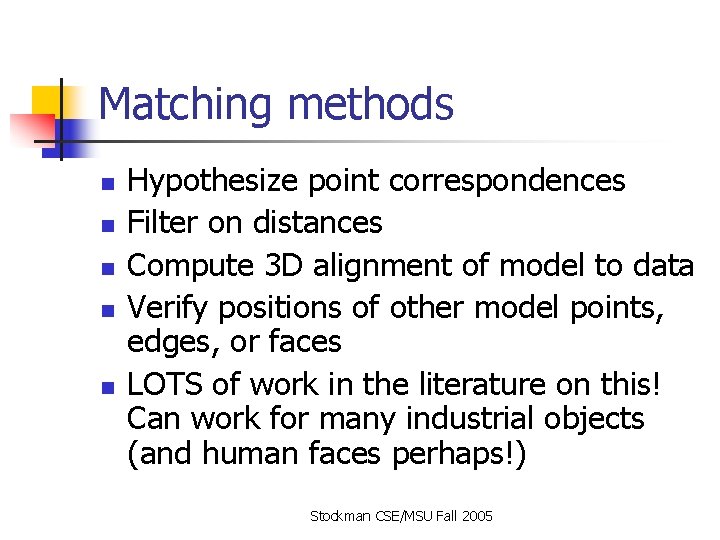

Matching methods n n n Hypothesize point correspondences Filter on distances Compute 3 D alignment of model to data Verify positions of other model points, edges, or faces LOTS of work in the literature on this! Can work for many industrial objects (and human faces perhaps!) Stockman CSE/MSU Fall 2005

Triangular meshes Stockman CSE/MSU Fall 2005

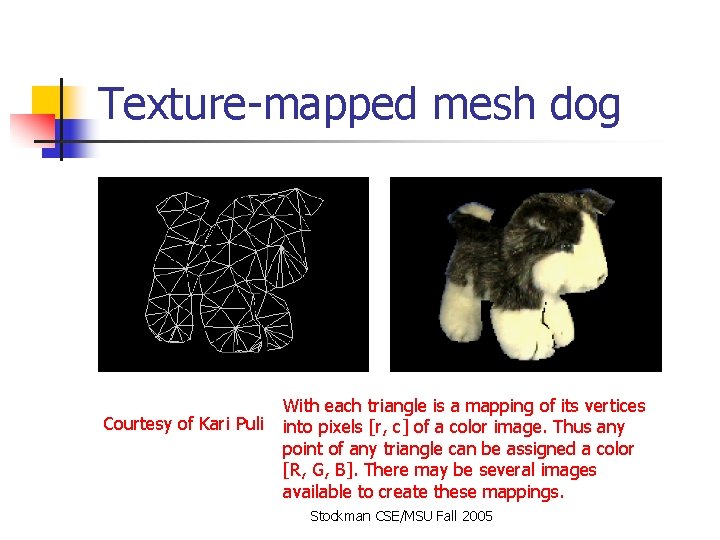

Texture-mapped mesh dog Courtesy of Kari Puli With each triangle is a mapping of its vertices into pixels [r, c] of a color image. Thus any point of any triangle can be assigned a color [R, G, B]. There may be several images available to create these mappings. Stockman CSE/MSU Fall 2005

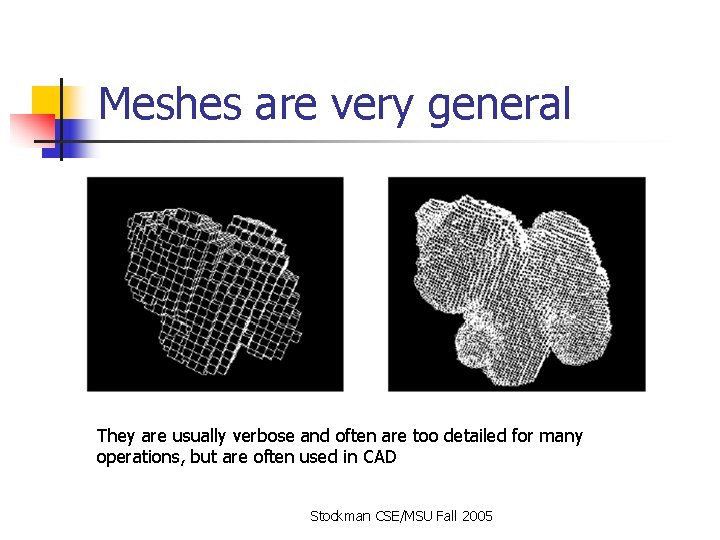

Meshes are very general They are usually verbose and often are too detailed for many operations, but are often used in CAD Stockman CSE/MSU Fall 2005

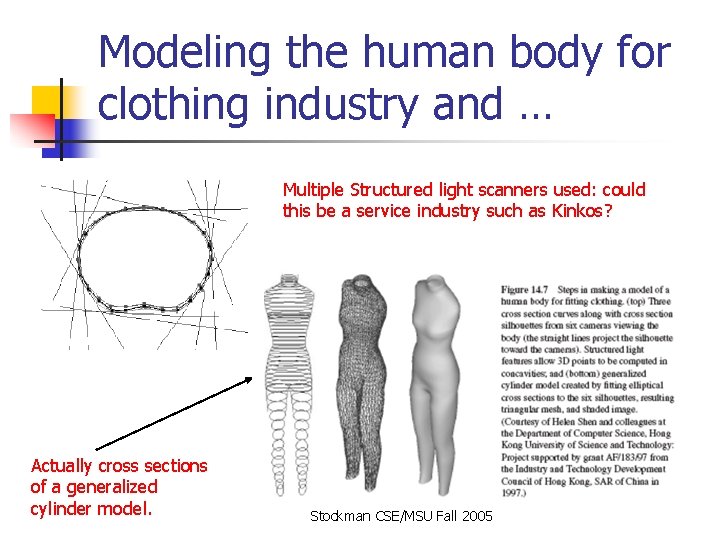

Modeling the human body for clothing industry and … Multiple Structured light scanners used: could this be a service industry such as Kinkos? Actually cross sections of a generalized cylinder model. Stockman CSE/MSU Fall 2005

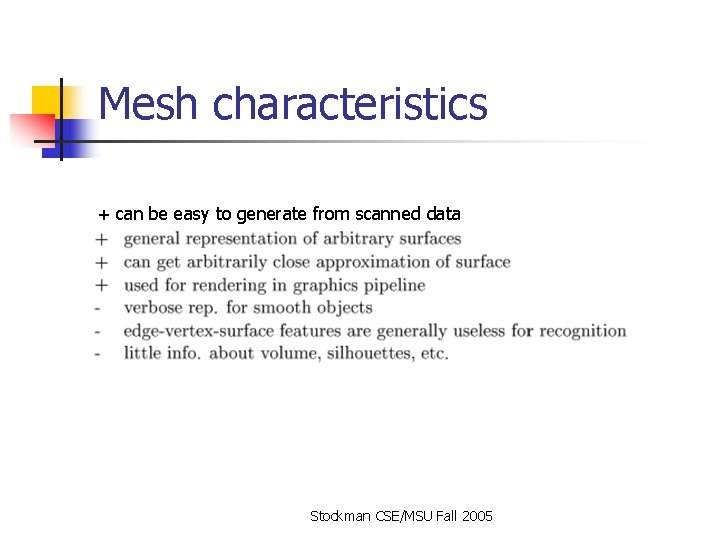

Mesh characteristics + can be easy to generate from scanned data Stockman CSE/MSU Fall 2005

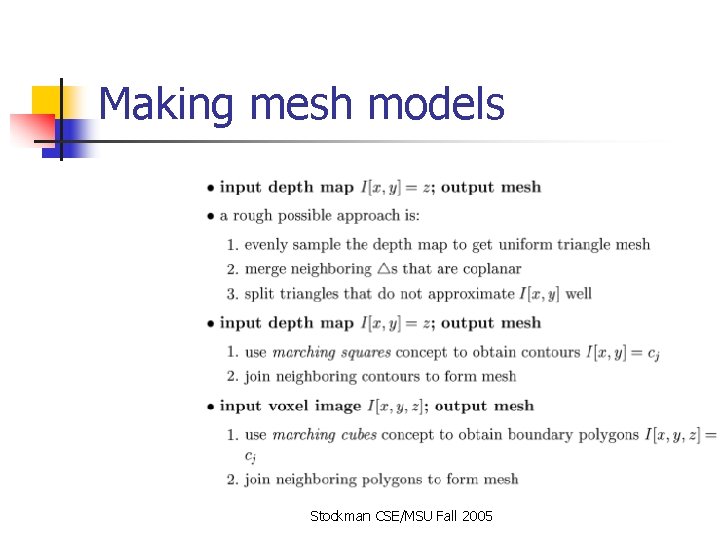

Making mesh models Stockman CSE/MSU Fall 2005

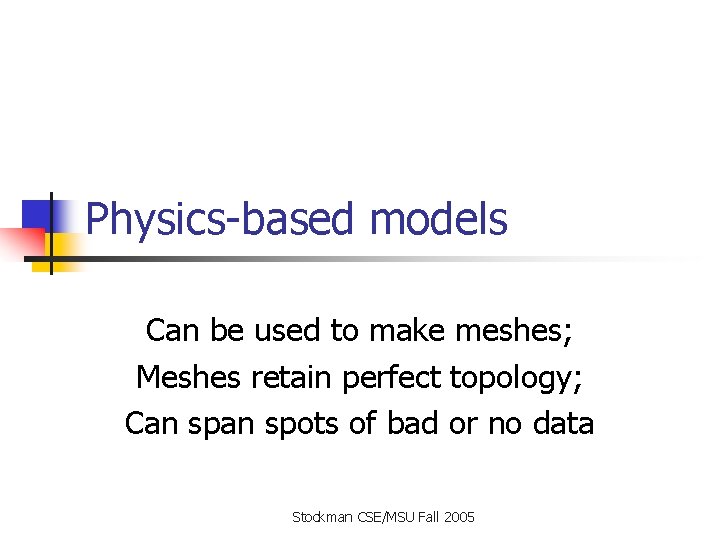

Physics-based models Can be used to make meshes; Meshes retain perfect topology; Can spots of bad or no data Stockman CSE/MSU Fall 2005

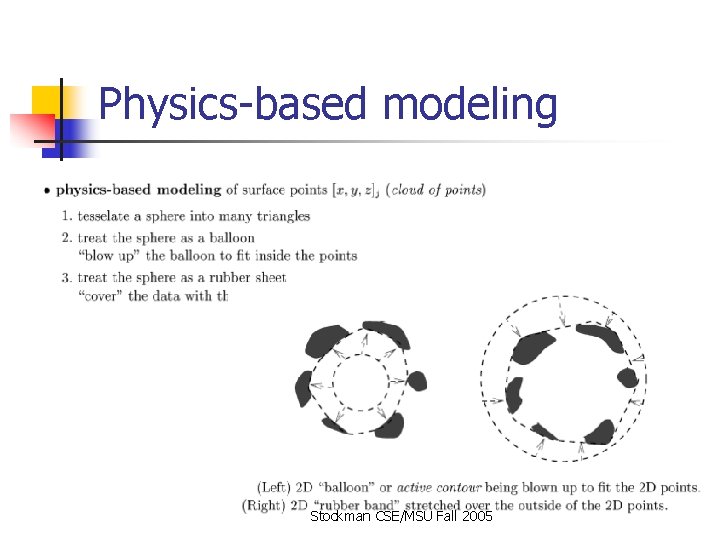

Physics-based modeling Stockman CSE/MSU Fall 2005

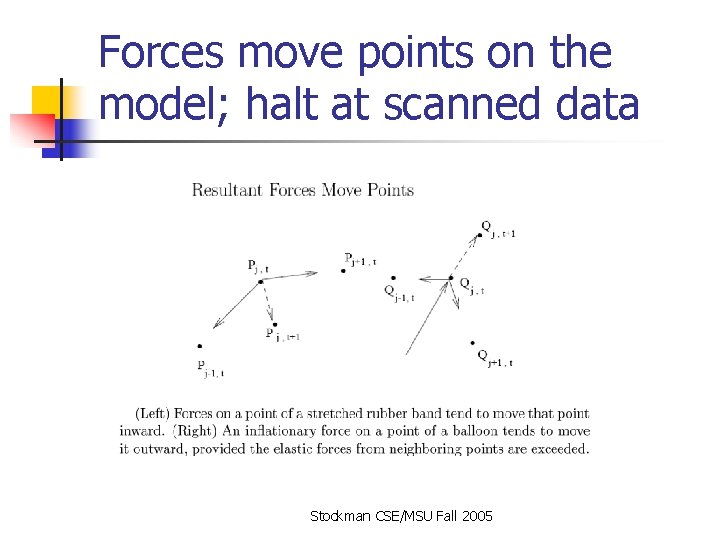

Forces move points on the model; halt at scanned data Stockman CSE/MSU Fall 2005

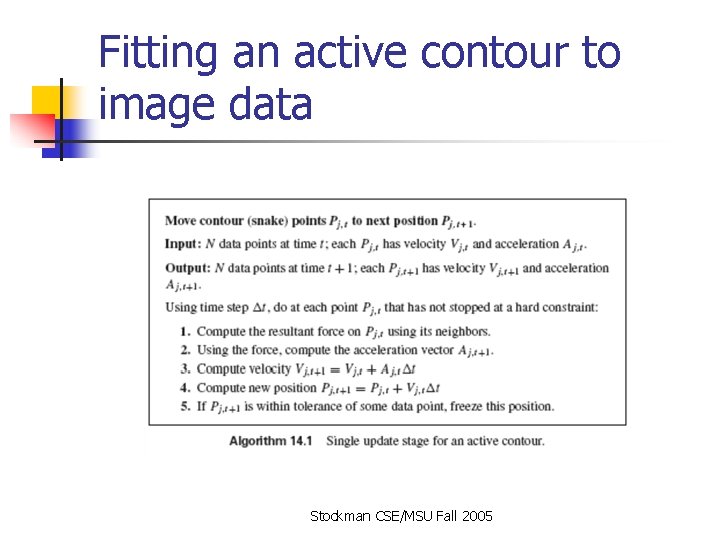

Fitting an active contour to image data Stockman CSE/MSU Fall 2005

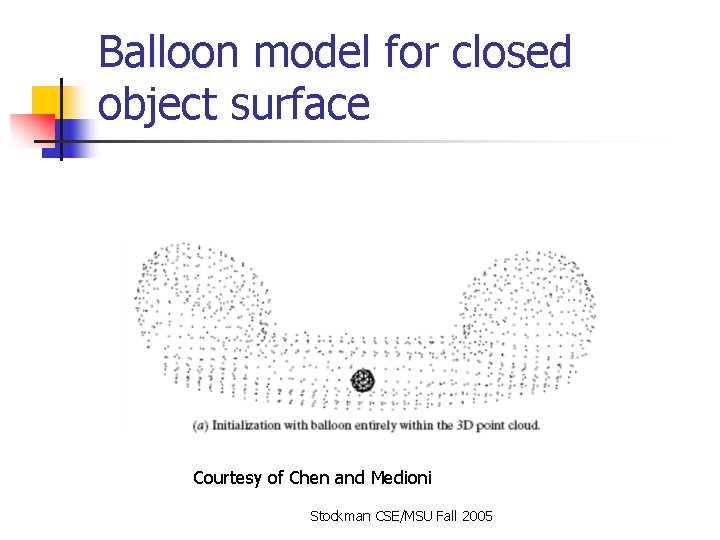

Balloon model for closed object surface Courtesy of Chen and Medioni Stockman CSE/MSU Fall 2005

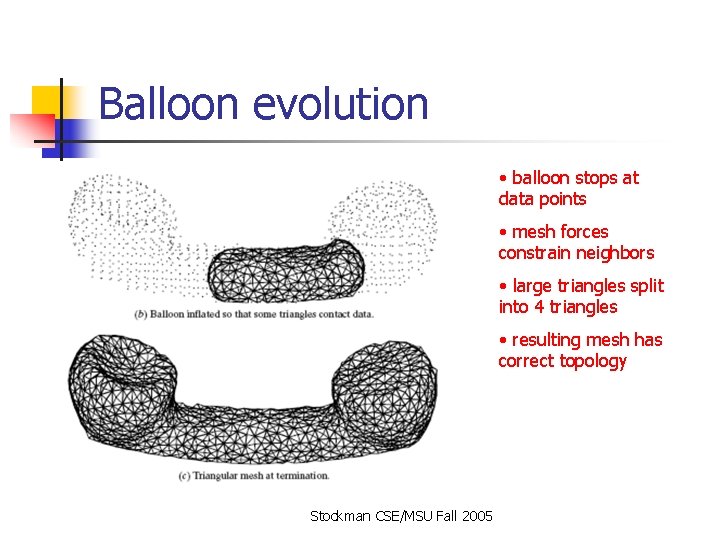

Balloon evolution • balloon stops at data points • mesh forces constrain neighbors • large triangles split into 4 triangles • resulting mesh has correct topology Stockman CSE/MSU Fall 2005

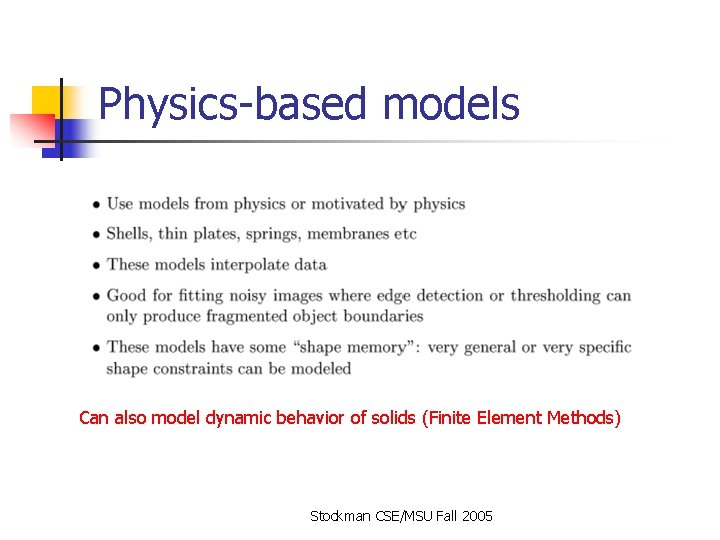

Physics-based models Can also model dynamic behavior of solids (Finite Element Methods) Stockman CSE/MSU Fall 2005

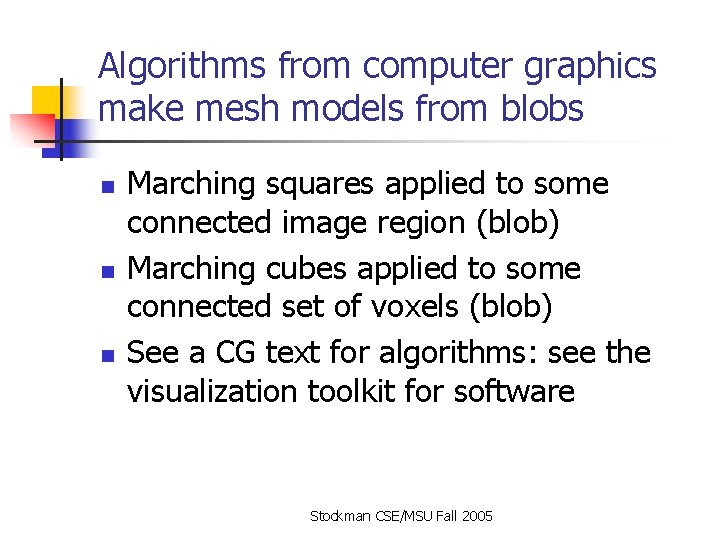

Algorithms from computer graphics make mesh models from blobs n n n Marching squares applied to some connected image region (blob) Marching cubes applied to some connected set of voxels (blob) See a CG text for algorithms: see the visualization toolkit for software Stockman CSE/MSU Fall 2005

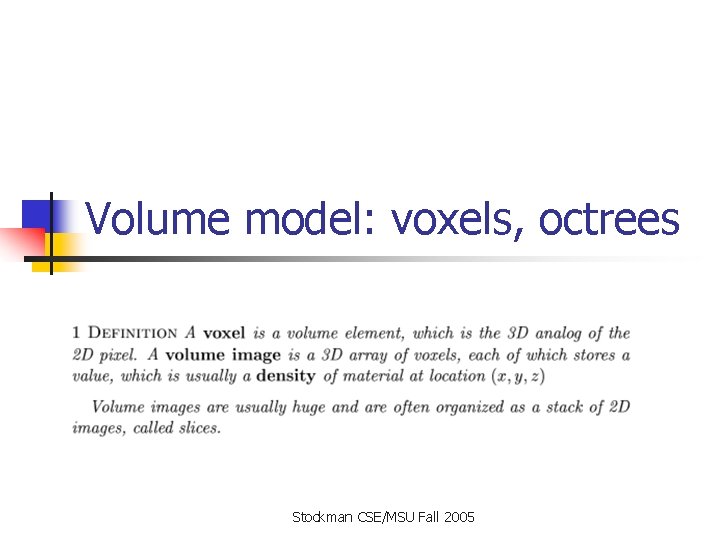

Volume model: voxels, octrees Stockman CSE/MSU Fall 2005

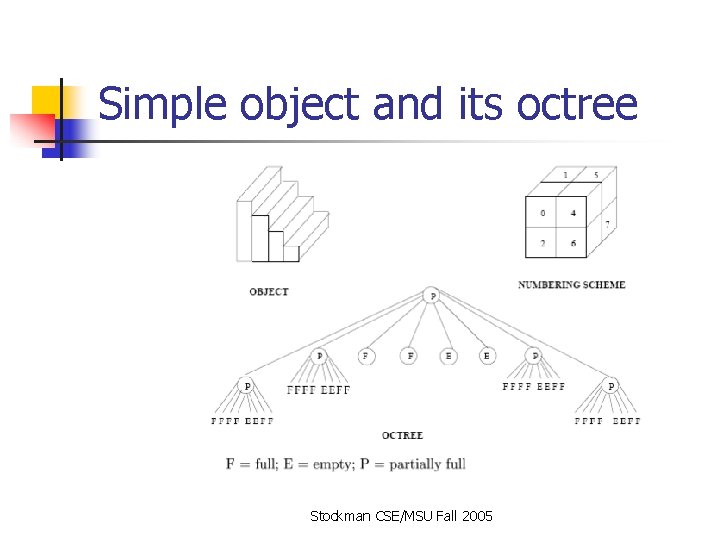

Simple object and its octree Stockman CSE/MSU Fall 2005

Generalized cylinders Stockman CSE/MSU Fall 2005

Generalized cylinders • component parts have axis • cross section function describes variation along axis • good for articulated objects, such as animals, tools • can be extracted from intensity images with difficulty Stockman CSE/MSU Fall 2005

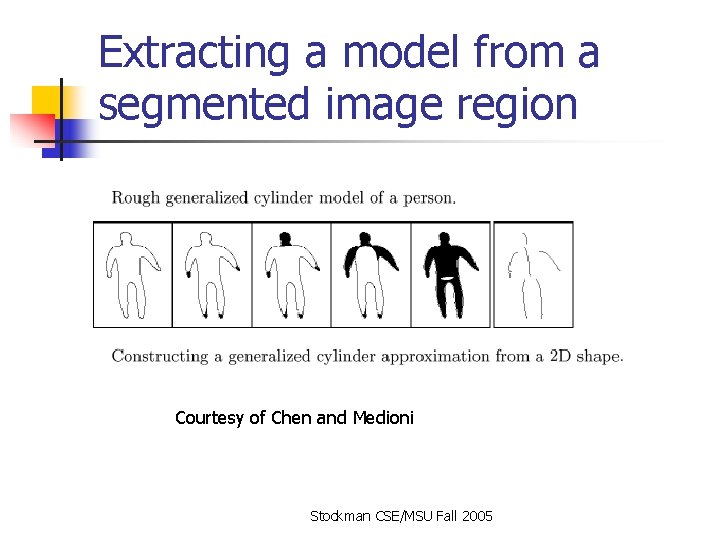

Extracting a model from a segmented image region Courtesy of Chen and Medioni Stockman CSE/MSU Fall 2005

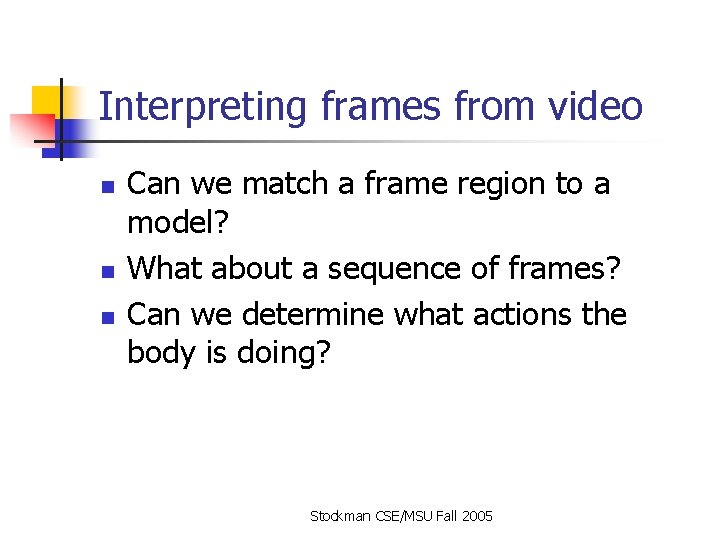

Interpreting frames from video n n n Can we match a frame region to a model? What about a sequence of frames? Can we determine what actions the body is doing? Stockman CSE/MSU Fall 2005

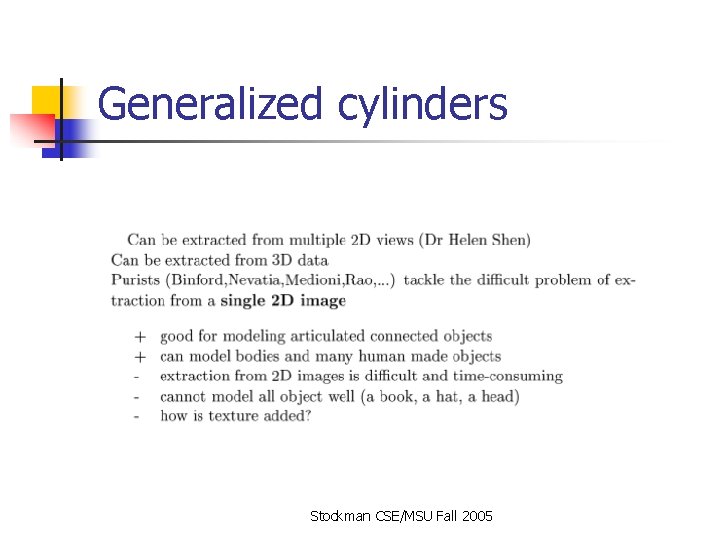

Generalized cylinders Stockman CSE/MSU Fall 2005

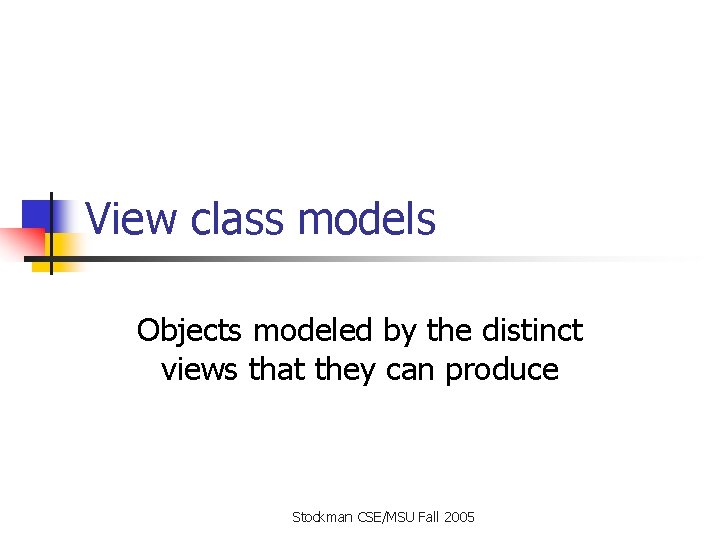

View class models Objects modeled by the distinct views that they can produce Stockman CSE/MSU Fall 2005

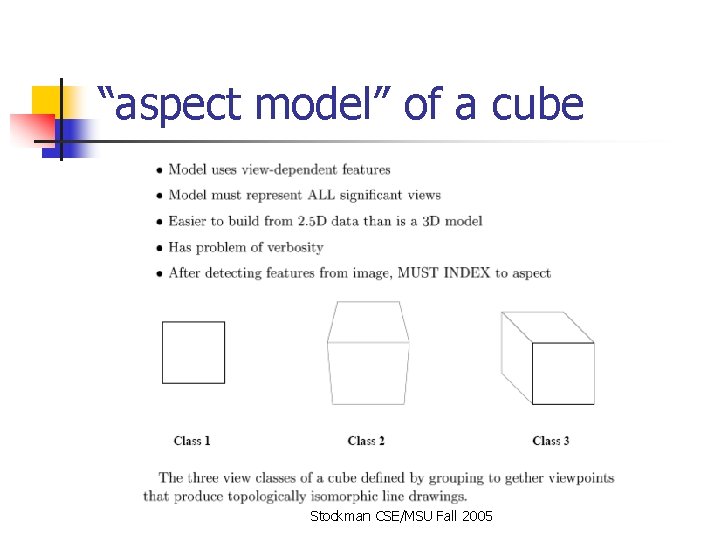

“aspect model” of a cube Stockman CSE/MSU Fall 2005

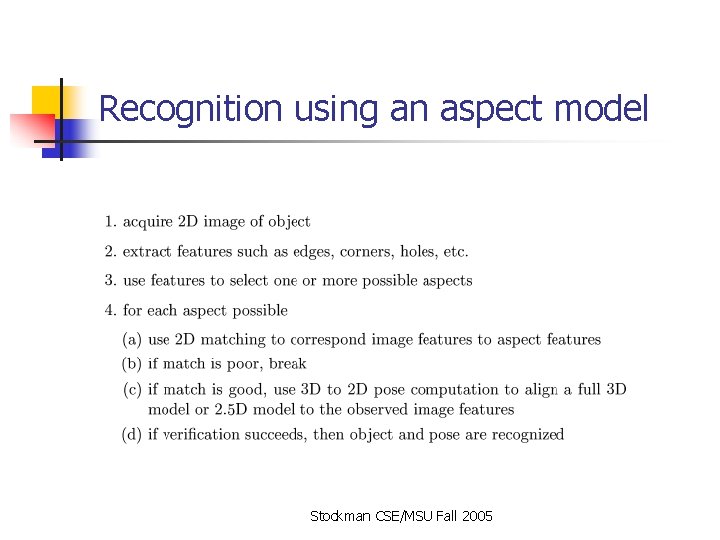

Recognition using an aspect model Stockman CSE/MSU Fall 2005

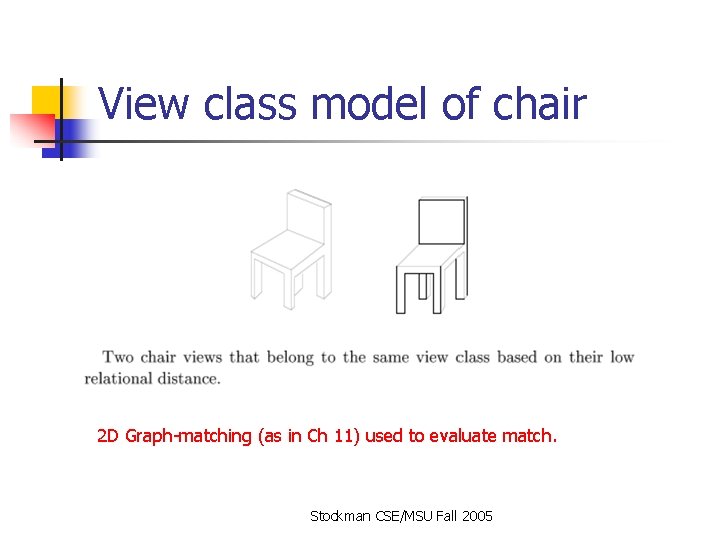

View class model of chair 2 D Graph-matching (as in Ch 11) used to evaluate match. Stockman CSE/MSU Fall 2005

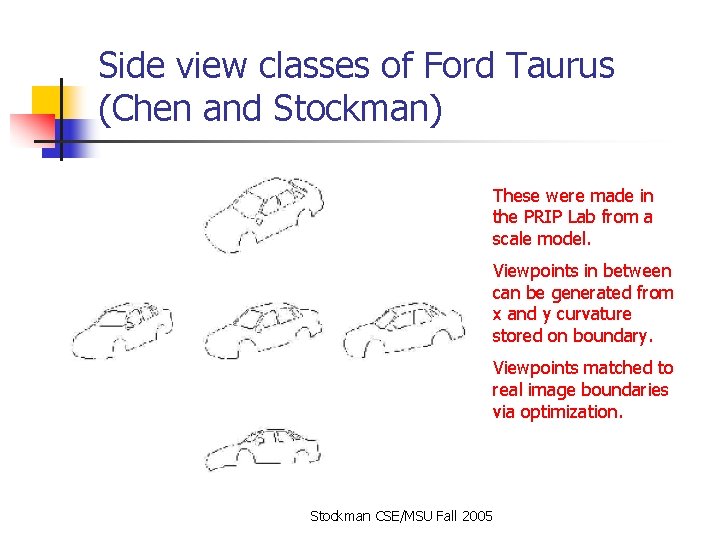

Side view classes of Ford Taurus (Chen and Stockman) These were made in the PRIP Lab from a scale model. Viewpoints in between can be generated from x and y curvature stored on boundary. Viewpoints matched to real image boundaries via optimization. Stockman CSE/MSU Fall 2005

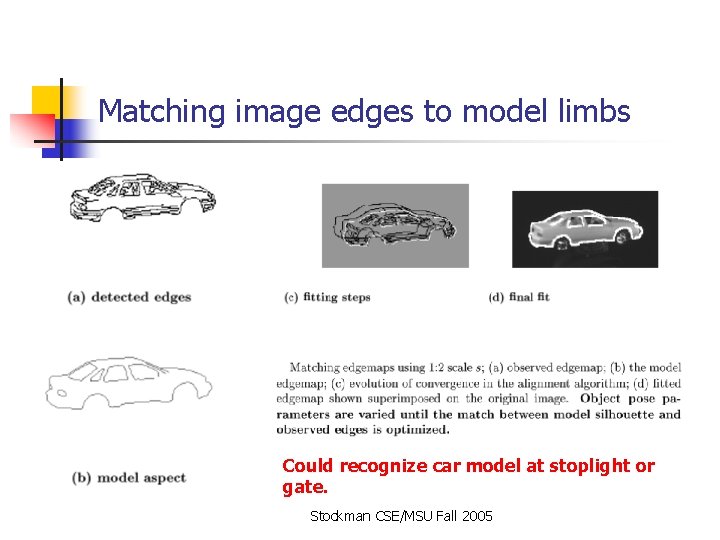

Matching image edges to model limbs Could recognize car model at stoplight or gate. Stockman CSE/MSU Fall 2005

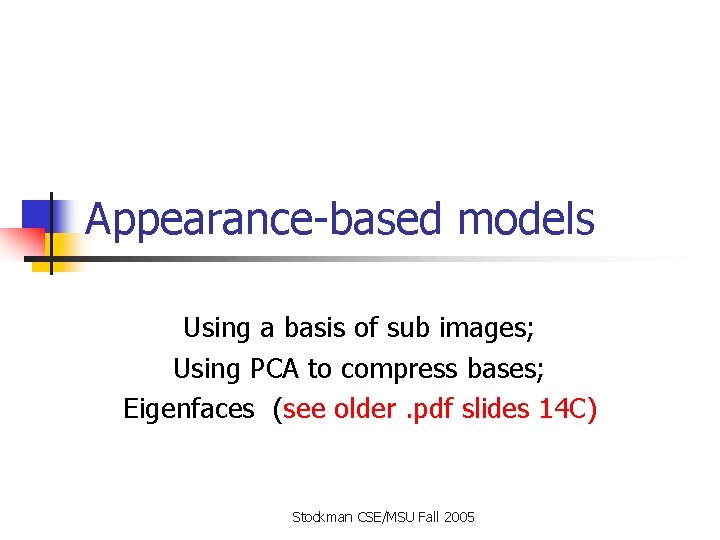

Appearance-based models Using a basis of sub images; Using PCA to compress bases; Eigenfaces (see older. pdf slides 14 C) Stockman CSE/MSU Fall 2005

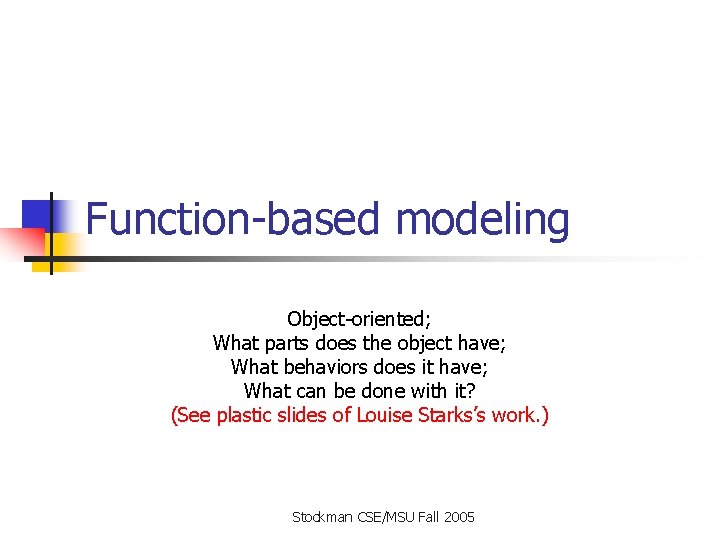

Function-based modeling Object-oriented; What parts does the object have; What behaviors does it have; What can be done with it? (See plastic slides of Louise Starks’s work. ) Stockman CSE/MSU Fall 2005

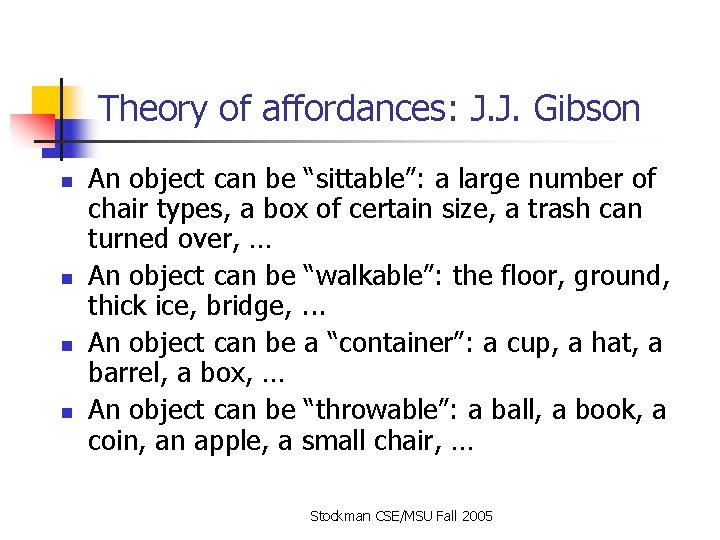

Theory of affordances: J. J. Gibson n n An object can be “sittable”: a large number of chair types, a box of certain size, a trash can turned over, … An object can be “walkable”: the floor, ground, thick ice, bridge, . . . An object can be a “container”: a cup, a hat, a barrel, a box, … An object can be “throwable”: a ball, a book, a coin, an apple, a small chair, … Stockman CSE/MSU Fall 2005
