Modelling the environmental dispersion of radionuclides Jordi Vives

Modelling the environmental dispersion of radionuclides Jordi Vives i Batlle Centre for Ecology and Hydrology, Lancaster, October 2011

Lecture plan Dispersion models available in the ERICA Tool ¥ Other types of dispersion models that are available ¥ And, along the way… Key parameters that drive dispersion models for radioactivity in the environment ¥ Applicability to different scenarios/circumstances ¥ www. ceh. ac. uk/PROTECT

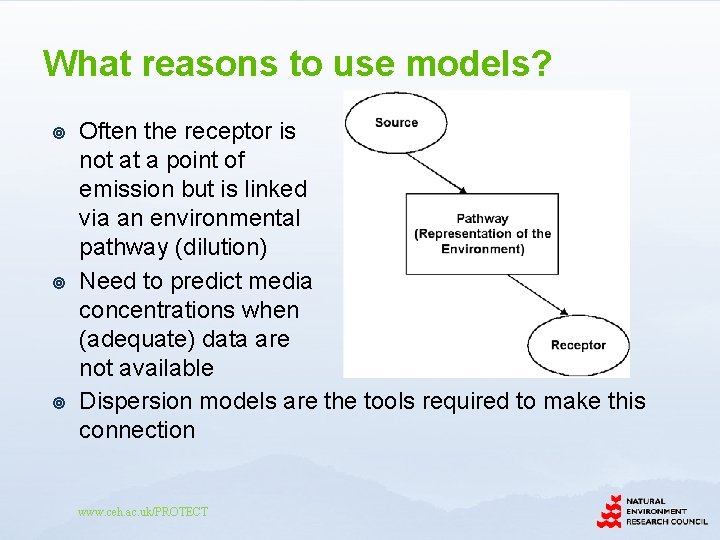

What reasons to use models? ¥ ¥ ¥ Often the receptor is not at a point of emission but is linked via an environmental pathway (dilution) Need to predict media concentrations when (adequate) data are not available Dispersion models are the tools required to make this connection www. ceh. ac. uk/PROTECT

Part I - Dispersion modelling in ERICA www. ceh. ac. uk/PROTECT

IAEA SRS Publication 19 ¥ ¥ ¥ Designed to minimise underprediction (conservative generic assessment) A default discharge period of 30 y is assumed (estimates doses for the 30 th year of discharge) Currently being upgraded www. ceh. ac. uk/PROTECT

Atmospheric dispersion ¥ ¥ ¥ www. ceh. ac. uk/PROTECT Gaussian plume model version depending on the relationship between building height, HB & cross-sectional area of the building influencing flow, AB Assumes a predominant wind direction and neutral stability class Key inputs: discharge rate Q & location of source / receptor points (H, HB, AB and x)

Basic dispersion equation Importance of Release Height Effective stack height www. ceh. ac. uk/PROTECT

Conditions for the plume (a) a) H > 2. 5 HB (no building effects) b) H 2. 5 HB & x > 2. 5 AB½(airflow in the wake zone) c) H 2. 5 HB & x 2. 5 AB½(airflow in the cavity zone). Two cases: ¥ ¥ source / receptor at same building surface not at same surface Not generally applicable at > 20 km from stack www. ceh. ac. uk/PROTECT (b) (c)

Key parameters ¥ Wind speed and direction ¥ ¥ ¥ Release height Precipitation ¥ ¥ 10 minute average from 10 m wind vane & anemometer 10 minute total rainfall (mm) Stability or degree of turbulence (horizontal and vertical diffusion) Manual estimate from nomogram using time of day, amount of cloud cover and global radiation level Atmospheric boundary layer (time-dependent) ¥ ¥ Convective and or mechanical turbulence Limits the vertical transport of pollutants www. ceh. ac. uk/PROTECT

R 91 aerial dispersion model ¥ Based on the recommendations of the Working Group on Atmospheric Dispersion (NRPB-R 91, R 122, -R 123, -R 124) ¥ Gaussian plume model ¥ Meteorological conditions specified by: ¥ ¥ Wind speed Wind direction Pasquill-Gifford stability classification Implemented in PC CREAM and CROM www. ceh. ac. uk/PROTECT

R 91 - model limitations ¥ ¥ ¥ Model assumes constant meteorological and topographical conditions along plume trajectory Prediction accuracy < 100 m and > 20 km limited Source depletion unrealistic (deposition modelling & transfer factors are uncertain) Developed for neutral conditions Does not include ¥ ¥ ¥ Buildings Complex terrain e. g. hills and valleys Coastal effects www. ceh. ac. uk/PROTECT

Surface water dispersion ¥ Freshwater ¥ ¥ ¥ Marine ¥ ¥ ¥ www. ceh. ac. uk/PROTECT Small lake (< 400 km 2) Large lake (≥ 400 km 2) Estuarine River Coastal Estuarine No model for open ocean waters

Processes and assumptions ¥ ¥ Based on analytic solution of the advection diffusion equation describing transport in surface water for uniform flow conditions at steady state Processes included: ¥ ¥ ¥ ¥ Flow downstream as transport (advection) Mixing processes (turbulent dispersion) Concentration in sediment / suspended particles estimated from ERICA Kd at receptor (equilibrium) Transportation in the direction of flow No loss to sediment between source and receptor In all cases water dispersion assumes critical flow conditions, by taking the lowest in 30 years, instead of the rate of current flow The only difference between RNs in predicted water concentrations as material disperses is decay by their different radiological half-lives. www. ceh. ac. uk/PROTECT

Rivers and coastal waters Lz = distance to achieve full vertical mixing ¥ ¥ The river model assumes that both river discharge of radionuclides such as water harvesting is done in some of the banks, not in the midstream The estuary model is considered an average speed of the current representative of the behaviour of the tides. Condition for mixing is x > 7 D and (y-y 0)<< 3. 7 x concentration in sediment is assumed to be concentration in water x Kd • www. ceh. ac. uk/PROTECT Kd = Activity concentration on sediment (Bq kg-1) xxxxx. Activity concentration in seawater (Bq L-1)

Small lakes and reservoirs ¥ ¥ Assumes a homogeneous concentration throughout the water body Expected life time of facility is required as input www. ceh. ac. uk/PROTECT

Limitations of IAEA SRS 19 ¥ Simple environmental and dosimetric models as well as sets of necessary default data: ¥ ¥ ¥ Simplest, linear compartment models Simple screening approach (robust but conservative) Short source-receptor distances Equilibrium between liquid and solid phases - Kd More complex / higher tier assessments: ¥ ¥ Aerial model includes only one wind direction Coastal dispersion model not intended for open waters e. g. oil/gas marine platform discharges Surface water models assume geometry (e. g. river crosssection) & flow characteristics (e. g. velocity, water depth) which do not change significantly with distance / time End of pipe mixing zones require hydrodynamic models www. ceh. ac. uk/PROTECT

Part II: PC CREAM as a practical alternative for dispersion modelling www. ceh. ac. uk/PROTECT

Collective dose model PC CREAM ¥ ¥ ¥ Consequences of Releases to the Environment Assessment Methodology A suite of models and data for performing radiological impact assessments of routine and continuous discharges Marine: Compartmental model for European waters (DORIS) ¥ ¥ Seafood concentrations => Individual doses => Collective doses. Aerial: Radial grid R-91 atmospheric dispersion model with (PLUME) with biokinetic transfer models (FARMLAND) ¥ Ext. & internal irradiation => foodchain transfer (animal on pasture e. g. cow & plant uptake models) => dose www. ceh. ac. uk/PROTECT

Marine and aerial dispersion Compartmental - marine model (continuous discharge) www. ceh. ac. uk/PROTECT Radial grid - atmospheric model

Degree of improvement of the models ¥ Marine model (DORIS) => improvement ¥ ¥ ¥ Has long-range geographical resolution Incorporates dynamic representation of water / sediment interaction Aerial model (PLUME) => no improvement ¥ ¥ ¥ Still a gaussian dispersion model unsuitable for long distances > 20 km Also assumes constant meteorological conditions Does not correct for plume filling the boundary layer www. ceh. ac. uk/PROTECT

Part III: Other alternative dispersion models www. ceh. ac. uk/PROTECT

Effects of using different models ¥ Uncertainty associated with the application of aquatic SRS models: ¥ ¥ ¥ Models generally conservative. From factor of 2 to 10 difference with respect to a dynamic model. Uncertainty associated with the application of a Gaussian plume model for continuous releases: ¥ ¥ ¥ About a factor of 4 or 10 for a flat and complex terrain respectively. At distances < 2. 5 times the square root of the frontal area of the building, the model provides conservative results. For distances of about 2. 5 the above, the model tends to underpredict for wind speeds above 5 -m s-1. www. ceh. ac. uk/PROTECT

Effects of using different models (2) ¥ ¥ ¥ For aerial, PC-Cream is no improvement to SRS 19 For marine, PC cream has a dynamic compartment model Effect of using such a fully dynamic model: ¥ ¥ ¥ In periods where concentrations in compartments increase, dynamic model estimates of transfer will be lower than for equilibrium model (‘build-up effect’) In period where environmental concentrations decrease, dynamic model estimates higher than equilibrium model (‘memory effect’) Diffcult to generalise, but differences could be up to a factor of 10. www. ceh. ac. uk/PROTECT

Aerial modelling www. ceh. ac. uk/PROTECT

New-generation plume models ¥ ¥ Include deviations from idealised Gaussian plume model Include turbulence data rather than simplified stability categories to define boundary layer Include particulate vs gases and chemical interactions Model includes the effects on dispersion from: ¥ ¥ ¥ Complex buildings Complex terrain & coastal regions Advanced models: ADMS, AERMOD ¥ ¥ Gaussian in stable and neutral conditions Non-Gaussian (skewed) in unstable conditions www. ceh. ac. uk/PROTECT

UK ADMS ¥ ¥ ¥ Modified Gaussian plume model ¥ Gaussian in stable and neutral conditions ¥ Skewed non-Gaussian in unstable conditions Boundary layer based on turbulence parameters Model includes: ¥ Meteorological preprocessor, buildings, complex terrain ¥ Wet deposition, gravitational settling and dry deposition ¥ Short term fluctuations in concentration ¥ Chemical reactions ¥ Radioactive decay and gamma-dose ¥ Condensed plume visibility & plume rise vs. distance ¥ Jets and directional releases ¥ Short to annual timescales www. ceh. ac. uk/PROTECT

Types of output www. ceh. ac. uk/PROTECT

Marine modelling www. ceh. ac. uk/PROTECT

Geographically-resolving marine models ¥ ¥ Allow for nonequilibrium situations e. g. acute release into protected site Advantages: ¥ ¥ ¥ Resolves into a large geographical range Results more accurate (if properly calibrated) Disadvantages: ¥ ¥ Data and CPU-hungry (small time step and grid sizes demand more computer resources) Run time dependent on grid size & time step Requires specialist users Post-processing required for dose calculation (use as input to ERICA) www. ceh. ac. uk/PROTECT

Model characteristics ¥ ¥ Input requirements: Bathymetry, wind fields, tidal velocities, sediment distributions, source term Type of output: a grid map / table of activity concentration (resolution dependent on grid size) All use same advection/dispersion equations, differences are in grid size and time step Types of model: ¥ ¥ ¥ Compartmental: Give average solutions in compartments connected by fluxes. Good for long-range dispersion in regional seas. Finite differences: Equations discretised and solved over a rectangular mesh grid. Good for short-range dispersion in coastal areas Estuaries a special case: Deal with tides (rather than waves), density gradients, turbidity, etc. www. ceh. ac. uk/PROTECT

Model characteristics Finite differences www. ceh. ac. uk/PROTECT Compartmental

Some commonly available models ¥ Long-range marine models (regional seas): ¥ ¥ ¥ Short-range marine models (coastal areas): ¥ ¥ ¥ POSEIDON - N. Europe (similar to PC-CREAM model but redefines source term and some compartments - same sediment model based on MARINA) MEAD (in-house model available at WSC) MIKE 21 - Short time scales (DHI) - also for estuaries Delft 3 D model, developed by DELFT TELEMAC (LNH, France) - finite element model COASTOX (RODOS PV 6 package) Estuarine models ¥ ¥ DIVAST ( Dr Roger Proctor) ECo. S (PML, UK) - includes bio-uptake www. ceh. ac. uk/PROTECT

DHI MIKE 21 model ¥ ¥ ¥ Two-dimensional depth averaged model for coastal waters Location defined on a grid - creates solution from previous time step Hydrodynamics solved using full timedependent non-linear equations (continuity & conservation of momentum) Large, slow and complex when applied to an extensive region Suitable for short term (sub annual) assessments A post processor is required to determine biota concentrations and dose calculations www. ceh. ac. uk/PROTECT

Marine Environmental Advection Dispersion (MEAD) ¥ ¥ ¥ 2 km grid www. ceh. ac. uk/PROTECT Applies advection - dispersion equations over an area and time Generates activity concentration predictions in water and sediment Has been combined with the ERICA methodology to make realistic assessments of impact on biota

MEAD input data - sediment Distribution of fine grained bed sediment www. ceh. ac. uk/PROTECT Distribution of suspended particles (modelled)

MEAD output - Cumbrian coast 60 Co in winkles 99 Tc in crab 137 Cs in cod / plaice 241 Am in mussels Could be used to derive CFs for use in ERICA www. ceh. ac. uk/PROTECT

MEAD - Long-range results Predicted distribution of 137 Cs in seawater in 2000 www. ceh. ac. uk/PROTECT Predicted distribution of 137 Cs in bed sediments in 2000

More complex process models ¥ Extra modules for extra processes ¥ ¥ ¥ Model. Maker biokinetic models ¥ Dynamic interactions with sediment ¥ Speciation ¥ Dynamic uptake in biota www. ceh. ac. uk/PROTECT More complex water quality issues e. g. eutrophication Wave interactions Coastal morphology Particle and slick tracking analysis Sediment dynamics

River and estuary modelling www. ceh. ac. uk/PROTECT

River and estuary models ¥ Advantages: ¥ ¥ ¥ Large geographical range Consider multiple dimensions of the problem (1 - 3 D) Considers interconnected river networks Results more accurate (if properly calibrated) Disadvantages - same as marine models: ¥ ¥ ¥ Data hungry Run time dependent on grid size & time step Requires a more specialised type of user CPU-hungry (as time step and grid size decreases it demands more computer resources) Post-processing required for dose calculation (use as input to ERICA) www. ceh. ac. uk/PROTECT

Model characteristics ¥ ¥ Input requirements: Bathymetry, rainfall and catchment data, sediment properties, network mapping, source term Type of output: activity concentration in water and sediment, hydrodynamic data for river All use same advection/dispersion equations as marine but differences in boundary conditions Generally models solve equations to: ¥ ¥ Give water depth and velocity over the model domain. Calculate dilution of a tracer (activity concentration) www. ceh. ac. uk/PROTECT

Common models ¥ Can be 1 D, 2 D or 3 D models ¥ ¥ Off-the-shelf models: ¥ ¥ 1 D river models: River represented by a line in downstream direction - widely used 2 D models have some use where extra detail is required 3 D models are rarely used unless very detailed process representation is needed MIKE 11 model developed by the DHI, Water and Environment (1 D model) VERSE (developed by WSC) MOIRA (Delft Hydraulics) Research models: ¥ ¥ PRAIRIE (AEA Technology) RIVTOX & LAKECO (RODOS PV 6 package) www. ceh. ac. uk/PROTECT

Example - MIKE 11 ¥ ¥ ¥ www. ceh. ac. uk/PROTECT MIKE 11 - Industry standard code for river flow simulation River represented by a line in downstream direction River velocity is averaged over the area of flow Cross sections are used to give water depth predictions Can be steady flow (constant flow rate) or unsteady flow Use of cross sections can give an estimate of inundation extent but not flood plain velocity

Catchment modelling ¥ ¥ Convert rainfall over the catchment to river flow out the catchment Represent the processes illustrated, however in two possible ways: ¥ Simple “black box” type model such as empirical relationship from rainfall to runoff (cannot be used to simulate changing conditions) ¥ Complex physically based models where all processes are explicitly represented ¥ Example: DHI MIKE-SHE www. ceh. ac. uk/PROTECT

Conclusions ¥ ¥ ¥ ERICA uses the IAEA SRS 19 dispersion models to work out a simple, conservative source - receptor interaction SRS 19 has some shortcomings PC-CREAM can be used as an alternative to the SRS 19 marine model There are further off-the-shelf models performing radiological impact assessments of routine and continuous discharges ranging from simple to complex Key criteria of simplicity of use and number of parameters need to be considered – must match complexity to need www. ceh. ac. uk/PROTECT

Summary of key points SRS 19 model Marine + point in coast PC Cream DORIS + Large compartment box model + Dynamic transfer to water and + requires very few parameters sediments - no offshore dispersion - requires more parameters - very simple equilibrium model (Kd - Does not work well at fine based) resolution River, lake, reservoir N/A + very simple 1 D model - only models riverbanks - Simple average flow conditions - very simple equilibrium model (Kd based) - Simple linear river Aerial + limited range 100 m to 20 km + constant meteorology + Gaussian plume, still conditions www. ceh. ac. uk/PROTECT PLUME - Same as SRS 19 Orther models Marine + compartmental models for large areas + Grid models for fine resolutions (small areas) + Dynamic / time-variable discharges - parameter hungry (bathimetry, gridding, etc) River, lake, reservoir + 2 D - 3 D models + Full representation of hydrodynamics + Can deal with tides, concentration gradients + Dynamic / time-variable discharges + Complex river networks - parameter hungry (bathimetry, gridding, etc) AERMOD, ADMS, etc. + Non Gaussian for unstable conditions + Buildings and terrain + Solute modelling + Complex meteorology

Links to alternative models www. ceh. ac. uk/PROTECT
