Modeling Population Growth of Local Animal Species by
Modeling Population Growth of Local Animal Species by Age Groups …and using this mathematical model to make predictions about future populations

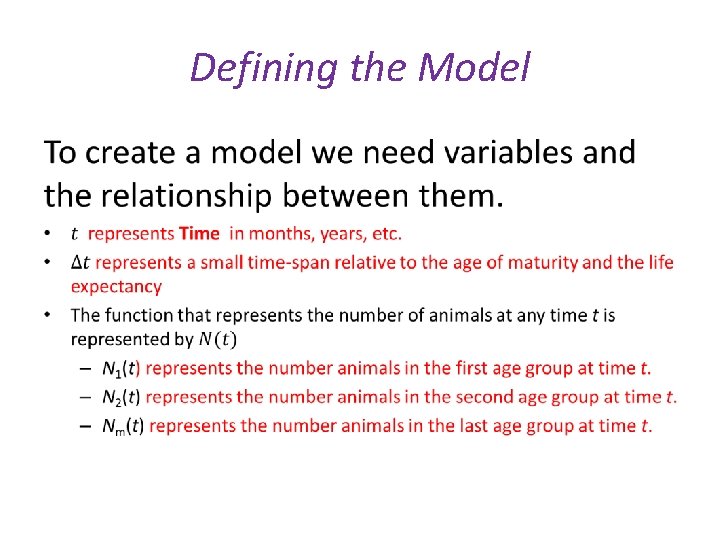

Defining the Model •

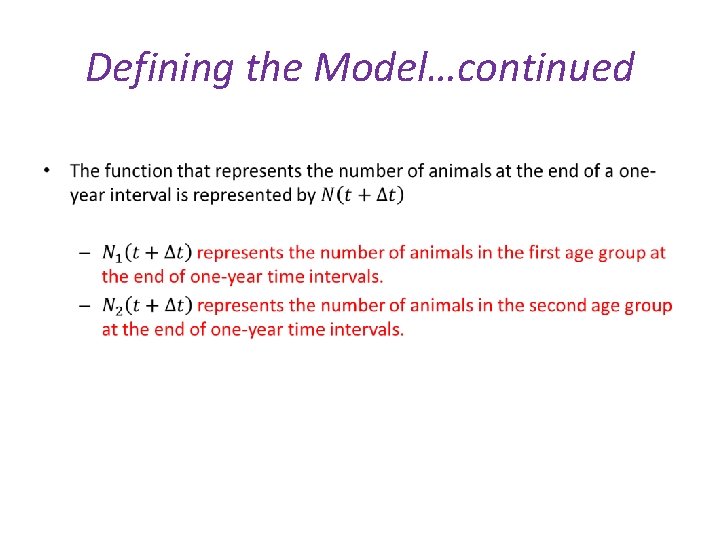

Defining the Model…continued •

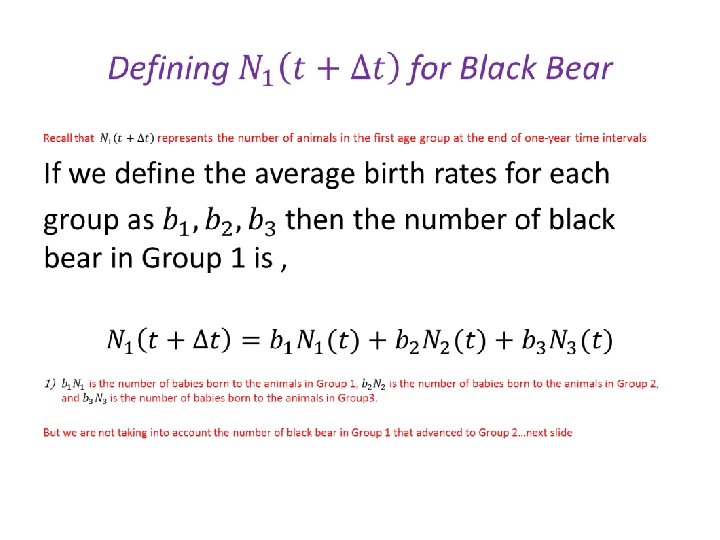

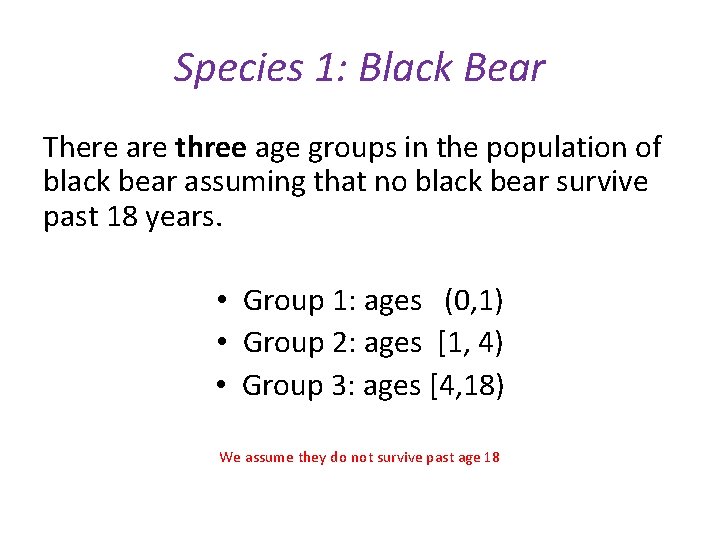

Species 1: Black Bear There are three age groups in the population of black bear assuming that no black bear survive past 18 years. • Group 1: ages (0, 1) • Group 2: ages [1, 4) • Group 3: ages [4, 18) We assume they do not survive past age 18

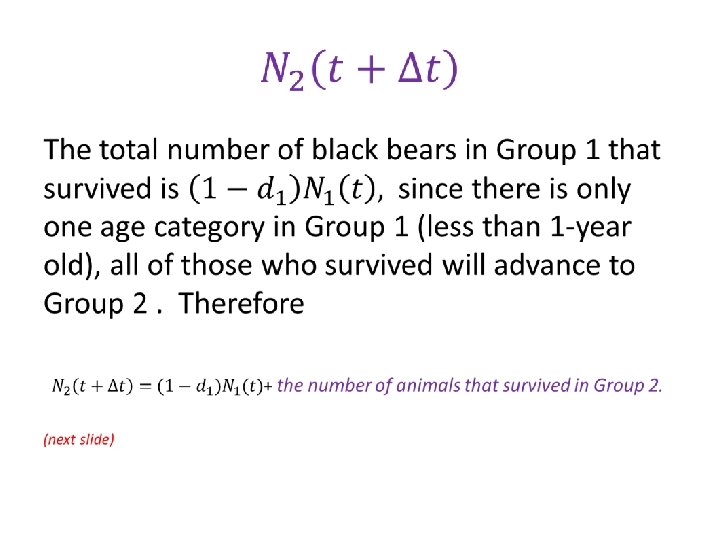

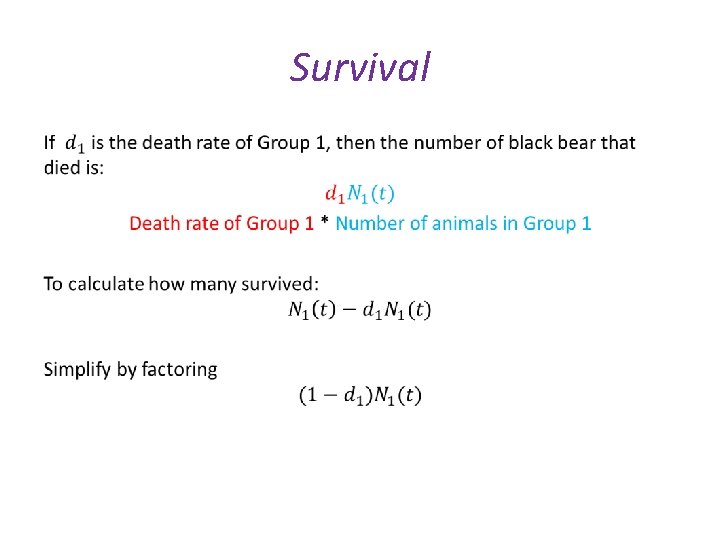

Survival •

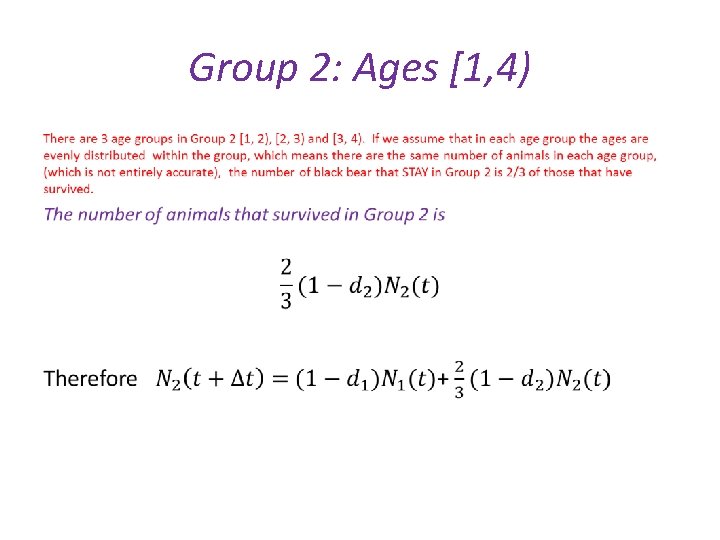

Group 2: Ages [1, 4) •

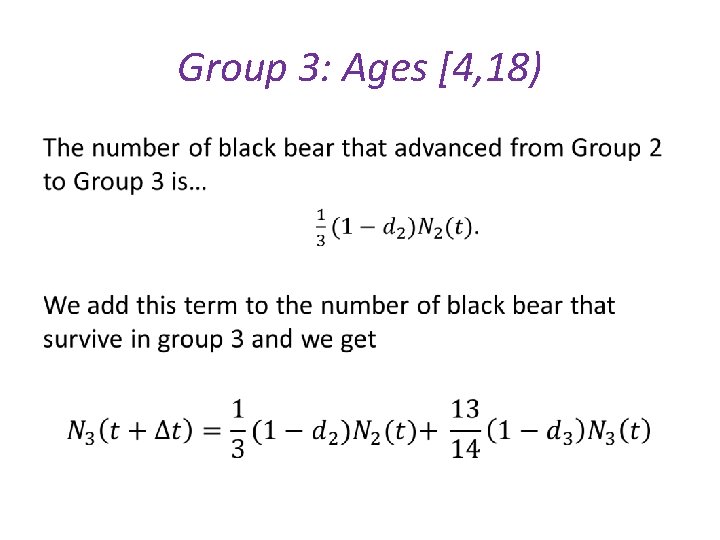

Group 3: Ages [4, 18) •

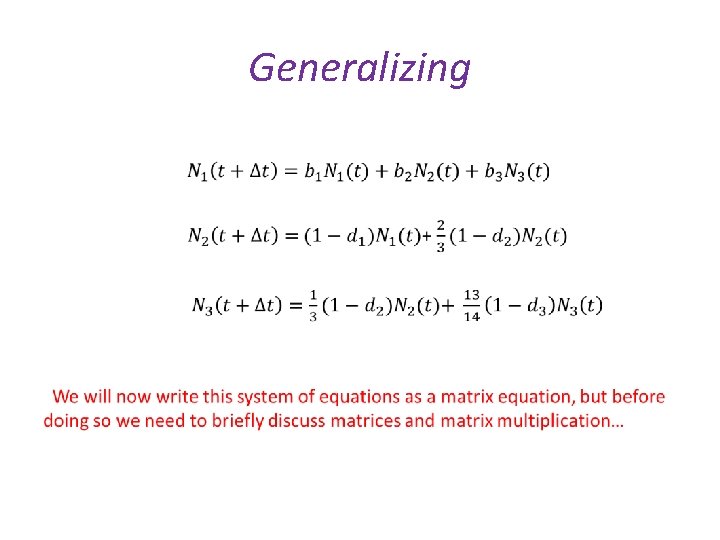

Generalizing •

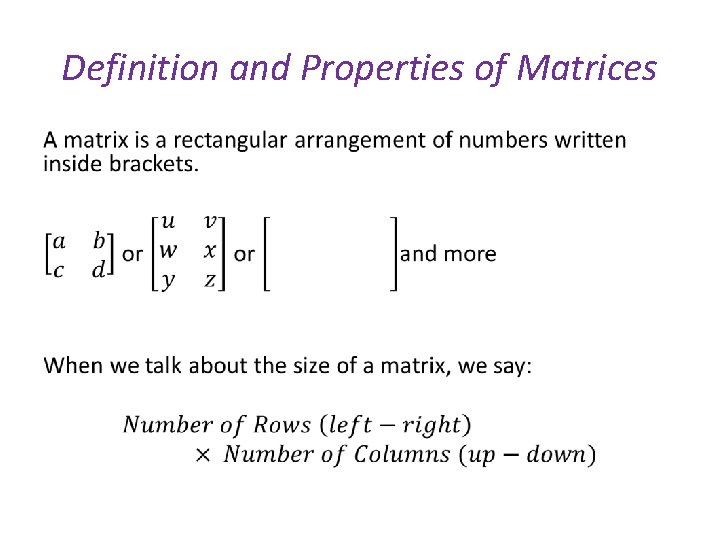

Definition and Properties of Matrices •

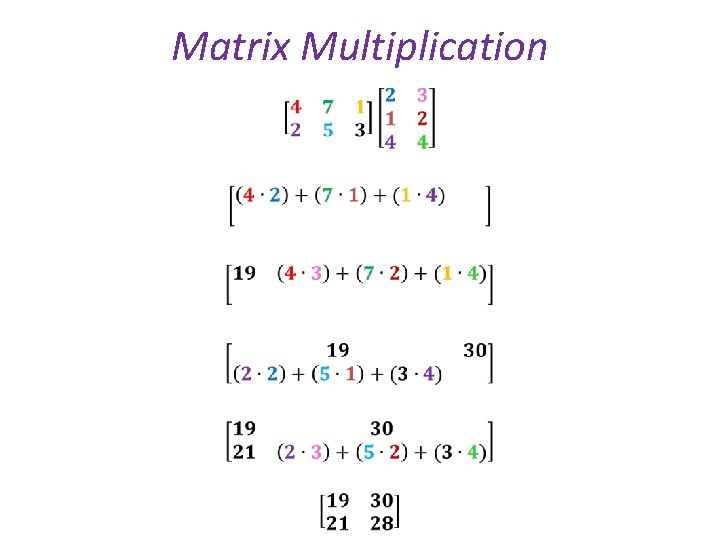

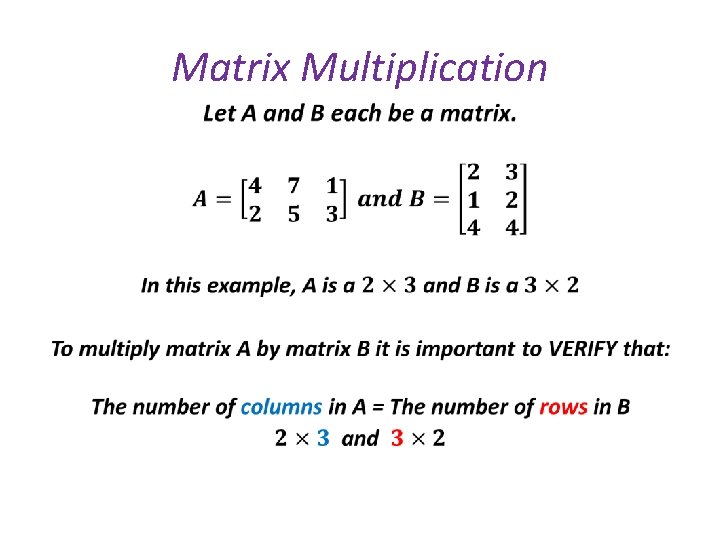

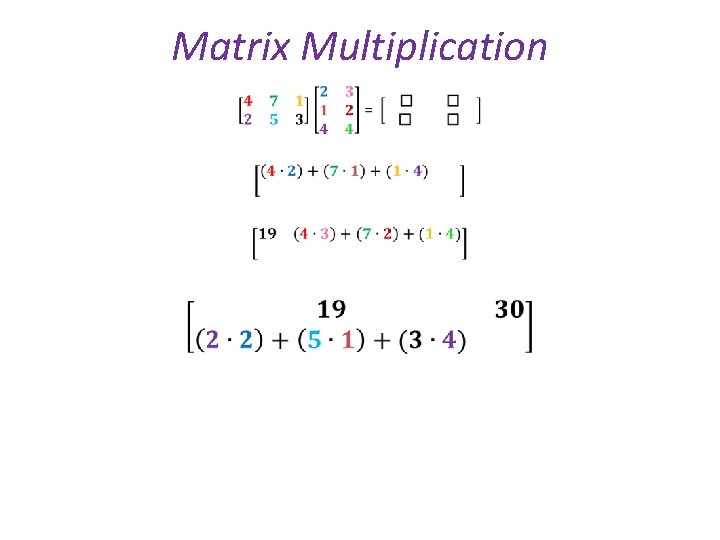

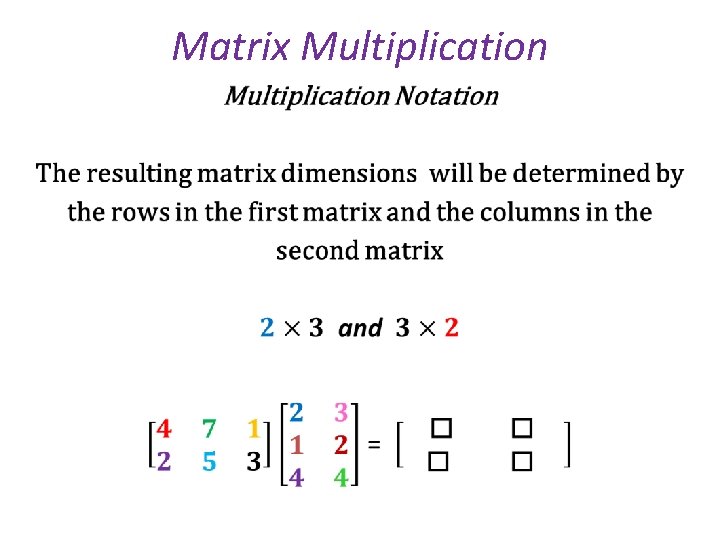

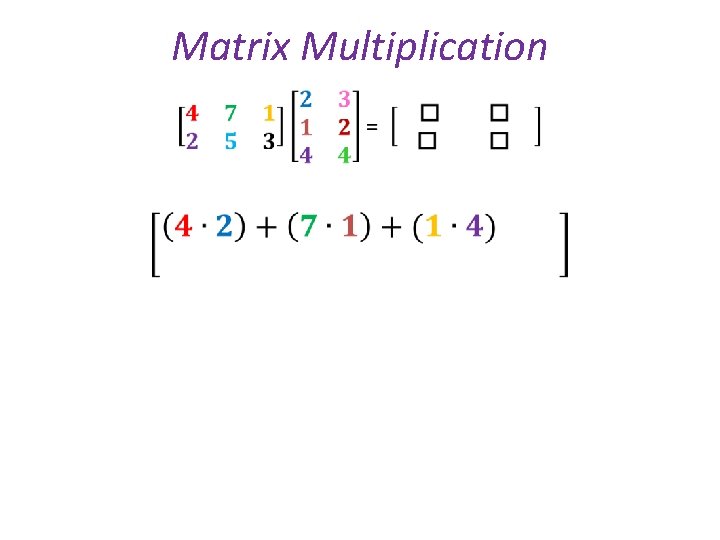

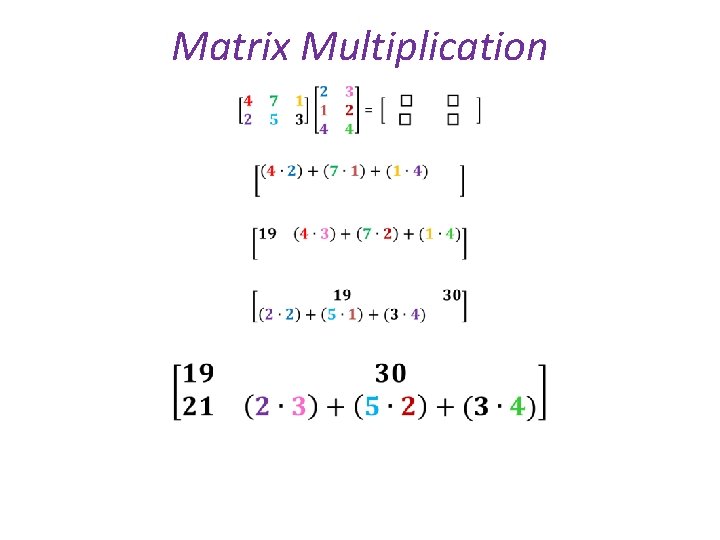

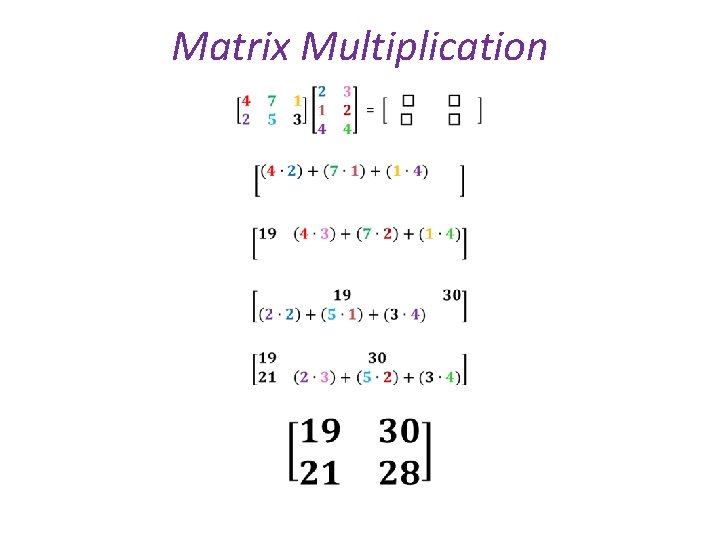

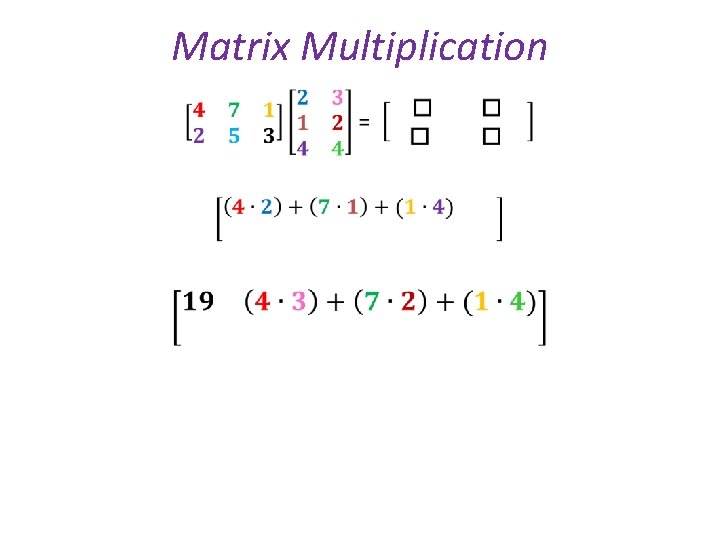

Matrix Multiplication •
Matrix Multiplication •
Matrix Multiplication •
Matrix Multiplication •
Matrix Multiplication •
Matrix Multiplication •
Matrix Multiplication •
Matrix Multiplication •

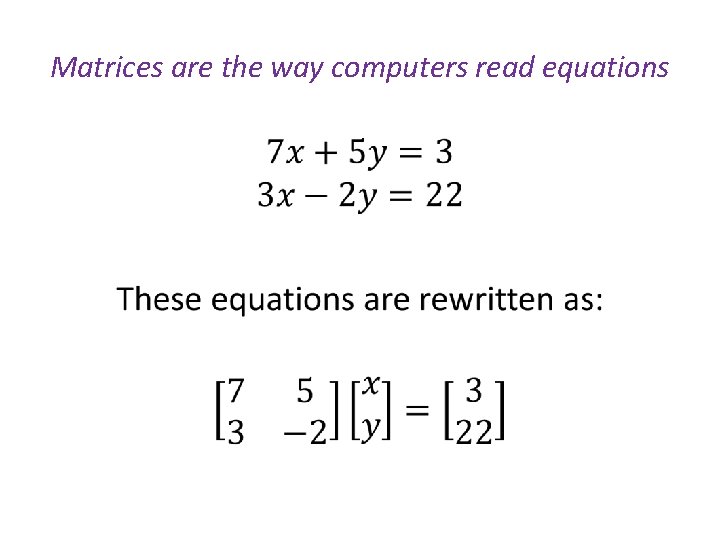

Matrices are the way computers read equations •

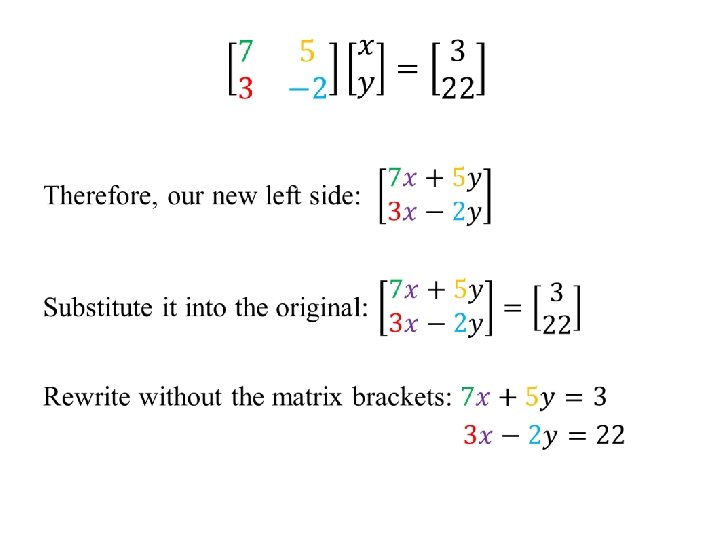

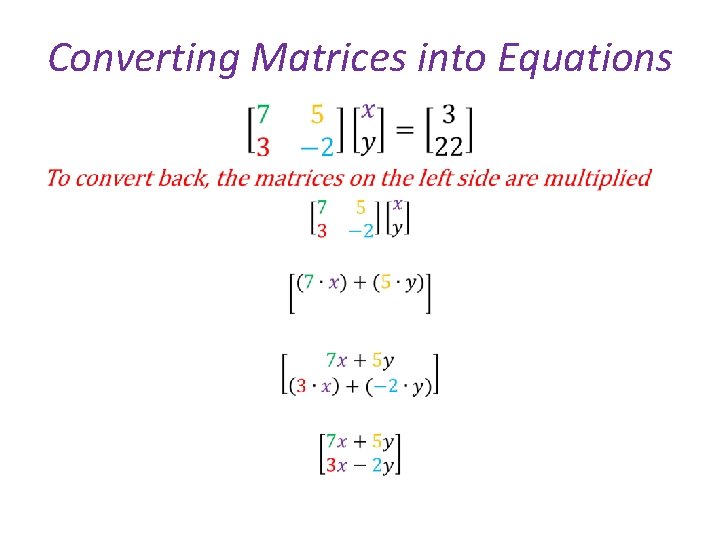

Converting Matrices into Equations •

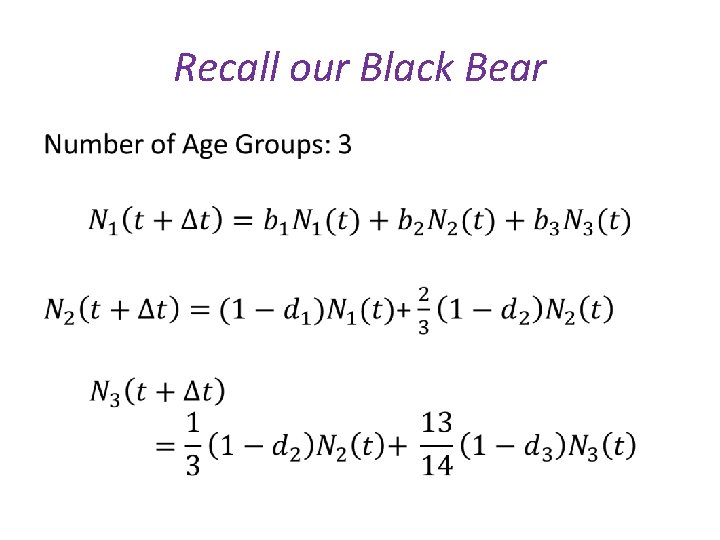

Recall our Black Bear •

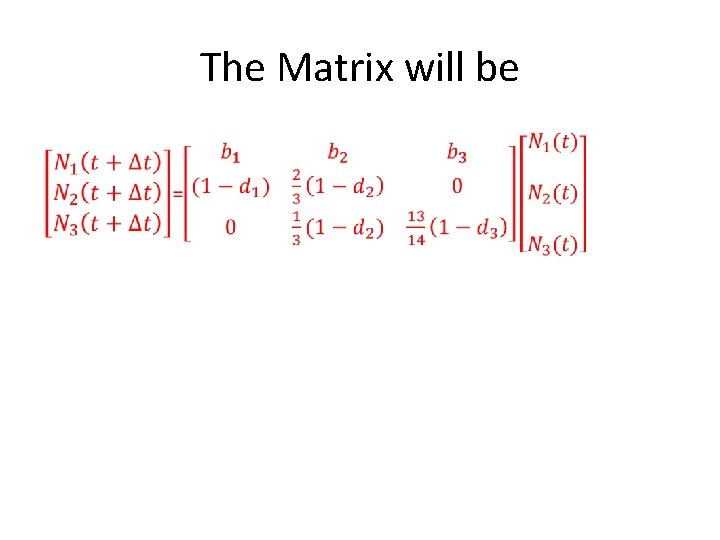

The Matrix will be •

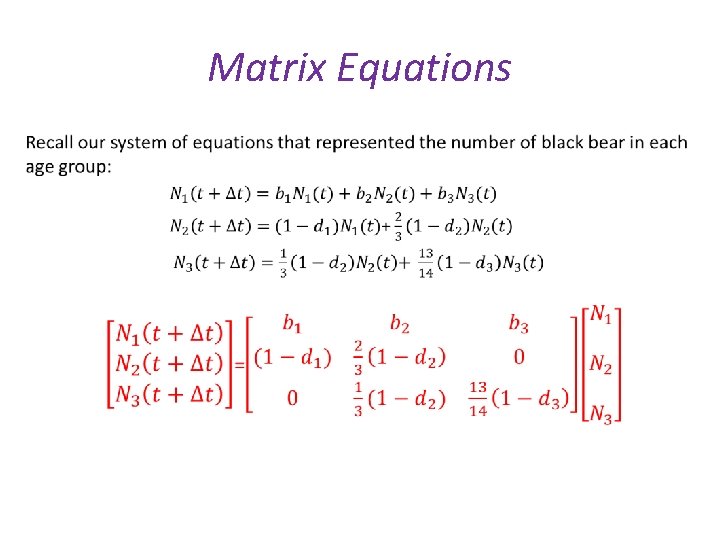

Matrix Equations •

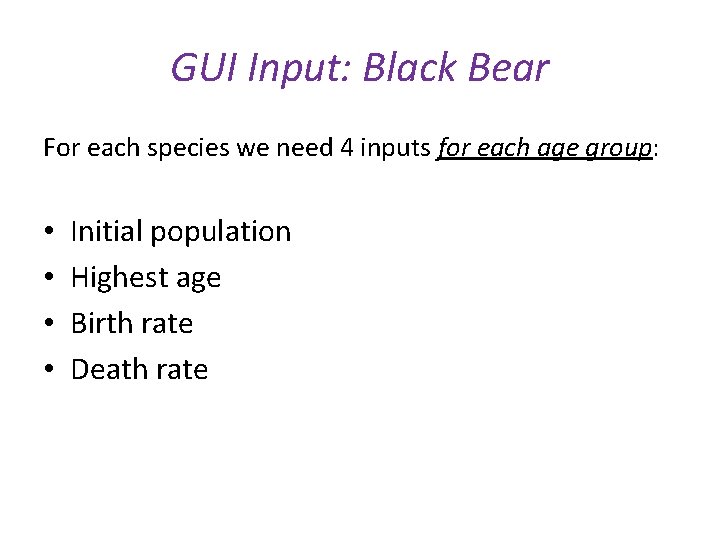

GUI Input: Black Bear For each species we need 4 inputs for each age group: • • Initial population Highest age Birth rate Death rate

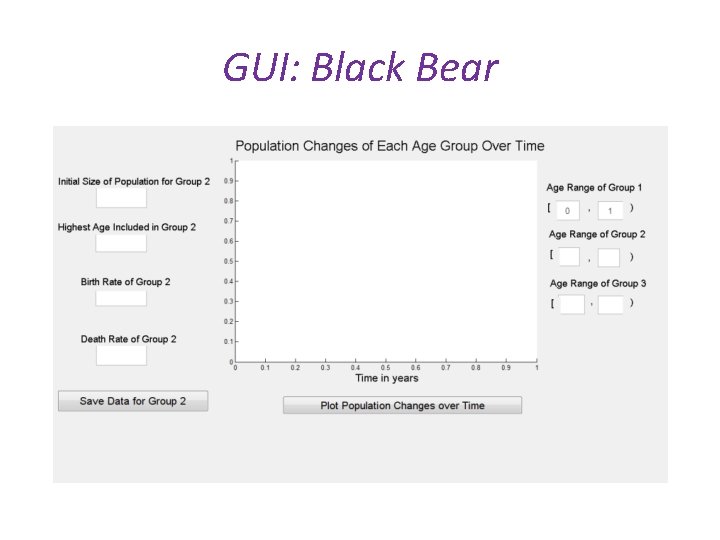

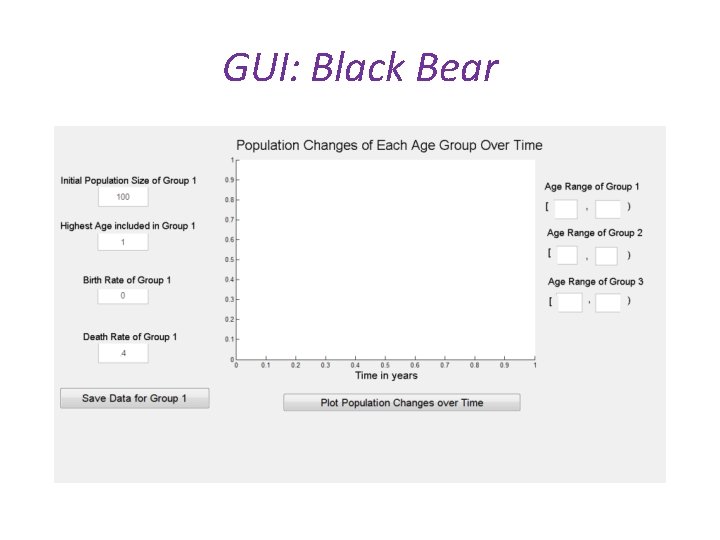

GUI: Black Bear
GUI: Black Bear
GUI: Black Bear
GUI: Black Bear
GUI: Black Bear
GUI: Black Bear

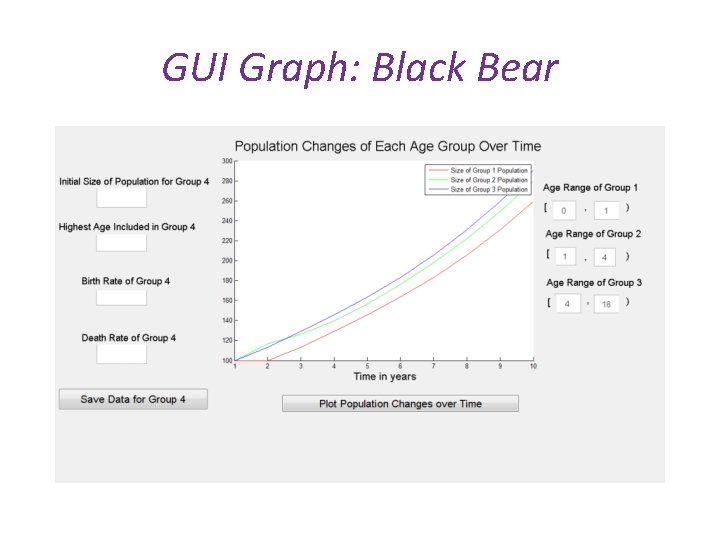

GUI Graph: Black Bear

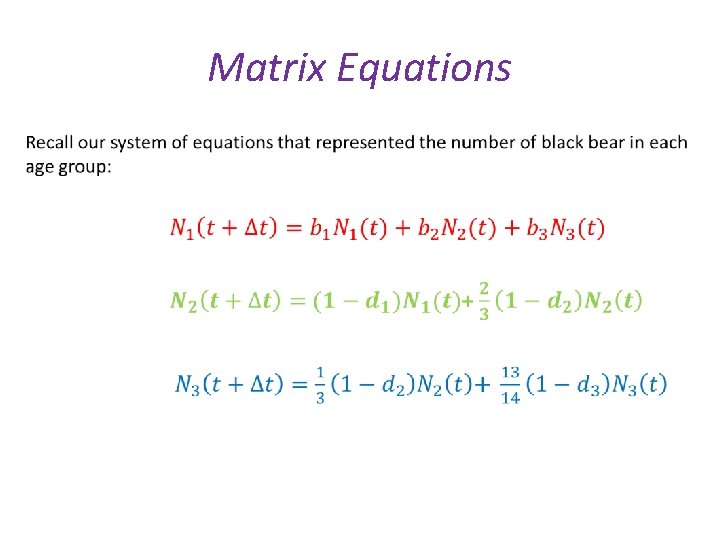

Matrix Equations •

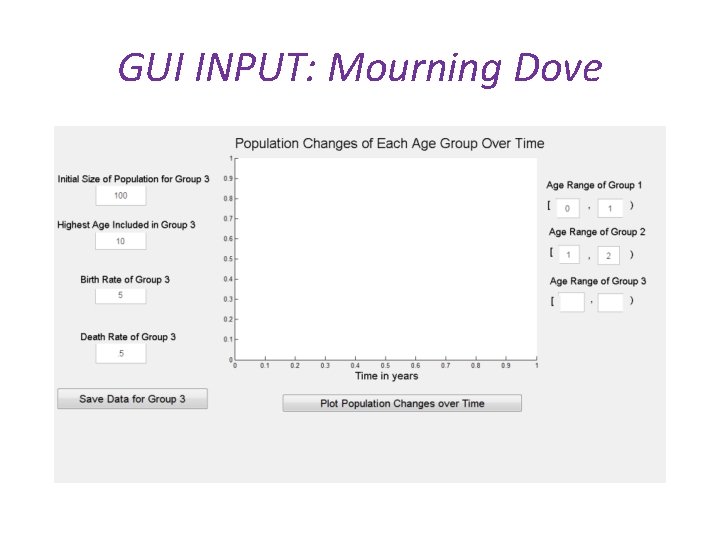

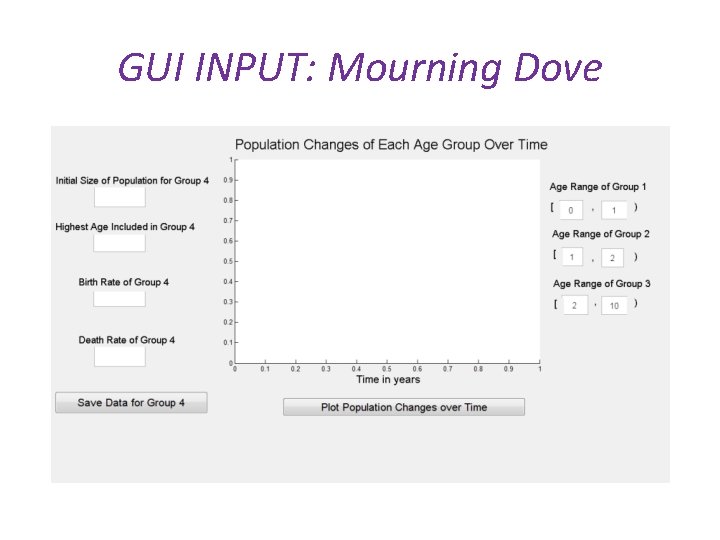

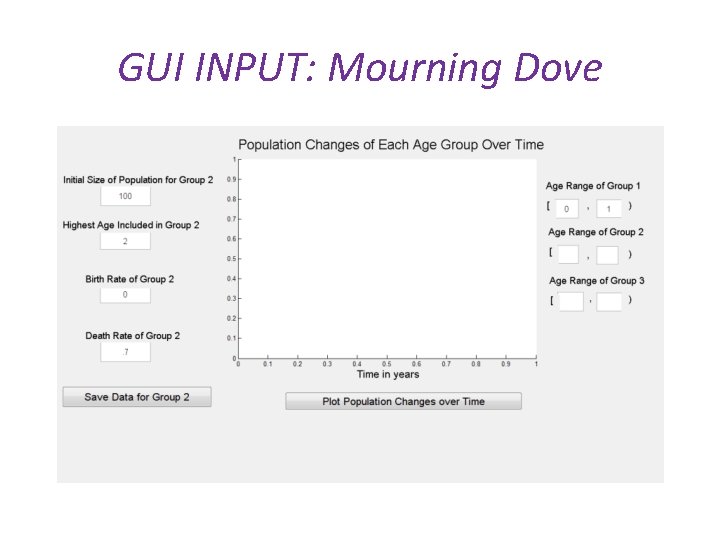

GUI INPUT: Mourning Dove
GUI INPUT: Mourning Dove
GUI INPUT: Mourning Dove
GUI INPUT: Mourning Dove

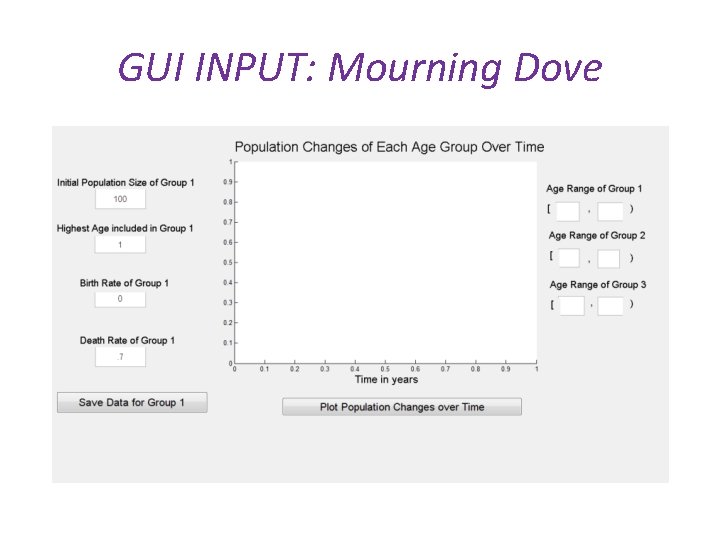

GUI INPUT: Mourning Dove
GUI INPUT: Mourning Dove

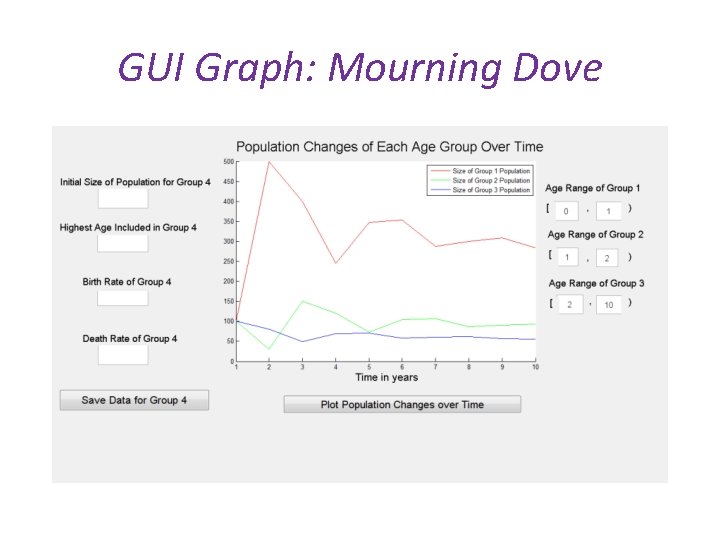

GUI Graph: Mourning Dove

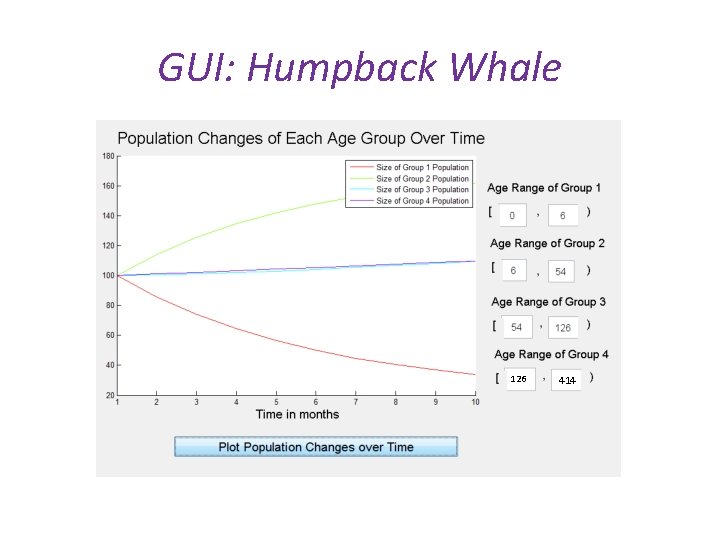

GUI: Humpback Whale 126 414
The End
