Modeling Flows and Information Single commodity flow problems

Modeling Flows and Information Single commodity flow problems Multicommodity Flow Conservation Weight and Cube Pass through vs Unload/Reload Tracking Information Column Generation 1 15. 057 Spring 02 Vande Vate 1

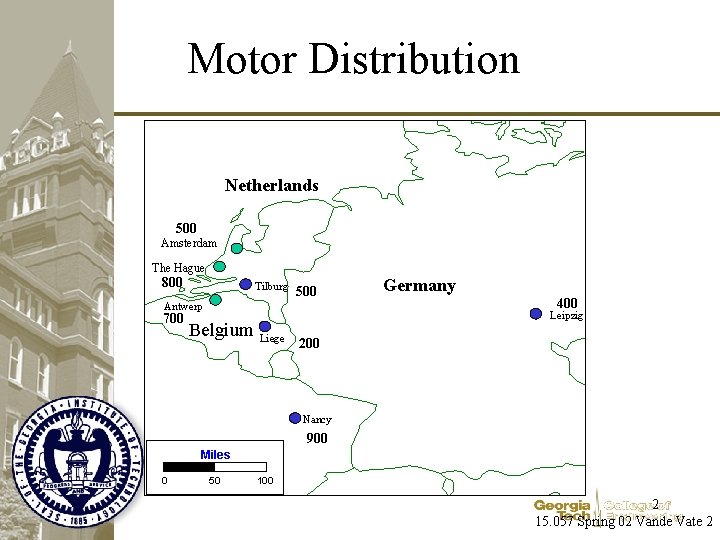

Motor Distribution Netherlands 500 Amsterdam The Hague * 800 * Antwerp 700 * * Belgium 500 800 Tilburg 500 700 * Liege 200 * 200 Germany 400 * Leipzig 400 Nancy 900 Miles 0 50 100 2 15. 057 Spring 02 Vande Vate 2

Transportation Costs Unit transportation costs from harbors to plants Minimize the transportation costs involved in moving the motors from the harbors to the plants 3 15. 057 Spring 02 Vande Vate 3

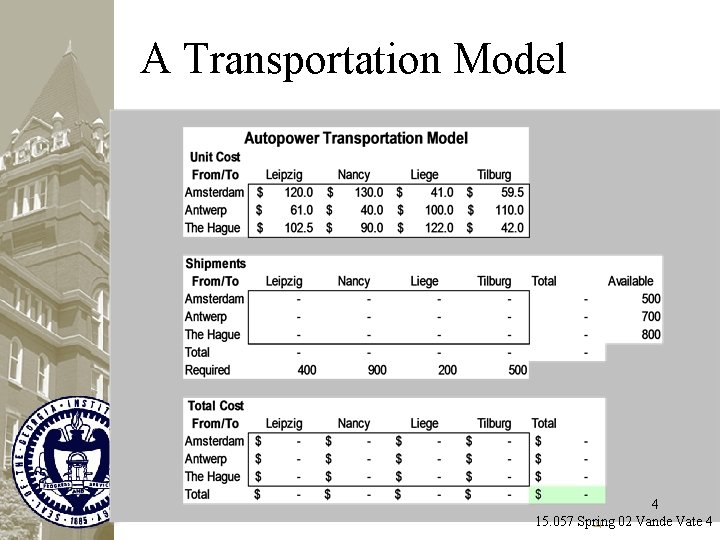

A Transportation Model 4 15. 057 Spring 02 Vande Vate 4

Challenge • Find a best answer 5 15. 057 Spring 02 Vande Vate 5

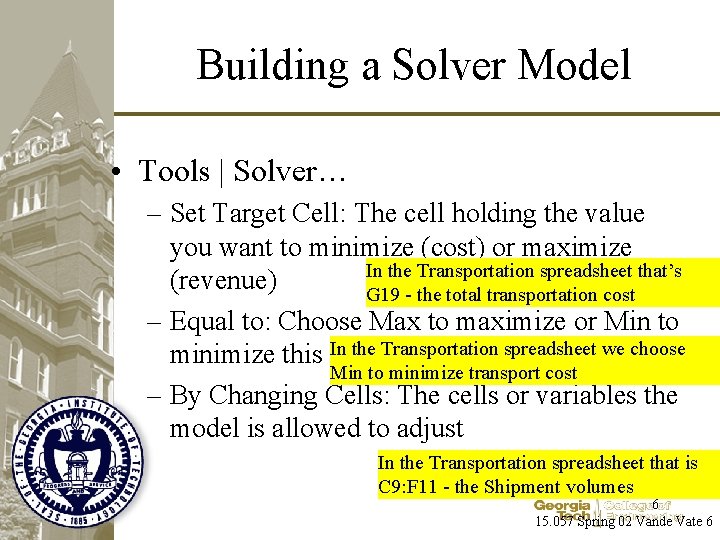

Building a Solver Model • Tools | Solver… – Set Target Cell: The cell holding the value you want to minimize (cost) or maximize In the Transportation spreadsheet that’s (revenue) G 19 - the total transportation cost – Equal to: Choose Max to maximize or Min to minimize this In the Transportation spreadsheet we choose Min to minimize transport cost – By Changing Cells: The cells or variables the model is allowed to adjust In the Transportation spreadsheet that is C 9: F 11 - the Shipment volumes 6 15. 057 Spring 02 Vande Vate 6

Solver Model Cont’d • Subject to the Constraints: The constraints that limit the choices of the values of the adjustables. – Click on Add • Cell Reference is a cell that holds a value calculated from the adjustables In the Transportation spreadsheet for example, G 9 is the total volume shipped out of Amsterdam • Constraint is a cell that holds a value that constraints the Cell Reference. In the Transportation spreadsheet for example, H 9 is the total volume we can ship out of Amsterdam • <=, =, => is the sense of the constraint. Choose one. 7 <= in this case. Don’t ship more than we have in 02 AMS 15. 057 Spring Vande Vate 7

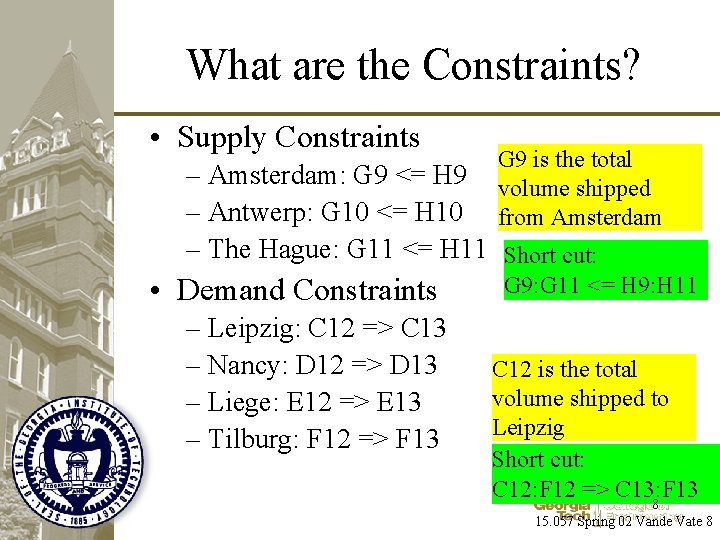

What are the Constraints? • Supply Constraints G 9 is the total volume shipped from Amsterdam – Amsterdam: G 9 <= H 9 – Antwerp: G 10 <= H 10 – The Hague: G 11 <= H 11 Short cut: • Demand Constraints – Leipzig: C 12 => C 13 – Nancy: D 12 => D 13 – Liege: E 12 => E 13 – Tilburg: F 12 => F 13 G 9: G 11 <= H 9: H 11 C 12 is the total volume shipped to Leipzig Short cut: C 12: F 12 => C 13: F 13 8 15. 057 Spring 02 Vande Vate 8

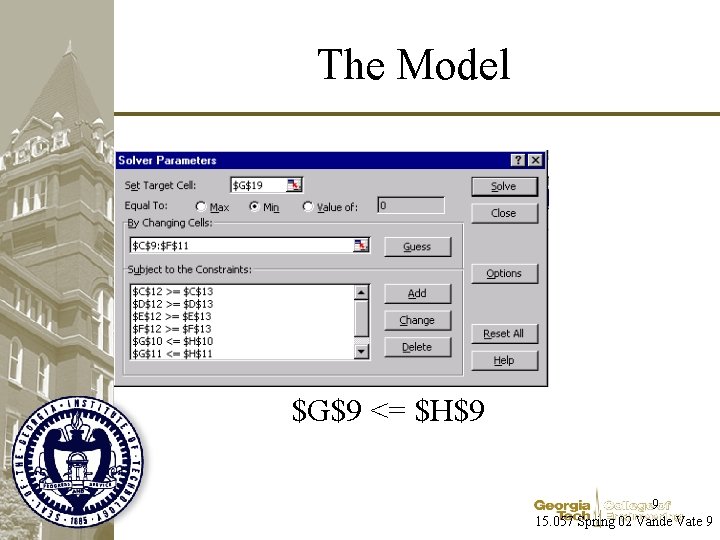

The Model $G$9 <= $H$9 9 15. 057 Spring 02 Vande Vate 9

What’s Missing? 10 15. 057 Spring 02 Vande Vate 10

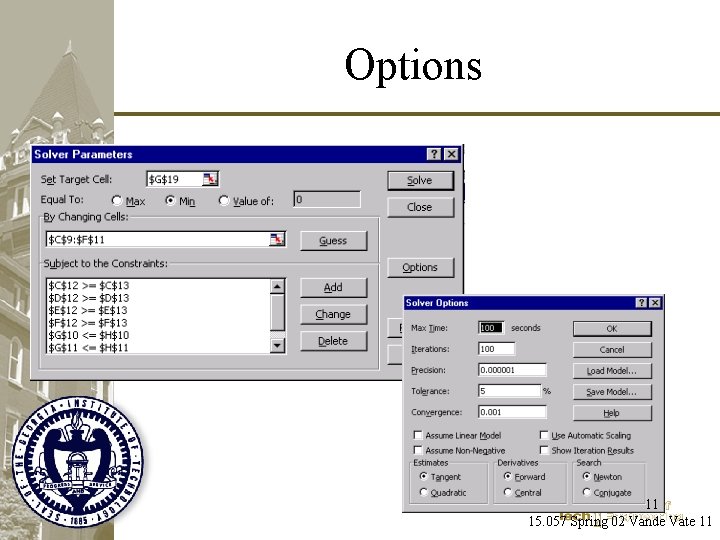

Options 11 15. 057 Spring 02 Vande Vate 11

Multiple Products • Same costs • Different products • Different supply • Different Demand Product 1 Product 2 Netherlands 800 500 Amsterdam The Hague 800 300 * * * Antwerp * 700 500 Belgium 500 800 500 Tilburg 500 700 * Liege 200 * 50 400 * Leipzig 400 Nancy 900 500 Miles 0 200 Germany 100 12 15. 057 Spring 02 Vande Vate 12

Question • Can we just combine the products: – Total Supply at each source – Total Demand at each destination • The Hague – Total Supply: 1, 100 = 800 + 300 • Tilburg – Total Demand: 1, 000 = 500 + 500 13 15. 057 Spring 02 Vande Vate 13

Question • Can we just solve two separate problems: – One Problem for Product 1 – One Problem for Product 2? 14 15. 057 Spring 02 Vande Vate 14

Question • Can we just solve two separate problems: – One Problem for Product 1 – One Problem for Product 2? • When won’t this work? – Different Costs? – Capacities on Transportation –. . . 15 15. 057 Spring 02 Vande Vate 15

Shared Capacities 16 15. 057 Spring 02 Vande Vate 16

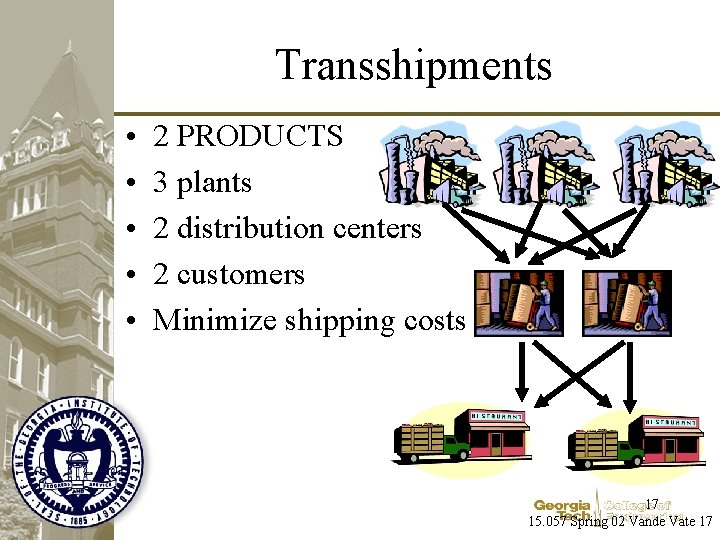

Transshipments • • • 2 PRODUCTS 3 plants 2 distribution centers 2 customers Minimize shipping costs 17 15. 057 Spring 02 Vande Vate 17

Challenge • Formulate a model 18 15. 057 Spring 02 Vande Vate 18

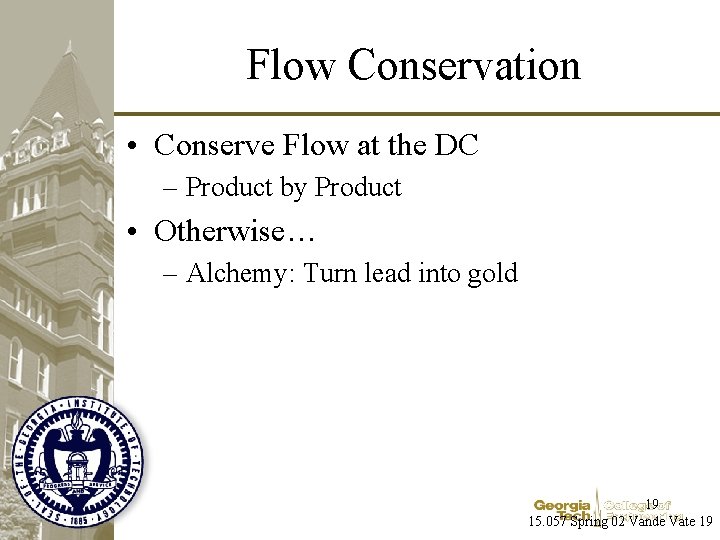

Flow Conservation • Conserve Flow at the DC – Product by Product • Otherwise… – Alchemy: Turn lead into gold 19 15. 057 Spring 02 Vande Vate 19

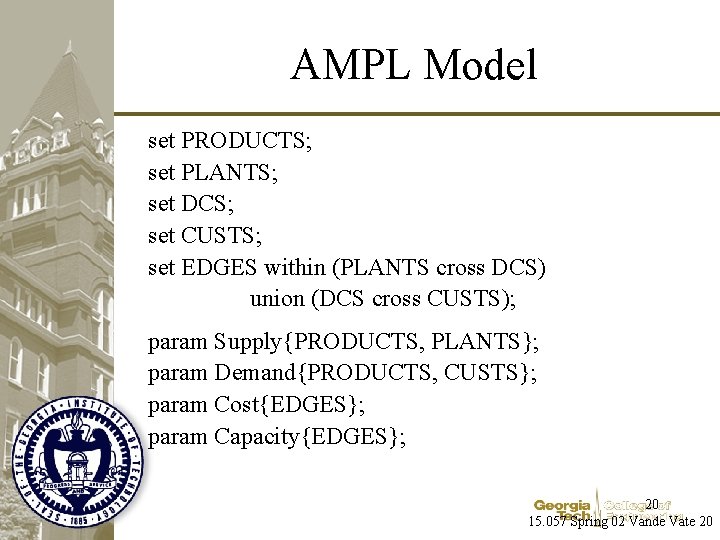

AMPL Model set PRODUCTS; set PLANTS; set DCS; set CUSTS; set EDGES within (PLANTS cross DCS) union (DCS cross CUSTS); param Supply{PRODUCTS, PLANTS}; param Demand{PRODUCTS, CUSTS}; param Cost{EDGES}; param Capacity{EDGES}; 20 15. 057 Spring 02 Vande Vate 20

var Flow{PRODUCTS, EDGES} >= 0; minimize Total. Cost: sum {p in PRODUCTS, (f, t) in EDGES} Cost[f, t]*Flow[p, f, t]; s. t. Observe. Supply {prd in PRODUCTS, plant in PLANTS}: sum {(plant, toloc) in EDGES} Flow[prd, plant, toloc] <= Supply[prd, plant]; s. t. Meet. Demand{prd in PRODUCTS, cust in CUSTS}: sum{(fromloc, cust) in EDGES} Flow[prd, fromloc, cust] >= Demand[prd, cust]; s. t. Conserve. Flow{prd in PRODUCTS, dc in DCS}: sum{(fromloc, dc) in EDGES} Flow[prd, fromloc, dc] = sum{(dc, toloc) in EDGES} Flow[prd, dc, toloc]; s. t. Joint. Capacity{ (fromloc, toloc) in EDGES}: sum{prd in PRODUCTS} Flow[prd, fromloc, toloc] <= Capacity[fromloc, toloc]; 21 15. 057 Spring 02 Vande Vate 21

Weight & Cube • More realistic version of “shared capacity” – Product 1: – Product 2: • 10 lbs/unit • 1 cubic ft/unit • 1 lbs/unit • 10 cubic ft/unit • Pay by Truckload – Weight Limit: 4, 000 lbs – Cubic Capacity: 1, 000 Cu. Ft. • Joint demands on transportation capacity 22 15. 057 Spring 02 Vande Vate 22

Weight & Cube • How many vehicles? 23 15. 057 Spring 02 Vande Vate 23

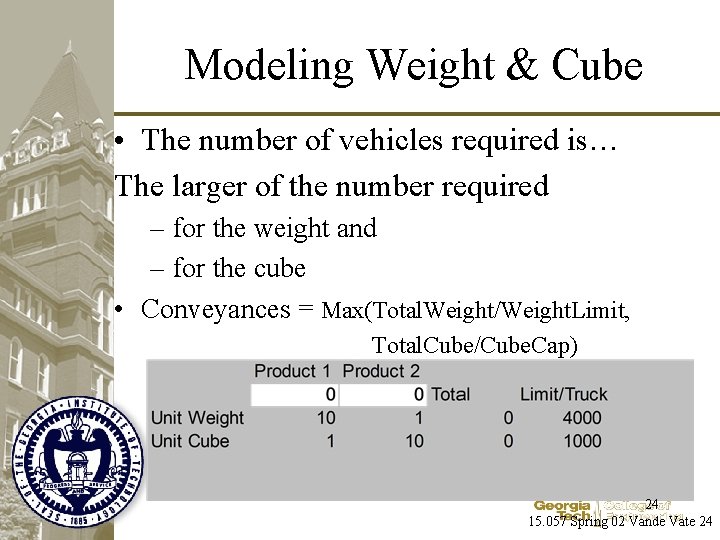

Modeling Weight & Cube • The number of vehicles required is… The larger of the number required – for the weight and – for the cube • Conveyances = Max(Total. Weight/Weight. Limit, Total. Cube/Cube. Cap) 24 15. 057 Spring 02 Vande Vate 24

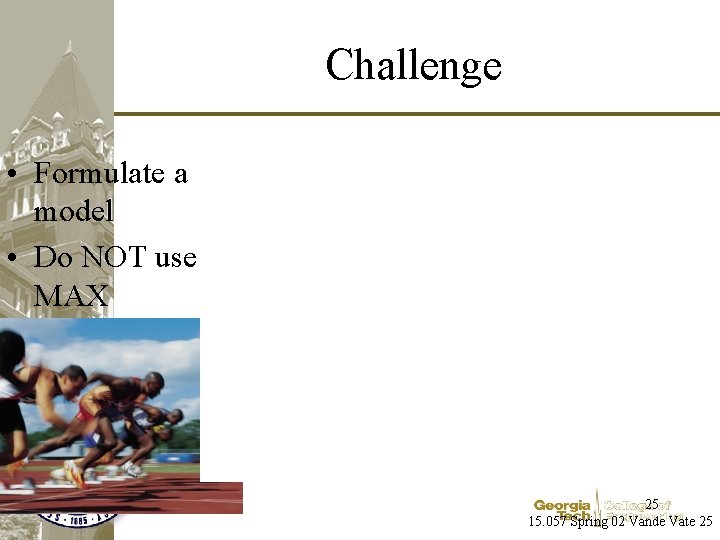

Challenge • Formulate a model • Do NOT use MAX 25 15. 057 Spring 02 Vande Vate 25

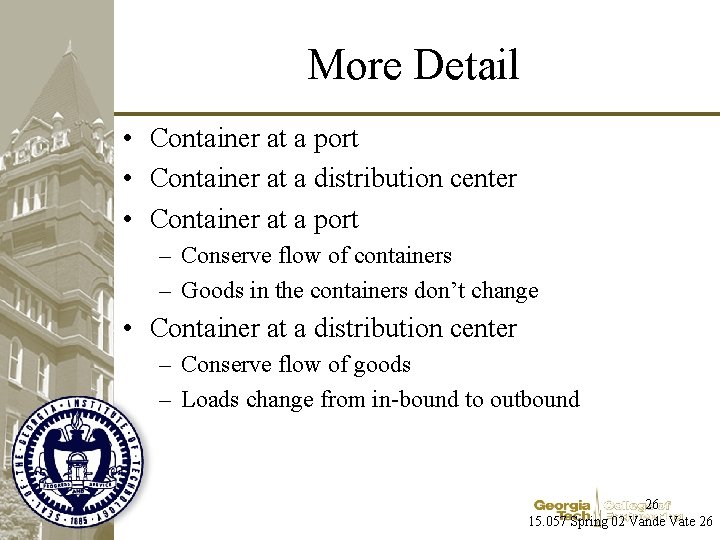

More Detail • Container at a port • Container at a distribution center • Container at a port – Conserve flow of containers – Goods in the containers don’t change • Container at a distribution center – Conserve flow of goods – Loads change from in-bound to outbound 26 15. 057 Spring 02 Vande Vate 26

Challenge • Formulate a model with Transloading at DC 27 15. 057 Spring 02 Vande Vate 27

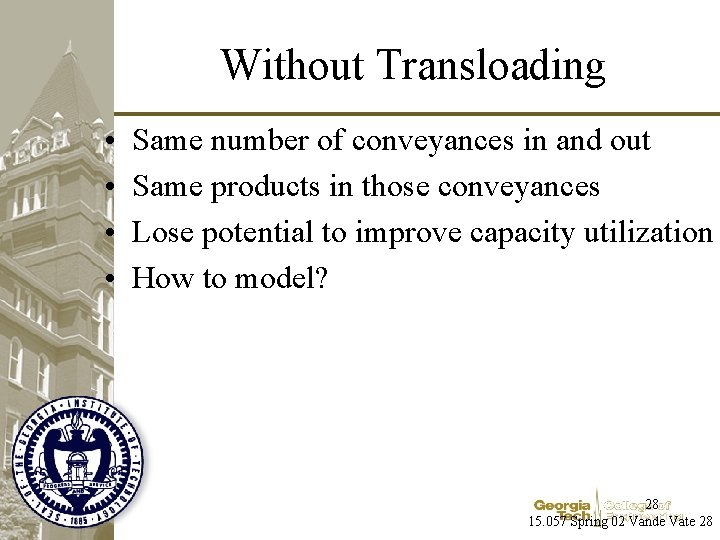

Without Transloading • • Same number of conveyances in and out Same products in those conveyances Lose potential to improve capacity utilization How to model? 28 15. 057 Spring 02 Vande Vate 28

Flows on Paths • Product 1 from Plant 1 to Customer 1 via DC 1 • Product 2 from Plant 2 to Customer 1 via DC 1 29 15. 057 Spring 02 Vande Vate 29

Challenge • Formulate a model WITHOUT Transloading at the DC 30 15. 057 Spring 02 Vande Vate 30

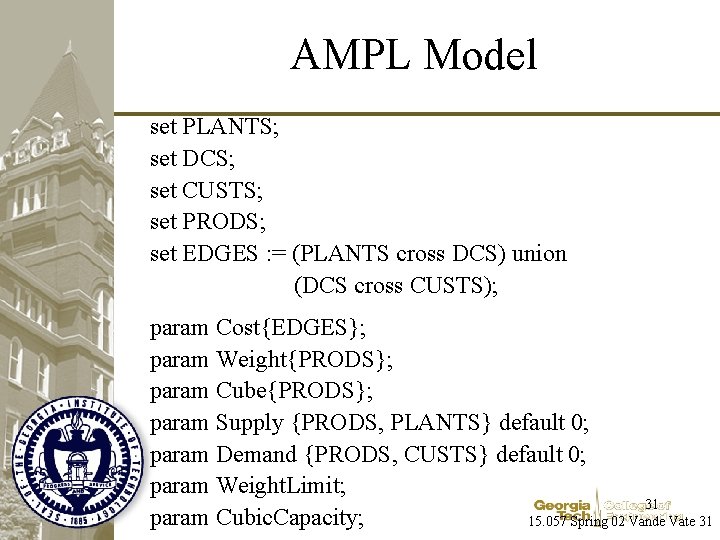

AMPL Model set PLANTS; set DCS; set CUSTS; set PRODS; set EDGES : = (PLANTS cross DCS) union (DCS cross CUSTS); param Cost{EDGES}; param Weight{PRODS}; param Cube{PRODS}; param Supply {PRODS, PLANTS} default 0; param Demand {PRODS, CUSTS} default 0; param Weight. Limit; 31 param Cubic. Capacity; 15. 057 Spring 02 Vande Vate 31

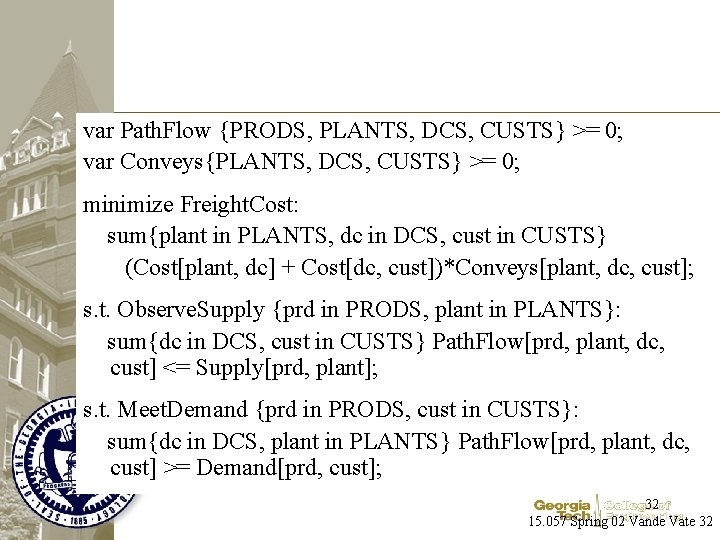

var Path. Flow {PRODS, PLANTS, DCS, CUSTS} >= 0; var Conveys{PLANTS, DCS, CUSTS} >= 0; minimize Freight. Cost: sum{plant in PLANTS, dc in DCS, cust in CUSTS} (Cost[plant, dc] + Cost[dc, cust])*Conveys[plant, dc, cust]; s. t. Observe. Supply {prd in PRODS, plant in PLANTS}: sum{dc in DCS, cust in CUSTS} Path. Flow[prd, plant, dc, cust] <= Supply[prd, plant]; s. t. Meet. Demand {prd in PRODS, cust in CUSTS}: sum{dc in DCS, plant in PLANTS} Path. Flow[prd, plant, dc, cust] >= Demand[prd, cust]; 32 15. 057 Spring 02 Vande Vate 32

AMPL Model s. t. Conveys. By. Weight {plant in PLANTS, dc in DCS, cust in CUSTS}: sum{prd in PRODS} Weight[prd]*Path. Flow[prd, plant, dc, cust] <= Conveys[plant, dc, cust]*Weight. Limit; s. t. Conveys. By. Cube {plant in PLANTS, dc in DCS, cust in CUSTS}: sum{prd in PRODS} Cube[prd]*Path. Flow[prd, plant, dc, cust] <= Conveys[plant, dc, cust]*Cubic. Capacity; 33 15. 057 Spring 02 Vande Vate 33

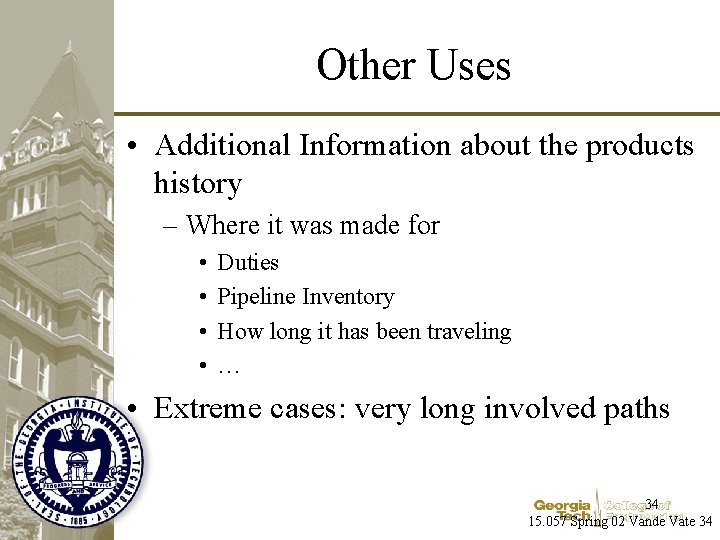

Other Uses • Additional Information about the products history – Where it was made for • • Duties Pipeline Inventory How long it has been traveling … • Extreme cases: very long involved paths 34 15. 057 Spring 02 Vande Vate 34

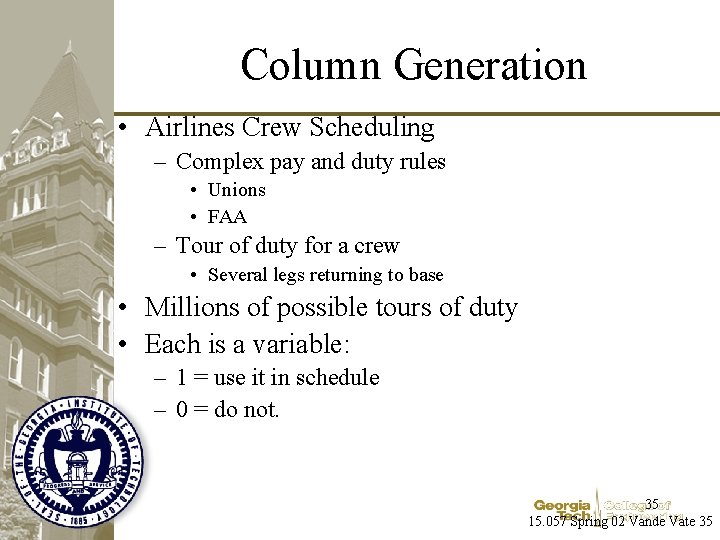

Column Generation • Airlines Crew Scheduling – Complex pay and duty rules • Unions • FAA – Tour of duty for a crew • Several legs returning to base • Millions of possible tours of duty • Each is a variable: – 1 = use it in schedule – 0 = do not. 35 15. 057 Spring 02 Vande Vate 35

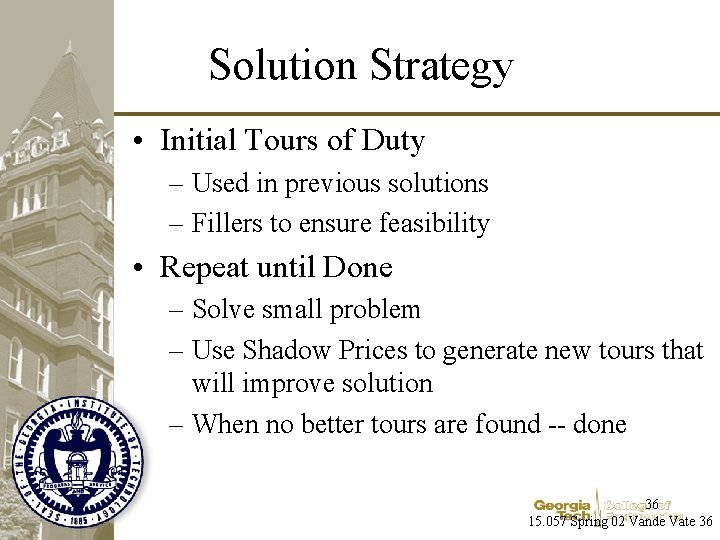

Solution Strategy • Initial Tours of Duty – Used in previous solutions – Fillers to ensure feasibility • Repeat until Done – Solve small problem – Use Shadow Prices to generate new tours that will improve solution – When no better tours are found -- done 36 15. 057 Spring 02 Vande Vate 36

Column Generation Example • Multicommodity Flow 37 15. 057 Spring 02 Vande Vate 37

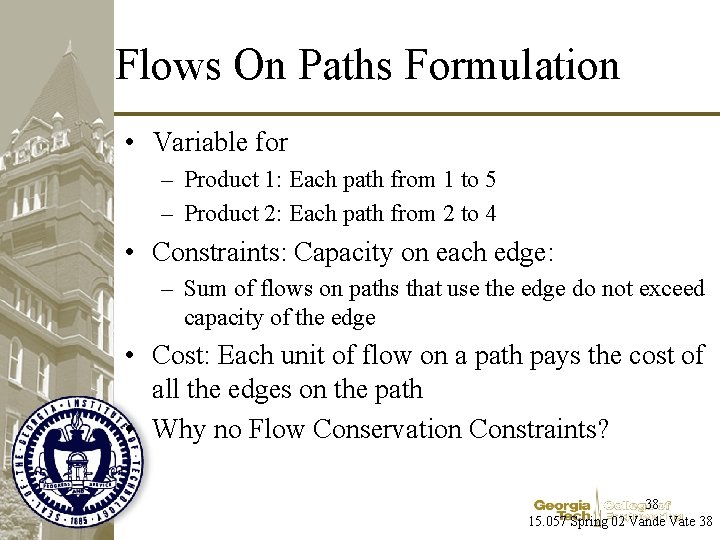

Flows On Paths Formulation • Variable for – Product 1: Each path from 1 to 5 – Product 2: Each path from 2 to 4 • Constraints: Capacity on each edge: – Sum of flows on paths that use the edge do not exceed capacity of the edge • Cost: Each unit of flow on a path pays the cost of all the edges on the path • Why no Flow Conservation Constraints? 38 15. 057 Spring 02 Vande Vate 38

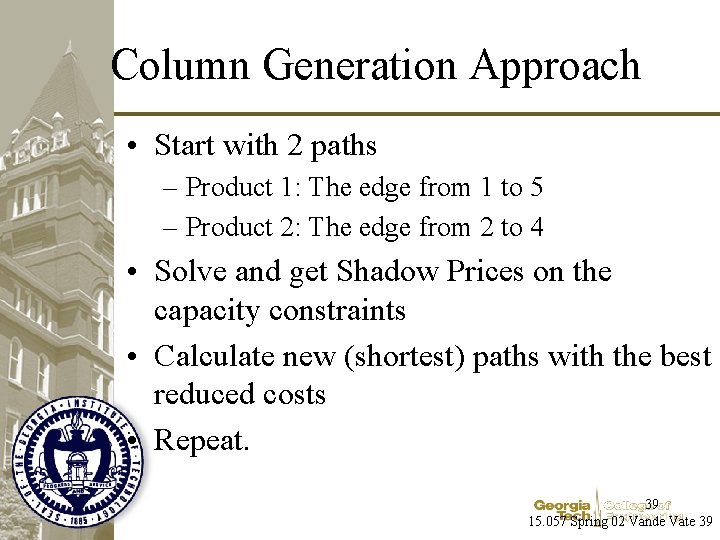

Column Generation Approach • Start with 2 paths – Product 1: The edge from 1 to 5 – Product 2: The edge from 2 to 4 • Solve and get Shadow Prices on the capacity constraints • Calculate new (shortest) paths with the best reduced costs • Repeat. 39 15. 057 Spring 02 Vande Vate 39

Column Generation Example • Multicommodity Flow 40 15. 057 Spring 02 Vande Vate 40

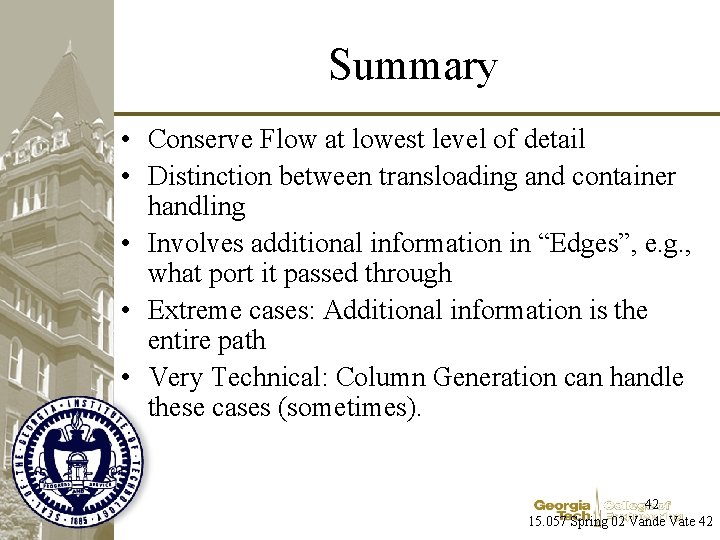

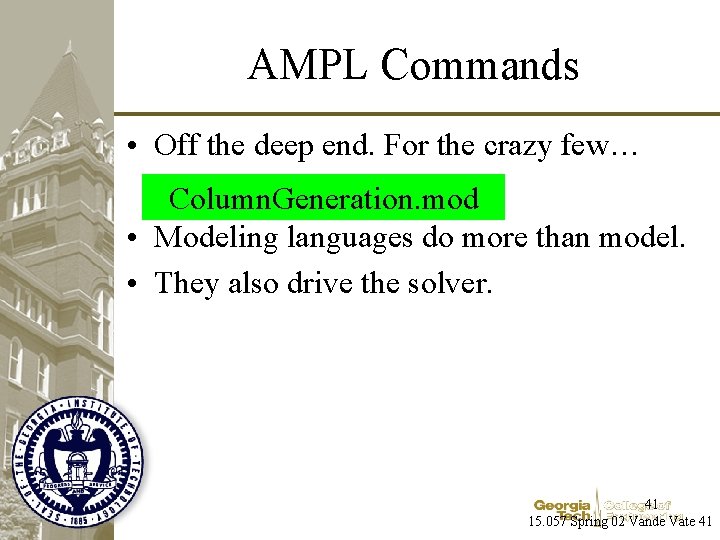

AMPL Commands • Off the deep end. For the crazy few… Column. Generation. mod • Modeling languages do more than model. • They also drive the solver. 41 15. 057 Spring 02 Vande Vate 41
