Modeling Electromagnetic Fields An Application in MRI Kirsten Koolstra April 22 nd, 2015 Challenge the future 1
Introduction Magnetic Resonance Imaging (MRI) Challenge the future 2
Introduction RF Interference in MRI Challenge the future 3
Challenge the future 4
Introduction The Effect of Dielectric Pads Challenge the future 5

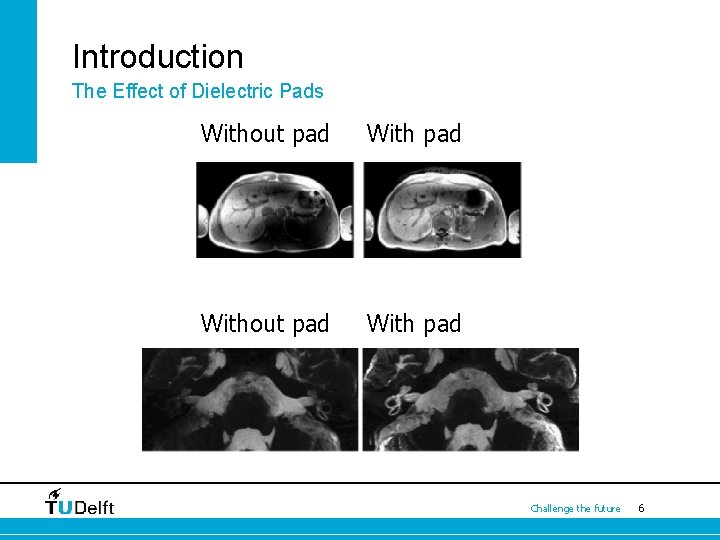

Introduction The Effect of Dielectric Pads Without pad With pad Challenge the future 6
Introduction Design Procedure: Numerical Modeling Challenge the future 7
Challenges • Strong (localised) inhomogeneities in medium parameters • Large computational domain due to the body model • Accurate for low resolution! • Fast! • Take into account the boundary conditions Challenge the future 8
The Volume Integral Equation (VIE) Challenge the future 9
Different Formulations • Challenge the future 10
The Method of Moments • Challenge the future 11
Test Functions • Challenge the future 12
Basis Functions Rooftop Challenge the future 13
Basis Functions Challenge the future 14
A Closer Look EVIE Formulation • Challenge the future 15
A Closer Look Scattering on a Two-Layered Cylinder • Challenge the future 16
A Closer Look Scattering on a Two-Layered Cylinder Challenge the future 17
Some Observations 1. Contrast: Low contrast vs high contrast 2. Basis functions: Rooftop vs 2 x linear 3. Geometry: Cylinder vs square Challenge the future 18
Observation 1 Low Contrast vs High Contrast Challenge the future 19
Observation 1 Low Contrast vs High Contrast Challenge the future 20
Observation 2 Rooftop Expansion vs Linear Expansion Challenge the future 21
Observation 2 Rooftop Expansion vs Linear Expansion Challenge the future 22
Observation 3 Two-Layered Cylinder vs Two-Layered Square Challenge the future 23
Observation 3 Two-Layered Cylinder vs Two-Layered Square Challenge the future 24
What is the cause of these jumps? • Basis functions? • Formulation? • Geometry? Challenge the future 25
Fast Accurately Approach • Compare the EVIE formulation with the DVIE and JVIE formulations. • Analysing contrast dependency. • Find out what happens for different geometries. • Compare the performance of GMRES and IDR(s) methods. Challenge the future 26
Function Spaces • Challenge the future 27
