MODEL WITH STIFFENERS Gravity Total Mass of Stones 2231 kg Stones radius=0. 15 m (mass 38. 2 kg each) Slab (mass 92 kg) Stones radius 0. 1 m (mass 11. 3 kg each) Hopper Bucket Stiffeners Mobile Sled X Direction only Springs between Tray and Sled

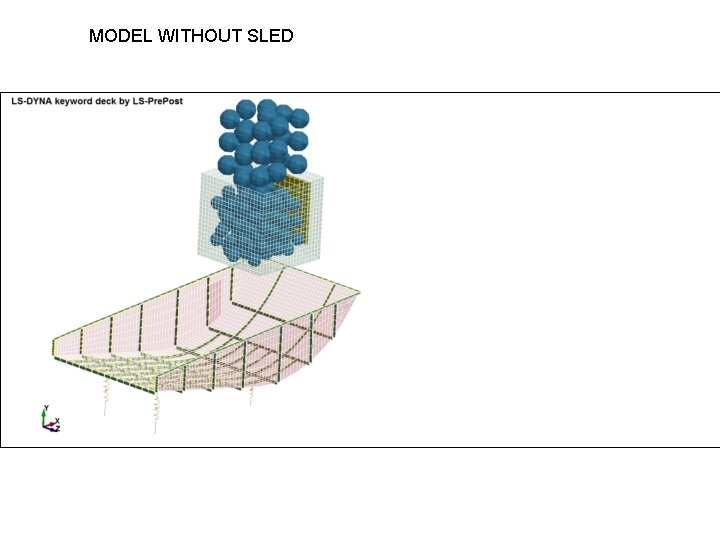

MODEL WITHOUT SLED

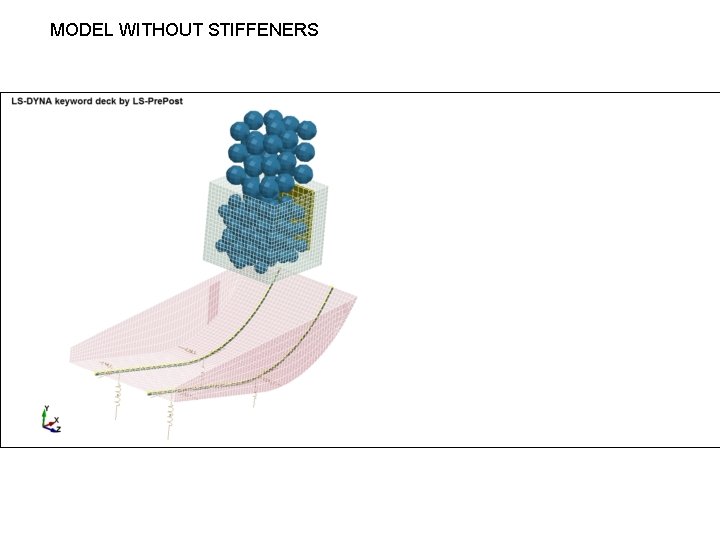

MODEL WITHOUT STIFFENERS

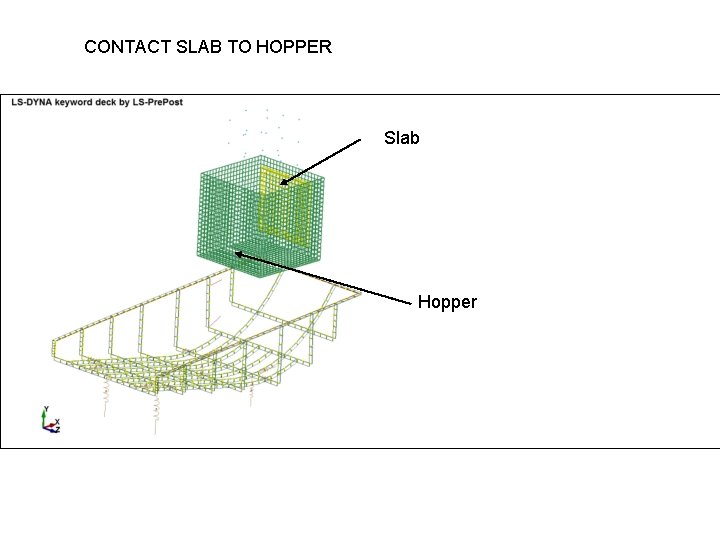

CONTACT SLAB TO HOPPER Slab Hopper

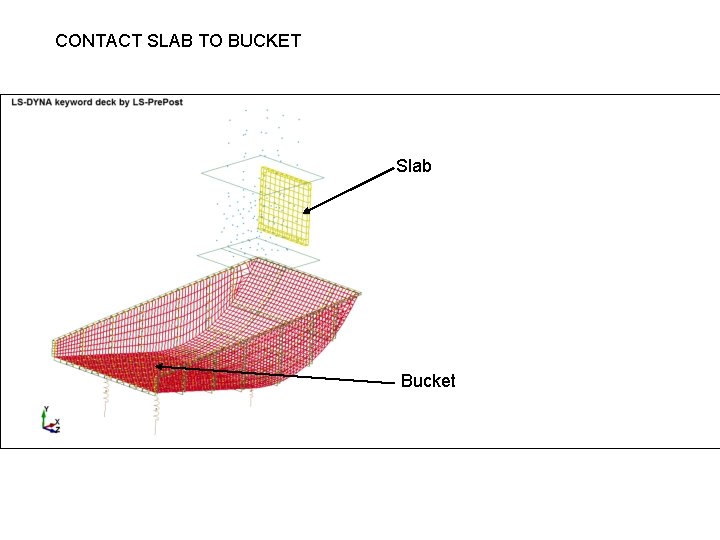

CONTACT SLAB TO BUCKET Slab Bucket
HOPPER BOUNDARY CONDITION – FIXED X-Y-Z Hopper

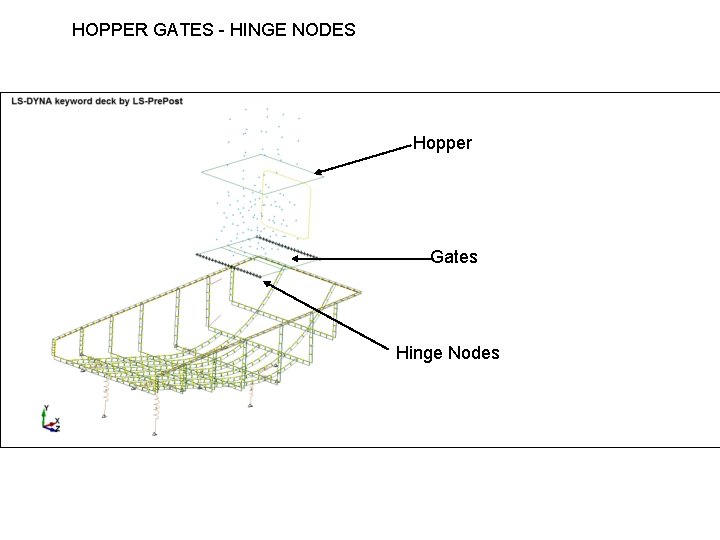

HOPPER GATES - HINGE NODES Hopper Gates Hinge Nodes

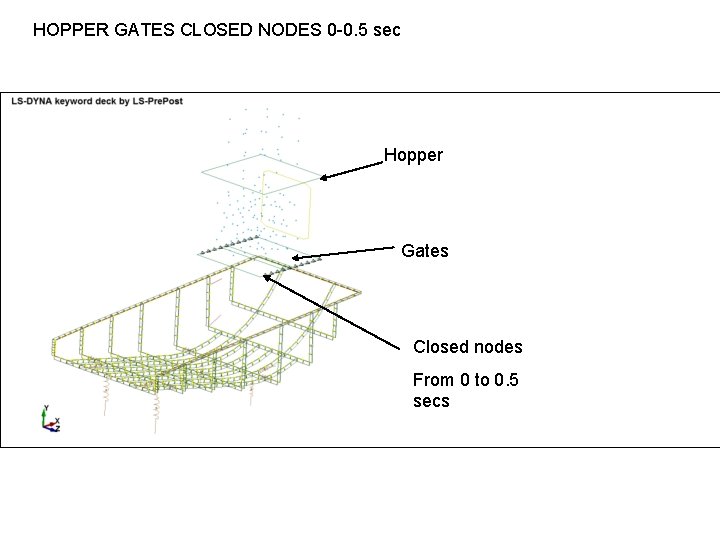

HOPPER GATES CLOSED NODES 0 -0. 5 sec Hopper Gates Closed nodes From 0 to 0. 5 secs

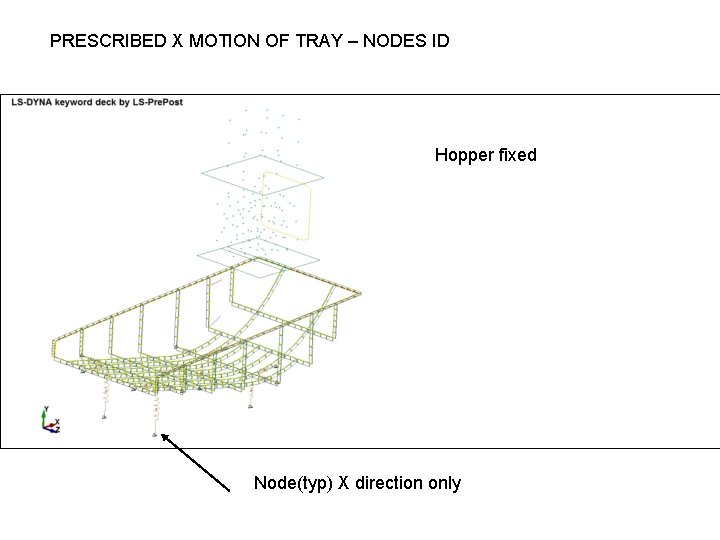

PRESCRIBED X MOTION OF TRAY – NODES ID Hopper fixed Node(typ) X direction only

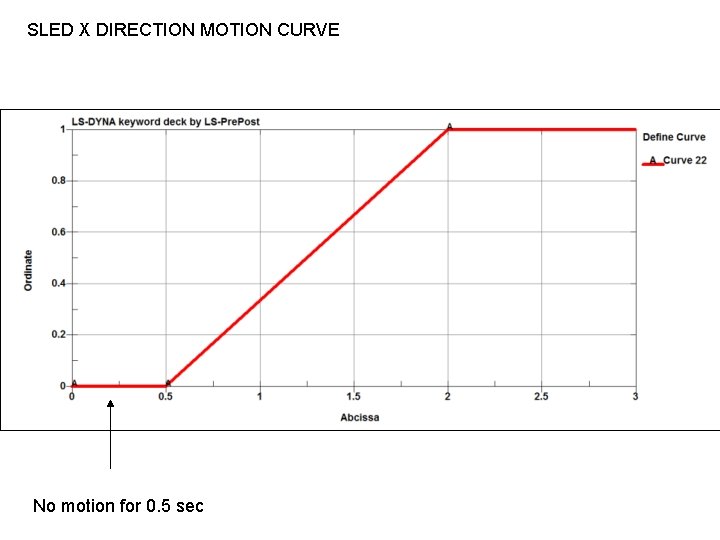

SLED X DIRECTION MOTION CURVE No motion for 0. 5 sec

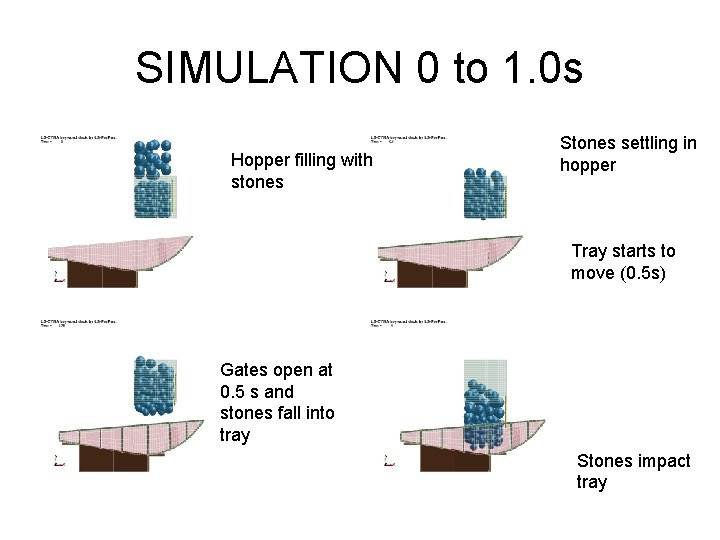

SIMULATION 0 to 1. 0 s Hopper filling with stones Stones settling in hopper Tray starts to move (0. 5 s) Gates open at 0. 5 s and stones fall into tray Stones impact tray

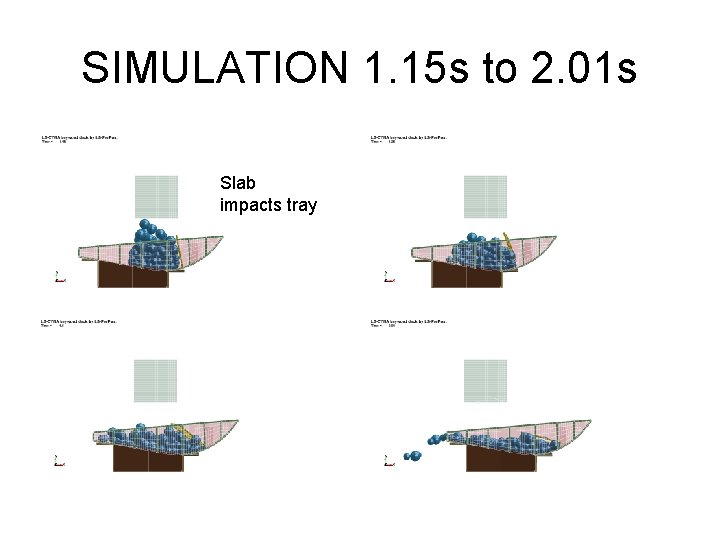

SIMULATION 1. 15 s to 2. 01 s Slab impacts tray
SCENARIOS INVESTIGATED SCENARIO BUCKET YIELD STRENGTH STIFFENERS SLED SUSPENPION MOVING A 250 MPa YES LIGHT B 250 MPa NO YES LIGHT C 250 MPa YES NO LIGHT D 250 MPa YES HEAVY Bucket Stiffeners Sled Spring

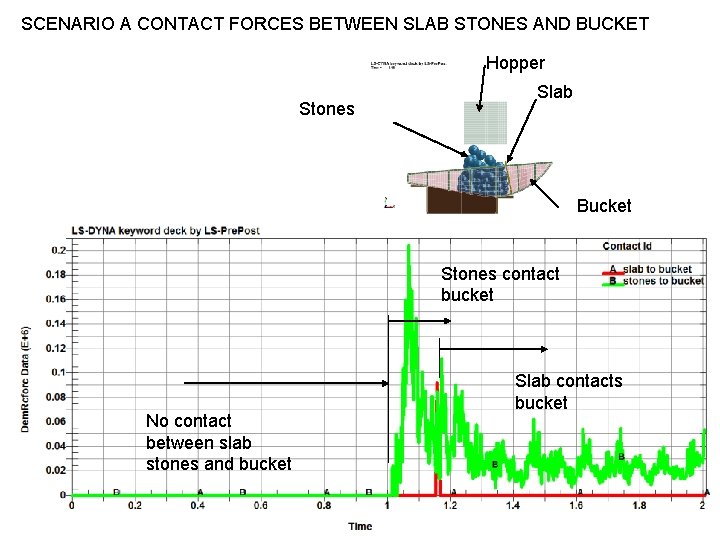

SCENARIO A CONTACT FORCES BETWEEN SLAB STONES AND BUCKET Hopper Stones Slab Bucket Stones contact bucket No contact between slab stones and bucket Slab contacts bucket

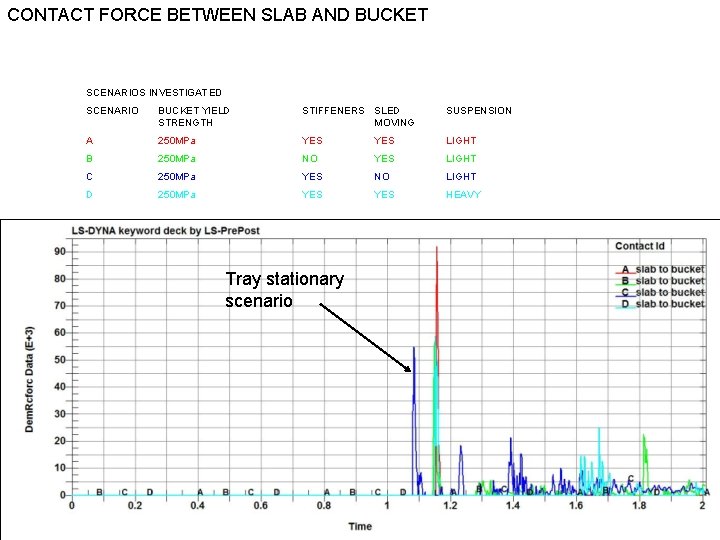

CONTACT FORCE BETWEEN SLAB AND BUCKET SCENARIOS INVESTIGATED SCENARIO BUCKET YIELD STRENGTH STIFFENERS SLED MOVING SUSPENSION A 250 MPa YES LIGHT B 250 MPa NO YES LIGHT C 250 MPa YES NO LIGHT D 250 MPa YES HEAVY Tray stationary scenario

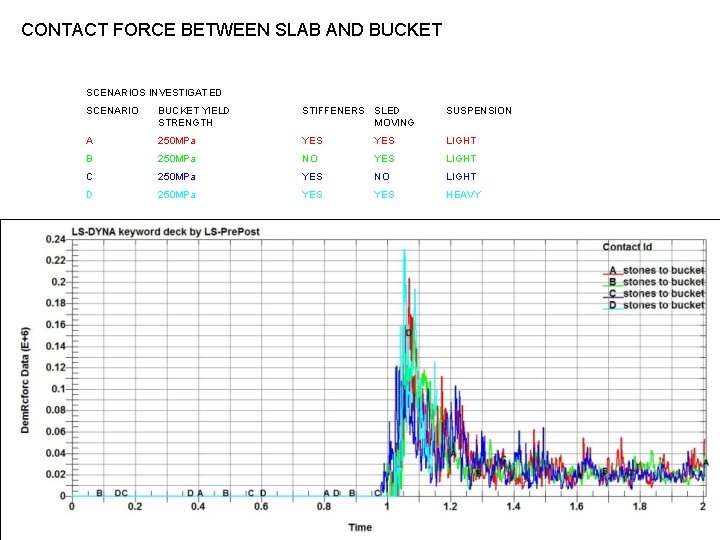

CONTACT FORCE BETWEEN SLAB AND BUCKET SCENARIOS INVESTIGATED SCENARIO BUCKET YIELD STRENGTH STIFFENERS SLED MOVING SUSPENSION A 250 MPa YES LIGHT B 250 MPa NO YES LIGHT C 250 MPa YES NO LIGHT D 250 MPa YES HEAVY

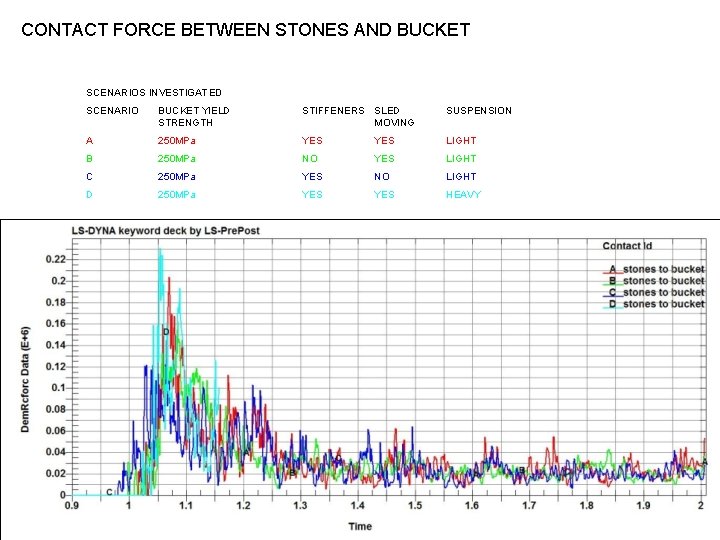

CONTACT FORCE BETWEEN STONES AND BUCKET SCENARIOS INVESTIGATED SCENARIO BUCKET YIELD STRENGTH STIFFENERS SLED MOVING SUSPENSION A 250 MPa YES LIGHT B 250 MPa NO YES LIGHT C 250 MPa YES NO LIGHT D 250 MPa YES HEAVY

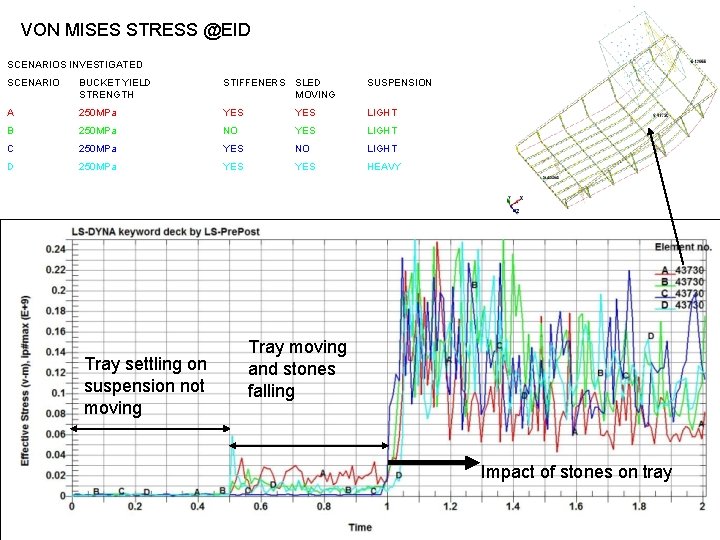

VON MISES STRESS @EID SCENARIOS INVESTIGATED SCENARIO BUCKET YIELD STRENGTH STIFFENERS SLED MOVING SUSPENSION A 250 MPa YES LIGHT B 250 MPa NO YES LIGHT C 250 MPa YES NO LIGHT D 250 MPa YES HEAVY Tray settling on suspension not moving Tray moving and stones falling Impact of stones on tray

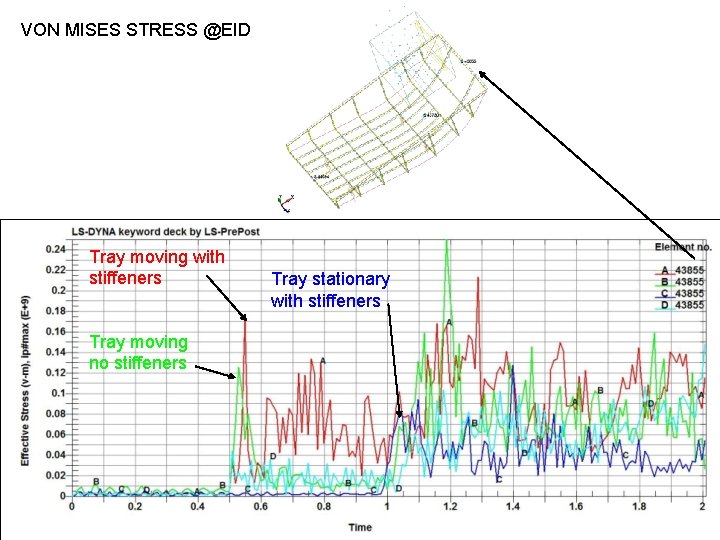

VON MISES STRESS @EID Tray moving with stiffeners Tray moving no stiffeners Tray stationary with stiffeners

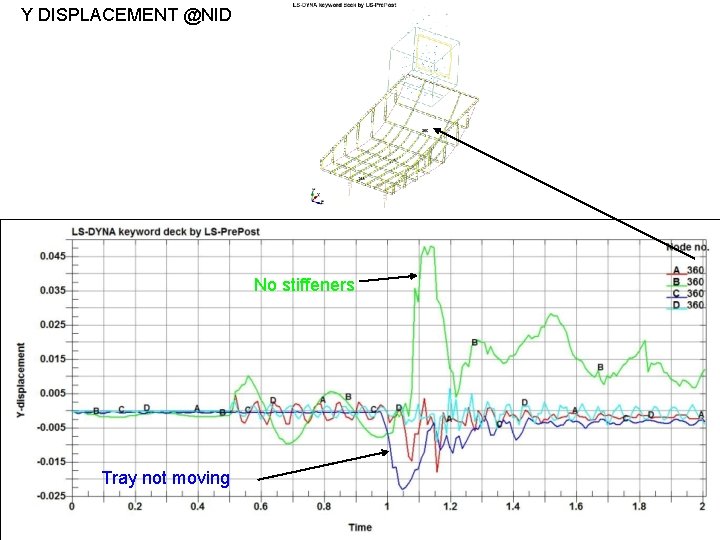

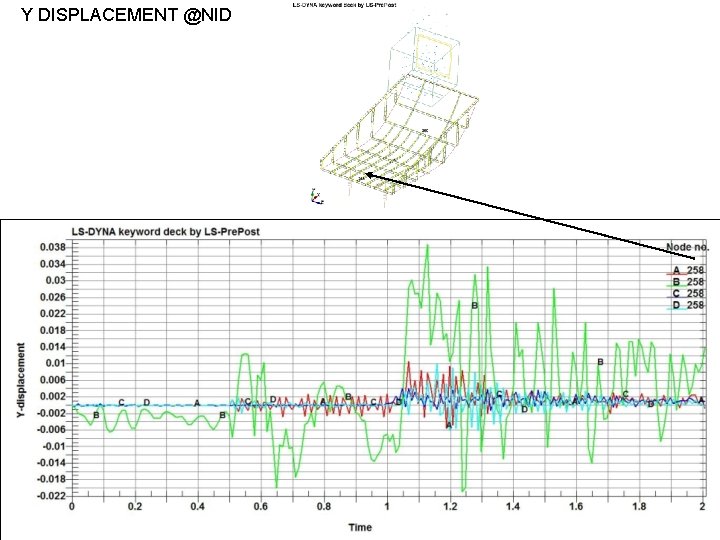

Y DISPLACEMENT @NID No stiffeners Tray not moving

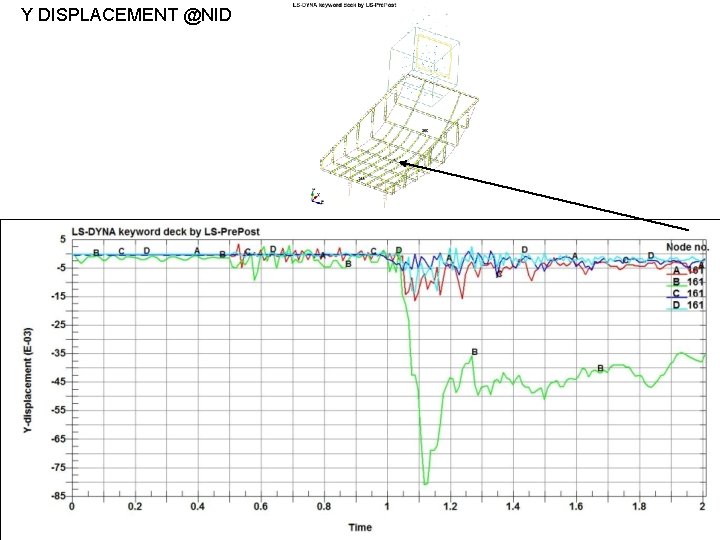

Y DISPLACEMENT @NID

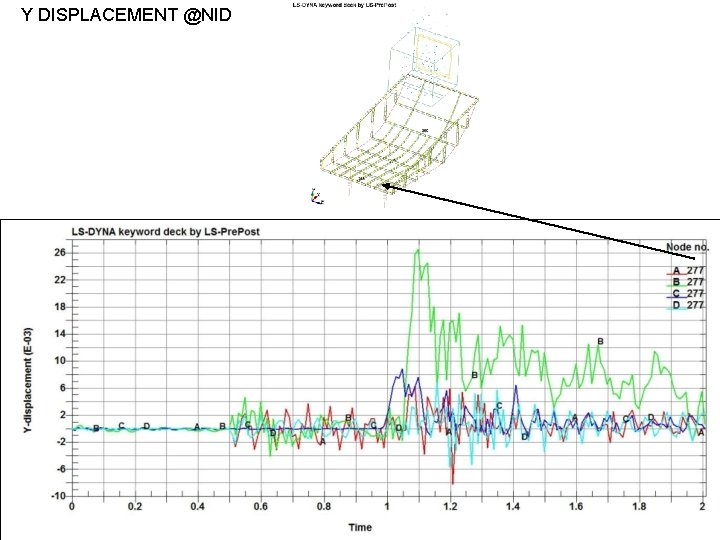

Y DISPLACEMENT @NID
Y DISPLACEMENT @NID
