Model ML Turbomaster Multistage Centrifugal Compressor with Magnetic

Model “ML” Turbomaster Multistage Centrifugal Compressor with Magnetic Bearings Nantes, France May 2000

Terminology â Turbomaster • YORK Multistage Centrifugal Compressor • Series “M” & “ML” â Series “M” • Compressor with Fluid Film Bearings â Series “ML” • Compressor with Magnetic Bearing Package

“M” Strengths â Cost Competitive â Experience â Design Flexibility â Single Mechanical Shaft-seal

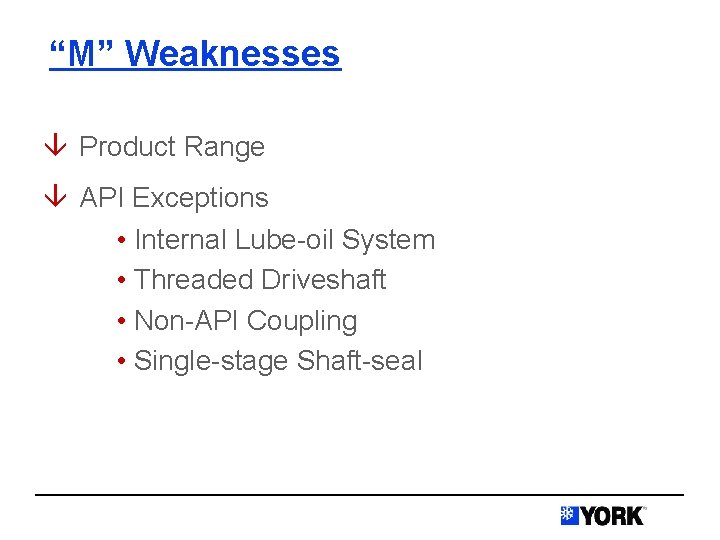

“M” Weaknesses â Product Range â API Exceptions • Internal Lube-oil System • Threaded Driveshaft • Non-API Coupling • Single-stage Shaft-seal

In the Beginning. . . â Market Growth â Biggest Opportunity - API Industry

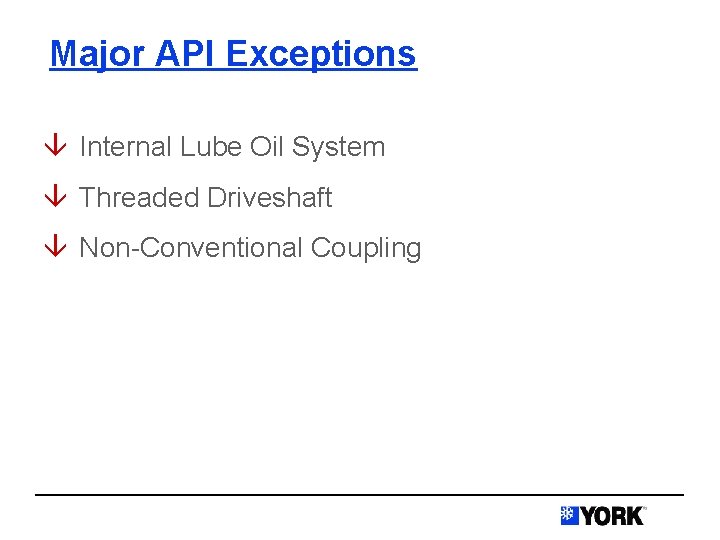

Major API Exceptions â Internal Lube Oil System â Threaded Driveshaft â Non-Conventional Coupling

“ML” - Design Objectives â Compliance with API in key areas • Eliminate major exceptions â Build on Experience â Cost Competitive (API) â Oil-Free Gas Compression â Environmentally Friendly • Zero Fugitive Emissions

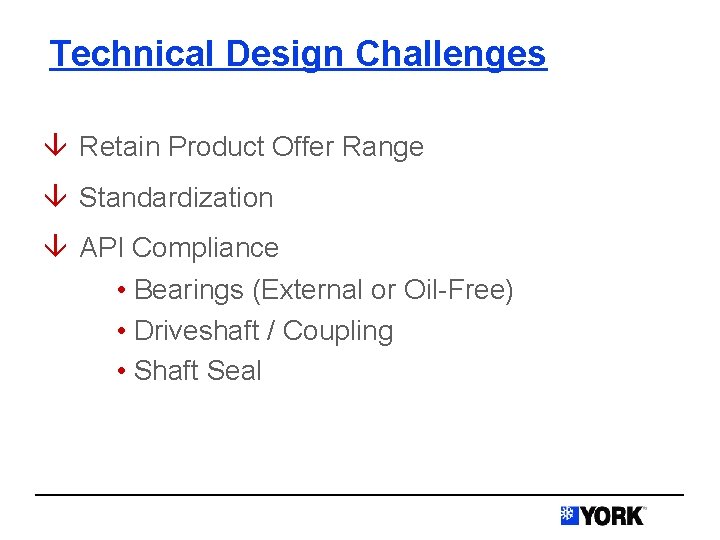

Technical Design Challenges â Retain Product Offer Range â Standardization â API Compliance • Bearings (External or Oil-Free) • Driveshaft / Coupling • Shaft Seal

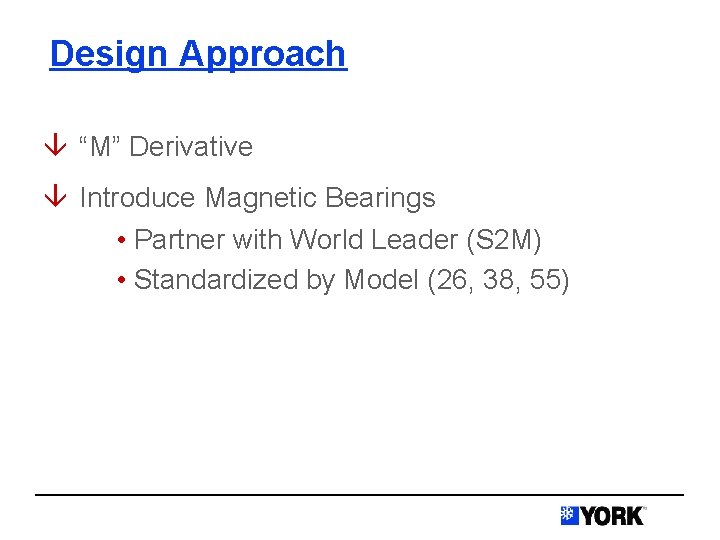

Design Approach â “M” Derivative â Introduce Magnetic Bearings • Partner with World Leader (S 2 M) • Standardized by Model (26, 38, 55)

Merge Two Mature Technologies YORK “M” Compressor S 2 M Actidyne Magnetic Bearings

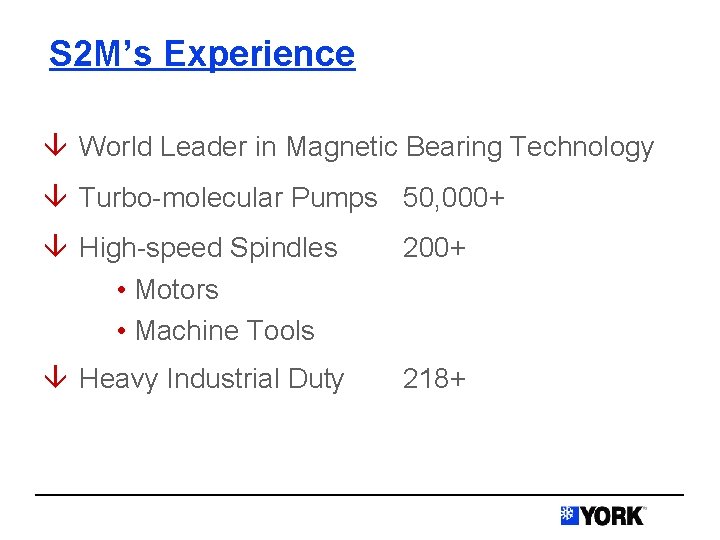

S 2 M’s Experience â World Leader in Magnetic Bearing Technology â Turbo-molecular Pumps 50, 000+ â High-speed Spindles • Motors • Machine Tools 200+ â Heavy Industrial Duty 218+

S 2 M’s Heavy Industrial Experience â Industrial Compressors â Turbo Expanders â Turbines 89 10 â Pumps 2 â Electric Motors 3 â Fans, Blowers, etc. 40 â TOTAL 218+ 74

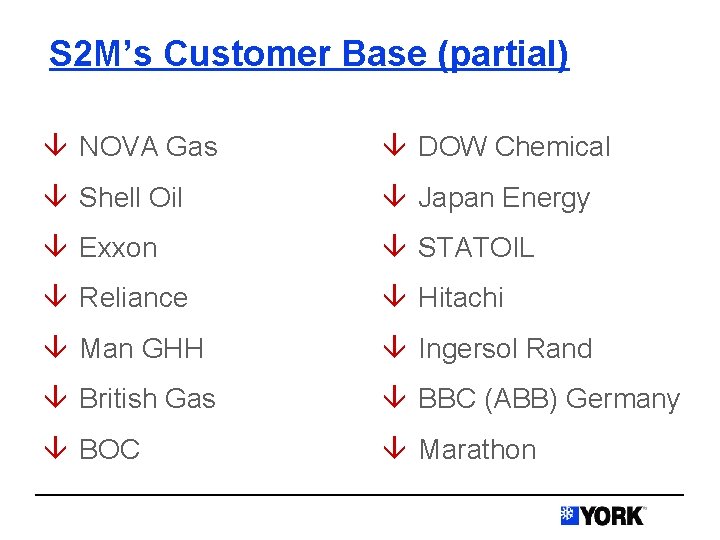

S 2 M’s Customer Base (partial) â NOVA Gas â DOW Chemical â Shell Oil â Japan Energy â Exxon â STATOIL â Reliance â Hitachi â Man GHH â Ingersol Rand â British Gas â BBC (ABB) Germany â BOC â Marathon

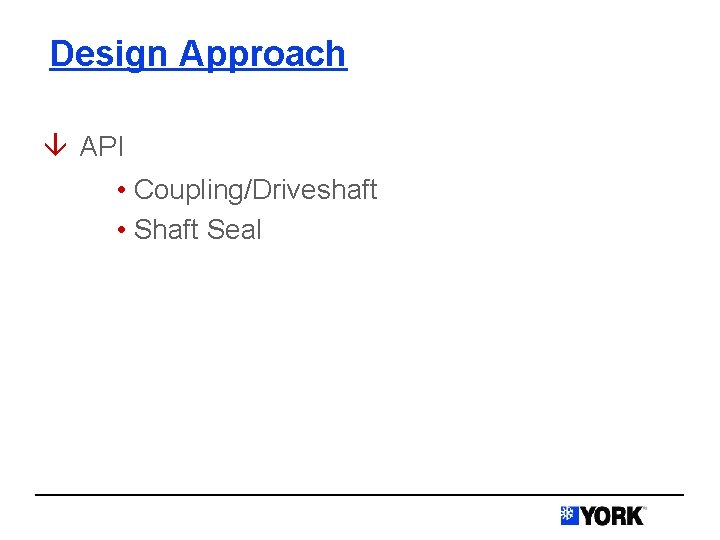

Design Approach â API • Coupling/Driveshaft • Shaft Seal

“ML” Centrifugal Compressor API Compliant Oil Free Gas Compression Magnetic Bearings Dry-Gas Seal

ML Features â Oil-Free Gas Compression â Programmable Bearing Forces • Stiffness & Damping â Real-Time Rotor Position Monitoring â Automatic Balancing System (ABS) â Zero Fugitive Emissions â Reduced Cost of Ownership

API Coupling & Dry Gas Seal

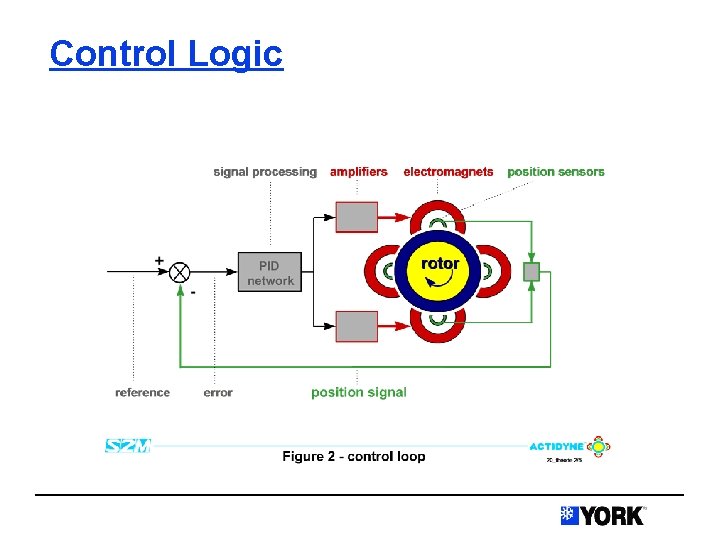

Control Logic

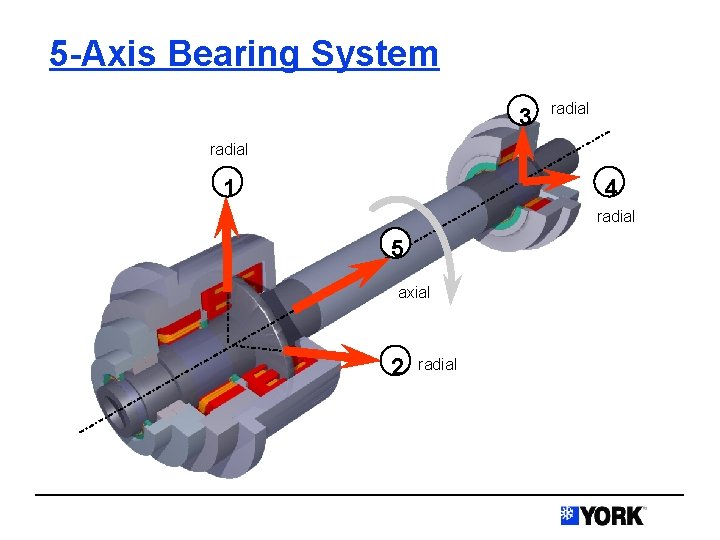

5 -Axis Bearing System 3 radial 1 4 radial 5 axial 2 radial

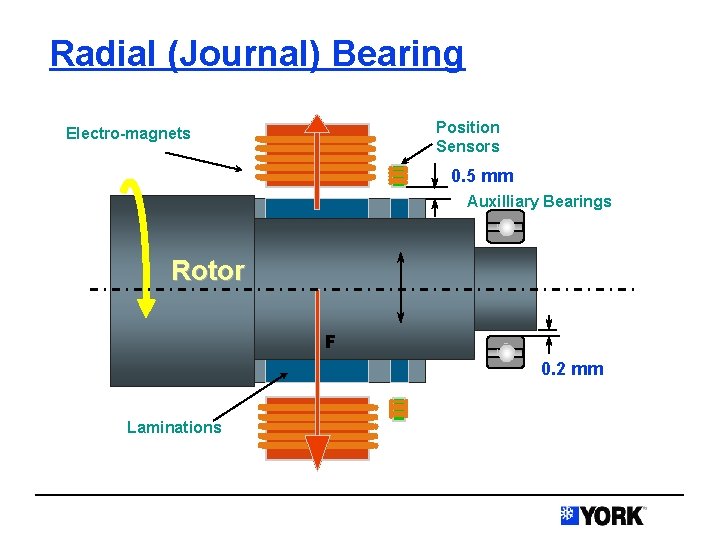

Radial (Journal) Bearing Position Sensors Electro-magnets 0. 5 mm Auxilliary Bearings Rotor F 0. 2 mm Laminations

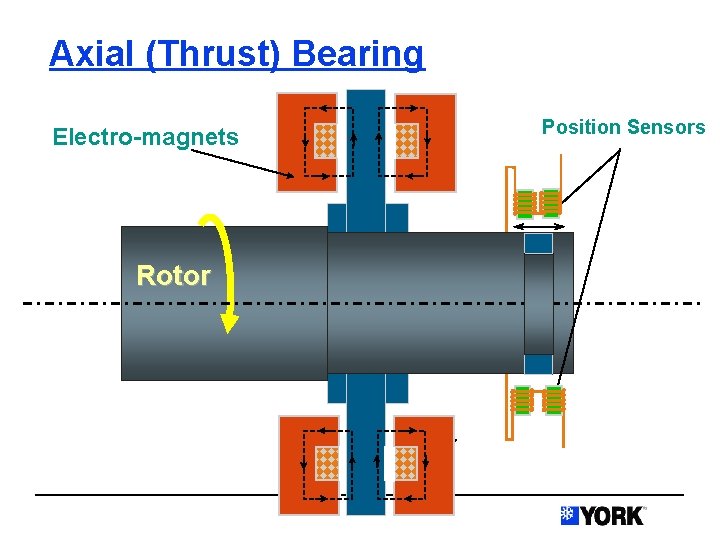

Axial (Thrust) Bearing Electro-magnets Rotor Position Sensors

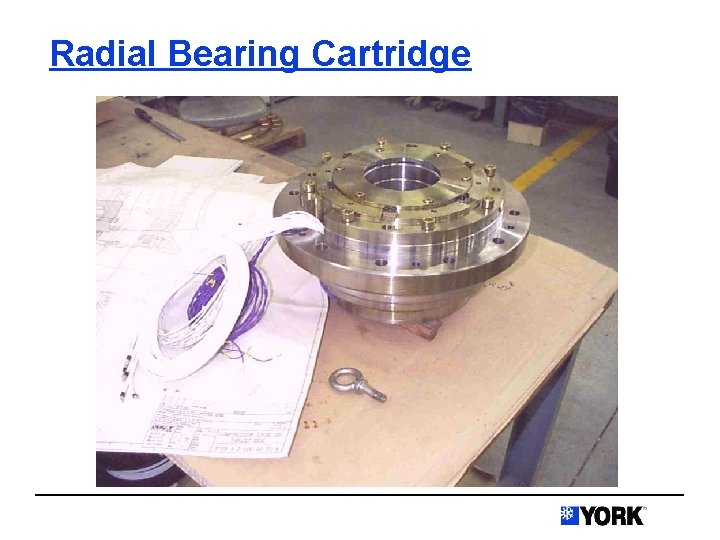

Radial Bearing Cartridge

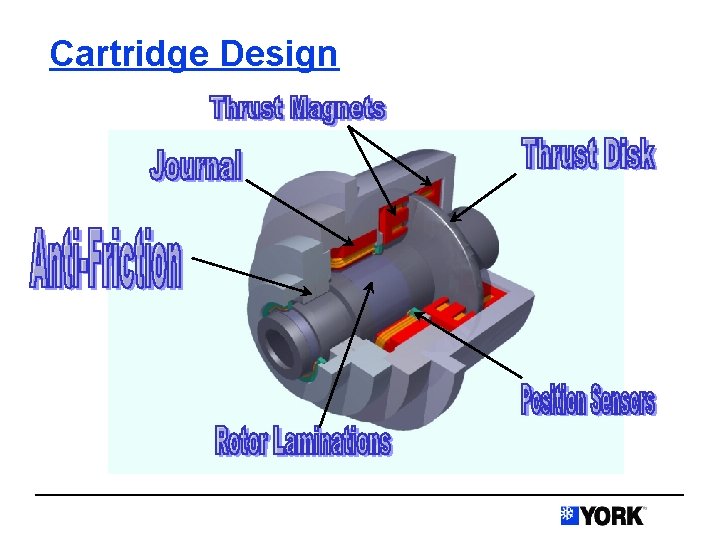

Cartridge Design

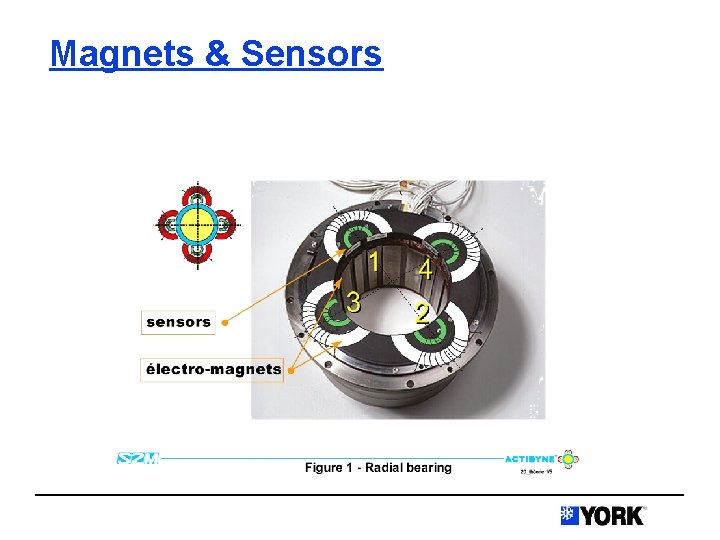

Magnets & Sensors

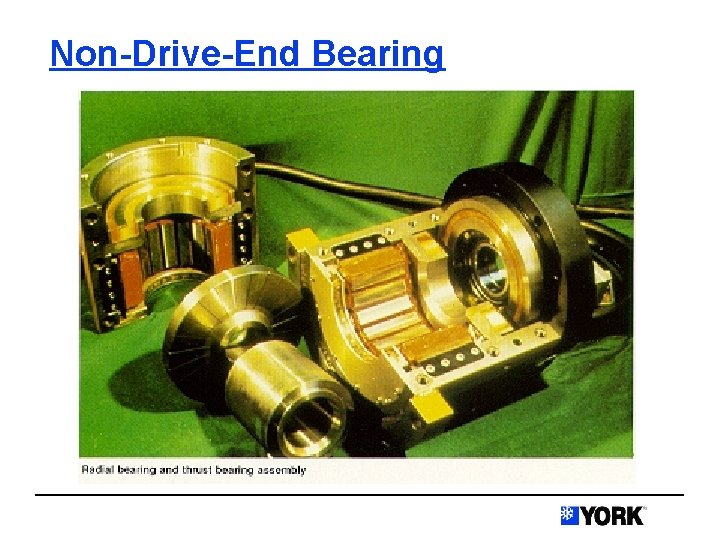

Non-Drive-End Bearing

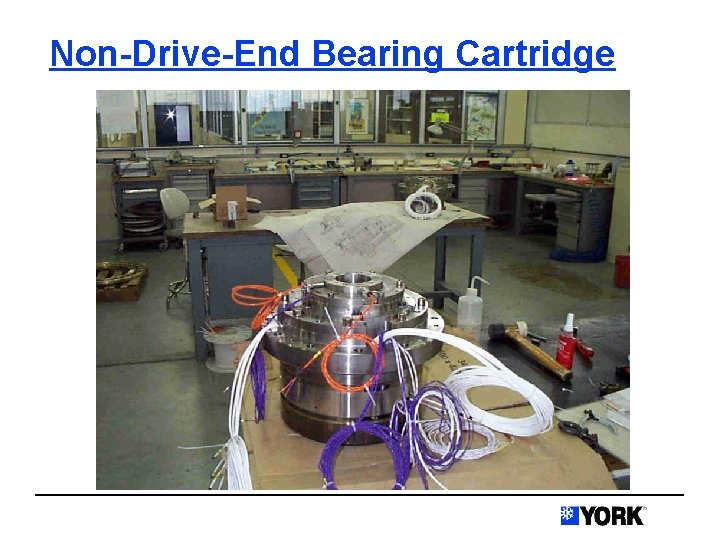

Non-Drive-End Bearing Cartridge

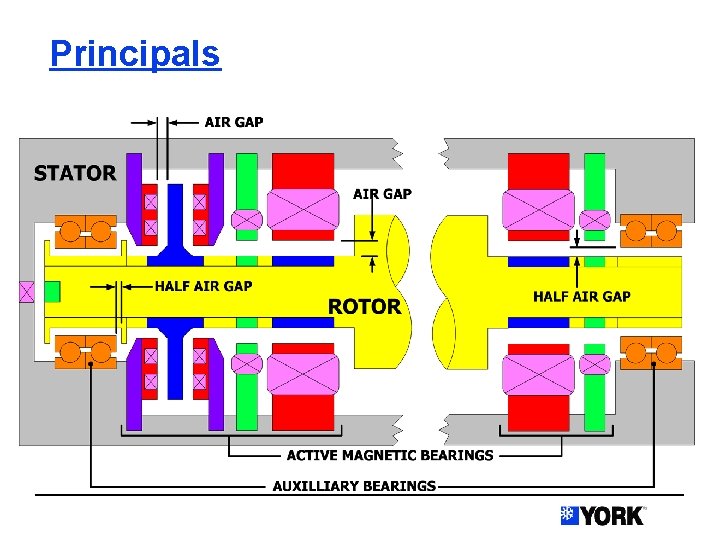

Principals

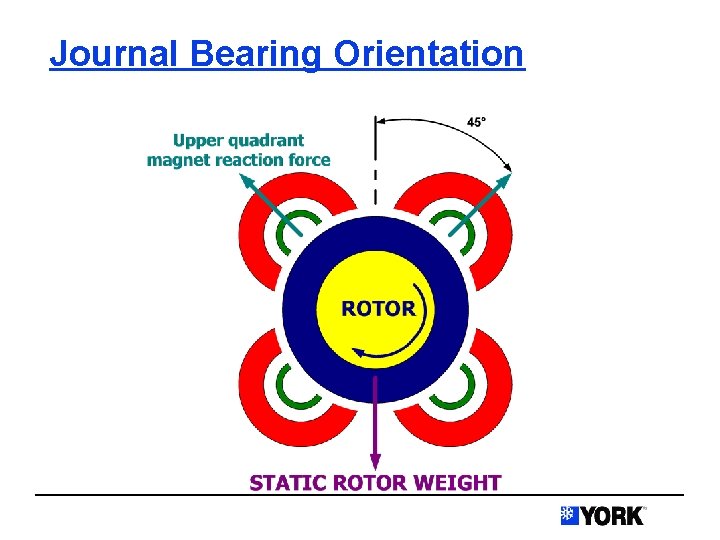

Journal Bearing Orientation

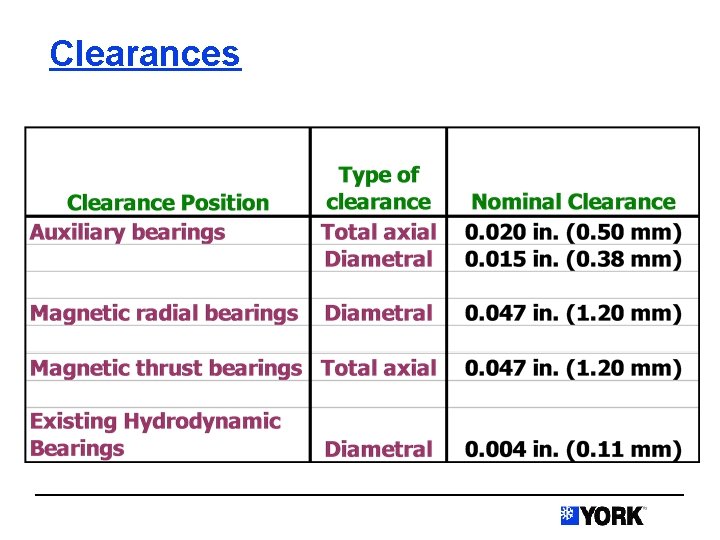

Clearances

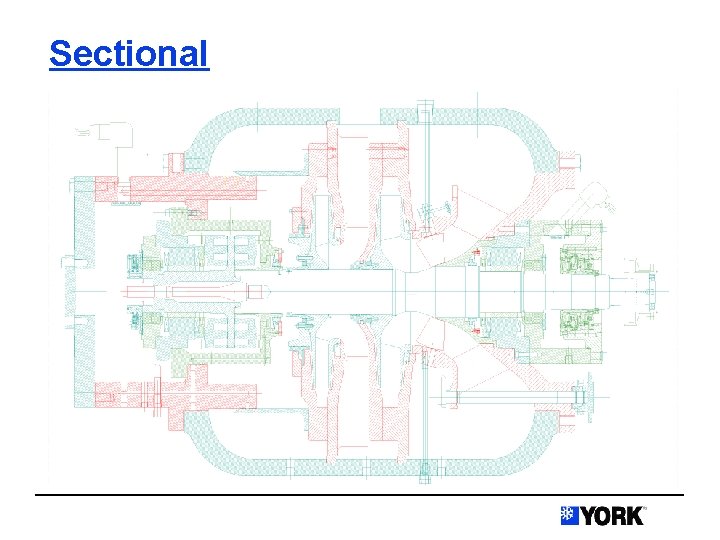

Sectional

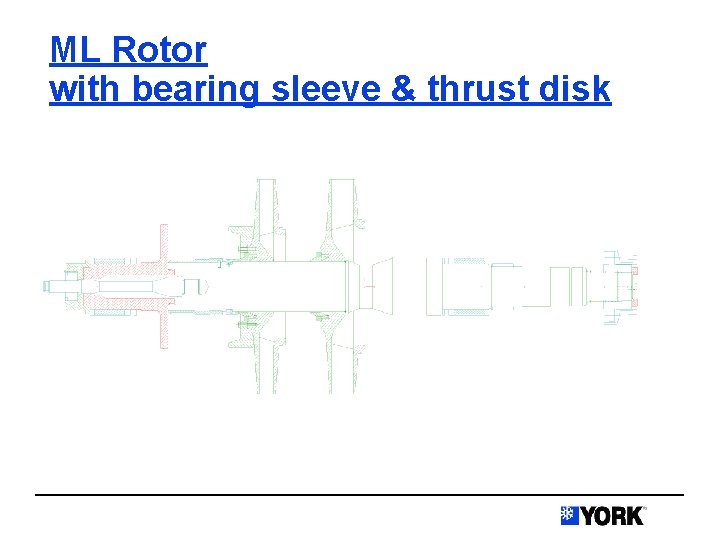

ML Rotor with bearing sleeve & thrust disk

ML 238 D Dry Gas Seal API Coupling

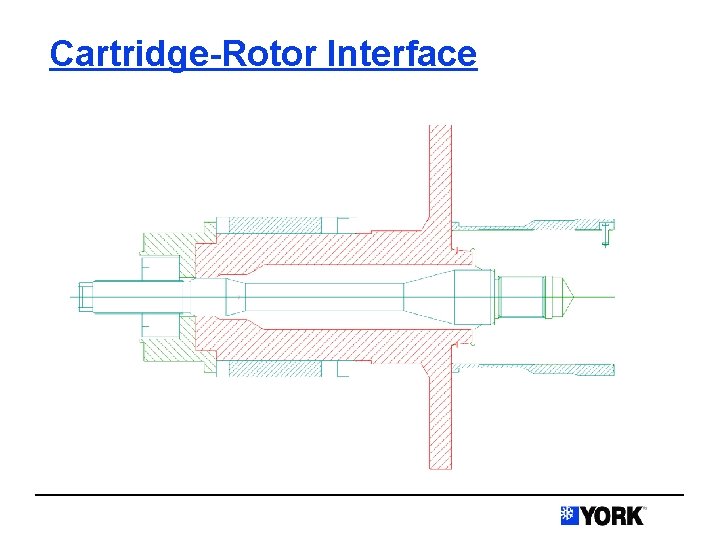

Cartridge-Rotor Interface

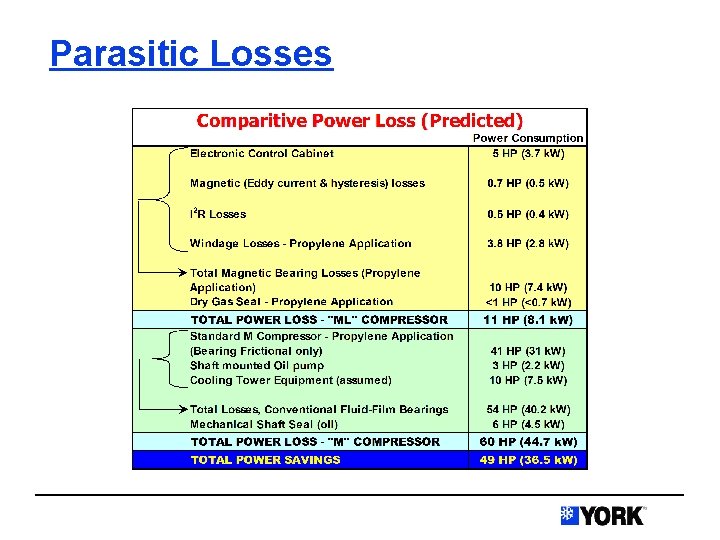

Parasitic Losses

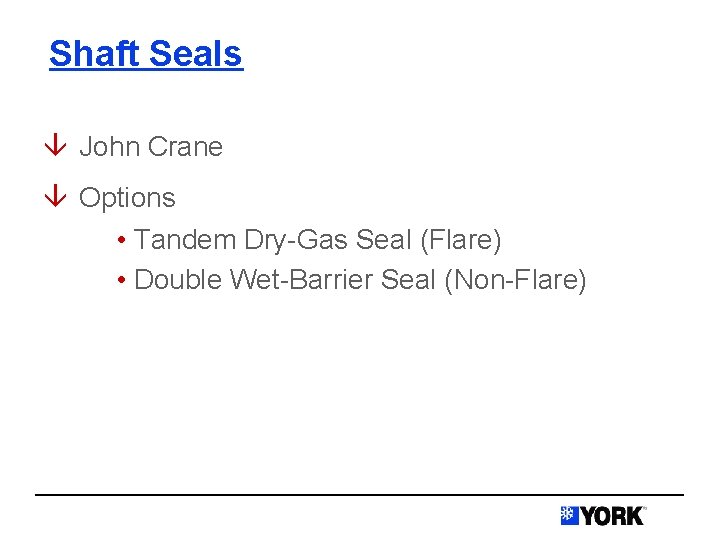

Shaft Seals â John Crane â Options • Tandem Dry-Gas Seal (Flare) • Double Wet-Barrier Seal (Non-Flare)

Tandem Dry-Gas Seal

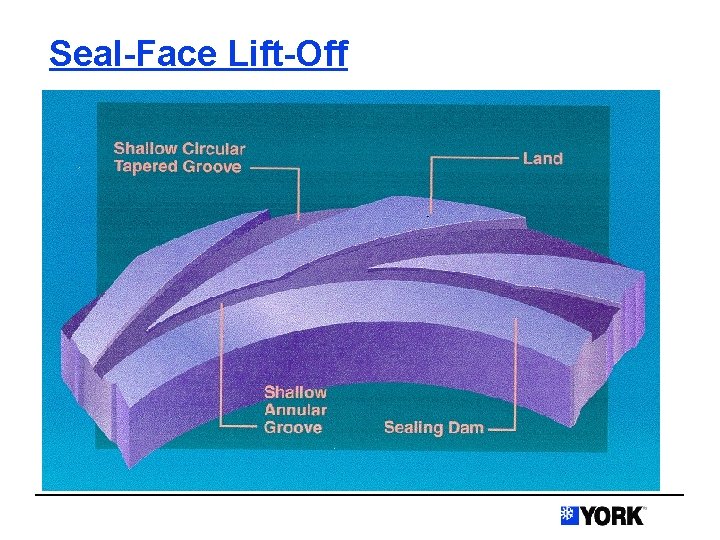

Seal-Face Lift-Off

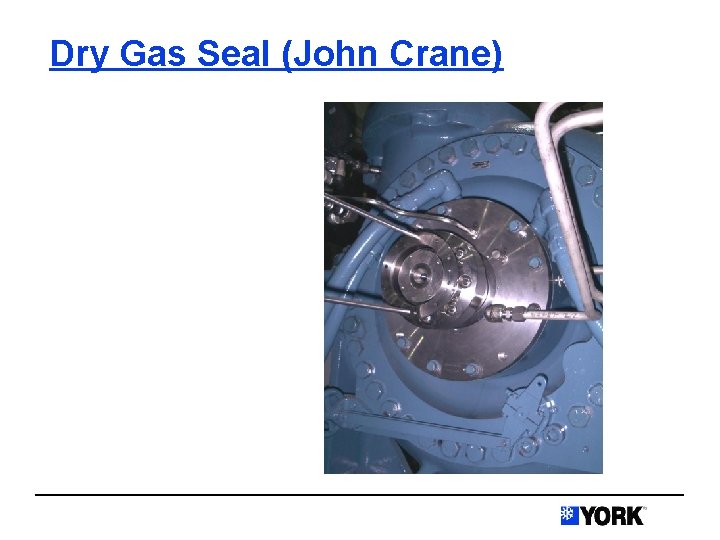

Dry Gas Seal (John Crane)

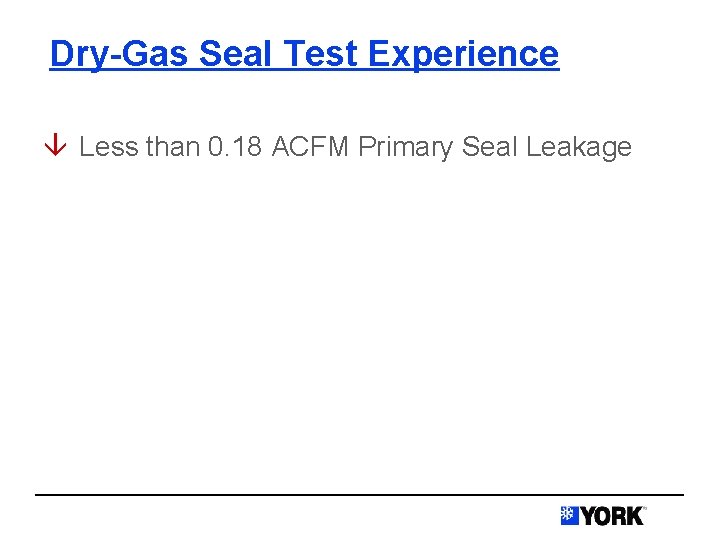

Dry-Gas Seal Test Experience â Less than 0. 18 ACFM Primary Seal Leakage

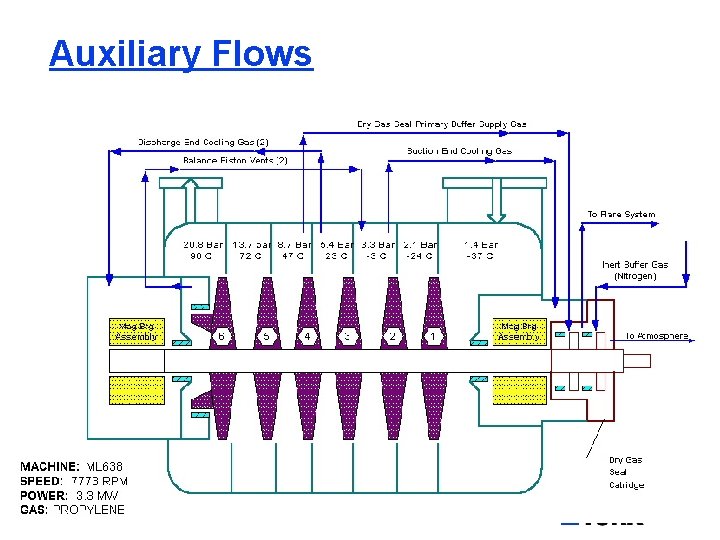

Auxiliary Flows

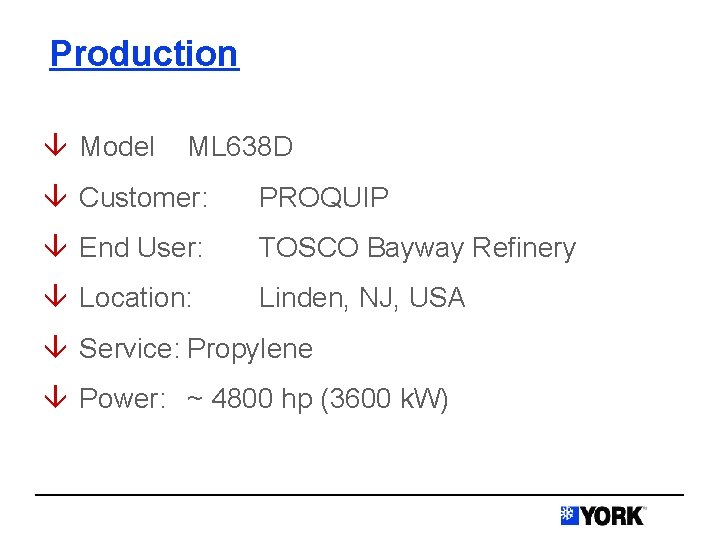

Production â Model ML 638 D â Customer: PROQUIP â End User: TOSCO Bayway Refinery â Location: Linden, NJ, USA â Service: Propylene â Power: ~ 4800 hp (3600 k. W)

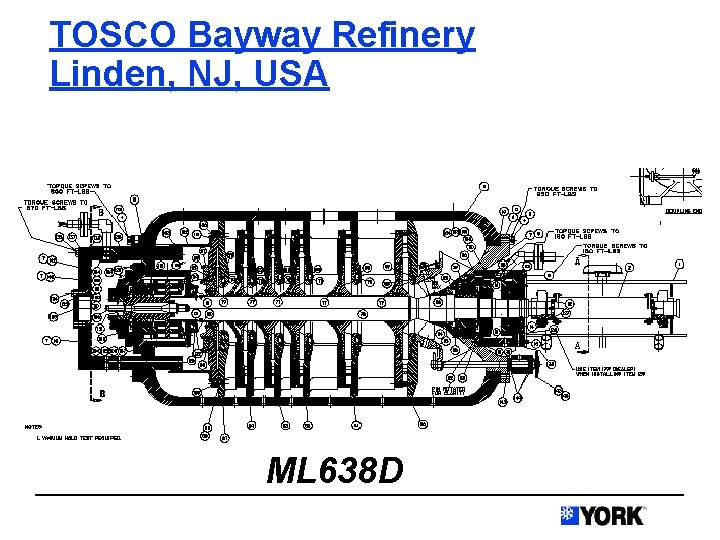

TOSCO Bayway Refinery Linden, NJ, USA ML 638 D

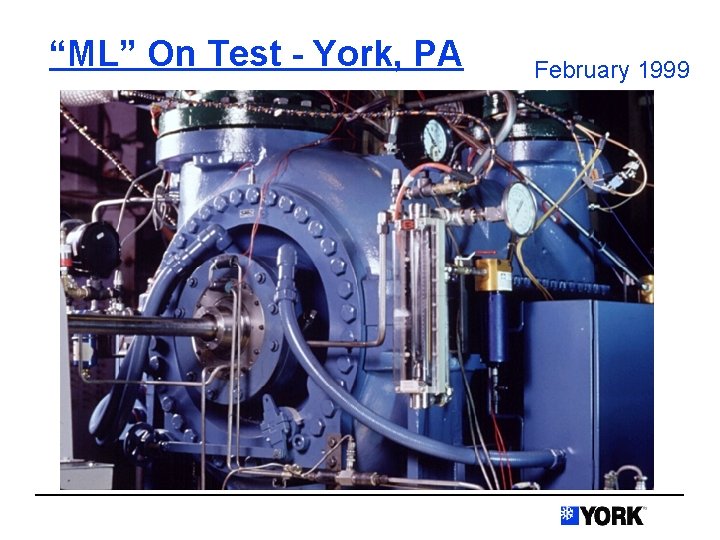

“ML” On Test - York, PA February 1999

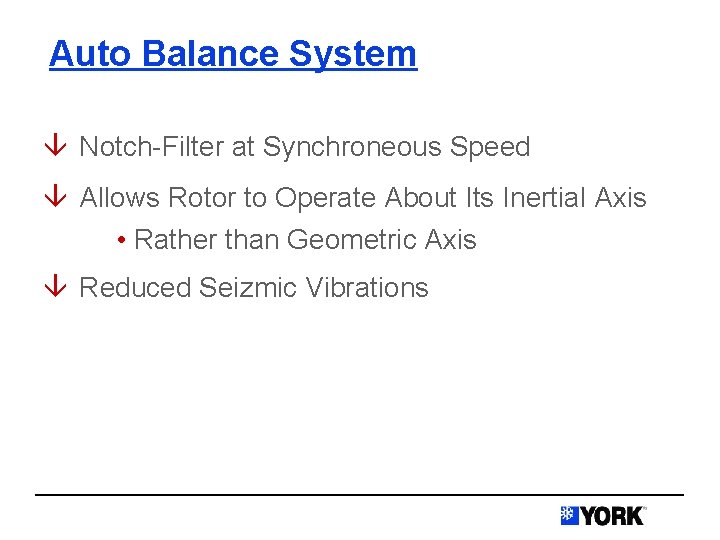

Auto Balance System â Notch-Filter at Synchroneous Speed â Allows Rotor to Operate About Its Inertial Axis • Rather than Geometric Axis â Reduced Seizmic Vibrations

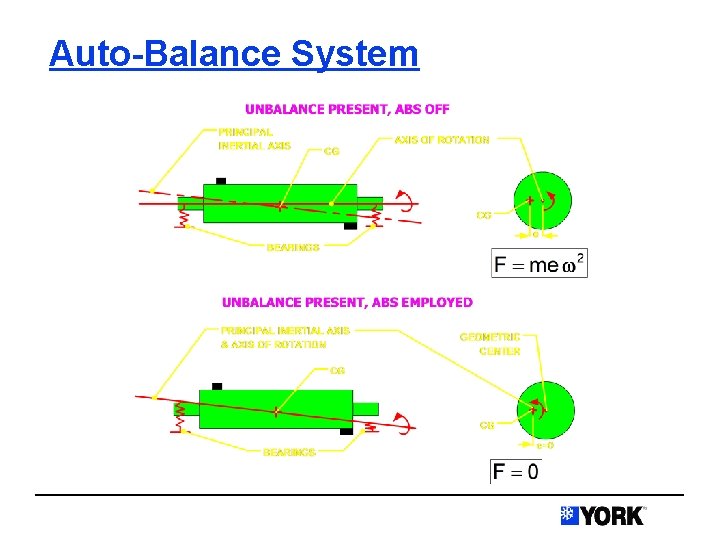

Auto-Balance System

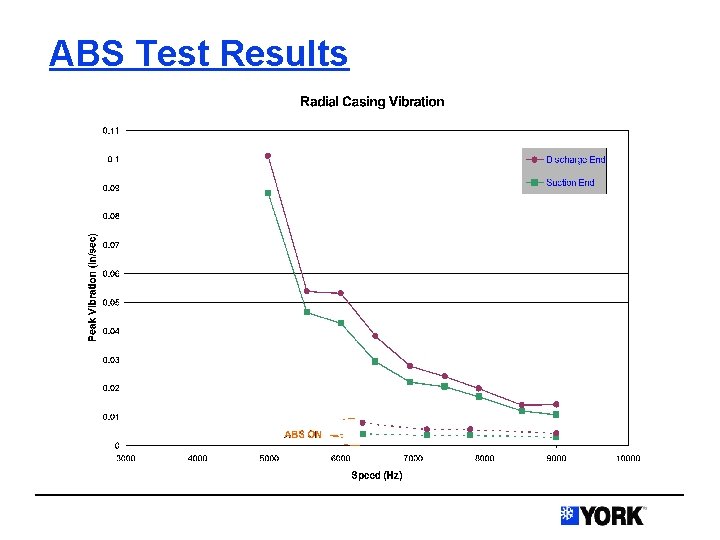

ABS Test Results

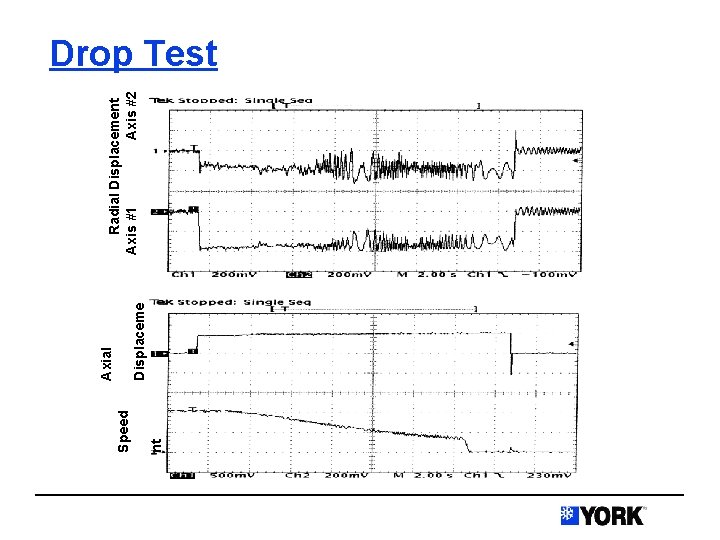

Drop Tests â Auxiliary Bearing Operation â Full Speed 5 -Axis De-levitations â Approximately 8 De-levitations to date (5/2000) â Return to Test

nt Speed Displaceme Axial Radial Displacement Axis #1 Axis #2 Drop Test

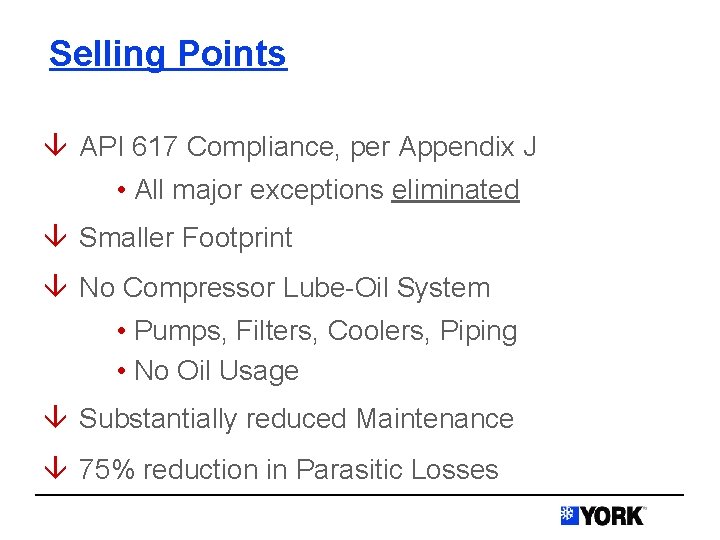

Selling Points â API 617 Compliance, per Appendix J • All major exceptions eliminated â Smaller Footprint â No Compressor Lube-Oil System • Pumps, Filters, Coolers, Piping • No Oil Usage â Substantially reduced Maintenance â 75% reduction in Parasitic Losses

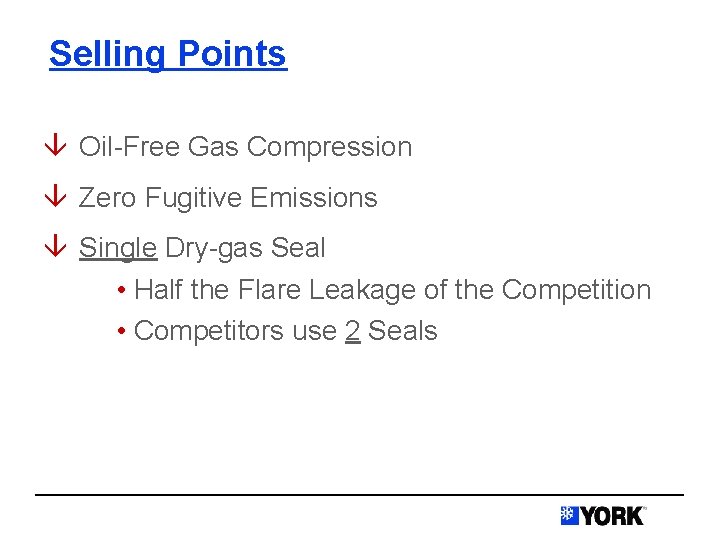

Selling Points â Oil-Free Gas Compression â Zero Fugitive Emissions â Single Dry-gas Seal • Half the Flare Leakage of the Competition • Competitors use 2 Seals

Selling Points â State-of-the-Art Diagnostics • Real-time Rotor Position Monitoring • Real-time Rotor Forces Monitoring (5 -Axis) â Programmable Bearing Response • Stiffness & Damping (Phase & Gain) â Automatic Balancing System (ABS) • Reduced Seizmic Vibrations

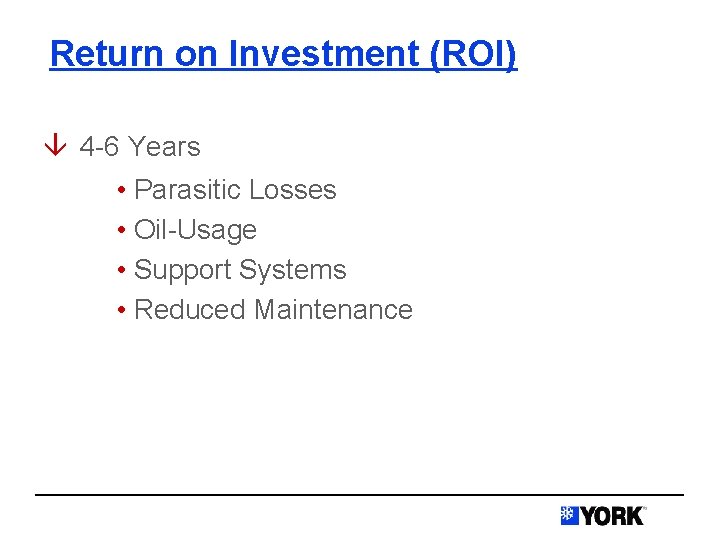

Return on Investment (ROI) â 4 -6 Years • Parasitic Losses • Oil-Usage • Support Systems • Reduced Maintenance

Applications â Take the “ML” where the “M” can’t go! â Strict API Specifications â Oil-Free Gas Compression

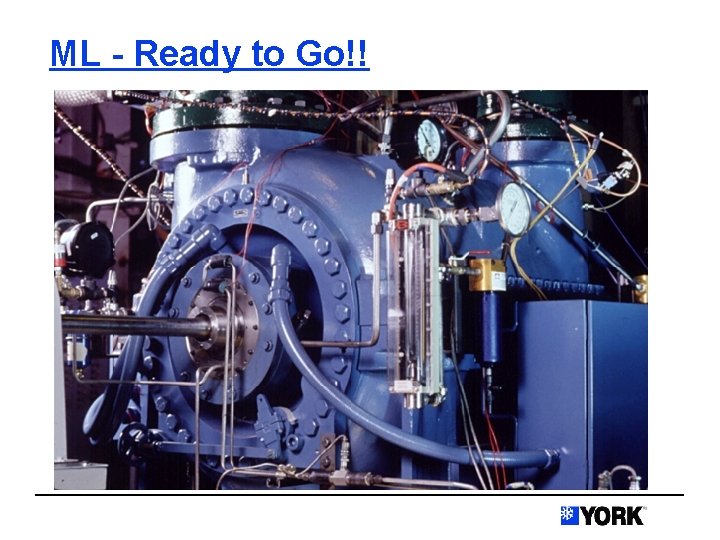

ML - Ready to Go!!
