Model Constraints from Multiwavelength Variability of Blazars Markus Böttcher North-West University Potchefstroom South Africa

Model Constraints from Multiwavelength Variability of Blazars Markus Böttcher North-West University Potchefstroom South Africa

Blazars • Class of AGN consisting of BL Lac objects and gammaray bright quasars

Blazars • Class of AGN consisting of BL Lac objects and gammaray bright quasars • Rapidly (often intra-day) variable

Blazar Variability: Example: The Quasar 3 C 279 X-rays Optical Radio (Bӧttcher et al.

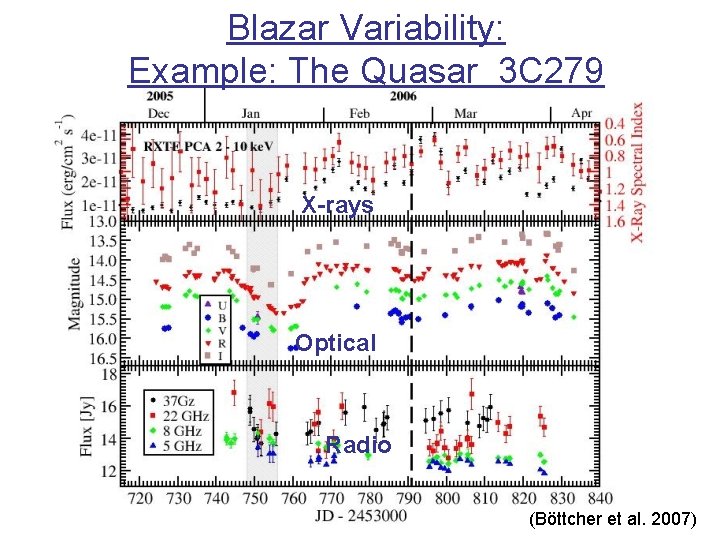

Blazar Variability: Example: The Quasar 3 C 279 X-rays Optical Radio (Bӧttcher et al. 2007)

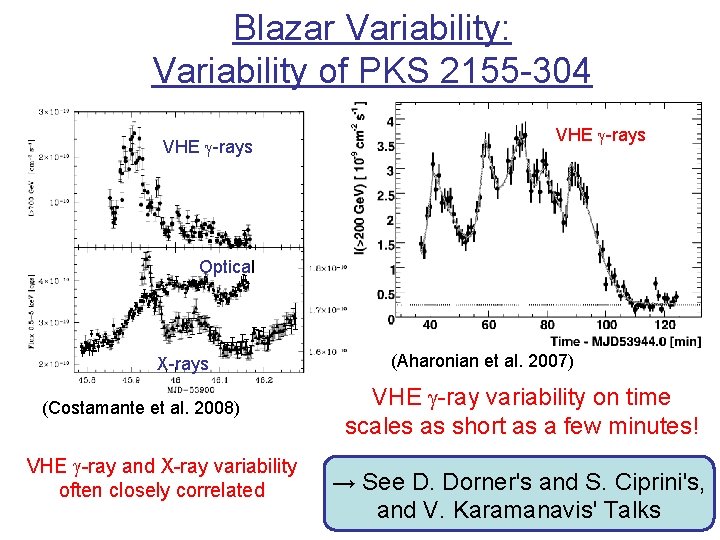

Blazar Variability: Variability of PKS 2155 -304 VHE g-rays Optical X-rays (Costamante et al.

Blazar Variability: Variability of PKS 2155 -304 VHE g-rays Optical X-rays (Costamante et al. 2008) VHE g-ray and X-ray variability often closely correlated (Aharonian et al. 2007) VHE g-ray variability on time scales as short as a few minutes! → See D. Dorner's and S. Ciprini's, and V. Karamanavis' Talks

Polarization Angle Swings • Optical + g-ray variability of LSP blazars often correlated •

Polarization Angle Swings • Optical + g-ray variability of LSP blazars often correlated • Sometimes O/g flares correlated with increase in optical polarization and multiple rotations of the polarization angle (PA) g-rays (Fermi) Optical PKS 1510 -089 (Marscher et al. 2010)

Blazars • Class of AGN consisting of BL Lac objects and gammaray bright quasars

Blazars • Class of AGN consisting of BL Lac objects and gammaray bright quasars • Rapidly (often intra-day) variable • Strong gamma-ray sources

Blazar Spectral Energy Distributions (SEDs) 3 C 66 A Collmar et al. (2010) Non-thermal

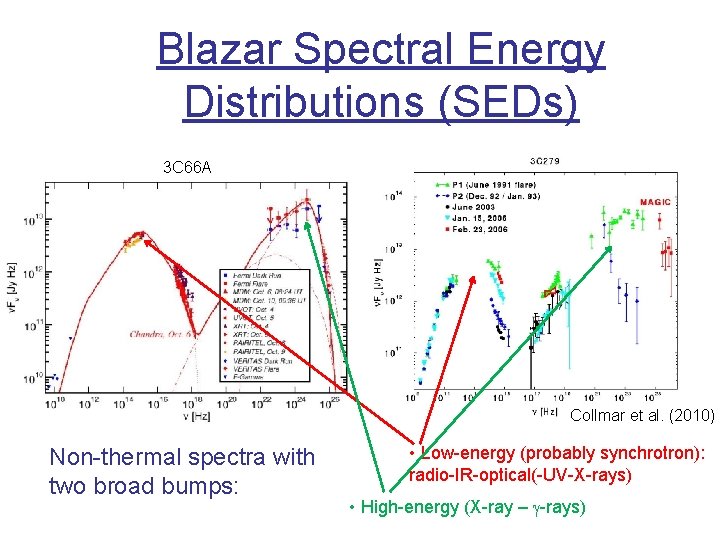

Blazar Spectral Energy Distributions (SEDs) 3 C 66 A Collmar et al. (2010) Non-thermal spectra with two broad bumps: • Low-energy (probably synchrotron): radio-IR-optical(-UV-X-rays) • High-energy (X-ray – g-rays)

Blazars • Class of AGN consisting of BL Lac objects and gammaray bright quasars

Blazars • Class of AGN consisting of BL Lac objects and gammaray bright quasars • Rapidly (often intra-day) variable • Strong gamma-ray sources • Radio and optical polarization • Radio jets, often with superluminal motion

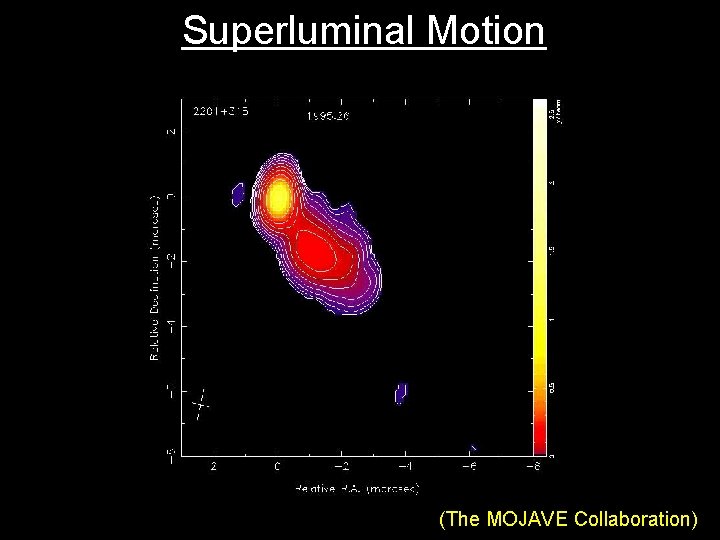

Superluminal Motion (The MOJAVE Collaboration)

Superluminal Motion (The MOJAVE Collaboration)

Leptonic Blazar Model Relativistic jet outflow with G ≈ 10 g-q → P. Mimica's

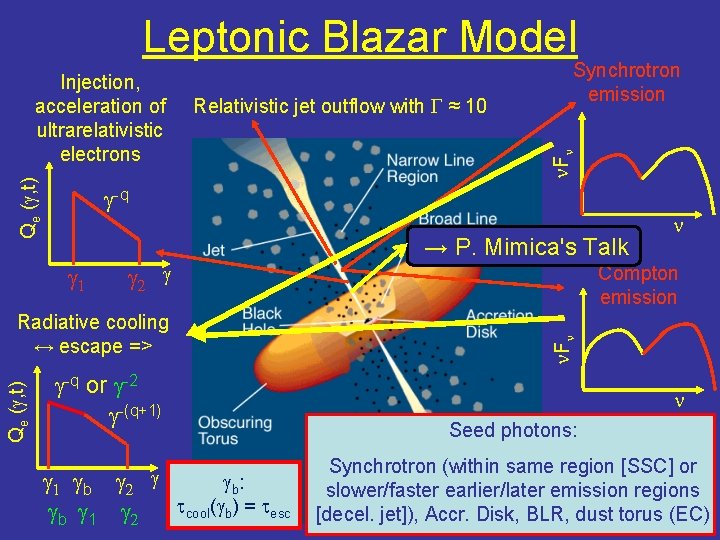

Leptonic Blazar Model Relativistic jet outflow with G ≈ 10 g-q → P. Mimica's Talk g 1 g 2 g n. Fn g-q or g-2 g-(q+1) g 1 gb g 2 gb g 1 g 2 g n Compton emission Radiative cooling ↔ escape => Qe (g, t) Synchrotron emission n. Fn Qe (g, t) Injection, acceleration of ultrarelativistic electrons n Seed photons: gb : tcool(gb) = tesc Synchrotron (within same region [SSC] or slower/faster earlier/later emission regions [decel. jet]), Accr. Disk, BLR, dust torus (EC)

Sources of External Photons (↔ Location of the Blazar Zone) Direct accretion disk emission

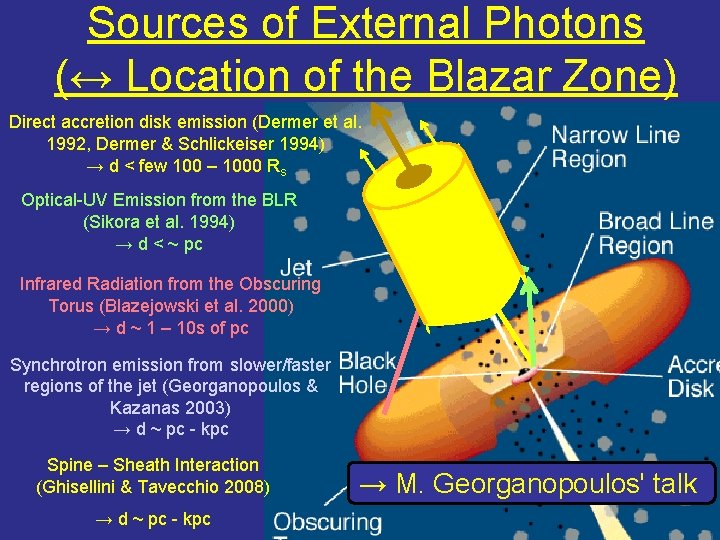

Sources of External Photons (↔ Location of the Blazar Zone) Direct accretion disk emission (Dermer et al. 1992, Dermer & Schlickeiser 1994) → d < few 100 – 1000 Rs Optical-UV Emission from the BLR (Sikora et al. 1994) → d < ~ pc Infrared Radiation from the Obscuring Torus (Blazejowski et al. 2000) → d ~ 1 – 10 s of pc Synchrotron emission from slower/faster regions of the jet (Georganopoulos & Kazanas 2003) → d ~ pc - kpc Spine – Sheath Interaction (Ghisellini & Tavecchio 2008) → d ~ pc - kpc → M. Georganopoulos' talk

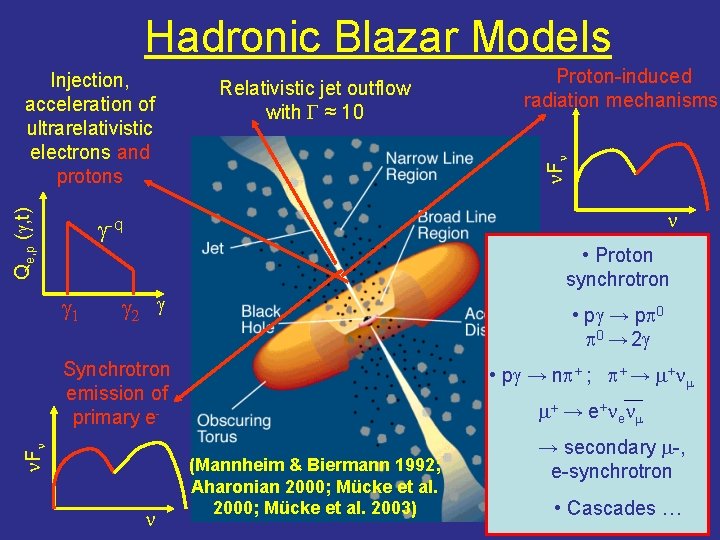

Hadronic Blazar Models Qe, p (g, t) Relativistic jet outflow with G ≈ 10

Hadronic Blazar Models Qe, p (g, t) Relativistic jet outflow with G ≈ 10 Proton-induced radiation mechanisms: n. Fn Injection, acceleration of ultrarelativistic electrons and protons n g-q • Proton synchrotron g 1 g 2 g • pg → pp 0 → 2 g n. Fn Synchrotron emission of primary e- n • pg → np+ ; p+ → m+nm m+ → e + n e n m (Mannheim & Biermann 1992; Aharonian 2000; Mücke et al. 2003) → secondary m-, e-synchrotron • Cascades …

Leptonic and Hadronic Model Fits along the Blazar Sequence Red = Leptonic Green =

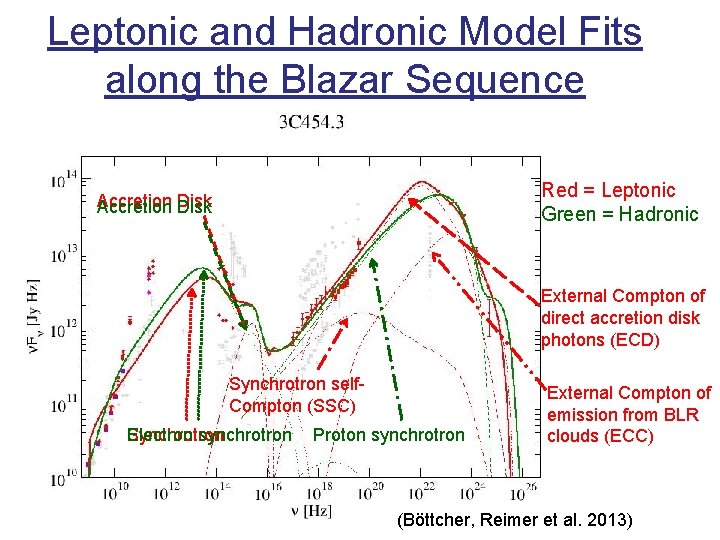

Leptonic and Hadronic Model Fits along the Blazar Sequence Red = Leptonic Green = Hadronic Accretion Disk External Compton of direct accretion disk photons (ECD) Synchrotron self. Compton (SSC) Synchrotron Electron synchrotron Proton synchrotron External Compton of emission from BLR clouds (ECC) (Bӧttcher, Reimer et al. 2013)

Leptonic and Hadronic Model Fits Along the Blazar Sequence 3 C 66 A (IBL)

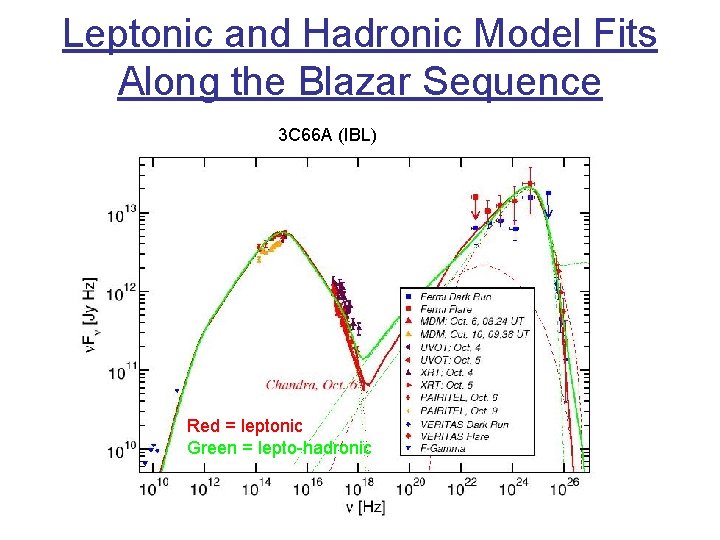

Leptonic and Hadronic Model Fits Along the Blazar Sequence 3 C 66 A (IBL) Red = leptonic Green = lepto-hadronic

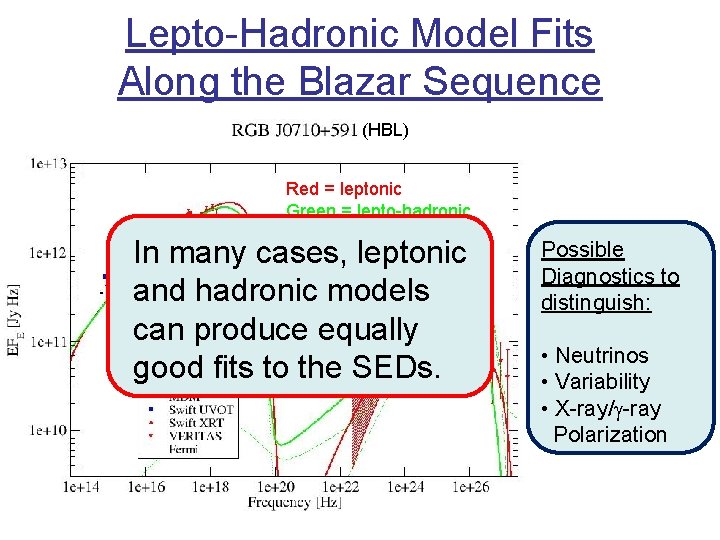

Lepto-Hadronic Model Fits Along the Blazar Sequence (HBL) Red = leptonic Green = lepto-hadronic

Lepto-Hadronic Model Fits Along the Blazar Sequence (HBL) Red = leptonic Green = lepto-hadronic In many cases, leptonic and hadronic models can produce equally good fits to the SEDs. Possible Diagnostics to distinguish: • Neutrinos • Variability • X-ray/g-ray Polarization

Distinguishing Diagnostic: Variability • Time-dependent leptonic one-zone models produce correlated synchrotron + gamma-ray variability

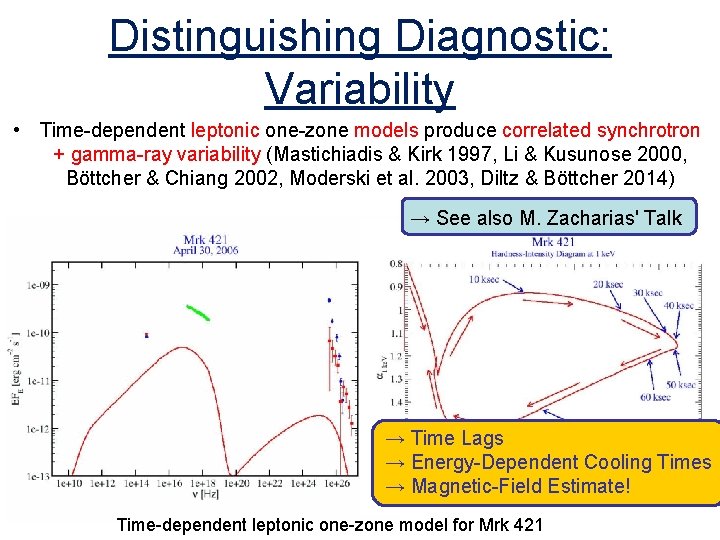

Distinguishing Diagnostic: Variability • Time-dependent leptonic one-zone models produce correlated synchrotron + gamma-ray variability (Mastichiadis & Kirk 1997, Li & Kusunose 2000, Bӧttcher & Chiang 2002, Moderski et al. 2003, Diltz & Böttcher 2014) → See also M. Zacharias' Talk → Time Lags → Energy-Dependent Cooling Times → Magnetic-Field Estimate! Time-dependent leptonic one-zone model for Mrk 421

Correlated Multiwavelength Variability in Leptonic One-Zone Models Example: Variability from short-term increase in 2

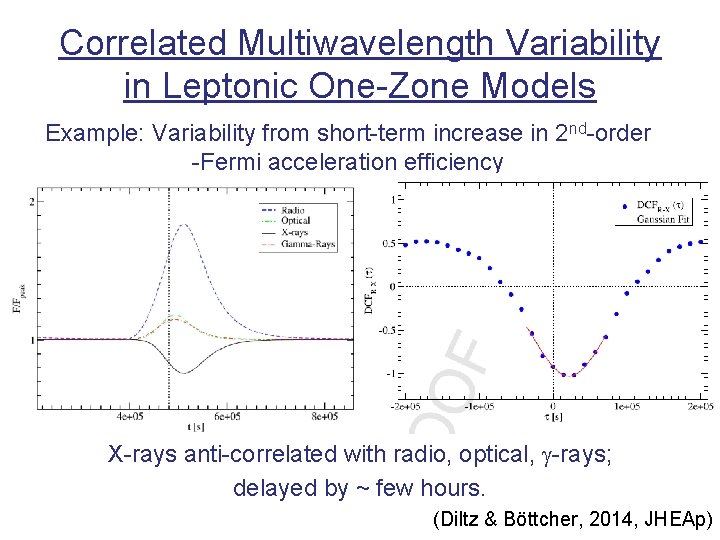

Correlated Multiwavelength Variability in Leptonic One-Zone Models Example: Variability from short-term increase in 2 nd-order -Fermi acceleration efficiency X-rays anti-correlated with radio, optical, g-rays; delayed by ~ few hours. (Diltz & Böttcher, 2014, JHEAp)

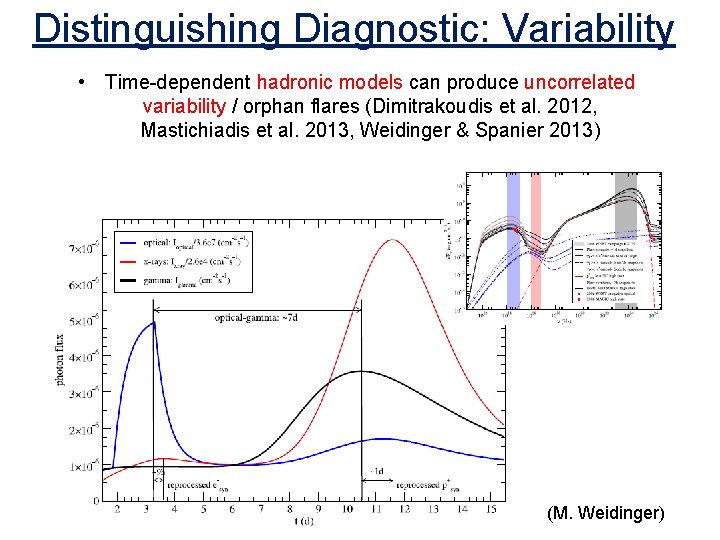

Distinguishing Diagnostic: Variability • Time-dependent hadronic models can produce uncorrelated variability / orphan flares

Distinguishing Diagnostic: Variability • Time-dependent hadronic models can produce uncorrelated variability / orphan flares (Dimitrakoudis et al. 2012, Mastichiadis et al. 2013, Weidinger & Spanier 2013) (M. Weidinger)

Inhomogeneous Jet Models • Internal Shocks (see next slides) • Radially stratified jets (spinesheath

Inhomogeneous Jet Models • Internal Shocks (see next slides) • Radially stratified jets (spinesheath model, Ghisellini et al. 2005, Ghisellini & Tavecchio 2008) • Decelerating Jet Model (Georganopoulos & Kazanas 2003) • Mini-jets-in-jet (magnetic reconnection → D. Giannios' Talk)

The Internal Shock Model Central engine ejects two plasmoids (a, b) into the jet

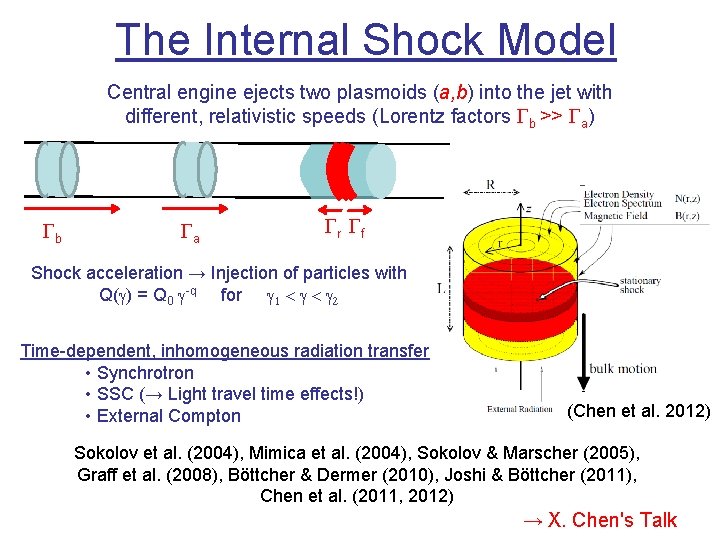

The Internal Shock Model Central engine ejects two plasmoids (a, b) into the jet with different, relativistic speeds (Lorentz factors Gb >> Ga) Gb Ga Gr Gf Shock acceleration → Injection of particles with Q(g) = Q 0 g-q for g 1 < g 2 Time-dependent, inhomogeneous radiation transfer • Synchrotron • SSC (→ Light travel time effects!) • External Compton (Chen et al. 2012) Sokolov et al. (2004), Mimica et al. (2004), Sokolov & Marscher (2005), Graff et al. (2008), Bӧttcher & Dermer (2010), Joshi & Bӧttcher (2011), Chen et al. (2011, 2012) → X. Chen's Talk

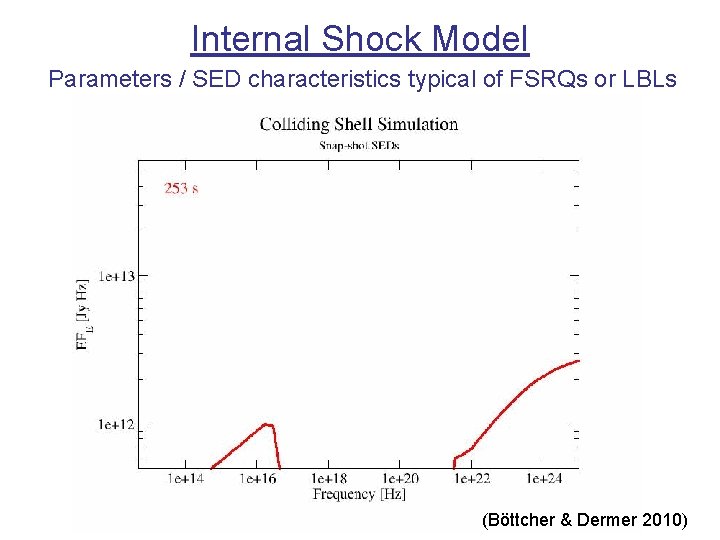

Internal Shock Model Parameters / SED characteristics typical of FSRQs or LBLs (Bӧttcher &

Internal Shock Model Parameters / SED characteristics typical of FSRQs or LBLs (Bӧttcher & Dermer 2010)

Internal Shock Model X-rays lag behind HE g-rays by ~ 1. 5 hr Discrete

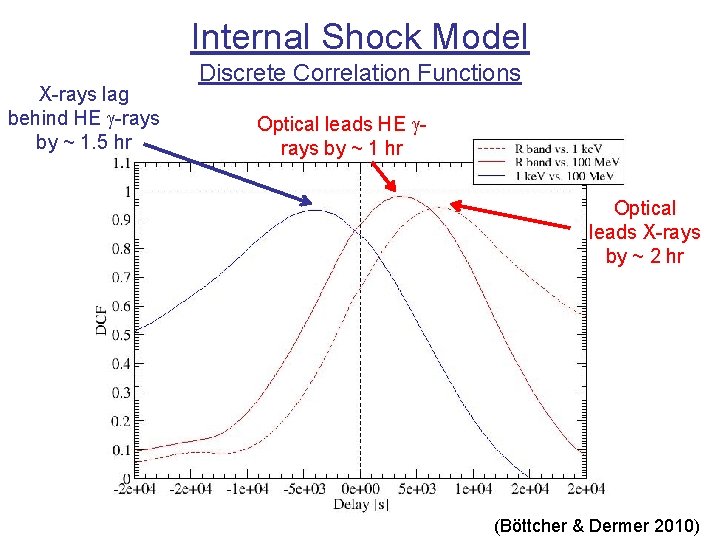

Internal Shock Model X-rays lag behind HE g-rays by ~ 1. 5 hr Discrete Correlation Functions Optical leads HE grays by ~ 1 hr Optical leads X-rays by ~ 2 hr (Bӧttcher & Dermer 2010)

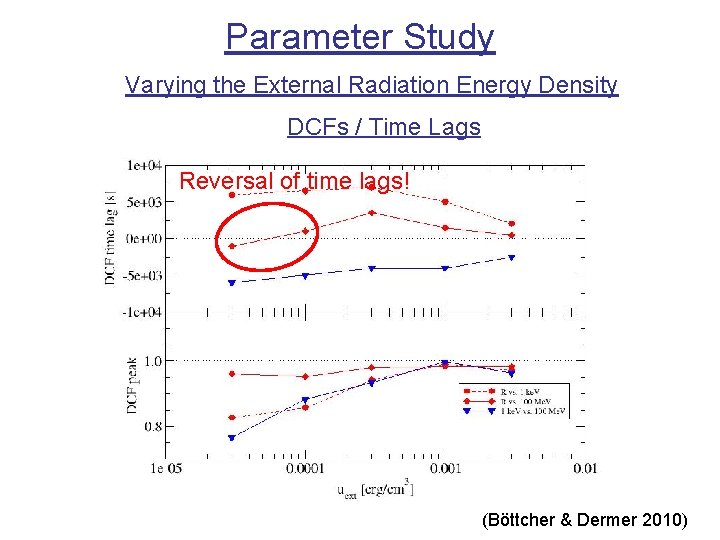

Parameter Study Varying the External Radiation Energy Density DCFs / Time Lags Reversal of

Parameter Study Varying the External Radiation Energy Density DCFs / Time Lags Reversal of time lags! (Bӧttcher & Dermer 2010)

Polarization Angle Swings • Optical + g-ray variability of LSP blazars often correlated •

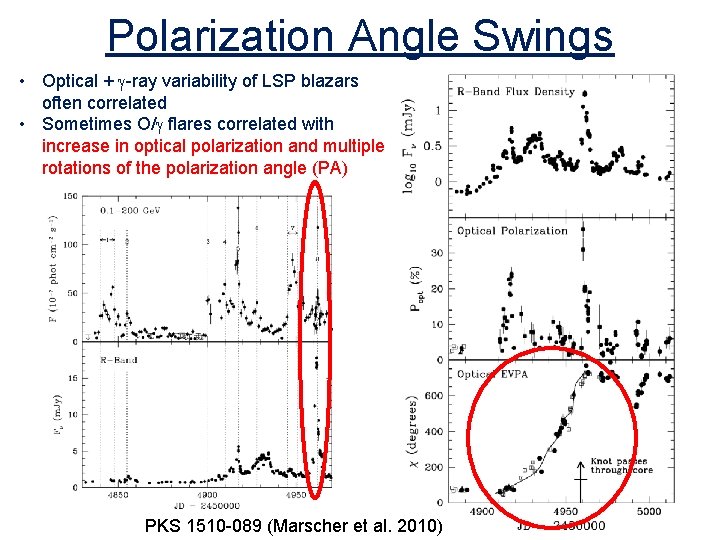

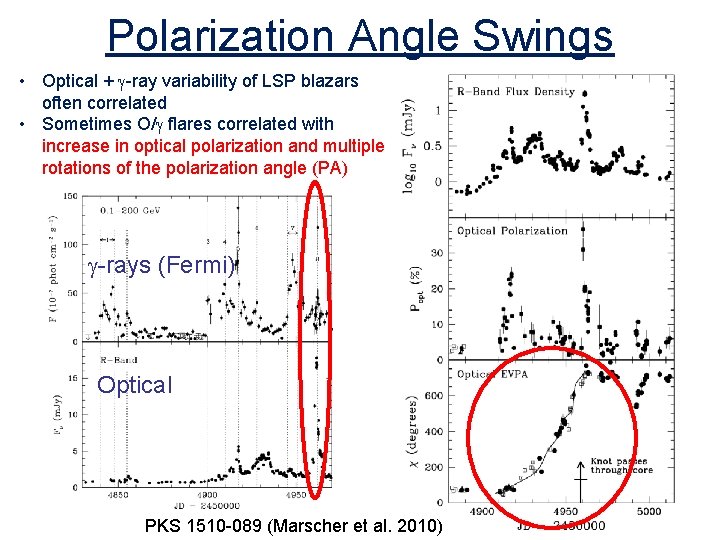

Polarization Angle Swings • Optical + g-ray variability of LSP blazars often correlated • Sometimes O/g flares correlated with increase in optical polarization and multiple rotations of the polarization angle (PA) PKS 1510 -089 (Marscher et al. 2010)

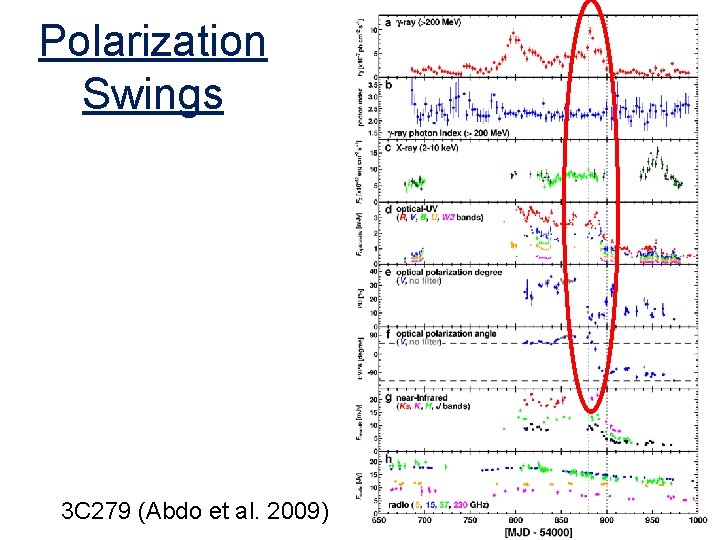

Polarization Swings 3 C 279 (Abdo et al. 2009)

Polarization Swings 3 C 279 (Abdo et al. 2009)

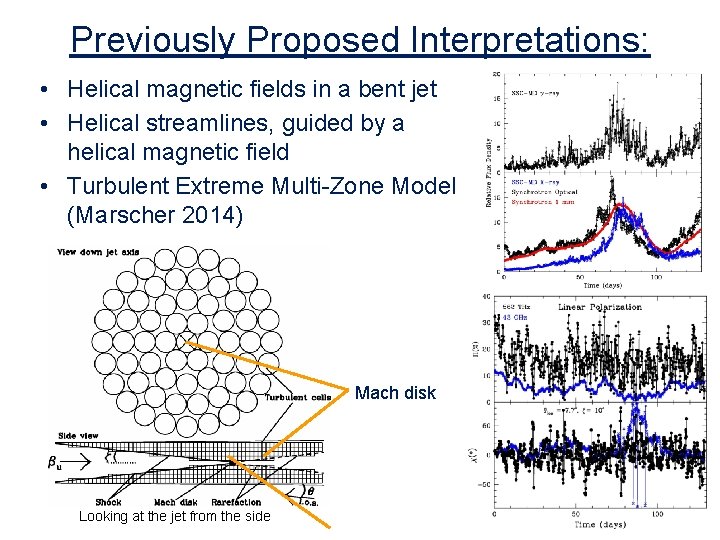

Previously Proposed Interpretations: • Helical magnetic fields in a bent jet • Helical streamlines,

Previously Proposed Interpretations: • Helical magnetic fields in a bent jet • Helical streamlines, guided by a helical magnetic field • Turbulent Extreme Multi-Zone Model (Marscher 2014) Mach disk Looking at the jet from the side

Tracing Synchrotron Polarization in the Internal Shock Model View in o ing dir e

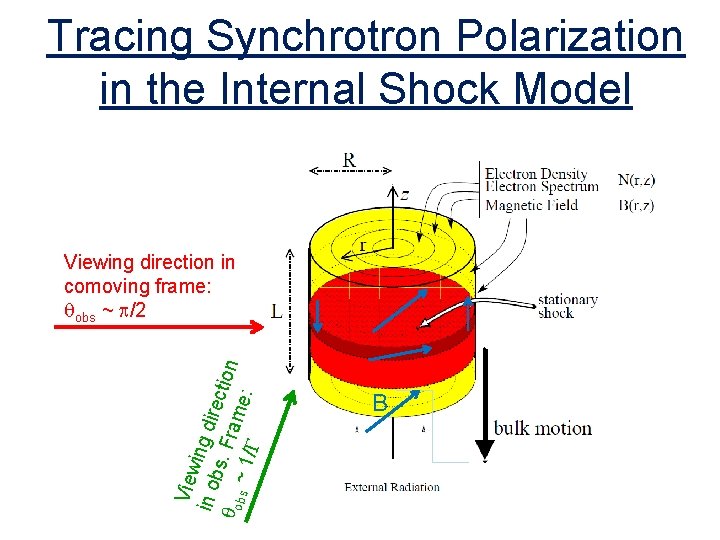

Tracing Synchrotron Polarization in the Internal Shock Model View in o ing dir e bs. Fra ction qo bs ~ 1/G me: Viewing direction in comoving frame: qobs ~ p/2 B

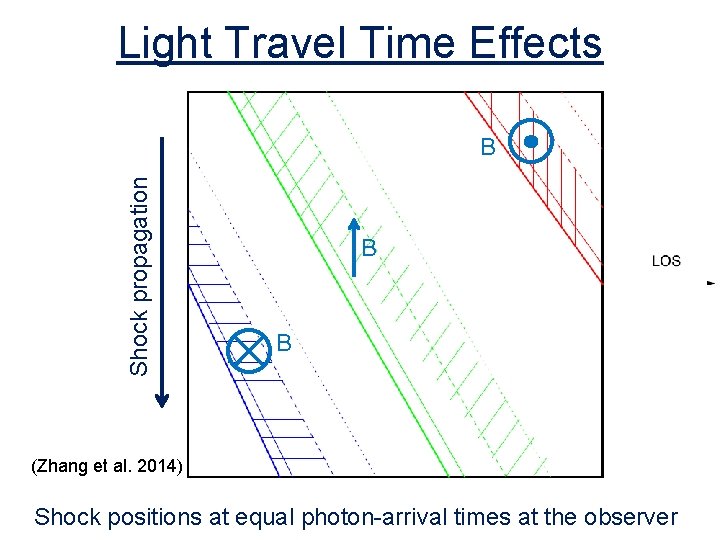

Light Travel Time Effects Shock propagation B B B (Zhang et al. 2014) Shock

Light Travel Time Effects Shock propagation B B B (Zhang et al. 2014) Shock positions at equal photon-arrival times at the observer

Flaring Scenario: Magnetic-Field Compression perpendicular to shock normal Baseline parameters based on SED and

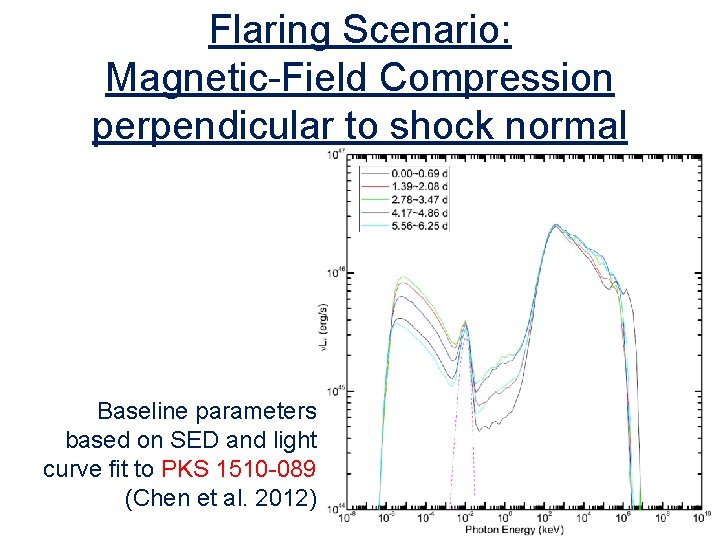

Flaring Scenario: Magnetic-Field Compression perpendicular to shock normal Baseline parameters based on SED and light curve fit to PKS 1510 -089 (Chen et al. 2012)

Flaring Scenario: Magnetic-Field Compression perpendicular to shock normal Degree of Polarization P vs. time

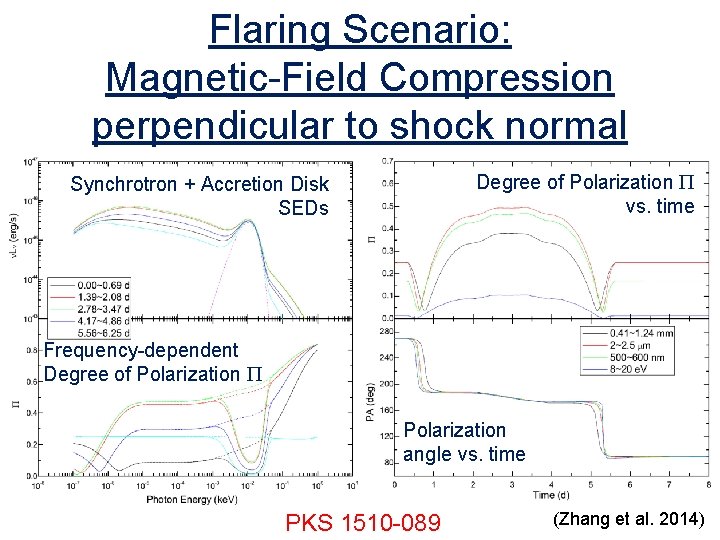

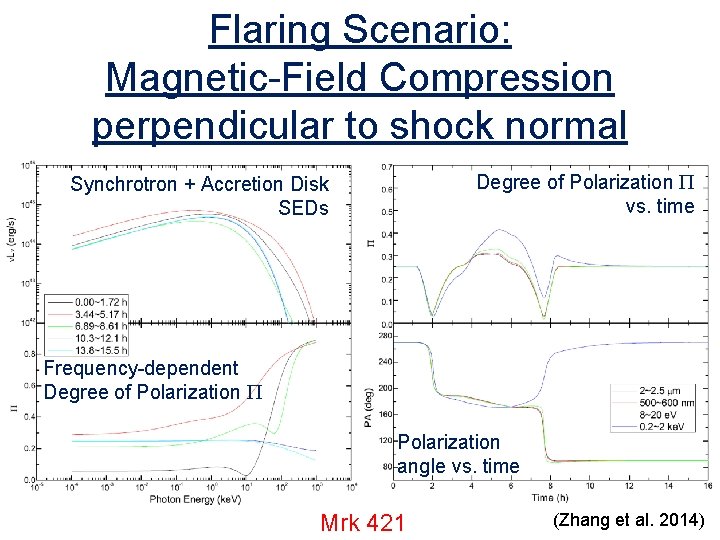

Flaring Scenario: Magnetic-Field Compression perpendicular to shock normal Degree of Polarization P vs. time Synchrotron + Accretion Disk SEDs Frequency-dependent Degree of Polarization P Polarization angle vs. time PKS 1510 -089 (Zhang et al. 2014)

Flaring Scenario: Magnetic-Field Compression perpendicular to shock normal Degree of Polarization P vs. time

Flaring Scenario: Magnetic-Field Compression perpendicular to shock normal Degree of Polarization P vs. time Synchrotron + Accretion Disk SEDs Frequency-dependent Degree of Polarization P Polarization angle vs. time Mrk 421 (Zhang et al. 2014)

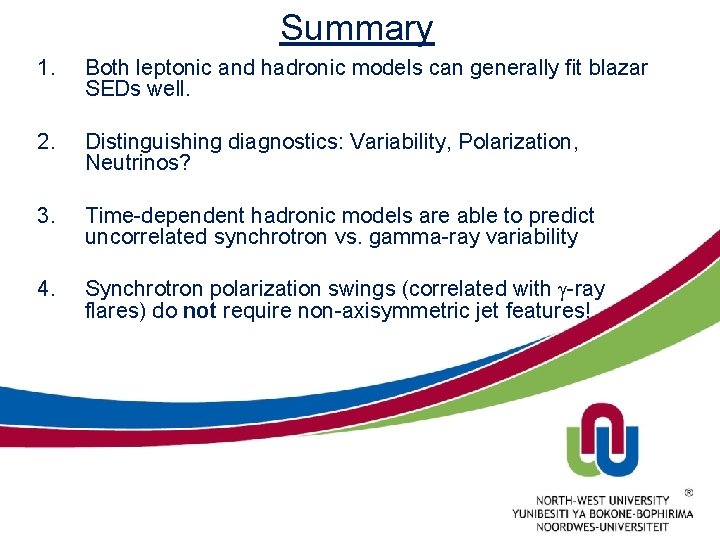

Summary 1. Both leptonic and hadronic models can generally fit blazar SEDs well. 2.

Summary 1. Both leptonic and hadronic models can generally fit blazar SEDs well. 2. Distinguishing diagnostics: Variability, Polarization, Neutrinos? 3. Time-dependent hadronic models are able to predict uncorrelated synchrotron vs. gamma-ray variability 4. Synchrotron polarization swings (correlated with g-ray flares) do not require non-axisymmetric jet features!

Superluminal Motion Apparent motion at up to ~ 40 times the speed of light!

Superluminal Motion Apparent motion at up to ~ 40 times the speed of light!

Requirements for lepto-hadronic models • To exceed p-g pion production threshold on interactions with

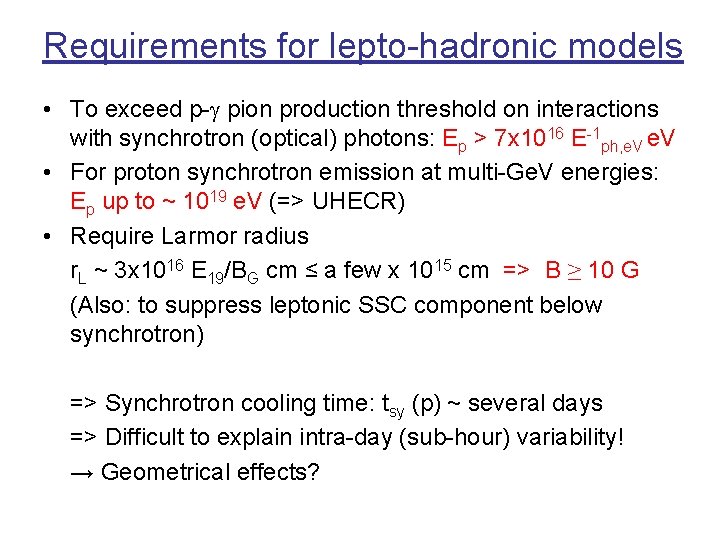

Requirements for lepto-hadronic models • To exceed p-g pion production threshold on interactions with synchrotron (optical) photons: Ep > 7 x 1016 E-1 ph, e. V • For proton synchrotron emission at multi-Ge. V energies: Ep up to ~ 1019 e. V (=> UHECR) • Require Larmor radius r. L ~ 3 x 1016 E 19/BG cm ≤ a few x 1015 cm => B ≥ 10 G (Also: to suppress leptonic SSC component below synchrotron) => Synchrotron cooling time: tsy (p) ~ several days => Difficult to explain intra-day (sub-hour) variability! → Geometrical effects?

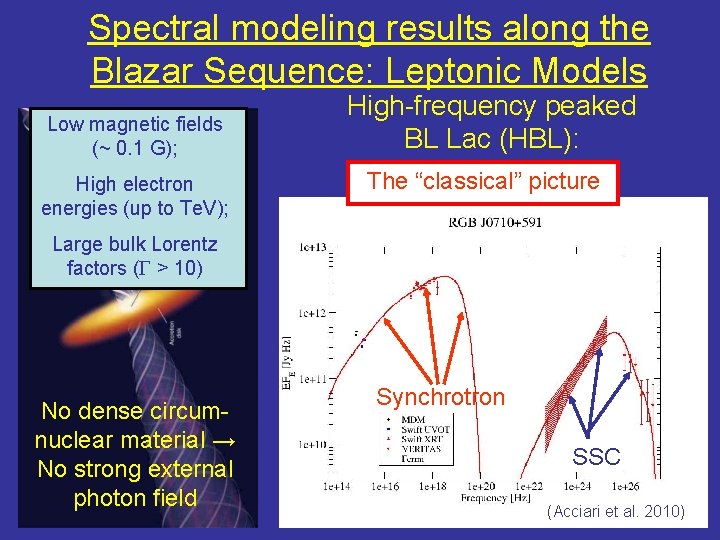

Spectral modeling results along the Blazar Sequence: Leptonic Models Low magnetic fields (~ 0.

Spectral modeling results along the Blazar Sequence: Leptonic Models Low magnetic fields (~ 0. 1 G); High electron energies (up to Te. V); High-frequency peaked BL Lac (HBL): The “classical” picture Large bulk Lorentz factors (G > 10) No dense circumnuclear material → No strong external photon field Synchrotron SSC (Acciari et al. 2010)

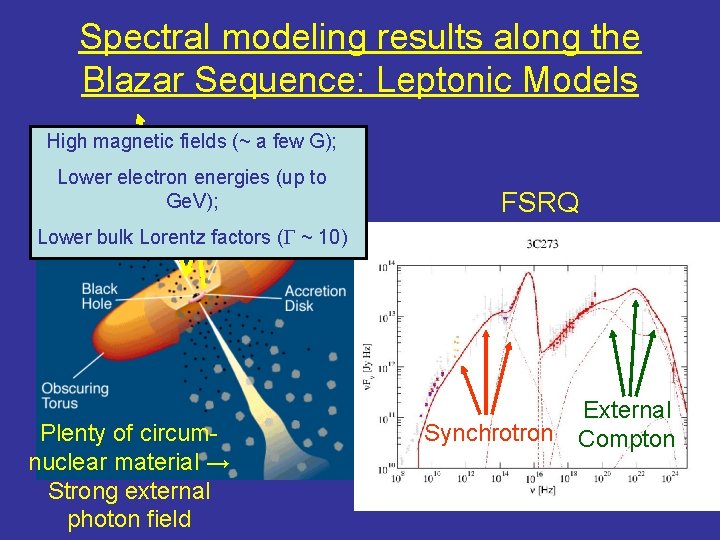

Spectral modeling results along the Blazar Sequence: Leptonic Models High magnetic fields (~ a

Spectral modeling results along the Blazar Sequence: Leptonic Models High magnetic fields (~ a few G); Lower electron energies (up to Ge. V); FSRQ Lower bulk Lorentz factors (G ~ 10) Plenty of circumnuclear material → Strong external photon field Synchrotron External Compton

Intermediate BL Lac Objects 3 C 66 A October 2008 (Abdo et al. 2011)

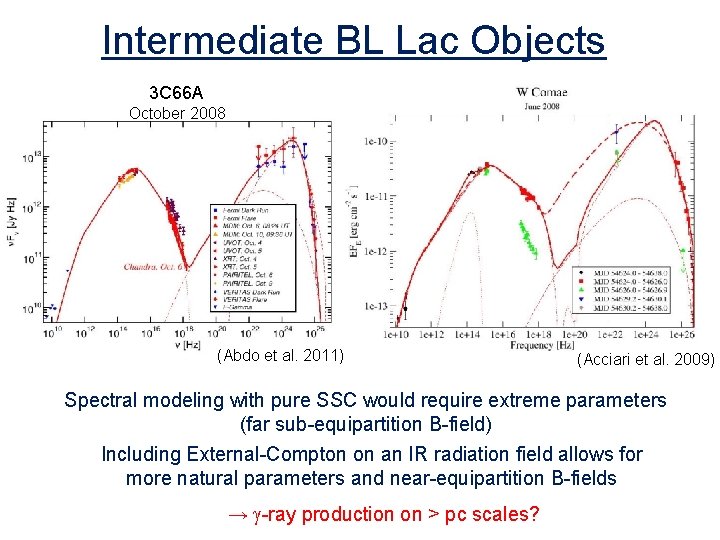

Intermediate BL Lac Objects 3 C 66 A October 2008 (Abdo et al. 2011) (Acciari et al. 2009) Spectral modeling with pure SSC would require extreme parameters (far sub-equipartition B-field) Including External-Compton on an IR radiation field allows for more natural parameters and near-equipartition B-fields → g-ray production on > pc scales?

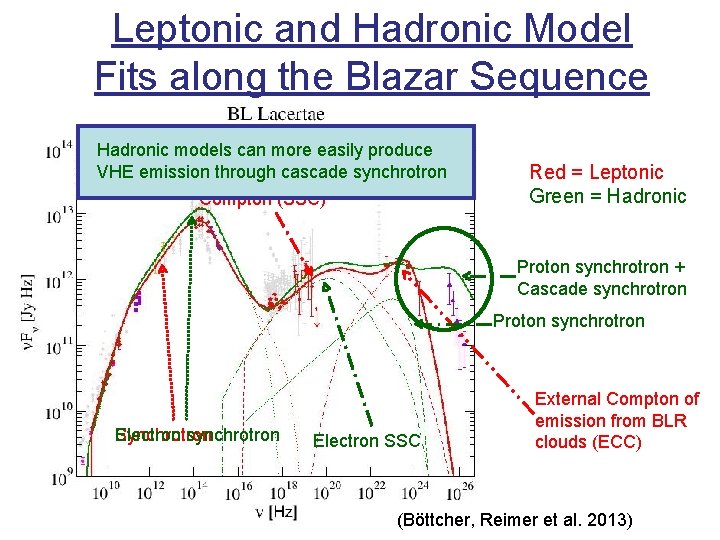

Leptonic and Hadronic Model Fits along the Blazar Sequence Hadronic models can more easily

Leptonic and Hadronic Model Fits along the Blazar Sequence Hadronic models can more easily produce VHE emission through cascade Synchrotron self- synchrotron Compton (SSC) Red = Leptonic Green = Hadronic Proton synchrotron + Cascade synchrotron Proton synchrotron Synchrotron Electron synchrotron Electron SSC External Compton of emission from BLR clouds (ECC) (Bӧttcher, Reimer et al. 2013)

Diagnosing the Location of the Blazar Zone Energy dependence of cooling times: Distinguish between

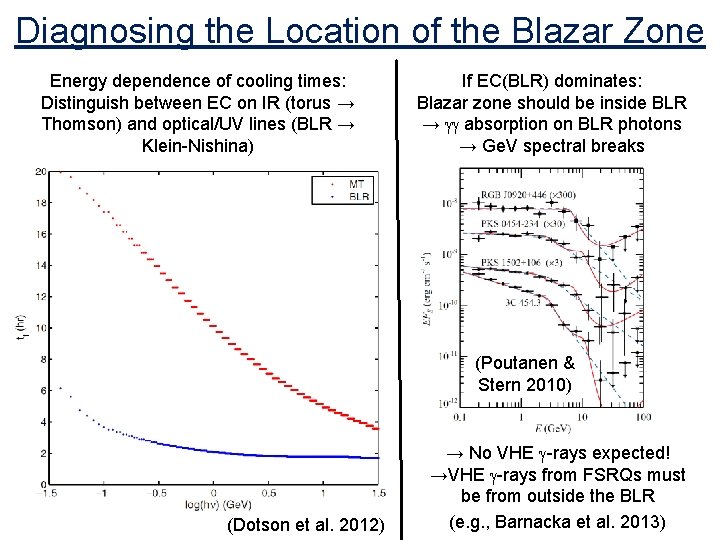

Diagnosing the Location of the Blazar Zone Energy dependence of cooling times: Distinguish between EC on IR (torus → Thomson) and optical/UV lines (BLR → Klein-Nishina) If EC(BLR) dominates: Blazar zone should be inside BLR → gg absorption on BLR photons → Ge. V spectral breaks (Poutanen & Stern 2010) (Dotson et al. 2012) → No VHE g-rays expected! →VHE g-rays from FSRQs must be from outside the BLR (e. g. , Barnacka et al. 2013)

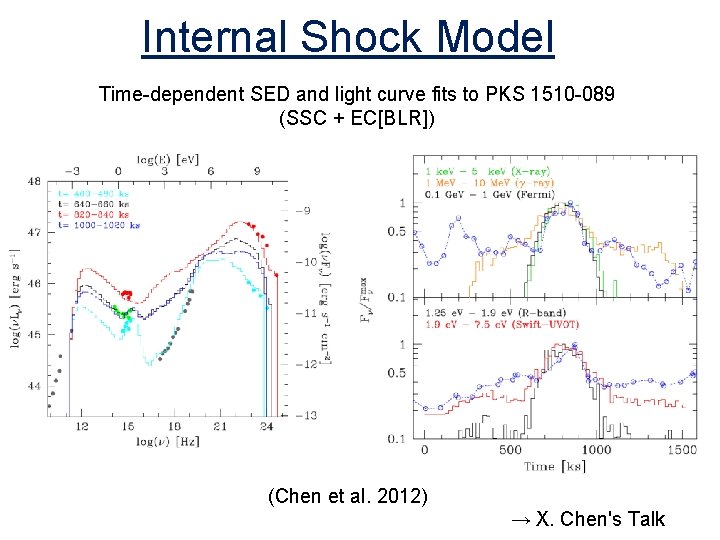

Internal Shock Model Time-dependent SED and light curve fits to PKS 1510 -089 (SSC

Internal Shock Model Time-dependent SED and light curve fits to PKS 1510 -089 (SSC + EC[BLR]) (Chen et al. 2012) → X. Chen's Talk
