Model Based System Engineering Approach to Managing Requirements

Model Based System Engineering Approach to Managing Requirements in a Multi-Agency/Multi -Stakeholder Environment of Science and Technology/Research and Development Projects Magda Batista-Carver Federal Aviation Administration – Electrical Computer Engineer The George Washington University EMSE Ph. D Candidate Dr. Thomas Mazzuchi, D. Sc. Dr. Shahram Sarkani, Ph. D. , P. E. May 16, 2012

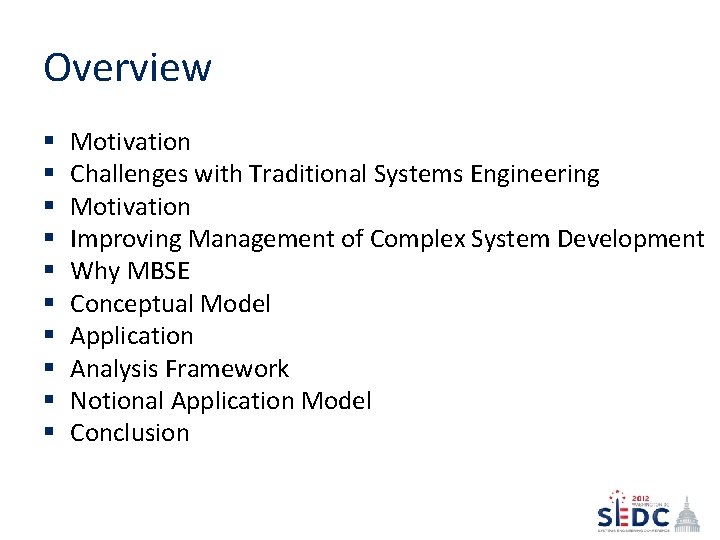

Overview § § § § § Motivation Challenges with Traditional Systems Engineering Motivation Improving Management of Complex System Development Why MBSE Conceptual Model Application Analysis Framework Notional Application Model Conclusion

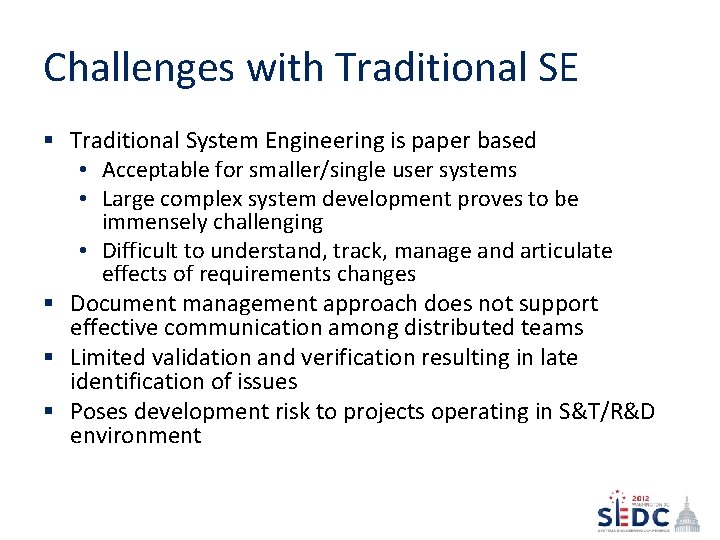

Challenges with Traditional SE § Traditional System Engineering is paper based • Acceptable for smaller/single user systems • Large complex system development proves to be immensely challenging • Difficult to understand, track, manage and articulate effects of requirements changes § Document management approach does not support effective communication among distributed teams § Limited validation and verification resulting in late identification of issues § Poses development risk to projects operating in S&T/R&D environment

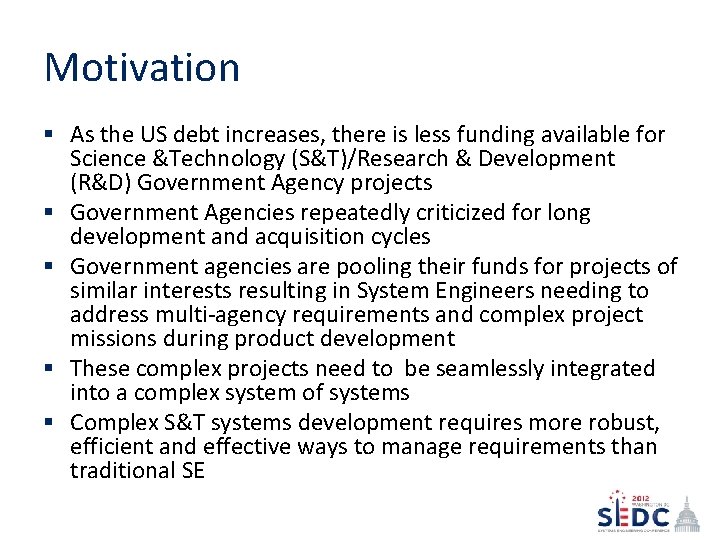

Motivation § As the US debt increases, there is less funding available for Science &Technology (S&T)/Research & Development (R&D) Government Agency projects § Government Agencies repeatedly criticized for long development and acquisition cycles § Government agencies are pooling their funds for projects of similar interests resulting in System Engineers needing to address multi-agency requirements and complex project missions during product development § These complex projects need to be seamlessly integrated into a complex system of systems § Complex S&T systems development requires more robust, efficient and effective ways to manage requirements than traditional SE

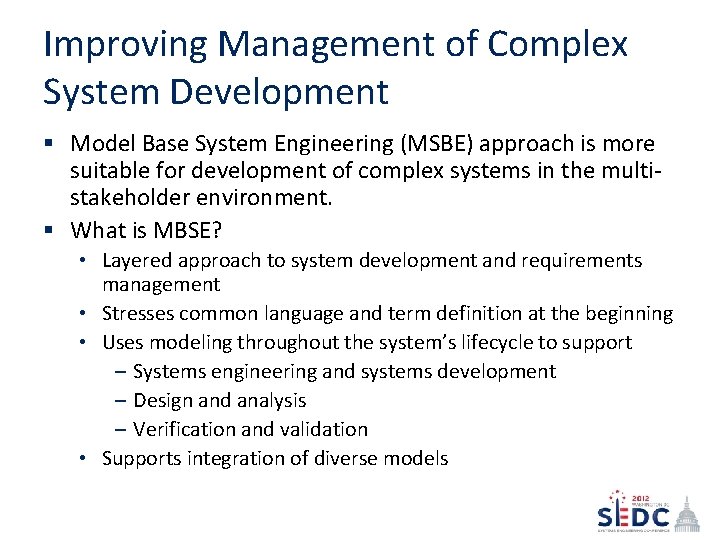

Improving Management of Complex System Development § Model Base System Engineering (MSBE) approach is more suitable for development of complex systems in the multistakeholder environment. § What is MBSE? • Layered approach to system development and requirements management • Stresses common language and term definition at the beginning • Uses modeling throughout the system’s lifecycle to support – Systems engineering and systems development – Design and analysis – Verification and validation • Supports integration of diverse models

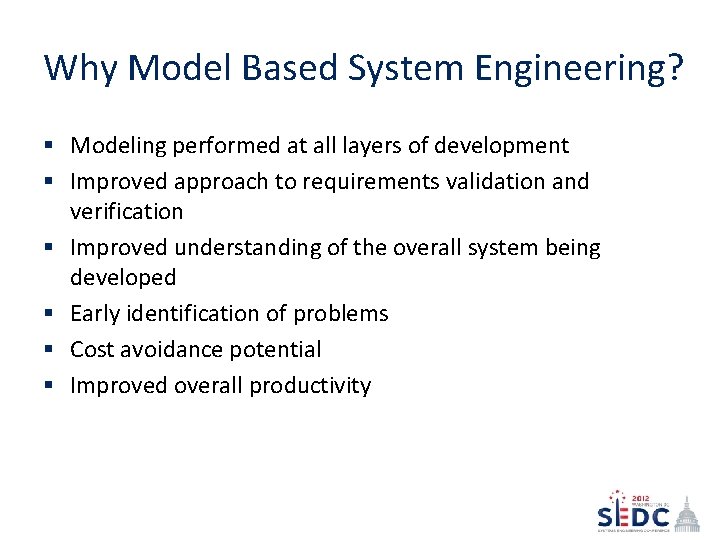

Why Model Based System Engineering? § Modeling performed at all layers of development § Improved approach to requirements validation and verification § Improved understanding of the overall system being developed § Early identification of problems § Cost avoidance potential § Improved overall productivity

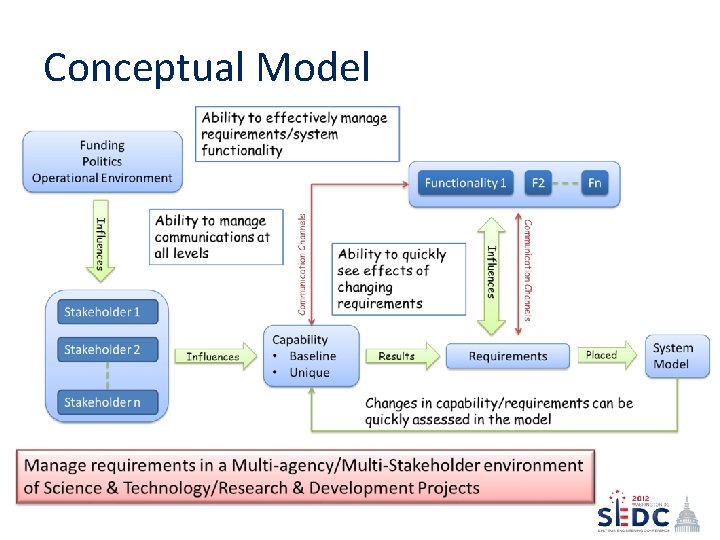

Conceptual Model

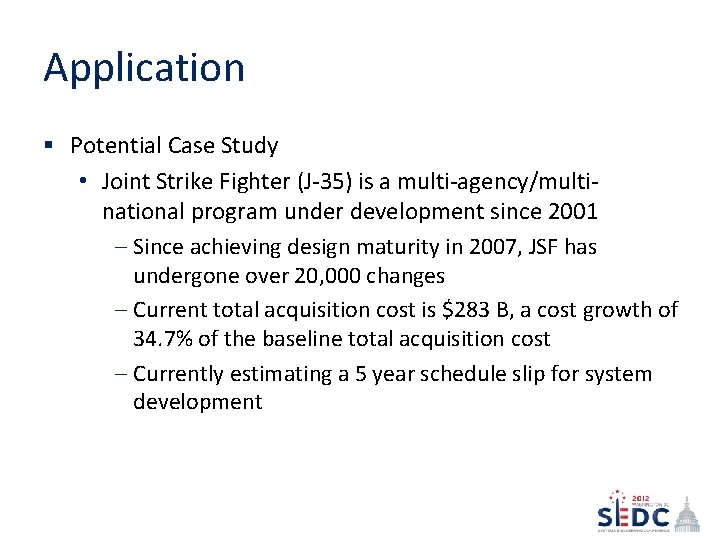

Application § Potential Case Study • Joint Strike Fighter (J-35) is a multi-agency/multinational program under development since 2001 – Since achieving design maturity in 2007, JSF has undergone over 20, 000 changes – Current total acquisition cost is $283 B, a cost growth of 34. 7% of the baseline total acquisition cost – Currently estimating a 5 year schedule slip for system development

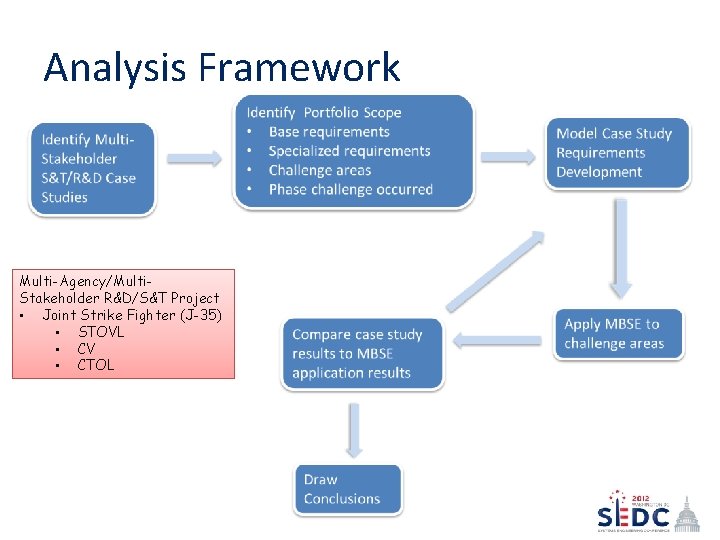

Analysis Framework Multi-Agency/Multi. Stakeholder R&D/S&T Project • Joint Strike Fighter (J-35) • STOVL • CV • CTOL

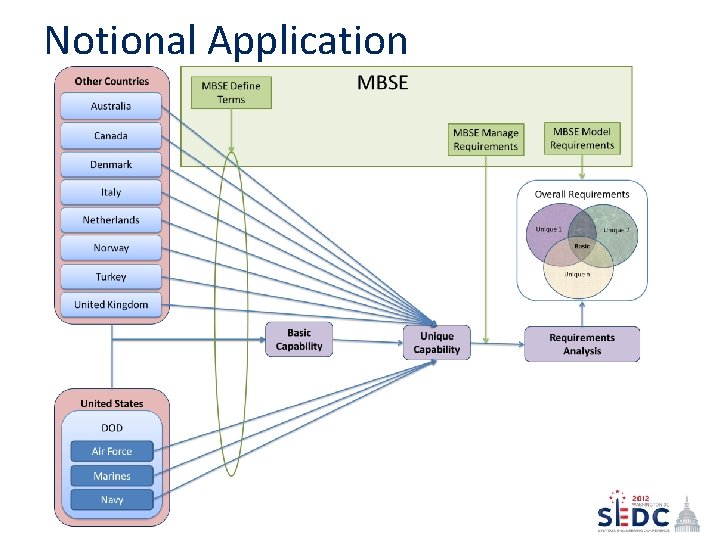

Notional Application

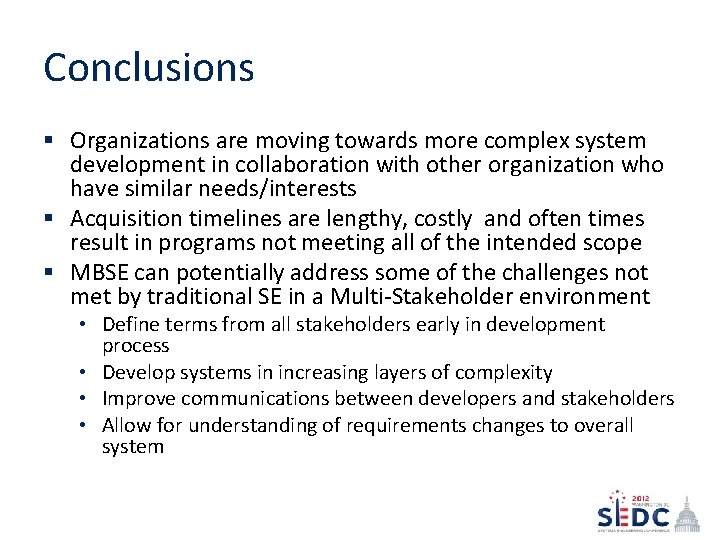

Conclusions § Organizations are moving towards more complex system development in collaboration with other organization who have similar needs/interests § Acquisition timelines are lengthy, costly and often times result in programs not meeting all of the intended scope § MBSE can potentially address some of the challenges not met by traditional SE in a Multi-Stakeholder environment • Define terms from all stakeholders early in development process • Develop systems in increasing layers of complexity • Improve communications between developers and stakeholders • Allow for understanding of requirements changes to overall system

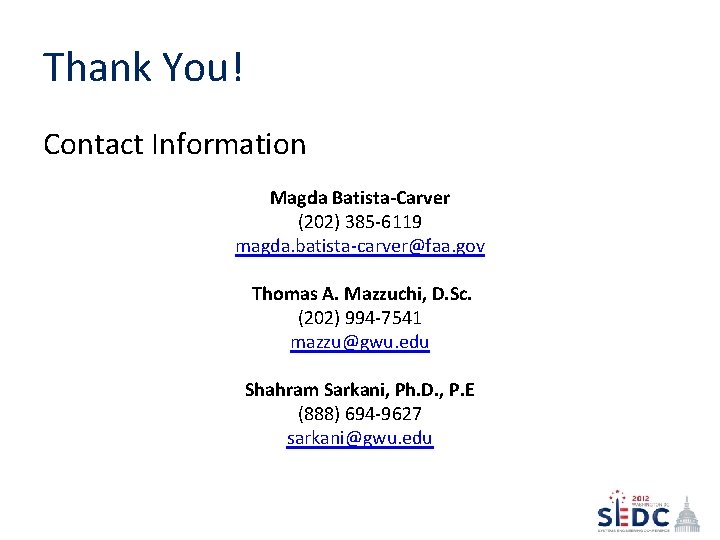

Thank You! Contact Information Magda Batista-Carver (202) 385 -6119 magda. batista-carver@faa. gov Thomas A. Mazzuchi, D. Sc. (202) 994 -7541 mazzu@gwu. edu Shahram Sarkani, Ph. D. , P. E (888) 694 -9627 sarkani@gwu. edu

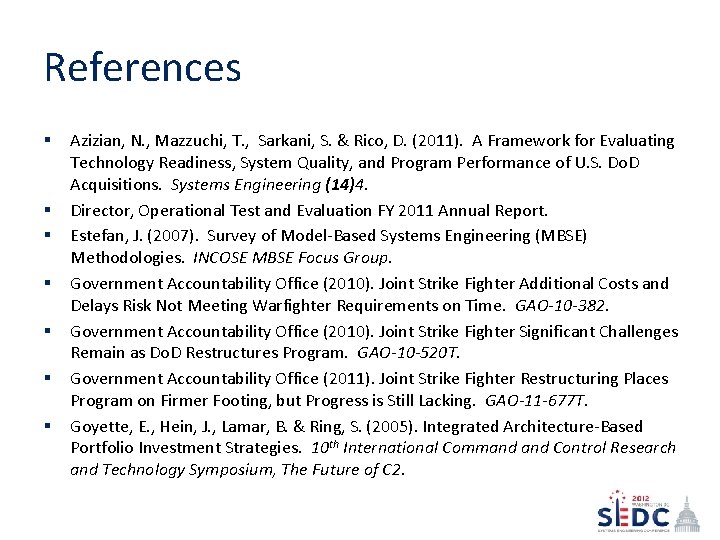

References § § § § Azizian, N. , Mazzuchi, T. , Sarkani, S. & Rico, D. (2011). A Framework for Evaluating Technology Readiness, System Quality, and Program Performance of U. S. Do. D Acquisitions. Systems Engineering (14)4. Director, Operational Test and Evaluation FY 2011 Annual Report. Estefan, J. (2007). Survey of Model-Based Systems Engineering (MBSE) Methodologies. INCOSE MBSE Focus Group. Government Accountability Office (2010). Joint Strike Fighter Additional Costs and Delays Risk Not Meeting Warfighter Requirements on Time. GAO-10 -382. Government Accountability Office (2010). Joint Strike Fighter Significant Challenges Remain as Do. D Restructures Program. GAO-10 -520 T. Government Accountability Office (2011). Joint Strike Fighter Restructuring Places Program on Firmer Footing, but Progress is Still Lacking. GAO-11 -677 T. Goyette, E. , Hein, J. , Lamar, B. & Ring, S. (2005). Integrated Architecture-Based Portfolio Investment Strategies. 10 th International Command Control Research and Technology Symposium, The Future of C 2.

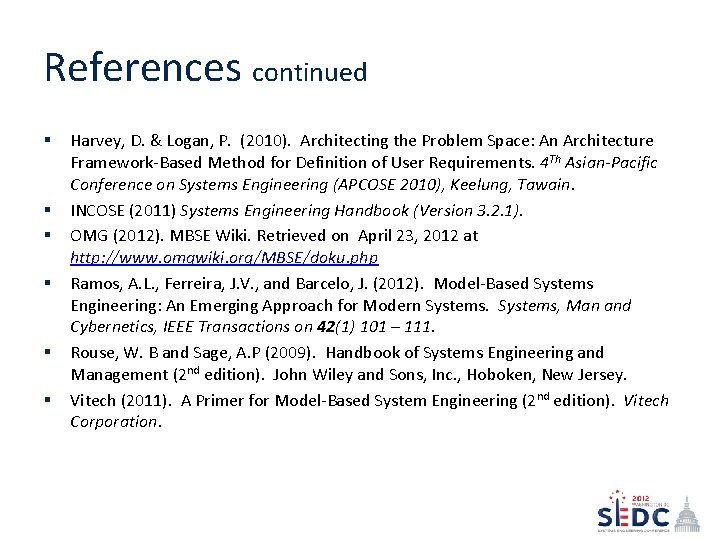

References continued § § § Harvey, D. & Logan, P. (2010). Architecting the Problem Space: An Architecture Framework-Based Method for Definition of User Requirements. 4 Th Asian-Pacific Conference on Systems Engineering (APCOSE 2010), Keelung, Tawain. INCOSE (2011) Systems Engineering Handbook (Version 3. 2. 1). OMG (2012). MBSE Wiki. Retrieved on April 23, 2012 at http: //www. omgwiki. org/MBSE/doku. php Ramos, A. L. , Ferreira, J. V. , and Barcelo, J. (2012). Model-Based Systems Engineering: An Emerging Approach for Modern Systems, Man and Cybernetics, IEEE Transactions on 42(1) 101 – 111. Rouse, W. B and Sage, A. P (2009). Handbook of Systems Engineering and Management (2 nd edition). John Wiley and Sons, Inc. , Hoboken, New Jersey. Vitech (2011). A Primer for Model-Based System Engineering (2 nd edition). Vitech Corporation.
