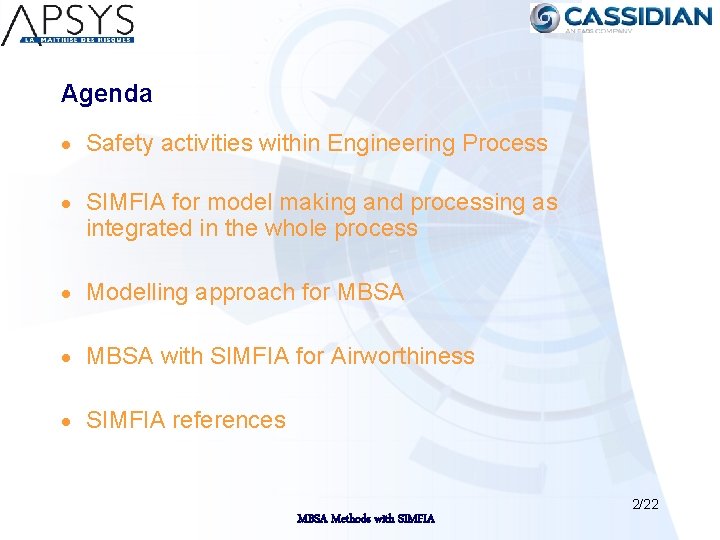

Agenda · Safety activities within Engineering Process · SIMFIA for model making and processing as integrated in the whole process · Modelling approach for MBSA · MBSA with SIMFIA for Airworthiness · SIMFIA references MBSA Methods with SIMFIA 2/22

Safety Activities during development cycle Concept and Definition Development PROCESS CONTROL , TECHNICAL STUDIES, TRAINING, DISSEMINATION DEFINITION CONFIGURATION MANAGEMENT Aircraft Requirements Identification System Requirements Identification Item Requirements Identification DELIVERY Feasibility studies In In Service In service Follow up Change Ctrl Item Verification System Verification Aircraft Verification Item Design Aircraft Verification Aircraft FHA Aircraft CCA Item Verification System FHA n n Item ocatio All System PSSA System CCA Top down RAM and safety Development Requirements & validation Validation of requirements at the next highest level System SSA Ite Int m egr atio Validation of requirements at the next highest level Aircraft CCA Sy Int stem egr atio n tem n Sys ocatio All PASA Aircraft Synthesis System CCA System Verification Item FMEA Item FTA Item CMA Validation of requirements at the next highest level Bottom Up Safety Requirements verification Item Software Design Item Hardware Design SIMFIA Technological Design 3/22 MBSA Methods with SIMFIA

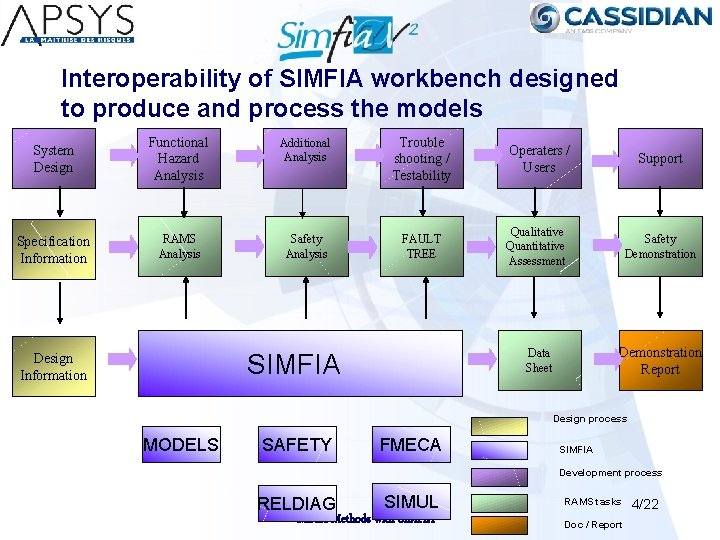

Interoperability of SIMFIA workbench designed to produce and process the models System Design Functional Hazard Analysis Additional Analysis Trouble shooting / Testability Operaters / Users Support Specification Information RAMS Analysis Safety Analysis FAULT TREE Qualitative Quantitative Assessment Safety Demonstration Data Sheet Demonstration Report SIMFIA Design Information Design process MODELS SAFETY FMECA SIMFIA Development process RELDIAG SIMUL MBSA Methods with SIMFIA RAMS tasks Doc / Report 4/22

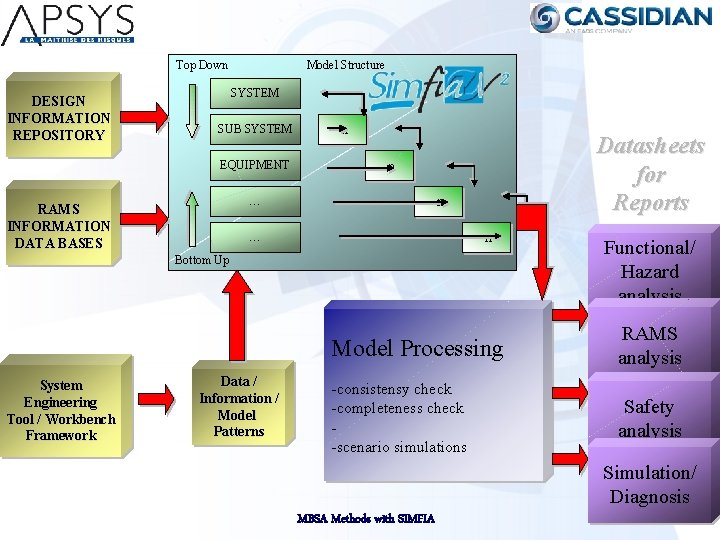

Top Down DESIGN INFORMATION REPOSITORY Model Structure SYSTEM SUB SYSTEM EQUIPMENT … RAMS INFORMATION DATA BASES -n Datasheets for Reports -n -n -n … Bottom Up System Engineering Tool / Workbench Framework Data / Information / Model Patterns Functional/ Hazard analysis Model Processing RAMS analysis -consistensy check -completeness check -scenario simulations Safety analysis MBSA Methods with SIMFIA Simulation/ Diagnosis 5/22

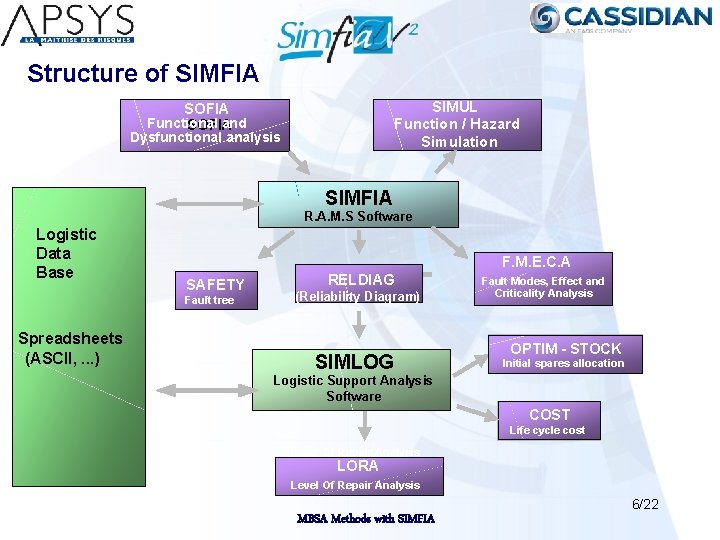

Structure of SIMFIA SIMUL Function / Hazard Simulation SOFIA Functional and SOFIA Dysfunctional analysis SIMFIA Logistic Data Base R. A. M. SSoftware F. M. E. C. A SAFETY Fault tree Spreadsheets (ASCII, . . . ) RELDIAG (Reliability Diagram) SIMLOG Logistic SIMLOG Support Analysis Software Logistic Support Analysis Fault Modes, Effect and Criticality Analysis OPTIM - STOCK Initial spares allocation COST Life cycle cost Level Of Repair Analysis LORA Level Of Repair Analysis MBSA Methods with SIMFIA 6/22

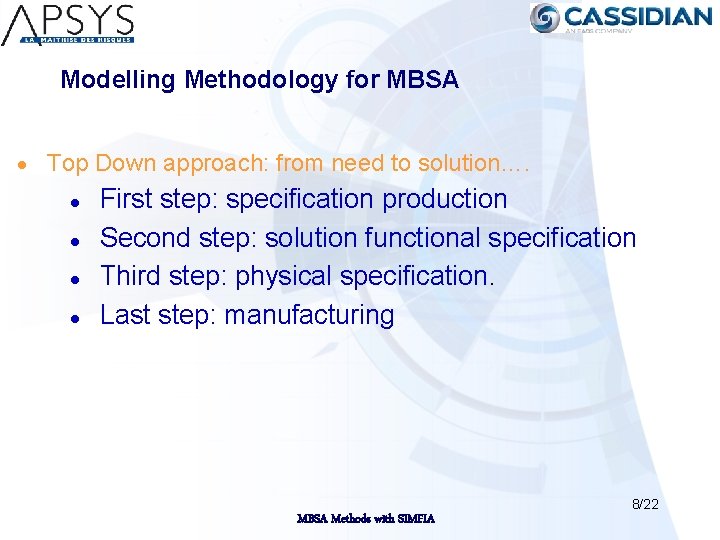

Modelling Methodology for MBSA · Top Down approach: from need to solution…. l l First step: specification production Second step: solution functional specification Third step: physical specification. Last step: manufacturing MBSA Methods with SIMFIA 8/22

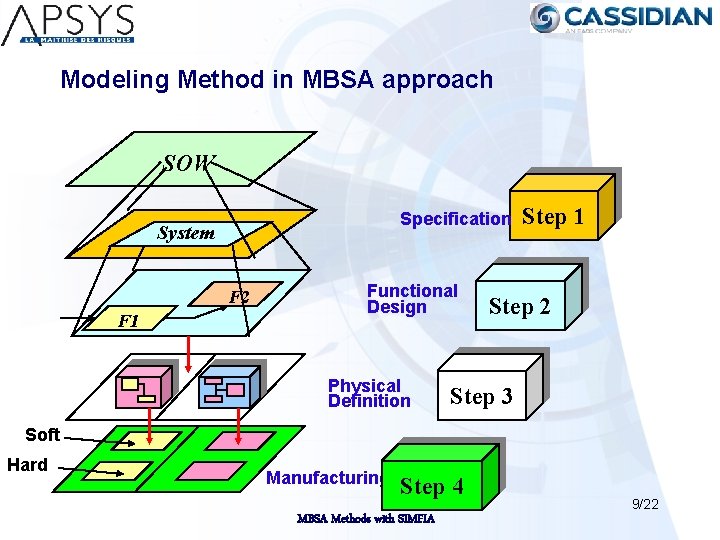

Modeling Method in MBSA approach SOW Specification System F 2 F 1 Functional Design Physical Definition Step 1 Step 2 Step 3 Soft Hard Manufacturing Step 4 MBSA Methods with SIMFIA 9/22

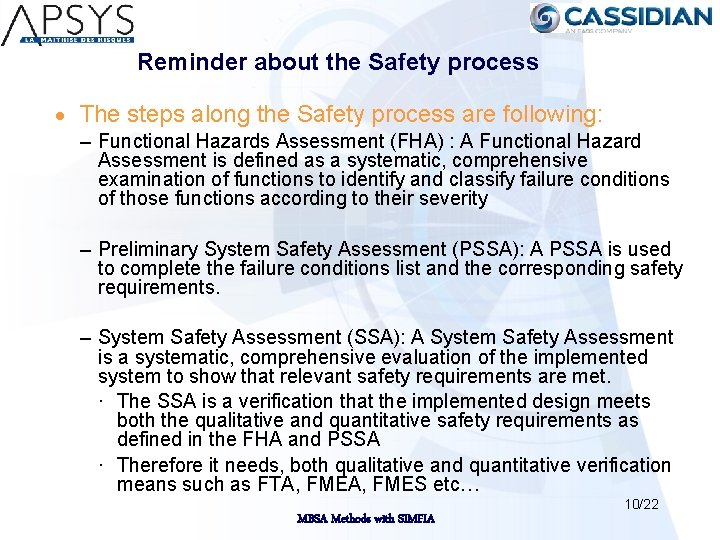

Reminder about the Safety process · The steps along the Safety process are following: – Functional Hazards Assessment (FHA) : A Functional Hazard Assessment is defined as a systematic, comprehensive examination of functions to identify and classify failure conditions of those functions according to their severity – Preliminary System Safety Assessment (PSSA): A PSSA is used to complete the failure conditions list and the corresponding safety requirements. – System Safety Assessment (SSA): A System Safety Assessment is a systematic, comprehensive evaluation of the implemented system to show that relevant safety requirements are met. · The SSA is a verification that the implemented design meets both the qualitative and quantitative safety requirements as defined in the FHA and PSSA · Therefore it needs, both qualitative and quantitative verification means such as FTA, FMES etc… MBSA Methods with SIMFIA 10/22

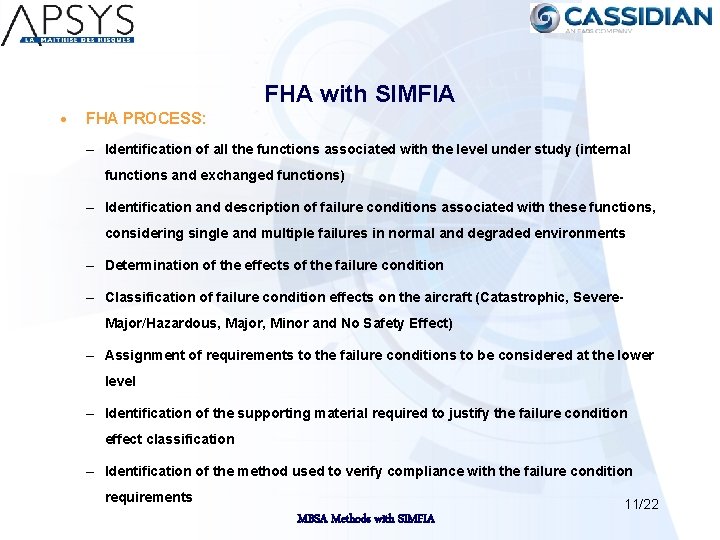

FHA with SIMFIA · FHA PROCESS: – Identification of all the functions associated with the level under study (internal functions and exchanged functions) – Identification and description of failure conditions associated with these functions, considering single and multiple failures in normal and degraded environments – Determination of the effects of the failure condition – Classification of failure condition effects on the aircraft (Catastrophic, Severe. Major/Hazardous, Major, Minor and No Safety Effect) – Assignment of requirements to the failure conditions to be considered at the lower level – Identification of the supporting material required to justify the failure condition effect classification – Identification of the method used to verify compliance with the failure condition requirements MBSA Methods with SIMFIA 11/22

FHA with SIMFIA · The FHA is an oriented analysis of the system. SIMFIA can be used as a support for such analysis using a specificication « high level » model MBSA Methods with SIMFIA 12/22

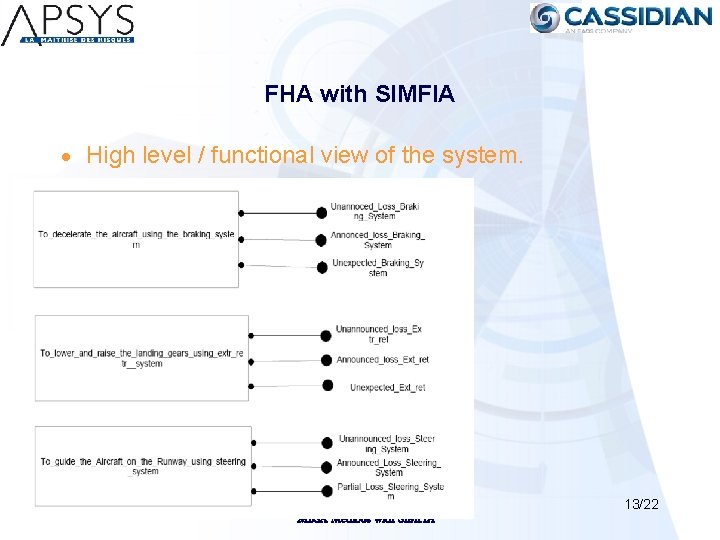

FHA with SIMFIA · High level / functional view of the system. MBSA Methods with SIMFIA 13/22

FHA with SIMFIA · User data to input the columns content for each Failure condition · This allows to document all functional knowledge of the system in a Simfia Model for further processing of this knowledge · Fully FHA – compliant output MBSA Methods with SIMFIA 14/22

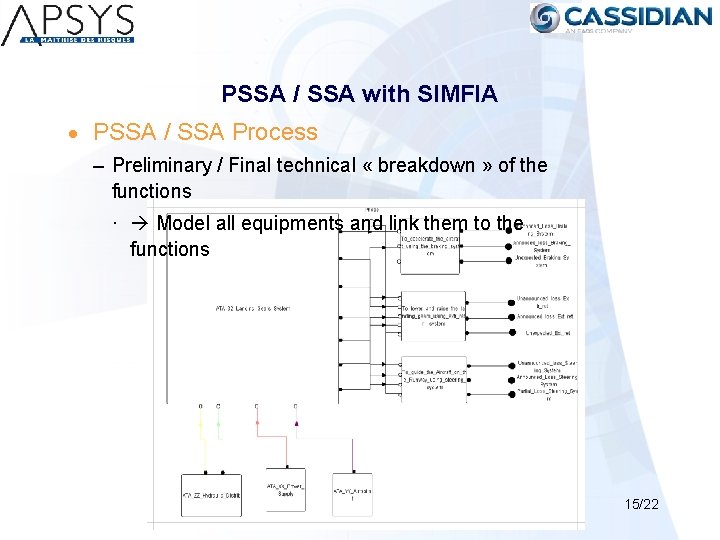

PSSA / SSA with SIMFIA · PSSA / SSA Process – Preliminary / Final technical « breakdown » of the functions · Model all equipments and link them to the functions MBSA Methods with SIMFIA 15/22

· ATA 32_LANDING_GEARS Breakdown MBSA Methods with SIMFIA 16/22

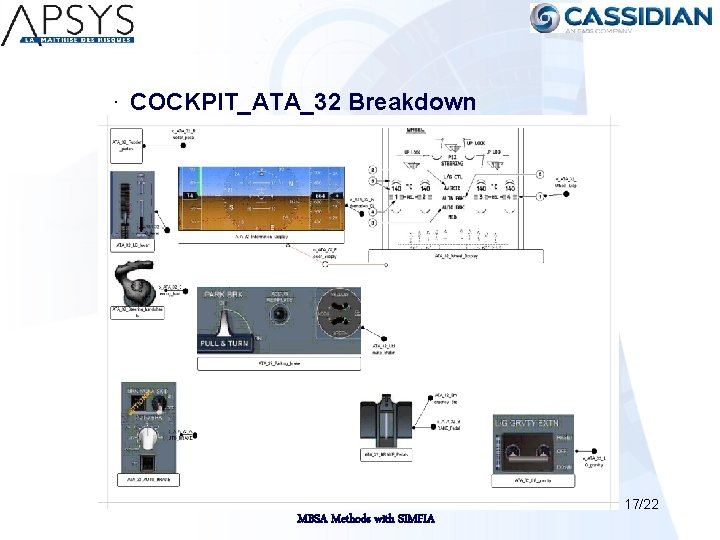

· COCKPIT_ATA_32 Breakdown MBSA Methods with SIMFIA 17/22

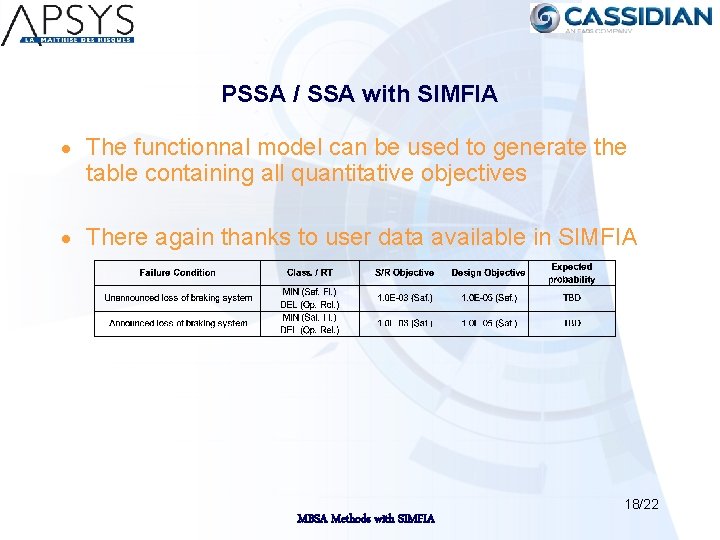

PSSA / SSA with SIMFIA · The functionnal model can be used to generate the table containing all quantitative objectives · There again thanks to user data available in SIMFIA MBSA Methods with SIMFIA 18/22

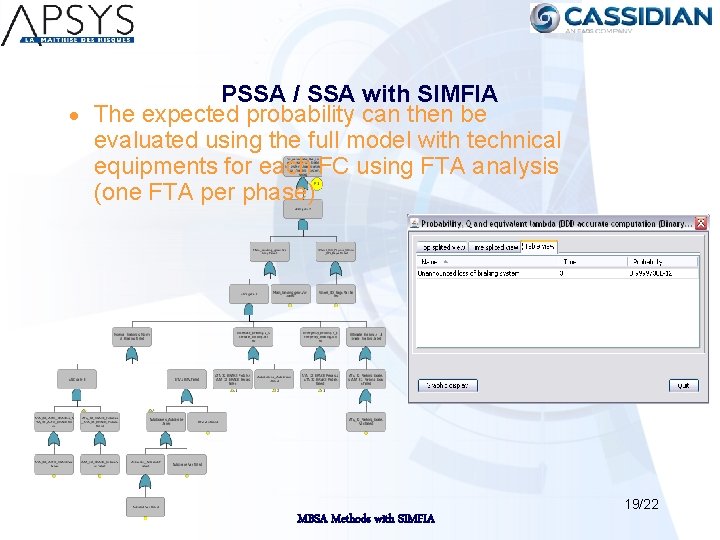

PSSA / SSA with SIMFIA · The expected probability can then be evaluated using the full model with technical equipments for each FC using FTA analysis (one FTA per phase) MBSA Methods with SIMFIA 19/22

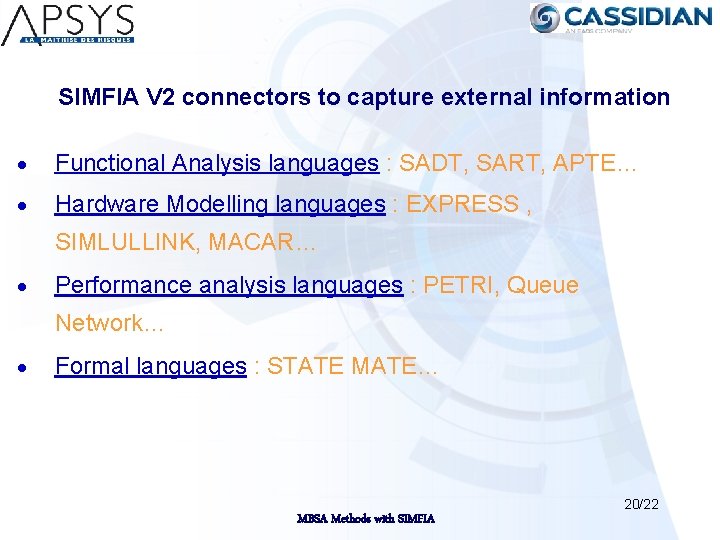

SIMFIA V 2 connectors to capture external information · Functional Analysis languages : SADT, SART, APTE… · Hardware Modelling languages : EXPRESS , SIMLULLINK, MACAR… · Performance analysis languages : PETRI, Queue Network… · Formal languages : STATE MATE… MBSA Methods with SIMFIA 20/22

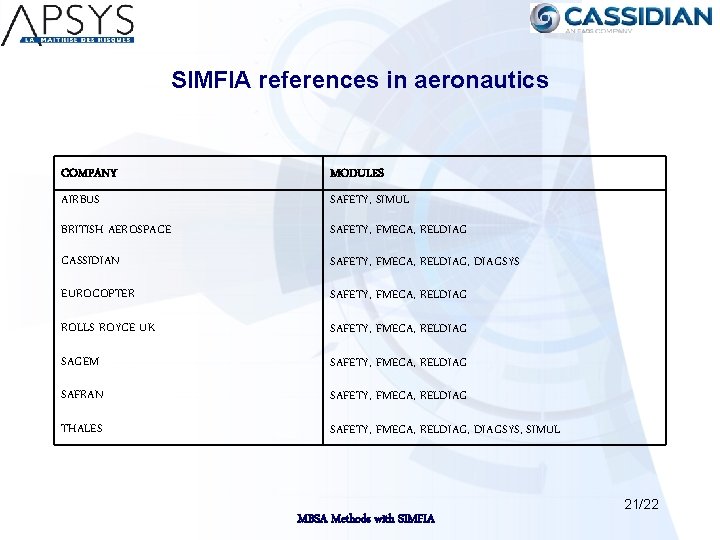

SIMFIA references in aeronautics COMPANY MODULES AIRBUS SAFETY, SIMUL BRITISH AEROSPACE SAFETY, FMECA, RELDIAG CASSIDIAN SAFETY, FMECA, RELDIAG, DIAGSYS EUROCOPTER SAFETY, FMECA, RELDIAG ROLLS ROYCE UK SAFETY, FMECA, RELDIAG SAGEM SAFETY, FMECA, RELDIAG SAFRAN SAFETY, FMECA, RELDIAG THALES SAFETY, FMECA, RELDIAG, DIAGSYS, SIMUL MBSA Methods with SIMFIA 21/22

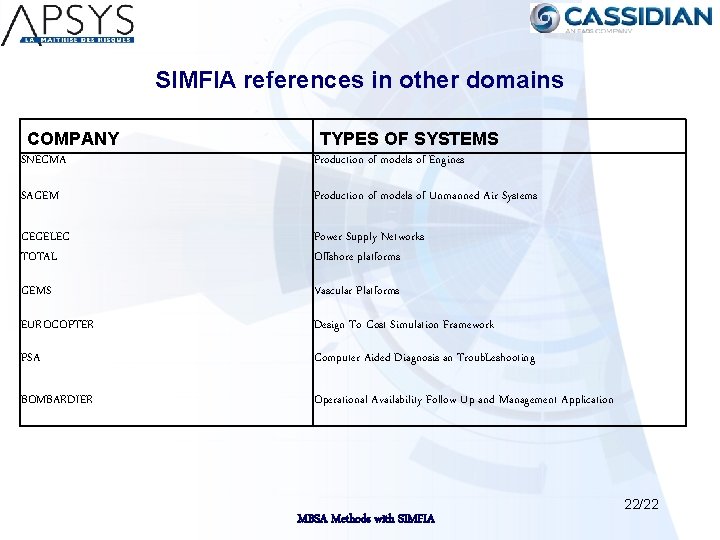

SIMFIA references in other domains COMPANY TYPES OF SYSTEMS SNECMA Production of models of Engines SAGEM Production of models of Unmanned Air Systems CEGELEC TOTAL Power Supply Networks Offshore platforms GEMS Vascular Platforms EUROCOPTER Design To Cost Simulation Framework PSA Computer Aided Diagnosis an Troub. Leshooting BOMBARDIER Operational Availability Follow Up and Management Application MBSA Methods with SIMFIA 22/22
