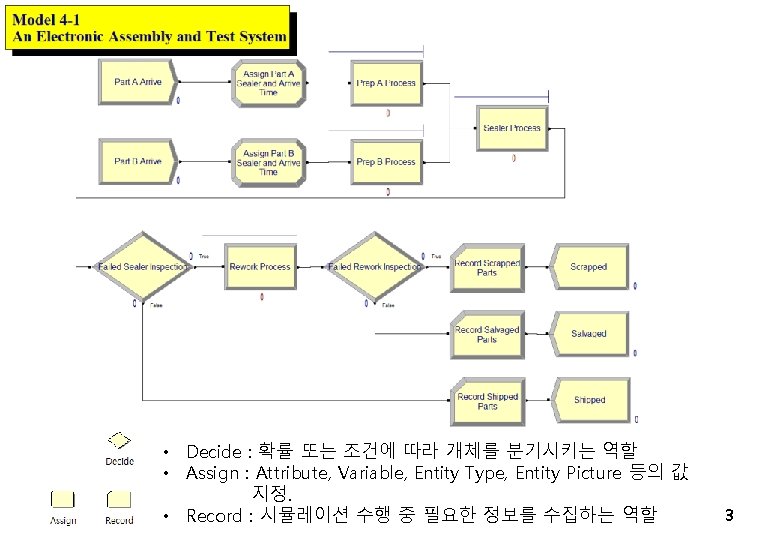

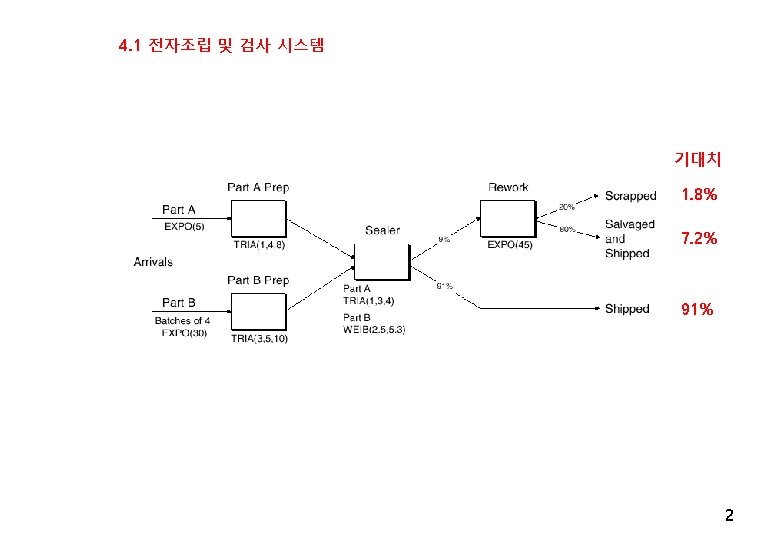

Model 4 1 1 Entity 4 Resource 5
- Slides: 78
Model 4 -1 1

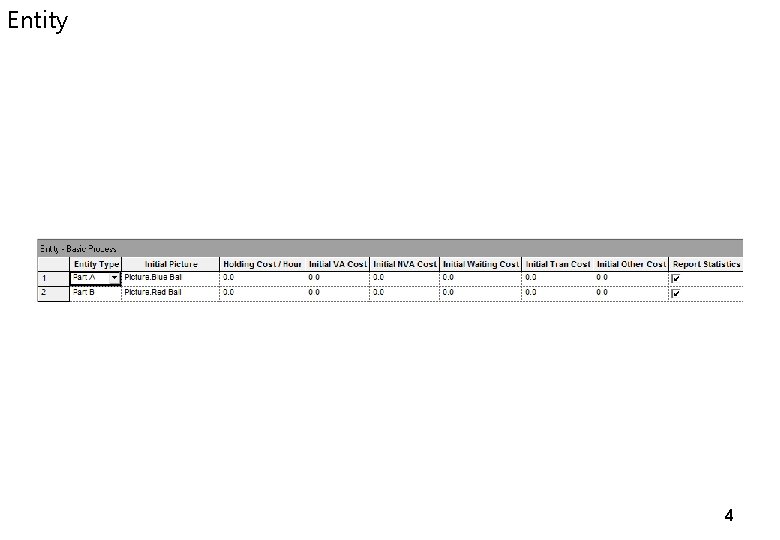

Entity 4

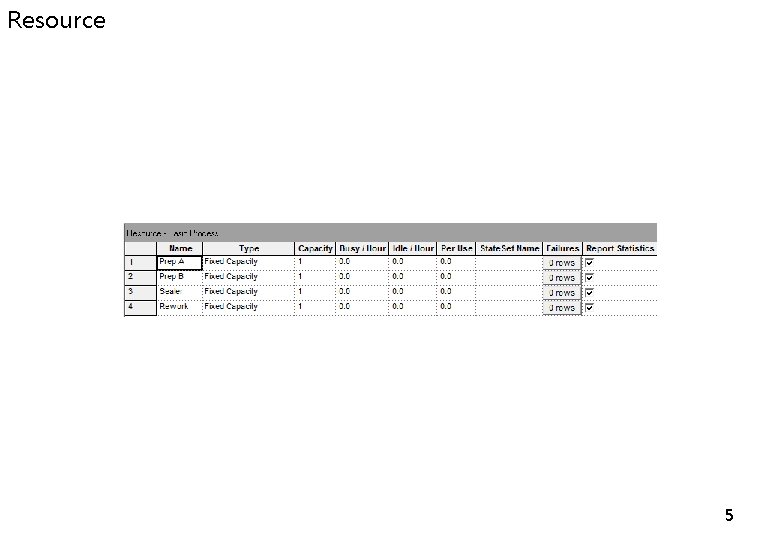

Resource 5

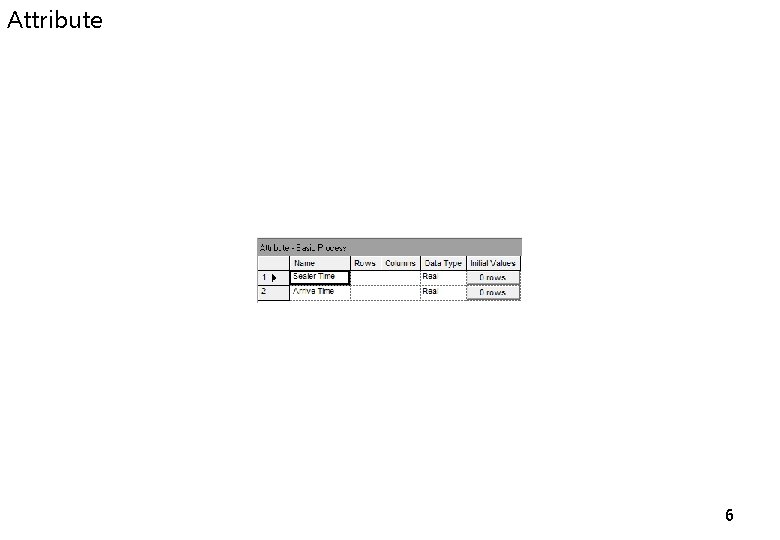

Attribute 6

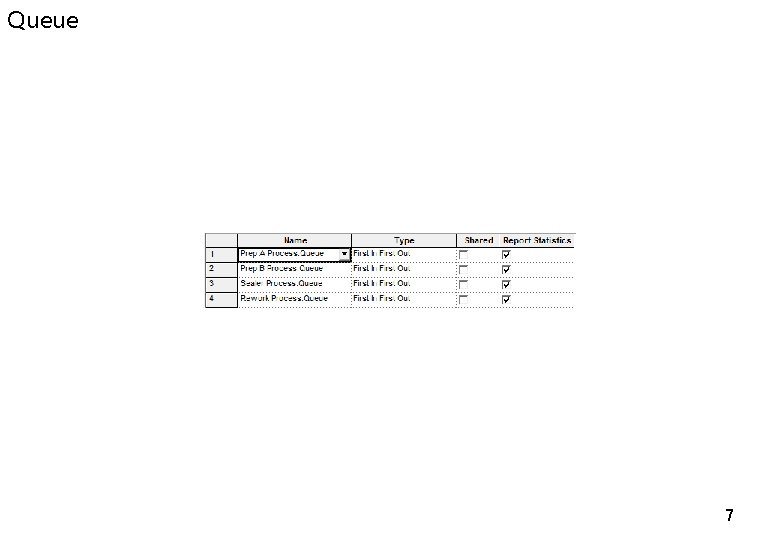

Queue 7

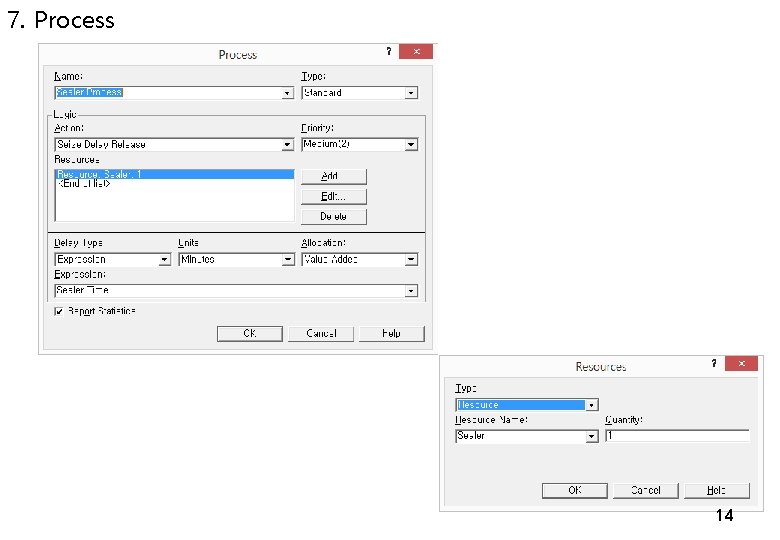

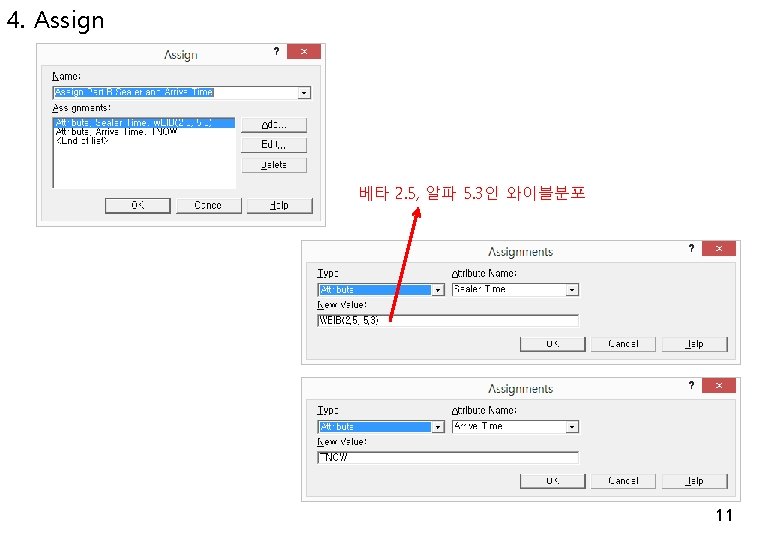

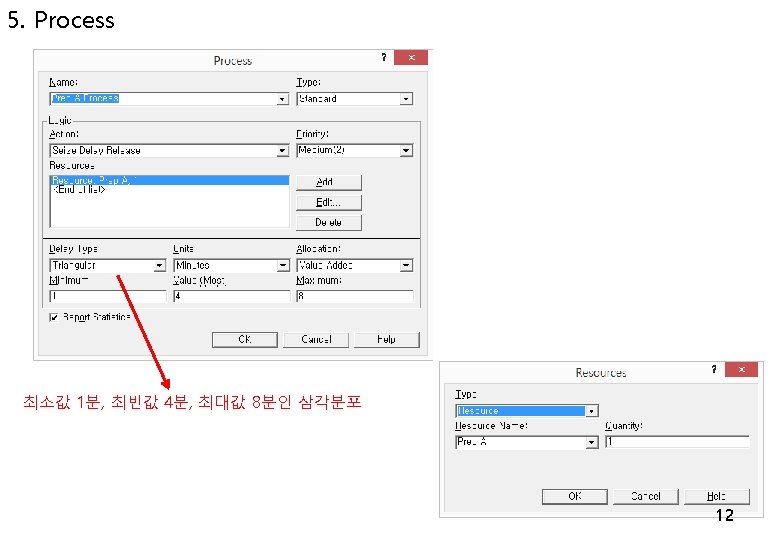

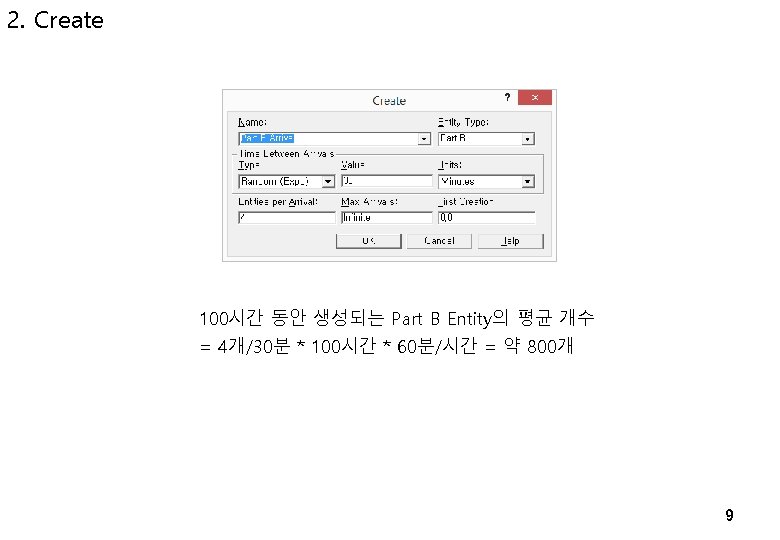

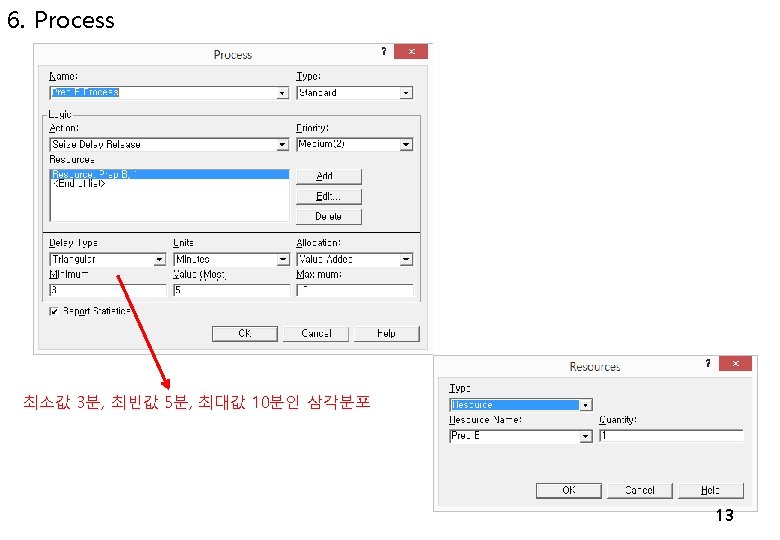

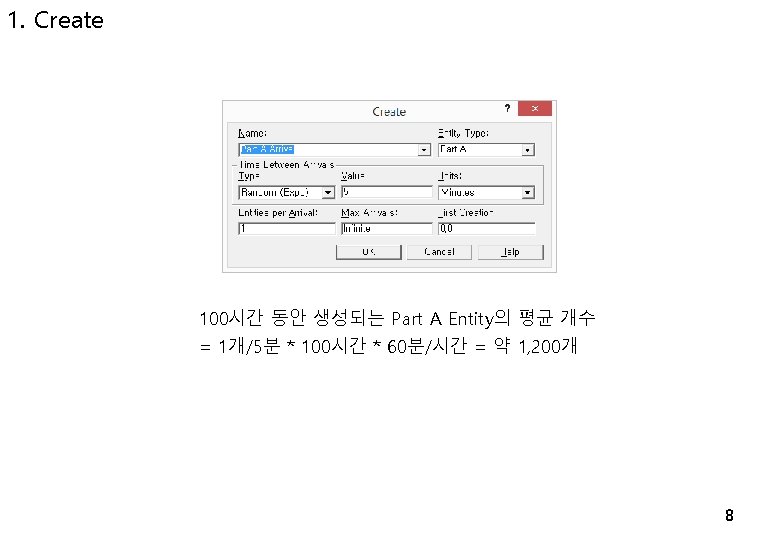

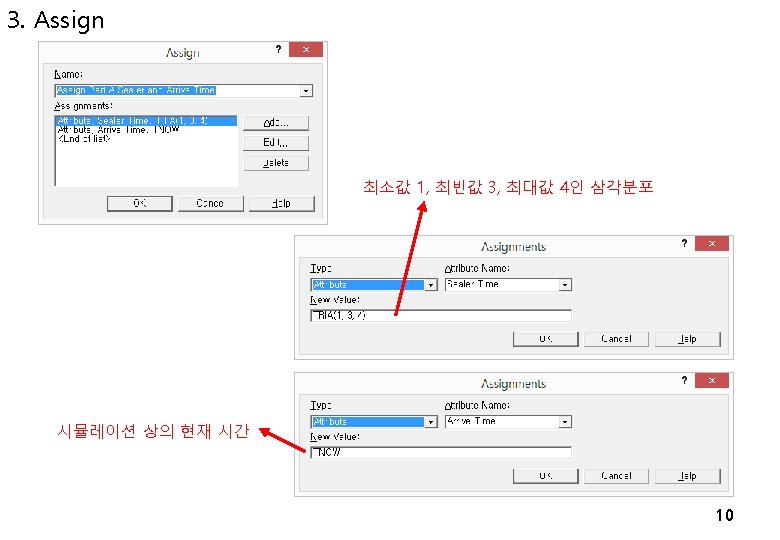

7. Process 14

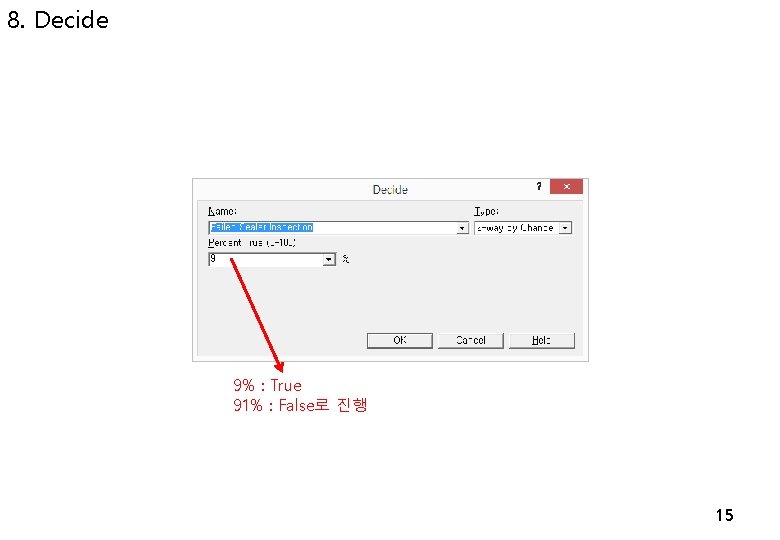

8. Decide 9% : True 91% : False로 진행 15

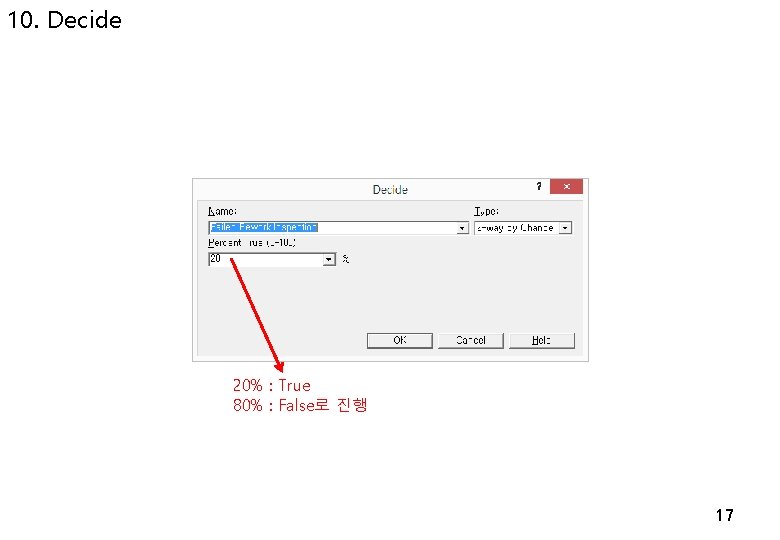

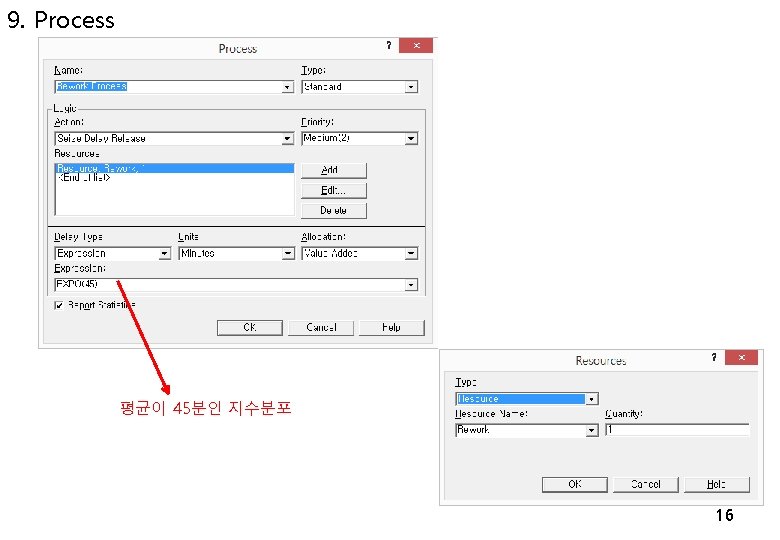

10. Decide 20% : True 80% : False로 진행 17

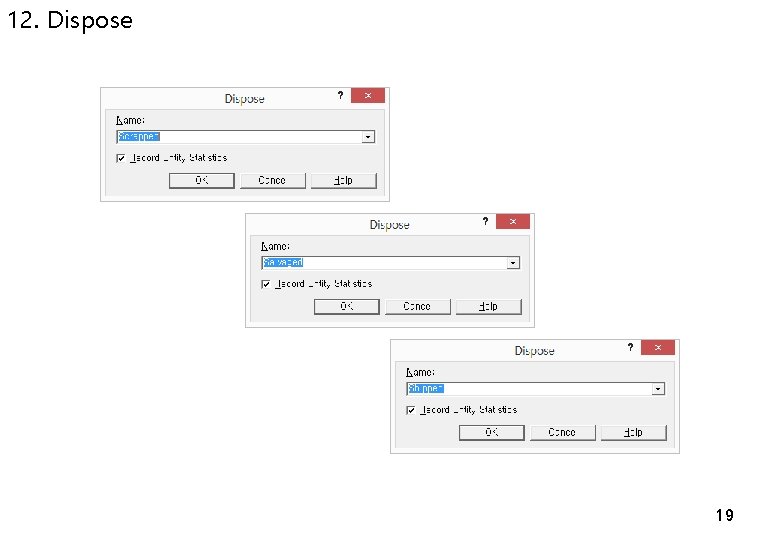

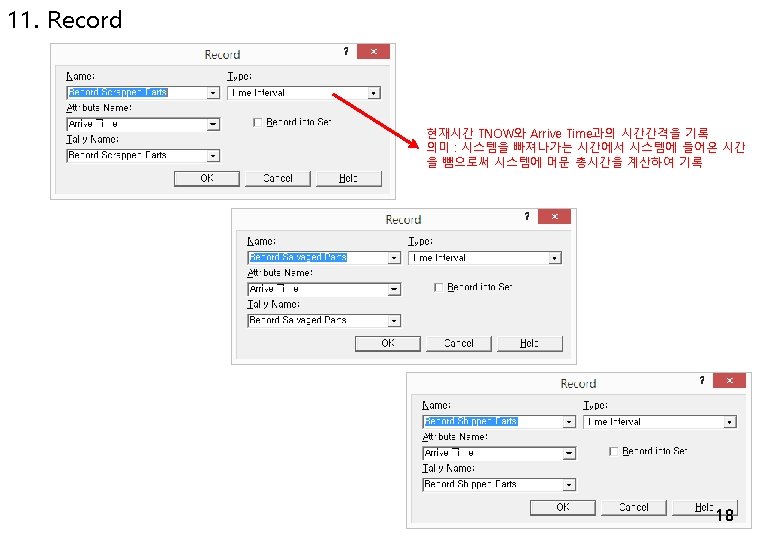

12. Dispose 19

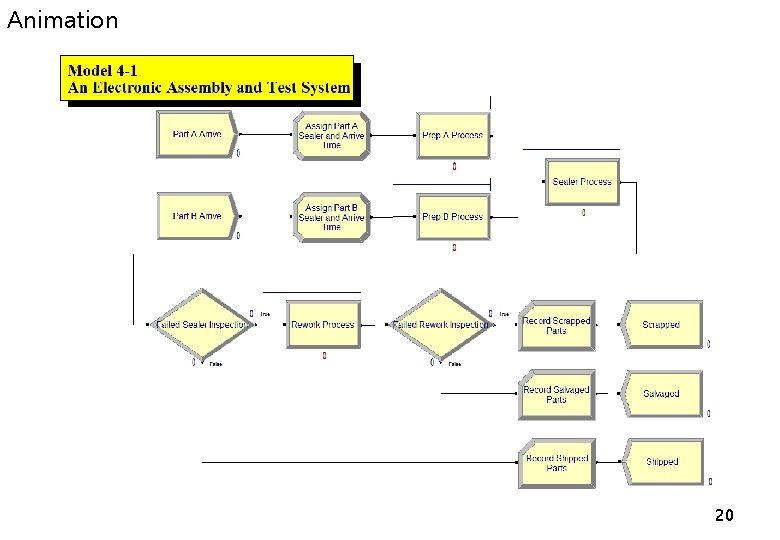

Animation 20

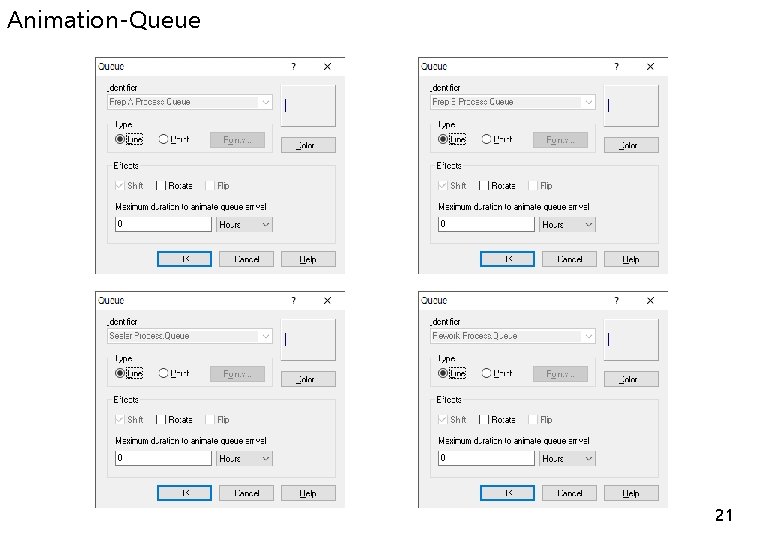

Animation-Queue 21

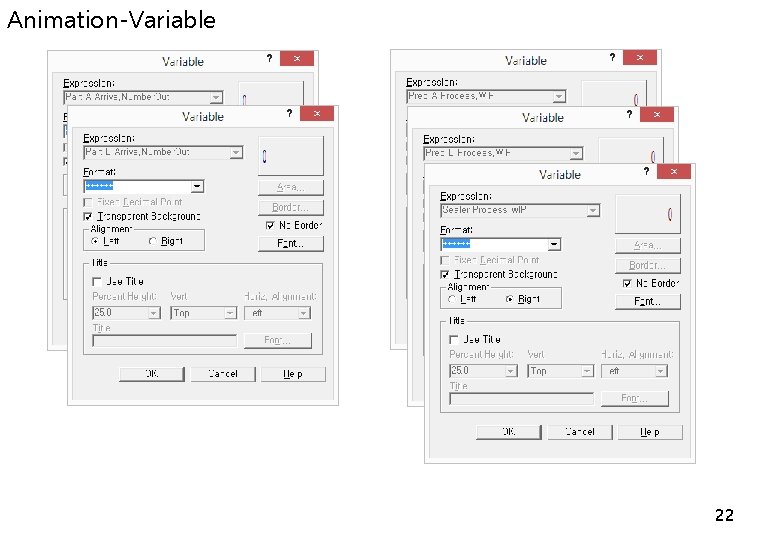

Animation-Variable 22

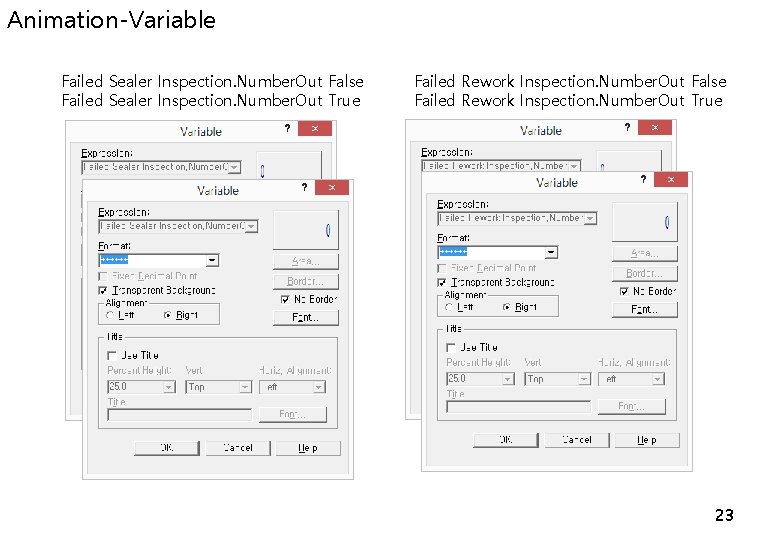

Animation-Variable Failed Sealer Inspection. Number. Out False Failed Sealer Inspection. Number. Out True Failed Rework Inspection. Number. Out False Failed Rework Inspection. Number. Out True 23

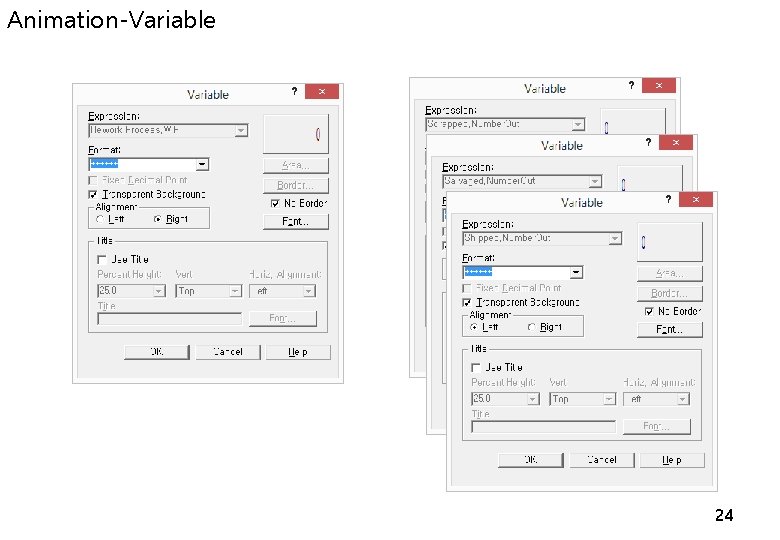

Animation-Variable 24

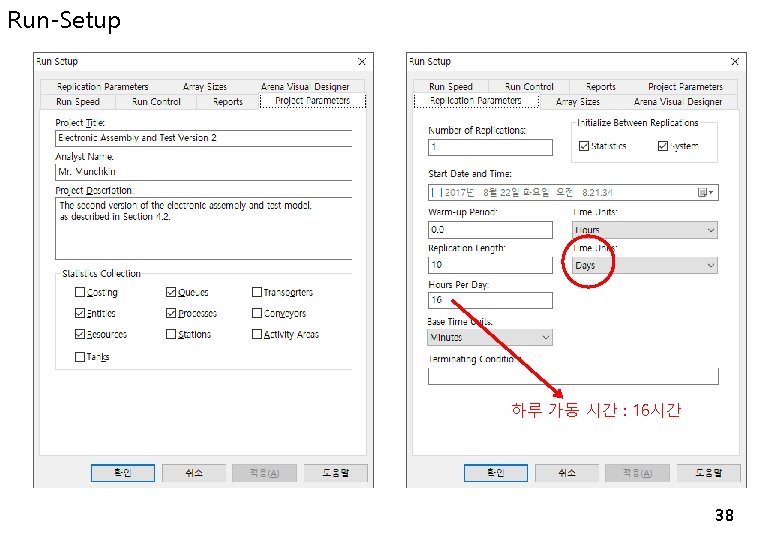

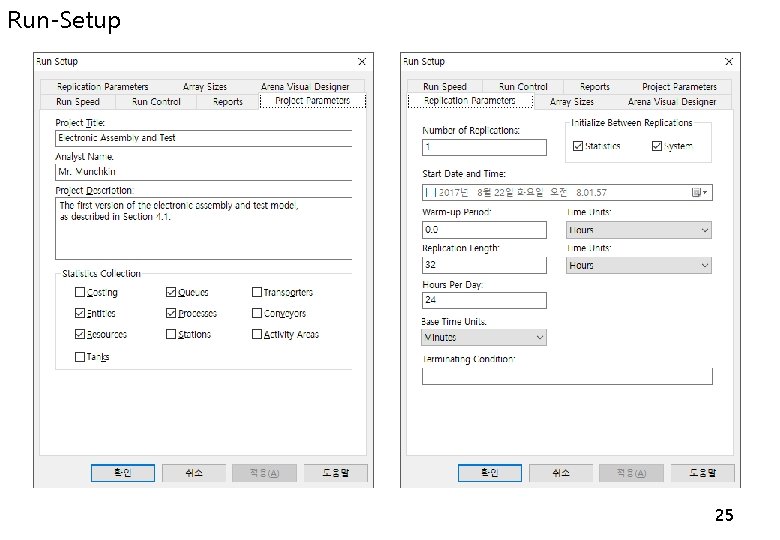

Run-Setup 25

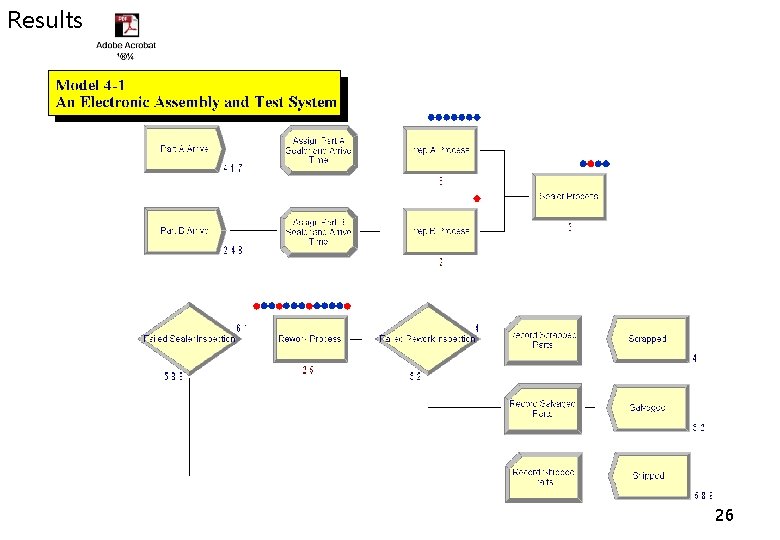

Results 26

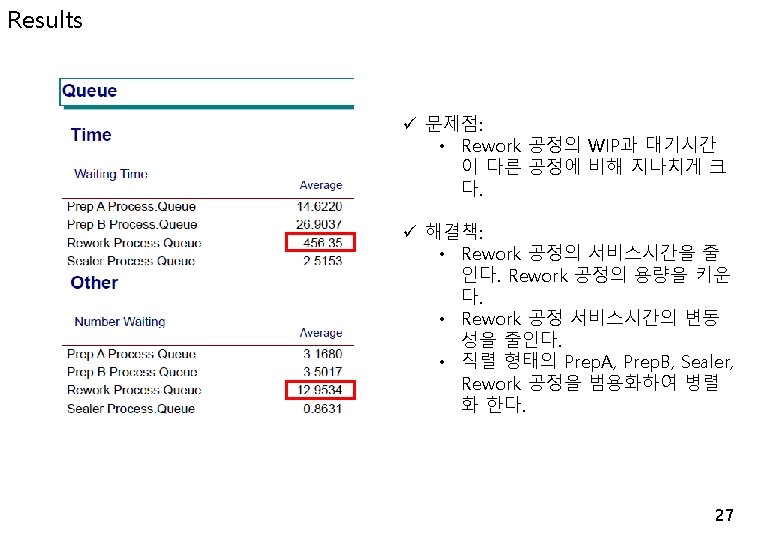

28

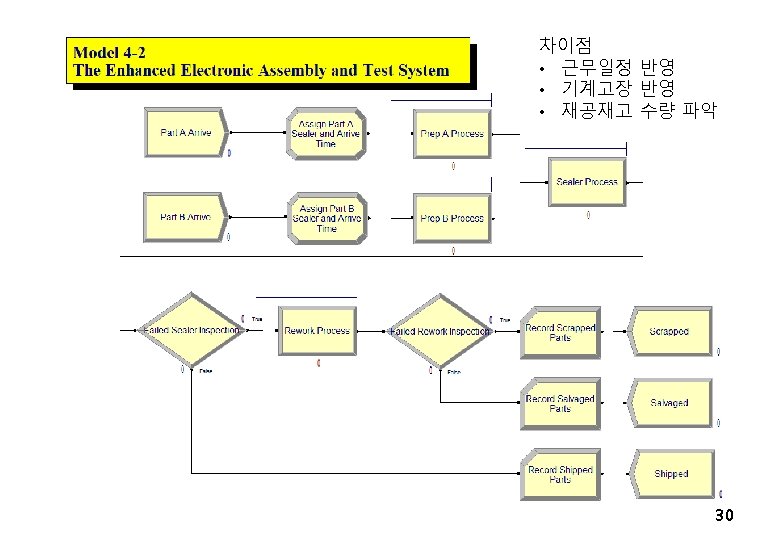

Model 4 -2 (Model 4 -1 수정) 29

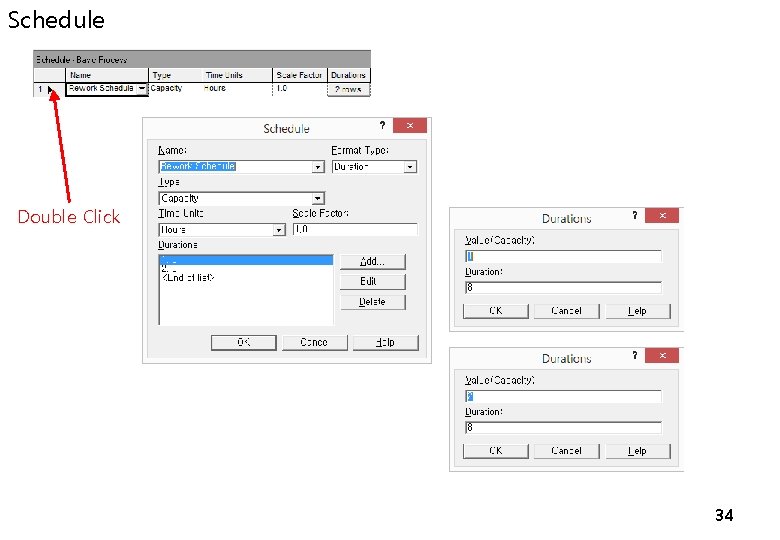

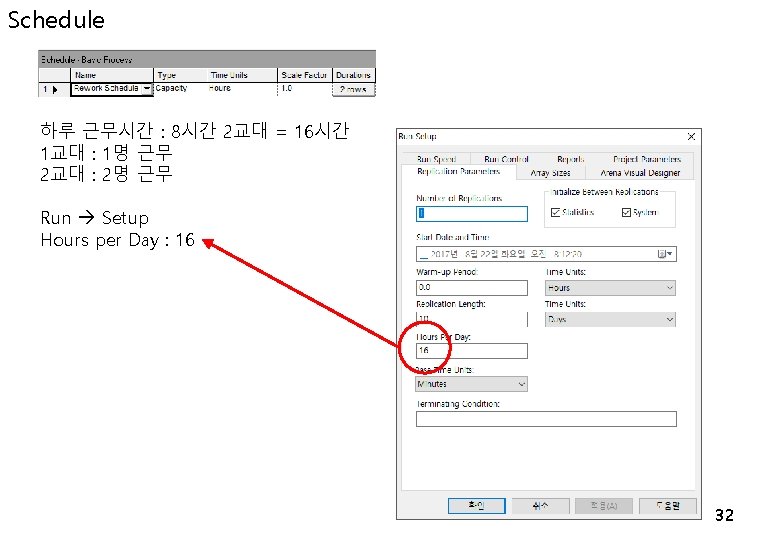

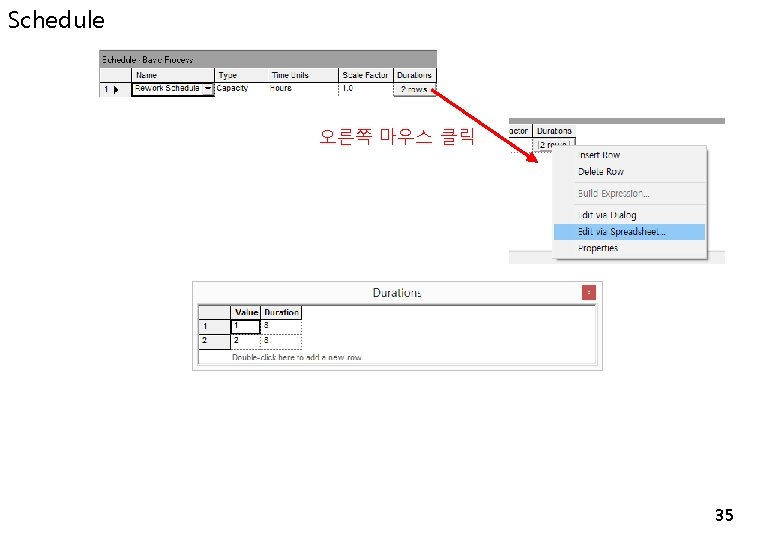

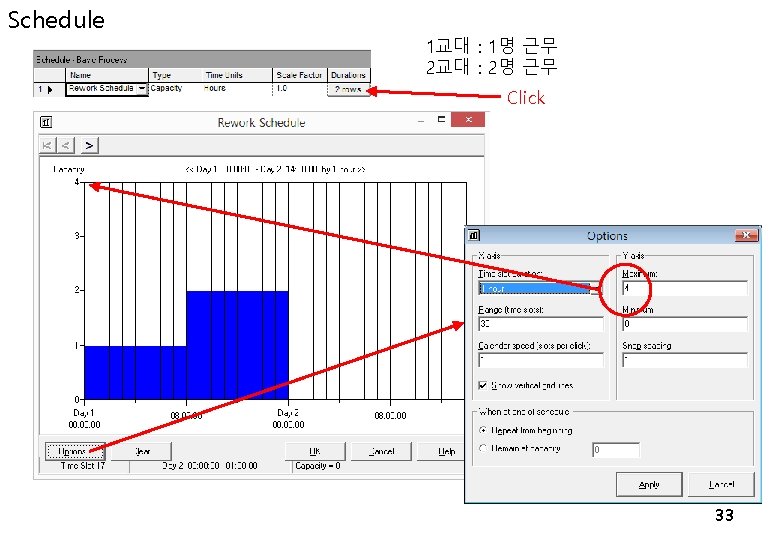

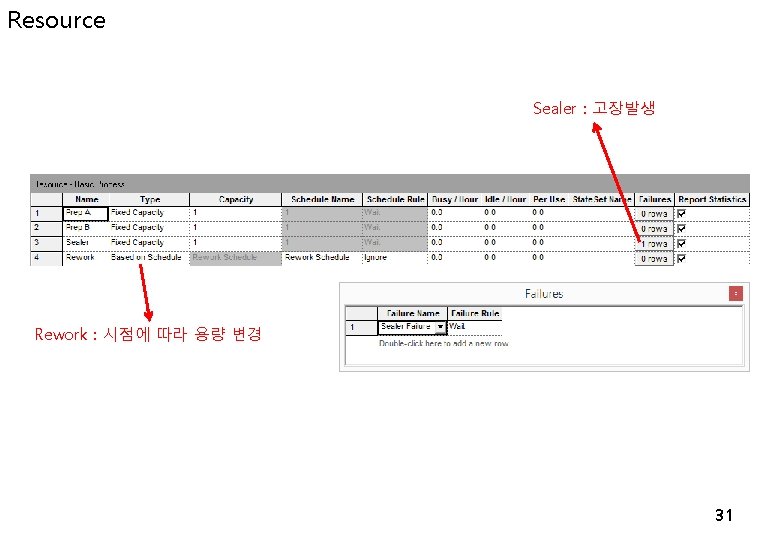

Schedule Double Click 34

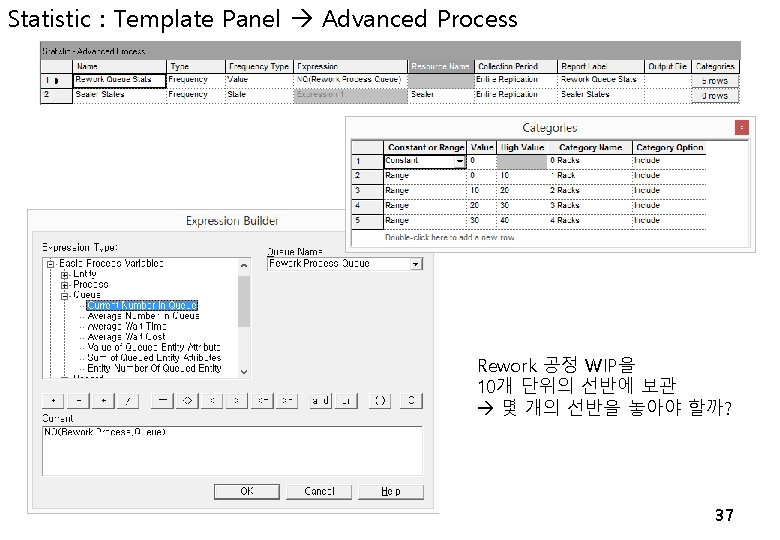

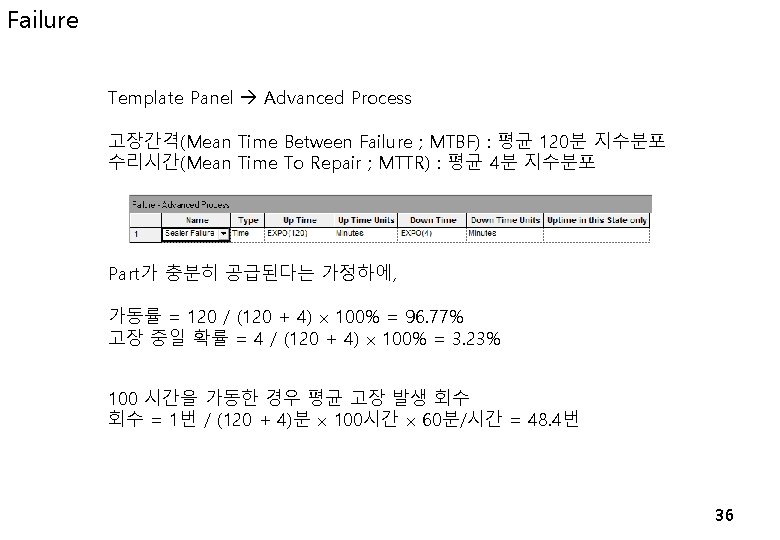

Statistic : Template Panel Advanced Process Rework 공정 WIP을 10개 단위의 선반에 보관 몇 개의 선반을 놓아야 할까? 37

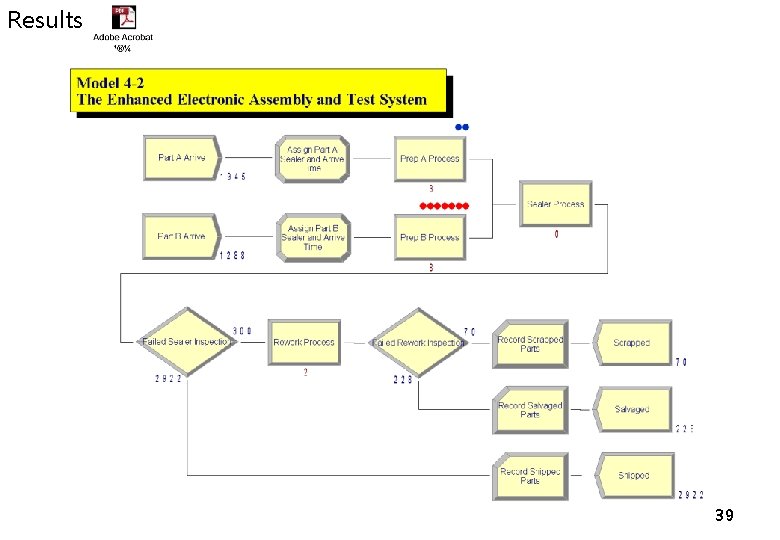

Results 39

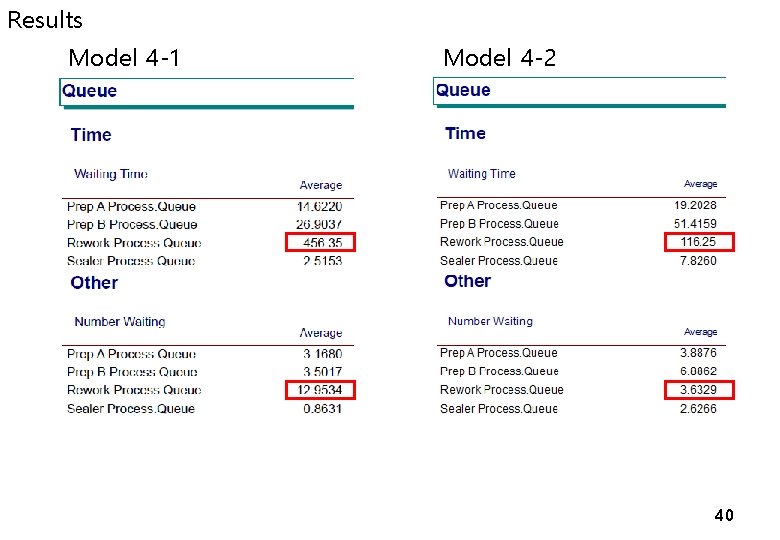

Results Model 4 -1 Model 4 -2 40

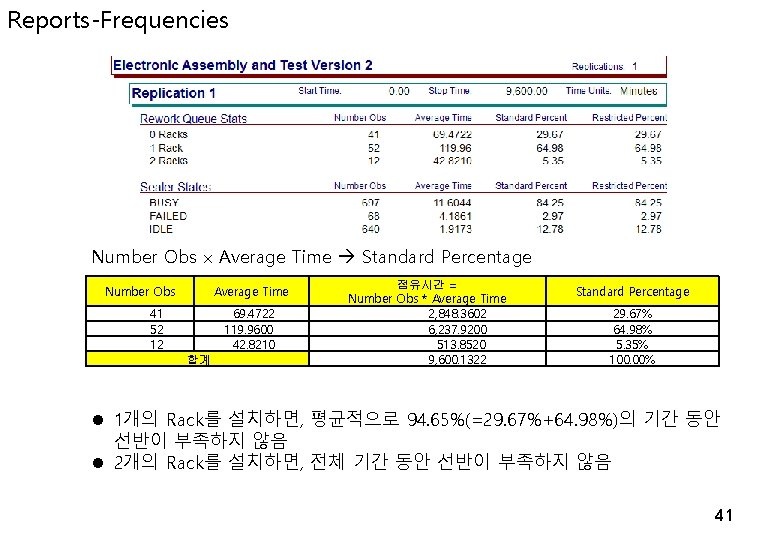

Reports-Frequencies Number Obs Average Time Standard Percentage Number Obs Average Time 41 52 12 69. 4722 119. 9600 42. 8210 합계 점유시간 = Number Obs * Average Time 2, 848. 3602 6, 237. 9200 513. 8520 9, 600. 1322 Standard Percentage 29. 67% 64. 98% 5. 35% 100. 00% l 1개의 Rack를 설치하면, 평균적으로 94. 65%(=29. 67%+64. 98%)의 기간 동안 선반이 부족하지 않음 l 2개의 Rack를 설치하면, 전체 기간 동안 선반이 부족하지 않음 41
42

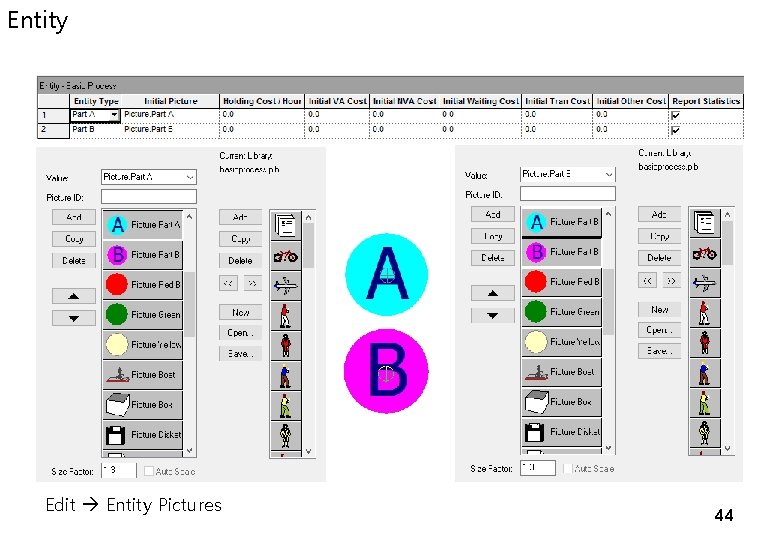

Entity Edit Entity Pictures 44

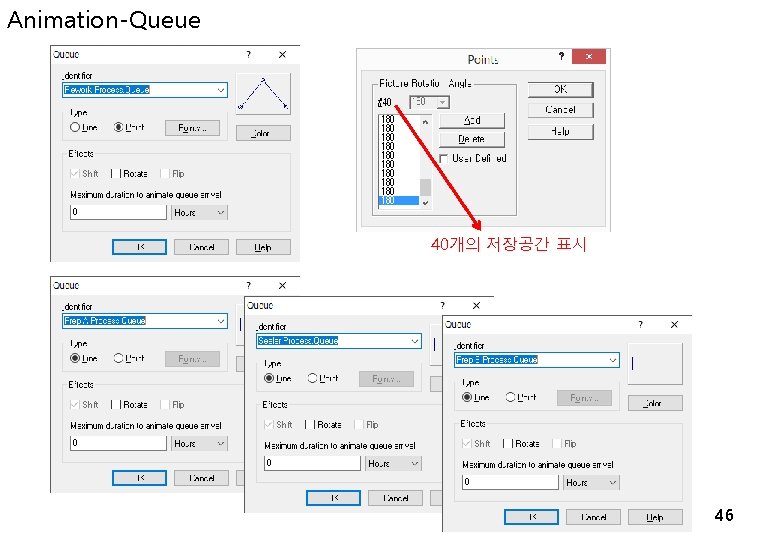

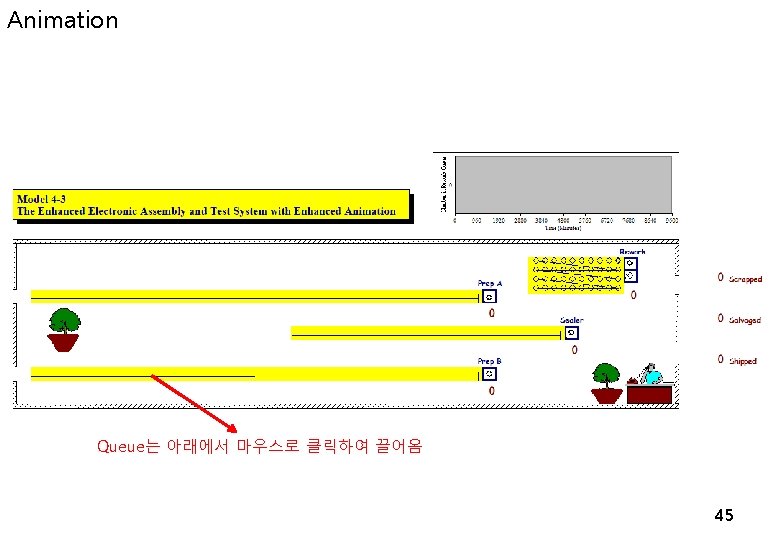

Animation-Queue 40개의 저장공간 표시 46

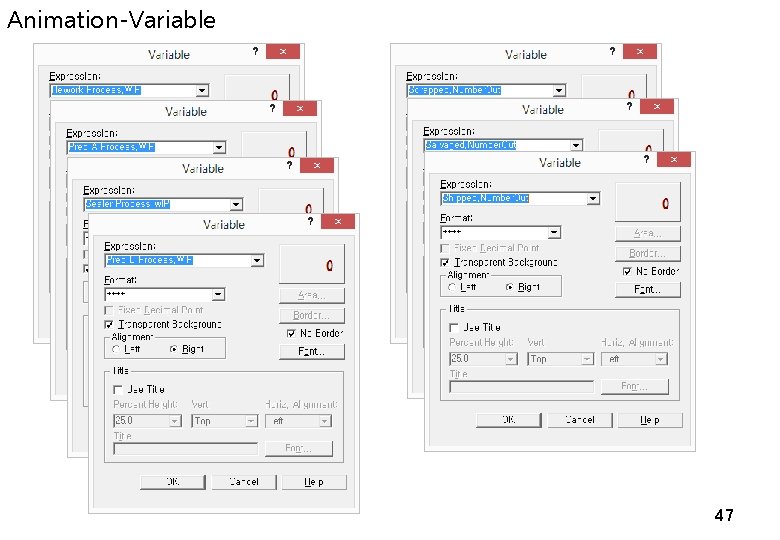

Animation-Variable 47

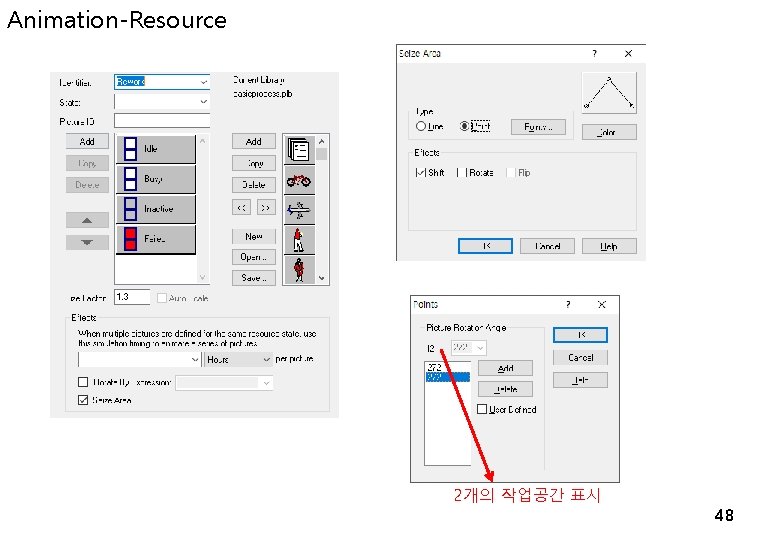

Animation-Resource 2개의 작업공간 표시 48

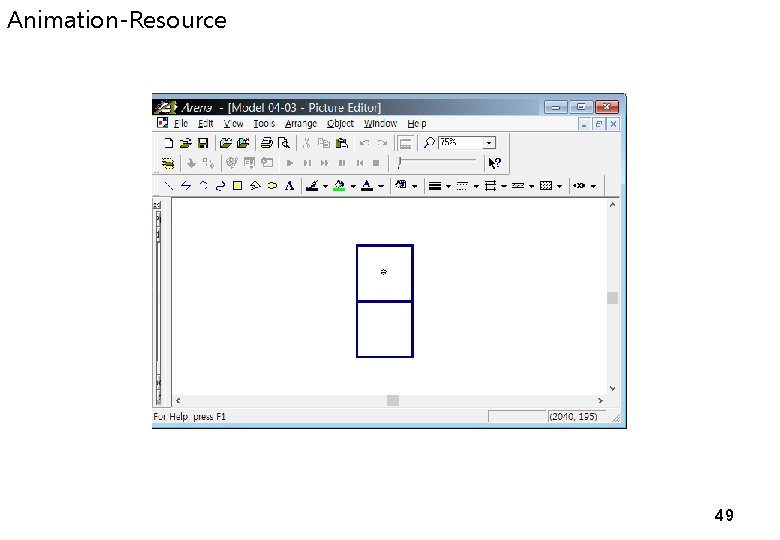

Animation-Resource 49

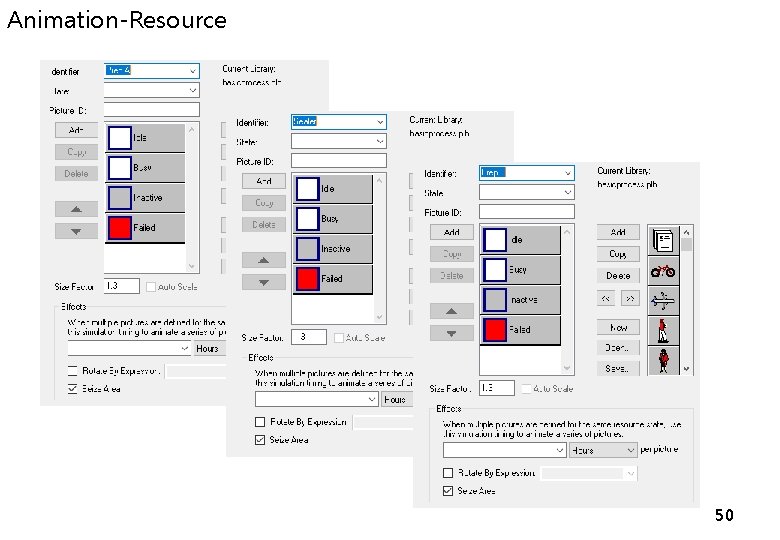

Animation-Resource 50

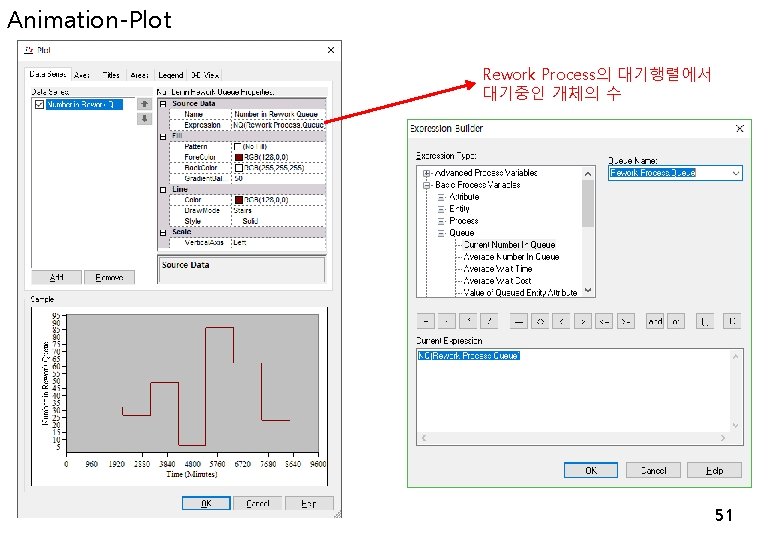

Animation-Plot Rework Process의 대기행렬에서 대기중인 개체의 수 51

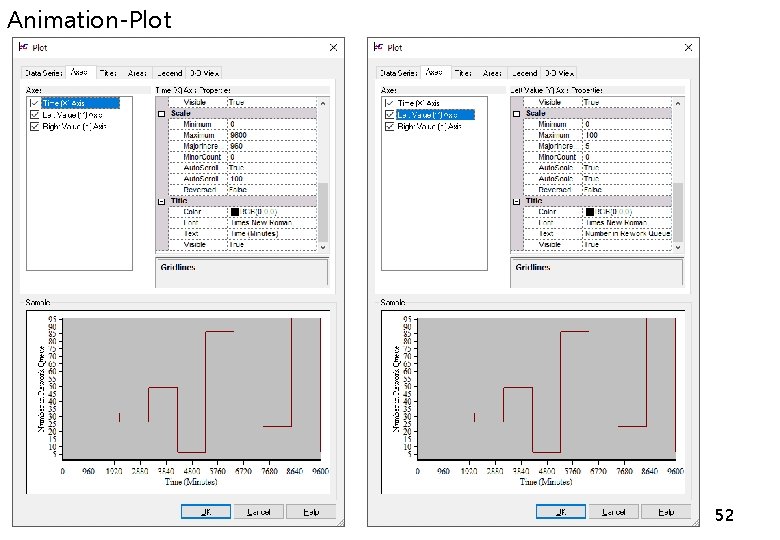

Animation-Plot 52

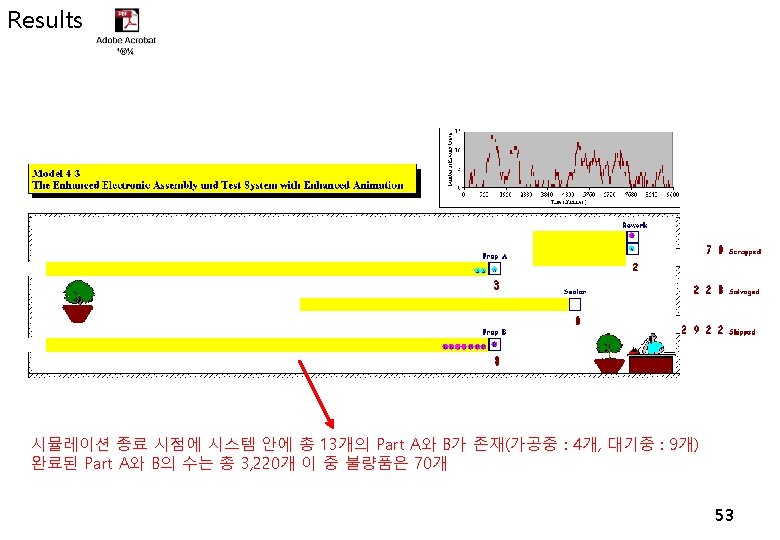

54
Model 4 -4 (Model 4 -3 수정) 부품 이송 55

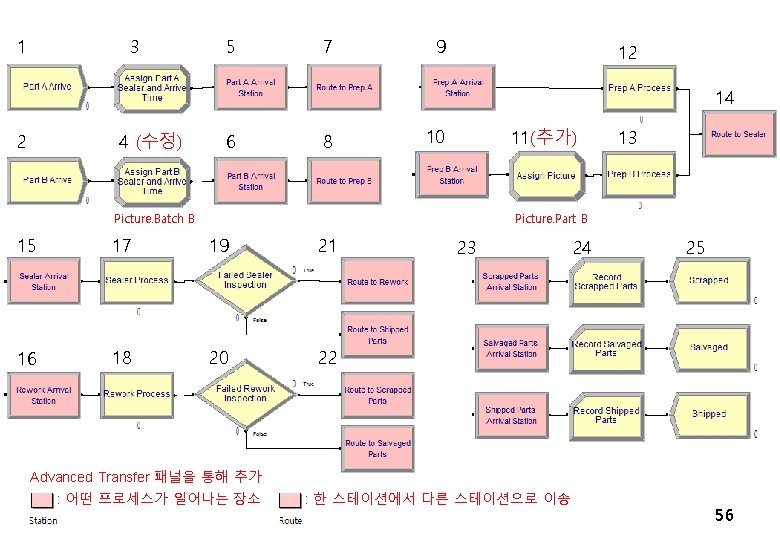

1 3 5 7 9 12 14 2 4 (수정) 6 8 10 11(추가) Picture. Batch B 13 Picture. Part B 15 17 19 21 16 18 20 22 23 24 25 Advanced Transfer 패널을 통해 추가 : 어떤 프로세스가 일어나는 장소 : 한 스테이션에서 다른 스테이션으로 이송 56

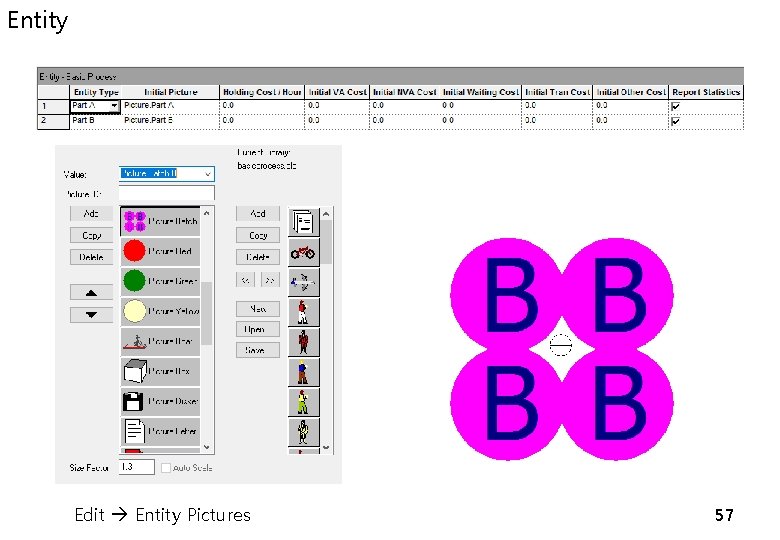

Entity Edit Entity Pictures 57

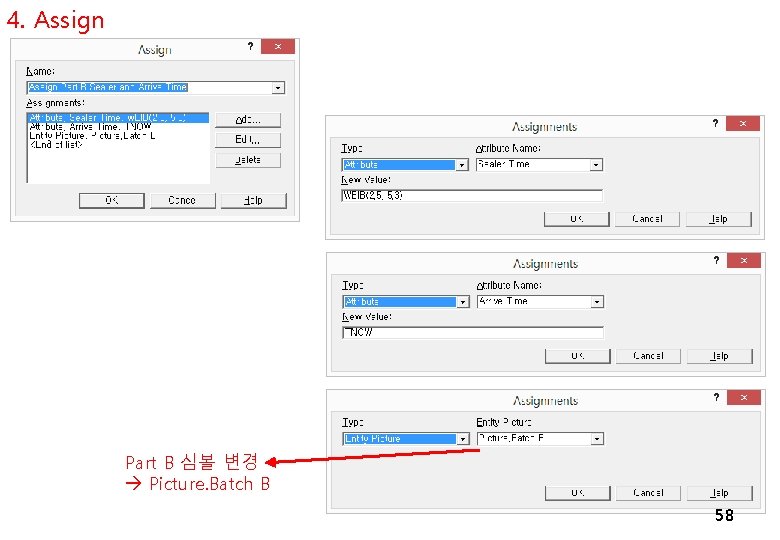

4. Assign Part B 심볼 변경 Picture. Batch B 58
5. Station 59

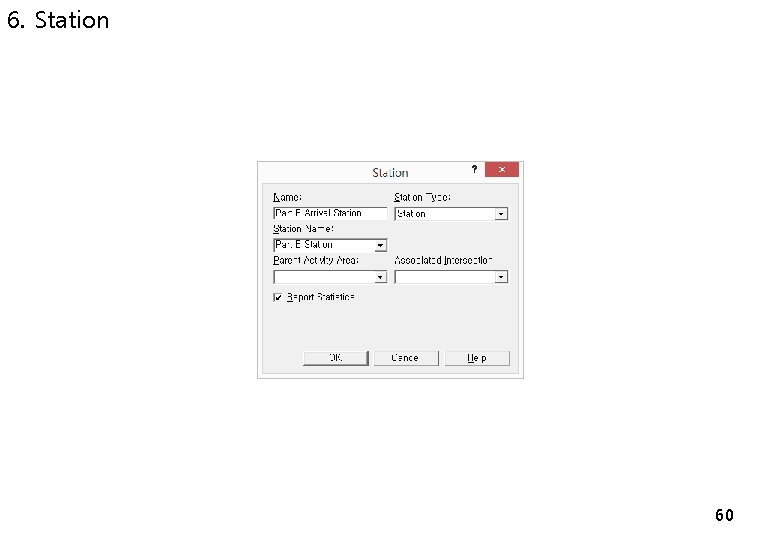

6. Station 60

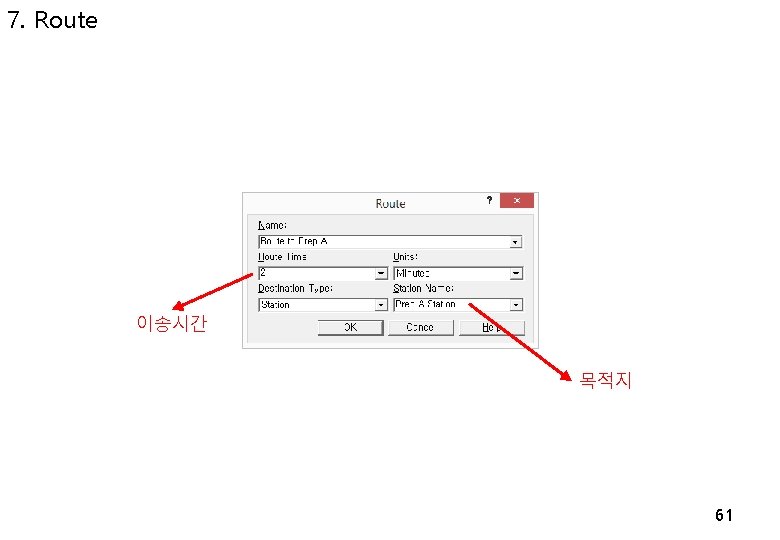

8. Route 62

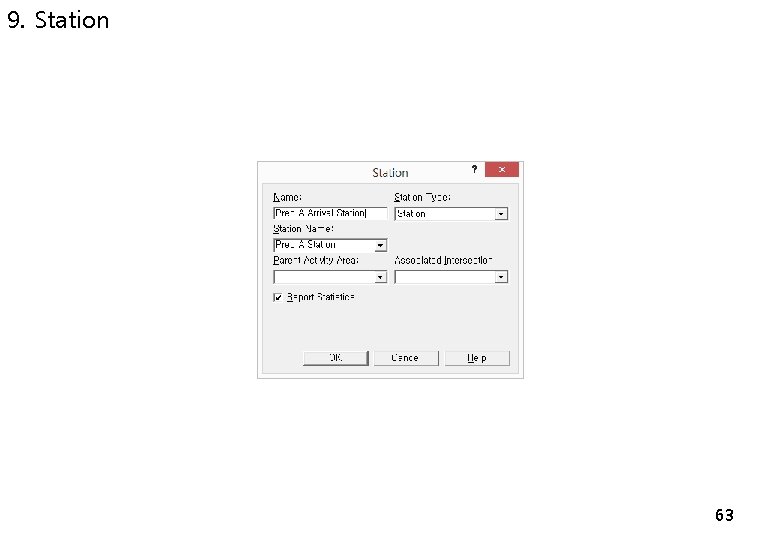

9. Station 63

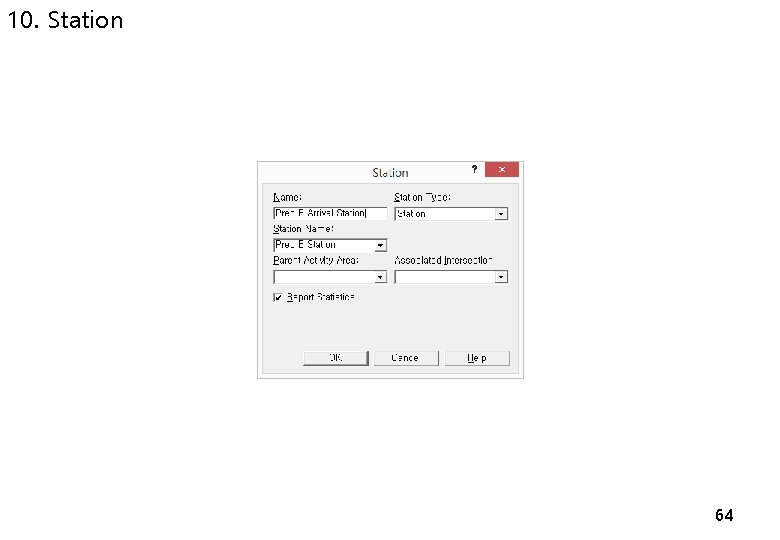

10. Station 64

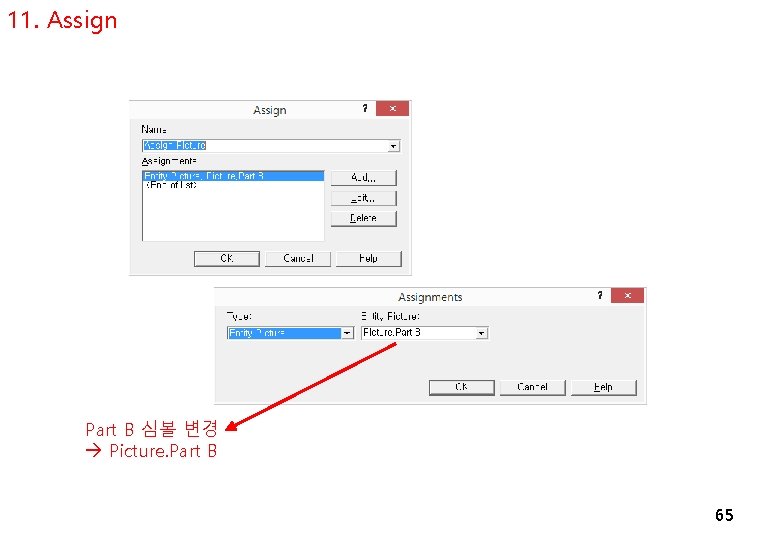

11. Assign Part B 심볼 변경 Picture. Part B 65

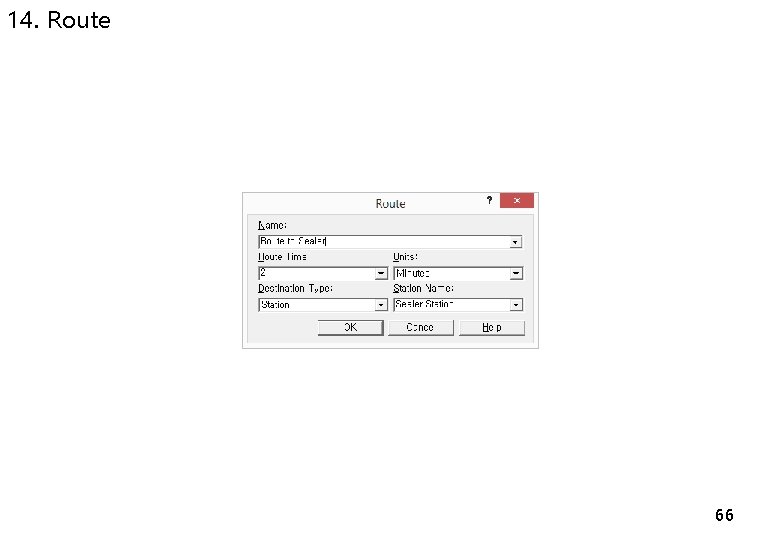

14. Route 66

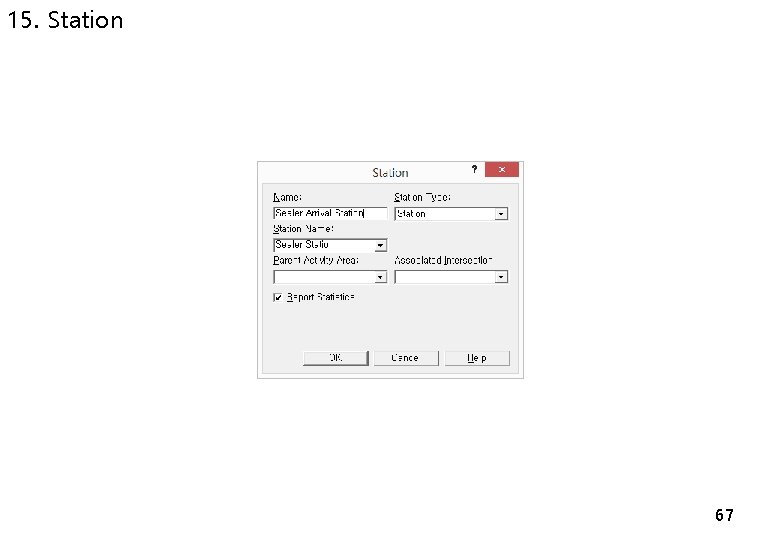

15. Station 67
16. Station 68

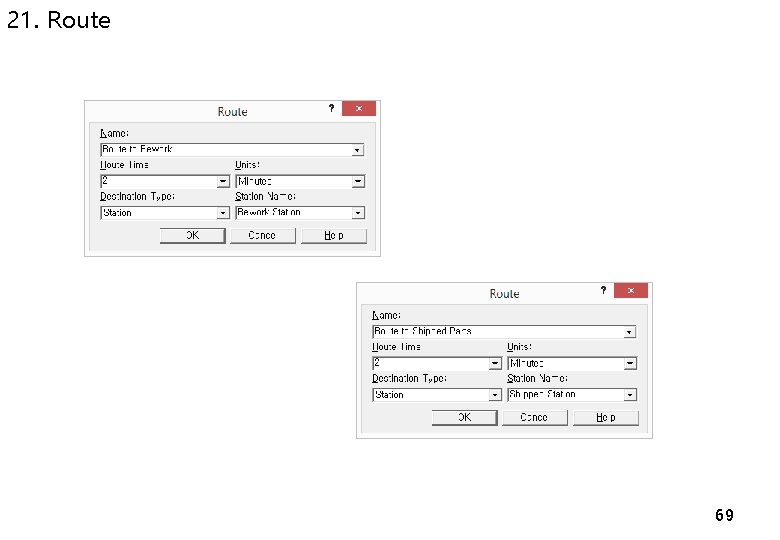

21. Route 69
22. Route 70

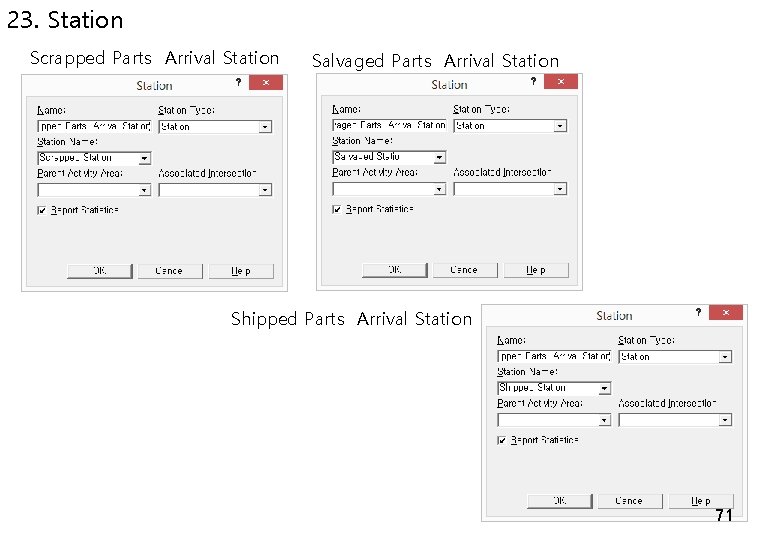

23. Station Scrapped Parts Arrival Station Salvaged Parts Arrival Station Shipped Parts Arrival Station 71

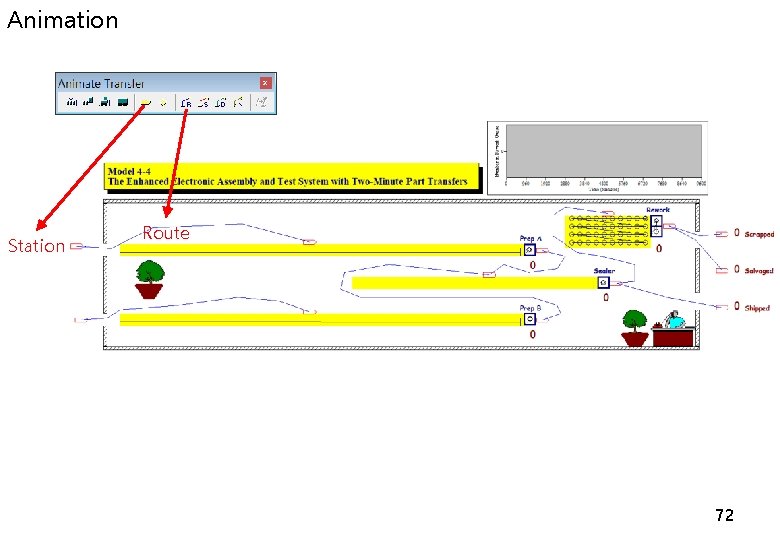

Animation Station Route 72

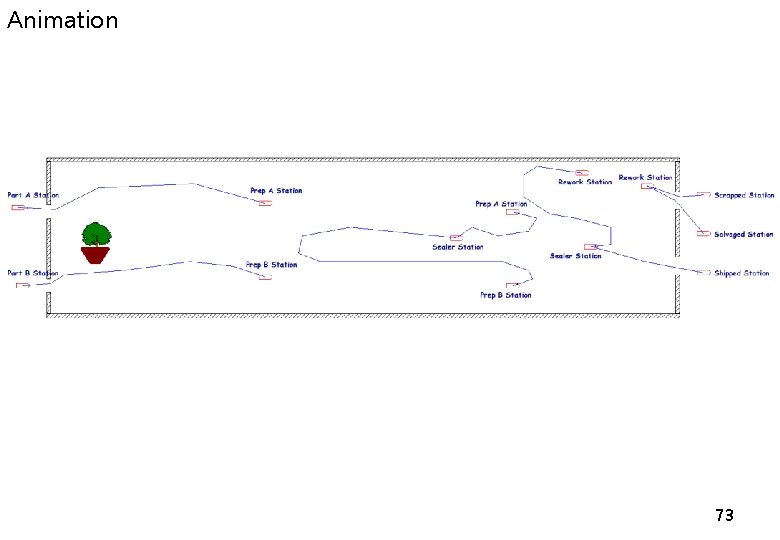

Animation 73

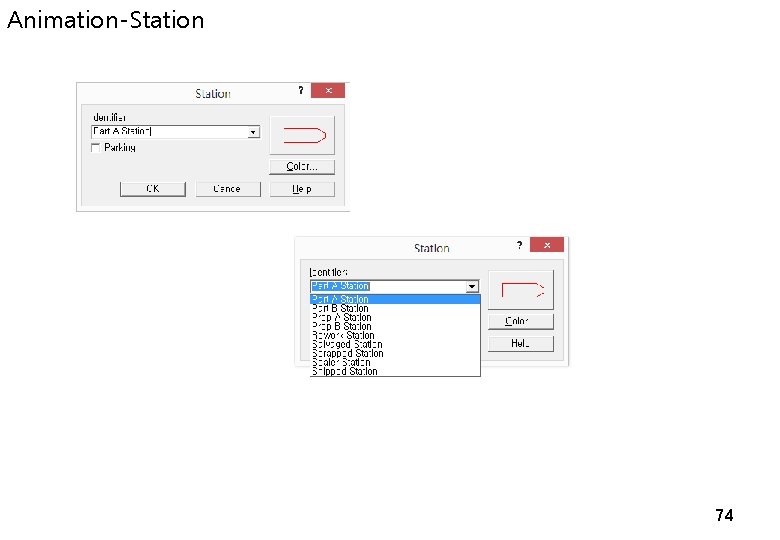

Animation-Station 74

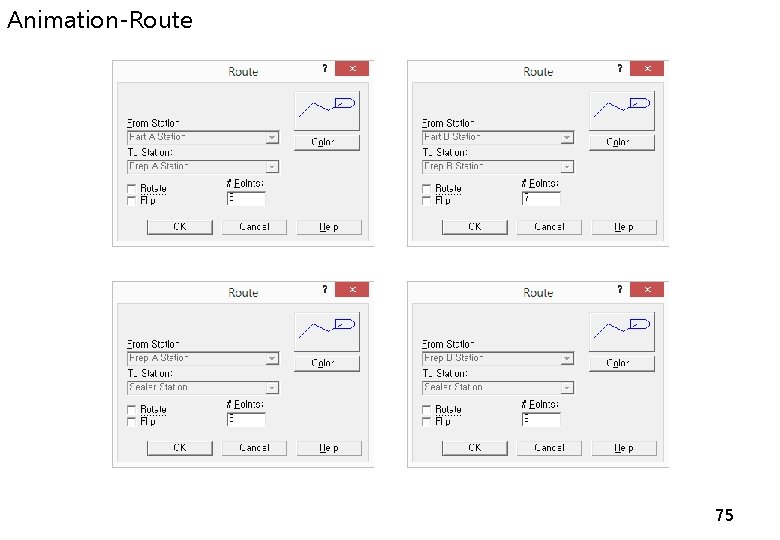

Animation-Route 75

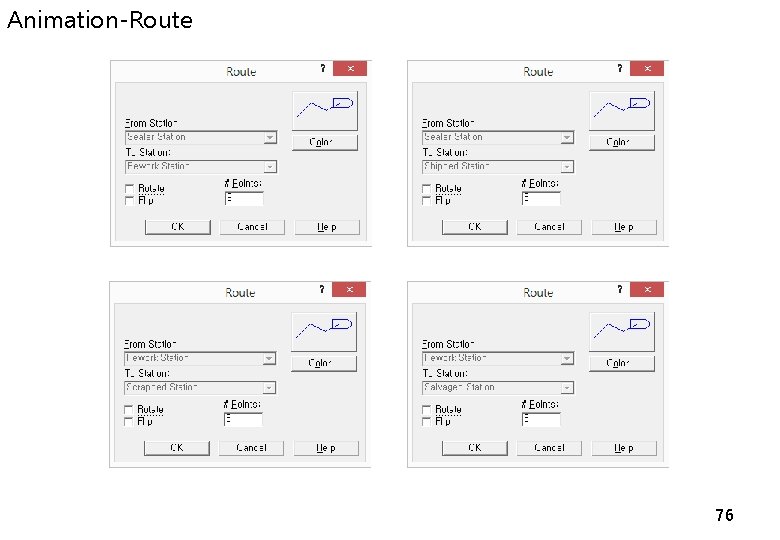

Animation-Route 76

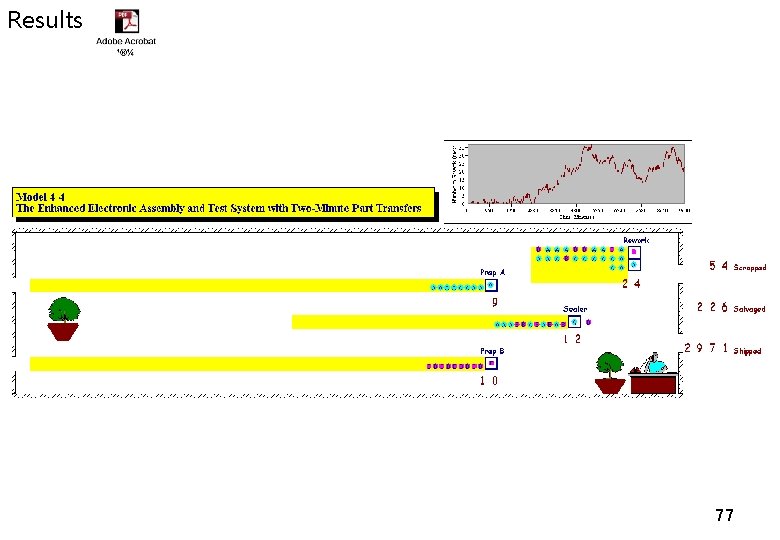

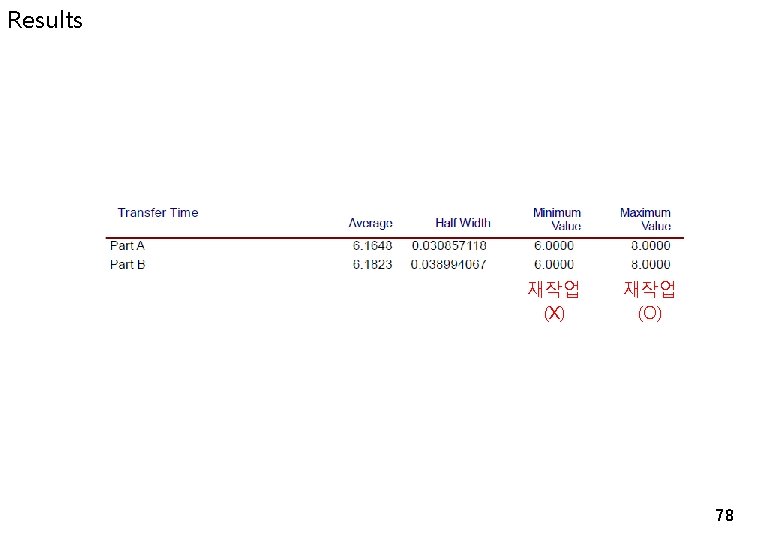

Results 77
