Modbus and Modbus TCP n n n n

Modbus and Modbus TCP n n n n Client/Server communications protocol designed by Modicon in 1979 for use with its’ PLCs Openly published and free of royalties or licensing fees The most common industrial communications protocol in the US Used widely for Building Management Systems Passes raw words of bits without processing them Originally a serial protocol very similar to RS-485, it now has a TCP variant Also available as Modbus Plus, which is proprietary to Modicon and requires specialized hardware

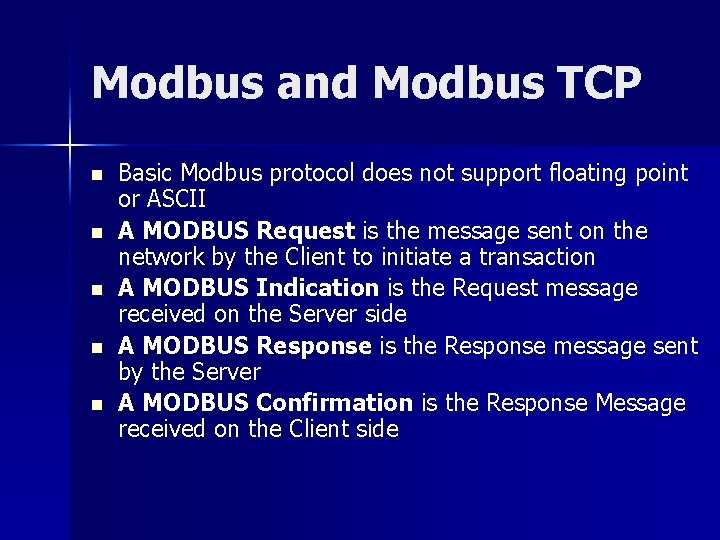

Modbus and Modbus TCP n n n Basic Modbus protocol does not support floating point or ASCII A MODBUS Request is the message sent on the network by the Client to initiate a transaction A MODBUS Indication is the Request message received on the Server side A MODBUS Response is the Response message sent by the Server A MODBUS Confirmation is the Response Message received on the Client side

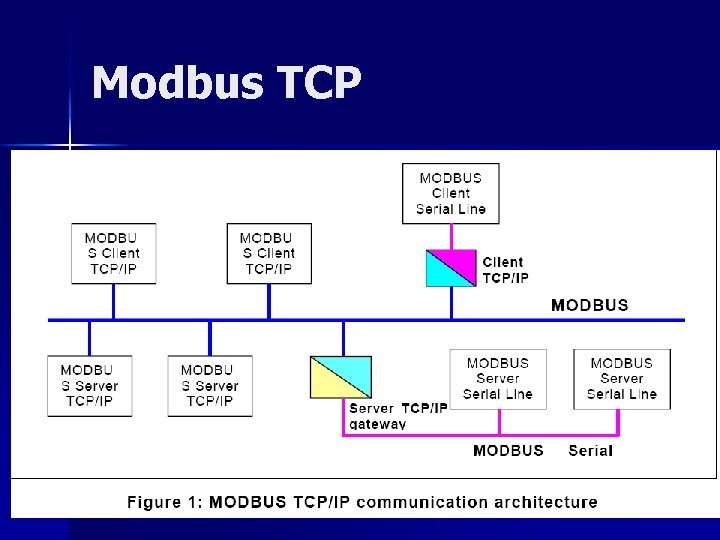

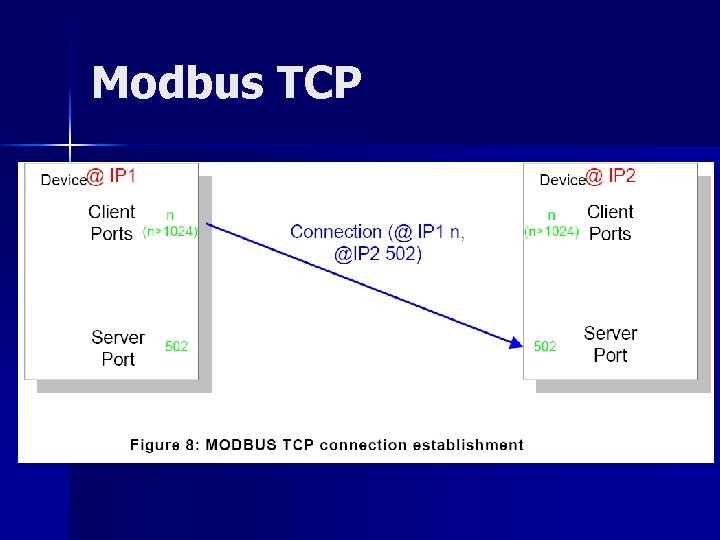

Modbus TCP

Modbus TCP

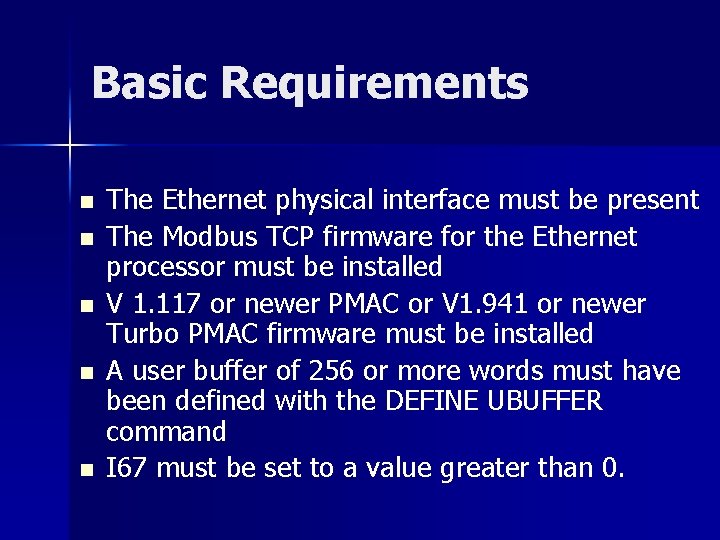

Basic Requirements n n n The Ethernet physical interface must be present The Modbus TCP firmware for the Ethernet processor must be installed V 1. 117 or newer PMAC or V 1. 941 or newer Turbo PMAC firmware must be installed A user buffer of 256 or more words must have been defined with the DEFINE UBUFFER command I 67 must be set to a value greater than 0.

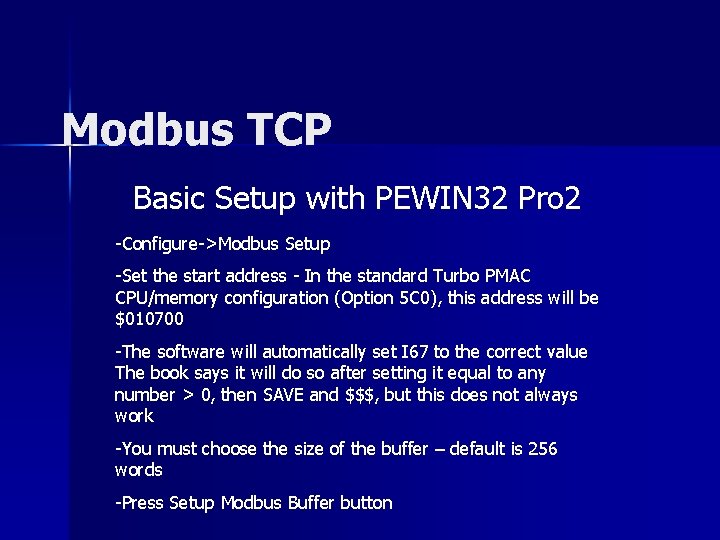

Modbus TCP Basic Setup with PEWIN 32 Pro 2 -Configure->Modbus Setup -Set the start address - In the standard Turbo PMAC CPU/memory configuration (Option 5 C 0), this address will be $010700 -The software will automatically set I 67 to the correct value The book says it will do so after setting it equal to any number > 0, then SAVE and $$$, but this does not always work -You must choose the size of the buffer – default is 256 words -Press Setup Modbus Buffer button

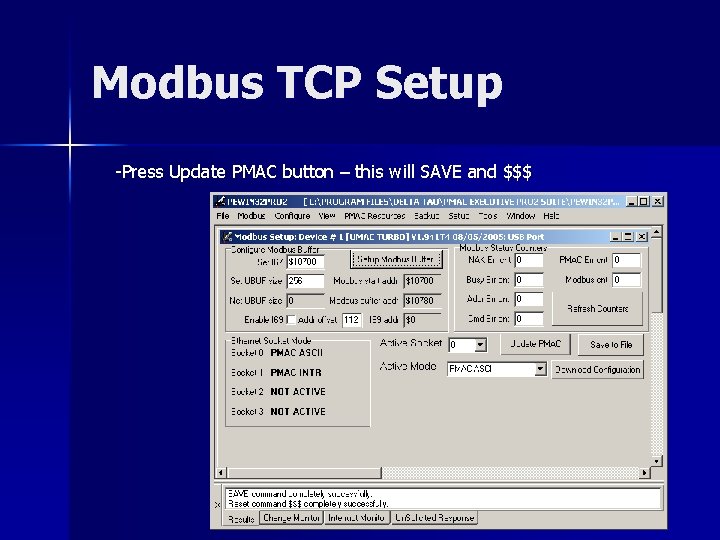

Modbus TCP Setup -Press Update PMAC button – this will SAVE and $$$

ACC-65 ETH n n n n Set up the IP address of the ACC-65 ETH as per the hardware reference manual using the web browser and the default address of http: //192. 6. 94. 50 Go to the Modbus TCP configuration utility in PEWIN 32 Pro 2 Choose the next unused Active Socket. If you are not using a socket for PMAC interrupts, you may use Socket 1 Choose Modbus Client as the Active Mode Set Timer 1 to 50 (250 ms) Set the Server Address as per that set in the ACC-65 ETH Set the Timer to 1 Set the FC Command Description to 23 (read/write multiple words)

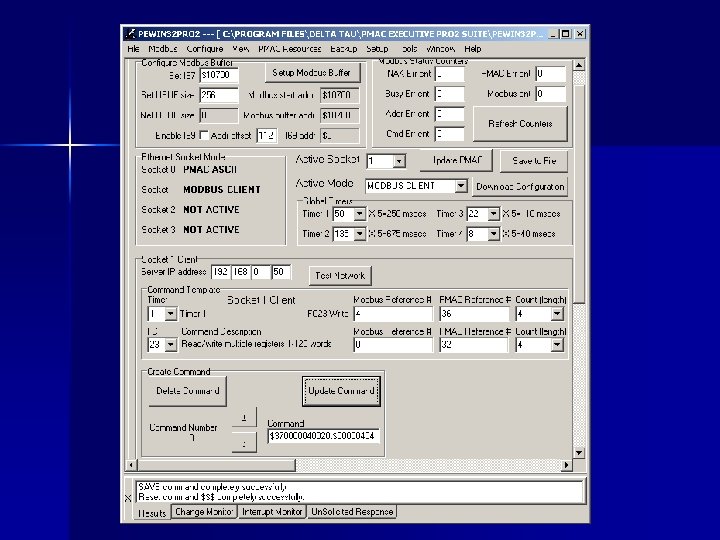

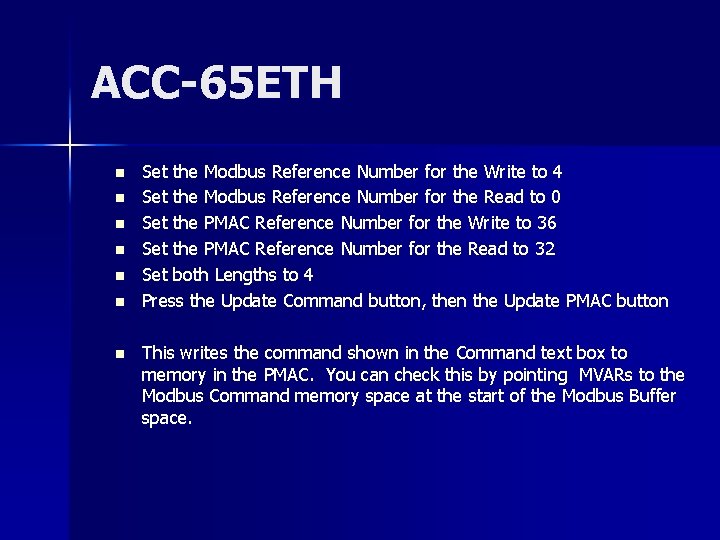

ACC-65 ETH n n n n Set the Modbus Reference Number for the Write to 4 Set the Modbus Reference Number for the Read to 0 Set the PMAC Reference Number for the Write to 36 Set the PMAC Reference Number for the Read to 32 Set both Lengths to 4 Press the Update Command button, then the Update PMAC button This writes the command shown in the Command text box to memory in the PMAC. You can check this by pointing MVARs to the Modbus Command memory space at the start of the Modbus Buffer space.

ACC-65 ETH Data begins at i 67+$80+$10 (PMAC Reference 32=16 words =$10) Assuming i 67=$10700: X: $10790, 0, 16 Digital inputs 0 -15 32 Y: $10790, 0, 16 24 Vok input and digital inputs 16 -23 33 X: $10791, 0, 12 ADC Input 1 34 Y: $10791, 0, 12 ADC Input 2 35 X: $10792, 0, 16 Digital Outputs 0 -15 36 Y: $10792, 0, 16 RLY 1, RLY 2, Digital outputs 16 -23 37 X: $10793, 0, 12 DAC 1 38 Y: $10793, 0, 12 DAC 2 39

The PMAC Modbus/TCP-IP configuration & buffer memory format Offset from I 67 23 0 Sock #0 Mode(upper 4 of 8 bits) TBD (16 bits) TBD (8 bits) Client Cmd. List. Strt (8 bits) 1 IP future Server IP 1 Server IP 2 2 Future Spare 40 x. B Repeat above for Sockets 1 -3 0 x. C TBD (8 bits) 0 x. D TBD 0 x. E TBD 0 x. F TBD 0 x 10 0 x 69 Start of 1 st Client Modbus Cmd List 0 x 80 Start of 16 bit Client/Server Modbus Buffer X Memory TBD (8 bits) 0 23 Server IP 0 Period Timer 4 (8 bits) Y Memory Period Timer 3 (8 bits) 0 Period Timer 2 (8 bits) Client Cmd. List. End (8 bits) Server IP 3 Period Timer 1 (8 bits)

The PMAC Modbus/TCP-IP configuration & buffer memory format The Socket Modes ( upper 4 of 8 bits): n 0 - Socket NOT ACTIVE n 1 - Server TCP, PMAC ASCII protocol. – IP Address = 0. 0 n 2 - Server TCP, PMACto. Client Interrupt ASCII string. IP Address = 0. 0 Only available on Turbo UMACs. 3 - Server Modbus/TCP-IP. IP Address not used. 4 - Client Modbus/TCP-IP. IP Address of Server. n The IP Address 192. 6. 94. 5 is stored as: n n – IP 0=192, IP 1=6, IP 2=94, IP 3=5

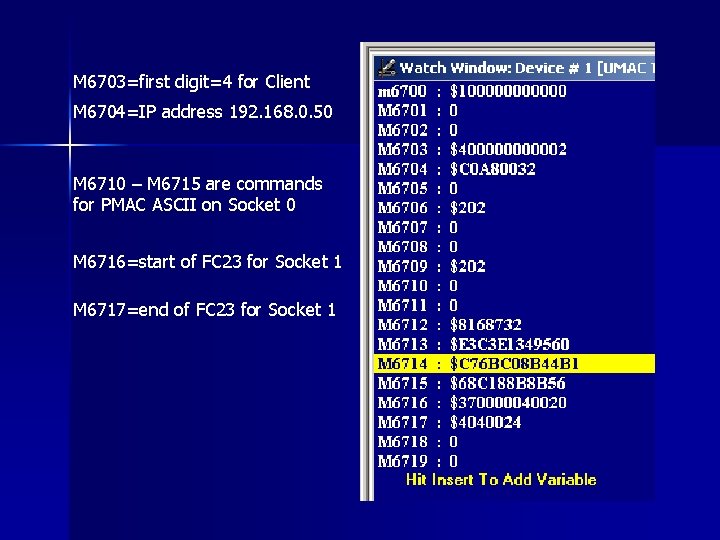

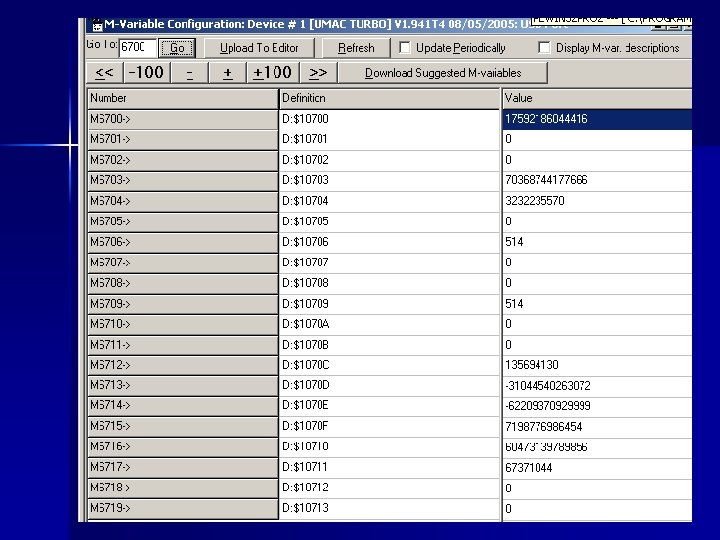

M 6703=first digit=4 for Client M 6704=IP address 192. 168. 0. 50 M 6710 – M 6715 are commands for PMAC ASCII on Socket 0 M 6716=start of FC 23 for Socket 1 M 6717=end of FC 23 for Socket 1

Modbus Client Command List Memory Format X: 23 - 16 X: 15 Timer (3 bits)/ Function Code (5 bits) - 0 Y: 23 Modbus. Reference # (16 bits) - 16 Count (length) (8 bits) Y: 15 - 0 PMAC Reference # (16 bits) $370000040020, $000004040024 First Word = Read Data $37 = Timer 1, FC 23 $0000 = Modbus Reference Number = 0 $04 = Length = 4 $0020 = PMAC Reference Number = $20 Second Word = Write Data $00 = no function for FC 23 $0004 = Modbus Reference Number = 0 $04 = Length = 4 $0024 = PMAC Reference Number = $20

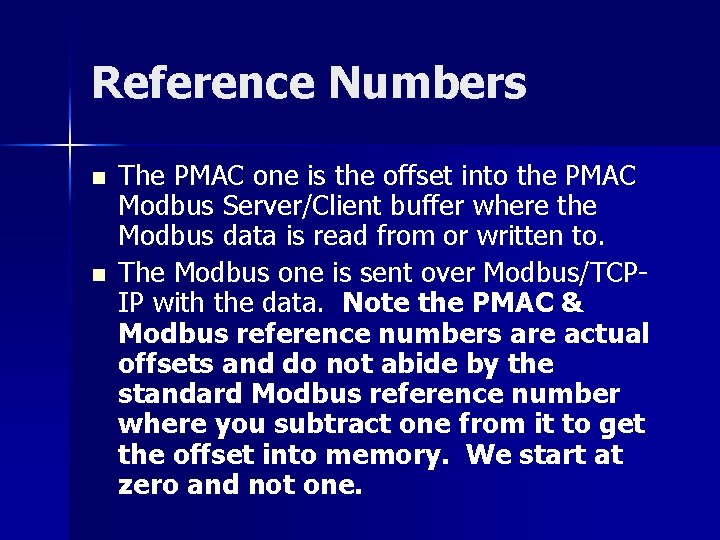

Reference Numbers n n The PMAC one is the offset into the PMAC Modbus Server/Client buffer where the Modbus data is read from or written to. The Modbus one is sent over Modbus/TCPIP with the data. Note the PMAC & Modbus reference numbers are actual offsets and do not abide by the standard Modbus reference number where you subtract one from it to get the offset into memory. We start at zero and not one.

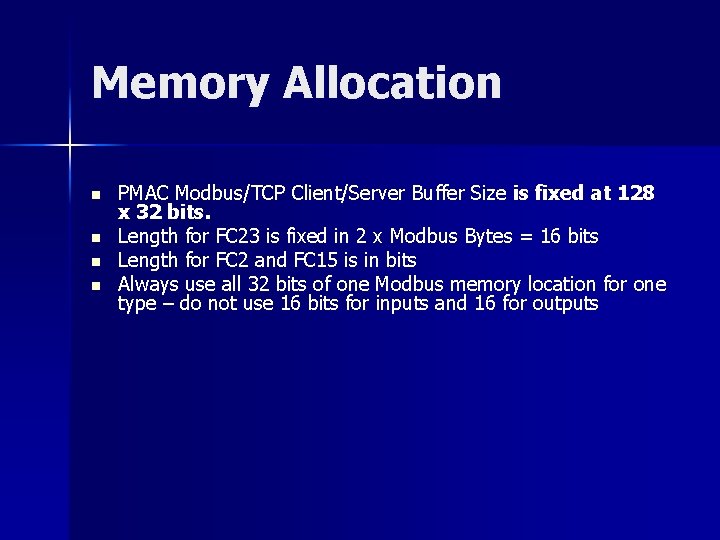

Memory Allocation n n PMAC Modbus/TCP Client/Server Buffer Size is fixed at 128 x 32 bits. Length for FC 23 is fixed in 2 x Modbus Bytes = 16 bits Length for FC 2 and FC 15 is in bits Always use all 32 bits of one Modbus memory location for one type – do not use 16 bits for inputs and 16 for outputs

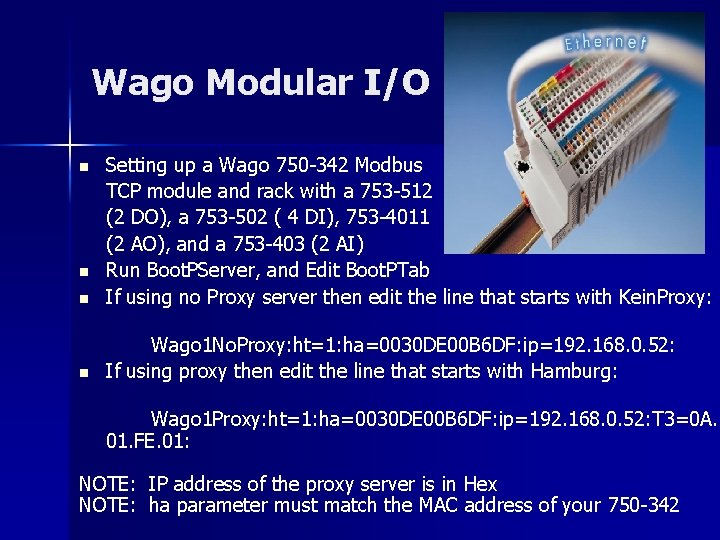

Wago Modular I/O n Setting up a Wago 750 -342 Modbus TCP module and rack with a 753 -512 (2 DO), a 753 -502 ( 4 DI), 753 -4011 (2 AO), and a 753 -403 (2 AI) Run Boot. PServer, and Edit Boot. PTab If using no Proxy server then edit the line that starts with Kein. Proxy: n Wago 1 No. Proxy: ht=1: ha=0030 DE 00 B 6 DF: ip=192. 168. 0. 52: If using proxy then edit the line that starts with Hamburg: n n Wago 1 Proxy: ht=1: ha=0030 DE 00 B 6 DF: ip=192. 168. 0. 52: T 3=0 A. 01. FE. 01: NOTE: IP address of the proxy server is in Hex NOTE: ha parameter must match the MAC address of your 750 -342

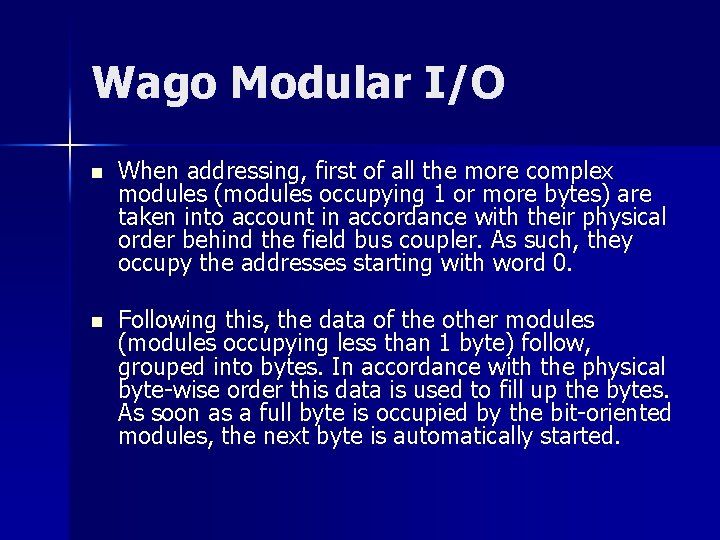

Wago Modular I/O n When addressing, first of all the more complex modules (modules occupying 1 or more bytes) are taken into account in accordance with their physical order behind the field bus coupler. As such, they occupy the addresses starting with word 0. n Following this, the data of the other modules (modules occupying less than 1 byte) follow, grouped into bytes. In accordance with the physical byte-wise order this data is used to fill up the bytes. As soon as a full byte is occupied by the bit-oriented modules, the next byte is automatically started.

Wago Modular I/O § FC 23, PMAC refs 40, 44, Modbus ref 0, 4 § Note that Wago documentation starts with 0, not 1 n n DO found at i 67+$95 AO found at i 67+$94 DI found at i 67+$97 AI found at i 67+$96

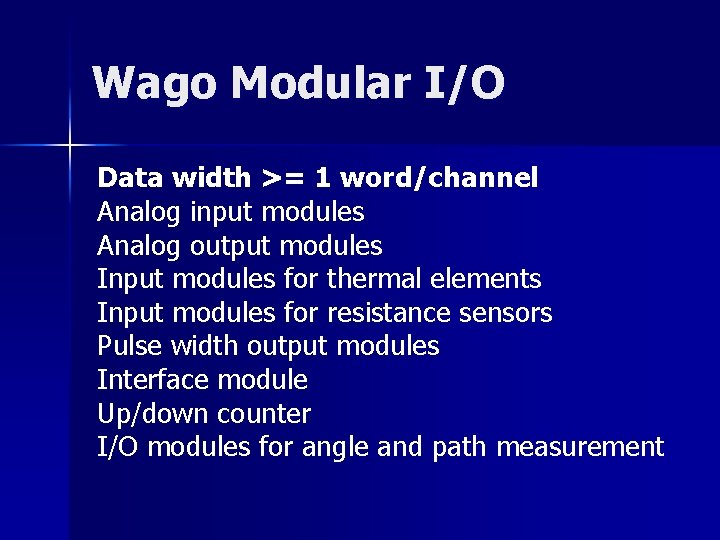

Wago Modular I/O Data width >= 1 word/channel Analog input modules Analog output modules Input modules for thermal elements Input modules for resistance sensors Pulse width output modules Interface module Up/down counter I/O modules for angle and path measurement

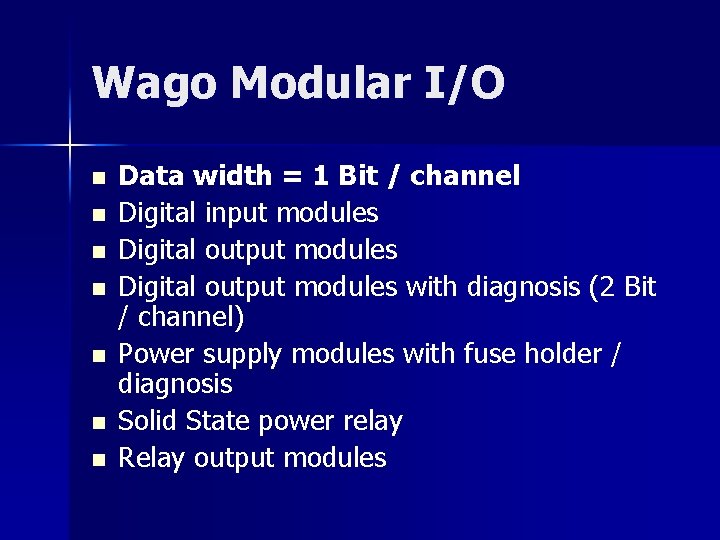

Wago Modular I/O n n n n Data width = 1 Bit / channel Digital input modules Digital output modules with diagnosis (2 Bit / channel) Power supply modules with fuse holder / diagnosis Solid State power relay Relay output modules

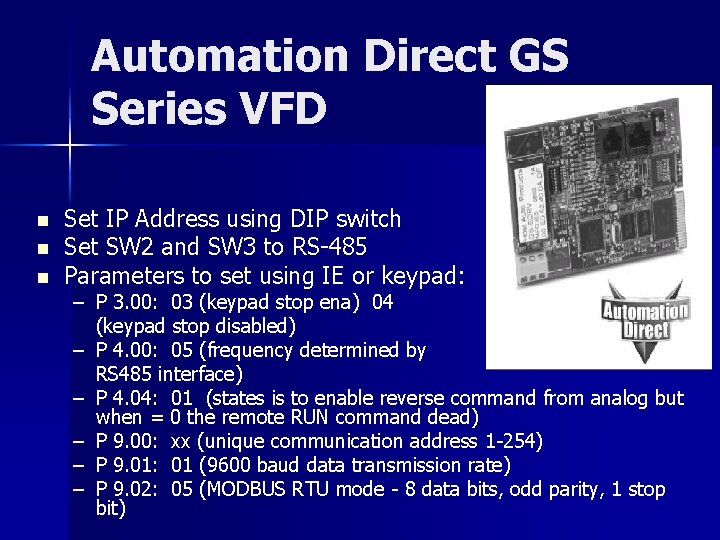

Automation Direct GS Series VFD n n n Set IP Address using DIP switch Set SW 2 and SW 3 to RS-485 Parameters to set using IE or keypad: – P 3. 00: 03 (keypad stop ena) 04 (keypad stop disabled) – P 4. 00: 05 (frequency determined by RS 485 interface) – P 4. 04: 01 (states is to enable reverse command from analog but when = 0 the remote RUN command dead) – P 9. 00: xx (unique communication address 1 -254) – P 9. 01: 01 (9600 baud data transmission rate) – P 9. 02: 05 (MODBUS RTU mode - 8 data bits, odd parity, 1 stop bit)

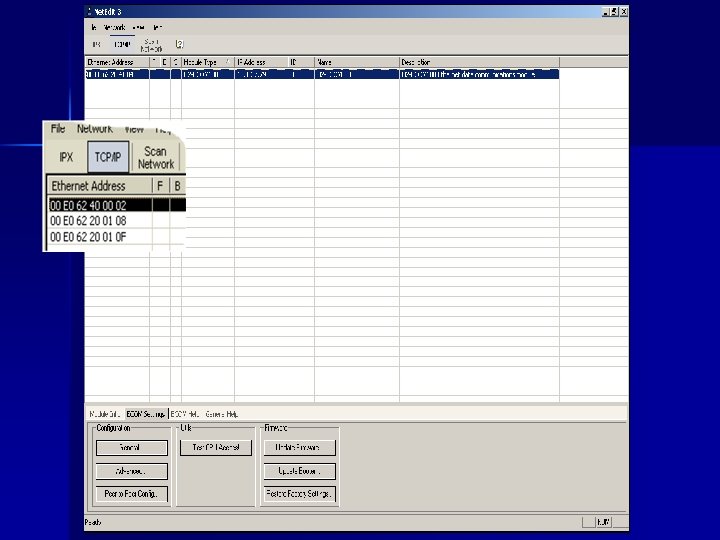

Automation Direct GS Series VFD n n n download Net. Edit 3 from Automation Direct at: http: //www. hosteng. com/SW-Products/Net. Edit 3. zip Insure that NWLink IPX/SPX/Net. Bios compatible protocol is loaded on your PC by going to the properties of your Ethernet connection Run Net. Edit 3 and select TC/PIP as type Press the Scan Network Button. If this is the first time you have talked to this device you will see the address 255. 0. Click on this address and set to the desired network address. This address should be in the same range as that of the PMAC. Now you must power the drive down and back up. If you open Net. Edit again you should now see the drive type listed in the address.

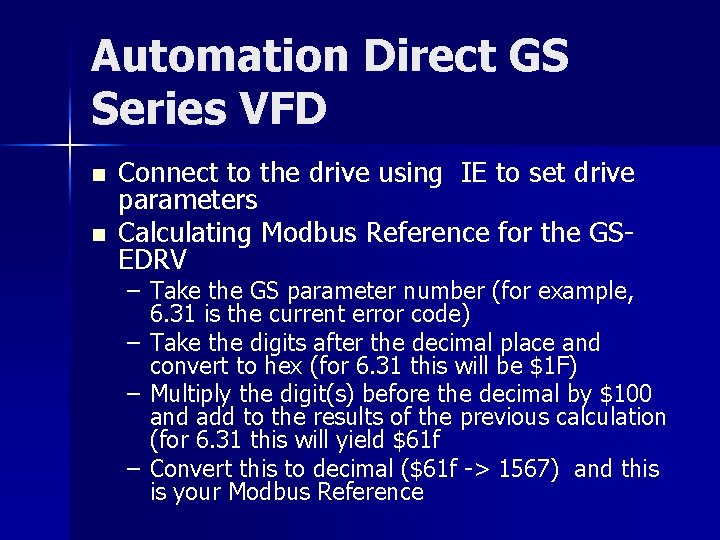

Automation Direct GS Series VFD n n Connect to the drive using IE to set drive parameters Calculating Modbus Reference for the GSEDRV – Take the GS parameter number (for example, 6. 31 is the current error code) – Take the digits after the decimal place and convert to hex (for 6. 31 this will be $1 F) – Multiply the digit(s) before the decimal by $100 and add to the results of the previous calculation (for 6. 31 this will yield $61 f – Convert this to decimal ($61 f -> 1567) and this is your Modbus Reference

Automation Direct GS Series VFD Command Data Location read frequency command M 1660 (base+ $80) FC 3 2330 1 1 set frequency command NOTE - divide by 10 to get freq - so 500 = 50. 0 m 1661 FC 16 2330 2 1 read run command m 1662 FC 3 2331 3 1 set run command m 1663 FC 16 2331 4 1 read direction command m 1664 FC 3 2332 5 1 set direction command m 1665 FC 16 2332 6 1 read current error code m 1666 FC 3 1567 7 1 read last error code m 1667 FC 3 1568 8 1 Modbus Reference PMAC Reference Count (leng th) Command Type

Automation Direct GS Series VFD n n n n n Read/Write Speed Reference Run Command Direction External Fault reset Jog Status Frequency cmd Output frequency Output current DC-bus voltage Output voltage Motor RPM Scale freq (low) Scale freq (high) % Load Firmware Version Hex 091 AH 091 BH 091 CH 091 DH 091 EH 091 FH 2101 H 2102 H 2103 H 2104 H 2105 H 2106 H 2107 H 2108 H 2109 H 210 BH 2110 H Modbus 42331 42332 42333 42334 42335 42336 48450 48451 48452 48453 48454 48455 48456 48457 48458 48460 48465 $91 a=2330 4 is used as a holder Modbus Reference start with 1, not 0 The correct Modbus Reference for us is 2330, not 2331

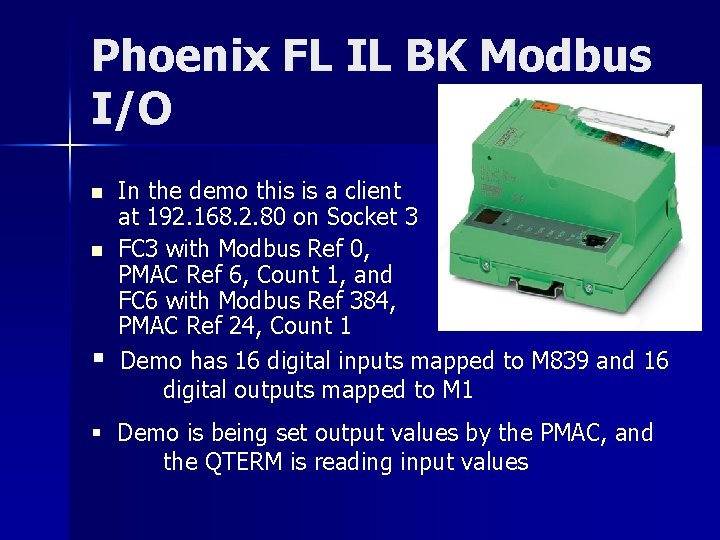

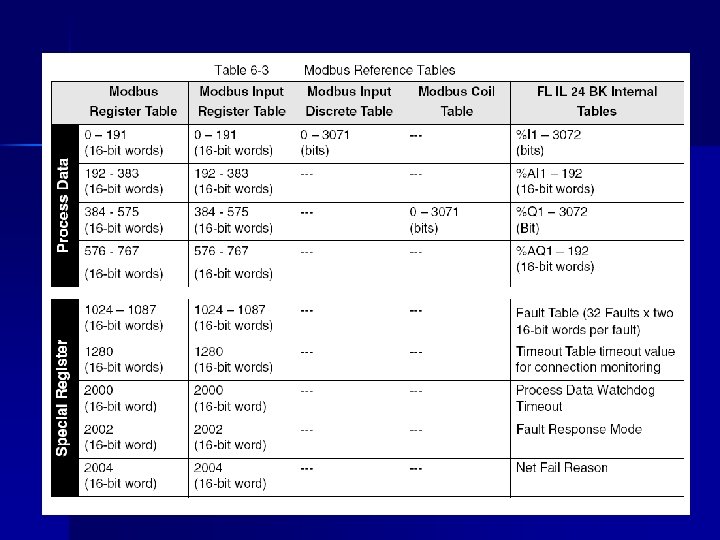

Phoenix FL IL BK Modbus I/O n n § In the demo this is a client at 192. 168. 2. 80 on Socket 3 FC 3 with Modbus Ref 0, PMAC Ref 6, Count 1, and FC 6 with Modbus Ref 384, PMAC Ref 24, Count 1 Demo has 16 digital inputs mapped to M 839 and 16 digital outputs mapped to M 1 § Demo is being set output values by the PMAC, and the QTERM is reading input values

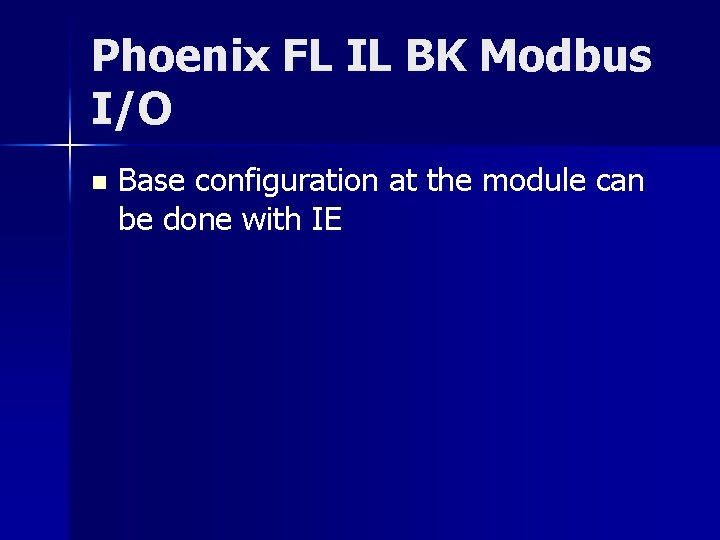

Phoenix FL IL BK Modbus I/O n Base configuration at the module can be done with IE

QTerm Acting as a client in the demo n PLCs running on PMAC interpreting command words from the client n M 844 – Feedrate override n M 841 – Command Word n M 846 – Rotary Position A n M 847 – Rotary Position B n

QTerm M 841 1 2 4 Function Axis Select Feedhold Cycle Start 8 16 32 4096 8192 16384 Home Estop Program Set J+ JJ=

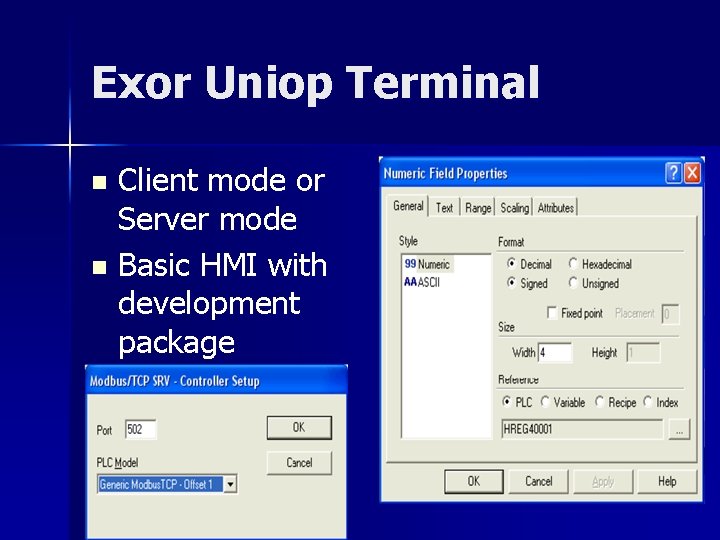

Exor Uniop Terminal Client mode or Server mode n Basic HMI with development package n

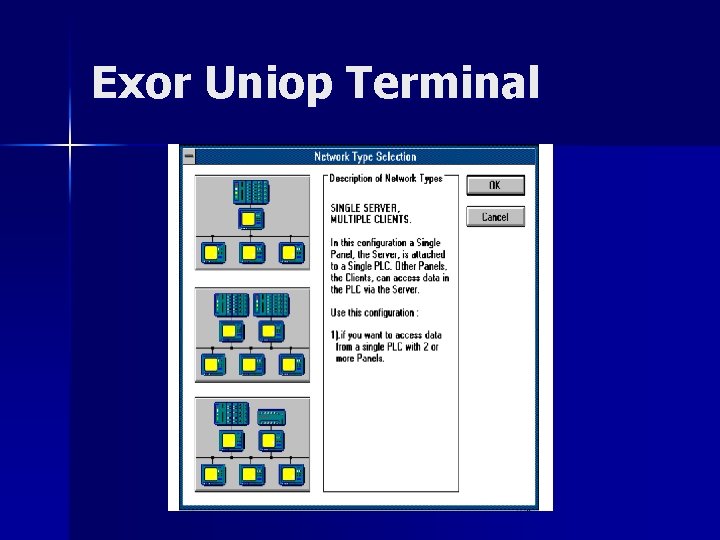

Exor Uniop Terminal

Exor Uniop Terminal

Modbus TCP Software Control Panel n n Allows command of the PMAC with no code on the PMAC exactly as the DPR Control Panel does I 69 enables (firmware 1. 942 and up) Typically set to $80 to set the start of the panel memory space $80 long words after the start of Modbus memory Reserves 26 long words

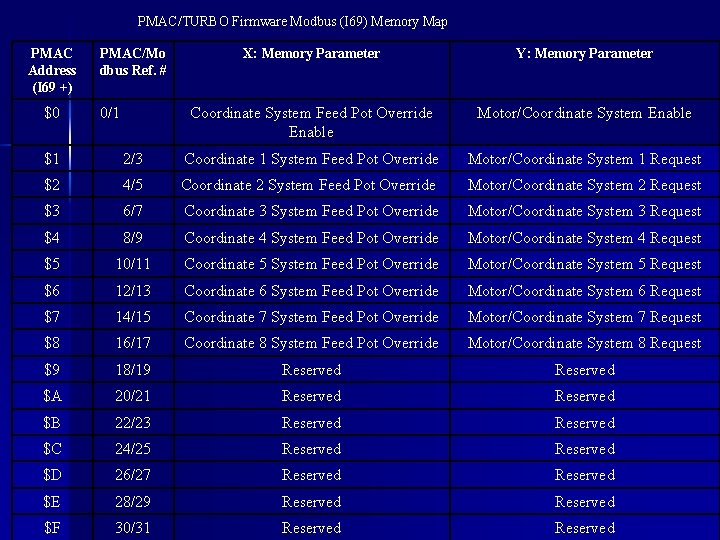

PMAC/TURBO Firmware Modbus (I 69) Memory Map PMAC Address (I 69 +) $0 PMAC/Mo dbus Ref. # 0/1 X: Memory Parameter Y: Memory Parameter Coordinate System Feed Pot Override Enable Motor/Coordinate System Enable $1 2/3 Coordinate 1 System Feed Pot Override Motor/Coordinate System 1 Request $2 4/5 Coordinate 2 System Feed Pot Override Motor/Coordinate System 2 Request $3 6/7 Coordinate 3 System Feed Pot Override Motor/Coordinate System 3 Request $4 8/9 Coordinate 4 System Feed Pot Override Motor/Coordinate System 4 Request $5 10/11 Coordinate 5 System Feed Pot Override Motor/Coordinate System 5 Request $6 12/13 Coordinate 6 System Feed Pot Override Motor/Coordinate System 6 Request $7 14/15 Coordinate 7 System Feed Pot Override Motor/Coordinate System 7 Request $8 16/17 Coordinate 8 System Feed Pot Override Motor/Coordinate System 8 Request $9 18/19 Reserved $A 20/21 Reserved $B 22/23 Reserved $C 24/25 Reserved $D 26/27 Reserved $E 28/29 Reserved $F 30/31 Reserved

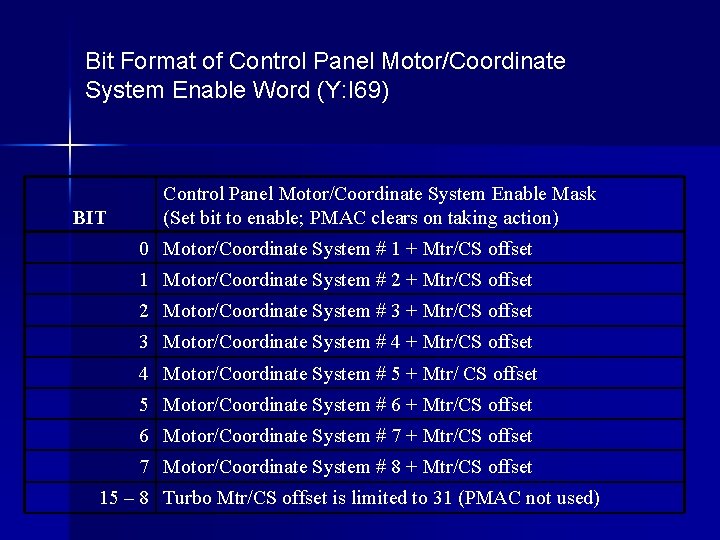

Bit Format of Control Panel Motor/Coordinate System Enable Word (Y: I 69) BIT Control Panel Motor/Coordinate System Enable Mask (Set bit to enable; PMAC clears on taking action) 0 Motor/Coordinate System # 1 + Mtr/CS offset 1 Motor/Coordinate System # 2 + Mtr/CS offset 2 Motor/Coordinate System # 3 + Mtr/CS offset 3 Motor/Coordinate System # 4 + Mtr/CS offset 4 Motor/Coordinate System # 5 + Mtr/ CS offset 5 Motor/Coordinate System # 6 + Mtr/CS offset 6 Motor/Coordinate System # 7 + Mtr/CS offset 7 Motor/Coordinate System # 8 + Mtr/CS offset 15 – 8 Turbo Mtr/CS offset is limited to 31 (PMAC not used)

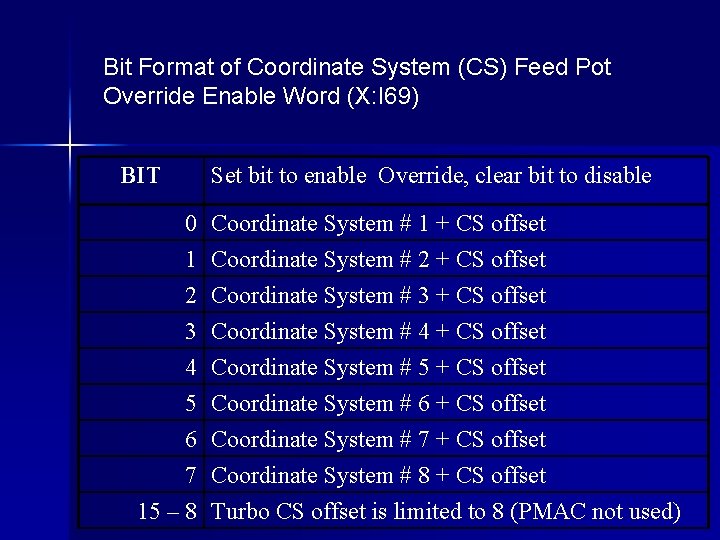

Bit Format of Coordinate System (CS) Feed Pot Override Enable Word (X: I 69) BIT Set bit to enable Override, clear bit to disable 0 Coordinate System # 1 + CS offset 1 Coordinate System # 2 + CS offset 2 Coordinate System # 3 + CS offset 3 4 5 6 7 15 – 8 Coordinate System # 4 + CS offset Coordinate System # 5 + CS offset Coordinate System # 6 + CS offset Coordinate System # 7 + CS offset Coordinate System # 8 + CS offset Turbo CS offset is limited to 8 (PMAC not used)

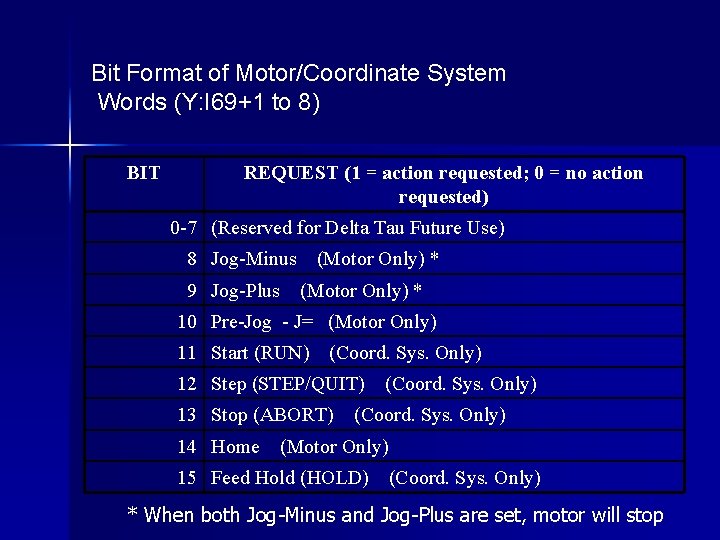

Bit Format of Motor/Coordinate System Words (Y: I 69+1 to 8) BIT REQUEST (1 = action requested; 0 = no action requested) 0 -7 (Reserved for Delta Tau Future Use) 8 Jog-Minus 9 Jog-Plus (Motor Only) * 10 Pre-Jog - J= (Motor Only) 11 Start (RUN) (Coord. Sys. Only) 12 Step (STEP/QUIT) (Coord. Sys. Only) 13 Stop (ABORT) (Coord. Sys. Only) 14 Home (Motor Only) 15 Feed Hold (HOLD) (Coord. Sys. Only) * When both Jog-Minus and Jog-Plus are set, motor will stop

New Features (1. 943+, 1. 117+) n n § Add eight more direct control bits commands: B, K, J: *, J^*, J=*, >, <, and ^K Read/Write an ASCII (PMAC Modbus Address 0 x. F 000) Read/Write PMAC In (PMAC Modbus Address 0 x 1000 -0 x 3 FFF), Mn (PMAC Modbus Address 0 x 4000 -0 x 7 FFF), Pn (PMAC Modbus Address 0 x 8000 -0 x. BFFF) and Qn (PMAC Modbus Address 0 x. C 0000 x. EFFF) using a Modbus 32 bit float data type.

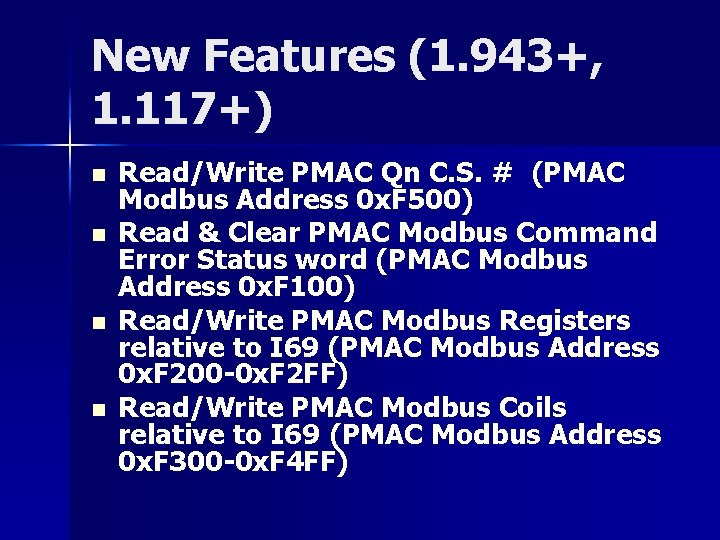

New Features (1. 943+, 1. 117+) n n Read/Write PMAC Qn C. S. # (PMAC Modbus Address 0 x. F 500) Read & Clear PMAC Modbus Command Error Status word (PMAC Modbus Address 0 x. F 100) Read/Write PMAC Modbus Registers relative to I 69 (PMAC Modbus Address 0 x. F 200 -0 x. F 2 FF) Read/Write PMAC Modbus Coils relative to I 69 (PMAC Modbus Address 0 x. F 300 -0 x. F 4 FF)

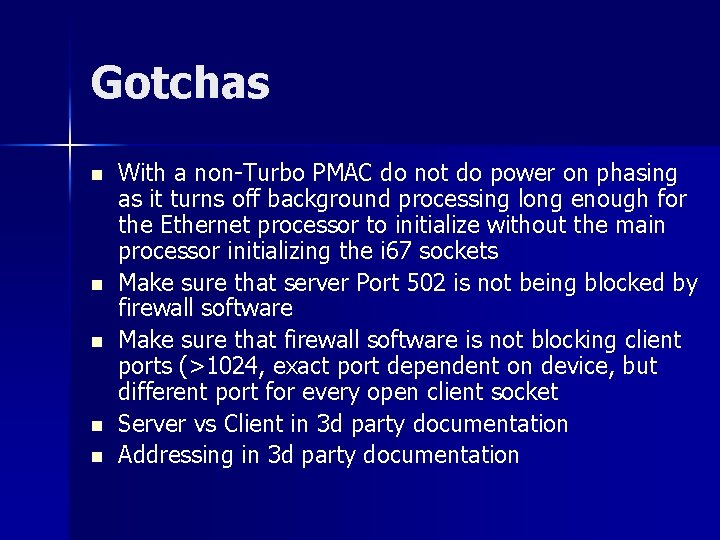

Gotchas n n n With a non-Turbo PMAC do not do power on phasing as it turns off background processing long enough for the Ethernet processor to initialize without the main processor initializing the i 67 sockets Make sure that server Port 502 is not being blocked by firewall software Make sure that firewall software is not blocking client ports (>1024, exact port dependent on device, but different port for every open client socket Server vs Client in 3 d party documentation Addressing in 3 d party documentation
