MOBILE TECHNOLOGY LINES MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. Besides the stationary building usage are the best solution for the technology transport the mobile technology lines -mobile workshops. Mobile technology lines is a modification of stationary technology lines. They meet all the specifications and demands of stationary technology lines – design properties machinery and software equipment. They are compliant with all the specifications and demands of stationary technology lines such as design, equipment, machinery and also comply with legislation of EU regarding the safety of work. The mobile technology lines consist of special containers. The mobile containers allow to make up the complete disposal /disassembly or production technology lines fully substituting the stationary technology lines functions. They are able to use at different places / areas.
HYDRA 100 MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. The purpose of the HYDRA 100 device is delaboration or revision of both fixed and separed-loading artillery ammunition. It allows disassembly of iniciators and a safe separation of the projectile from the cased propelling charge of fixed ammunition with a maximum pulling power of 50 k. N. The process parameters are defined based upon the respective caliber and the type of the shell. The unit can be adjusted to a different caliber by changing of clamping jaws for fixation of both cased propelling charge and the shell and by changing the tpye specific tools for disassembly of fuzes. In order to change caliber for separate-loading ammunition, the head of the puller is replaced with a clamp with jaws specific to the dimatere of the shell.

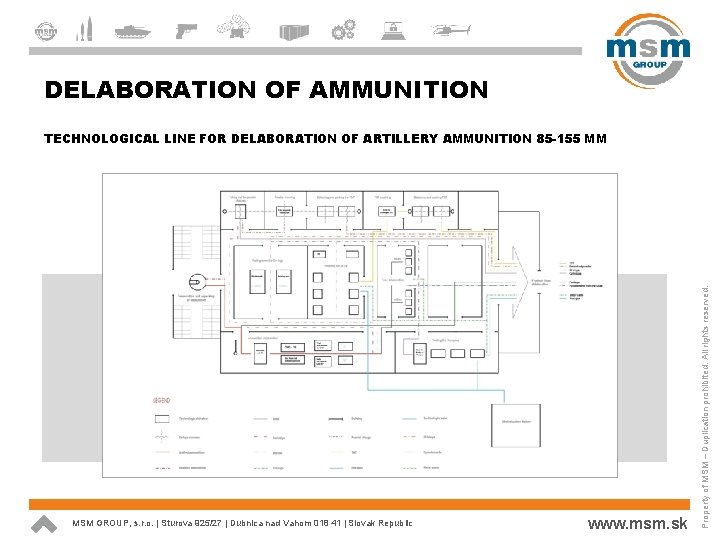

DELABORATION OF AMMUNITION MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. TECHNOLOGICAL LINE FOR DELABORATION OF ARTILLERY AMMUNITION 85 -155 MM
DELABORATION OF AMMUNITION MAIN PHASES OF DELABORATION PROCESS Temperation and unpacking of ammunition Ammunition delaboration Smelting of explosive based on TNT Floating of explosive based on RDX Pulling down the Cu rings Fuze delaboration Stabilizer dissasamble Unscrewing device 130 Expanding Press § § § Taking out the powder charges Powder and TNT crushing Balancing and packing the powder and TNT Primimg screws disposal Pyrotechnical disposal of pyroelements Recycling of scrap Unscrewing device JPK MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic Equipment for base fuse unscrewing www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. § § § §
DELABORATION OF AMMUNITION MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. PULLING DOWN THE CU RINGS
DELABORATION OF AMMUNITION Workplace is designed for smelting of explosives based on TNT from the shells of caliber 57 -155 mm, mines and various types of bombs by heating. The resulting product from smelting process is TNT with a fraction of 20 x 20 mm. The main part workplace: 1. Smelting boxes 2. Filling tanks 3. Working basket 4. Manipulator 5. Exhaustion smelting 6. Water distribution 7. Collection trays MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. SMELTING OF EXPLOSIVE BASED ON TNT
DELABORATION OF AMMUNITION Workplace is designed for washout the explosive based on RDX from ammunition of caliber 20 -100 mm, which consists of the following parts: § washout cabin § filtering and collecting part § high-pressure equipment § High and low pressure pump § control system Explosive is washout from the shell by water pressure, which is guided through the nozzle into the cavity of the shell. Washed out explosive is trapped with a filter system that separates water from the explosive. The device uses a closed water system. The device operates in automatic mode. Filtration system is computer controlled. Washed out explosive mixture is packaged and transferred to cooperative companies for further processing. Washout device can be made as stable as well in mobile design. Capacity: 400 -1000 pcs /shift up to caliber 37 mm 750 pcs / shift 100 JPSv MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. WASHOUT OF EXPLOSIVE BASED ON RDX
DELABORATION OF AMMUNITION Workplace for delaboration of powder has an antistatic floors and automatic fire alarm system. POWDER AND TNT CRUSHING BALANCING AND PACKING THE POWDER AND TNT Tube gun powder crushing Unit Equipment for crushing TNT Delaborated TNT is processed to the fractions according to customer requirements by crushing or molding. MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. TAKING OUT THE POWDER CHARGES
DELABORATION OF AMMUNITION PRIMING SCREWS DISPOSAL STABILIZER DELABORATION Workplace for delaboration of powder has an antistatic floors and automatic fire alarm system. Equipment for stabilizer delaboration MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. Equipment for priming screws disposal and small pyroelements
DELABORATION OF AMMUNITION FUSE DELABORATION PRODUCTS FROM DELABORATION Metal waste is sorted on the basis of its type (steel, copper, aluminum, etc. . ) and forwarded for further processing. MSM GROUP, s. r. o. | Sturova 925/27 | Dubnica nad Vahom 018 41 | Slovak Republic www. msm. sk Property of MSM – Duplication prohibited. All rights reserved. Devices are used for delaboration of pyrotechnic initiators of fuses.

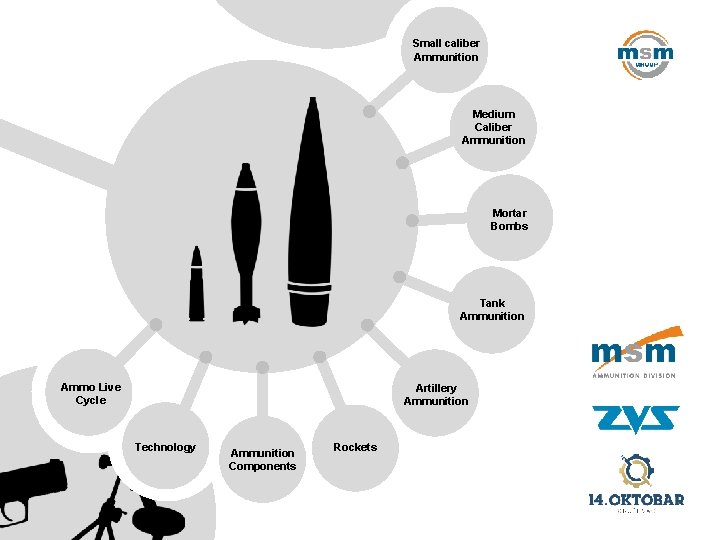

Small caliber Ammunition Medium Caliber Ammunition Mortar Bombs Tank Ammunition Ammo Live Cycle Artillery Ammunition Technology Ammunition Components Rockets
