Mobile Technology Early developments in mobile technology to

Mobile Technology Early developments in mobile technology to smartphones

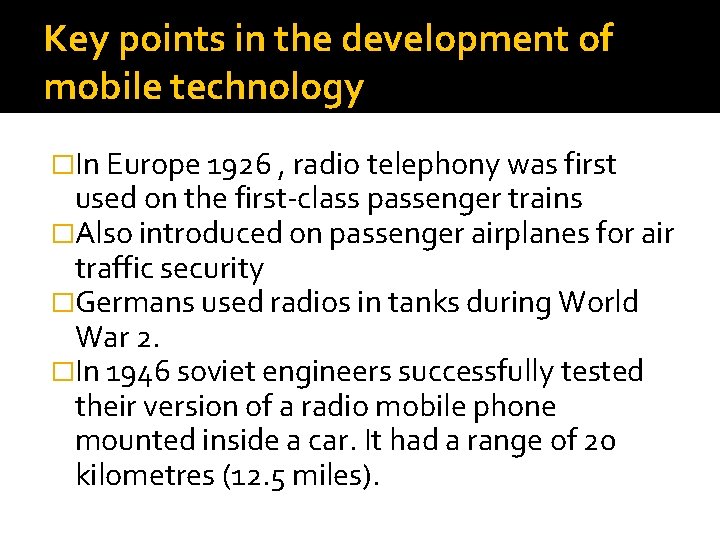

Key points in the development of mobile technology �In Europe 1926 , radio telephony was first used on the first-class passenger trains �Also introduced on passenger airplanes for air traffic security �Germans used radios in tanks during World War 2. �In 1946 soviet engineers successfully tested their version of a radio mobile phone mounted inside a car. It had a range of 20 kilometres (12. 5 miles).

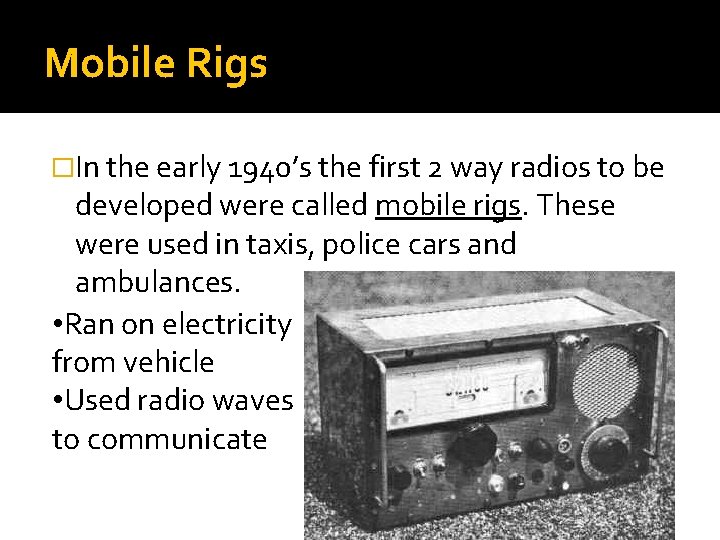

Mobile Rigs �In the early 1940’s the first 2 way radios to be developed were called mobile rigs. These were used in taxis, police cars and ambulances. • Ran on electricity from vehicle • Used radio waves to communicate

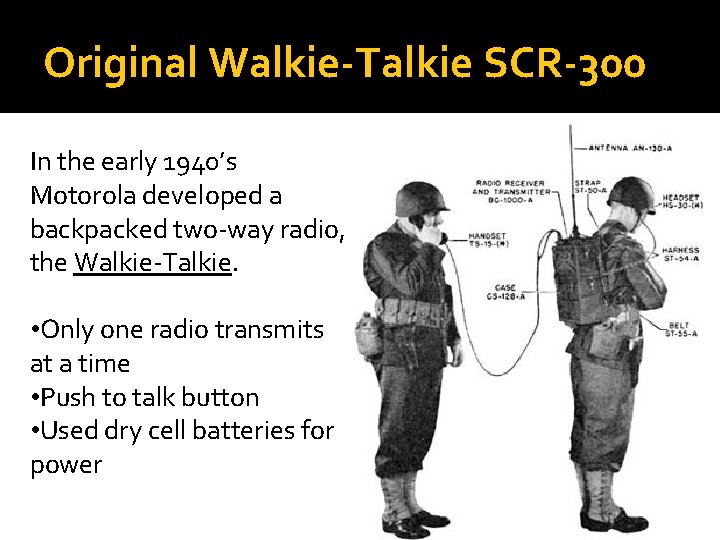

Original Walkie-Talkie SCR-300 In the early 1940’s Motorola developed a backpacked two-way radio, the Walkie-Talkie. • Only one radio transmits at a time • Push to talk button • Used dry cell batteries for power

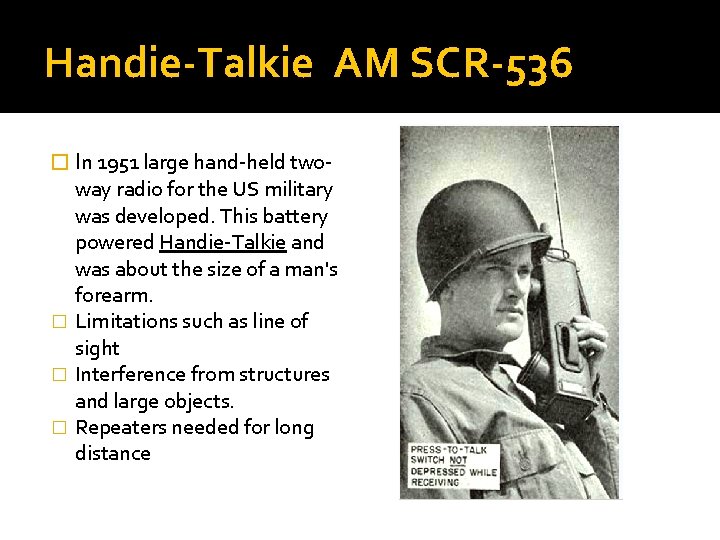

Handie-Talkie AM SCR-536 � In 1951 large hand-held two- way radio for the US military was developed. This battery powered Handie-Talkie and was about the size of a man's forearm. � Limitations such as line of sight � Interference from structures and large objects. � Repeaters needed for long distance

Mobile Phone Timeline First commercially available mobile phone was the Motorola Dyna. TAC 8000 x. It cost $3995 Motorola Micro. TAC 9800 X was available in 1989 and the first real hand held portable mobile phone. 10 character LCD.

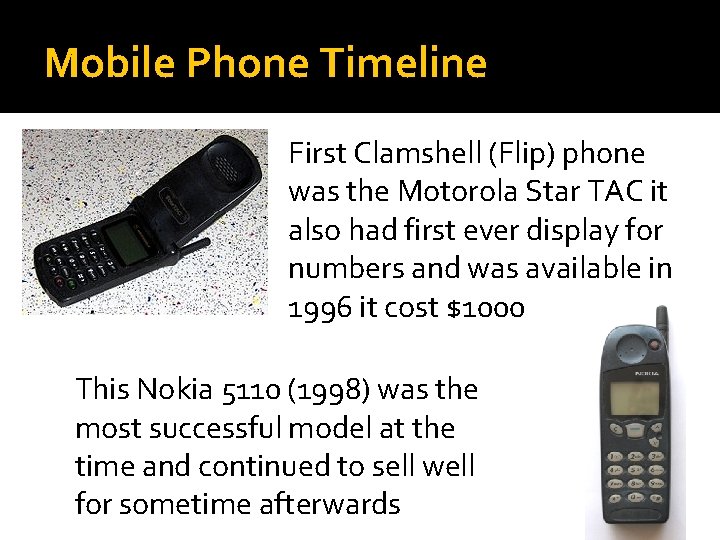

Mobile Phone Timeline First Clamshell (Flip) phone was the Motorola Star TAC it also had first ever display for numbers and was available in 1996 it cost $1000 This Nokia 5110 (1998) was the most successful model at the time and continued to sell well for sometime afterwards

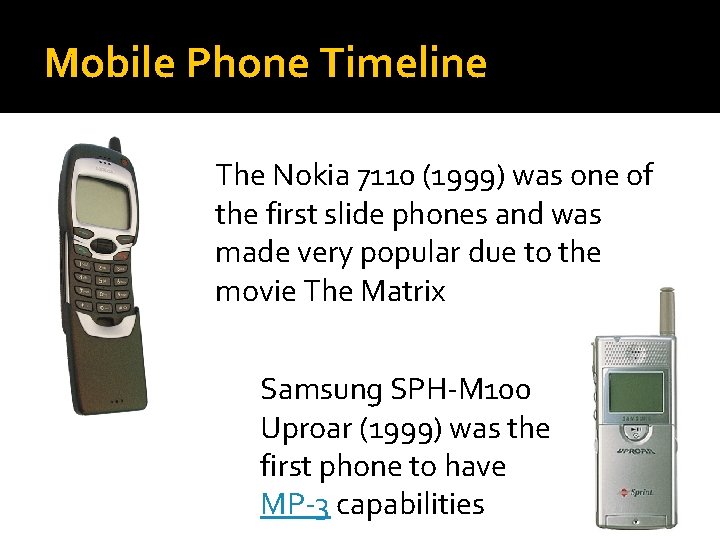

Mobile Phone Timeline The Nokia 7110 (1999) was one of the first slide phones and was made very popular due to the movie The Matrix Samsung SPH-M 100 Uproar (1999) was the first phone to have MP-3 capabilities

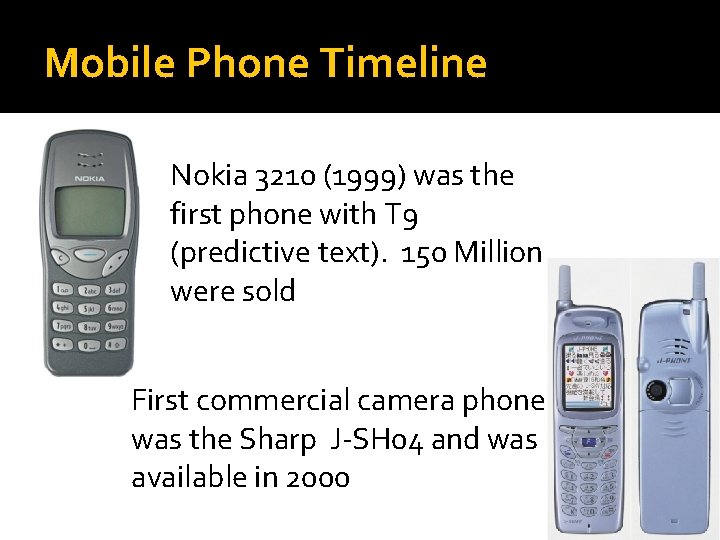

Mobile Phone Timeline Nokia 3210 (1999) was the first phone with T 9 (predictive text). 150 Million were sold First commercial camera phone was the Sharp J-SH 04 and was available in 2000

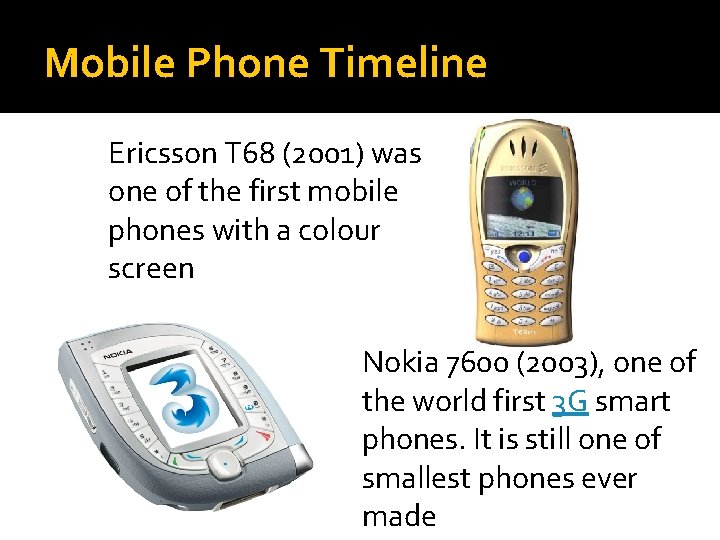

Mobile Phone Timeline Ericsson T 68 (2001) was one of the first mobile phones with a colour screen Nokia 7600 (2003), one of the world first 3 G smart phones. It is still one of smallest phones ever made

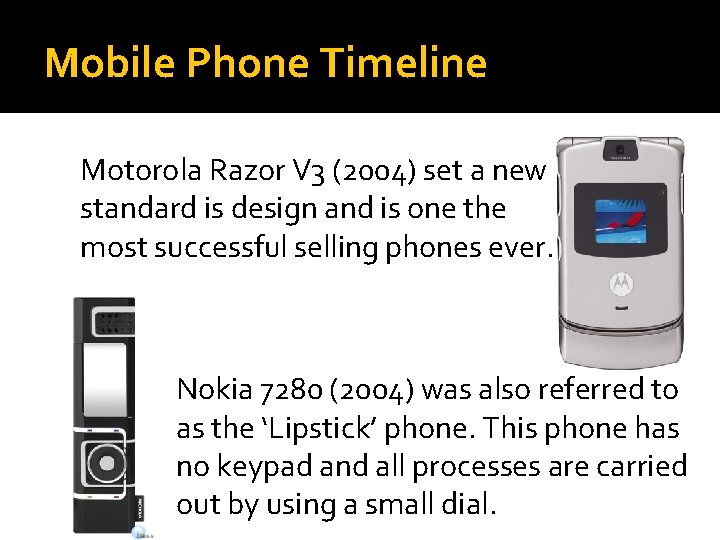

Mobile Phone Timeline Motorola Razor V 3 (2004) set a new standard is design and is one the most successful selling phones ever. Nokia 7280 (2004) was also referred to as the ‘Lipstick’ phone. This phone has no keypad and all processes are carried out by using a small dial.

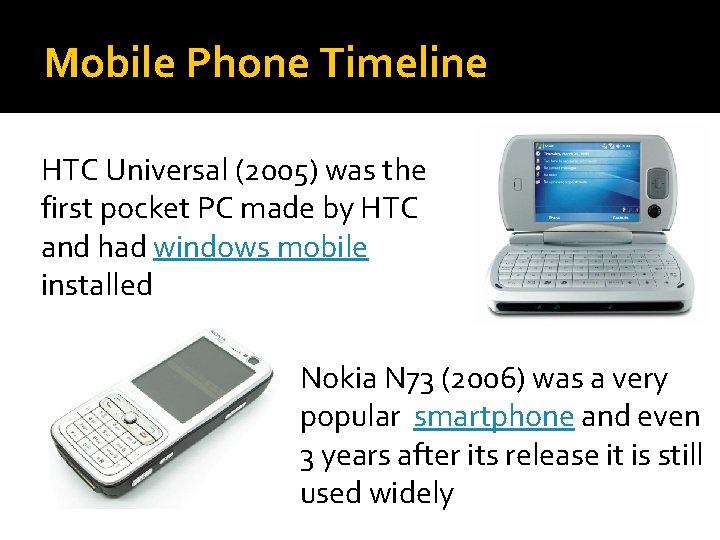

Mobile Phone Timeline HTC Universal (2005) was the first pocket PC made by HTC and had windows mobile installed Nokia N 73 (2006) was a very popular smartphone and even 3 years after its release it is still used widely

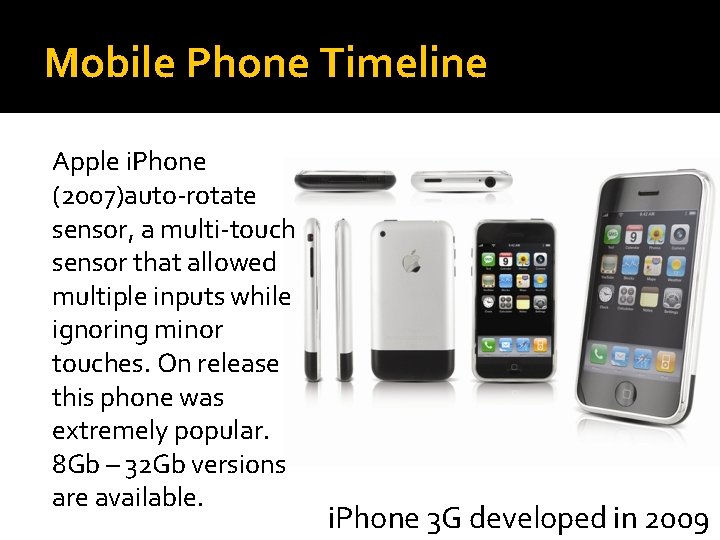

Mobile Phone Timeline Apple i. Phone (2007)auto-rotate sensor, a multi-touch sensor that allowed multiple inputs while ignoring minor touches. On release this phone was extremely popular. 8 Gb – 32 Gb versions are available. i. Phone 3 G developed in 2009

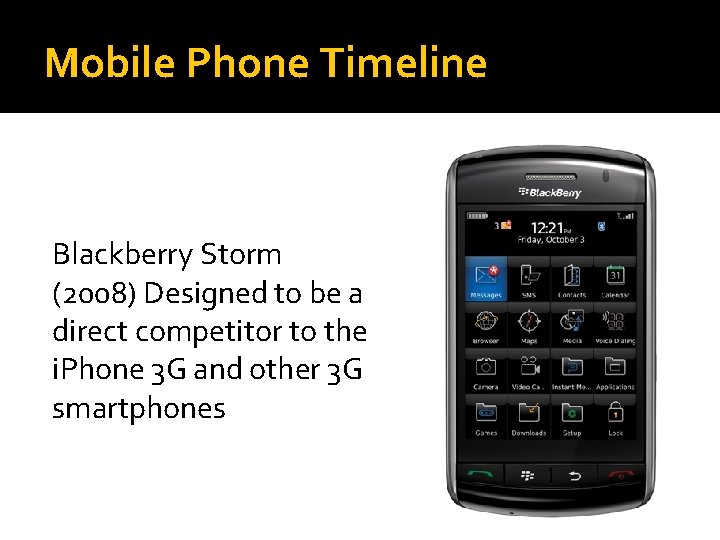

Mobile Phone Timeline Blackberry Storm (2008) Designed to be a direct competitor to the i. Phone 3 G and other 3 G smartphones

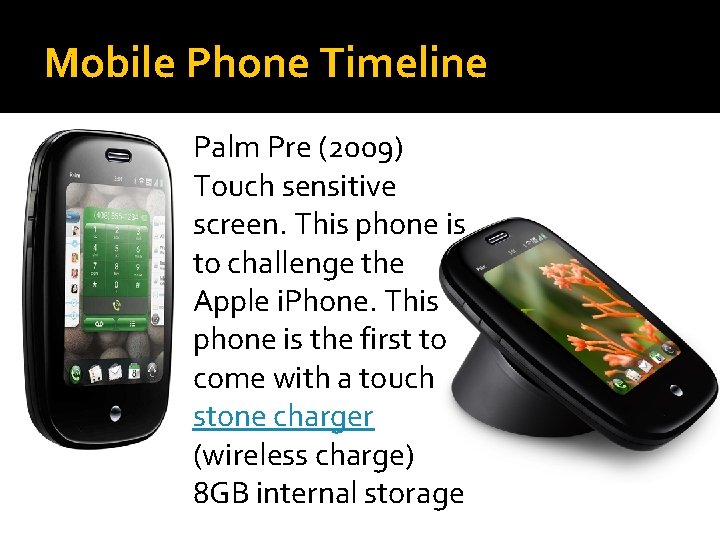

Mobile Phone Timeline Palm Pre (2009) Touch sensitive screen. This phone is to challenge the Apple i. Phone. This phone is the first to come with a touch stone charger (wireless charge) 8 GB internal storage

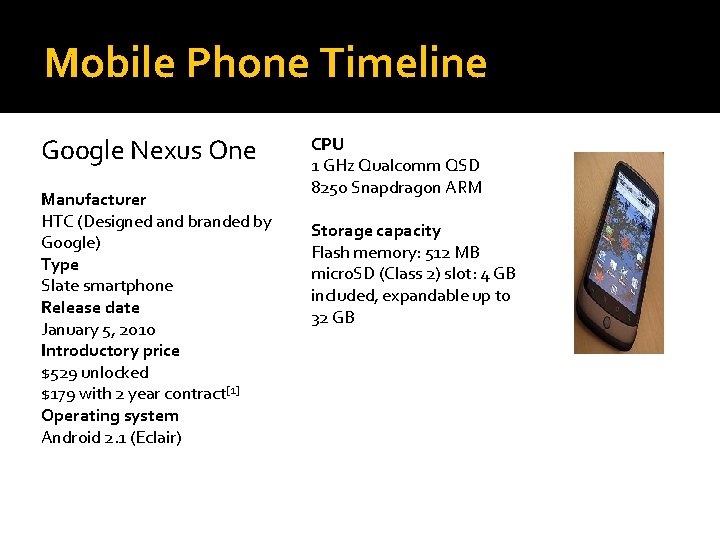

Mobile Phone Timeline Google Nexus One Manufacturer HTC (Designed and branded by Google) Type Slate smartphone Release date January 5, 2010 Introductory price $529 unlocked $179 with 2 year contract[1] Operating system Android 2. 1 (Eclair) CPU 1 GHz Qualcomm QSD 8250 Snapdragon ARM Storage capacity Flash memory: 512 MB micro. SD (Class 2) slot: 4 GB included, expandable up to 32 GB

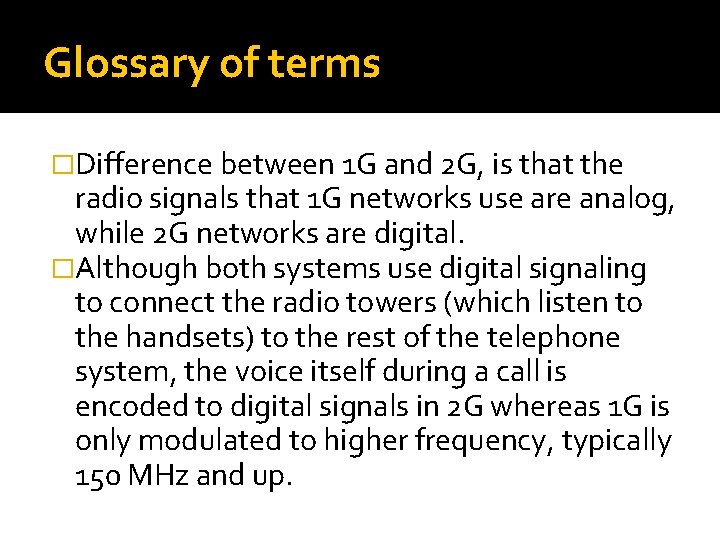

Glossary of terms �Difference between 1 G and 2 G, is that the radio signals that 1 G networks use are analog, while 2 G networks are digital. �Although both systems use digital signaling to connect the radio towers (which listen to the handsets) to the rest of the telephone system, the voice itself during a call is encoded to digital signals in 2 G whereas 1 G is only modulated to higher frequency, typically 150 MHz and up.

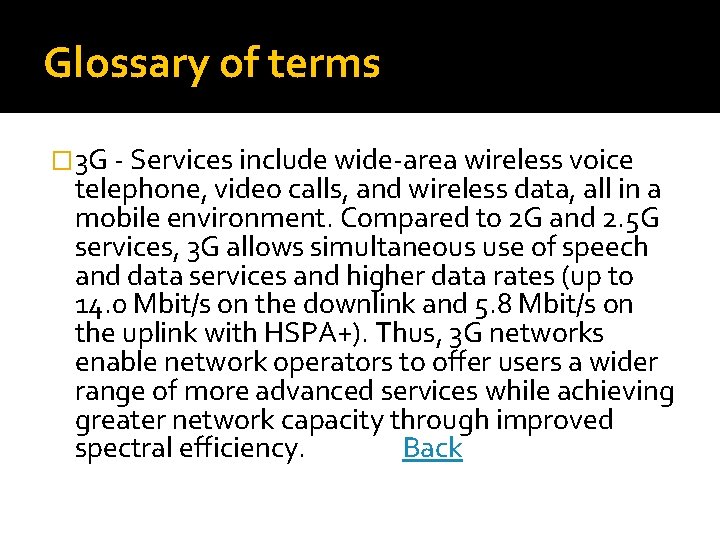

Glossary of terms � 3 G - Services include wide-area wireless voice telephone, video calls, and wireless data, all in a mobile environment. Compared to 2 G and 2. 5 G services, 3 G allows simultaneous use of speech and data services and higher data rates (up to 14. 0 Mbit/s on the downlink and 5. 8 Mbit/s on the uplink with HSPA+). Thus, 3 G networks enable network operators to offer users a wider range of more advanced services while achieving greater network capacity through improved spectral efficiency. Back

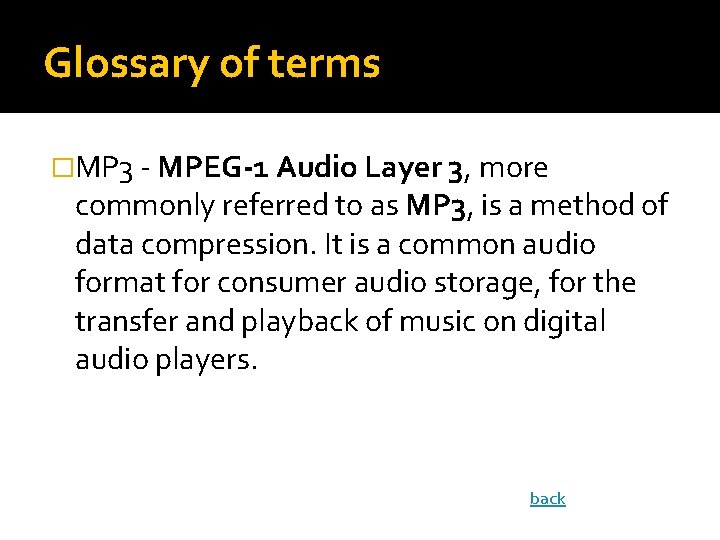

Glossary of terms �MP 3 - MPEG-1 Audio Layer 3, more commonly referred to as MP 3, is a method of data compression. It is a common audio format for consumer audio storage, for the transfer and playback of music on digital audio players. back

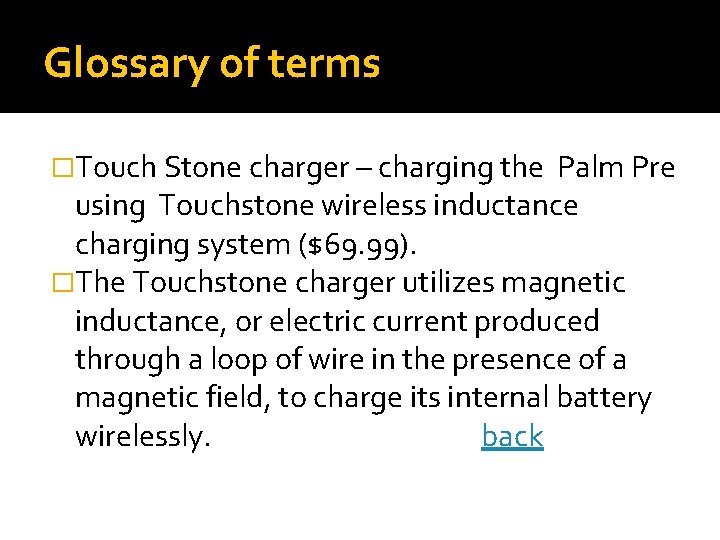

Glossary of terms �Touch Stone charger – charging the Palm Pre using Touchstone wireless inductance charging system ($69. 99). �The Touchstone charger utilizes magnetic inductance, or electric current produced through a loop of wire in the presence of a magnetic field, to charge its internal battery wirelessly. back

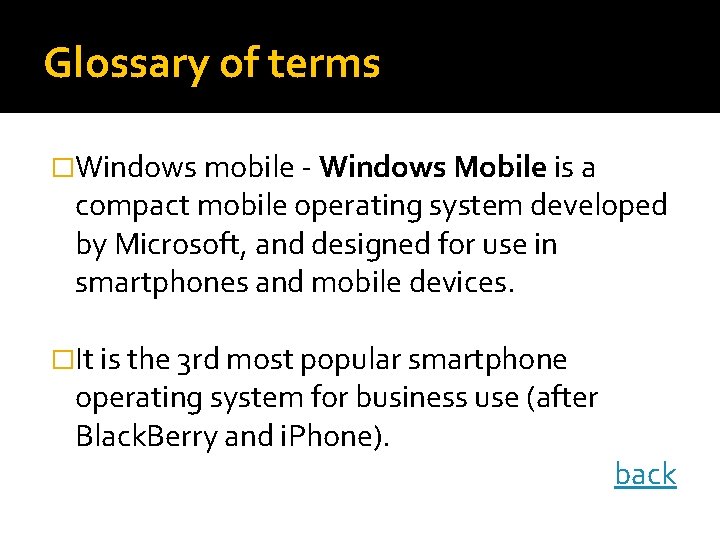

Glossary of terms �Windows mobile - Windows Mobile is a compact mobile operating system developed by Microsoft, and designed for use in smartphones and mobile devices. �It is the 3 rd most popular smartphone operating system for business use (after Black. Berry and i. Phone). back

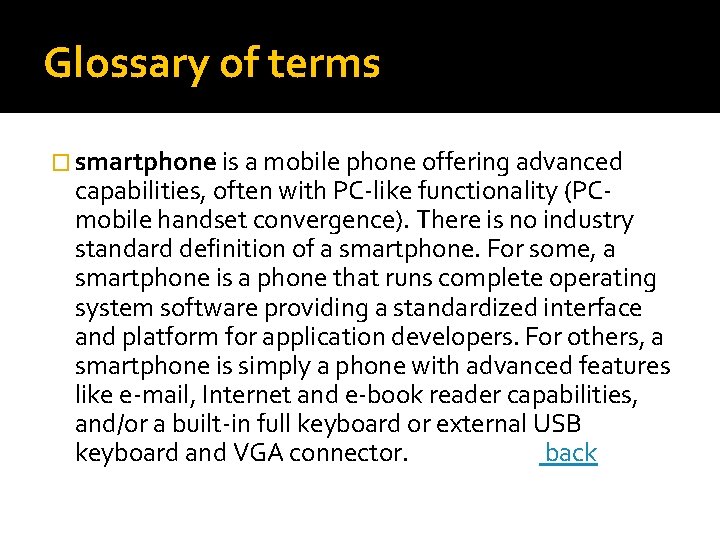

Glossary of terms � smartphone is a mobile phone offering advanced capabilities, often with PC-like functionality (PCmobile handset convergence). There is no industry standard definition of a smartphone. For some, a smartphone is a phone that runs complete operating system software providing a standardized interface and platform for application developers. For others, a smartphone is simply a phone with advanced features like e-mail, Internet and e-book reader capabilities, and/or a built-in full keyboard or external USB keyboard and VGA connector. back
