Mobile Surveillance Overview • Mobile Surveillance Platforms • The no-brainer: Fixed vs mobile surveillance • Video analytics: Let technology do the work • Stay informed: Communications options • Own the night with thermal vision • See far and wide with telescopic masts Be Anywhere • Deployment case studies See Everywhere 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com 2

Mobile Surveillance Platforms • These platforms create the ability to protect a larger area with less capital cost, higher uptime and lower maintenance • Removes the possibility for intruders to create a path through a fixed network of observation as deployment and observation patterns change constantly • Provides the ability to rapidly redeploy your observation capability to where it is required at short notice e. g. where high value crops or excavations requires protection Be Anywhere 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com 3 See Everywhere

Black Widow With satellite communications Observe your target via satellite from anywhere in the world 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 4 See Everywhere

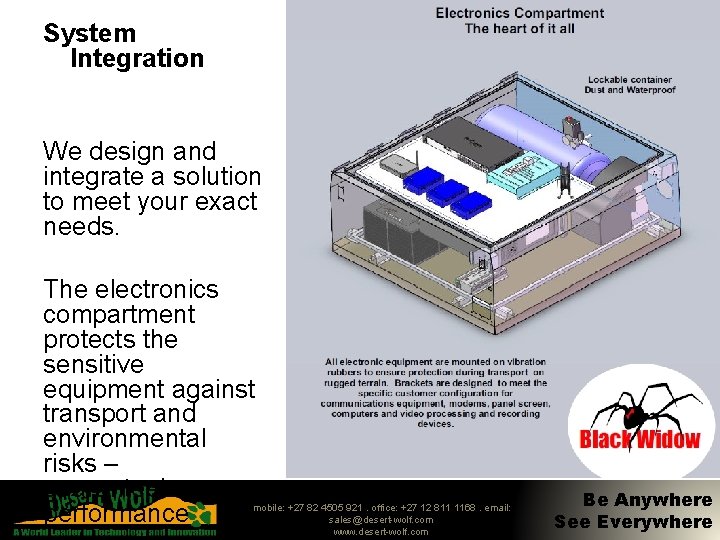

System Integration We design and integrate a solution to meet your exact needs. The electronics compartment protects the sensitive equipment against transport and environmental risks – guaranteeing you 10/12/2011 performance mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 5 See Everywhere

Black Widow With wireless communications Observe your target via highbandwidth wireless communications from the on-site control room 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 6 See Everywhere

Black Widow Rapid Deployment The mobile surveillance platform is easily transportable between sites and easy to deploy – average deployment time is less than 10 minutes 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 7 See Everywhere

Mobile Control Rooms Mercedes Sprinter 4 x 4 -based mobile control room with HRC-S sensors. 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 8 See Everywhere

Video analytics: Let technology do the work Excellent video images is one thing – making effective use of them is another challenge. A typical site has more than 10 sensors, often busy with continuous pan and tilt observation and it becomes extremely difficult for control room operators to monitor all sensor streams and identify intrusions. Effective video analytics solves this problem. Video images are analysed at source against a pre-defined set of criteria and only exceptions are sent through to the control room – you know that once an exception comes through there is a likely intrusion. 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 9 See Everywhere

Stay informed: Communications options You need to stay informed of intrusions as and when they happen. In remote areas it is possible to create fixed or mobile network clouds that will enable point-to-point wireless communications. These communications clouds are remarkably cost -effective and enables high-bandwidth video streaming to a central control room. When mobile units are required outside the reach of a network cloud or commercial 3 G infrastructure the units can be enabled to communicate via satellite. Remote surveillance clouds could also be equipped with satellite transmission equipment to Be Anywhere enable remote monitoring of the entire site. 10/12/2011 10 See Everywhere mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com

Own the night with thermal vision • You need to observe your target area day and night, with most high risk events during dusk and into the night • High resolution colour cameras provide adequate protection during the day, but for complete protection at risky times your require thermal vision • Thermal technology stands apart from enhanced lowlight night vision type equipment through its use of the infrared light spectrum. A range of options are available, capable of giving you clear vision with zero light and through fog, smoke and foliage 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 11 See Everywhere

FLIR – PTZ/SR 35 x 140 MS Multi-Sensor Systems combining 2 thermal imaging cameras and a daylight camera The PTZ-35 x 140 MS and SR-35 x 140 MS are especially developed for security applications. They are powerful, multi-sensor, mid-range, thermal imaging systems. They feature two thermal imaging cameras and one daylight /low light camera. One thermal imager has a wide angle field-of-view and is ideal for situational awareness. The other with the narrow field-of-view is designed for mid-range target recognition. 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 12 See Everywhere

FLIR HRC-Series Thermal imaging cameras for ultra long range surveillance applications with cooled detector The HRC-Series are equipped with a highly reliable, mid-wave, cooled detector which offers extremely long range detection in all weather conditions. The cameras offer a continuous optical and electronic zoom. This offers excellent situational awareness while also giving the possibility to zoom in at suspect activities, and have a closer look, once they are detected. The HRC-Series can be integrated into existing networks or used as a stand alone unit. The HRCSeries offer extreme long range detection and excellent image quality, in the darkest of nights, through smoke and dust. You can detect a mansize target several kilometers away. All thermal imaging cameras are extremely suited for border and coastal surveillance but also for mid-range threat detection. 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 13 See Everywhere

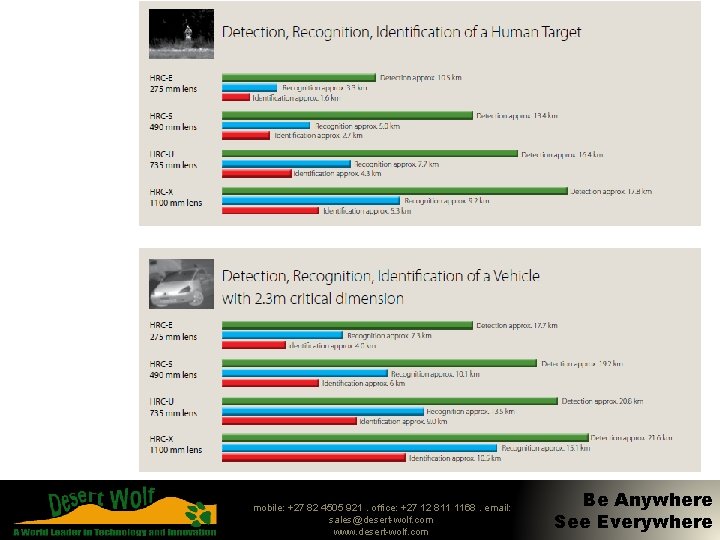

FLIR HRC -Series 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 14 See Everywhere

FLIR – Sentry • • • Clear imagery in total darkness, through smoke, fog, and most obscurants Detect man size targets at 3 km Sharp imagery between zoom settings reduces operator workload Powerful, sensitive camera offers excellent zoom and color quality Sharp thermal imagery regardless of scenedynamics Configured to be a field transportable system for fast deployment Intelligent self test confirms that the system isoperating optimally Autonomous operation with slaving to other longer range sensors; integrates easily into networks utilizing MPEG videos and full remote control Hundreds of SENTRY systems fielded with USAF in harsh desert and arctic climates 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 15 See Everywhere

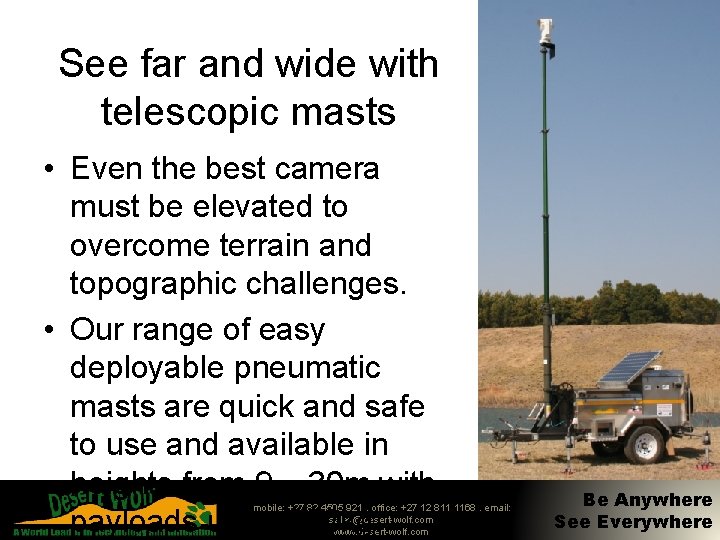

See far and wide with telescopic masts • Even the best camera must be elevated to overcome terrain and topographic challenges. • Our range of easy deployable pneumatic masts are quick and safe to use and available in heights from 9 – 30 m with payloads up to 200 kg. 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 16 See Everywhere

Deployment case studies • Study 1: Mobile surveillance application in the Middle East with mobile control room – each deployment at a different geographical area (observation area 18 km radius) • Study 2: Mobile surveillance at a fixed site in the Middle East with fixed control room (observation area 45 km x 45 km area) • Study 3: Mobile surveillance in metropolitan area with fixed and mobile control room ( observation area 100 km x 50 km). A coastal border is a critical part of this surveillance scenario. 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 17 See Everywhere

Study 1: Mobile surveillance application in the Middle East with mobile control room – each deployment at a different geographical area (observation area 18 km radius) Mobile control room Based on Toyota Land Cruiser Creates 10 km Wi-Fi communications Cloud (approx $186 000) The solution is completely mobile and deployed where -ever the customer requires. The solution centers around a mobile surveillance vehicle-based control room, creating a 20 km diameter Wi-Fi communications cloud. Three mobile surveillance platforms, each equipped with a FLIR HRC – S multisensor unit is deployed to provide protection of the area immediately around the control room and several kilometers around for early detection of intruders 10/12/2011 Mobile surveillance Platform With HRC – S (19. 2 km vehicle detection) (Approx $253 000) 10 km mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com 18 km Be Anywhere 18 See Everywhere

Study 2: Mobile surveillance at a fixed site in the Middle East with maritime border and fixed control room (observation area 45 km x 45 km area) Fixed control room Creates 48 km Wi-Fi communications Cloud (approx $190 000) 18 km Mobile surveillance Platform With HRC – S (19. 2 km vehicle detection) (Approx $253 000) 48 km 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 19 See Everywhere

Study 3: Mobile surveillance in metropolitan area with fixed and mobile control room ( observation area 100 km x 50 km) including coastal border 17 km Mobile control room Based on Mercedes Sprinter With HRC-S (19. 2 km vehicle detection) (approx $387 000) Fixed control room Mobile surveillance Platform With PTX 35 (5. 8 km vehicle detection) (Approx $166 000) 10/12/2011 mobile: +27 82 4505 921. office: +27 12 811 1168. email: sales@desert-wolf. com www. desert-wolf. com Be Anywhere 20 See Everywhere
