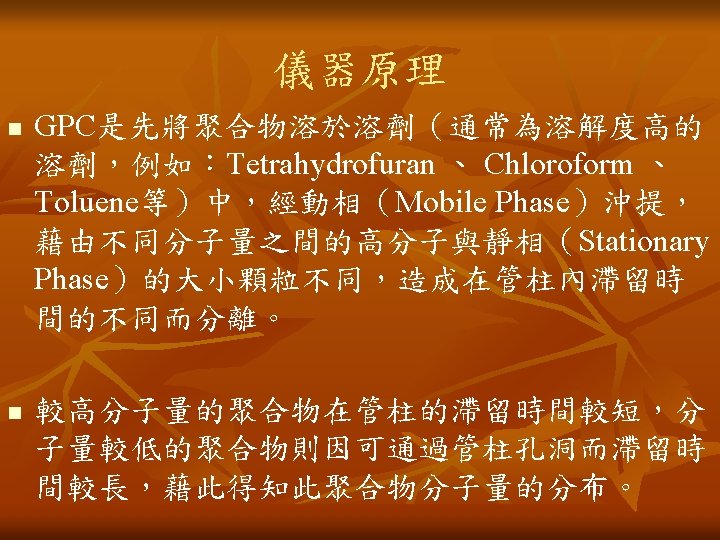

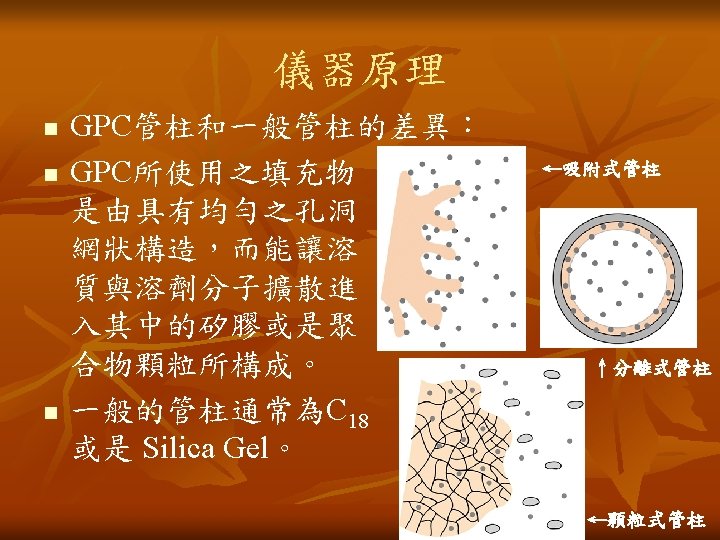

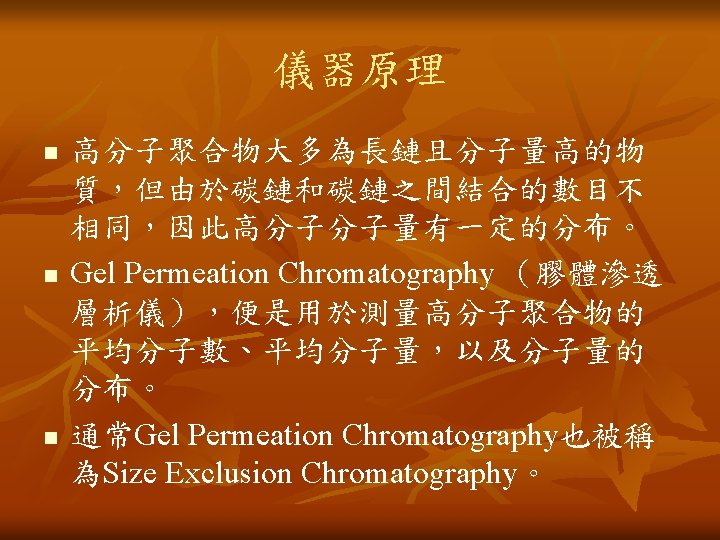

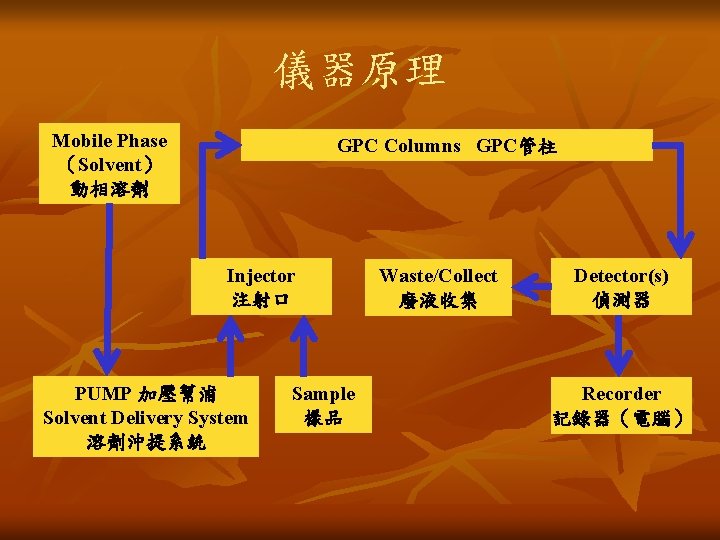

儀器原理 Mobile Phase (Solvent) 動相溶劑 GPC Columns GPC管柱 Injector 注射口 PUMP 加壓幫浦 Solvent Delivery System 溶劑沖提系統 Sample 樣品 Waste/Collect 廢液收集 Detector(s) 偵測器 Recorder 記錄器(電腦)
動畫模擬 GPC Columns GPC管柱 Injector 注射口 PUMP 加壓幫浦 Solvent Delivery System 溶劑沖提系統 GPC Waste/Collect 廢液收集 Detector(s) 偵測器

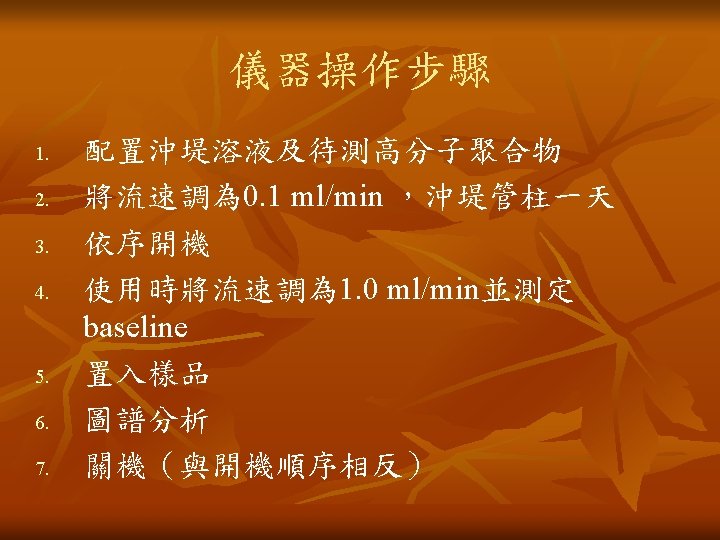

儀器操作步驟 n n n 由於GPC為相對莫耳重,所以儀器必須先校正( Calibration )。 公式 [η]為本質黏度(intrinsic viscosity) M為分子量(molecular weight) Φ為常數(universal constant) r 02 為均方根尾端與尾端距離 (root-mean-square end-to-end distance) 一般來說,以polystyrene為基準,分子量為 103~106, polydispersity約1. 15。
參考資料 n n n Daniel C. Harris (2003) Sixth edition Quantitative Chemical Analysis L. H. Sperling Fourth edition (2006) Introduction to Physical Polymer Science http: //www. perkinelmer. com/
Thank You for Your Attention
