Mobile GIS Representations Occur In the human mind

Mobile GIS Representations Occur: • In the human mind, when information is acquired through the senses and stored in memory • In photographs, which are twodimensional models of light received by the camera • In written text, when information is expressed in words © 2005 John Wiley & Sons, Ltd

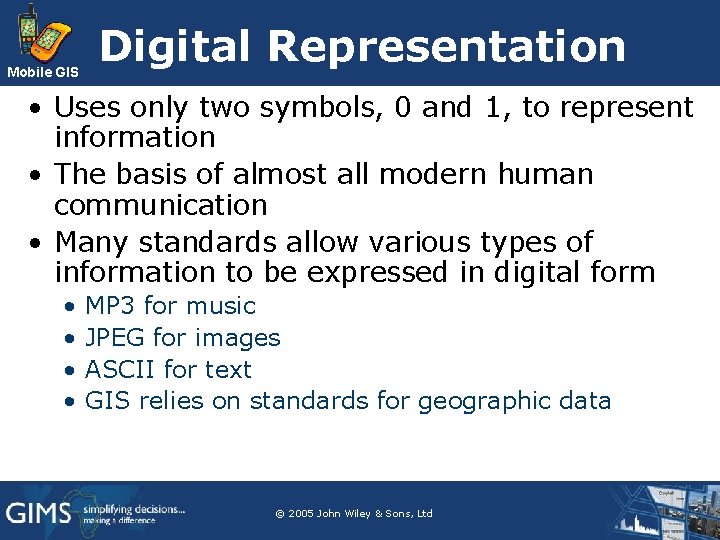

Mobile GIS Digital Representation • Uses only two symbols, 0 and 1, to represent information • The basis of almost all modern human communication • Many standards allow various types of information to be expressed in digital form • • MP 3 for music JPEG for images ASCII for text GIS relies on standards for geographic data © 2005 John Wiley & Sons, Ltd

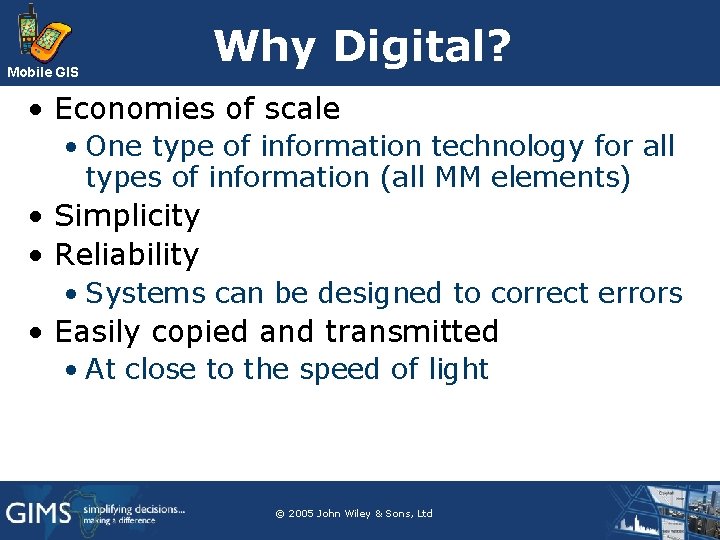

Mobile GIS Why Digital? • Economies of scale • One type of information technology for all types of information (all MM elements) • Simplicity • Reliability • Systems can be designed to correct errors • Easily copied and transmitted • At close to the speed of light © 2005 John Wiley & Sons, Ltd

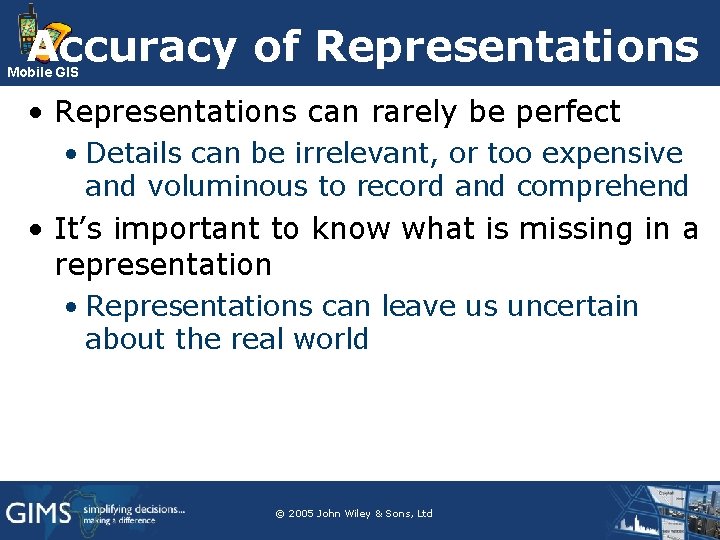

Accuracy of Representations Mobile GIS • Representations can rarely be perfect • Details can be irrelevant, or too expensive and voluminous to record and comprehend • It’s important to know what is missing in a representation • Representations can leave us uncertain about the real world © 2005 John Wiley & Sons, Ltd

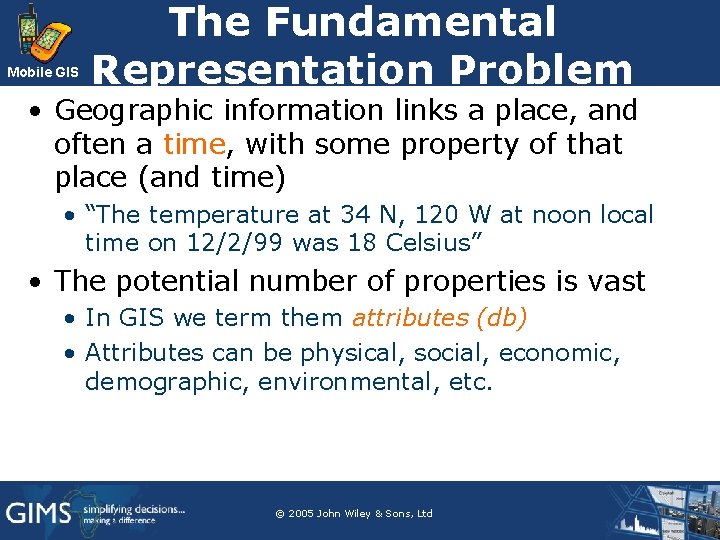

Mobile GIS The Fundamental Representation Problem • Geographic information links a place, and often a time, with some property of that place (and time) • “The temperature at 34 N, 120 W at noon local time on 12/2/99 was 18 Celsius” • The potential number of properties is vast • In GIS we term them attributes (db) • Attributes can be physical, social, economic, demographic, environmental, etc. © 2005 John Wiley & Sons, Ltd

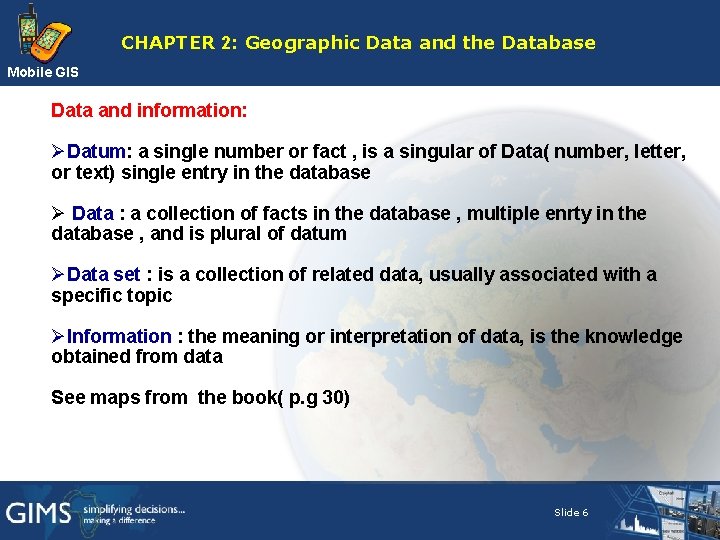

CHAPTER 2: Geographic Data and the Database Mobile GIS Data and information: ØDatum: a single number or fact , is a singular of Data( number, letter, or text) single entry in the database Ø Data : a collection of facts in the database , multiple enrty in the database , and is plural of datum ØData set : is a collection of related data, usually associated with a specific topic ØInformation : the meaning or interpretation of data, is the knowledge obtained from data See maps from the book( p. g 30) Slide 6

Mobile GIS Slide 7

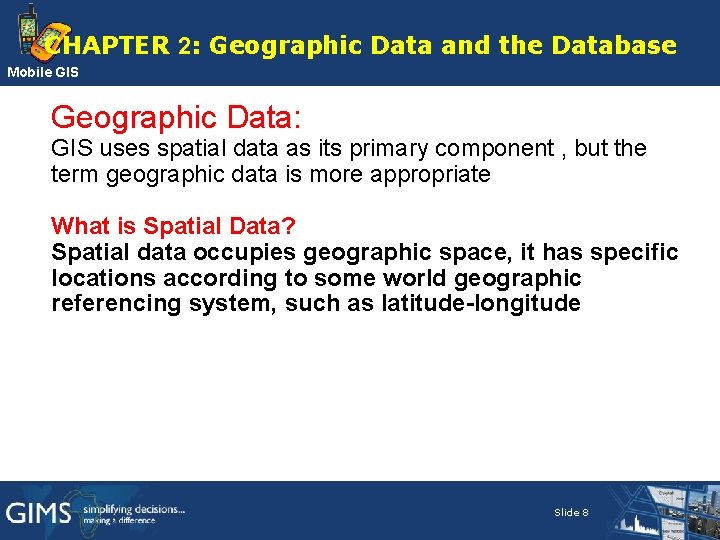

CHAPTER 2: Geographic Data and the Database Mobile GIS Geographic Data: GIS uses spatial data as its primary component , but the term geographic data is more appropriate What is Spatial Data? Spatial data occupies geographic space, it has specific locations according to some world geographic referencing system, such as latitude-longitude Slide 8

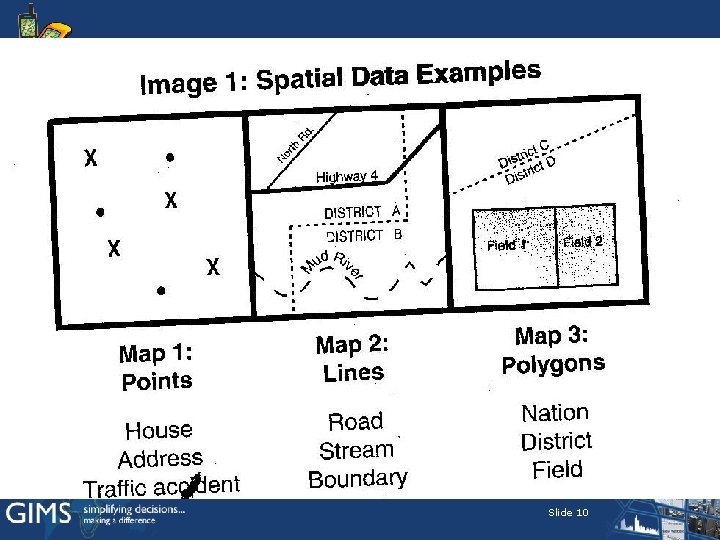

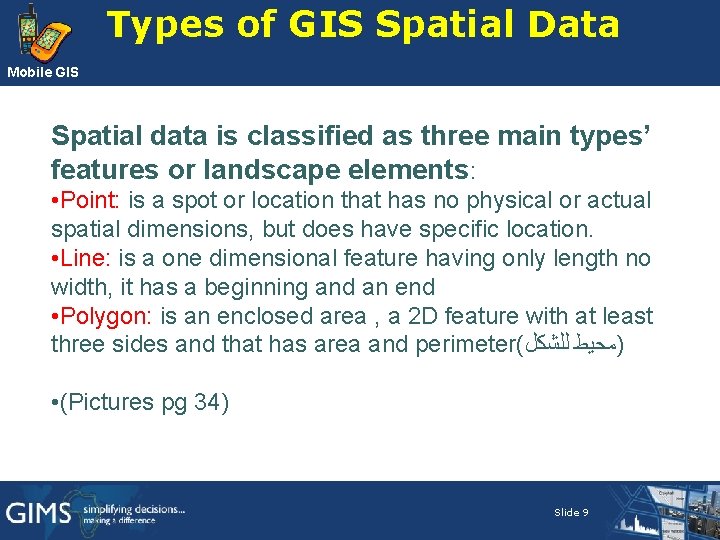

Types of GIS Spatial Data Mobile GIS Spatial data is classified as three main types’ features or landscape elements: • Point: is a spot or location that has no physical or actual spatial dimensions, but does have specific location. • Line: is a one dimensional feature having only length no width, it has a beginning and an end • Polygon: is an enclosed area , a 2 D feature with at least three sides and that has area and perimeter( )ﻣﺤﻴﻂ ﻟﻠﺸﻜﻞ • (Pictures pg 34) Slide 9

Mobile GIS Slide 10

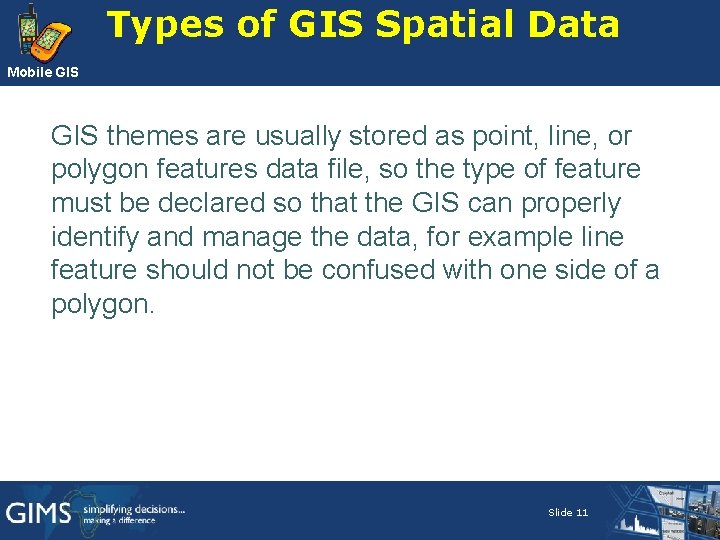

Types of GIS Spatial Data Mobile GIS themes are usually stored as point, line, or polygon features data file, so the type of feature must be declared so that the GIS can properly identify and manage the data, for example line feature should not be confused with one side of a polygon. Slide 11

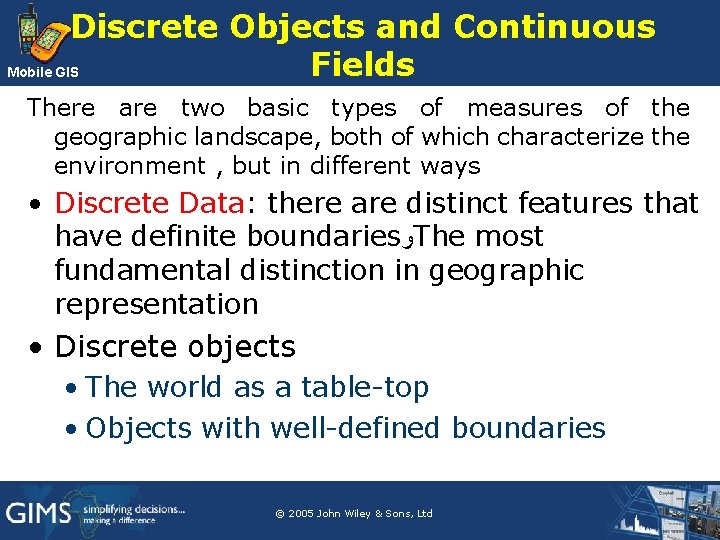

Discrete Objects and Continuous Fields Mobile GIS There are two basic types of measures of the geographic landscape, both of which characterize the environment , but in different ways • Discrete Data: there are distinct features that have definite boundaries ﻭ The most fundamental distinction in geographic representation • Discrete objects • The world as a table-top • Objects with well-defined boundaries © 2005 John Wiley & Sons, Ltd

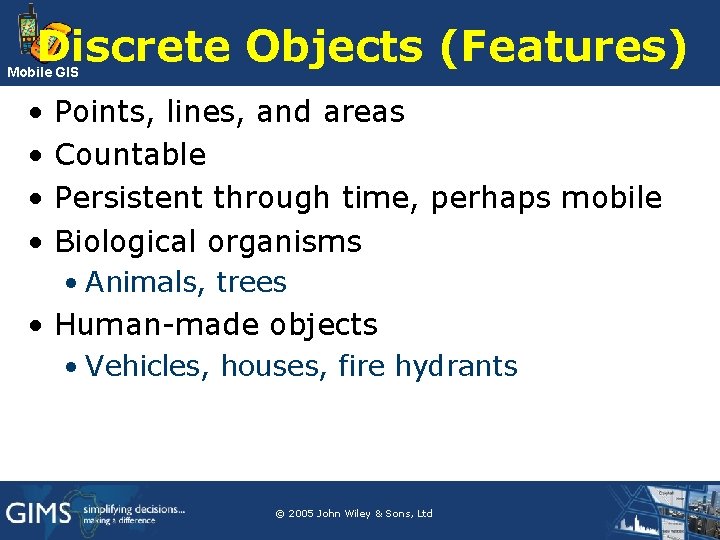

Discrete Objects (Features) Mobile GIS • • Points, lines, and areas Countable Persistent through time, perhaps mobile Biological organisms • Animals, trees • Human-made objects • Vehicles, houses, fire hydrants © 2005 John Wiley & Sons, Ltd

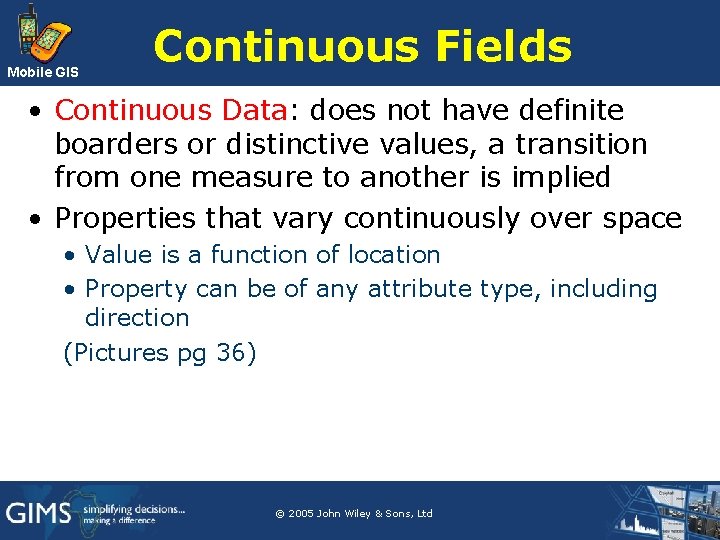

Mobile GIS Continuous Fields • Continuous Data: does not have definite boarders or distinctive values, a transition from one measure to another is implied • Properties that vary continuously over space • Value is a function of location • Property can be of any attribute type, including direction (Pictures pg 36) © 2005 John Wiley & Sons, Ltd

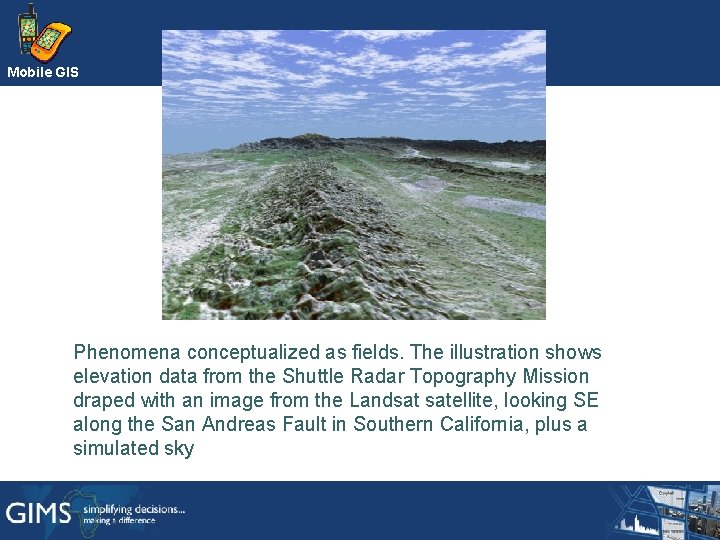

Mobile GIS Phenomena conceptualized as fields. The illustration shows elevation data from the Shuttle Radar Topography Mission draped with an image from the Landsat satellite, looking SE along the San Andreas Fault in Southern California, plus a simulated sky

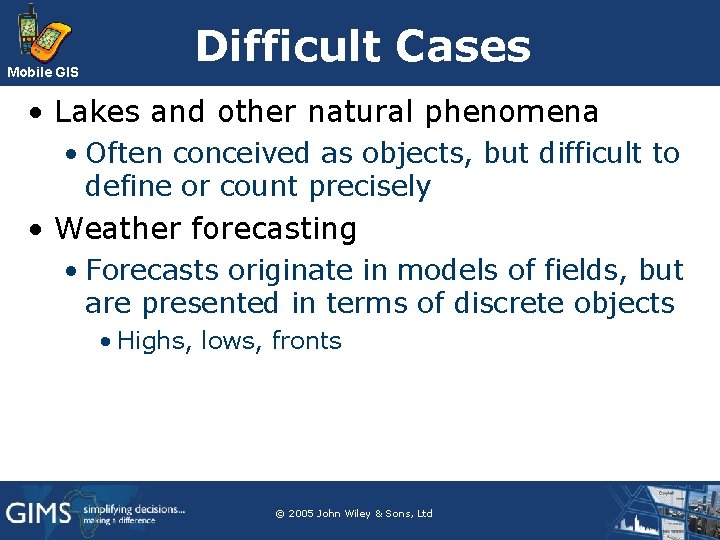

Mobile GIS Difficult Cases • Lakes and other natural phenomena • Often conceived as objects, but difficult to define or count precisely • Weather forecasting • Forecasts originate in models of fields, but are presented in terms of discrete objects • Highs, lows, fronts © 2005 John Wiley & Sons, Ltd

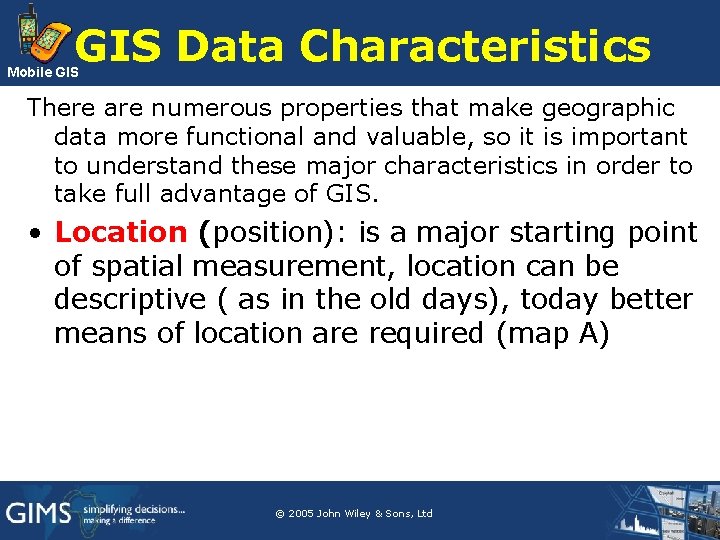

GIS Data Characteristics Mobile GIS There are numerous properties that make geographic data more functional and valuable, so it is important to understand these major characteristics in order to take full advantage of GIS. • Location (position): is a major starting point of spatial measurement, location can be descriptive ( as in the old days), today better means of location are required (map A) © 2005 John Wiley & Sons, Ltd

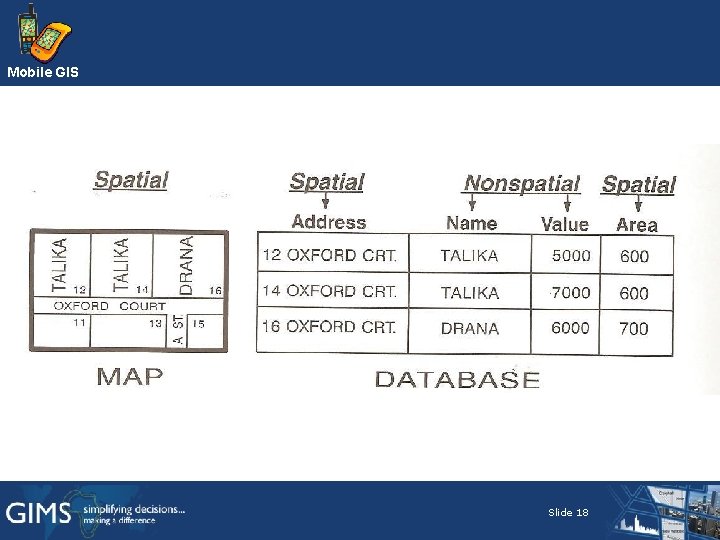

Mobile GIS Slide 18

Mobile GIS Slide 19

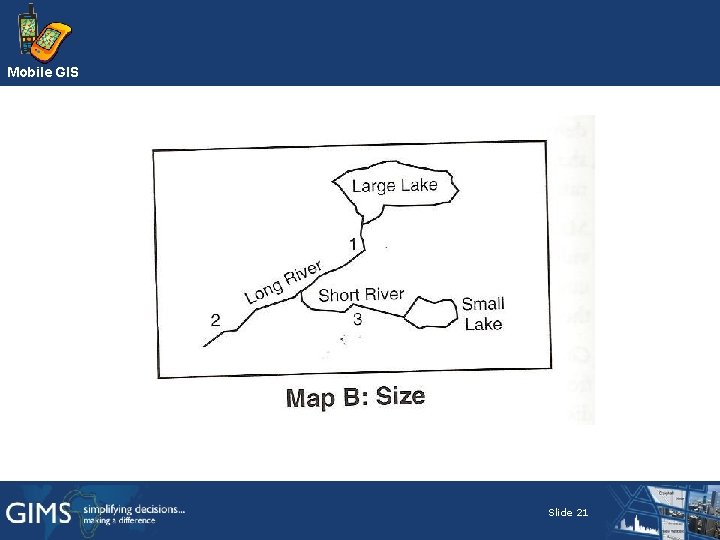

GIS Data Characteristics, Cont Mobile GIS • Size : polygon has area and line has length • Shape: often indicates identity and on the landscape, and are quickly appreciated by the eye, but the computer need special programs to make spatial from descriptions. (mathematical techniques) Figure pg 38 © 2005 John Wiley & Sons, Ltd

Mobile GIS Slide 21

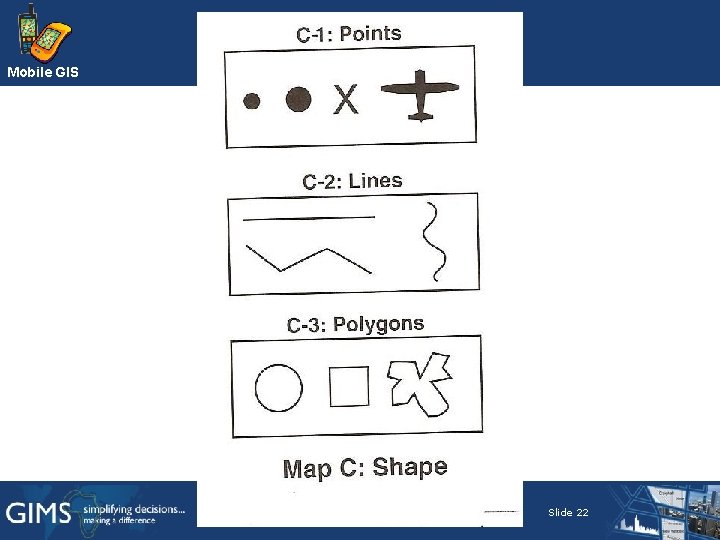

Mobile GIS Slide 22

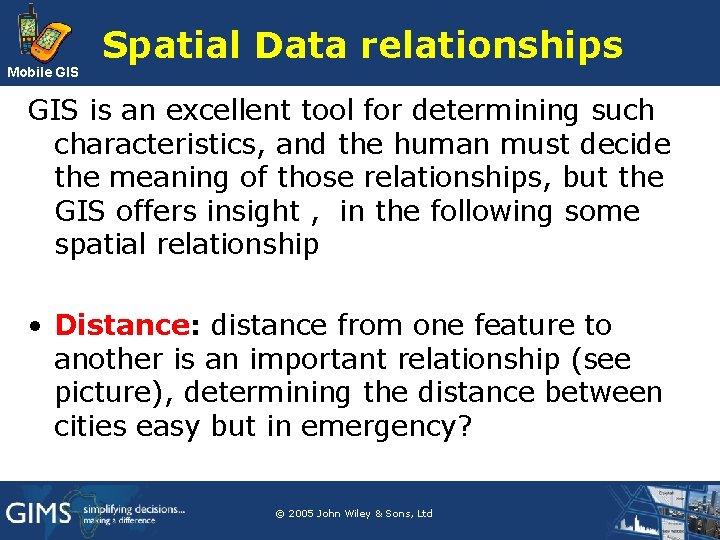

Mobile GIS Spatial Data relationships GIS is an excellent tool for determining such characteristics, and the human must decide the meaning of those relationships, but the GIS offers insight , in the following some spatial relationship • Distance: distance from one feature to another is an important relationship (see picture), determining the distance between cities easy but in emergency? © 2005 John Wiley & Sons, Ltd

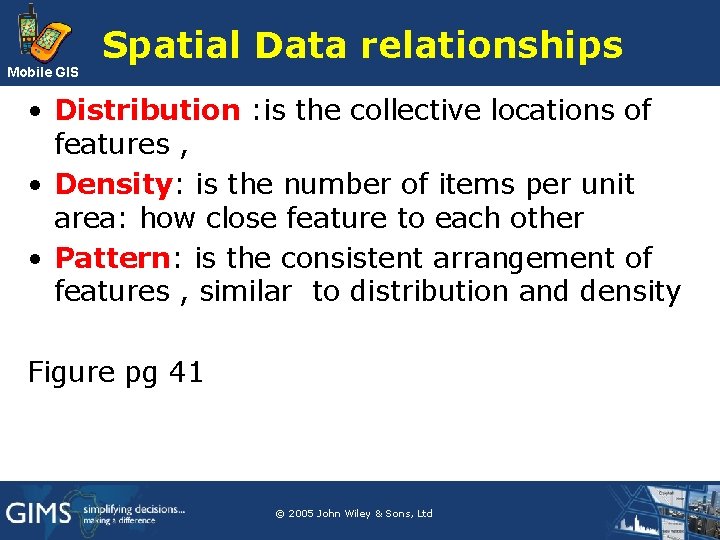

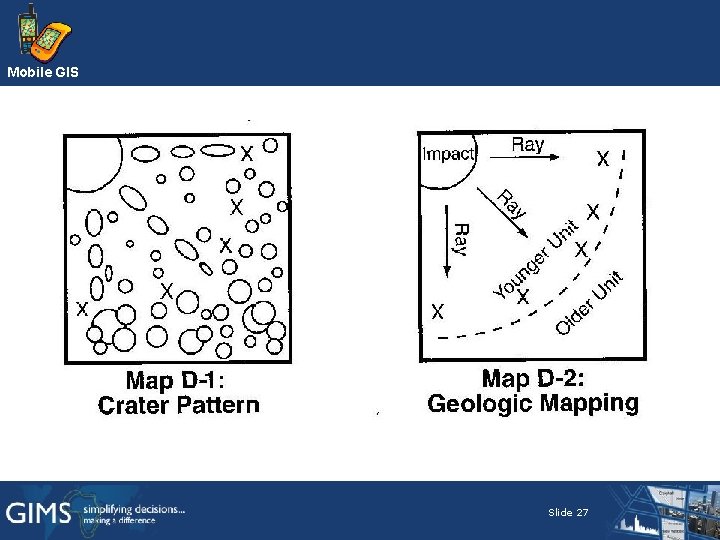

Mobile GIS Spatial Data relationships • Distribution : is the collective locations of features , • Density: is the number of items per unit area: how close feature to each other • Pattern: is the consistent arrangement of features , similar to distribution and density Figure pg 41 © 2005 John Wiley & Sons, Ltd

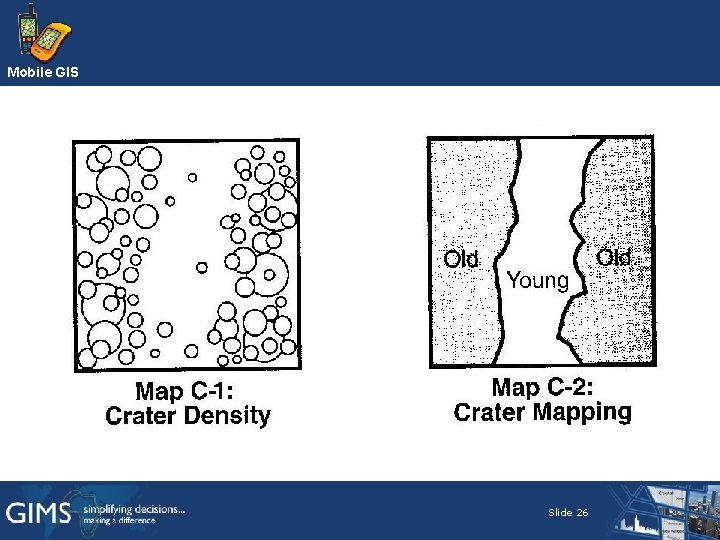

Mobile GIS Slide 25

Mobile GIS Slide 26

Mobile GIS Slide 27

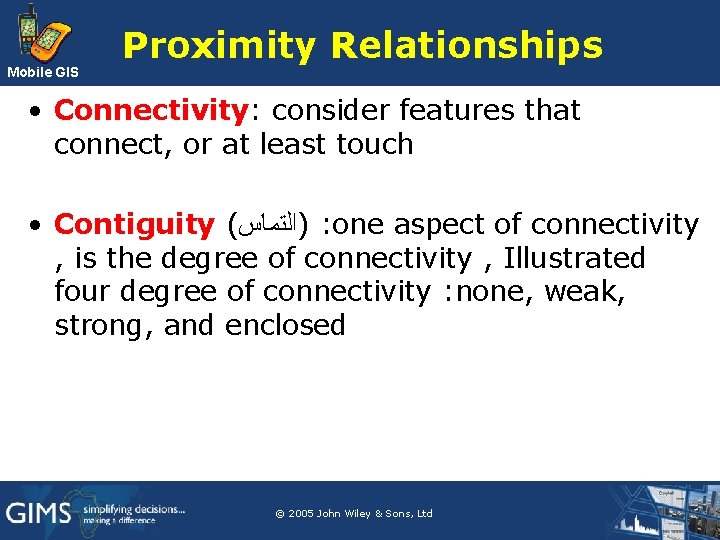

Mobile GIS Proximity Relationships • Connectivity: consider features that connect, or at least touch • Contiguity ( )ﺍﻟﺘﻤﺎﺱ : one aspect of connectivity , is the degree of connectivity , Illustrated four degree of connectivity : none, weak, strong, and enclosed © 2005 John Wiley & Sons, Ltd

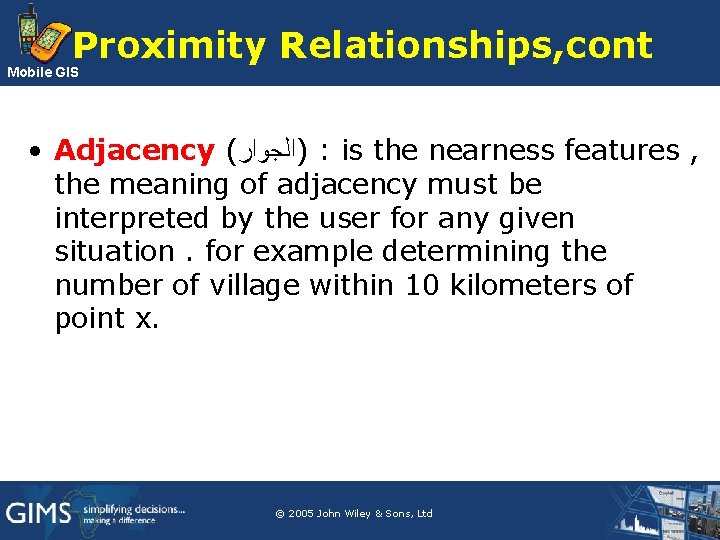

Proximity Relationships, cont Mobile GIS • Adjacency ( )ﺍﻟﺠﻮﺍﺭ : is the nearness features , the meaning of adjacency must be interpreted by the user for any given situation. for example determining the number of village within 10 kilometers of point x. © 2005 John Wiley & Sons, Ltd

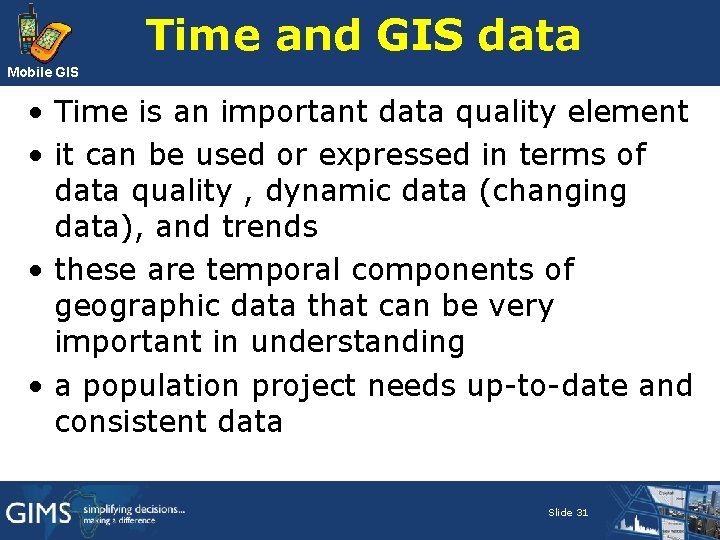

Time and GIS data Mobile GIS • Time is an important data quality element • it can be used or expressed in terms of data quality , dynamic data (changing data), and trends • these are temporal components of geographic data that can be very important in understanding • a population project needs up-to-date and consistent data Slide 31

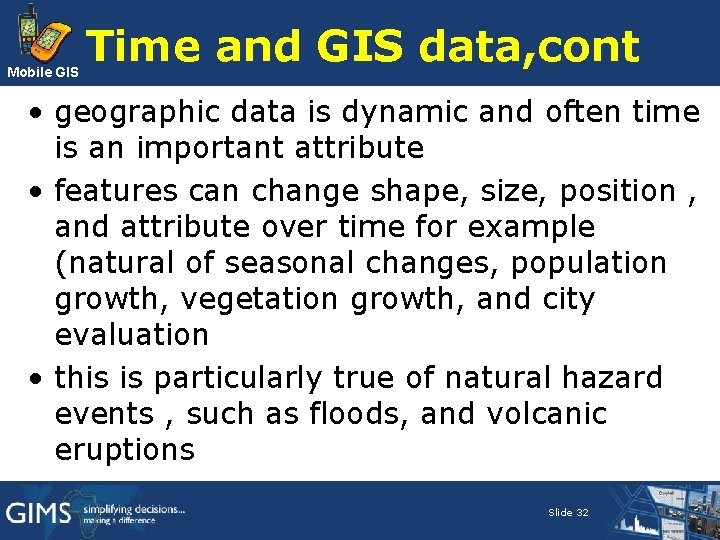

Mobile GIS Time and GIS data, cont • geographic data is dynamic and often time is an important attribute • features can change shape, size, position , and attribute over time for example (natural of seasonal changes, population growth, vegetation growth, and city evaluation • this is particularly true of natural hazard events , such as floods, and volcanic eruptions Slide 32

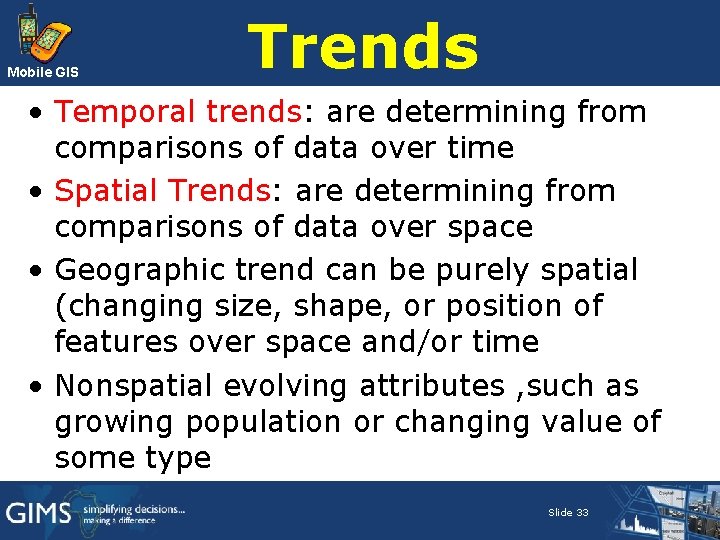

Mobile GIS Trends • Temporal trends: are determining from comparisons of data over time • Spatial Trends: are determining from comparisons of data over space • Geographic trend can be purely spatial (changing size, shape, or position of features over space and/or time • Nonspatial evolving attributes , such as growing population or changing value of some type Slide 33

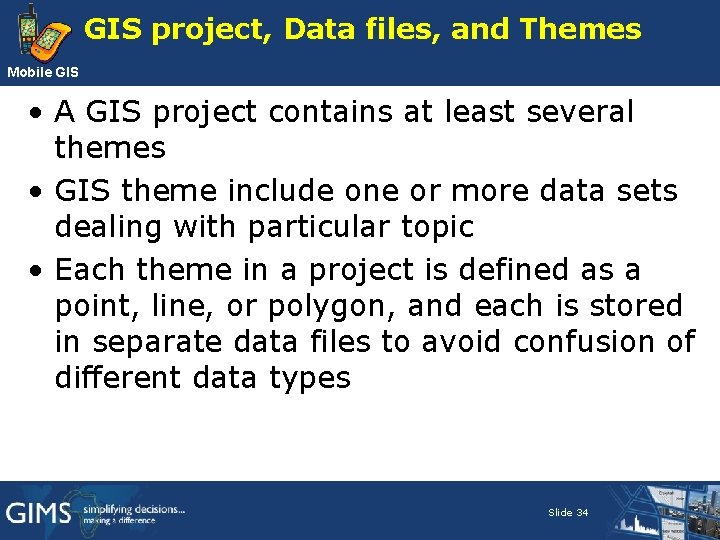

GIS project, Data files, and Themes Mobile GIS • A GIS project contains at least several themes • GIS theme include one or more data sets dealing with particular topic • Each theme in a project is defined as a point, line, or polygon, and each is stored in separate data files to avoid confusion of different data types Slide 34

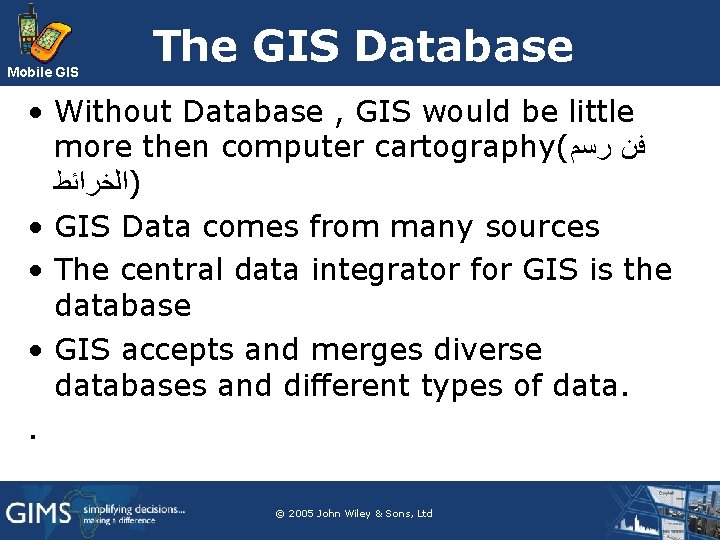

Mobile GIS The GIS Database • Without Database , GIS would be little more then computer cartography( ﻓﻦ ﺭﺳﻢ )ﺍﻟﺨﺮﺍﺋﻂ • GIS Data comes from many sources • The central data integrator for GIS is the database • GIS accepts and merges diverse databases and different types of data. . © 2005 John Wiley & Sons, Ltd

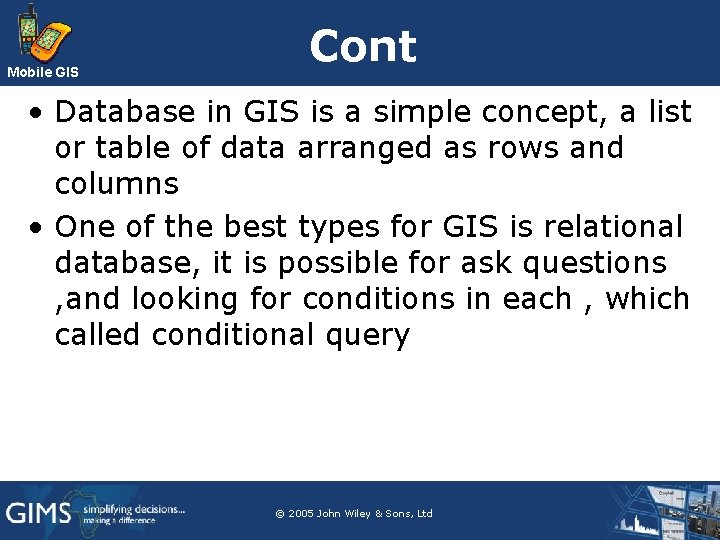

Mobile GIS Cont • Database in GIS is a simple concept, a list or table of data arranged as rows and columns • One of the best types for GIS is relational database, it is possible for ask questions , and looking for conditions in each , which called conditional query © 2005 John Wiley & Sons, Ltd

Mobile GIS Database –Map Link • A major strength of GIS is the interactive link between the database and the map • When selection are made in the database, the selected records are highlighted on the map. • When features are selected on the map, they are highlighted in the database. © 2005 John Wiley & Sons, Ltd

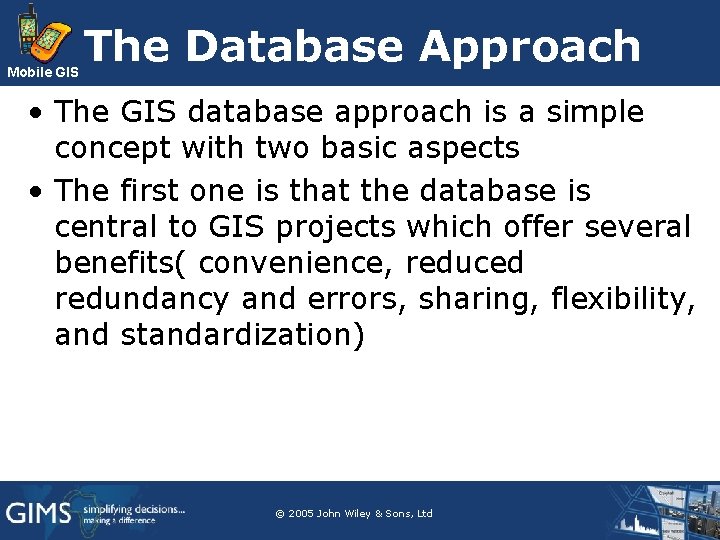

Mobile GIS The Database Approach • The GIS database approach is a simple concept with two basic aspects • The first one is that the database is central to GIS projects which offer several benefits( convenience, reduced redundancy and errors, sharing, flexibility, and standardization) © 2005 John Wiley & Sons, Ltd

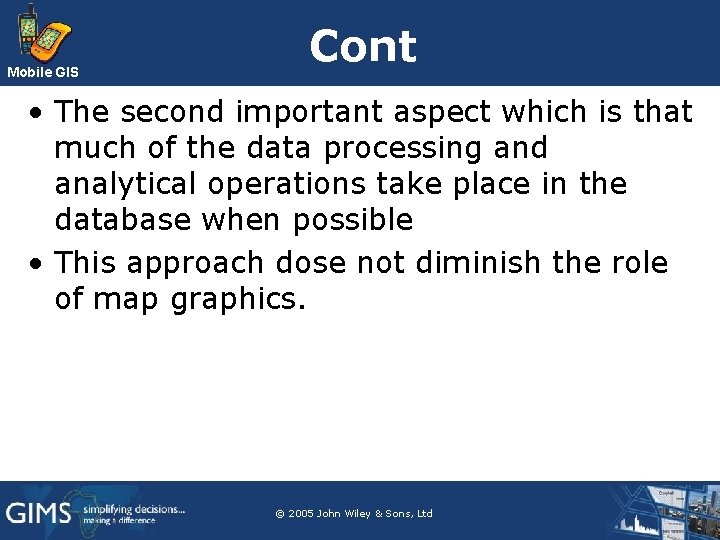

Mobile GIS Cont • The second important aspect which is that much of the data processing and analytical operations take place in the database when possible • This approach dose not diminish the role of map graphics. © 2005 John Wiley & Sons, Ltd

Mobile GIS Thank you Slide 41
