mm CLUSTERCIS LEPi anode start anode stop anode
- Slides: 53

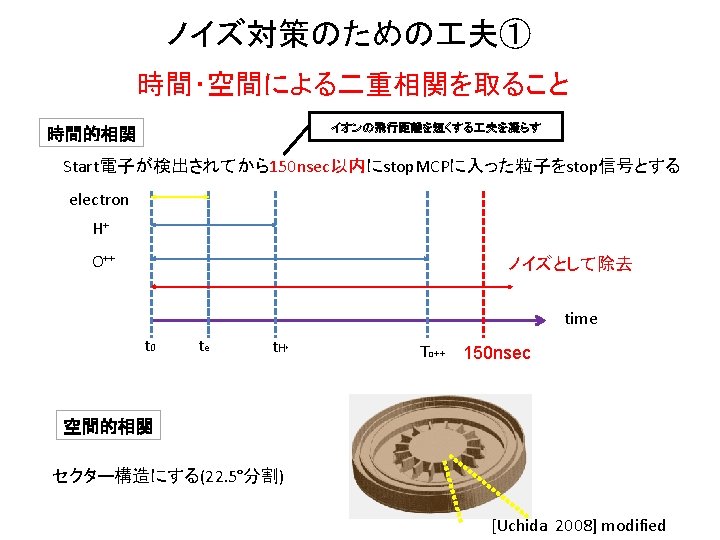

ノイズ対策のための 夫 検出部の面積を小さくすること [mm] CLUSTER/CIS 開発中のLEP-i anodeの形 start anode stop anode 10 30 50 70 90 [mm] [Uchida 2008] modified

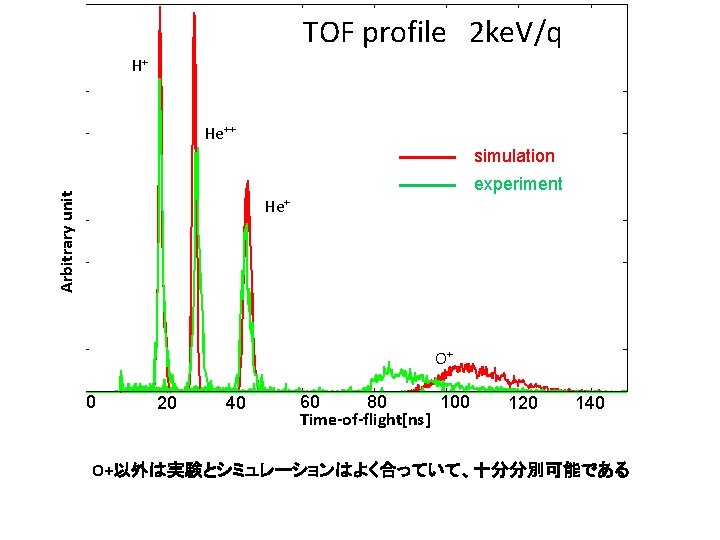

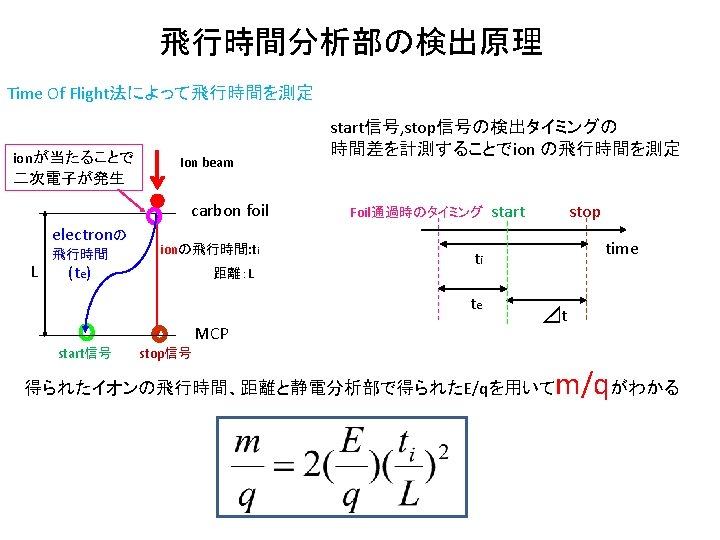

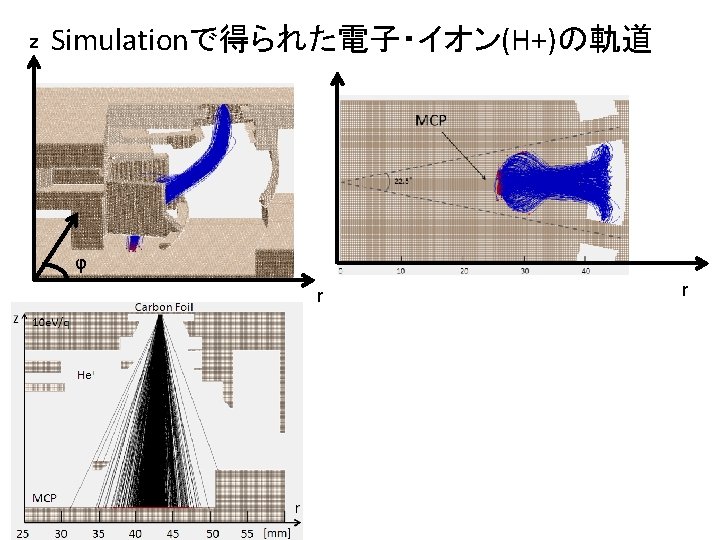

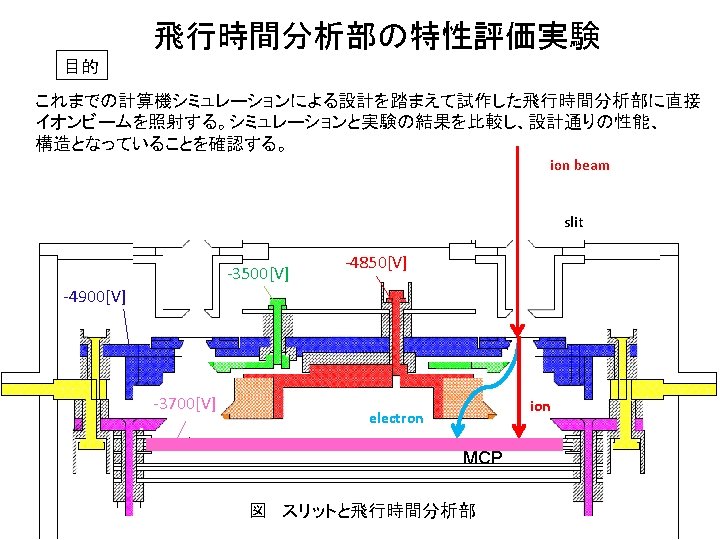

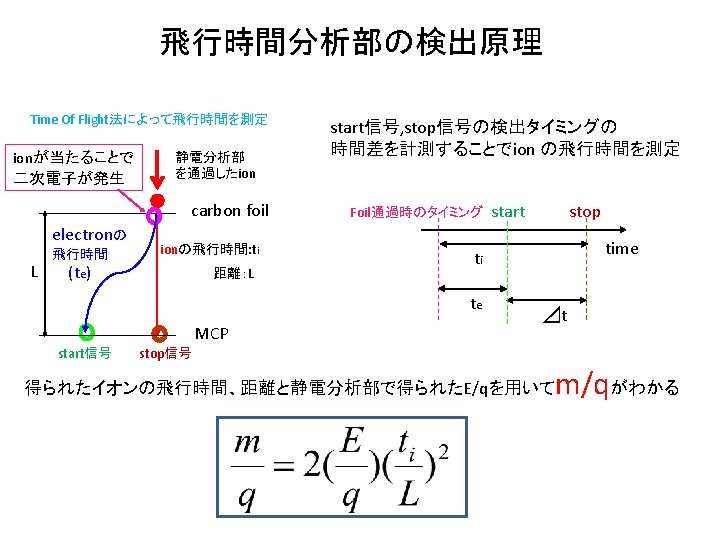

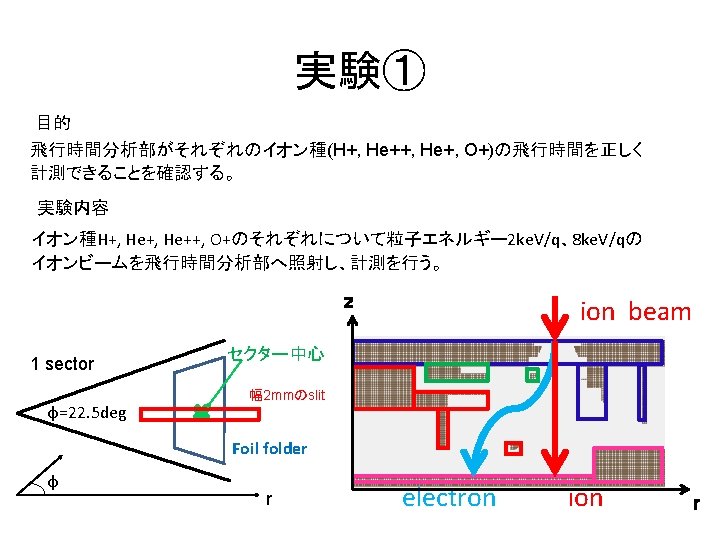

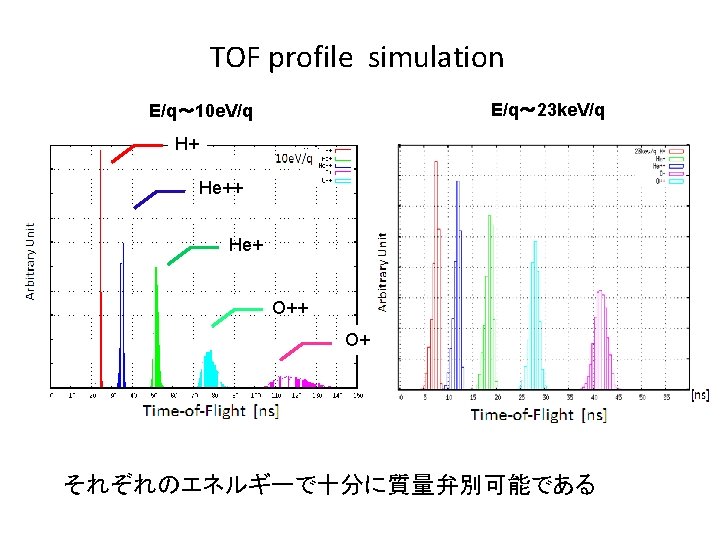

TOF profile 2 ke. V/q H+ He++ simulation Arbitrary unit experiment He+ O+ 0 20 40 60 80 100 Time-of-flight[ns] 120 140 O+以外は実験とシミュレーションはよく合っていて、十分分別可能である

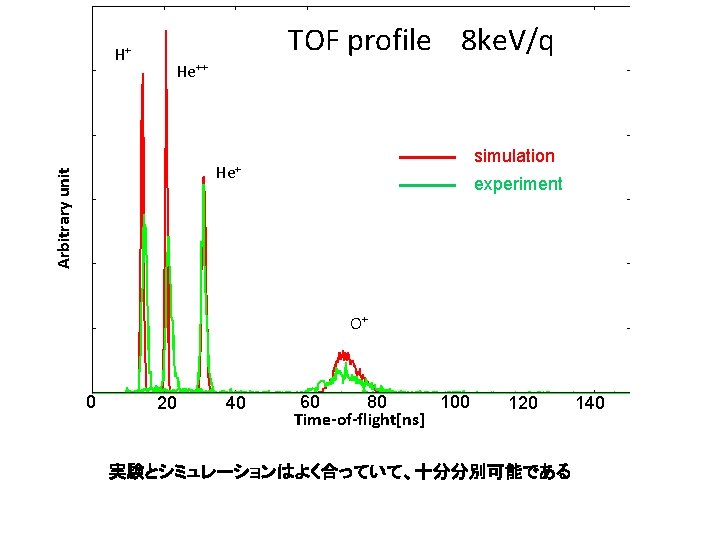

H+ TOF profile 8 ke. V/q He++ simulation Arbitrary unit He+ experiment O+ 0 20 40 60 80 100 Time-of-flight[ns] 120 実験とシミュレーションはよく合っていて、十分分別可能である 140

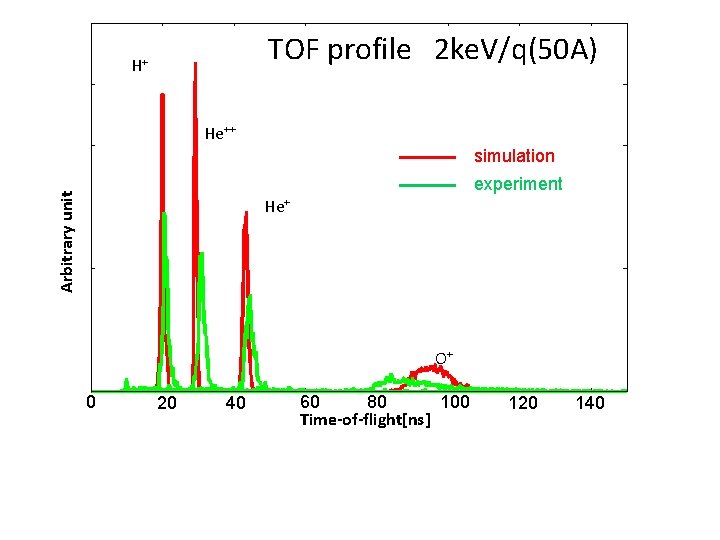

TOF profile 2 ke. V/q(50 A) H+ He++ simulation Arbitrary unit experiment He+ O+ 0 20 40 60 80 100 Time-of-flight[ns] 120 140
H+ TOF profile 8 ke. V/q(50 A) He++ simulation Arbitrary unit He+ experiment O+ 0 20 40 60 80 100 Time-of-flight[ns] 120 140

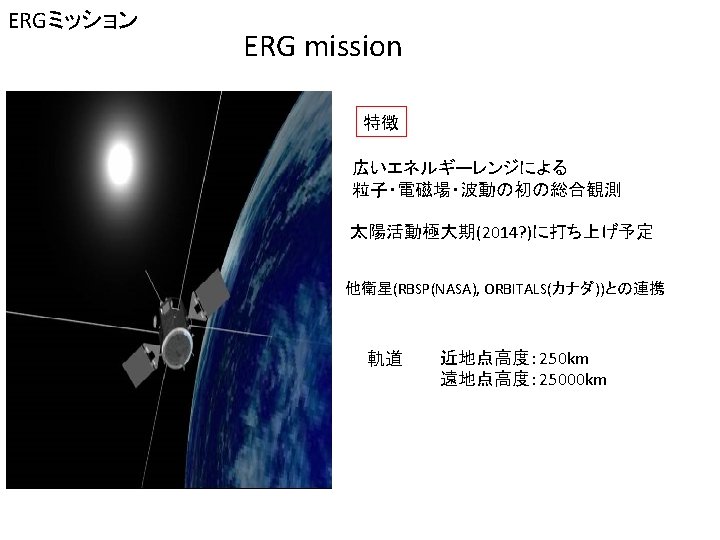

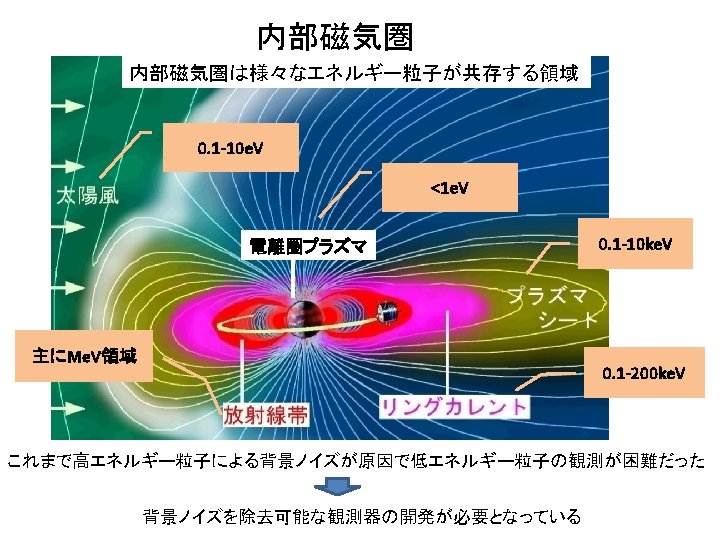

ERG衛星に搭載予定の粒子観測機器 電子観測器 0. 1 e. V 12 e. V 5 ke. V 10 e. V 30 ke. V 200 ke. V 2 Me. V 80 ke. V ion観測器 0. 5 e. V 10 ke. V 100 e. V 25 ke. V 180 ke. V 20 Me. V
ノイズ対策のための 夫② 検出部の面積を小さくすること [mm] CLUSTER/CIS 開発中のLEP-i anodeの形 start anode stop anode 10 30 50 70 90 [mm] [Uchida 2008] modified

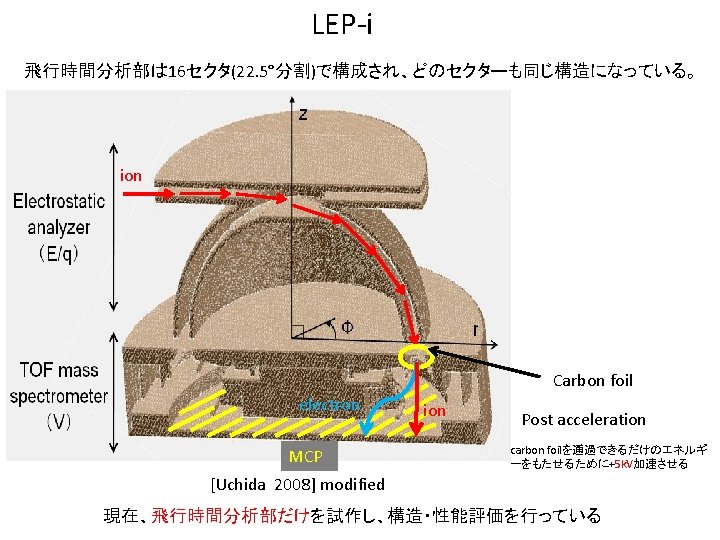

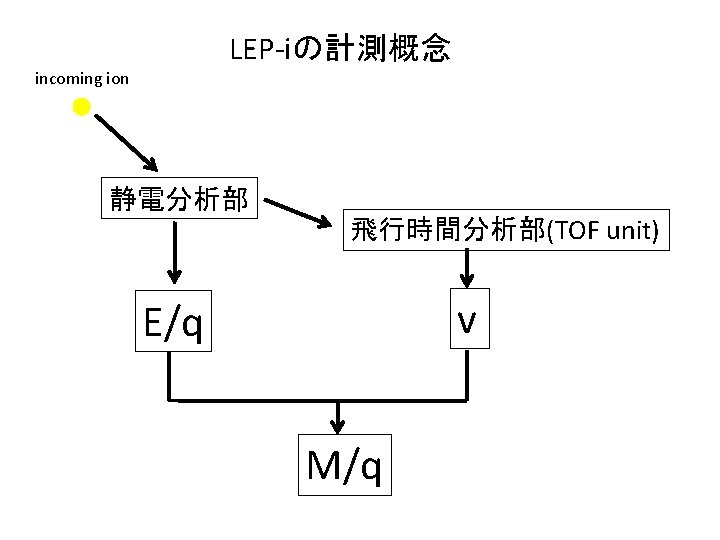

LEP-iの性能 Energy range 10 e. V/q~25 ke. V/q Time resolution 8 sec Angle resolution(azimuth) 22. 5° Angle resolution(elevation) 5°(FWHM) Energy resolution 16% (FWHM) G-factor 2. 6 x 10 -3 cm 2 sr ke. V/22. 5°

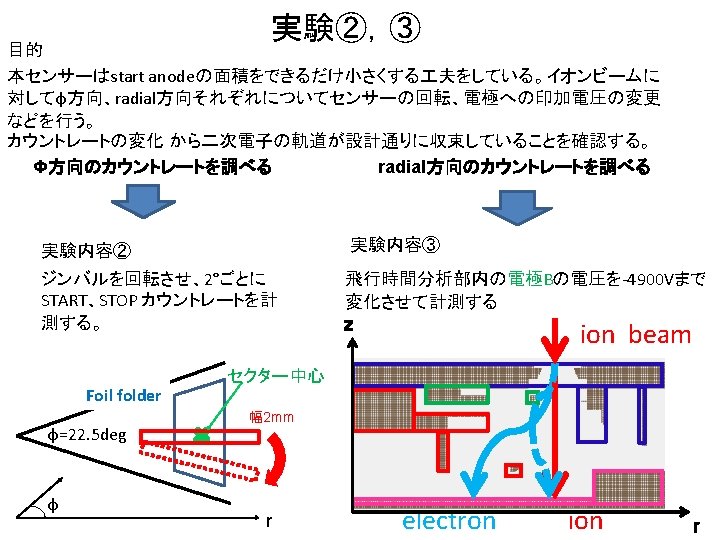

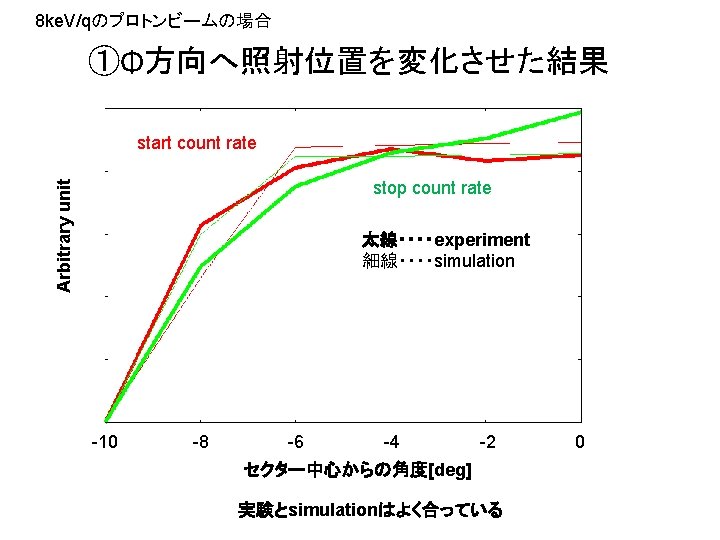

angle 1. 25 deg

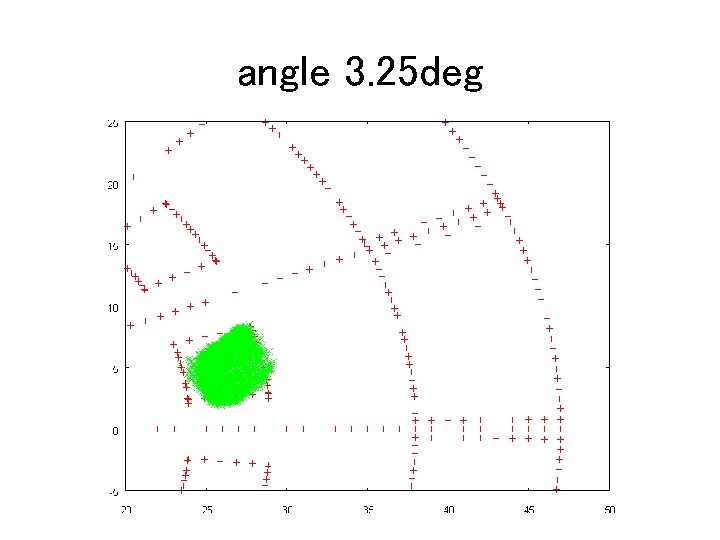

angle 3. 25 deg
angle 5. 25 deg
angle 7. 25 deg
angle 9. 25 deg
angle 11. 25 deg

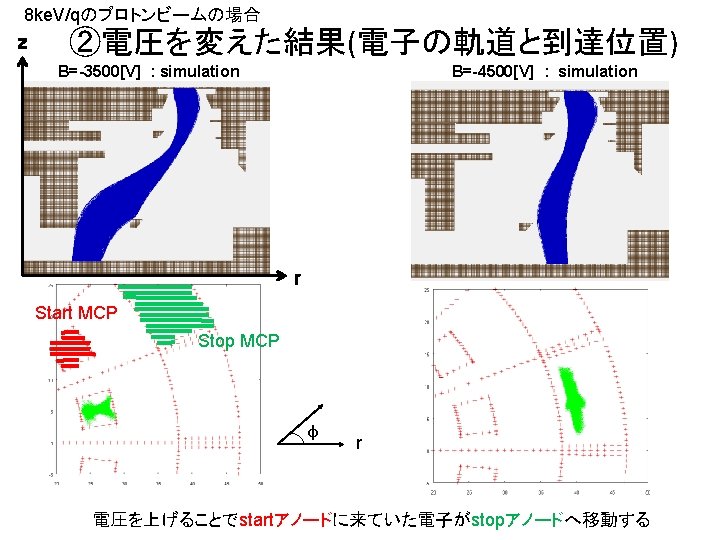

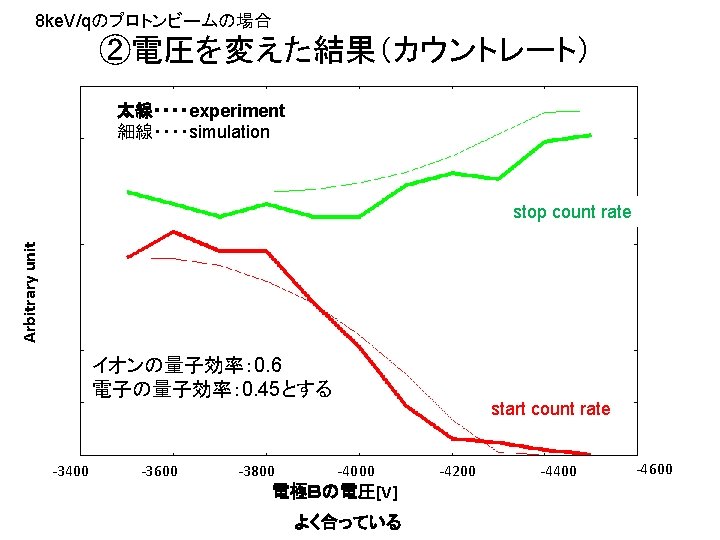

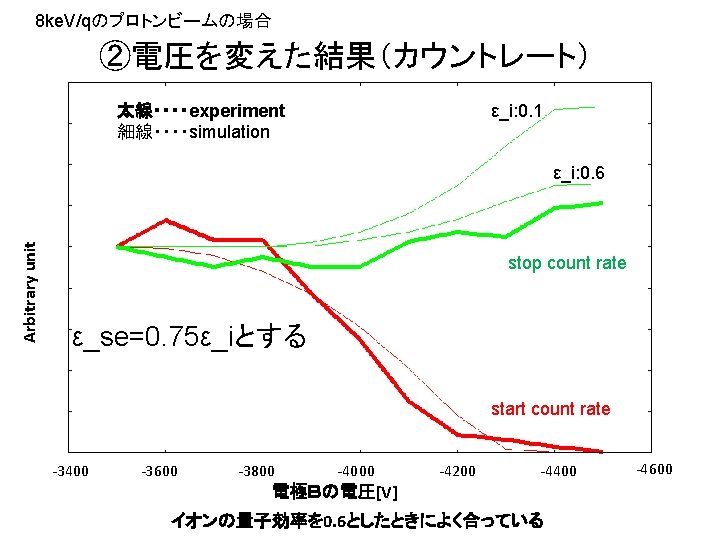

B: -3500 V

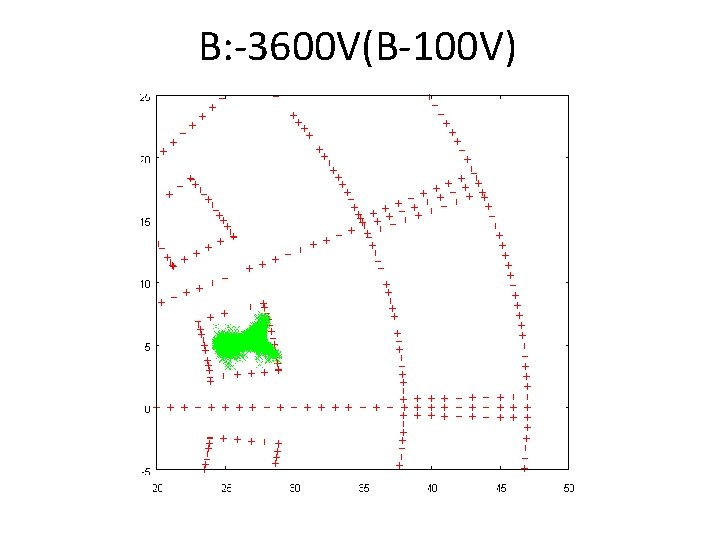

B: -3600 V(B-100 V)

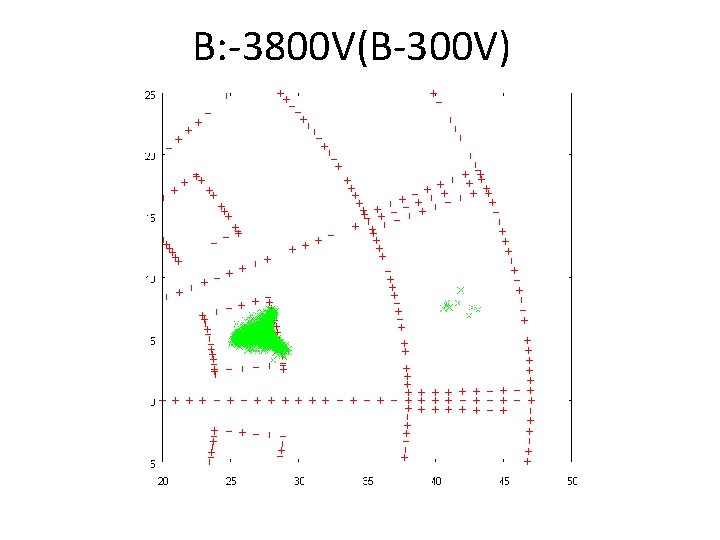

B: -3700 V(B-200 V)
B: -3800 V(B-300 V)
B: -3900 V(B-400 V)
B: -4000 V(B-500 V)
B: -4100 V(B-600 V)
B: -4200 V(B-700 V)
B: -4300 V(B-800 V)
B: -4400 V(B-900 V)

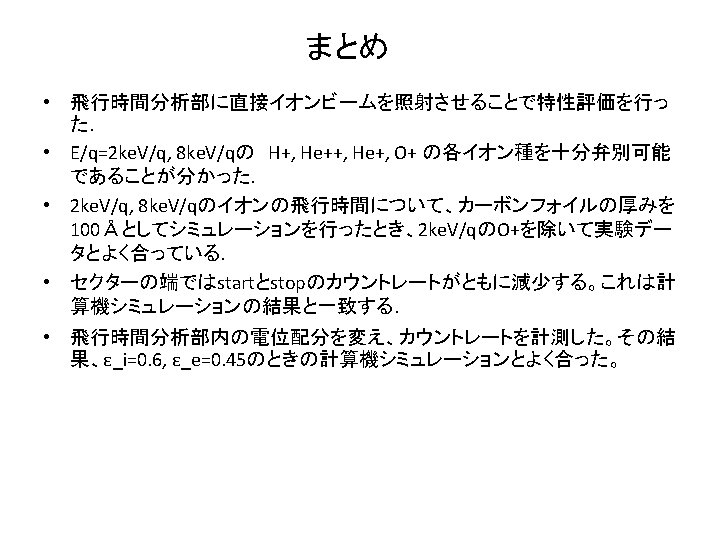

B: -4500 V(B-1000 V)
