MKTG 2016 Seismic design E NUX Antivibration plinth
MKTG 2016
Seismic design E NUX
Anti-vibration plinth Plinth manufactured from 3 mm sheet steel, with anti-vibration plinth Colour: RAL 5020
Solutions for seismic areas Seismic design for E NUX cabinets is the answer for installations in geographical areas vulnerable to earthquake activity. Technical solutions proposed by ETA are the results of vulnerability assessment of the structure located in different geographical scales and available in 3 versions: • Basic (W 800 x H x D 600/800) • Medium (W 800 x H x D 600/800) • Strong (W 800 x H 2000 x D 600/800) in relation to different Peak Ground Acceleration (PGA) and loads on mounting plate.

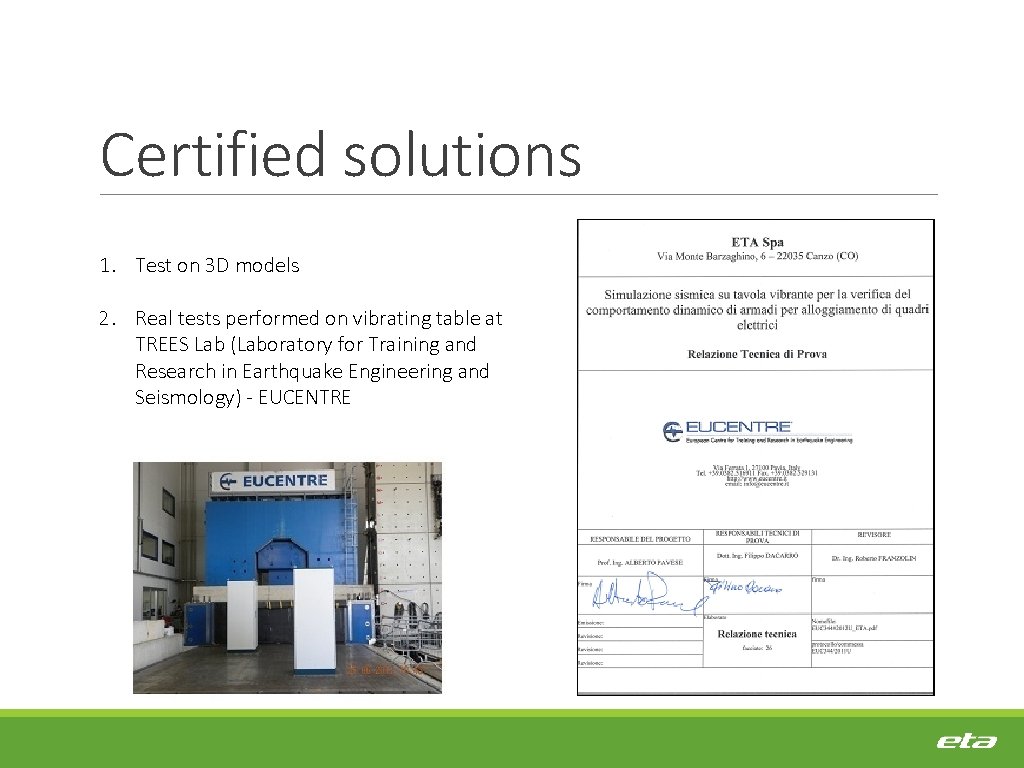

Certified solutions 1. Test on 3 D models 2. Real tests performed on vibrating table at TREES Lab (Laboratory for Training and Research in Earthquake Engineering and Seismology) - EUCENTRE
BASIC version Anti-vibration feet and 2 horizontal profiles Loads on mounting plate: up to 130 kg. Peak acceleration ≤ 1 G
MEDIUM version Anti-vibration feet and 4 strengthening elements: 2 horizontal profiles and 2 brackets for mounting plate Loads on mounting plate: from 130 kg to 450 kg. Peak acceleration ≤ 1 G

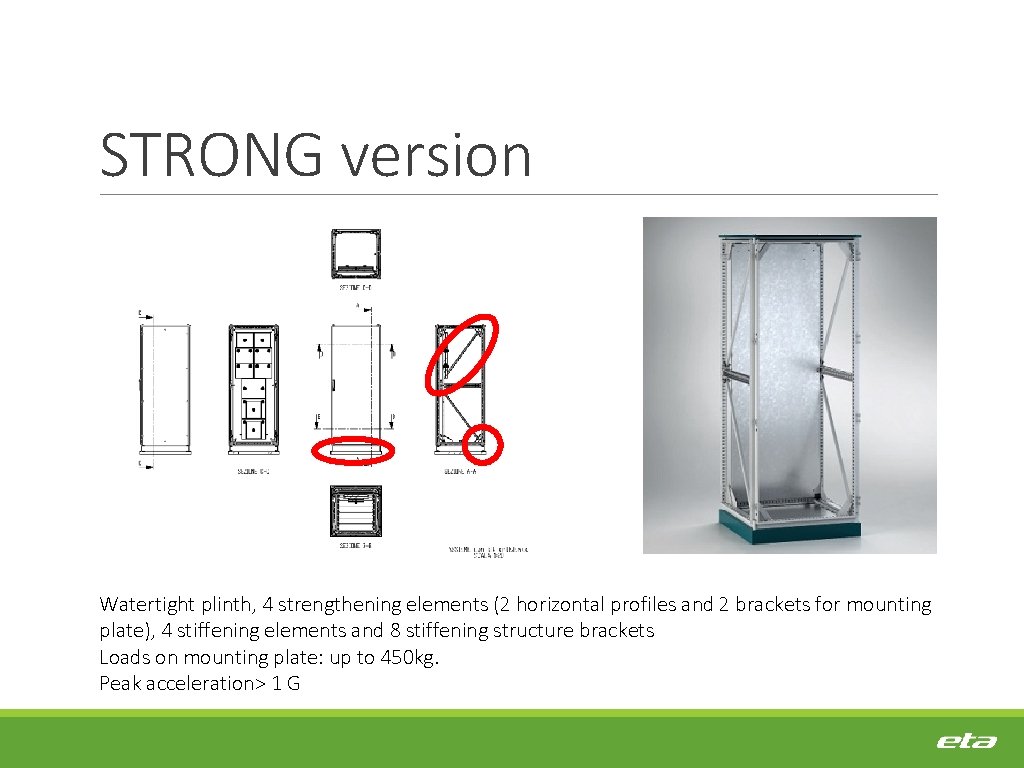

STRONG version Watertight plinth, 4 strengthening elements (2 horizontal profiles and 2 brackets for mounting plate), 4 stiffening elements and 8 stiffening structure brackets Loads on mounting plate: up to 450 kg. Peak acceleration> 1 G
