MK 285 Mod 0 PPHESD Programmable Prefragmented High

MK 285 Mod 0 PPHE/SD Programmable Prefragmented High Explosive Ammunition 50 th Annual Joint Services Small Arms Las Vegas, NV, May 11, 2004 MEDIUM CALIBRE DIVISION Jarl Eirik Straume Program Manager side 1

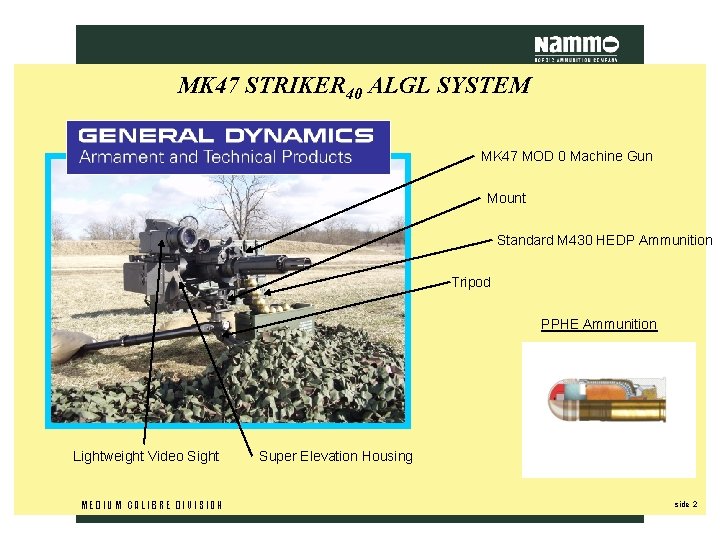

MK 47 STRIKER 40 ALGL SYSTEM MK 47 MOD 0 Machine Gun Mount Standard M 430 HEDP Ammunition Tripod PPHE Ammunition Lightweight Video Sight MEDIUM CALIBRE DIVISION Super Elevation Housing side 2

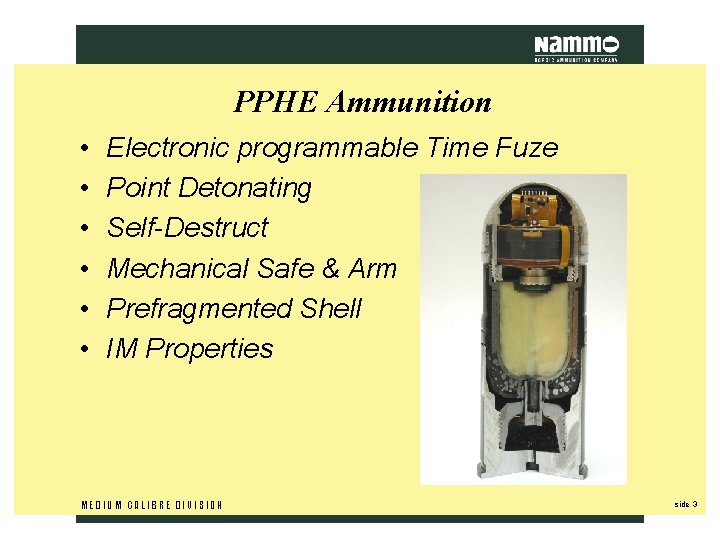

PPHE Ammunition • • • Electronic programmable Time Fuze Point Detonating Self-Destruct Mechanical Safe & Arm Prefragmented Shell IM Properties MEDIUM CALIBRE DIVISION side 3

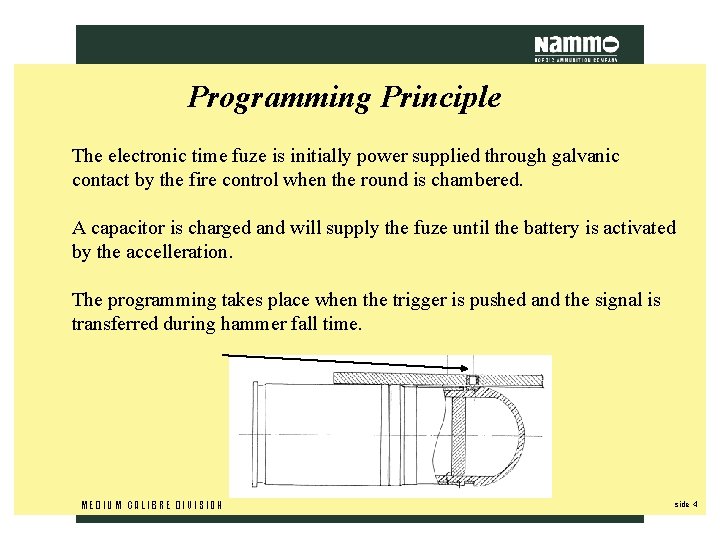

Programming Principle The electronic time fuze is initially power supplied through galvanic contact by the fire control when the round is chambered. A capacitor is charged and will supply the fuze until the battery is activated by the accelleration. The programming takes place when the trigger is pushed and the signal is transferred during hammer fall time. MEDIUM CALIBRE DIVISION side 4

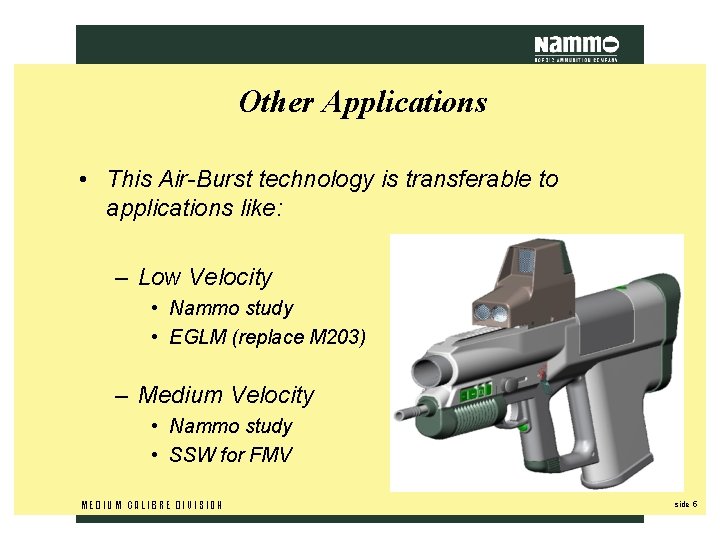

Other Applications • This Air-Burst technology is transferable to applications like: – Low Velocity • Nammo study • EGLM (replace M 203) – Medium Velocity • Nammo study • SSW for FMV MEDIUM CALIBRE DIVISION side 5

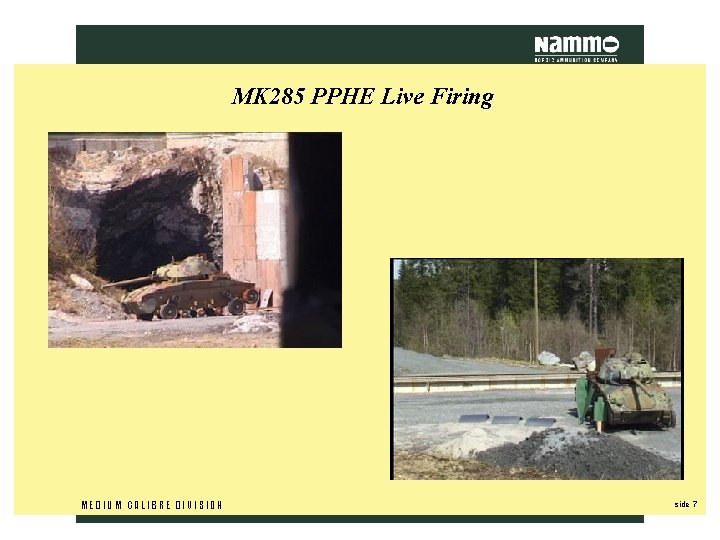

MK 285 PPHE Live Firings MEDIUM CALIBRE DIVISION side 6

MK 285 PPHE Live Firing MEDIUM CALIBRE DIVISION side 7

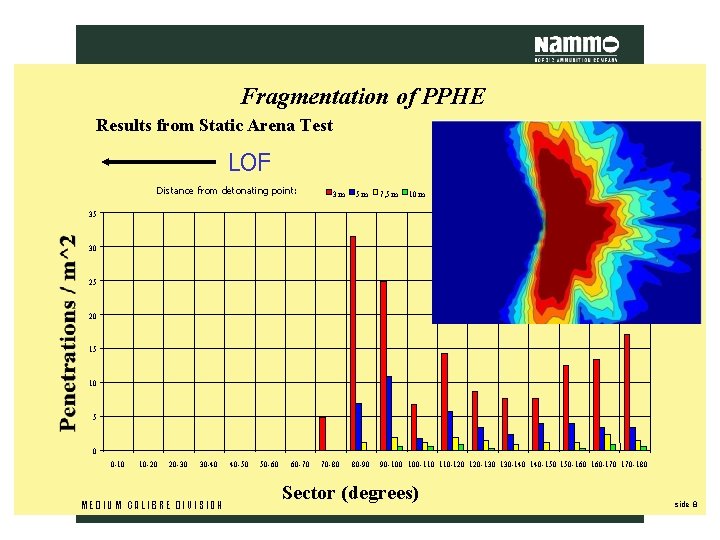

Fragmentation of PPHE Results from Static Arena Test LOF Distance from detonating point: 3 m 5 m 7, 5 m 10 m 35 30 25 20 15 10 5 0 0 -10 10 -20 20 -30 30 -40 MEDIUM CALIBRE DIVISION 40 -50 50 -60 60 -70 70 -80 80 -90 90 -100 100 -110 110 -120 120 -130 130 -140 140 -150 150 -160 160 -170 170 -180 Sector (degrees) side 8

Integration Test MK 47 and MK 285 MEDIUM CALIBRE DIVISION side 9

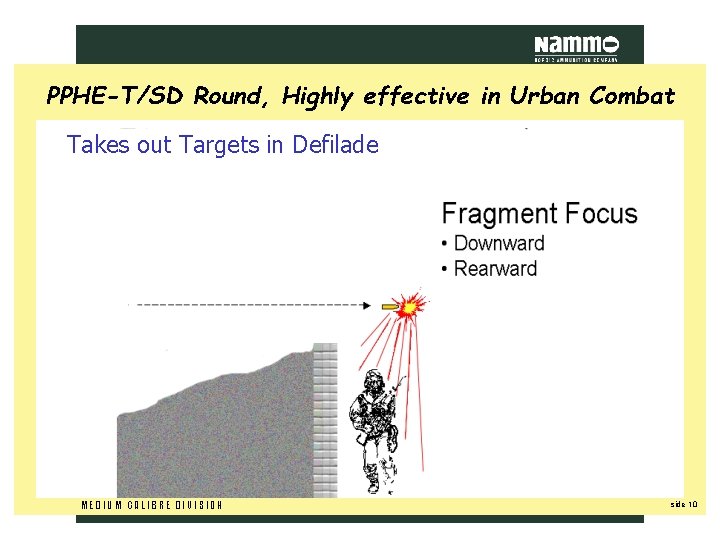

PPHE-T/SD Round, Highly effective in Urban Combat Takes out Targets in Defilade MEDIUM CALIBRE DIVISION side 10

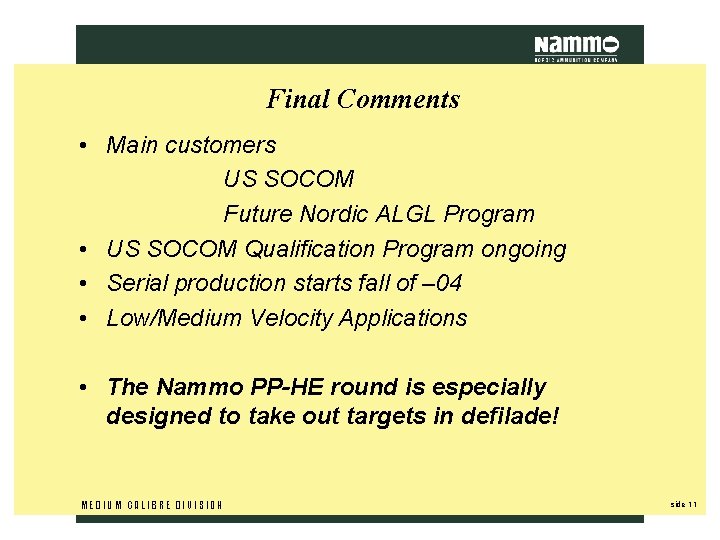

Final Comments • Main customers US SOCOM Future Nordic ALGL Program • US SOCOM Qualification Program ongoing • Serial production starts fall of – 04 • Low/Medium Velocity Applications • The Nammo PP-HE round is especially designed to take out targets in defilade! MEDIUM CALIBRE DIVISION side 11
