Mizan: A system for Dynamic Load Balancing in Large-Scale Graph Processing Presented by: Armend Hoxha Trevor Hodde Kexin Shi

A System for Dynamic Load Balancing § § Pregel HADI Pegasus X-RIME We’ll focus on Pregel, since Mizan is a refined Pregel system. Mizan (arabic) : a double-pan scale

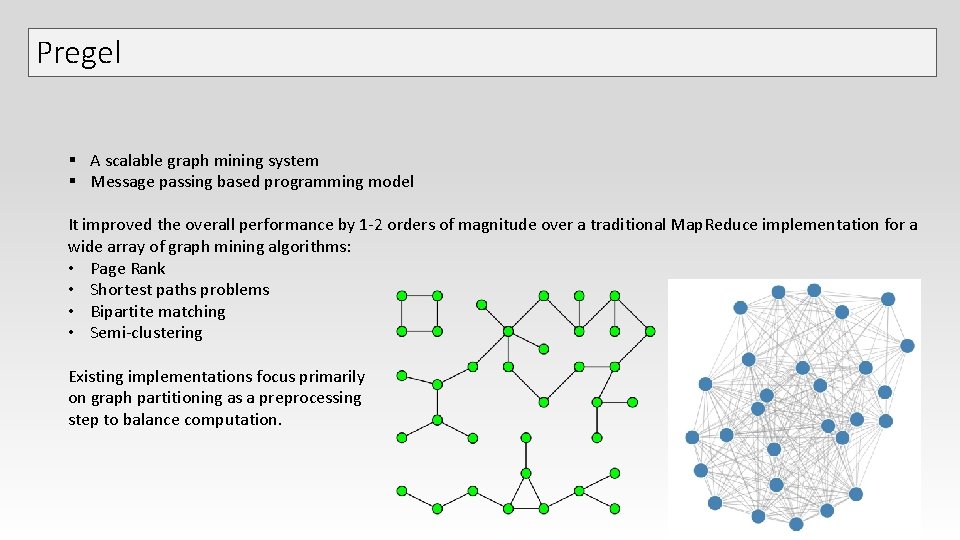

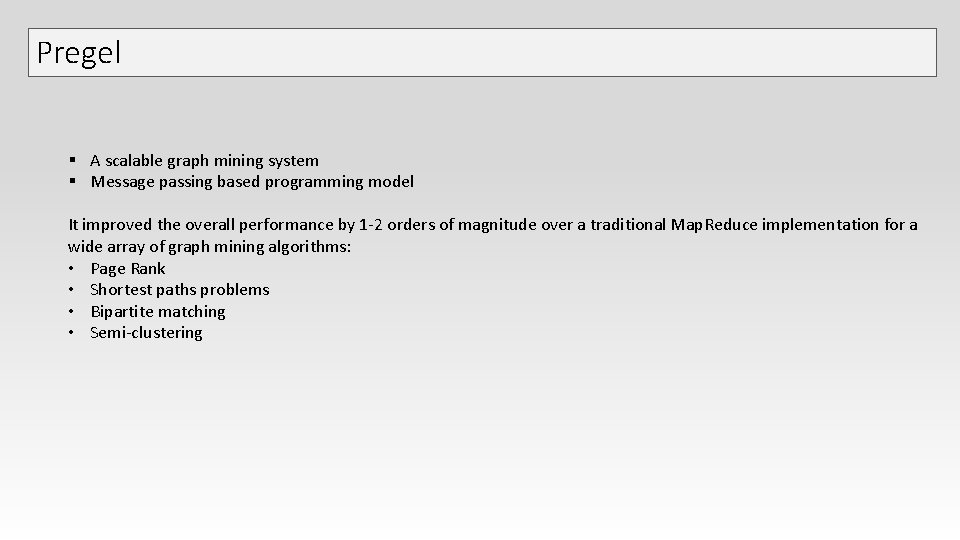

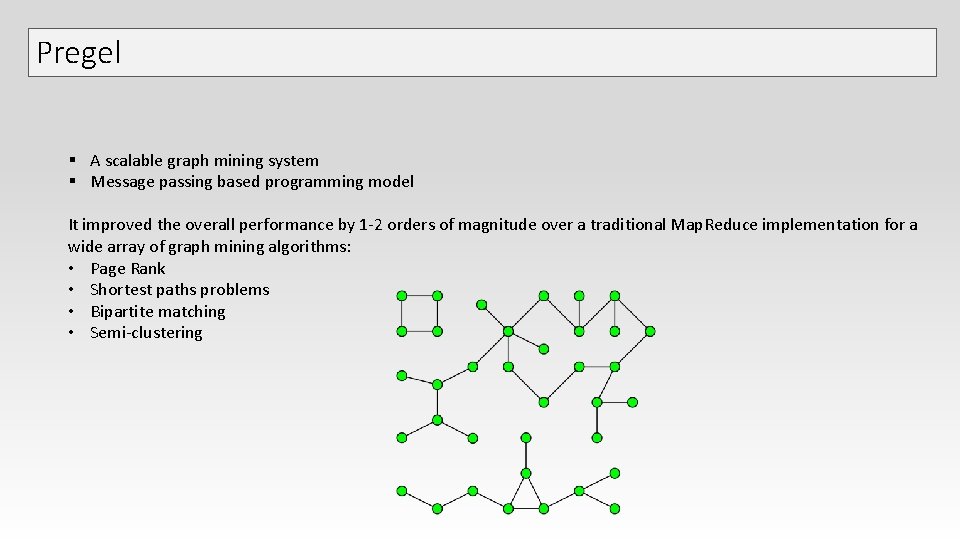

Pregel § A scalable graph mining system § Message passing based programming model It improved the overall performance by 1 -2 orders of magnitude over a traditional Map. Reduce implementation for a wide array of graph mining algorithms: • Page Rank • Shortest paths problems • Bipartite matching • Semi-clustering

Pregel § A scalable graph mining system § Message passing based programming model It improved the overall performance by 1 -2 orders of magnitude over a traditional Map. Reduce implementation for a wide array of graph mining algorithms: • Page Rank • Shortest paths problems • Bipartite matching • Semi-clustering

Pregel § A scalable graph mining system § Message passing based programming model It improved the overall performance by 1 -2 orders of magnitude over a traditional Map. Reduce implementation for a wide array of graph mining algorithms: • Page Rank • Shortest paths problems • Bipartite matching • Semi-clustering Existing implementations focus primarily on graph partitioning as a preprocessing step to balance computation.

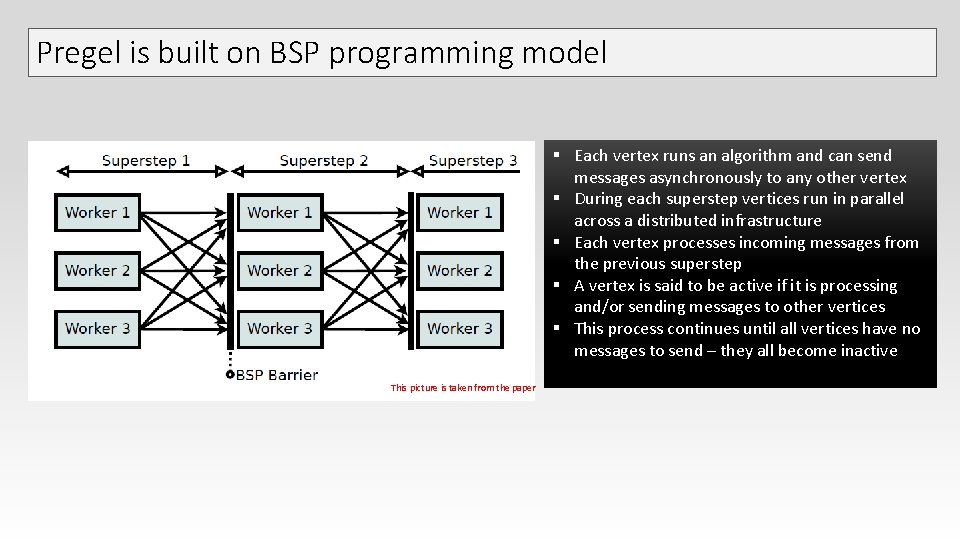

Pregel is built on BSP programming model BSP = Bulk Synchronous Parallel This picture is taken from the paper

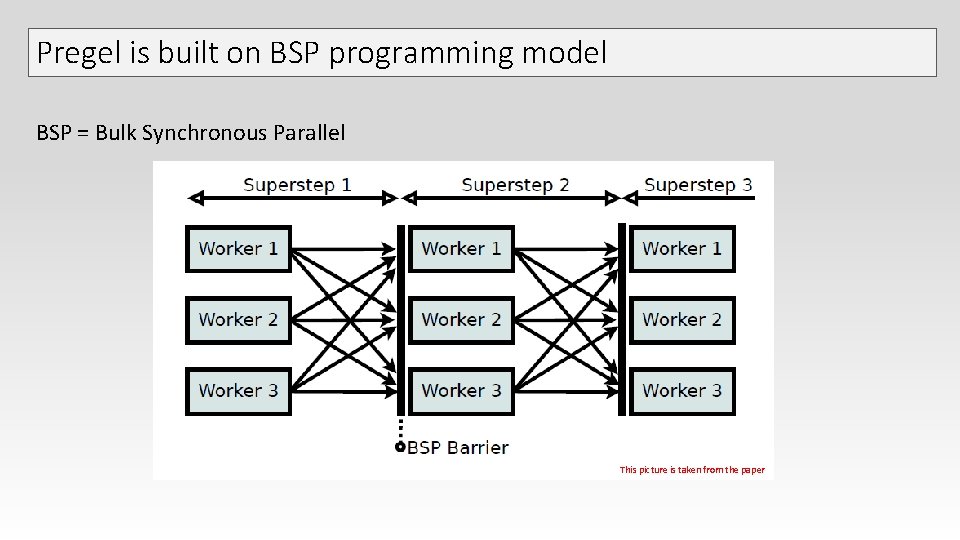

Pregel is built on BSP programming model § Each vertex runs an algorithm and can send messages asynchronously to any other vertex § During each superstep vertices run in parallel across a distributed infrastructure § Each vertex processes incoming messages from the previous superstep § A vertex is said to be active if it is processing and/or sending messages to other vertices § This process continues until all vertices have no messages to send – they all become inactive This picture is taken from the paper

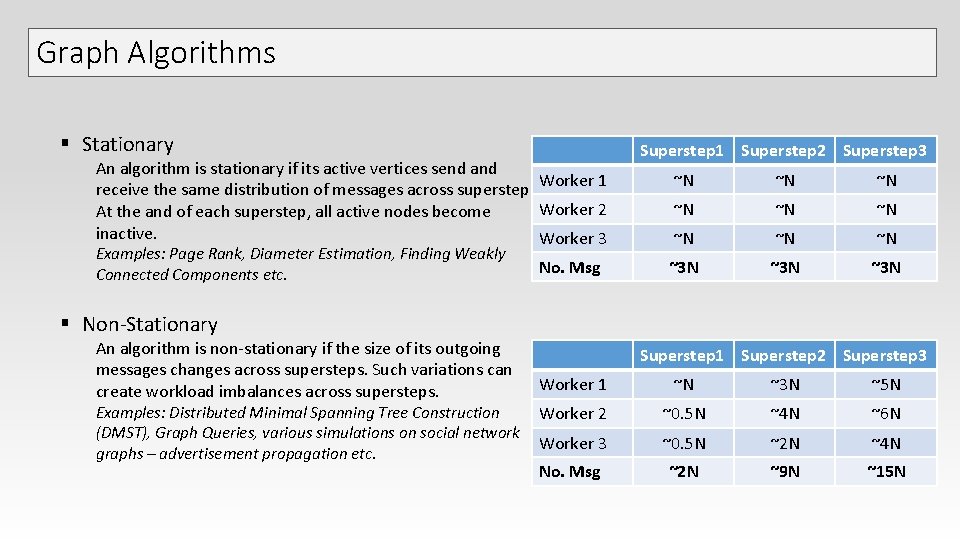

Graph Algorithms § Stationary An algorithm is stationary if its active vertices send and Worker 1 receive the same distribution of messages across supersteps. Worker 2 At the and of each superstep, all active nodes become inactive. Worker 3 Examples: Page Rank, Diameter Estimation, Finding Weakly Connected Components etc. No. Msg Superstep 1 Superstep 2 Superstep 3 ~N ~N ~N ~3 N ~3 N § Non-Stationary An algorithm is non-stationary if the size of its outgoing messages changes across supersteps. Such variations can create workload imbalances across supersteps. Examples: Distributed Minimal Spanning Tree Construction (DMST), Graph Queries, various simulations on social network graphs – advertisement propagation etc. Superstep 1 Superstep 2 Superstep 3 Worker 1 ~N ~3 N ~5 N Worker 2 ~0. 5 N ~4 N ~6 N Worker 3 ~0. 5 N ~2 N ~4 N No. Msg ~2 N ~9 N ~15 N

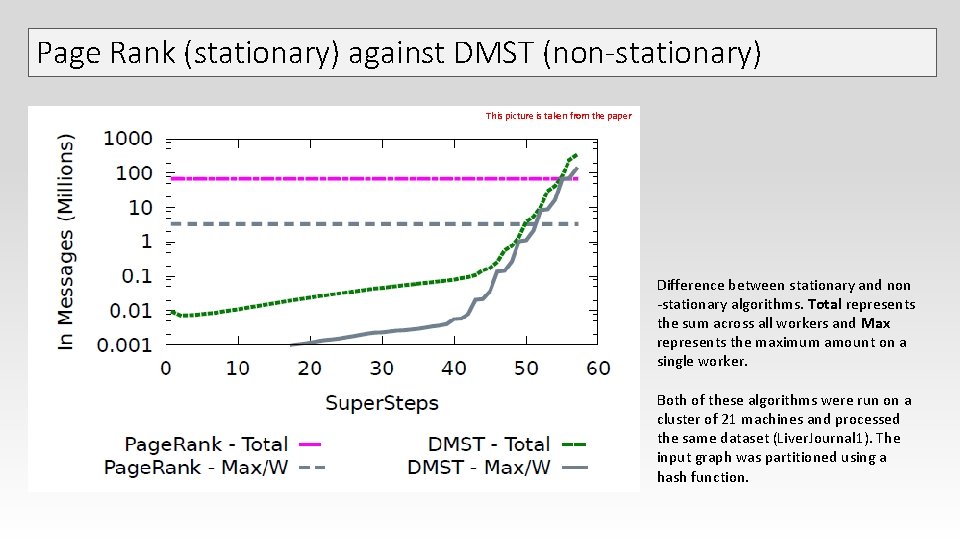

Page Rank (stationary) against DMST (non-stationary) This picture is taken from the paper Difference between stationary and non -stationary algorithms. Total represents the sum across all workers and Max represents the maximum amount on a single worker. Both of these algorithms were run on a cluster of 21 machines and processed the same dataset (Liver. Journal 1). The input graph was partitioned using a hash function.

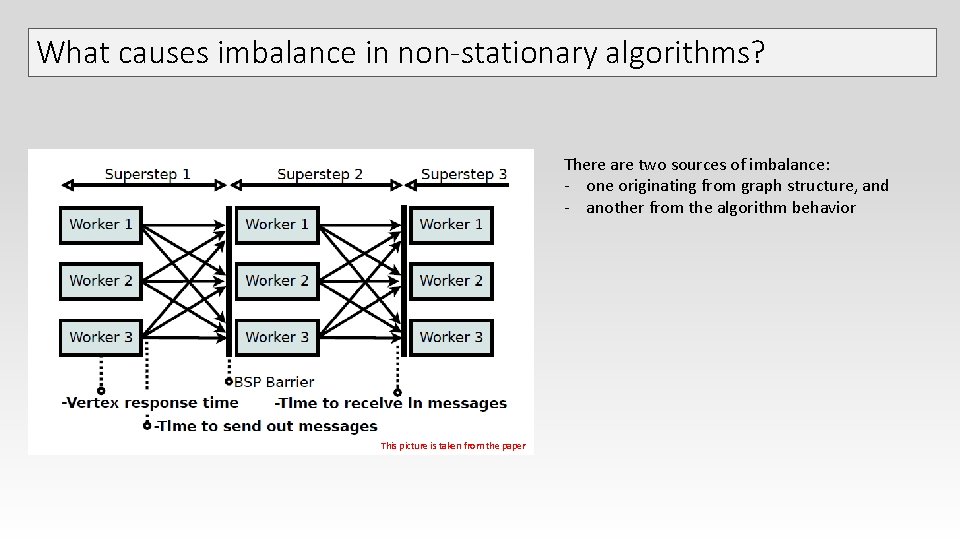

What causes imbalance in non-stationary algorithms? There are two sources of imbalance: - one originating from graph structure, and - another from the algorithm behavior This picture is taken from the paper

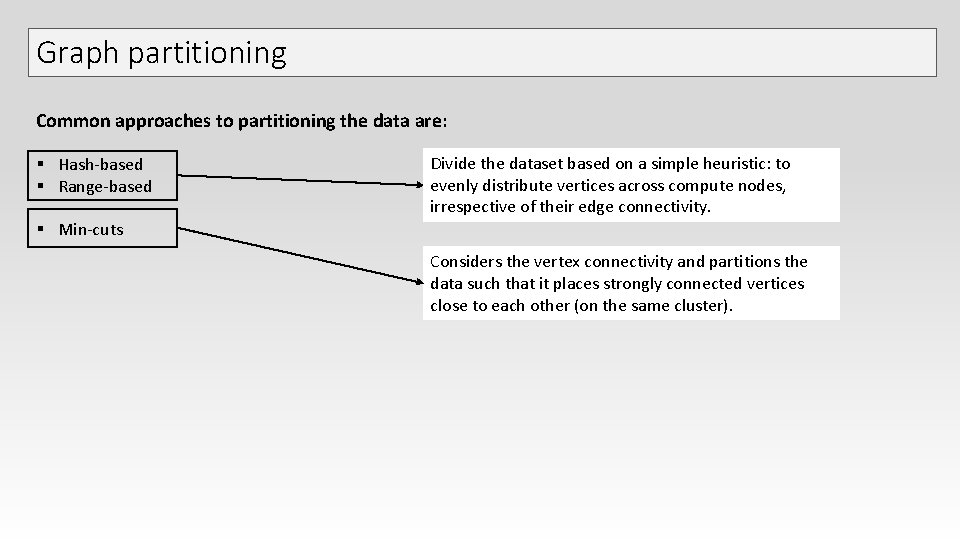

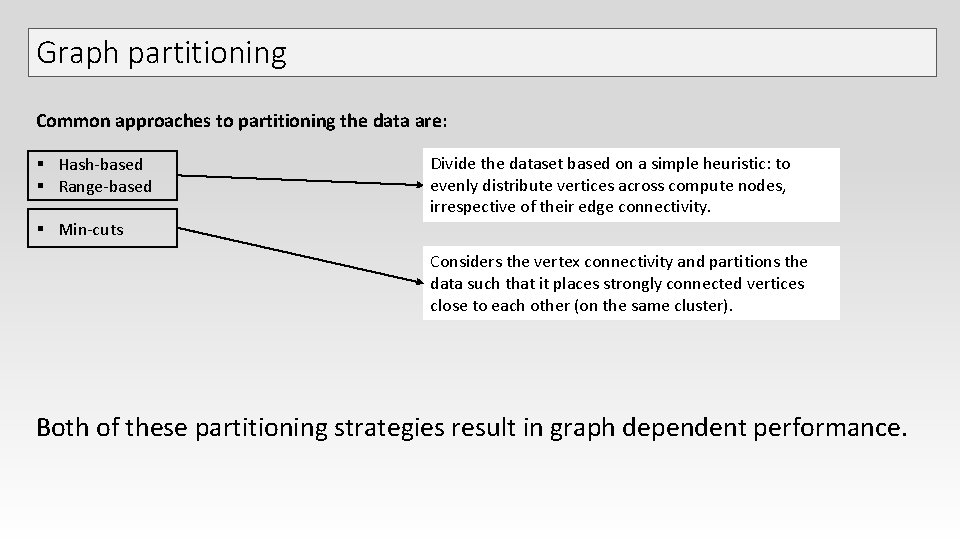

Graph partitioning Common approaches to partitioning the data are: § Hash-based § Range-based Divide the dataset based on a simple heuristic: to evenly distribute vertices across compute nodes, irrespective of their edge connectivity. § Min-cuts Considers the vertex connectivity and partitions the data such that it places strongly connected vertices close to each other (on the same cluster).

Graph partitioning Common approaches to partitioning the data are: § Hash-based § Range-based Divide the dataset based on a simple heuristic: to evenly distribute vertices across compute nodes, irrespective of their edge connectivity. § Min-cuts Considers the vertex connectivity and partitions the data such that it places strongly connected vertices close to each other (on the same cluster). Both of these partitioning strategies result in graph dependent performance.

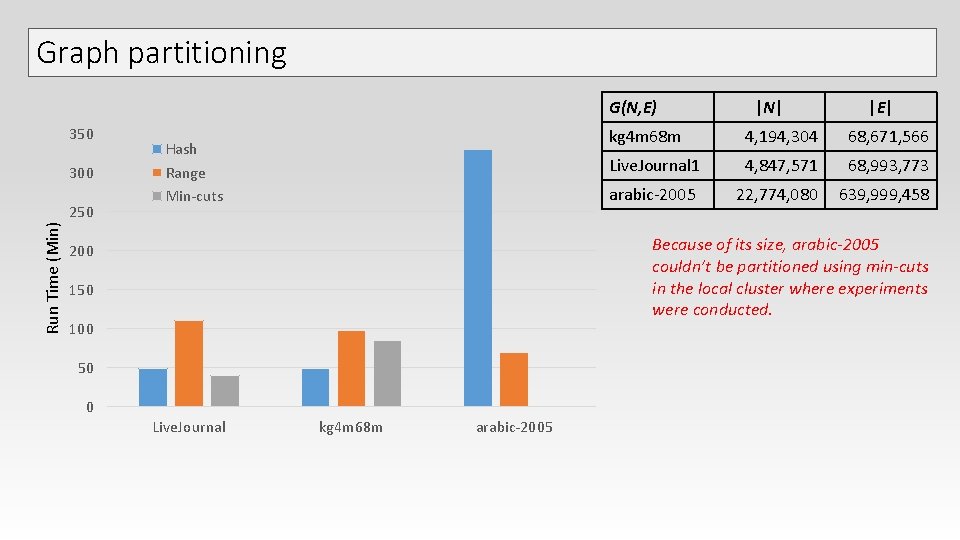

Graph partitioning G(N, E) 350 300 Run Time (Min) 250 Hash Range Min-cuts |N| |E| kg 4 m 68 m 4, 194, 304 68, 671, 566 Live. Journal 1 4, 847, 571 68, 993, 773 arabic-2005 22, 774, 080 639, 999, 458 Because of its size, arabic-2005 couldn’t be partitioned using min-cuts in the local cluster where experiments were conducted. 200 150 100 50 0 Live. Journal kg 4 m 68 m arabic-2005

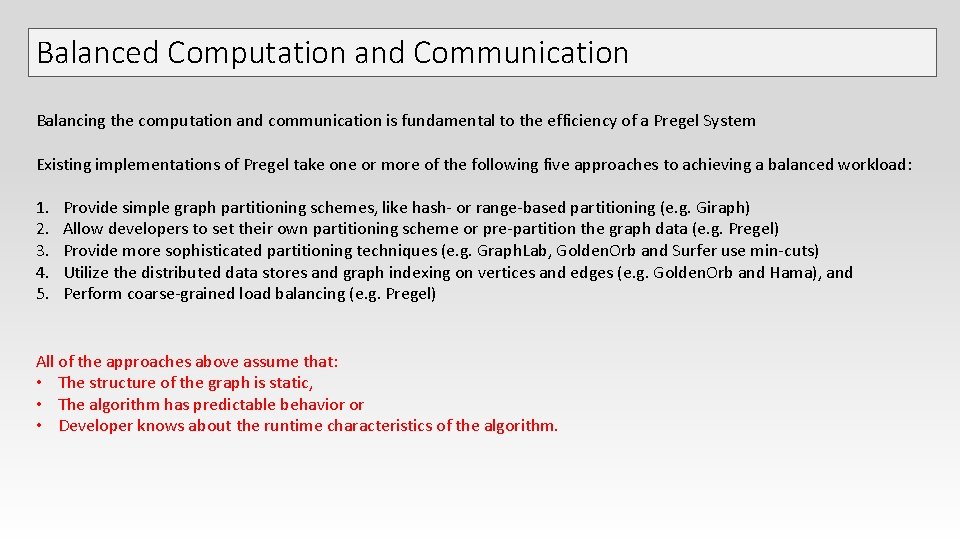

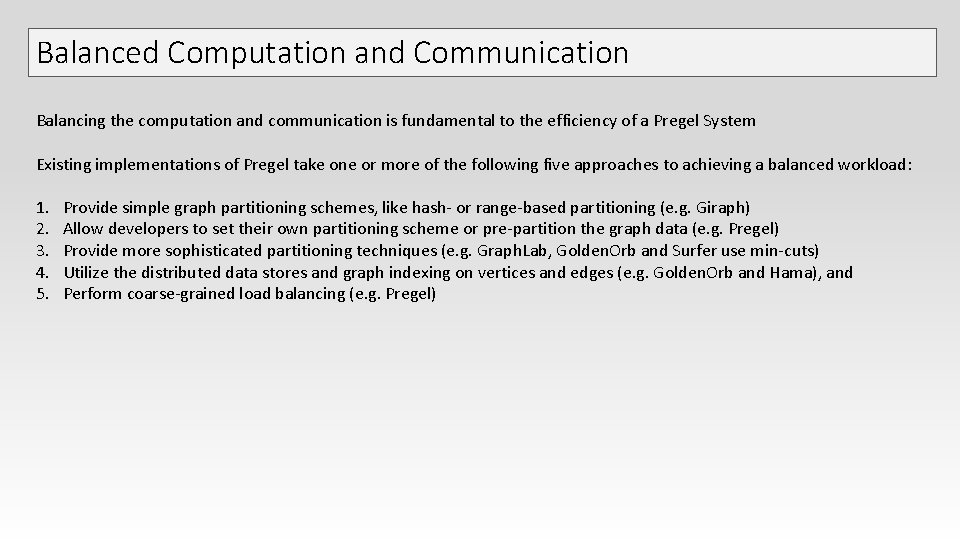

Balanced Computation and Communication Balancing the computation and communication is fundamental to the efficiency of a Pregel System Existing implementations of Pregel take one or more of the following five approaches to achieving a balanced workload: 1. 2. 3. 4. 5. Provide simple graph partitioning schemes, like hash- or range-based partitioning (e. g. Giraph) Allow developers to set their own partitioning scheme or pre-partition the graph data (e. g. Pregel) Provide more sophisticated partitioning techniques (e. g. Graph. Lab, Golden. Orb and Surfer use min-cuts) Utilize the distributed data stores and graph indexing on vertices and edges (e. g. Golden. Orb and Hama), and Perform coarse-grained load balancing (e. g. Pregel)

Balanced Computation and Communication Balancing the computation and communication is fundamental to the efficiency of a Pregel System Existing implementations of Pregel take one or more of the following five approaches to achieving a balanced workload: 1. 2. 3. 4. 5. Provide simple graph partitioning schemes, like hash- or range-based partitioning (e. g. Giraph) Allow developers to set their own partitioning scheme or pre-partition the graph data (e. g. Pregel) Provide more sophisticated partitioning techniques (e. g. Graph. Lab, Golden. Orb and Surfer use min-cuts) Utilize the distributed data stores and graph indexing on vertices and edges (e. g. Golden. Orb and Hama), and Perform coarse-grained load balancing (e. g. Pregel) All of the approaches above assume that: • The structure of the graph is static, • The algorithm has predictable behavior or • Developer knows about the runtime characteristics of the algorithm.

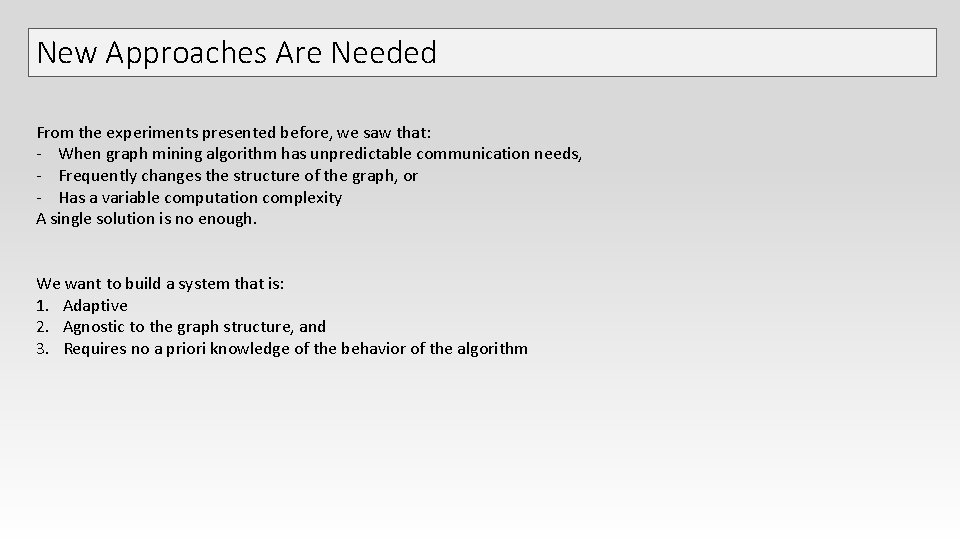

New Approaches Are Needed From the experiments presented before, we saw that: - When graph mining algorithm has unpredictable communication needs, - Frequently changes the structure of the graph, or - Has a variable computation complexity A single solution is no enough. We want to build a system that is: 1. Adaptive 2. Agnostic to the graph structure, and 3. Requires no a priori knowledge of the behavior of the algorithm

MIZAN

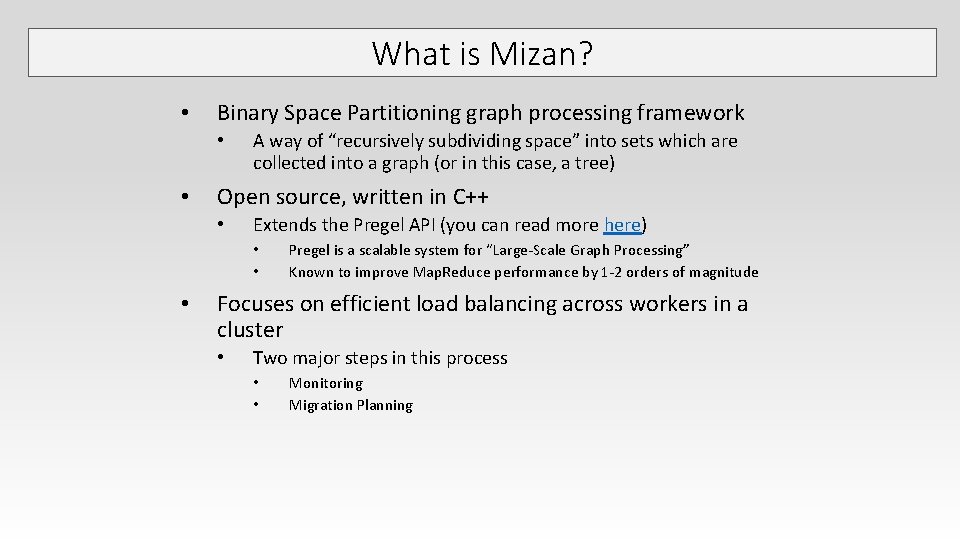

What is Mizan? • Binary Space Partitioning graph processing framework • • A way of “recursively subdividing space” into sets which are collected into a graph (or in this case, a tree) Open source, written in C++ • Extends the Pregel API (you can read more here) • • • Pregel is a scalable system for “Large-Scale Graph Processing” Known to improve Map. Reduce performance by 1 -2 orders of magnitude Focuses on efficient load balancing across workers in a cluster • Two major steps in this process • • Monitoring Migration Planning

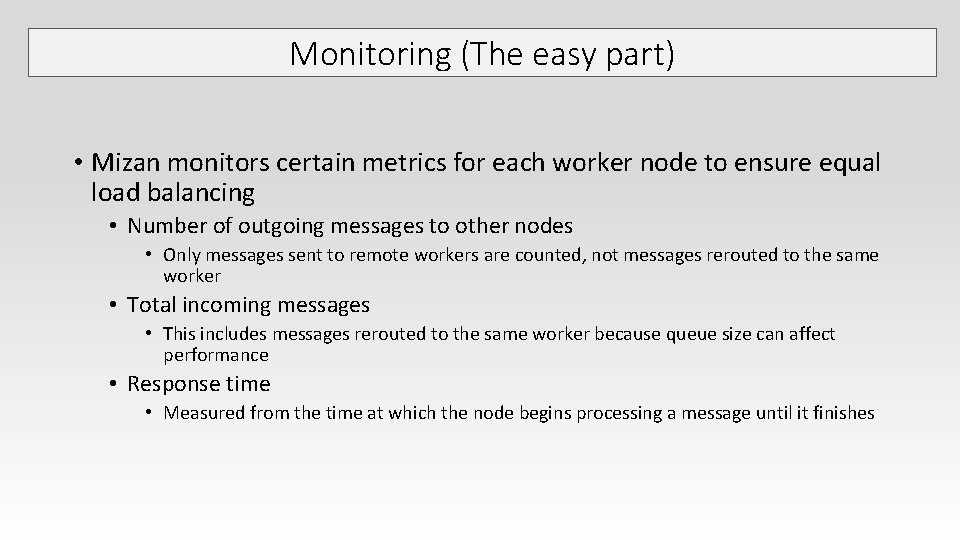

Monitoring (The easy part) • Mizan monitors certain metrics for each worker node to ensure equal load balancing • Number of outgoing messages to other nodes • Only messages sent to remote workers are counted, not messages rerouted to the same worker • Total incoming messages • This includes messages rerouted to the same worker because queue size can affect performance • Response time • Measured from the time at which the node begins processing a message until it finishes

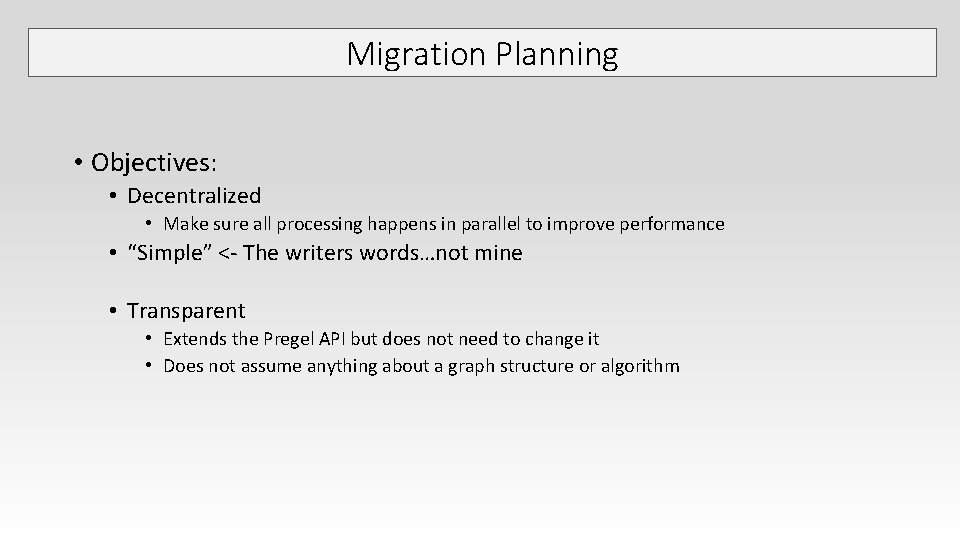

Migration Planning • Objectives: • Decentralized • Make sure all processing happens in parallel to improve performance • “Simple” <- The writers words…not mine • Transparent • Extends the Pregel API but does not need to change it • Does not assume anything about a graph structure or algorithm

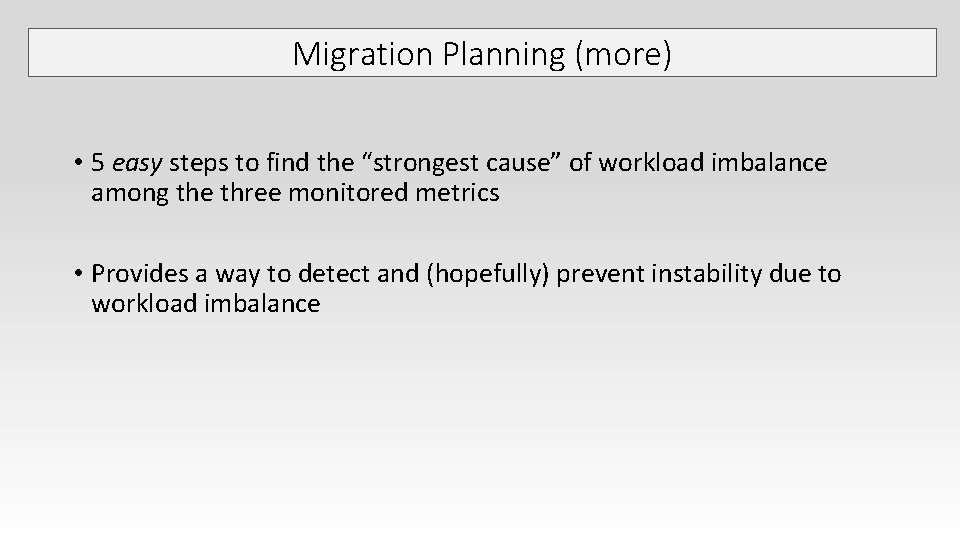

Migration Planning (more) • 5 easy steps to find the “strongest cause” of workload imbalance among the three monitored metrics • Provides a way to detect and (hopefully) prevent instability due to workload imbalance

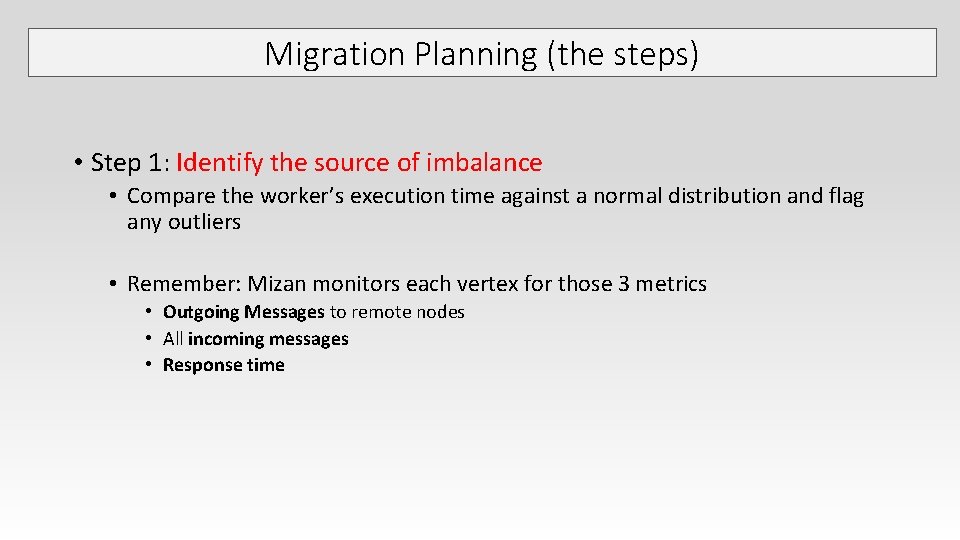

Migration Planning (the steps) • Step 1: Identify the source of imbalance • Compare the worker’s execution time against a normal distribution and flag any outliers • Remember: Mizan monitors each vertex for those 3 metrics • Outgoing Messages to remote nodes • All incoming messages • Response time

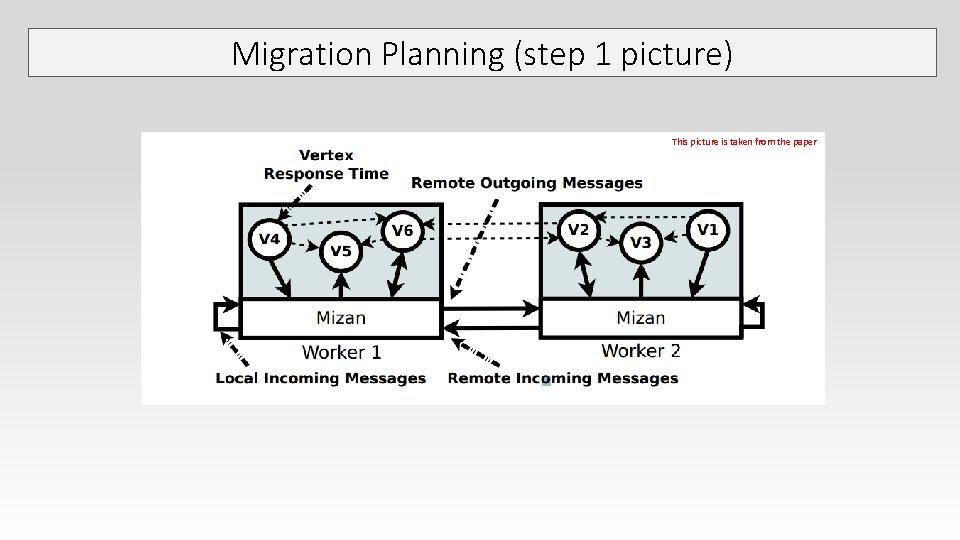

Migration Planning (step 1 picture) This picture is taken from the paper

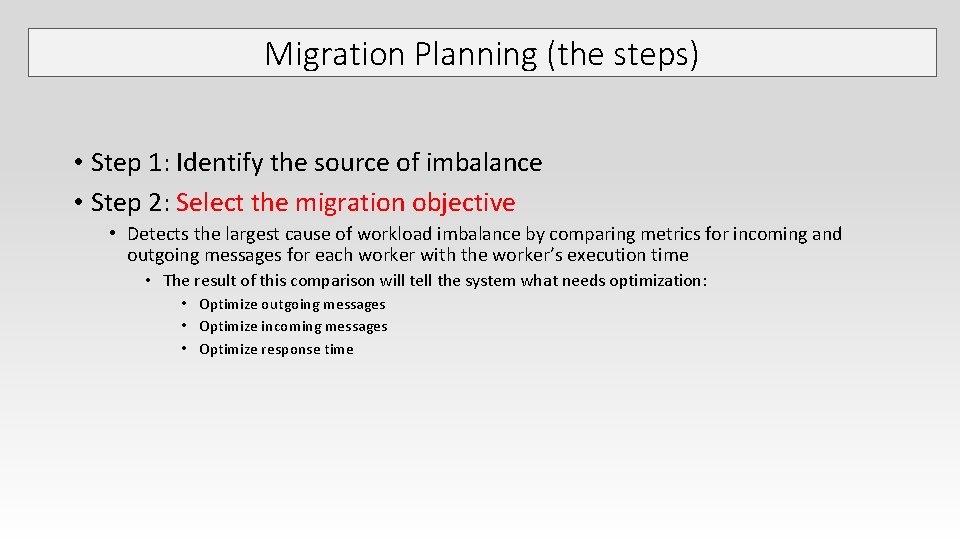

Migration Planning (the steps) • Step 1: Identify the source of imbalance • Step 2: Select the migration objective • Detects the largest cause of workload imbalance by comparing metrics for incoming and outgoing messages for each worker with the worker’s execution time • The result of this comparison will tell the system what needs optimization: • Optimize outgoing messages • Optimize incoming messages • Optimize response time

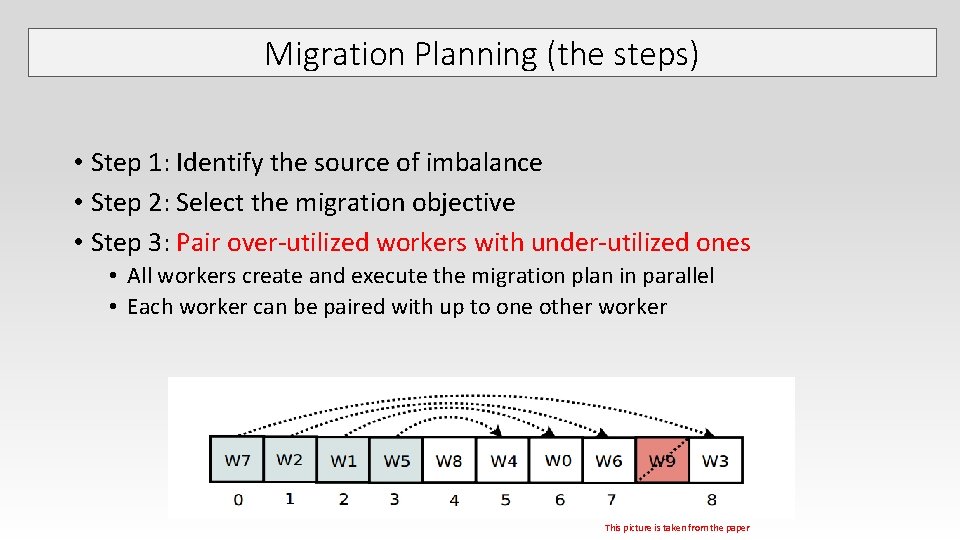

Migration Planning (the steps) • Step 1: Identify the source of imbalance • Step 2: Select the migration objective • Step 3: Pair over-utilized workers with under-utilized ones • All workers create and execute the migration plan in parallel • Each worker can be paired with up to one other worker This picture is taken from the paper

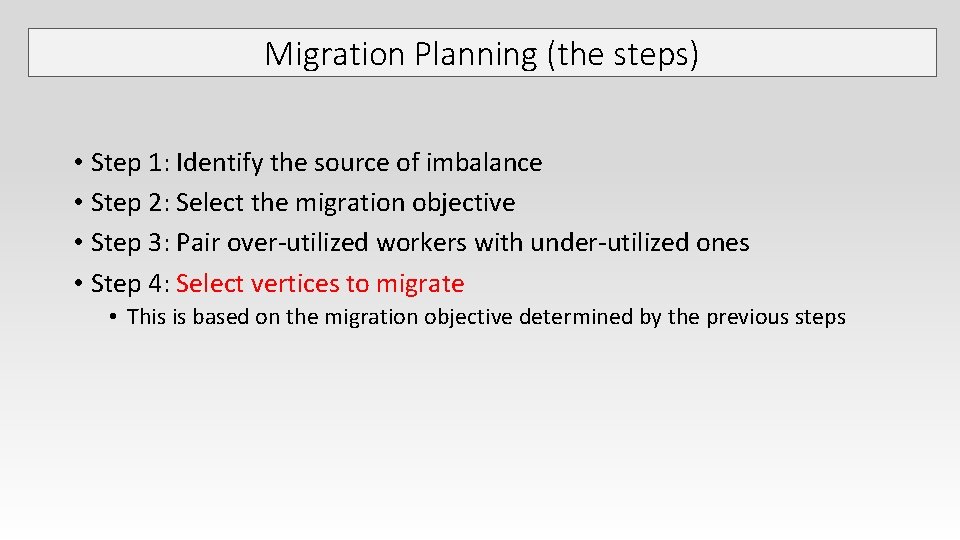

Migration Planning (the steps) • Step 1: Identify the source of imbalance • Step 2: Select the migration objective • Step 3: Pair over-utilized workers with under-utilized ones • Step 4: Select vertices to migrate • This is based on the migration objective determined by the previous steps

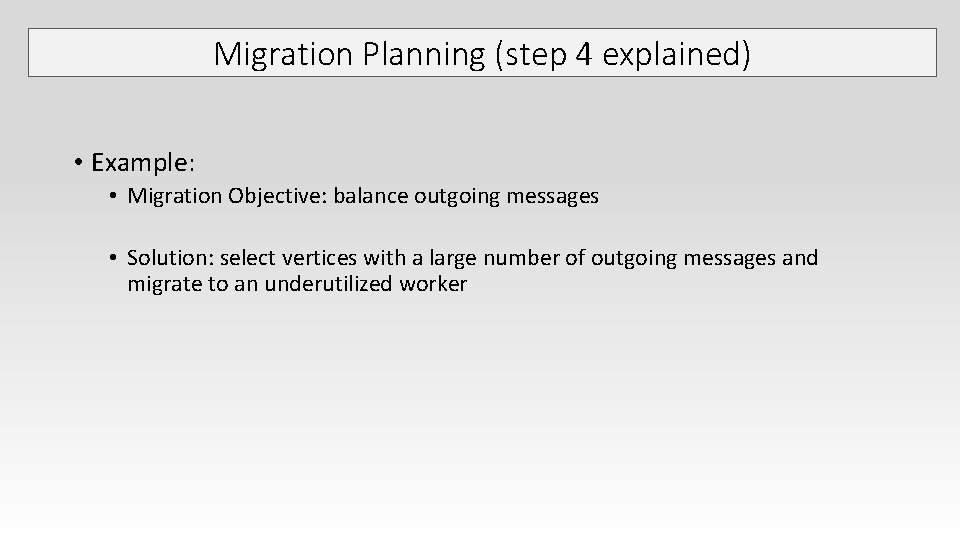

Migration Planning (step 4 explained) • Example: • Migration Objective: balance outgoing messages • Solution: select vertices with a large number of outgoing messages and migrate to an underutilized worker

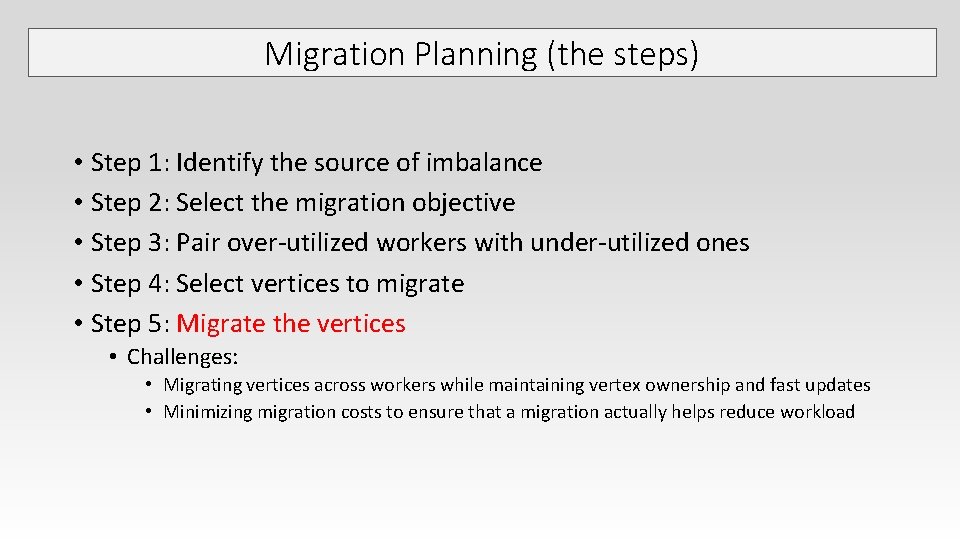

Migration Planning (the steps) • Step 1: Identify the source of imbalance • Step 2: Select the migration objective • Step 3: Pair over-utilized workers with under-utilized ones • Step 4: Select vertices to migrate • Step 5: Migrate the vertices • Challenges: • Migrating vertices across workers while maintaining vertex ownership and fast updates • Minimizing migration costs to ensure that a migration actually helps reduce workload

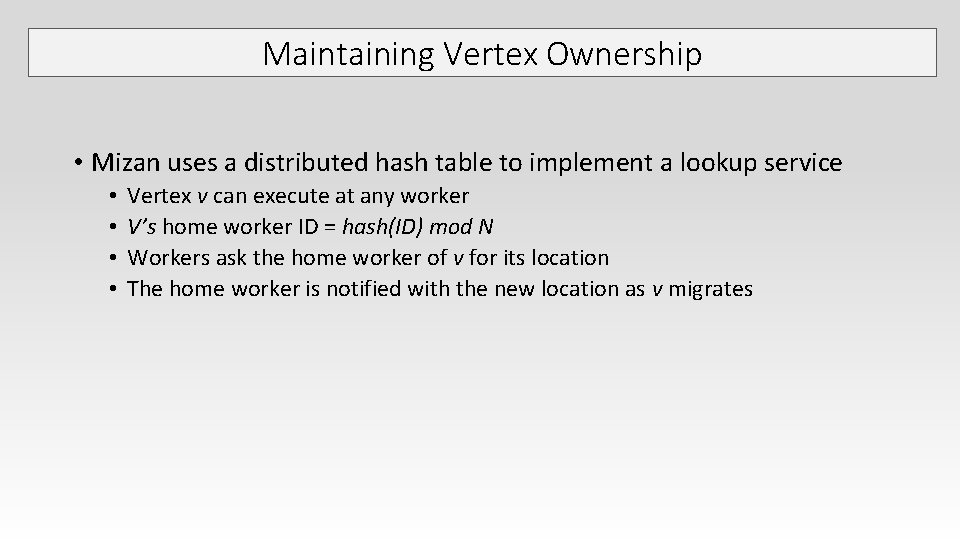

Maintaining Vertex Ownership • Mizan uses a distributed hash table to implement a lookup service • • Vertex v can execute at any worker V’s home worker ID = hash(ID) mod N Workers ask the home worker of v for its location The home worker is notified with the new location as v migrates

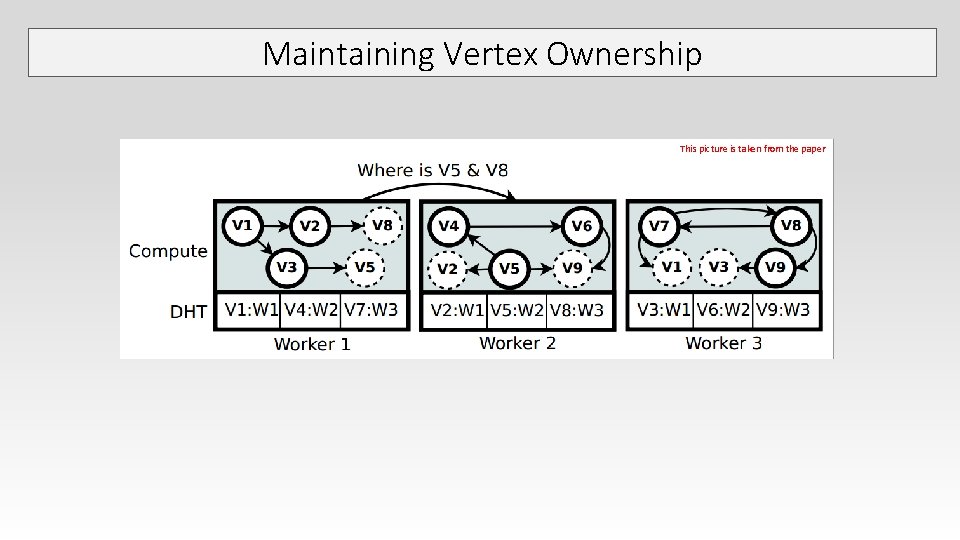

Maintaining Vertex Ownership This picture is taken from the paper

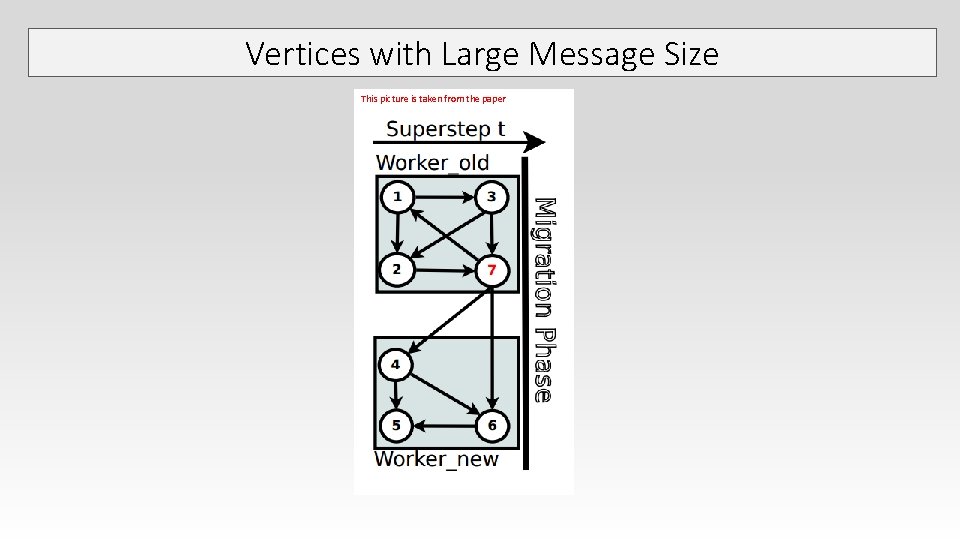

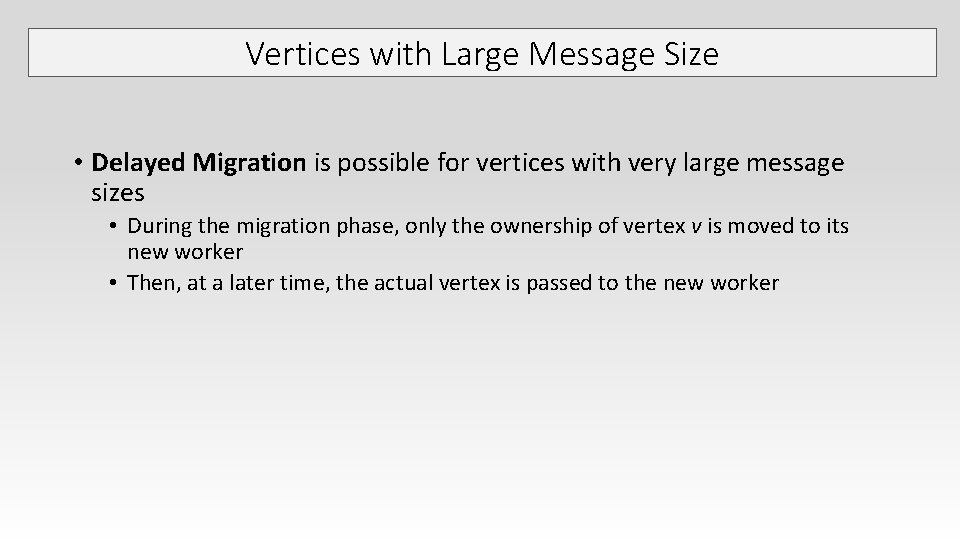

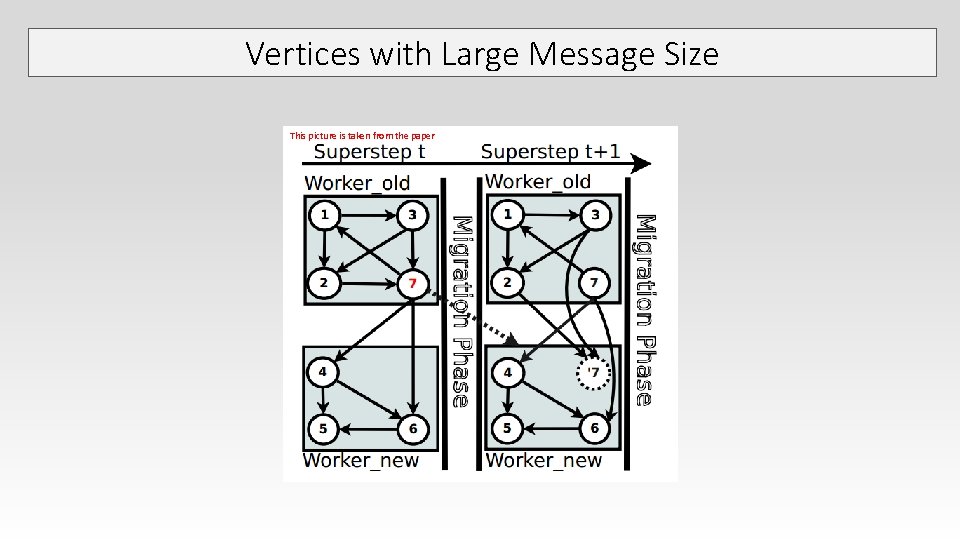

Vertices with Large Message Size • Delayed Migration is possible for vertices with very large message sizes • During the migration phase, only the ownership of vertex v is moved to its new worker • Then, at a later time, the actual vertex is passed to the new worker

Vertices with Large Message Size This picture is taken from the paper

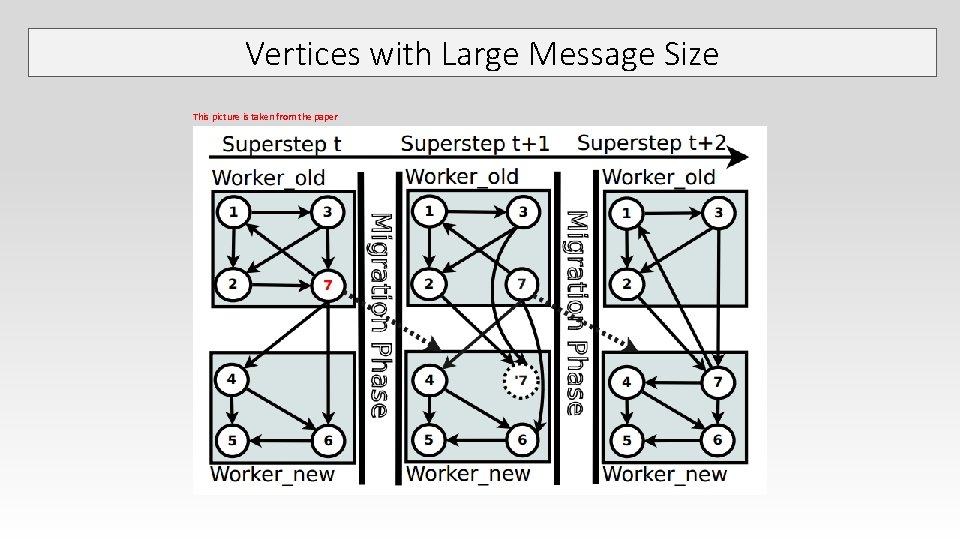

Vertices with Large Message Size This picture is taken from the paper

Vertices with Large Message Size This picture is taken from the paper

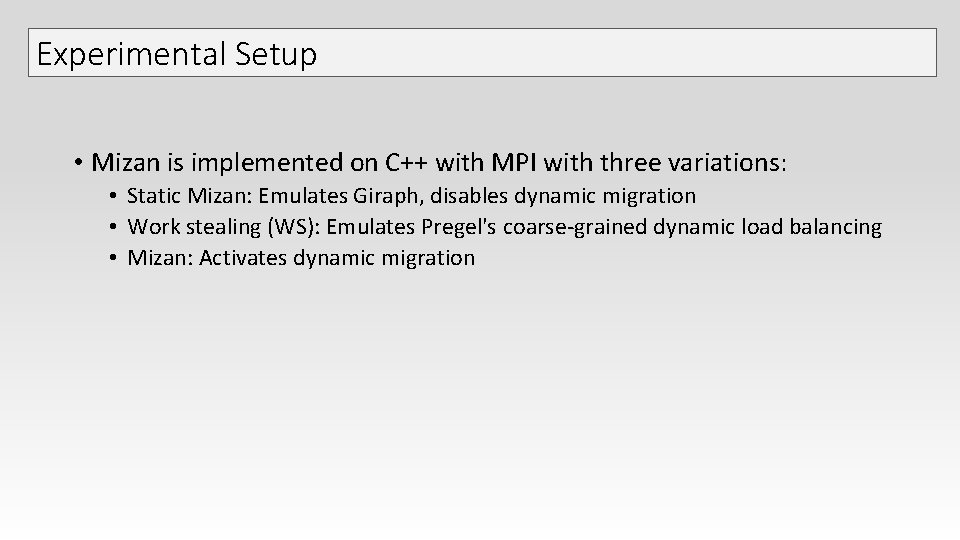

Experimental Setup • Mizan is implemented on C++ with MPI with three variations: • Static Mizan: Emulates Giraph, disables dynamic migration • Work stealing (WS): Emulates Pregel's coarse-grained dynamic load balancing • Mizan: Activates dynamic migration

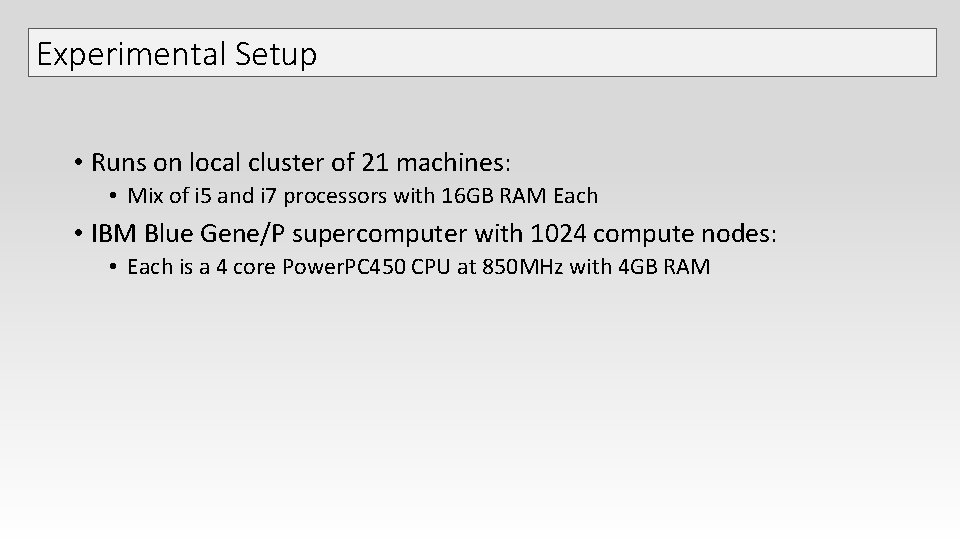

Experimental Setup • Runs on local cluster of 21 machines: • Mix of i 5 and i 7 processors with 16 GB RAM Each • IBM Blue Gene/P supercomputer with 1024 compute nodes: • Each is a 4 core Power. PC 450 CPU at 850 MHz with 4 GB RAM

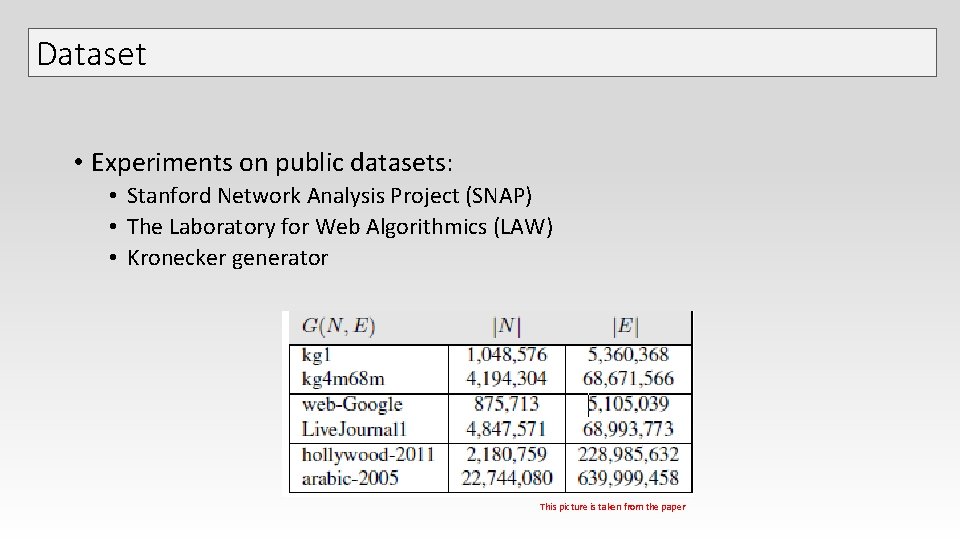

Dataset • Experiments on public datasets: • Stanford Network Analysis Project (SNAP) • The Laboratory for Web Algorithmics (LAW) • Kronecker generator This picture is taken from the paper

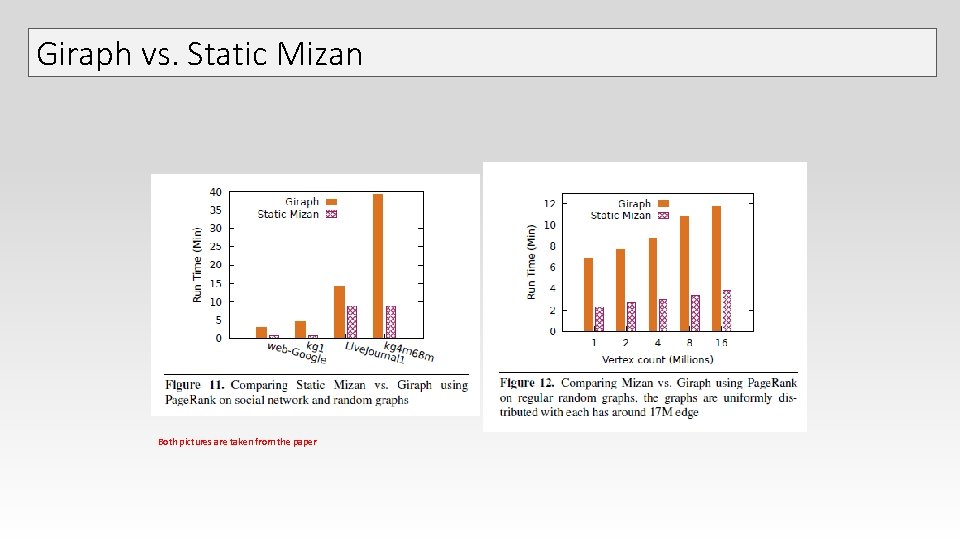

Giraph vs. Static Mizan Both pictures are taken from the paper

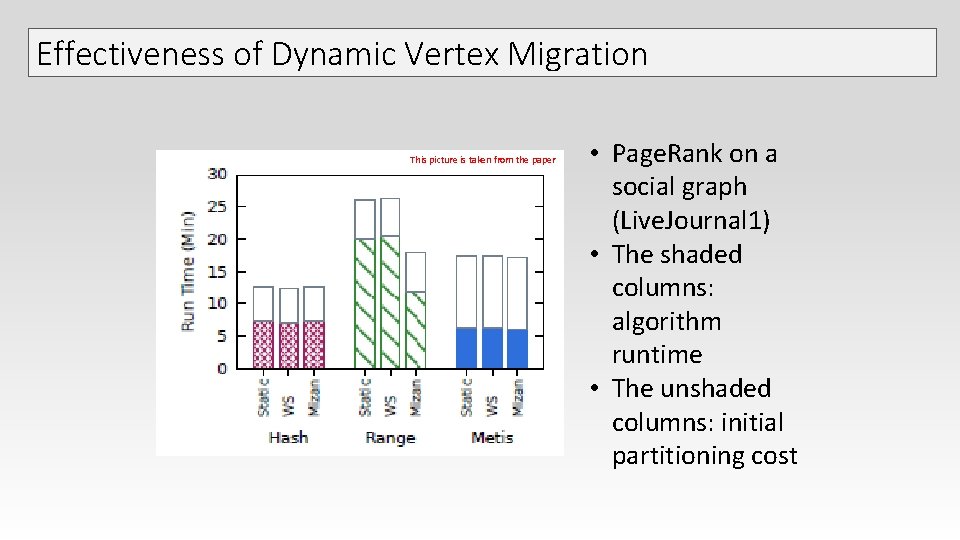

Effectiveness of Dynamic Vertex Migration This picture is taken from the paper • Page. Rank on a social graph (Live. Journal 1) • The shaded columns: algorithm runtime • The unshaded columns: initial partitioning cost

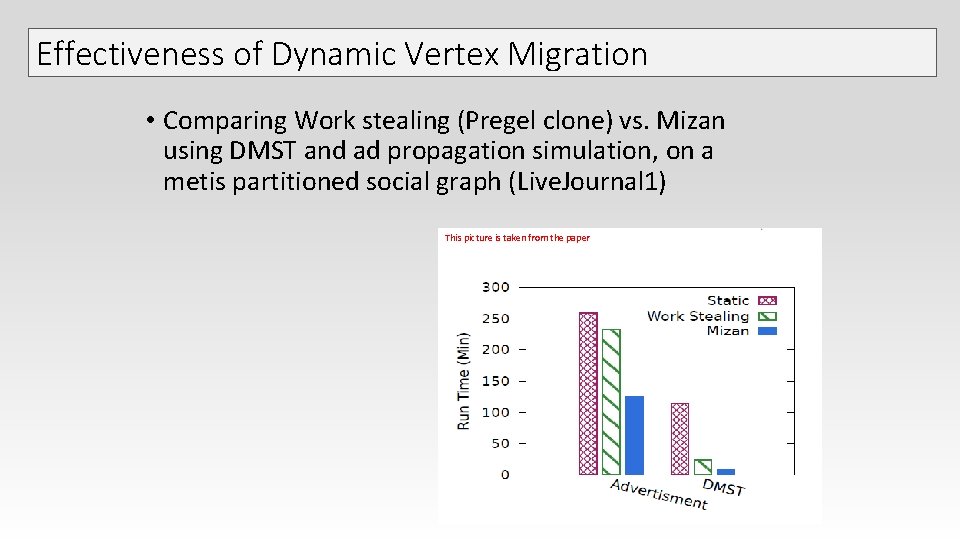

Effectiveness of Dynamic Vertex Migration • Comparing Work stealing (Pregel clone) vs. Mizan using DMST and ad propagation simulation, on a metis partitioned social graph (Live. Journal 1) This picture is taken from the paper

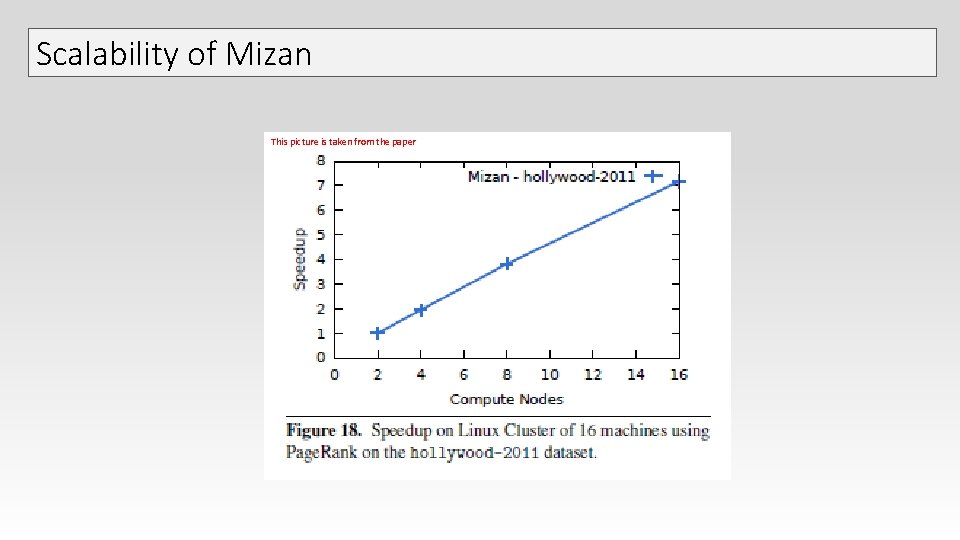

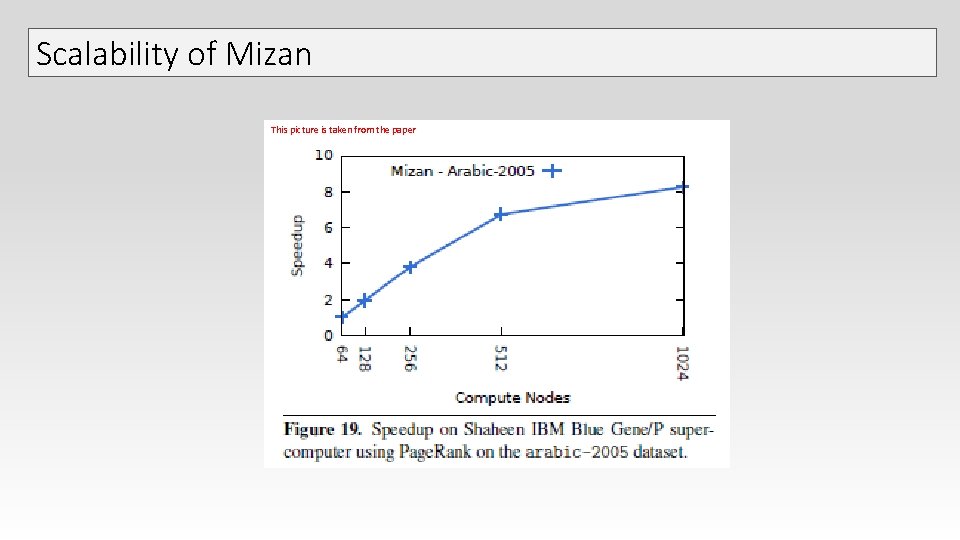

Scalability of Mizan This picture is taken from the paper

Scalability of Mizan This picture is taken from the paper

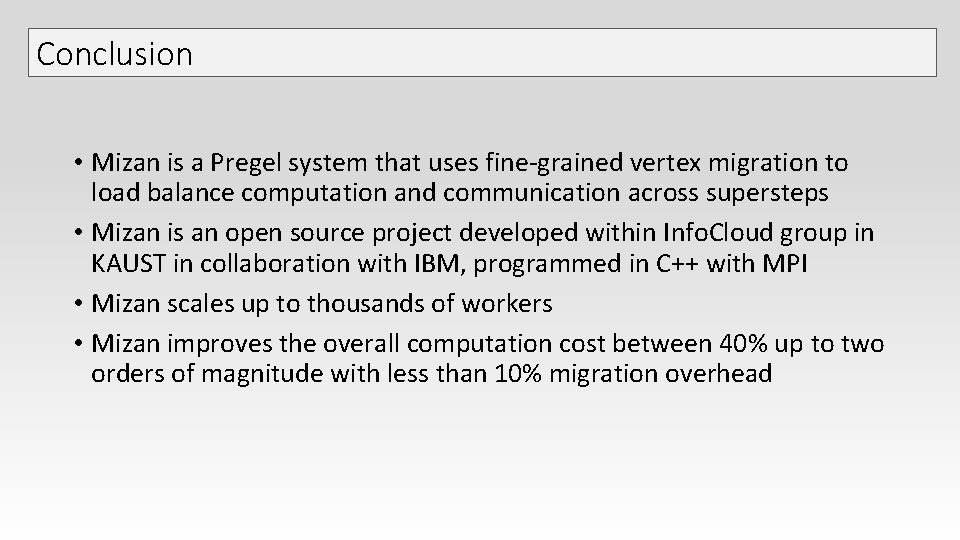

Conclusion • Mizan is a Pregel system that uses fine-grained vertex migration to load balance computation and communication across supersteps • Mizan is an open source project developed within Info. Cloud group in KAUST in collaboration with IBM, programmed in C++ with MPI • Mizan scales up to thousands of workers • Mizan improves the overall computation cost between 40% up to two orders of magnitude with less than 10% migration overhead

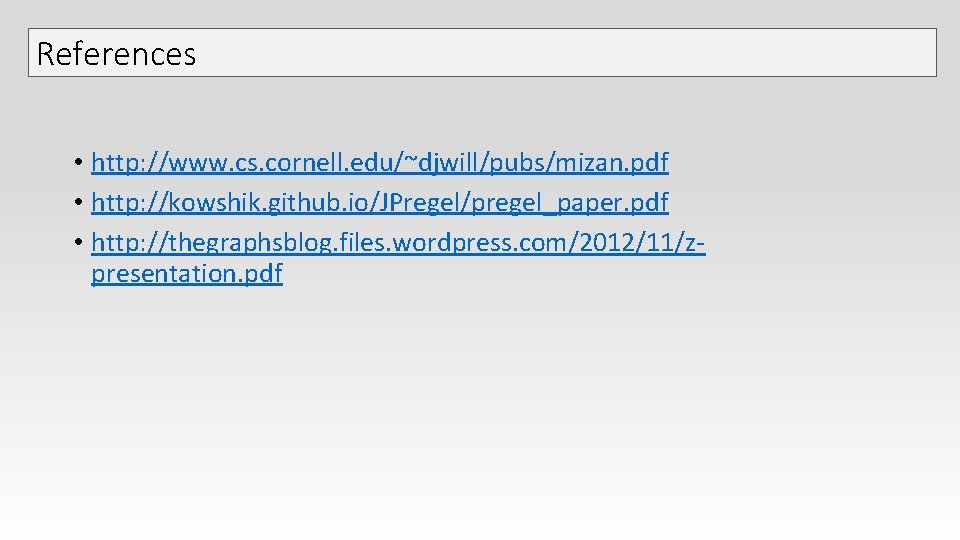

References • http: //www. cs. cornell. edu/~djwill/pubs/mizan. pdf • http: //kowshik. github. io/JPregel/pregel_paper. pdf • http: //thegraphsblog. files. wordpress. com/2012/11/zpresentation. pdf
