Mitra Clip Mitral Valve Repair System Rachel Mc

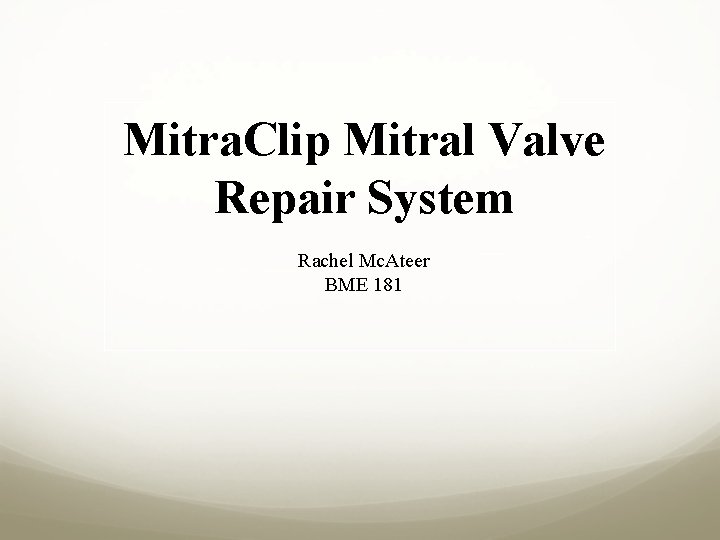

Mitra. Clip Mitral Valve Repair System Rachel Mc. Ateer BME 181

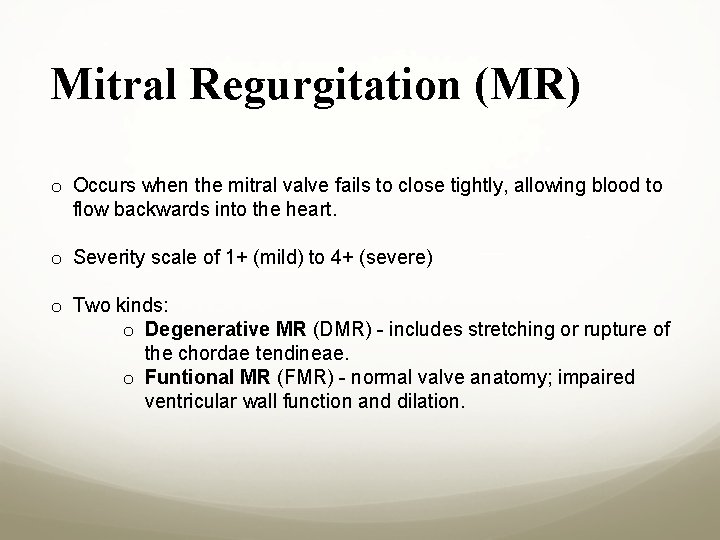

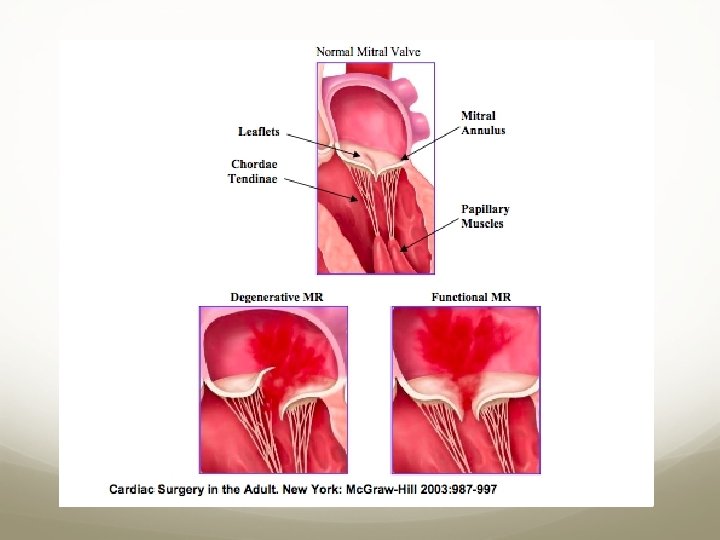

Mitral Regurgitation (MR) o Occurs when the mitral valve fails to close tightly, allowing blood to flow backwards into the heart. o Severity scale of 1+ (mild) to 4+ (severe) o Two kinds: o Degenerative MR (DMR) - includes stretching or rupture of the chordae tendineae. o Funtional MR (FMR) - normal valve anatomy; impaired ventricular wall function and dilation.

Mitra. Clip System

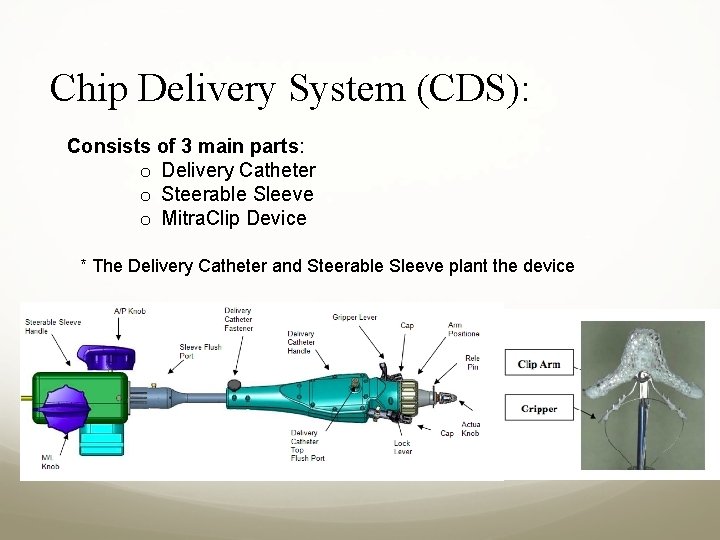

Chip Delivery System (CDS): Consists of 3 main parts: o Delivery Catheter o Steerable Sleeve o Mitra. Clip Device * The Delivery Catheter and Steerable Sleeve plant the device

Steerable Guide Catheter (SDC): o Contains a handle made up of knobs and levers, which control the system, and is attached to a dilator. o Positions the CDS into the appropriate location.

Results o Approved in more than 40 countries o More than 8, 000 procedures worldwide o More than 1, 200 patients treated in the US: o 900 completed minimum 1 -year follow up o 96% implant success rate o In 86%, MR reduced to 2+ or less; in many cases 1+ or less o 30 -day mortality rate decreased to 4. 8% vs. 18. 2% usually expected with surgery

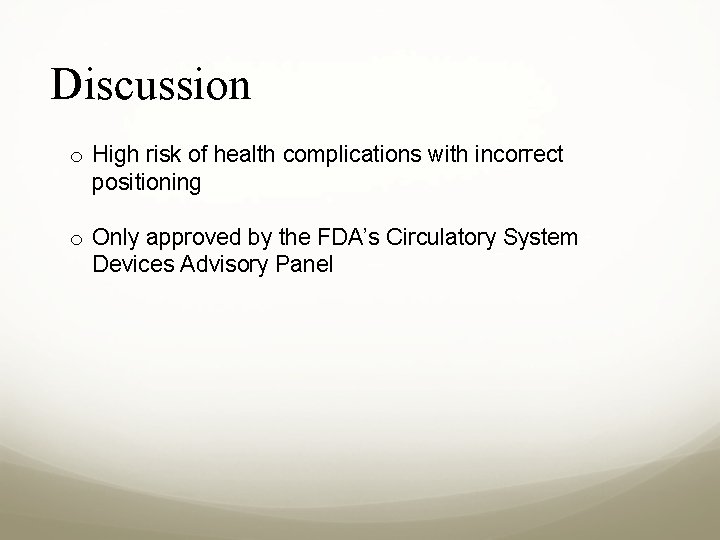

Discussion o High risk of health complications with incorrect positioning o Only approved by the FDA’s Circulatory System Devices Advisory Panel

References Percutaneous Mitral Valve Repair with the Mitra. Clip Delivery System in High Surgical Risk Patients: Briefing Document for the Circulatory Systems Device Panel Advisory Committee www. fda, gov Mitra. Clip Mitral Valve Repair System < http: //www. abbottvascular. com/int/mitraclip. html> Mitral Valve Regurgitation < http: //www. mayoclinic. com/health/mitral-valveregurgitation/DS 00421/DSECTION=risk%2 Dfactors>
