Mitigating 3 -MCPD & GE Content in Edible Oil: Latest Technologies & Innovations Mario Bernardini, Chairman The tradition of designing the future

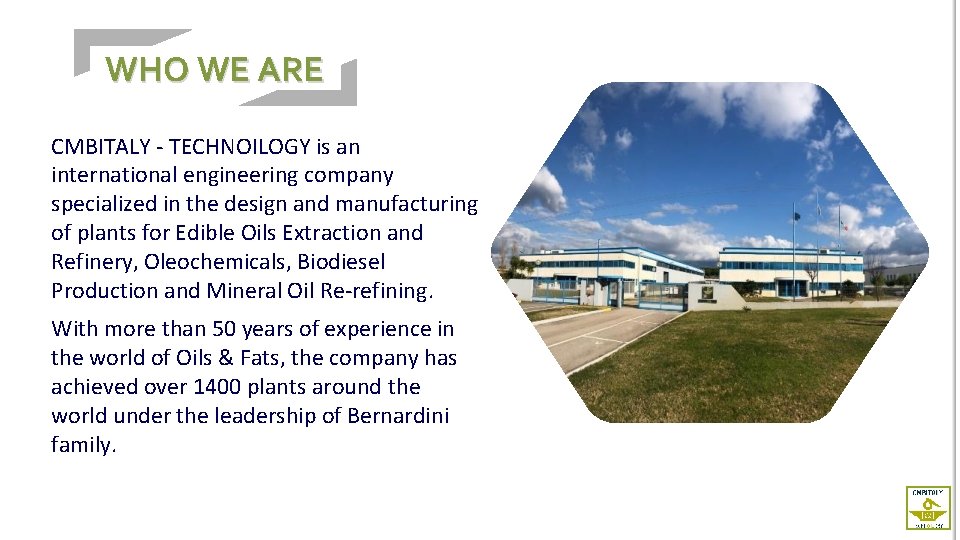

WHO WE ARE CMBITALY - TECHNOILOGY is an international engineering company specialized in the design and manufacturing of plants for Edible Oils Extraction and Refinery, Oleochemicals, Biodiesel Production and Mineral Oil Re-refining. With more than 50 years of experience in the world of Oils & Fats, the company has achieved over 1400 plants around the world under the leadership of Bernardini family.

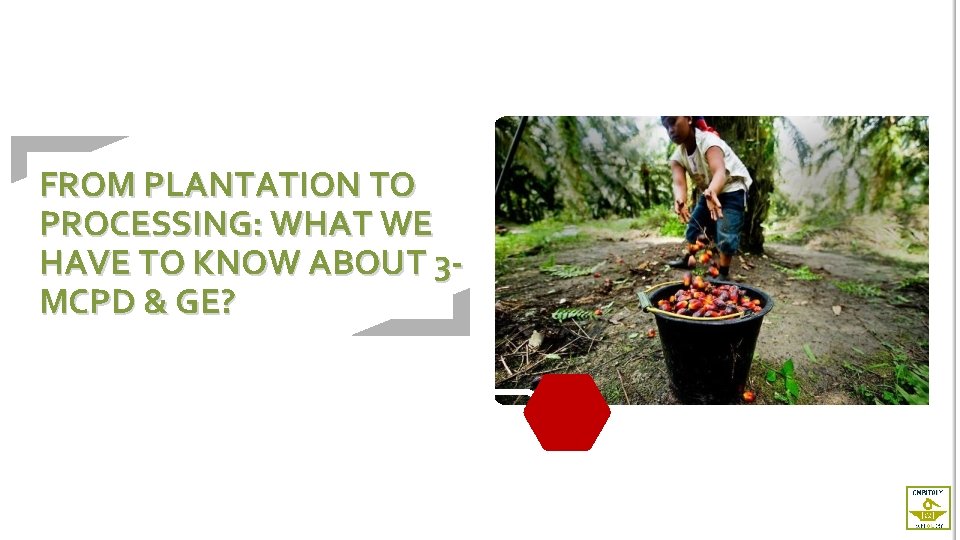

FROM PLANTATION TO PROCESSING: WHAT WE HAVE TO KNOW ABOUT 3 MCPD & GE?

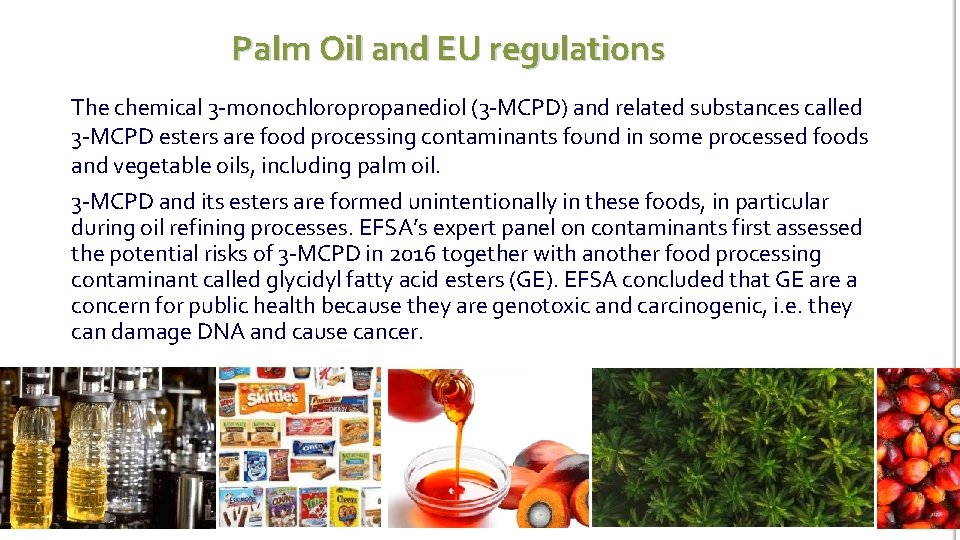

Palm Oil and EU regulations The chemical 3 -monochloropropanediol (3 -MCPD) and related substances called 3 -MCPD esters are food processing contaminants found in some processed foods and vegetable oils, including palm oil. 3 -MCPD and its esters are formed unintentionally in these foods, in particular during oil refining processes. EFSA’s expert panel on contaminants first assessed the potential risks of 3 -MCPD in 2016 together with another food processing contaminant called glycidyl fatty acid esters (GE). EFSA concluded that GE are a concern for public health because they are genotoxic and carcinogenic, i. e. they can damage DNA and cause cancer.

Palm Oil and EU regulations The European Commission is finalizing new EU legislation aimed at reducing GE levels in vegetable oils and food. In 2018, EFSA has updated the accepted level of 3 -MCPD – Tolerable Daily Intake or “TDI” - and its esters whereas previous assessment of GE has not changed. GE 3 -MCPD (μg/kg) TDI Vegetable oil 1000 (μg/kg) 1 ppm 2 (μg/kg) Source: EFSA 2018

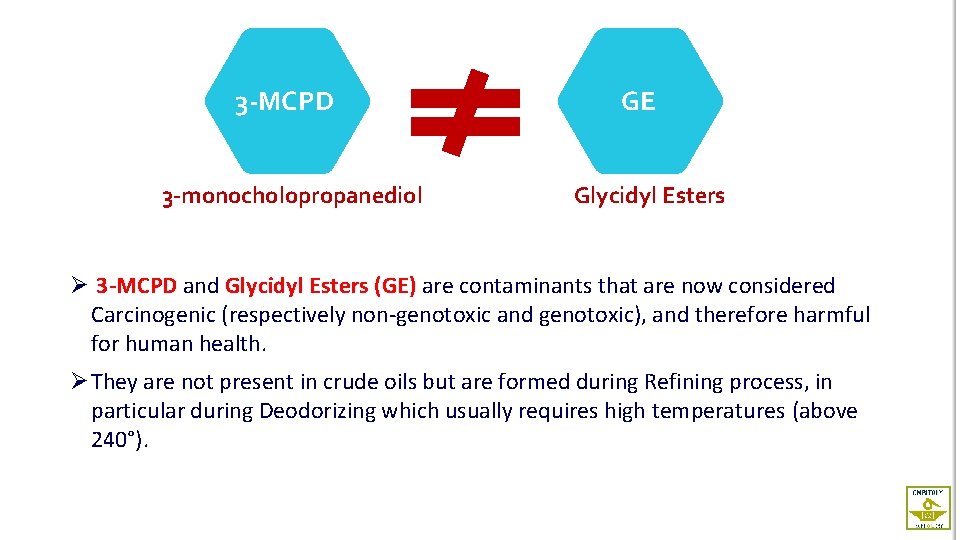

3 -MCPD 3 -monocholopropanediol GE Glycidyl Esters Ø 3 -MCPD and Glycidyl Esters (GE) are contaminants that are now considered Carcinogenic (respectively non-genotoxic and genotoxic), and therefore harmful for human health. Ø They are not present in crude oils but are formed during Refining process, in particular during Deodorizing which usually requires high temperatures (above 240°).

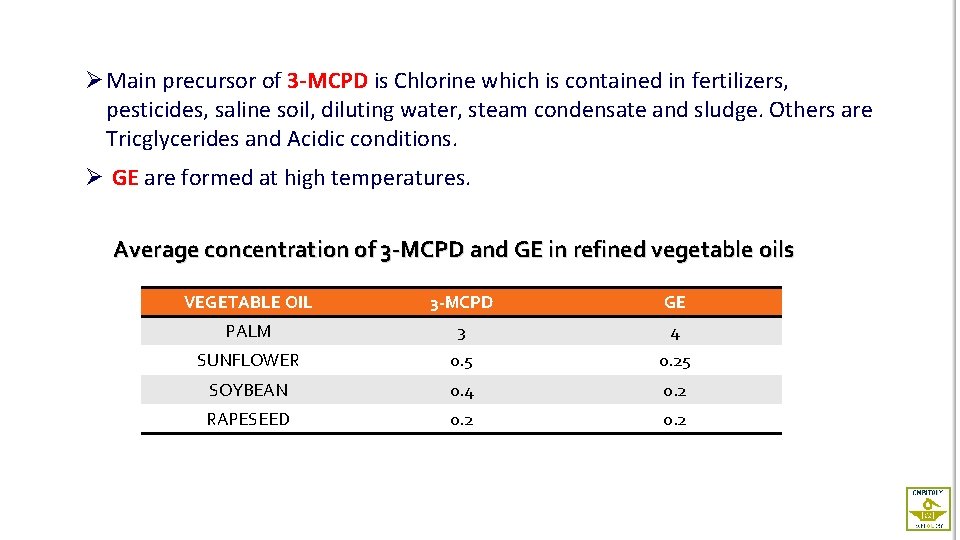

Ø Main precursor of 3 -MCPD is Chlorine which is contained in fertilizers, pesticides, saline soil, diluting water, steam condensate and sludge. Others are Tricglycerides and Acidic conditions. Ø GE are formed at high temperatures. Average concentration of 3 -MCPD and GE in refined vegetable oils VEGETABLE OIL 3 -MCPD GE PALM 3 4 SUNFLOWER 0. 5 0. 25 SOYBEAN 0. 4 0. 2 RAPESEED 0. 2

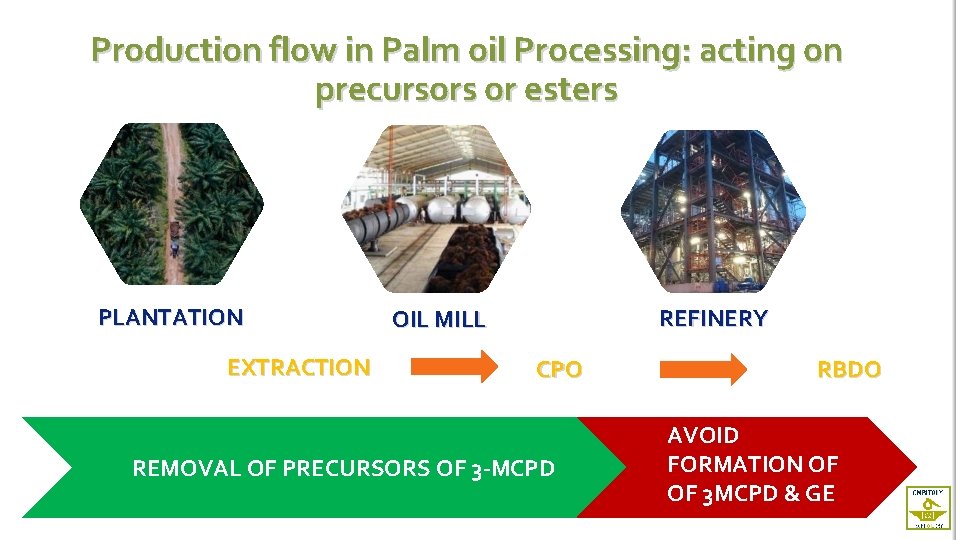

Production flow in Palm oil Processing: acting on precursors or esters PLANTATION EXTRACTION REFINERY OIL MILL CPO REMOVAL OF PRECURSORS OF 3 -MCPD RBDO AVOID FORMATION OF OF 3 MCPD & GE

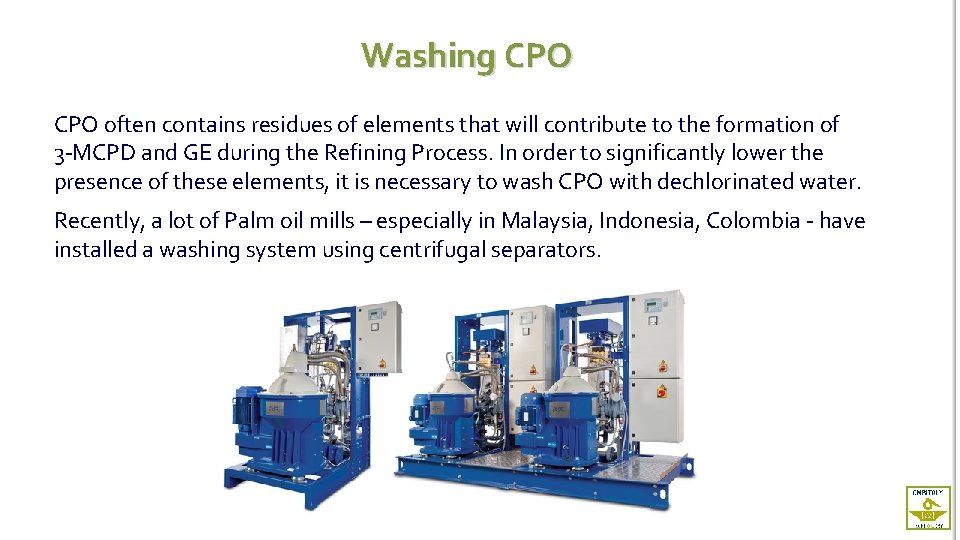

Washing CPO often contains residues of elements that will contribute to the formation of 3 -MCPD and GE during the Refining Process. In order to significantly lower the presence of these elements, it is necessary to wash CPO with dechlorinated water. Recently, a lot of Palm oil mills – especially in Malaysia, Indonesia, Colombia - have installed a washing system using centrifugal separators.

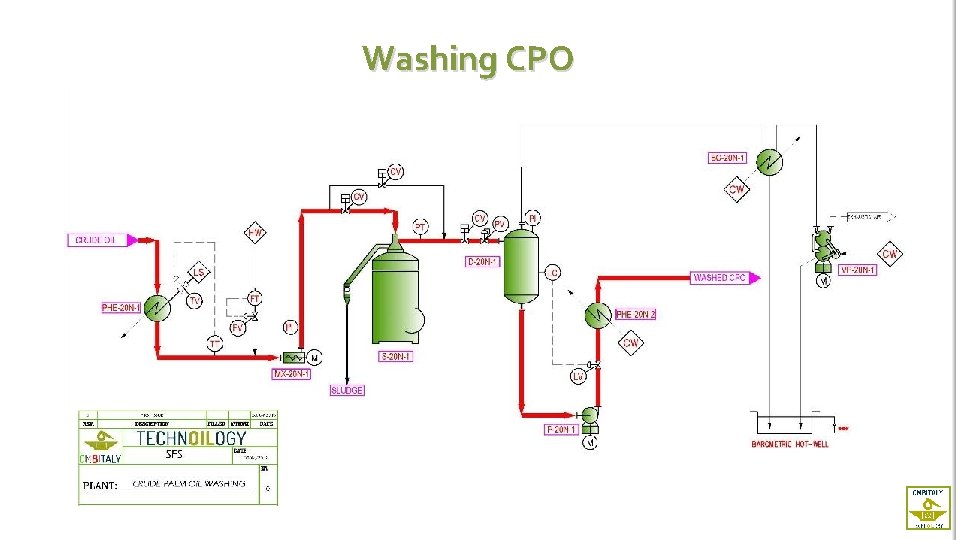

Washing CPO

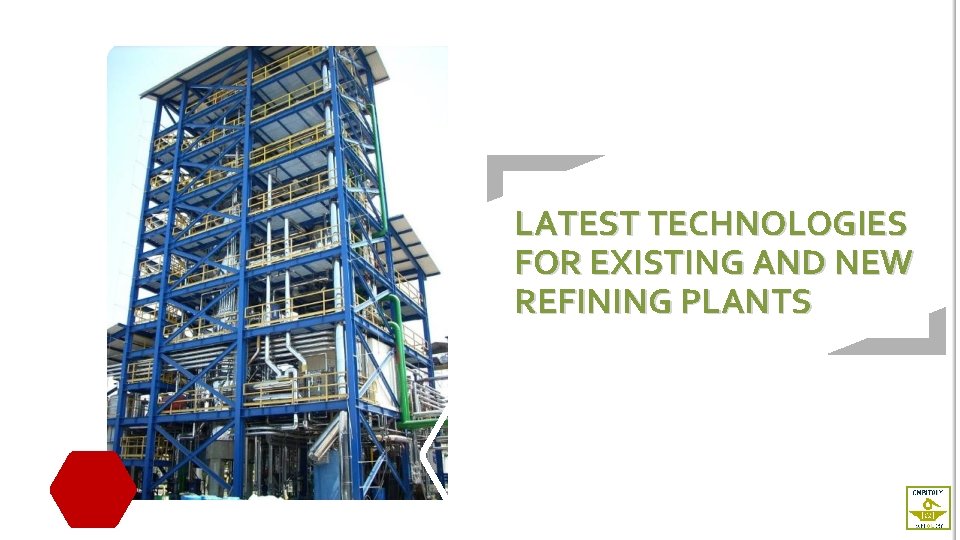

LATEST TECHNOLOGIES FOR EXISTING AND NEW REFINING PLANTS

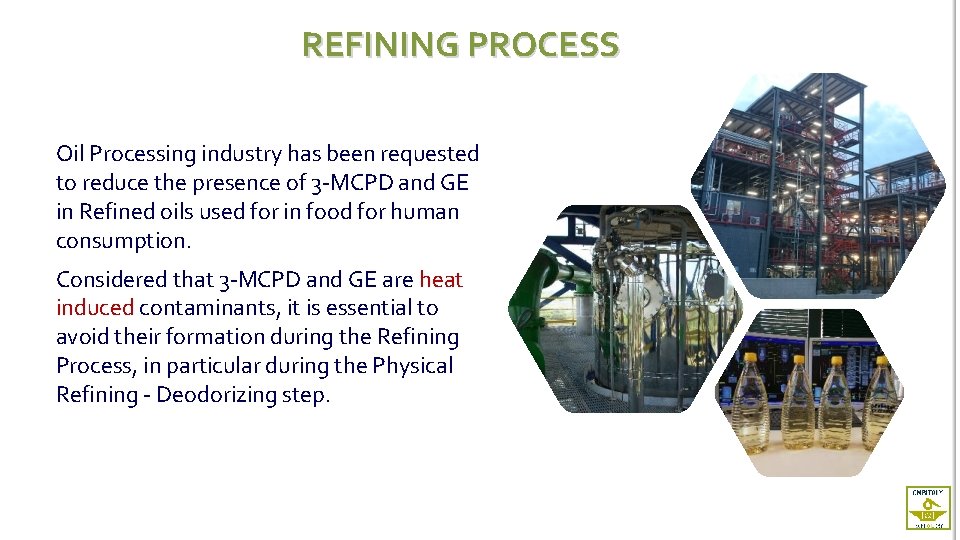

REFINING PROCESS Oil Processing industry has been requested to reduce the presence of 3 -MCPD and GE in Refined oils used for in food for human consumption. Considered that 3 -MCPD and GE are heat induced contaminants, it is essential to avoid their formation during the Refining Process, in particular during the Physical Refining - Deodorizing step.

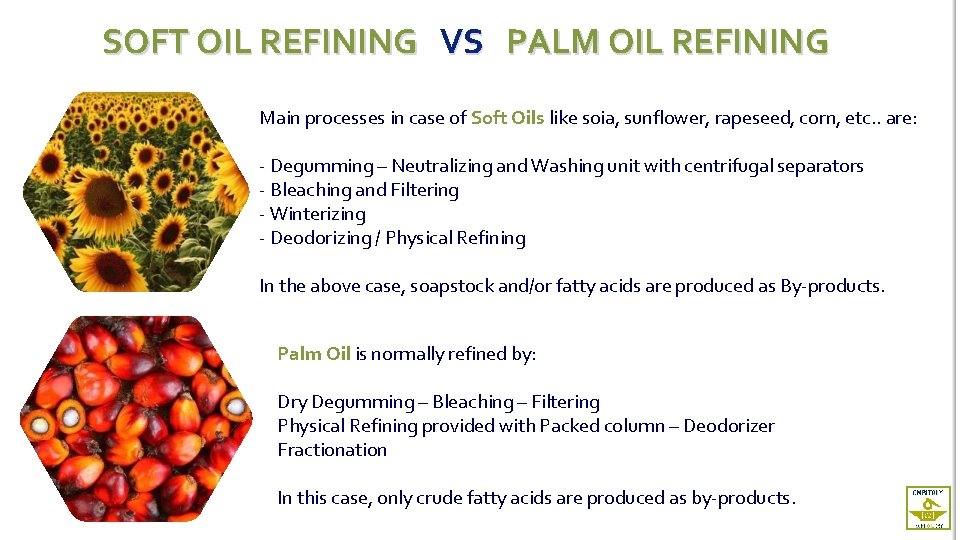

SOFT OIL REFINING VS PALM OIL REFINING Main processes in case of Soft Oils like soia, sunflower, rapeseed, corn, etc. . are: - Degumming – Neutralizing and Washing unit with centrifugal separators - Bleaching and Filtering - Winterizing - Deodorizing / Physical Refining In the above case, soapstock and/or fatty acids are produced as By-products. Palm Oil is normally refined by: Dry Degumming – Bleaching – Filtering Physical Refining provided with Packed column – Deodorizer Fractionation In this case, only crude fatty acids are produced as by-products.

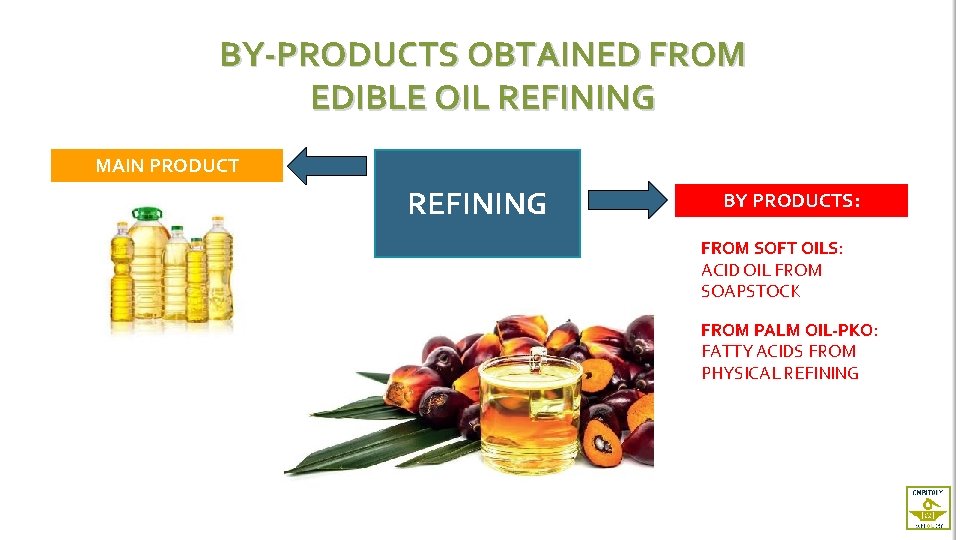

BY-PRODUCTS OBTAINED FROM EDIBLE OIL REFINING MAIN PRODUCT REFINING BY PRODUCTS: FROM SOFT OILS: ACID OIL FROM SOAPSTOCK FROM PALM OIL-PKO: FATTY ACIDS FROM PHYSICAL REFINING

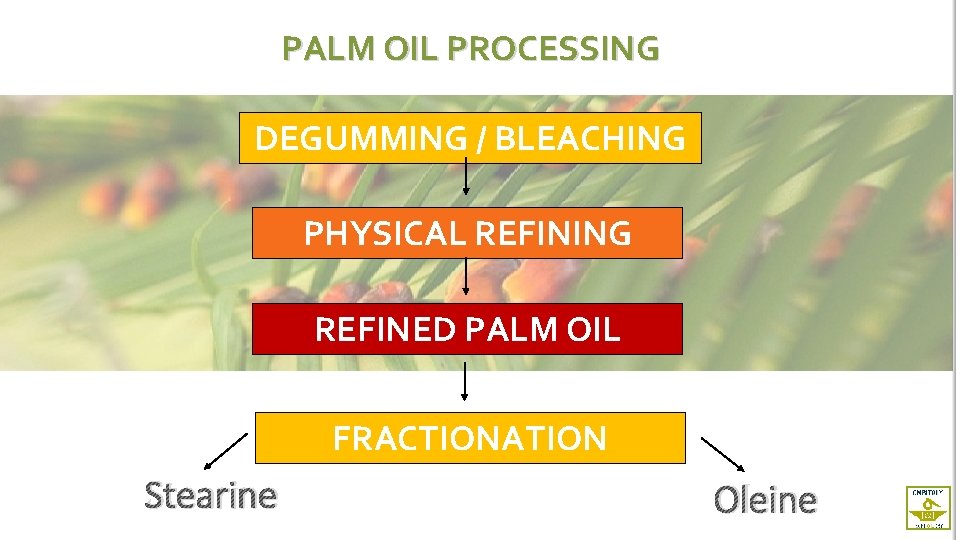

PALM OIL PROCESSING DEGUMMING / BLEACHING PHYSICAL REFINING REFINED PALM OIL FRACTIONATION Stearine Oleine

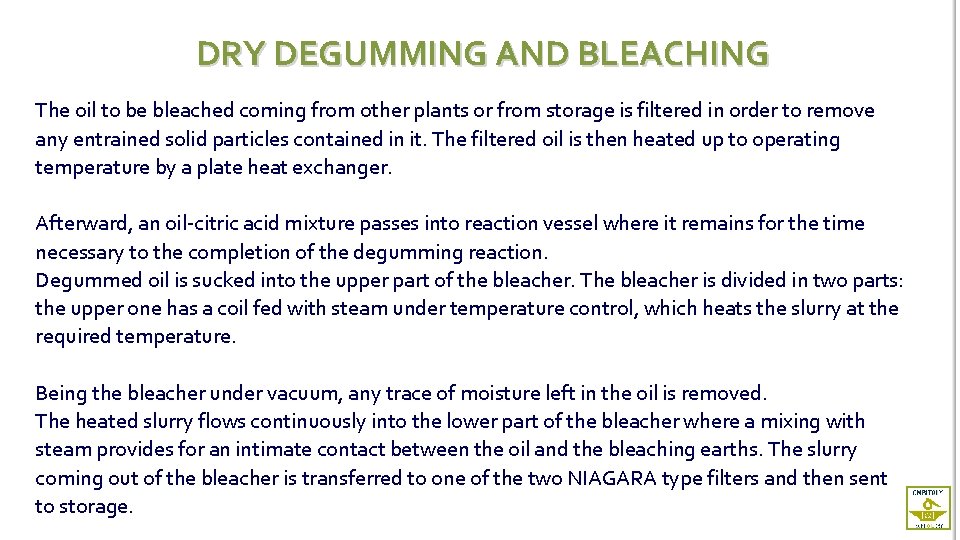

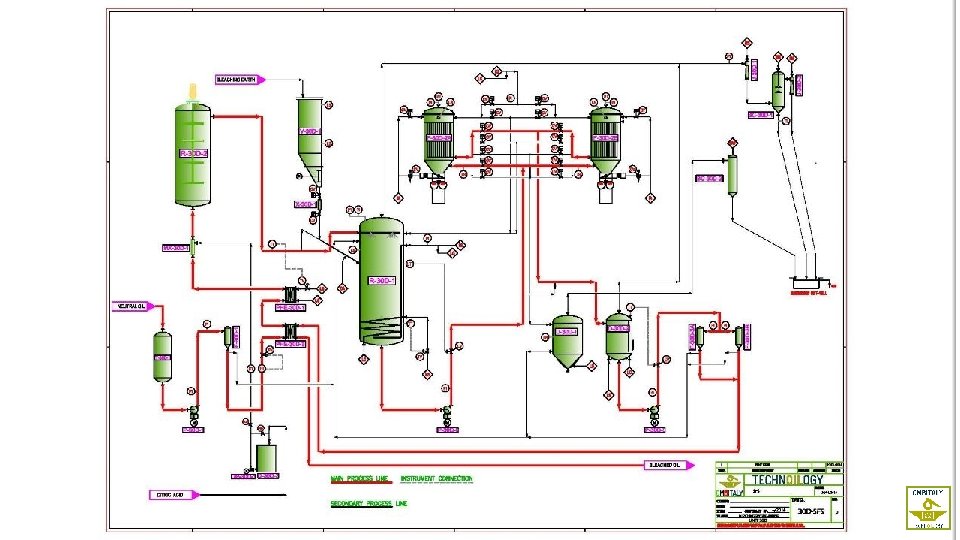

DRY DEGUMMING AND BLEACHING The oil to be bleached coming from other plants or from storage is filtered in order to remove any entrained solid particles contained in it. The filtered oil is then heated up to operating temperature by a plate heat exchanger. Afterward, an oil-citric acid mixture passes into reaction vessel where it remains for the time necessary to the completion of the degumming reaction. Degummed oil is sucked into the upper part of the bleacher. The bleacher is divided in two parts: the upper one has a coil fed with steam under temperature control, which heats the slurry at the required temperature. Being the bleacher under vacuum, any trace of moisture left in the oil is removed. The heated slurry flows continuously into the lower part of the bleacher where a mixing with steam provides for an intimate contact between the oil and the bleaching earths. The slurry coming out of the bleacher is transferred to one of the two NIAGARA type filters and then sent to storage.

In order to avoid the formation of 3 -MCPD it is necessary to use bleaching earth free of chloride.

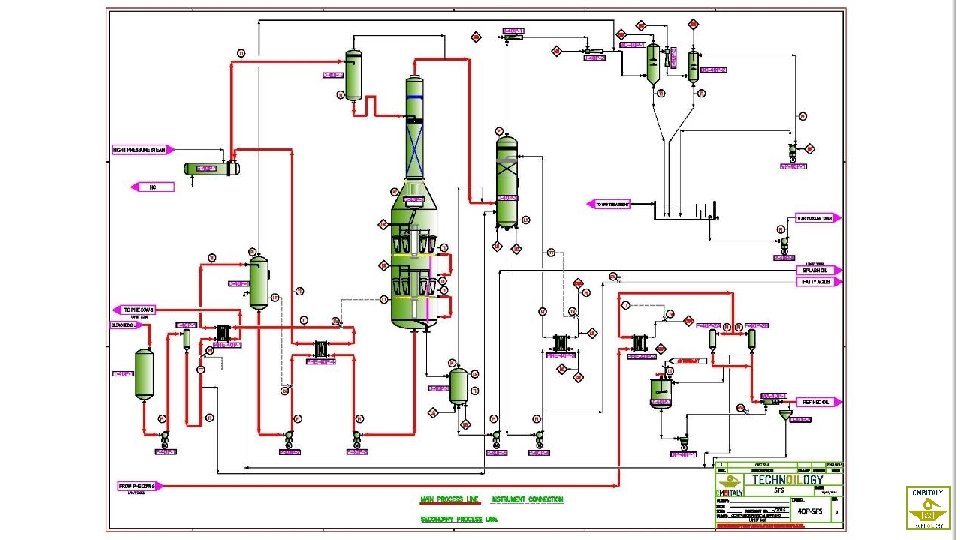

PHYSICAL REFINING AND DEODORIZING During this step, the bleached oil is heated up to the temperature of operation of dehydrator by a heat transfer from the hot deodorised oil. From the dehydrator, the oil is transferred to heat exchangers, to the flash drum - where part of the fatty acids evaporates - and then to the pack column. This system of exchangers allows a good heat recovery. The oil is retained for a pre-set time in the physical refining column which comprises of: Ø an upper part, with a special packing to facilitate an intimate contact between the incoming oil and the steam, where the deodorising/physical refining begins Ø a lower part, where the oil is subjected to a violent live steam injection blown in by mammoth pumps, where deodorising is completed.

The combined effect of stripping steam and retention time, under the optimum temperature and vacuum conditions for each type of oil, makes possible to remove by distillation the free fatty acids and odoriferous substances contained in the oil. In case of palm oil, the temperature for Physical Refining – Deodorizing must be as low as possible. During Deacidification, the vegetable oil must be kept at high temperature the shortest time possible.

Formation of Esters during Deodorizing (Palm Oil) 10 9 3 MCPD and GE 8 7 6 5 4 3 2 1 0 200 210 220 230 240 Temperature Deodorizer 250 260

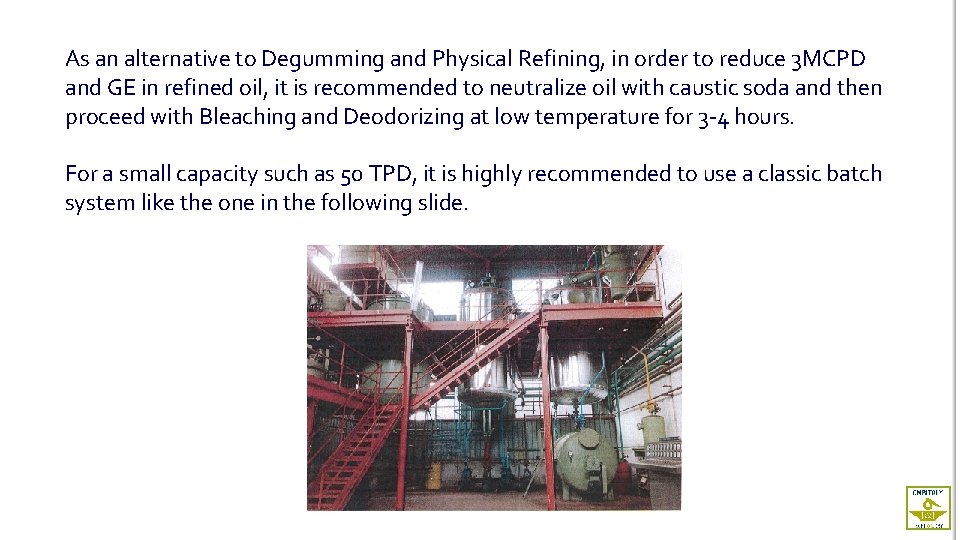

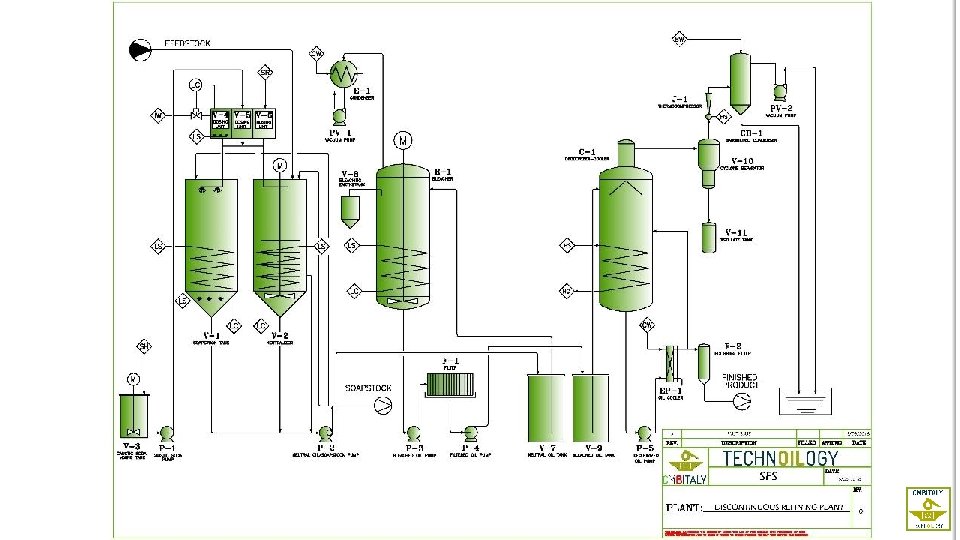

As an alternative to Degumming and Physical Refining, in order to reduce 3 MCPD and GE in refined oil, it is recommended to neutralize oil with caustic soda and then proceed with Bleaching and Deodorizing at low temperature for 3 -4 hours. For a small capacity such as 50 TPD, it is highly recommended to use a classic batch system like the one in the following slide.

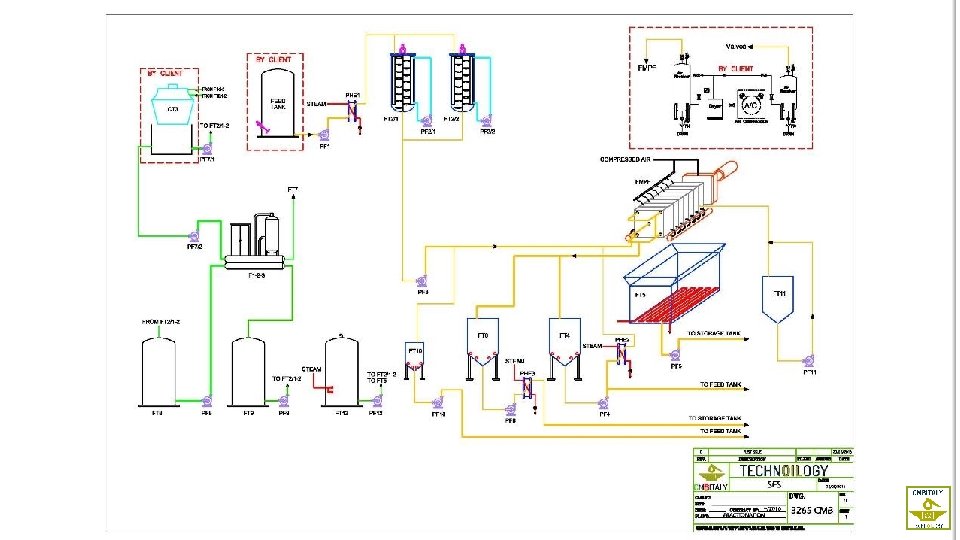

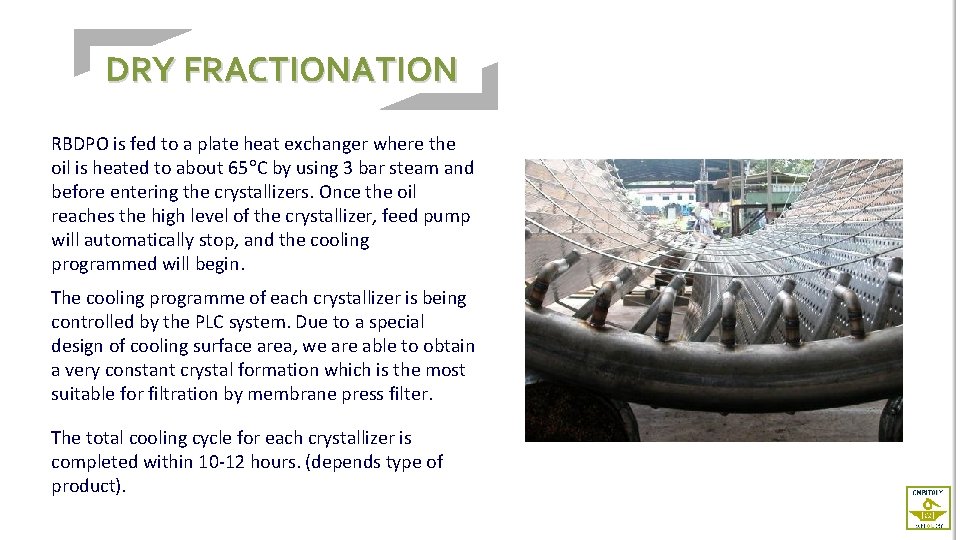

DRY FRACTIONATION RBDPO is fed to a plate heat exchanger where the oil is heated to about 65 C by using 3 bar steam and before entering the crystallizers. Once the oil reaches the high level of the crystallizer, feed pump will automatically stop, and the cooling programmed will begin. The cooling programme of each crystallizer is being controlled by the PLC system. Due to a special design of cooling surface area, we are able to obtain a very constant crystal formation which is the most suitable for filtration by membrane press filter. The total cooling cycle for each crystallizer is completed within 10 -12 hours. (depends type of product).

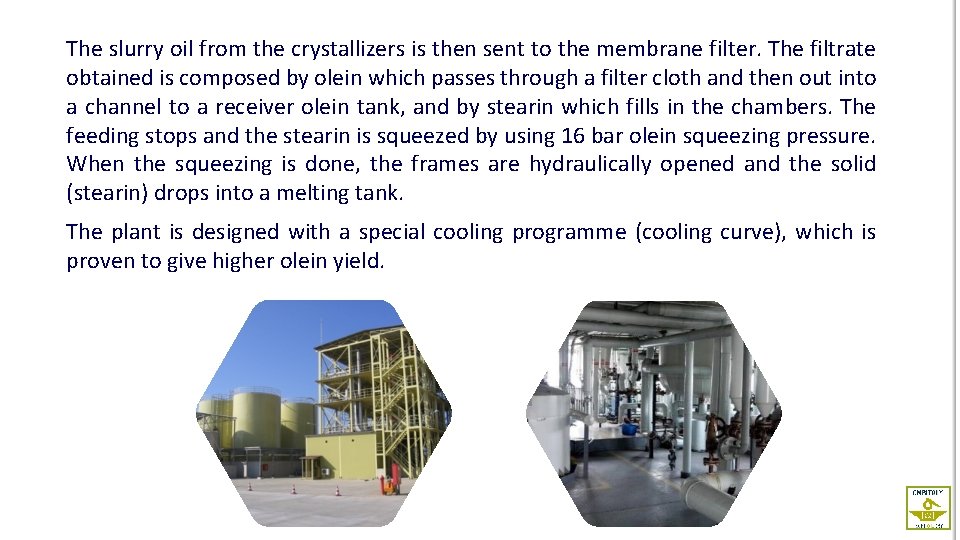

The slurry oil from the crystallizers is then sent to the membrane filter. The filtrate obtained is composed by olein which passes through a filter cloth and then out into a channel to a receiver olein tank, and by stearin which fills in the chambers. The feeding stops and the stearin is squeezed by using 16 bar olein squeezing pressure. When the squeezing is done, the frames are hydraulically opened and the solid (stearin) drops into a melting tank. The plant is designed with a special cooling programme (cooling curve), which is proven to give higher olein yield.

DRY FRACTIONATION PLANT INLET AND OUTLET PRODUCT CHARACTERISTICS: CONSUMPTION FIGURES INLET: FEEDSTOCK SPECIFICATION RBD Palm Oil Free Fatty Acid : 0. 05 - 0. 06 % max Moisture Content : 0. 03 % max Solid Particle Content : 0. 03 % max Iodine Value : 51. 5 - 52. 0 Colour 5 1/4”cell : 2. 0 - 2. 5 R Temperature : 70 C

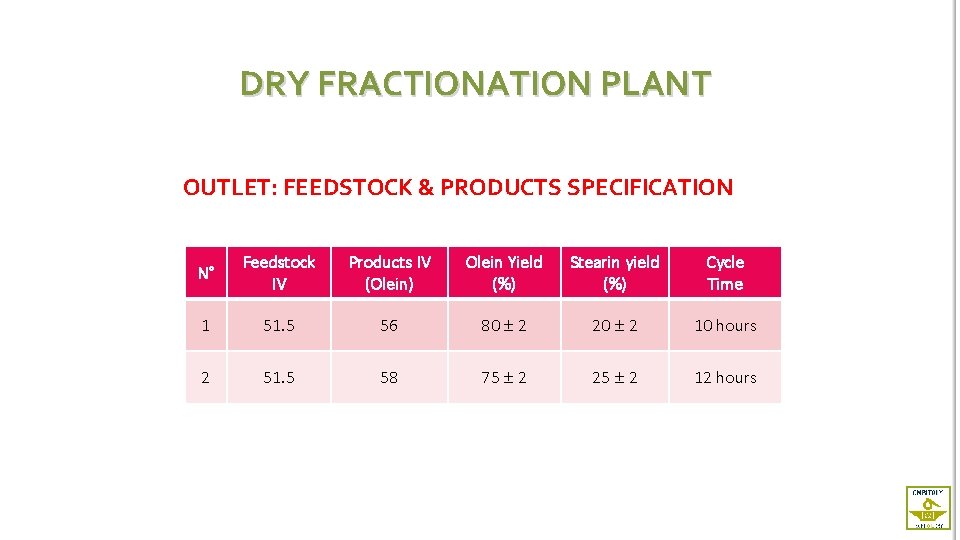

DRY FRACTIONATION PLANT OUTLET: FEEDSTOCK & PRODUCTS SPECIFICATION N° Feedstock IV Products IV (Olein) Olein Yield (%) Stearin yield (%) Cycle Time 1 51. 5 56 80 2 20 2 10 hours 2 51. 5 58 75 2 25 2 12 hours

Headquarters: CMBITALY – TECHNOILOGY Via D. Federici, 12/14 - Cisterna di Latina Tel. /Fax: 069696181 Contacts: Mario Bernardini +39335369348 mario. bernardini@technoilogy. it Thank you!
