MIPS Arithmetic and Logic Instructions COE 301 Computer Organization ICS 233 Computer Architecture and

MIPS Arithmetic and Logic Instructions COE 301 Computer Organization ICS 233 Computer Architecture and Assembly Language Dr. Marwan Abu-Amara College of Computer Sciences and Engineering King Fahd University of Petroleum and Minerals [Adapted from slides of Dr. M. Mudawar and Dr. A. El-Maleh, KFUPM]

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants v Pseudo Instructions v Multiplication and Division Instructions Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 2

Instruction Formats v All instructions are 32 -bit wide. Three instruction formats: v Register

Instruction Formats v All instructions are 32 -bit wide. Three instruction formats: v Register (R-Type) ² Register-to-register instructions ² Op: operation code specifies the format of the instruction Op 6 Rs 5 Rt 5 Rd 5 sa 5 v Immediate (I-Type) ² 16 -bit immediate constant is part in the instruction Op 6 Rs 5 Rt 5 immediate 16 v Jump (J-Type) ² Used by jump instructions Op 6 Instruction Set Architecture immediate 26 COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 3 funct 6

R-Type Format Op 6 Rs 5 Rt 5 Rd 5 sa 5 funct 6

R-Type Format Op 6 Rs 5 Rt 5 Rd 5 sa 5 funct 6 v Op: operation code (opcode) ² Specifies the operation of the instruction ² Also specifies the format of the instruction v funct: function code – extends the opcode ² Up to 26 = 64 functions can be defined for the same opcode ² MIPS uses opcode 0 to define R-type instructions v Three Register Operands (common to many instructions) ² Rs, Rt: first and second source operands ² Rd: destination operand ² sa: the shift amount used by shift instructions Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 4

Integer Add /Subtract Instructions Instruction addu subu $s 1, $s 2, $s 3 Meaning

Integer Add /Subtract Instructions Instruction addu subu $s 1, $s 2, $s 3 Meaning $s 1 = $s 2 + $s 3 $s 1 = $s 2 – $s 3 R-Type Format op = 0 rs = $s 2 rt = $s 3 rd = $s 1 sa = 0 f = 0 x 20 f = 0 x 21 f = 0 x 22 f = 0 x 23 v add & sub: overflow causes an arithmetic exception ² In case of overflow, result is not written to destination register v addu & subu: same operation as add & sub ² However, Overflow is ignored v Many programming languages ignore overflow ² The + operator is translated into addu ² The – operator is translated into subu Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 5

Range, Carry, Borrow, and Overflow v Bits have NO meaning. The same n bits

Range, Carry, Borrow, and Overflow v Bits have NO meaning. The same n bits stored in a register can represent an unsigned or a signed integer. v Unsigned Integers: n-bit representation Numbers < 0 Numbers > max Borrow = 1 Subtraction Carry = 1 Addition Finite Set of Unsigned Integers max = 2 n– 1 min = 0 v Signed Integers: n-bit 2's complement representation Numbers < min Numbers > max Negative Overflow min = -2 n-1 Instruction Set Architecture Positive Overflow Finite Set of Signed Integers 0 COE 301 – Computer Organization – KFUPM max = 2 n-1– 1 © Muhamed Mudawar slide 6

Carry and Overflow v Carry is useful when adding (subtracting) unsigned integers ² Carry

Carry and Overflow v Carry is useful when adding (subtracting) unsigned integers ² Carry indicates that the unsigned sum is out of range v Overflow is useful when adding (subtracting) signed integers ² Overflow indicates that the signed sum is out of range v Range for 32 -bit unsigned integers = 0 to (232 – 1) v Range for 32 -bit signed integers = -231 to (231 – 1) v Example 1: Carry = 1, Overflow = 0 (NO overflow) 11111 1 1 1000 0100 0000 1110 0001 0100 0001 + 1111 0000 1111 0101 0010 0000 1000 0011 0000 0001 1101 0110 0001 Unsigned sum is out-of-range, but the Signed sum is correct Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 7

More Examples of Carry and Overflow v Example 2: Carry = 0, Overflow =

More Examples of Carry and Overflow v Example 2: Carry = 0, Overflow = 1 01111 1 0010 0100 0000 0100 1011 0001 0100 + 0111 1111 0000 0011 0101 0000 0010 1010 0011 0100 1110 0100 0110 Unsigned sum is correct, but the Signed sum is out-of-range v Example 3: Carry = 1, Overflow = 1 1 11 1 1000 0100 0000 0100 1011 0001 0100 + 1001 1111 0000 0011 0101 0000 0010 0011 0100 1110 0100 0110 Both the Unsigned and Signed sums are out-of-range Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 8

Addition/Subtraction Example v Consider the translation of: f = (g+h) – (i+j) v Compiler

Addition/Subtraction Example v Consider the translation of: f = (g+h) – (i+j) v Compiler allocates registers to variables ² Assume that f, g, h, i, and j are allocated registers $s 0 thru $s 4 ² Called the saved registers: $s 0 = $16, $s 1 = $17, …, $s 7 = $23 v Translation of: f = (g+h) – (i+j) addu $t 0, $s 1, $s 2 addu $t 1, $s 3, $s 4 subu $s 0, $t 1 # $t 0 = g + h # $t 1 = i + j # f = (g+h)–(i+j) ² Temporary results are stored in $t 0 = $8 and $t 1 = $9 v Translate: addu $t 0, $s 1, $s 2 to binary code op v Solution: Instruction Set Architecture rs = $s 1 rt = $s 2 rd = $t 0 sa func 000000 10001 10010 01000 00000 100001 COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 9

Logical Bitwise Operations v Logical bitwise operations: and, or, xor, nor x y x

Logical Bitwise Operations v Logical bitwise operations: and, or, xor, nor x y x and y x y 0 0 1 1 0 1 0 0 0 1 0 1 x or y 0 1 1 1 x y x xor y x nor y 0 0 1 1 0 1 0 1 1 0 0 1 v AND instruction is used to clear bits: x and 0 = 0 v OR instruction is used to set bits: x or 1 = 1 v XOR instruction is used to toggle bits: x xor 1 = not x v NOR instruction can be used as a NOT, how? ² nor $s 1, $s 2 is equivalent to not $s 1, $s 2 Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 10 1 0 0 0

Logical Bitwise Instructions Instruction and or xor nor $s 1, $s 2, $s 3

Logical Bitwise Instructions Instruction and or xor nor $s 1, $s 2, $s 3 Meaning $s 1 = $s 2 & $s 3 $s 1 = $s 2 | $s 3 $s 1 = $s 2 ^ $s 3 $s 1 = ~($s 2|$s 3) R-Type Format op = 0 rs = $s 2 rt = $s 3 rd = $s 1 sa = 0 f = 0 x 24 f = 0 x 25 f = 0 x 26 f = 0 x 27 v Examples: Assume $s 1 = 0 xabcd 1234 and $s 2 = 0 xffff 0000 and $s 0, $s 1, $s 2 # $s 0 = 0 xabcd 0000 or $s 0, $s 1, $s 2 # $s 0 = 0 xffff 1234 xor $s 0, $s 1, $s 2 # $s 0 = 0 x 54321234 nor $s 0, $s 1, $s 2 # $s 0 = 0 x 0000 edcb Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 11

Shift Operations v Shifting is to move the 32 bits in a register left

Shift Operations v Shifting is to move the 32 bits in a register left or right v Shifts by a constant amount: sll, sra ² sll means shift left logical (insert zero from the right) ² srl means shift right logical (insert zero from the left) ² sra means shift right arithmetic (insert sign-bit) ² The 5 -bit shift amount field is used by these instructions sll shift-out MSB srl shift-in 0 sra shift-in sign-bit Instruction Set Architecture 32 -bit register . . . shift-in 0 . . . shift-out LSB COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 12

Shift Instructions Instruction sll sra sllv srav $s 1, $s 2, 10 $s 1,

Shift Instructions Instruction sll sra sllv srav $s 1, $s 2, 10 $s 1, $s 2, $s 3 Meaning $s 1 = $s 2 << 10 $s 1 = $s 2>>>10 $s 1 = $s 2 >> 10 $s 1 = $s 2 << $s 3 $s 1 = $s 2>>>$s 3 $s 1 = $s 2 >> $s 3 R-Type Format op = 0 op = 0 rs = 0 rt = $s 2 rs = $s 3 rt = $s 2 rd = $s 1 rd = $s 1 sa = 10 sa = 0 f=2 f=3 f=4 f=6 f=7 v Shifts by a variable amount: sllv, srav ² Same as sll, sra, but a register is used for shift amount ² Only the lower 5 bits of the register are used as the shift amount v Examples: assume that $s 2 = 0 xabcd 1234, $s 3 = 16 sll $s 1, $s 2, 8 $s 1 = $s 2<<8 $s 1 = 0 xcd 123400 sra $s 1, $s 2, 4 $s 1 = $s 2>>4 $s 1 = 0 xfabcd 123 $s 1 = $s 2>>>$s 3 $s 1 = 0 x 0000 abcd srlv $s 1, $s 2, $s 3 op=000000 rs=$s 3=10011 rt=$s 2=10010 rd=$s 1=10001 sa=00000 f=000110 Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 13

Binary Multiplication v Shift-left (sll) instruction can perform multiplication ² When the multiplier is

Binary Multiplication v Shift-left (sll) instruction can perform multiplication ² When the multiplier is a power of 2 v You can factor any binary number into powers of 2 ² Example: multiply $s 1 by 36 § Factor 36 into (4 + 32) and use distributive property of multiplication ² $s 2 = $s 1*36 = $s 1*(4 + 32) = $s 1*4 + $s 1*32 sll $t 0, $s 1, 2 ; $t 0 = $s 1 * 4 sll $t 1, $s 1, 5 ; $t 1 = $s 1 * 32 addu $s 2, $t 0, $t 1 Instruction Set Architecture COE 301 – Computer Organization – KFUPM ; $s 2 = $s 1 * 36 © Muhamed Mudawar slide 14

Your Turn. . . Multiply $s 1 by 26, using shift and add instructions

Your Turn. . . Multiply $s 1 by 26, using shift and add instructions Hint: 26 = 2 + 8 + 16 sll addu $t 0, $t 1, $s 2, $t 0, $s 2, $s 1, $t 0, $s 1, $s 2, 1 ; $t 0 = $s 1 * 2 3 ; $t 1 = $s 1 * 8 $t 1 ; $s 2 = $s 1 * 10 4 ; $t 0 = $s 1 * 16 $t 0 ; $s 2 = $s 1 * 26 Multiply $s 1 by 31, Hint: 31 = 32 – 1 sll subu $s 2, $s 1, 5 ; $s 2 = $s 1 * 32 $s 2, $s 1 ; $s 2 = $s 1 * 31 Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 15

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants v Pseudo Instructions v Multiplication and Division Instructions Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 16

I-Type Format v Constants are used quite frequently in programs ² The R-type shift

I-Type Format v Constants are used quite frequently in programs ² The R-type shift instructions have a 5 -bit shift amount constant ² What about other instructions that need a constant? v I-Type: Instructions with Immediate Operands Op 6 Rs 5 Rt 5 immediate 16 v 16 -bit immediate constant is stored inside the instruction ² Rs is the source register number ² Rt is now the destination register number (for R-type it was Rd) v Examples of I-Type ALU instructions: ² Add immediate: addi $s 1, $s 2, 5 # $s 1 = $s 2 + 5 ² OR immediate: # $s 1 = $s 2 | 5 Instruction Set Architecture ori $s 1, $s 2, 5 COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 17

I-Type ALU Instructions Instruction addiu andi ori xori lui $s 1, $s 2, 10

I-Type ALU Instructions Instruction addiu andi ori xori lui $s 1, $s 2, 10 $s 1, $s 2, 10 $s 1, 10 Meaning $s 1 = $s 2 + 10 $s 1 = $s 2 & 10 $s 1 = $s 2 | 10 $s 1 = $s 2 ^ 10 $s 1 = 10 << 16 I-Type Format op = 0 x 8 op = 0 x 9 op = 0 xc op = 0 xd op = 0 xe op = 0 xf rs = $s 2 rs = $s 2 0 rt = $s 1 rt = $s 1 imm 16 = 10 imm 16 = 10 v addi: overflow causes an arithmetic exception ² In case of overflow, result is not written to destination register v addiu: same operation as addi but overflow is ignored v Immediate constant for addi and addiu is signed ² No need for subiu instructions v Immediate constant for andi, ori, xori is unsigned Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 18

Examples: I-Type ALU Instructions v Examples: assume A, B, C are allocated $s 0,

Examples: I-Type ALU Instructions v Examples: assume A, B, C are allocated $s 0, $s 1, $s 2 A = B+5; translated as addiu $s 0, $s 1, 5 C = B– 1; translated as addiu $s 2, $s 1, -1 op=001001 rs=$s 1=10001 rt=$s 2=10010 imm = -1 = 11111111 A = B&0 xf; translated andi C as = B|0 xf; translated ori C as = 5; translated as ori A = B; translated as ori $s 0, $s 1, 0 xf $s 2, $zero, 5 $s 0, $s 1, 0 v No need for subi, because addi has signed immediate v Register 0 ($zero) has always the value 0 Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 19

32 -bit Constants v I-Type instructions can have only 16 -bit constants Op 6

32 -bit Constants v I-Type instructions can have only 16 -bit constants Op 6 Rs 5 Rt 5 immediate 16 v What if we want to load a 32 -bit constant into a register? v Can’t have a 32 -bit constant in I-Type instructions ² We have already fixed the sizes of all instructions to 32 bits v Solution: use two instructions instead of one ² Suppose we want: $s 1=0 x. AC 5165 D 9 (32 -bit constant) ² lui: load upper immediate load upper 16 bits clear lower 16 bits lui $s 1, 0 x. AC 51 $s 1=$17 0 x. AC 51 0 x 0000 ori $s 1, 0 x 65 D 9 $s 1=$17 0 x. AC 51 0 x 65 D 9 Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 20

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants v Pseudo Instructions v Multiplication and Division Instructions Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 21

Pseudo-Instructions v Introduced by assembler as if they were real instructions ² To facilitate

Pseudo-Instructions v Introduced by assembler as if they were real instructions ² To facilitate assembly language programming Pseudo-Instructions move $s 1, $s 2 not $s 1, $s 2 li $s 1, -5 li $s 1, 0 xabcd 1234 neg $s 1, $s 2 Conversion to Real Instructions addu $s 1, $zero, $s 2 nor $s 1, $s 2, $zero addiu $s 1, $zero, -5 lui $at, 0 xabcd ori $s 1, $at, 0 x 1234 sub $s 1, $zero, $s 2 v Assembler reserves $at = $1 for its own use ² $at is called the assembler temporary register v The MARS tool has a long list of pseudo-instructions Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 22

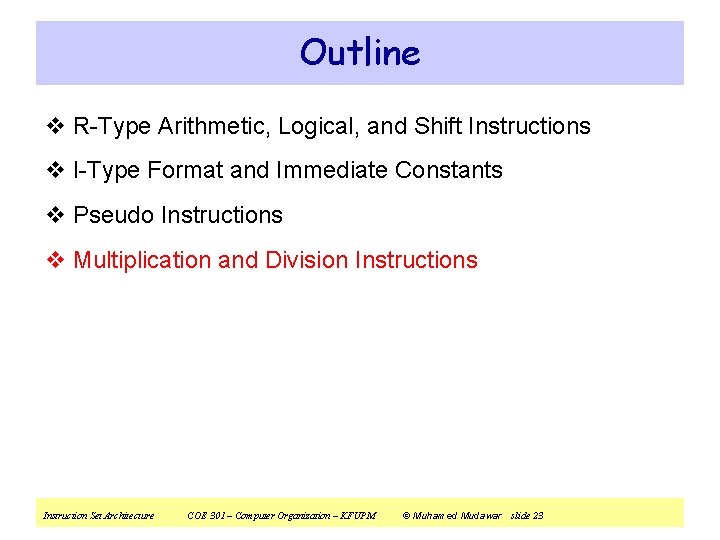

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants

Outline v R-Type Arithmetic, Logical, and Shift Instructions v I-Type Format and Immediate Constants v Pseudo Instructions v Multiplication and Division Instructions Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 23

Integer Multiplication in MIPS v Multiply instructions ² mult $s 1, $s 2 ²

Integer Multiplication in MIPS v Multiply instructions ² mult $s 1, $s 2 ² multu $s 1, $s 2 Signed multiplication Unsigned multiplication $0 $1 v 32 -bit multiplication produces a 64 -bit Product . . v Separate pair of 32 -bit registers ² HI = high-order 32 -bit of product ² LO = low-order 32 -bit of product v MIPS also has a special mul instruction ² mul $s 0, $s 1, $s 2 $s 0 = $s 1 × $s 2 ² Put low-order 32 bits into destination register ² HI & LO are undefined Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 24 $31 Multiply Divide HI LO

Integer Division in MIPS v Divide instructions ² div $s 1, $s 2 ²

Integer Division in MIPS v Divide instructions ² div $s 1, $s 2 ² divu $s 1, $s 2 Signed division Unsigned division v Division produces quotient and remainder $0 $1 v Separate pair of 32 -bit registers . . ² HI = 32 -bit remainder $31 ² LO = 32 -bit quotient Multiply ² If divisor is 0 then result is unpredictable v Moving data from HI/LO to MIPS registers ² mfhi Rd (move from HI to Rd) ² mflo Rd (move from LO to Rd) Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 25 Divide HI LO

Integer Multiply/Divide Instructions Instruction multu mul divu mfhi mflo Rs, Rt Rd, Rs, Rt

Integer Multiply/Divide Instructions Instruction multu mul divu mfhi mflo Rs, Rt Rd, Rs, Rt Rd Rd Meaning Hi, Lo = Rs × Rt Rd = Rs × Rt Hi, Lo = Rs / Rt Rd = Hi Rd = Lo Format op 6 = 0 0 x 1 c op 6 = 0 Rs 5 Rs 5 0 0 Rt 5 Rt 5 0 0 Rd 5 0 0 0 0 x 18 0 x 19 0 x 02 0 x 1 a 0 x 1 b 0 x 10 0 x 12 v Signed arithmetic: mult, div (Rs and Rt are signed) ² LO = 32 -bit low-order and HI = 32 -bit high-order of multiplication ² LO = 32 -bit quotient and HI = 32 -bit remainder of division v Unsigned arithmetic: multu, divu (Rs and Rt are unsigned) v NO arithmetic exception can occur Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 26

Integer to String Conversion v Objective: convert an unsigned 32 -bit integer to a

Integer to String Conversion v Objective: convert an unsigned 32 -bit integer to a string v How to obtain the decimal digits of the number? ² Divide the number by 10, Remainder = decimal digit (0 to 9) ² Convert decimal digit into its ASCII representation ('0' to '9') ² Repeat the division until the quotient becomes zero ² Digits are computed backwards from least to most significant v Example: convert 2037 to a string ² Divide 2037/10 quotient = 203 remainder = 7 char = '7' ² Divide 203/10 quotient = 20 remainder = 3 char = '3' ² Divide 20/10 quotient = 2 remainder = 0 char = '0' ² Divide 2/10 quotient = 0 remainder = 2 char = '2' Instruction Set Architecture COE 301 – Computer Organization – KFUPM © Muhamed Mudawar slide 27

Integer to String #-------------------------------# Converts an unsigned integer into a string # Input: $a

Integer to String #-------------------------------# Converts an unsigned integer into a string # Input: $a 0 = unsigned integer # In/Out: $a 1 = address of string buffer (12 bytes) #-------------------------------move li addiu sb convert: divu mflo mfhi addiu sb bnez $t 0, $a 0 $t 1, 10 $a 1, 11 $zero, 0($a 1) # # $t 0 = $t 1 = start store $t 0, $t 0 $t 2, $a 1, $t 2, $t 0, # # # # LO = quotient, HI = remainder $t 0 = quotient $t 2 = remainder convert digit to a character point to previous byte store digit character loop if quotient is not 0 Instruction Set Architecture $t 1 $t 2, 0 x 30 $a 1, -1 0($a 1) convert COE 301 – Computer Organization – KFUPM dividend = unsigned integer divisor = 10 at end of string buffer a NULL byte © Muhamed Mudawar slide 28
