MIPS 1 Immediate Addressing op rs rt Immediate

  • Slides: 22
Download presentation

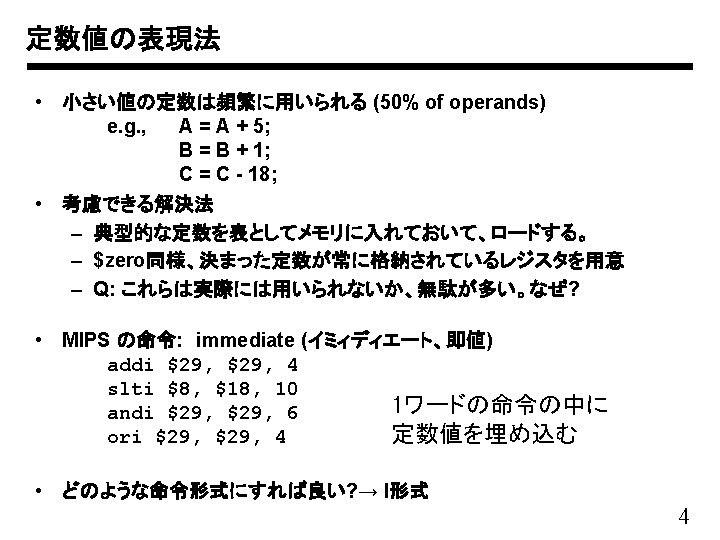

MIPSアドレッシングモードのまとめ 1. Immediate Addressing(直接) op rs rt Immediate 2. Register Addressing(レジスター) op rs rt

MIPSアドレッシングモードのまとめ 1. Immediate Addressing(直接) op rs rt Immediate 2. Register Addressing(レジスター) op rs rt rd . . . funct Registers Register 3. Base Addressing ((レジスター)ベース) op rs rt Memory Address + Register Byte Halfword Word 4. PC-Relative Addressing (PC相対) op rs rt Memory Address PC + Word 5. Pseudodirect Addressing (疑似直接) op Address PC Memory Word 10

VAX-11/780(VAX), NEC TK-80 (8080), IBM-PC(8088), Power. Mac 8100(Power. PC) 17

VAX-11/780(VAX), NEC TK-80 (8080), IBM-PC(8088), Power. Mac 8100(Power. PC) 17
