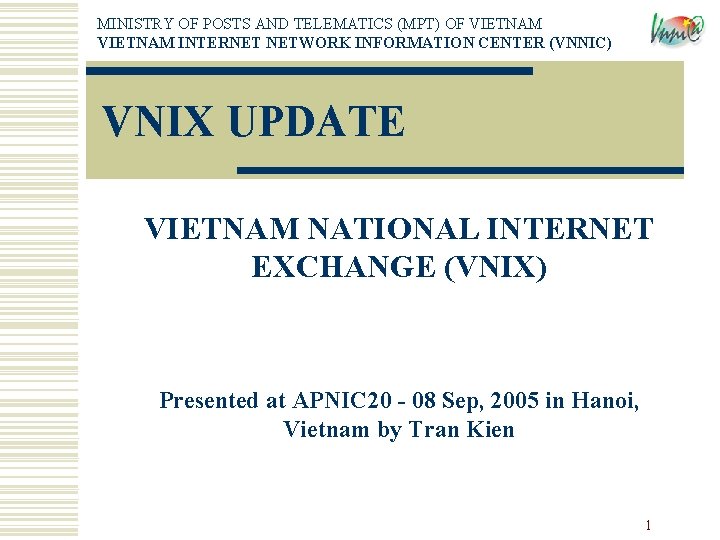

MINISTRY OF POSTS AND TELEMATICS (MPT) OF VIETNAM INTERNET NETWORK INFORMATION CENTER (VNNIC) VNIX UPDATE VIETNAM NATIONAL INTERNET EXCHANGE (VNIX) Presented at APNIC 20 - 08 Sep, 2005 in Hanoi, Vietnam by Tran Kien 1

Contents w w w Introduction Current status VNIX policy Next steps (planning) Conclusion 2

Introduction w VNIX = Vietnam National Internet Exchange. w 2 VNIX points: n n One in Hanoi formed in 08 Nov, 2003. The second in Ho. Chi. Minh city formed in 10 Mar, 2004. w Established by VNNIC but funded by Goverment budget. w Some main reasons: n n n Quality of services. International Internet bandwidth. Backup connectivity. Domestic contents. New technology R&D…. 3

Current status (Operation) w All 6 IXP members connect directly to VNIX. w 4 multihomed Net connect indirectly to VNIX via above IXPs. w Transmission infrustructure: All optical fiber. w Port speed: 100/1000 Mbps. w Total traffic has been exchanged through VNIX from the beginning to 31 Jul, 2005: ~1700538. 6 Gbytes. w Peak traffic of the bigest IXP: ~560 Mbps. 4

Current status (Availble resources) w Central switching: 2 Cisco 6509, optical and copper ports, speed 100/1000 Mbps. w Routing management (route server): 2 Cisco 2621. w Traffic monitoring: IBM/Sunfire server. w Space room, rack mount; air-conditioner, UPS, helpdesk and monitoring 24/24. w Backup power: Power regenerator. w ASN and reserved IP address block for point-topoint connection. 5

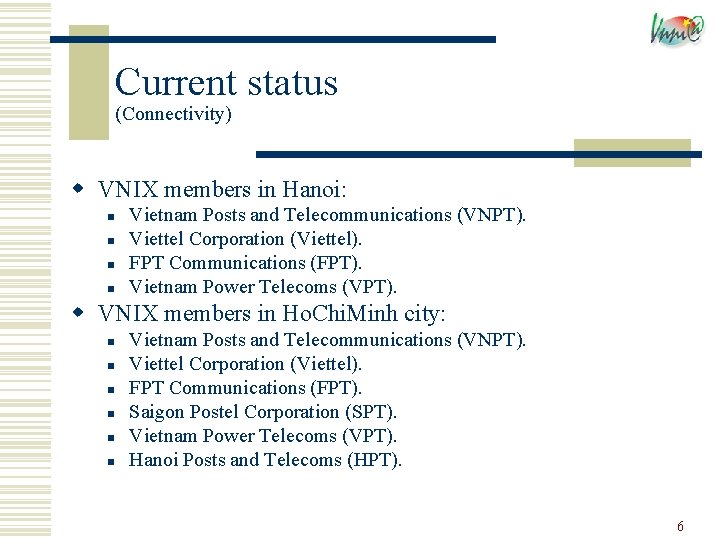

Current status (Connectivity) w VNIX members in Hanoi: n n Vietnam Posts and Telecommunications (VNPT). Viettel Corporation (Viettel). FPT Communications (FPT). Vietnam Power Telecoms (VPT). w VNIX members in Ho. Chi. Minh city: n n n Vietnam Posts and Telecommunications (VNPT). Viettel Corporation (Viettel). FPT Communications (FPT). Saigon Postel Corporation (SPT). Vietnam Power Telecoms (VPT). Hanoi Posts and Telecoms (HPT). 6

Current status (VNIX diagram/Vietnam Internet connectivity overview) 7

Current status (VNIX traffic) VNIX in Hanoi: VNIX in Ho. Chi. Minh city: w VNPT (7643) w Viettel (7552) w FPT (18403) w SPT (7602) w VPT (24086) w HPT (24088) 8

VNIX policy w w w w w Neutral Internet e. Xchange point. Forced Multilateral Peering Agreement (F-MLPA). Free of charge. Minimum initial connection: 2 Mbps. Bandwidth use ratio: < 70%. Routing protocol: e. BGP-4. ASN and IP address: Independent. Teminal equipments and transmission: to be built by members. Accepting all domestic routing information. Supporting backdoor connections for backup. 9

Next steps (planning) w Setting up monitor tools: Routing information management server, looking glass, HPOpen. View, netflow, RRdtool…. w ISPs might be considered to connect to VNIX for local Internet exchange. w Supporting IPv 6 R&D. w Supporting Multicast R&D. w Mirroring DNS root server. w Cooperating with International IX in R&D. 10

Conclusion w Bettering quality of service. w Many well-known Vietnamese websites move to local service providers. w Decreasing International Internet bandwidth. w Strengthening the safeness and security of Vietnam Internet as well as national information resources. w Supporting new service providers. w Promoting new Net tech R&D in Vietnam. . 11

MINISTRY OF POSTS AND TELEMATICS (MPT) OF VIETNAM INTERNET NETWORK INFORMATION CENTER (VNNIC) VNIX http: //VNIX. vn (Just only Vietnamese Language). Q & A? Thank you! 12
