MINIATURE MODULAR SAMPLE SYSTEMS FEASIBLE AND PRACTICAL Richard A. Ales, Douglas A. Nordstrom, David M. Simko Swagelok Co. Solon, Ohio

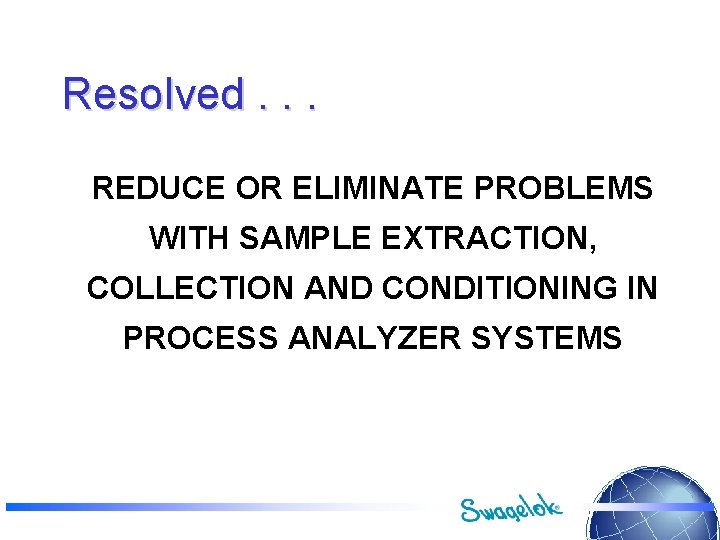

Resolved. . . REDUCE OR ELIMINATE PROBLEMS WITH SAMPLE EXTRACTION, COLLECTION AND CONDITIONING IN PROCESS ANALYZER SYSTEMS

Objectives • Miniaturize and modularize • Apply smart sensors • Integrate into the control system

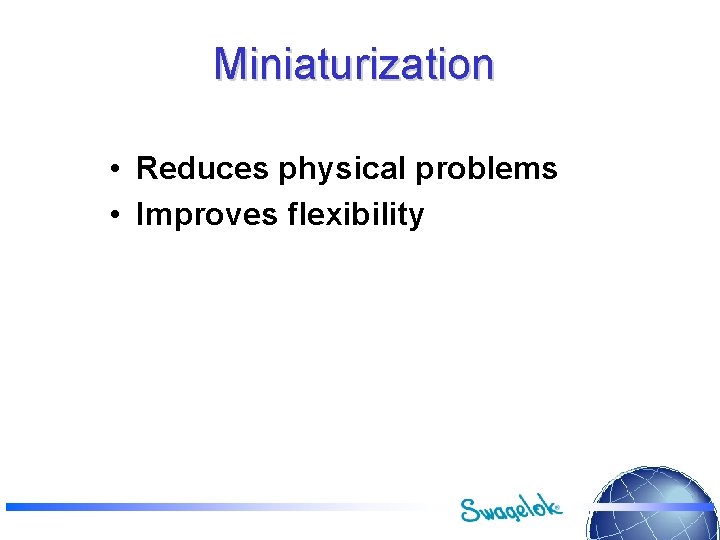

Miniaturization • Reduces physical problems • Improves flexibility

Modularization • Standardized units ASP, S 5, ARP • Flexible arrangements • Simplified assembly • Easy maintenance

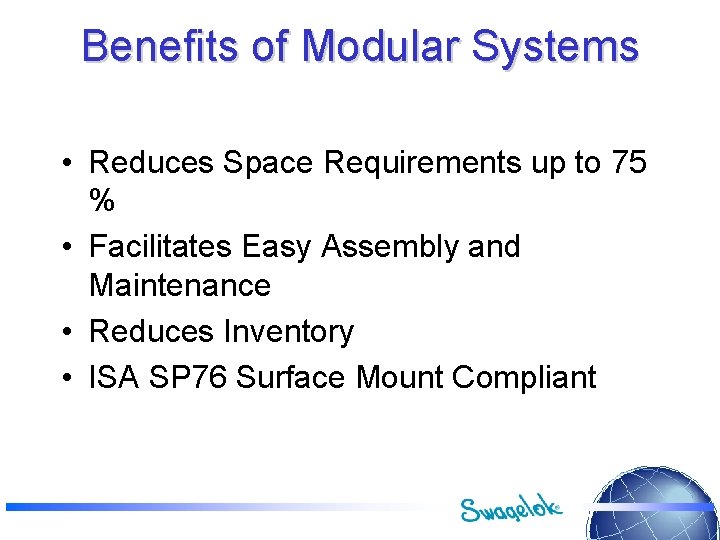

Benefits of Modular Systems • Reduces Space Requirements up to 75 % • Facilitates Easy Assembly and Maintenance • Reduces Inventory • ISA SP 76 Surface Mount Compliant

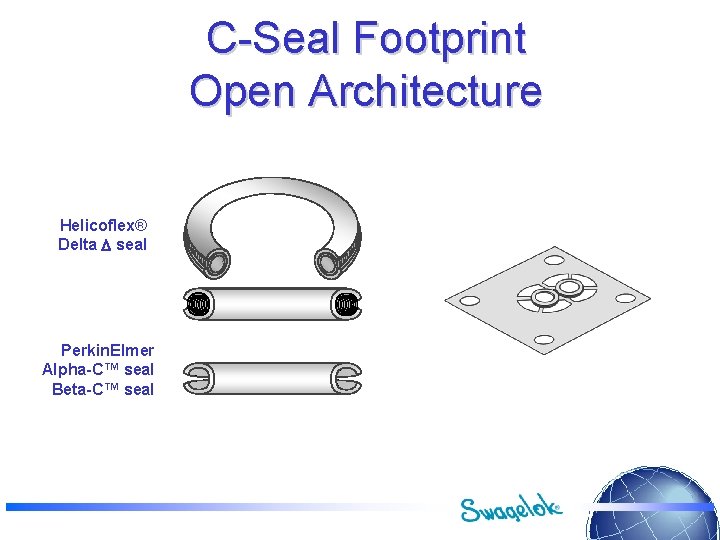

C-Seal Footprint Open Architecture Helicoflex® Delta seal Perkin. Elmer Alpha-C™ seal Beta-C™ seal

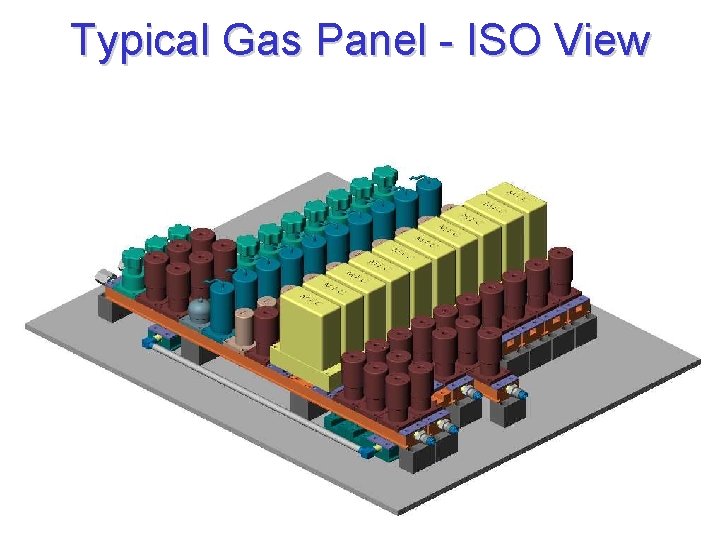

Typical Gas Panel - ISO View

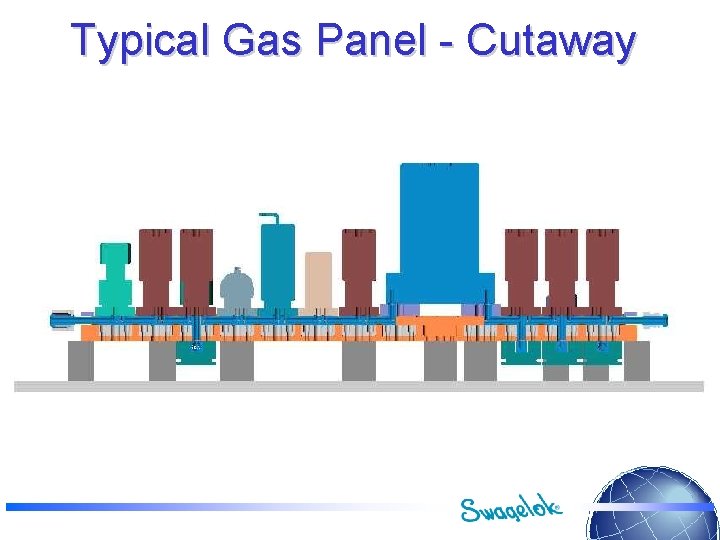

Typical Gas Panel - Cutaway

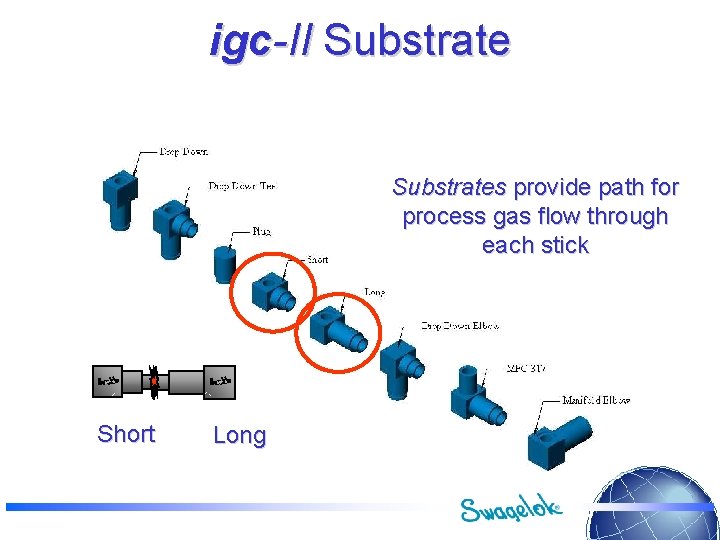

igc-II Substrates provide path for process gas flow through each stick Short Long

igc-II Substrate Locating / Retaining clip - Substrate Layer

igc-II Substrate Load Bearing Inserts

igc-II Substrate Cartridge Style Heater Retaining Clip

igc-II Manifold Locating / Retaining Clip Manifold Layer

igc-II Manifold Flow Component - From Square Drawn Tubing

igc-II Assembly Alignment Feature

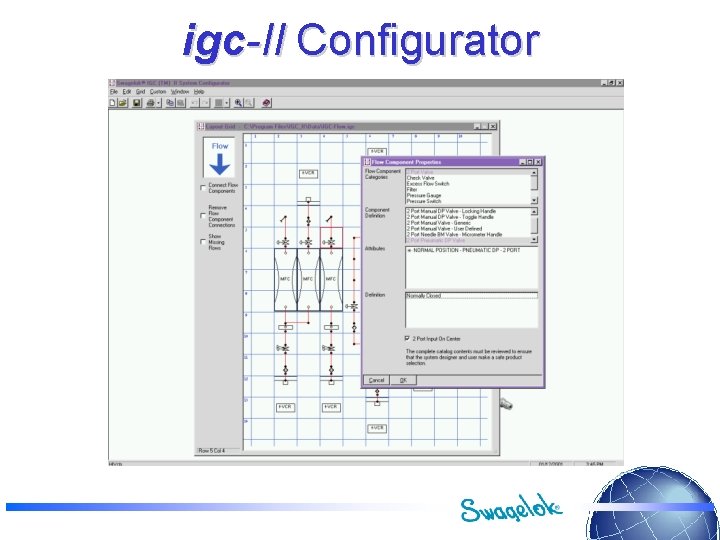

igc-II Configurator

Automation Objective • Sample physical conditioning: · Temperature · Pressure · Flow • Remote flow stream selection: · Sample · Purge · Calibration • Realizable with off-the-shelf components.

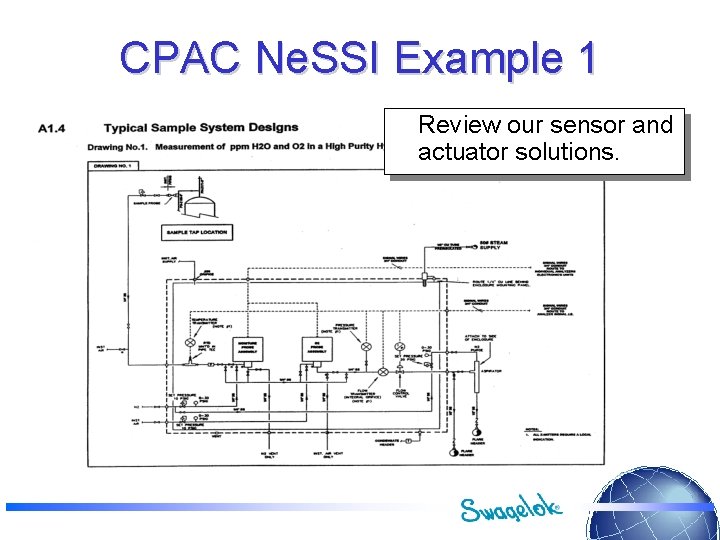

CPAC Ne. SSI Example 1 Review our sensor and actuator solutions.

Flow Control • Mass Flow Controller (MFC) • Only “real” regulatory loop. • Replaces flow meter, positioner and proportional control valve. • Integral solenoid proportional control valve. • Analog: • 4 -20 ma SP & PV • Digital • Smart Features • Point-to-point serial links • Device. Net, Profibus etc.

Pressure Regulation • Dome-loaded regulator • Fixed pressure set point • Standard 1¼” gauge • Single port tube stub • Standard NPT fitting • Standard transducer • Semi downmount • Industrial NPT fitting

Temperature Control • Standard ¼” RTD probe • Single port tube stub • Standard tube fitting • Heater options • Electric • Steam

Remote Stream Selection • Semi diaphragm valve • • • 2 -port and 3 -port styles Packless, no stem seal leaks Pneumatic actuator Requires air-logic controller. Ultra High Purity Helium leak tight

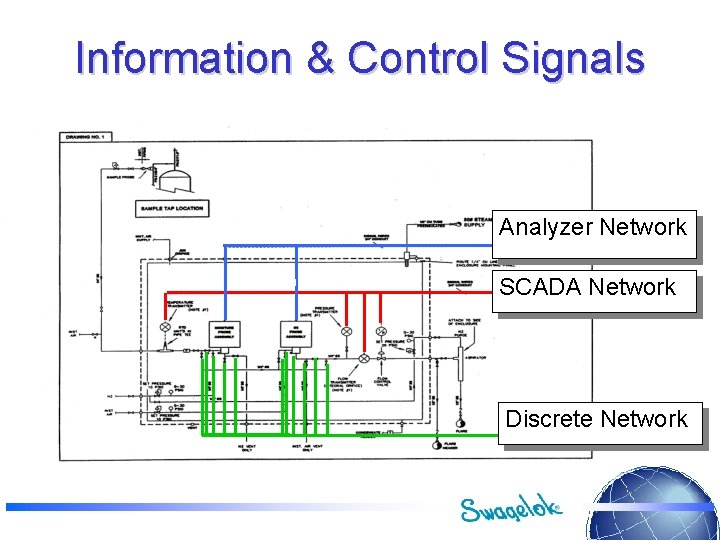

Information & Control Signals Analyzer Network SCADA Network Discrete Network

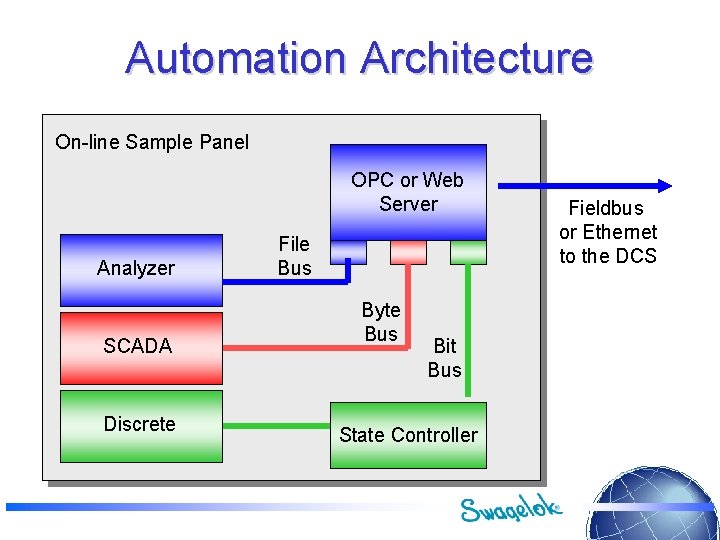

Automation Architecture On-line Sample Panel OPC or Web Server Analyzer SCADA Discrete File Bus Byte Bus Bit Bus State Controller Fieldbus or Ethernet to the DCS

Figure 5

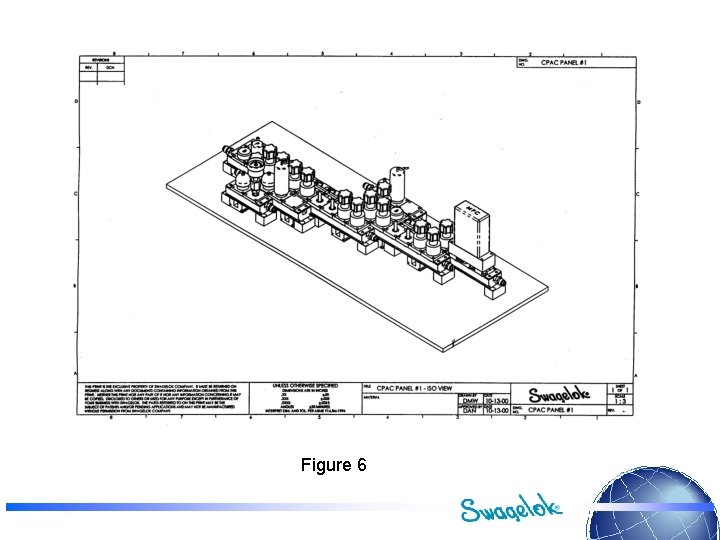

Figure 6

Figure 7

Figure 8

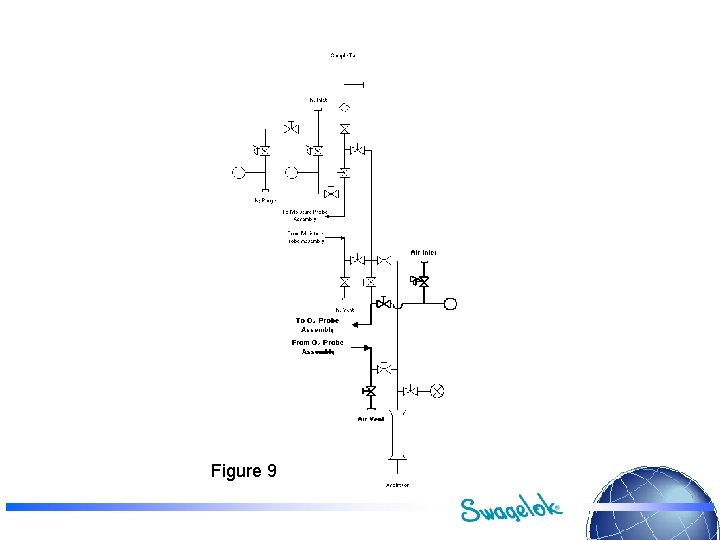

Figure 9

Figure 10

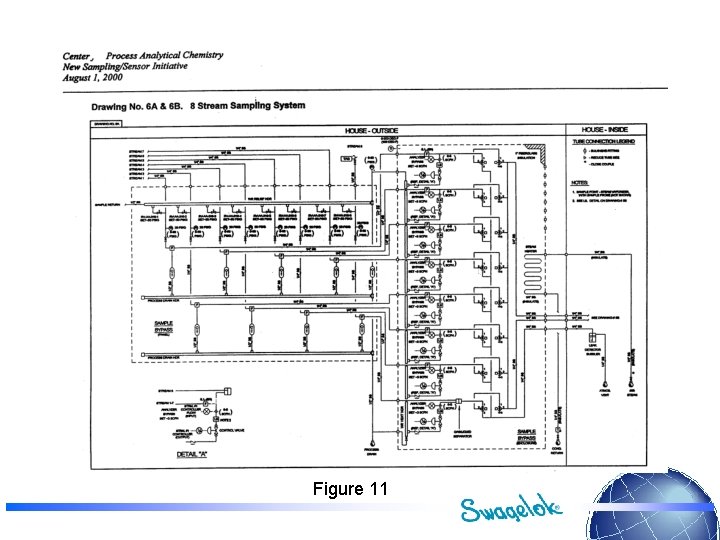

Figure 11

Figure 12

Figure 13

Issues to be resolved • Hazardous locations · Electrical heating · MFMs and MFCs · Electrical actuators • Component availability • Small smart sampling/sensor system

Cost effectiveness • Life-cycle cost model · Cost to install · Cost to operate • Miniature modular sample systems · Feasible · Practical · Cost effective
