Mini PCI Express Socket One Click Assembly Time

Mini PCI Express Socket

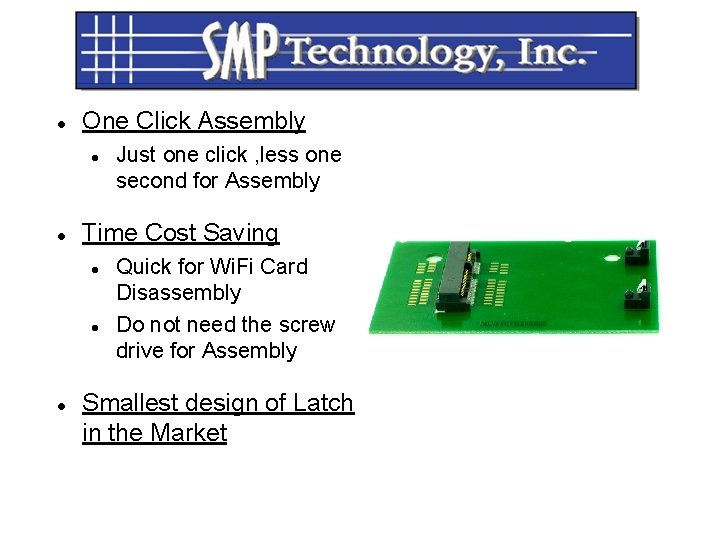

One Click Assembly Time Cost Saving Just one click , less one second for Assembly Quick for Wi. Fi Card Disassembly Do not need the screw drive for Assembly Smallest design of Latch in the Market

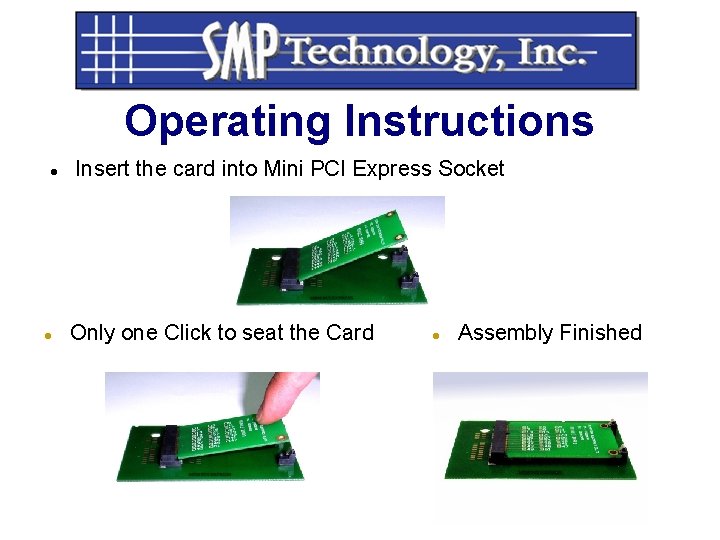

Operating Instructions Insert the card into Mini PCI Express Socket Only one Click to seat the Card Assembly Finished

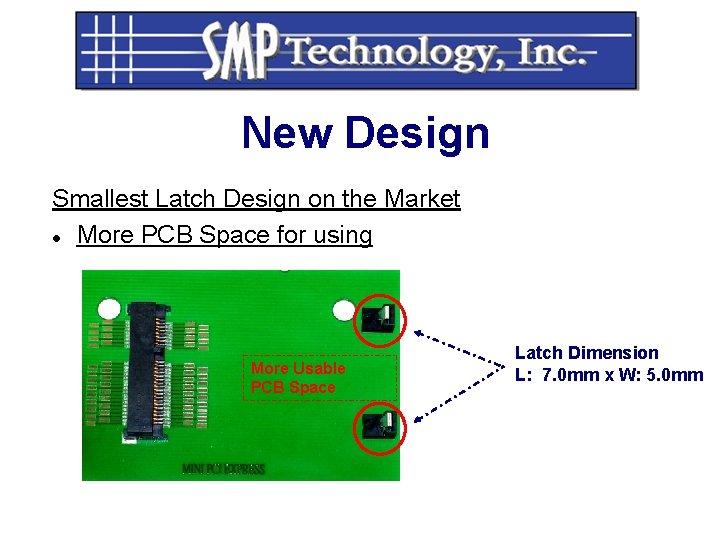

New Design Smallest Latch Design on the Market More PCB Space for using More Usable PCB Space Latch Dimension L: 7. 0 mm x W: 5. 0 mm

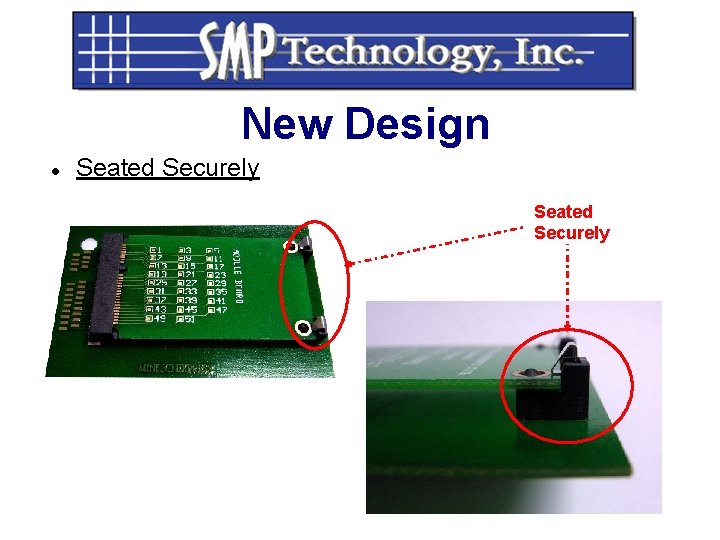

New Design Seated Securely

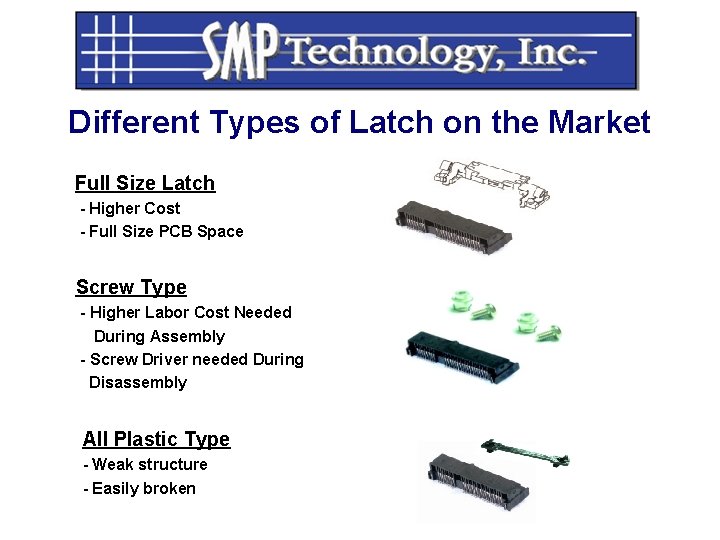

Different Types of Latch on the Market Full Size Latch - Higher Cost - Full Size PCB Space Screw Type - Higher Labor Cost Needed During Assembly - Screw Driver needed During Disassembly All Plastic Type - Weak structure - Easily broken

Comparison Table for Different Latch Material Cost Labor Cost Assemble Securely Full Size Latch High Middle Good Screw Type Low High Good Plastic Type Middle low Poor Low Good 　 One Click Design

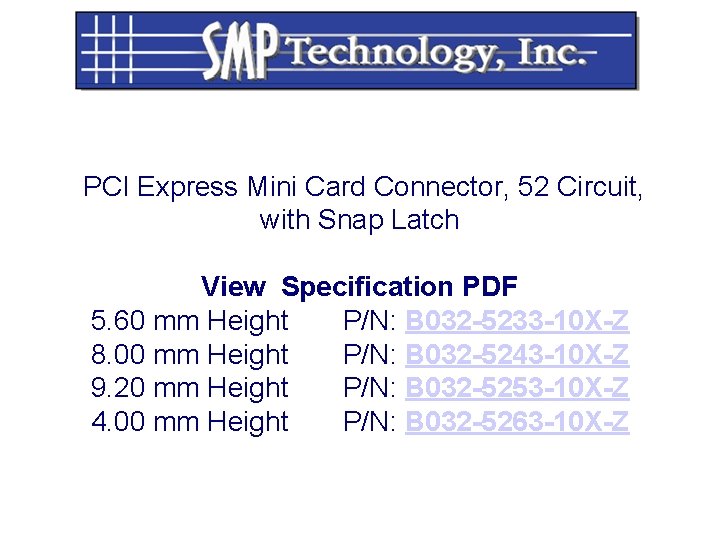

PCI Express Mini Card Connector, 52 Circuit, with Snap Latch View Specification PDF 5. 60 mm Height P/N: B 032 -5233 -10 X-Z 8. 00 mm Height P/N: B 032 -5243 -10 X-Z 9. 20 mm Height P/N: B 032 -5253 -10 X-Z 4. 00 mm Height P/N: B 032 -5263 -10 X-Z

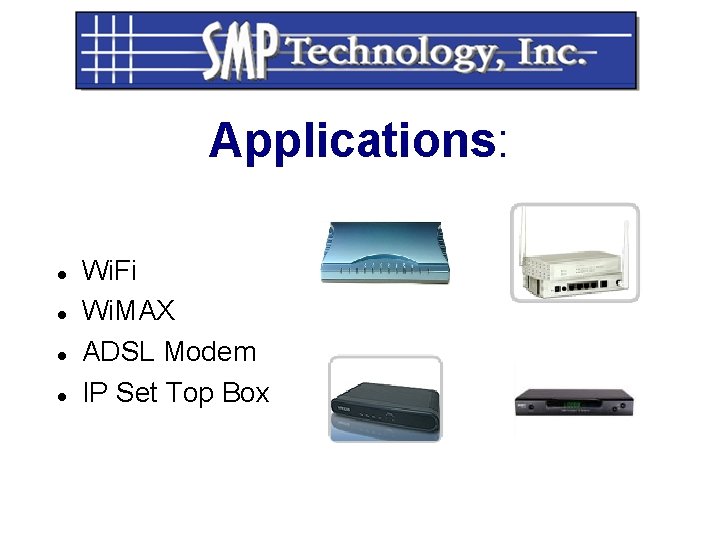

Applications: Wi. Fi Wi. MAX ADSL Modem IP Set Top Box
