MINI MAXI CAOL ILA R MILLS 68 FOR

MINI MAXI CAOL ILA R MILLS 68 FOR SALE… POA. MAY 2015 VIEWING LOCATION: OLBIA, SARDINIA

History: the boat was the originally "Alegre" Built 2008

Refit: the boat was extensively optimised in 2010

“Caol Ila R” Modifications since purchase September 2012 Prior to Ocean Racing III purchasing Alegre in 2012, we undertook a research program on how we could better improve Alegre's performance if it became the new” CAOL ILA R” The decision was to proceed with a comprehensive list of modifications, which we learnt about further during our first Maxi Worlds (2012) of which the boat achieved a respectable third place. In the early 2013 year we replaced the mast with the latest Technology, lighter, more aero rig. in conjunction with this great weight saving modification we modified our jib sheeting arrangement , which in all gave us the ability to introduce a much higher performance sail plan to proceed with. In 2013 we added a Spinnaker drop wheel system and an addition Pedistal, to upgrade to 8 man input, including driving the Runner winches. This Improvement alone has made a massive improvement to ensuring we were fully efficient with our W/L course sailing. Currently the Sail plan, Rigging, Mast technology is very up to date and the boat has some good success’s racing in Europe, the east Coast of the States and the Caribbean

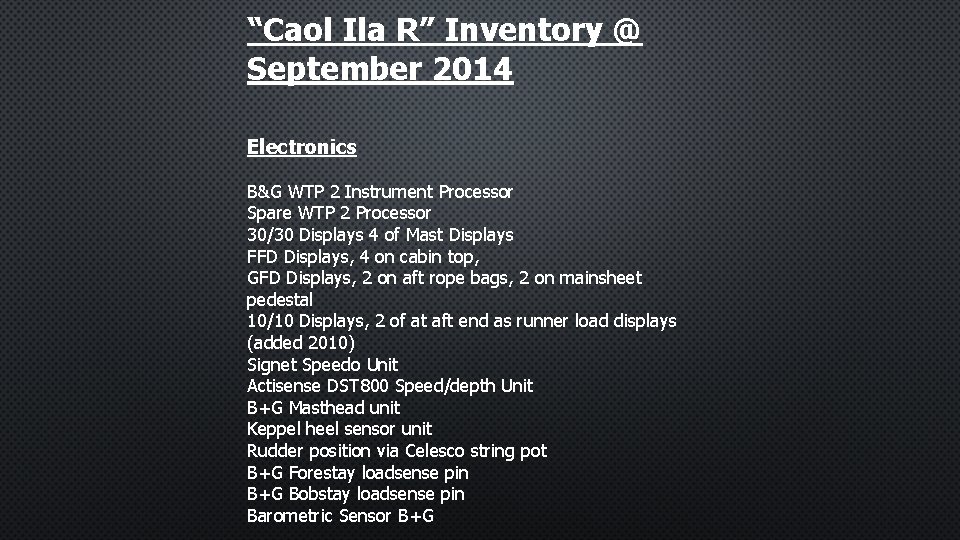

“Caol Ila R” Inventory @ September 2014 Electronics B&G WTP 2 Instrument Processor Spare WTP 2 Processor 30/30 Displays 4 of Mast Displays FFD Displays, 4 on cabin top, GFD Displays, 2 on aft rope bags, 2 on mainsheet pedestal 10/10 Displays, 2 of at aft end as runner load displays (added 2010) Signet Speedo Unit Actisense DST 800 Speed/depth Unit B+G Masthead unit Keppel heel sensor unit Rudder position via Celesco string pot B+G Forestay loadsense pin B+G Bobstay loadsense pin Barometric Sensor B+G

Future Fibres Rig 2013 Future Fibres Spar, 3 Spreader with Runner Defelector System, Weight saving 65 KG 2013 Future Fibres Boom 2013 CMS Future Fibres solid Carbon Rigging 2013 PBO forestay with Headfoil 2 twin groove foil 2014 solid Carbon forestay with custom single grove foil. . saving 12 KG from existing arrangement Cariboni internal Mast Jack 2013 Custom Mechanical Mast Butt adjuster system Locks MH and Frac Soft Vang with Boom Strut Full up to date Running Rigging Suit Full 2 nd (used) Running Rigging Suit 2104 New Running backstay set 1 x pair of Spare Running backstays

Hall Spars Rig…Spare… suitable for quick change 2008 Hall Spars carbon mast, 3 spreader fractional rig with masthead spinnaker set up and internal lock system 2008 Hall Spars boom 2010 Mast stiffened to take increased loads 2010 Lightweight carbon spreader bars 2010 Lightweight carbon spreaders 2010 Holmatro internal mast jack system 2010 Mast and boom painted matt black 2010 Hall SCR solid carbon aerofoil standing rigging 2010 Hall solid carbon forestay and running backstays (to take increased runner loads) 2010 Future fibres bobstay Running rigging continuously upgraded by TT rigging with custom line supplied by Marlow ropes 2011 Lightweight masthead fitted 2011 Solid carbon FF bobstay fitted Full Set Mast Cars and Headboard Car 1 Cariboni Gas supported Vang Ram

Hydraulics Cariboni Piggyback Forestay/Jib Tack Ram Cariboni Outhaul Ram Cariboni Jib Inhauler Ram Cariboni Jib Up/Down Ram Cariboni Vang Ram Cariboni Cunningham Ram Cariboni Runner Deflector Ram Cariboni Jib Car in/out/up/down Rams x 2 Cariboni Manual hydraulic pump, 2 of (either side of cockpit) Cariboni Rotary Pump added 2009 Cariboni triple function control panel, 2 of (either side of cockpit) Cariboni 5 function control panel on mainsheet pod Cariboni Vang dump valves, 2 of within reach of helm and main trimmer Cariboni Jib tack dump valve at pit Cariboni Deflector dump valve activated at mainsheet position

Keel 2008 Mayville CNC machined stainless fin 4. 27 m draught setup. . spare 2010 Mayville CNC machined stainless fin 4. 72 m draught setup approx 7% increase in RM over 2008 fin 2008 Lead bulb, with galleries allowing fine tuning of RM bulb weight 2009 laser cut aluminium templates for 2008 fin 2010 laser cut aluminium templates for 2010 fin Lifting eye for fins Lifting eye for bulb Die Nuts for fin/bulb bolts 2013 Bulb infill optimisation Rudder 2008 Henry Elliot rudder. . spare 2009 Henry Elliot rudder (10% reduction in area from 2008 version)

Harken winch Package 65 Pit winch with speed ring Pt Side 990 Counter rotating Bitch pit winch pedestal driven through x-box (2009 upgrade) 65 Traveller winches (2009 upgrade) 1011 Pedestal driven primaries with speed rings 990 Pedistal driven Runner winches (2014 Pedistal upgrade from top handle) 990 Pedestal driven mainsheet winch Quadruple pedestal system with overdrive boxes fitted to Primaries and Bitch Harken stomp button control for all OD Boxes and Clutches Cariboni hydraulic rotary pump linked into pedestal system 600 series oil Bevel Boxes

Deckgear Custom West engineering Pushpits/Pulpits RORC compliant wire lifelines ISAF Compliant Dyneema lifelines Custom C-Spar Composite Stanchens Harken Jib tracks with Custom Cars and Towing system Harken Mainsheet tracks Wichard titanium Padeyes Spinlock Clutches/Jammers, continuously upgraded (boat used for development by spinlock special projects) Harken Ti lwr Runner Blocks Harken Tulip Sheave Spin Blocks 4 x Harken twin Handle top winch Handles 4 x Ronstan quick release single handle top winch handles Full set of cockpit floor covers Winch Covers Wheel Covers Pedestal Covers Inshore/Offshore boom covers with sun awning Bow cover for mooring/anchoring Mooring lines

Hull/Deck Pre-preg Carbon hull and deck with nomex core and high density foam core inserts 2009 Under hull fully faired and re-sprayed using Durapox to achieve a high sheen racing finish 2010 Hull re-faired and re-sprayed by Rocket Yachts/Greg Peck 2010 Deck re-faired and re-sprayed by Rocket Yachts/Greg Peck 2010 Interior re-faired and re-sprayed by Rocket Yachts/Greg Peck 2010 New Green Marine large sliding foredeck hatch with inflatable seal system fitted 2010 Second set of spinnaker block take off points fitted 2010 Runner pods fitted to take runner winch upgrade 2010 Deck re-inforced to take traveller winch upgrade 2010 Coach roof modified to take new jib in-hauler system to allow tighter sheeting angles 2010 Deck re-enforced in way of outboard lead pad eyes 2010 Deck re-enforced in way of pit clutches 2010 Keel frame re-enforced to take increased righting moment 2010 Removable wheel crash bars can be fitted for offshore races 2010 Bowsprit end modified for easy rigging of 2: 1 tack lines 2011 Bowsprit lengthened 2011 Deck re-sprayed by Rocket Yachts/Greg Peck

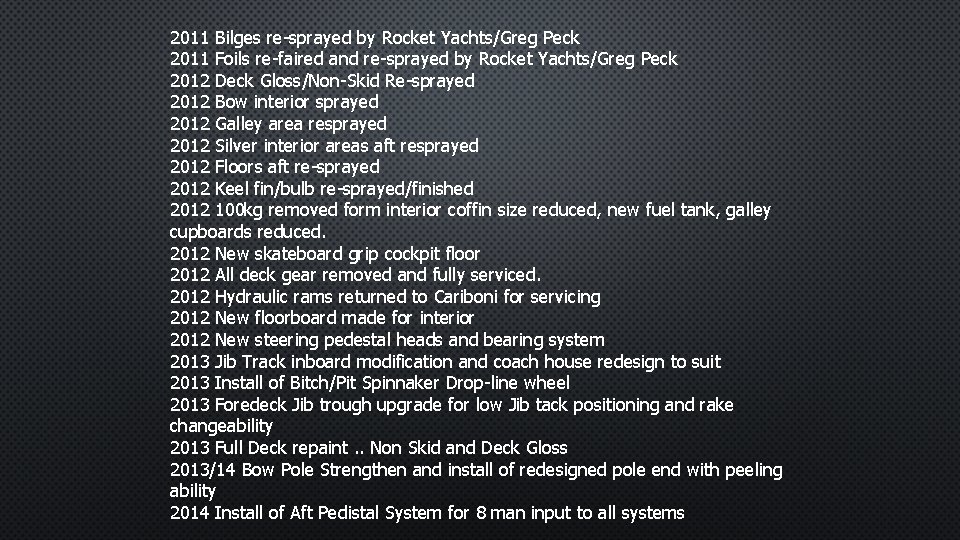

2011 Bilges re-sprayed by Rocket Yachts/Greg Peck 2011 Foils re-faired and re-sprayed by Rocket Yachts/Greg Peck 2012 Deck Gloss/Non-Skid Re-sprayed 2012 Bow interior sprayed 2012 Galley area resprayed 2012 Silver interior areas aft resprayed 2012 Floors aft re-sprayed 2012 Keel fin/bulb re-sprayed/finished 2012 100 kg removed form interior coffin size reduced, new fuel tank, galley cupboards reduced. 2012 New skateboard grip cockpit floor 2012 All deck gear removed and fully serviced. 2012 Hydraulic rams returned to Cariboni for servicing 2012 New floorboard made for interior 2012 New steering pedestal heads and bearing system 2013 Jib Track inboard modification and coach house redesign to suit 2013 Install of Bitch/Pit Spinnaker Drop-line wheel 2013 Foredeck Jib trough upgrade for low Jib tack positioning and rake changeability 2013 Full Deck repaint. . Non Skid and Deck Gloss 2013/14 Bow Pole Strengthen and install of redesigned pole end with peeling ability 2014 Install of Aft Pedistal System for 8 man input to all systems

Interior 14 bunks total 2 x sets of Bunk cushions 2 x Waeco 12 v fridges 1 x 200 litre Fuel Delivery tanks 2 x 100 L Water Bladders Pressurised water system to galley Fully enclosed heads compartment with fitted head/sink unit Fitted galley unit with sink/storage and 2 burner gas stove Floorboards in main area re-sprayed 2012 Spare Carbon Floorboard set Machinery Yanmar 4 JH 4 75 hp w/Mechanical Gearbox Armatec retracting propulsion system. Spinlock Throttle system with Teleflex mechanical cables Lightweight custom Polypropelene 50 L Fuel tank Jabsco roving Bilge Pump

Safety Equipment Yacht equipped to ISAF CAT 1 safety including the following 20 KRU sport pro lifejackets 3 Spinlock lifejackets 25 Harness tethers EPIRB Sea Anchors CAT 1 Flare Pack 2 Aluminium fortress anchors Offshore First Aid Kit 2 x 10 man lightweight carbon Ocean Safety Liferafts new 2011, in Date @ 9/2014 2 x MOM Modules, in Date @ 9/2014 1 x Danbuoy Module, in Date @ 9/2014 Container 1 x 40 ft Container. . White. . painted 2013. Sail Shelving and Storage

Spare Sails MN-B, MN-C, MN-D, Delivery Main Pinhead Dacron J 1 -A, J 1 -B, J 1 -E, J 1 -F J 1. 5 -F J 2 -A, J 2 -C, J 2 -E J 3 -A, J 3 -E, Delivery Jib Dacron A 0 -A A 1 -A, A 1 -B, A 1 -D A 1 -E A 1. 5 -B, A 1. 5 -C A 2 -A, A 2 -B, A 2 -C, A 2 -D, A 2 -E A 2+A A 4 -B FRO-A SS-A GS-B JT-A, Battens to Suit Sails Assorted Battens

Current Race Sails J 1 -H 3 DI RAW 2014 J 1. 5 -C 3 DI 2013 J 2 -G 3 DI 2013 J 3 -G 3 DI 2014 J 4 -C 3 DI 2012 JT-B 3 DI 2012 A 1 -F 2013 A 1. 5 -E 2014 A 2 -G 2014 A 2+-C 2012 A 3 -A CUBAN 2011 A 4 -C 2012 A 5 -A CUBAN 2011 A 0 -B 3 DL 2012 FRO-B 3 DI 2014 MN-G INSHORE 3 DI NO REEF 2013 MN-H OFFSHORE 3 DI 2 REEFS 2014 SPIN S-B 2011 GENOA S-C 3 DI 2014 WIND S-A 3 DL 2011 TRYSAIL 2010 STORM JIB 2010

Current Training Sails J 1. 5 -B 3 DI 2011 J 2 -F 3 DI 2011 J 3 -F 3 DL 2011 J 4 -B 3 DL 2010 A 1. 5 -D 2011 A 2 -F 2011 A 2+-B 2011 FRO-A CUBAN 2010 MN-E MN-F 3 DL INSHORE NO REEF 3 DL OFFSHORE 2 REEFS 2011

CONTACT INFORMATION: JOHN HILDEBRAND +61 419823256 AUS JH@DARKHORSEYACHTING. COM
