Minerals Vanderbilt Student Volunteers for Science Presentation Spring
![Minerals Vanderbilt Student Volunteers for Science Presentation Spring 2016 Minerals Vanderbilt Student Volunteers for Science Presentation Spring 2016](https://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-1.jpg)
Minerals Vanderbilt Student Volunteers for Science Presentation Spring 2016
![Set-Up • Students should be divided into pairs. • Refer to the minerals by Set-Up • Students should be divided into pairs. • Refer to the minerals by](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-2.jpg)

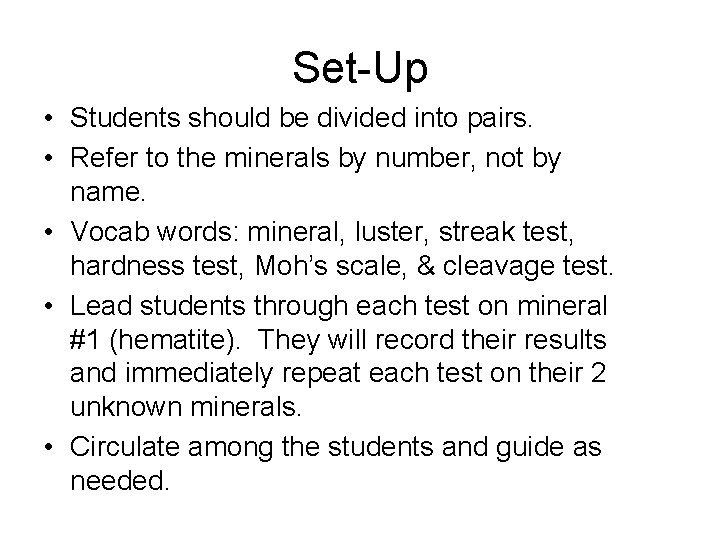

Set-Up • Students should be divided into pairs. • Refer to the minerals by number, not by name. • Vocab words: mineral, luster, streak test, hardness test, Moh’s scale, & cleavage test. • Lead students through each test on mineral #1 (hematite). They will record their results and immediately repeat each test on their 2 unknown minerals. • Circulate among the students and guide as needed.
![Introduction • What makes up rocks? – Definition of a mineral: inorganic compounds found Introduction • What makes up rocks? – Definition of a mineral: inorganic compounds found](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-3.jpg)

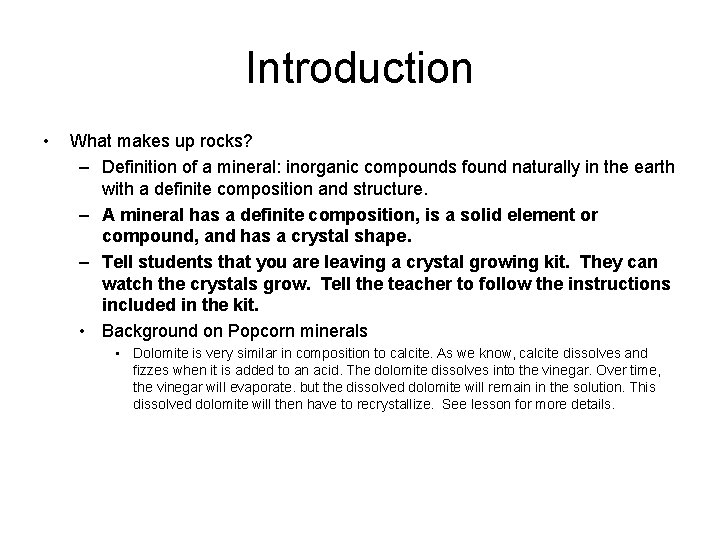

Introduction • What makes up rocks? – Definition of a mineral: inorganic compounds found naturally in the earth with a definite composition and structure. – A mineral has a definite composition, is a solid element or compound, and has a crystal shape. – Tell students that you are leaving a crystal growing kit. They can watch the crystals grow. Tell the teacher to follow the instructions included in the kit. • Background on Popcorn minerals • Dolomite is very similar in composition to calcite. As we know, calcite dissolves and fizzes when it is added to an acid. The dolomite dissolves into the vinegar. Over time, the vinegar will evaporate. but the dissolved dolomite will remain in the solution. This dissolved dolomite will then have to recrystallize. See lesson for more details.
![Introduction contd. • Ask students if they know where we get minerals. – “If Introduction contd. • Ask students if they know where we get minerals. – “If](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-4.jpg)

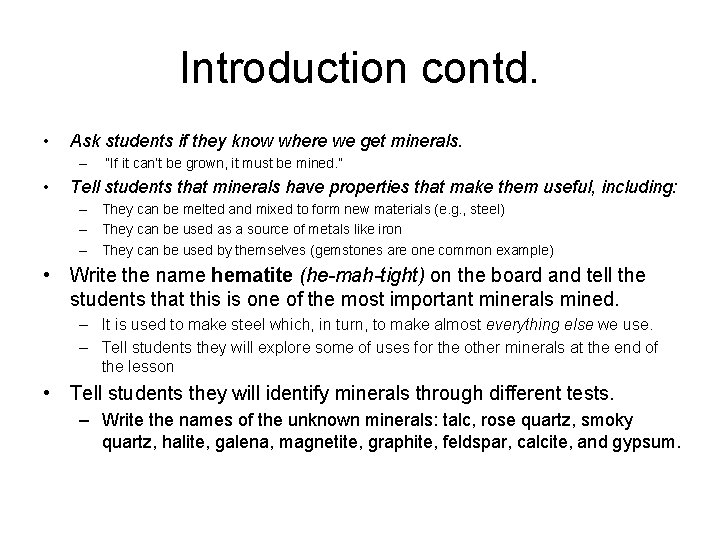

Introduction contd. • Ask students if they know where we get minerals. – “If it can’t be grown, it must be mined. ” • Tell students that minerals have properties that make them useful, including: – They can be melted and mixed to form new materials (e. g. , steel) – They can be used as a source of metals like iron – They can be used by themselves (gemstones are one common example) • Write the name hematite (he-mah-tight) on the board and tell the students that this is one of the most important minerals mined. – It is used to make steel which, in turn, to make almost everything else we use. – Tell students they will explore some of uses for the other minerals at the end of the lesson • Tell students they will identify minerals through different tests. – Write the names of the unknown minerals: talc, rose quartz, smoky quartz, halite, galena, magnetite, graphite, feldspar, calcite, and gypsum.
![Test #1 & Demo: Streak Test • Define a Streak Test • Show students Test #1 & Demo: Streak Test • Define a Streak Test • Show students](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-5.jpg)
Test #1 & Demo: Streak Test • Define a Streak Test • Show students the three minerals that are all calcite (yellow, green and blue). The different colors are from different impurities. • The minerals will have the same streak test. The mark left on the tile is the mineral’s streak. • Show the streak of a mineral simply by dragging the mineral across the black streak plate ONCE.
![Test #1: Streak Test • Gently stroke the edge of the mineral across the Test #1: Streak Test • Gently stroke the edge of the mineral across the](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-6.jpg)

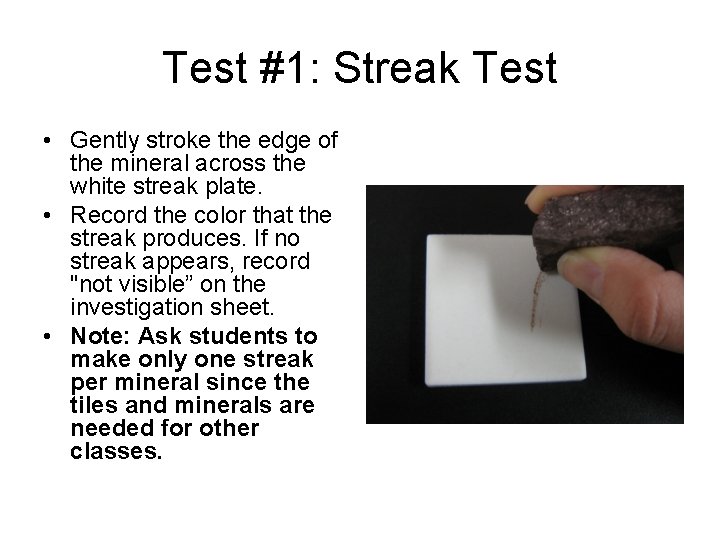

Test #1: Streak Test • Gently stroke the edge of the mineral across the white streak plate. • Record the color that the streak produces. If no streak appears, record "not visible” on the investigation sheet. • Note: Ask students to make only one streak per mineral since the tiles and minerals are needed for other classes.
![Test #2: Hardness Test • Explain hardness and Moh’s Scale. • Use the testers Test #2: Hardness Test • Explain hardness and Moh’s Scale. • Use the testers](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-7.jpg)

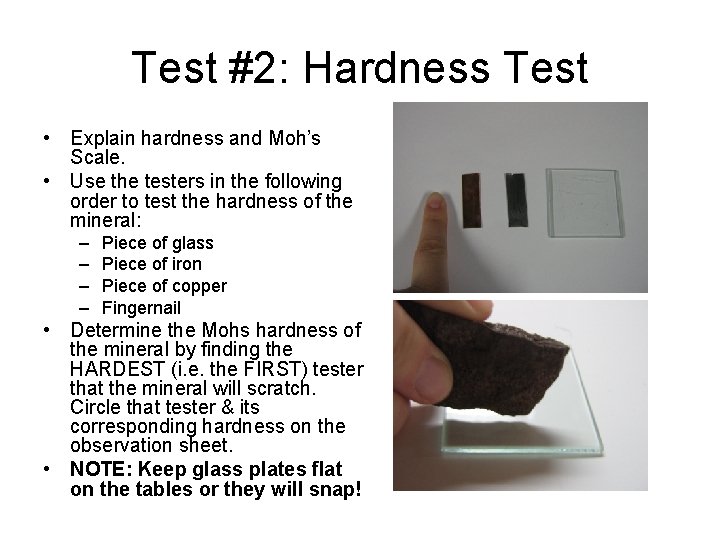

Test #2: Hardness Test • Explain hardness and Moh’s Scale. • Use the testers in the following order to test the hardness of the mineral: – – Piece of glass Piece of iron Piece of copper Fingernail • Determine the Mohs hardness of the mineral by finding the HARDEST (i. e. the FIRST) tester that the mineral will scratch. Circle that tester & its corresponding hardness on the observation sheet. • NOTE: Keep glass plates flat on the tables or they will snap!
![Test #3: Cleavage and Fracture Test • Explain cleavage. • Tell students if the Test #3: Cleavage and Fracture Test • Explain cleavage. • Tell students if the](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-8.jpg)

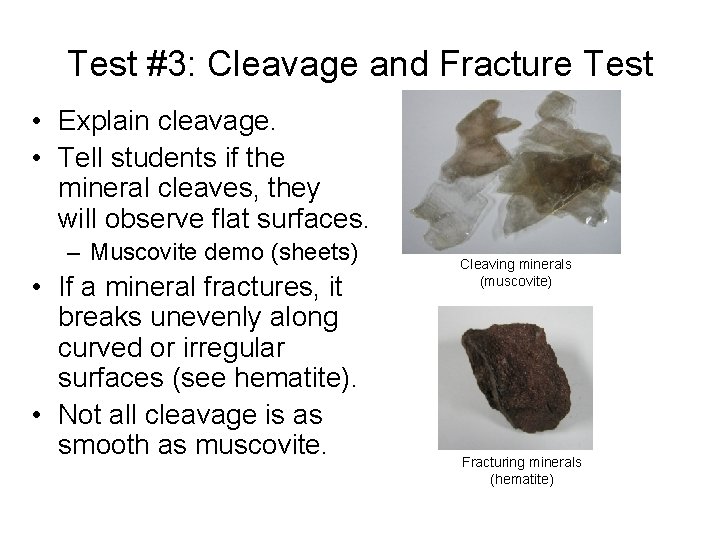

Test #3: Cleavage and Fracture Test • Explain cleavage. • Tell students if the mineral cleaves, they will observe flat surfaces. – Muscovite demo (sheets) • If a mineral fractures, it breaks unevenly along curved or irregular surfaces (see hematite). • Not all cleavage is as smooth as muscovite. Cleaving minerals (muscovite) Fracturing minerals (hematite)
![Test #4: Luster Test • Aluminum foil is shiny and reflects light well (metallic Test #4: Luster Test • Aluminum foil is shiny and reflects light well (metallic](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-9.jpg)

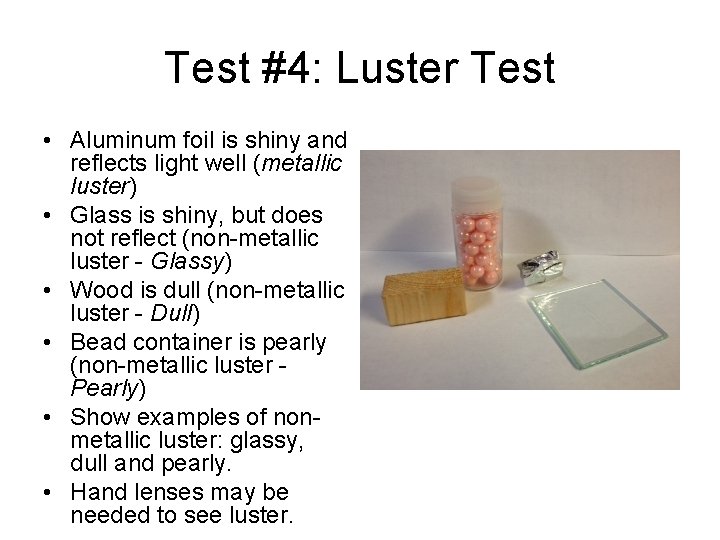

Test #4: Luster Test • Aluminum foil is shiny and reflects light well (metallic luster) • Glass is shiny, but does not reflect (non-metallic luster - Glassy) • Wood is dull (non-metallic luster - Dull) • Bead container is pearly (non-metallic luster - Pearly) • Show examples of nonmetallic luster: glassy, dull and pearly. • Hand lenses may be needed to see luster.
![Test #5: Magnetism Test • Touch the mineral with the magnet. • If the Test #5: Magnetism Test • Touch the mineral with the magnet. • If the](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-10.jpg)

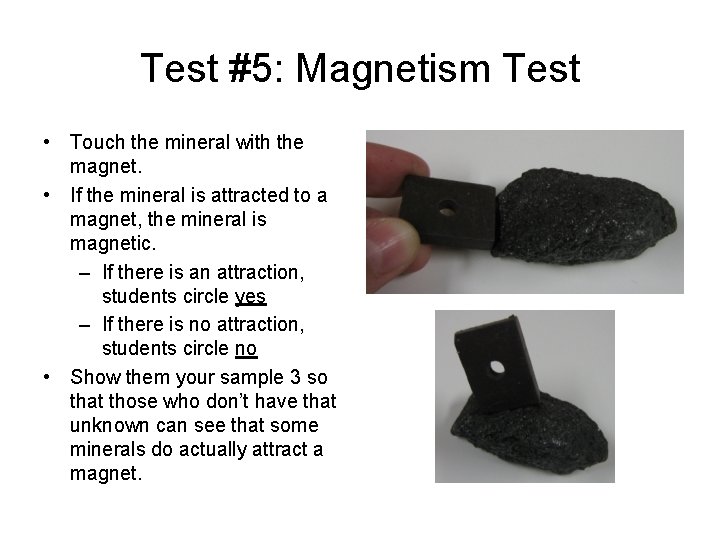

Test #5: Magnetism Test • Touch the mineral with the magnet. • If the mineral is attracted to a magnet, the mineral is magnetic. – If there is an attraction, students circle yes – If there is no attraction, students circle no • Show them your sample 3 so that those who don’t have that unknown can see that some minerals do actually attract a magnet.
![Determine Unknown Mineral • Students will determine their minerals using properties of minerals handout. Determine Unknown Mineral • Students will determine their minerals using properties of minerals handout.](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-11.jpg)

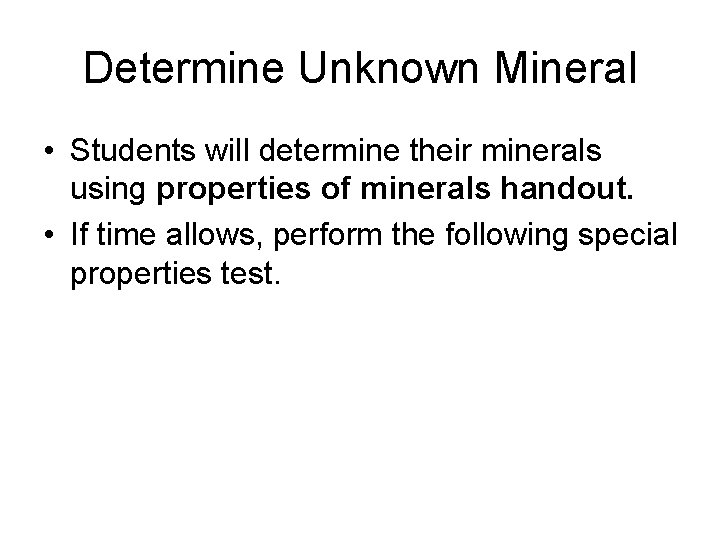

Determine Unknown Mineral • Students will determine their minerals using properties of minerals handout. • If time allows, perform the following special properties test.
![Special Properties: Acid Test • If a mineral is a carbonate, it will fizz Special Properties: Acid Test • If a mineral is a carbonate, it will fizz](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-12.jpg)

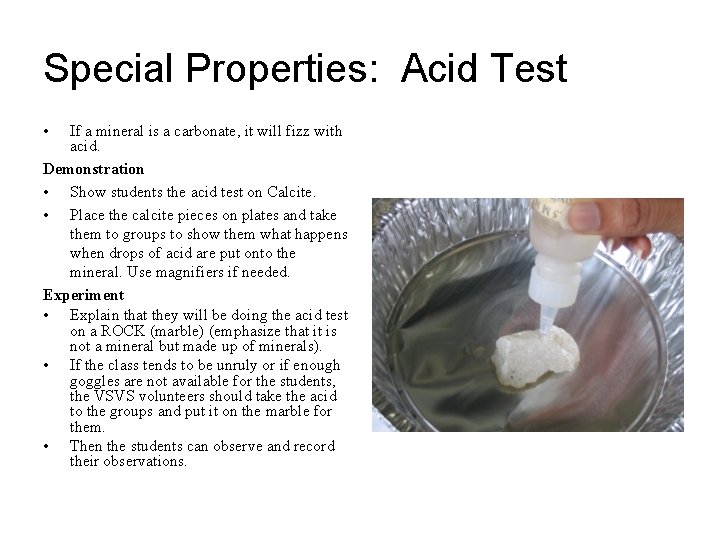

Special Properties: Acid Test • If a mineral is a carbonate, it will fizz with acid. Demonstration • Show students the acid test on Calcite. • Place the calcite pieces on plates and take them to groups to show them what happens when drops of acid are put onto the mineral. Use magnifiers if needed. Experiment • Explain that they will be doing the acid test on a ROCK (marble) (emphasize that it is not a mineral but made up of minerals). • If the class tends to be unruly or if enough goggles are not available for the students, the VSVS volunteers should take the acid to the groups and put it on the marble for them. • Then the students can observe and record their observations.
![Special Properties: Acid Test • Give safety goggles to each student and VSVS volunteers. Special Properties: Acid Test • Give safety goggles to each student and VSVS volunteers.](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-13.jpg)

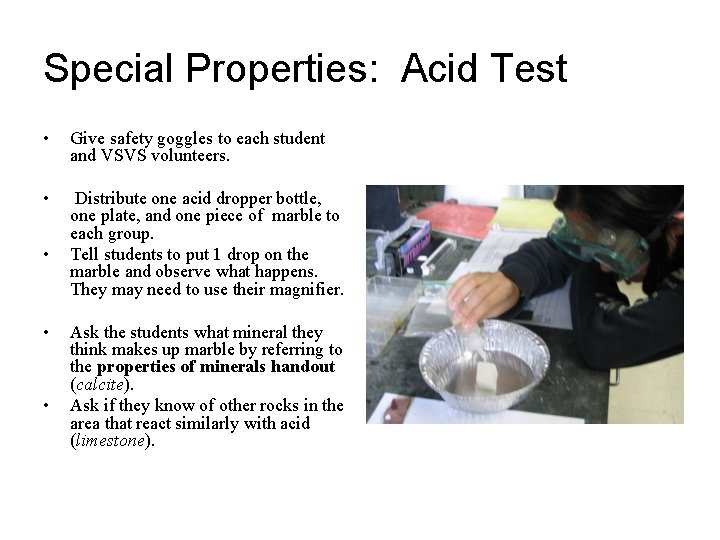

Special Properties: Acid Test • Give safety goggles to each student and VSVS volunteers. • Distribute one acid dropper bottle, one plate, and one piece of marble to each group. Tell students to put 1 drop on the marble and observe what happens. They may need to use their magnifier. • • • Ask the students what mineral they think makes up marble by referring to the properties of minerals handout (calcite). Ask if they know of other rocks in the area that react similarly with acid (limestone).
![Optional: Everyday Uses of Minerals • Tell students to look at the Everyday Uses Optional: Everyday Uses of Minerals • Tell students to look at the Everyday Uses](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-14.jpg)

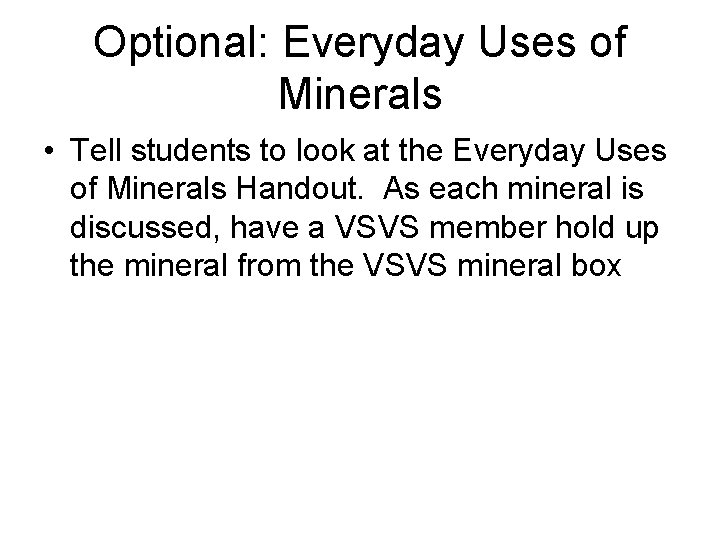

Optional: Everyday Uses of Minerals • Tell students to look at the Everyday Uses of Minerals Handout. As each mineral is discussed, have a VSVS member hold up the mineral from the VSVS mineral box
![Optional: Special Properties—Color and Everyday Uses of Minerals • • • While these demos Optional: Special Properties—Color and Everyday Uses of Minerals • • • While these demos](http://slidetodoc.com/presentation_image_h/1af7a83a30cf4f01d9d9bb31b5a990a9/image-15.jpg)

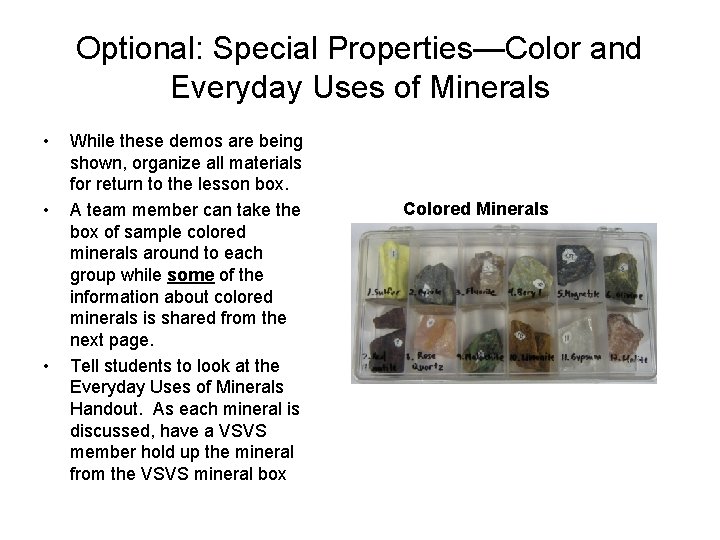

Optional: Special Properties—Color and Everyday Uses of Minerals • • • While these demos are being shown, organize all materials for return to the lesson box. A team member can take the box of sample colored minerals around to each group while some of the information about colored minerals is shared from the next page. Tell students to look at the Everyday Uses of Minerals Handout. As each mineral is discussed, have a VSVS member hold up the mineral from the VSVS mineral box Colored Minerals
