Minerals

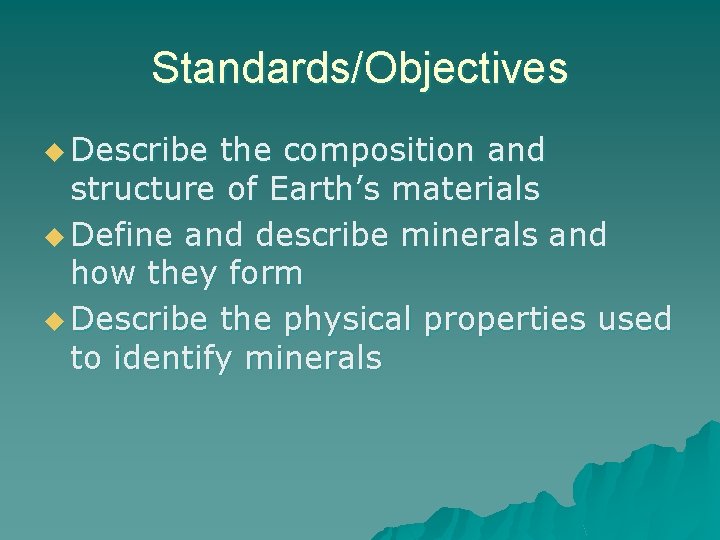

Standards/Objectives u Describe the composition and structure of Earth’s materials u Define and describe minerals and how they form u Describe the physical properties used to identify minerals

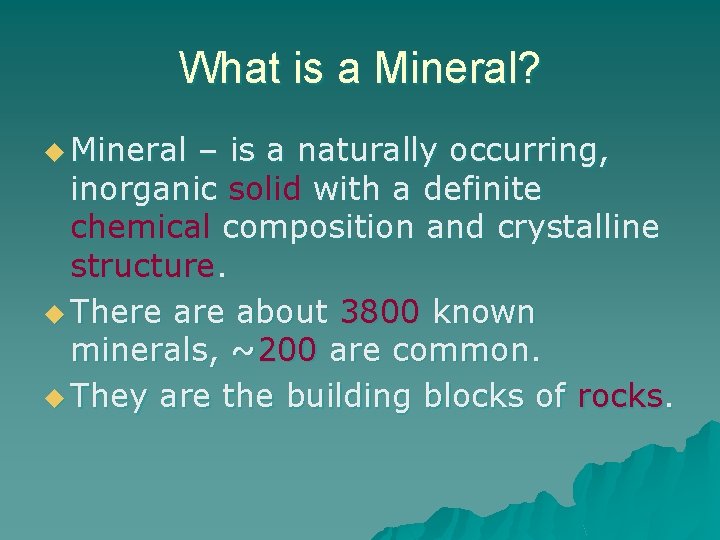

What is a Mineral? u Mineral – is a naturally occurring, inorganic solid with a definite chemical composition and crystalline structure. u There about 3800 known minerals, ~200 are common. u They are the building blocks of rocks.

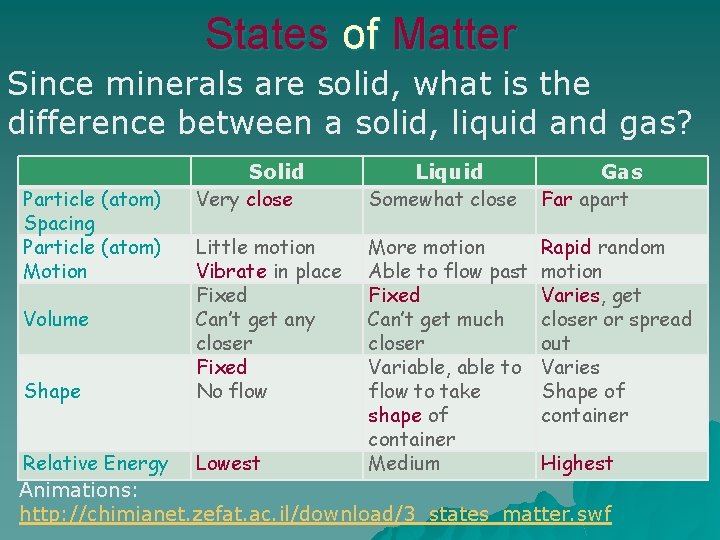

States of Matter Since minerals are solid, what is the difference between a solid, liquid and gas? Particle (atom) Spacing Particle (atom) Motion Volume Shape Solid Very close Liquid Somewhat close Gas Far apart Little motion Vibrate in place Fixed Can’t get any closer Fixed No flow More motion Able to flow past Fixed Can’t get much closer Variable, able to flow to take shape of container Medium Rapid random motion Varies, get closer or spread out Varies Shape of container Relative Energy Lowest Highest Animations: http: //chimianet. zefat. ac. il/download/3_states_matter. swf

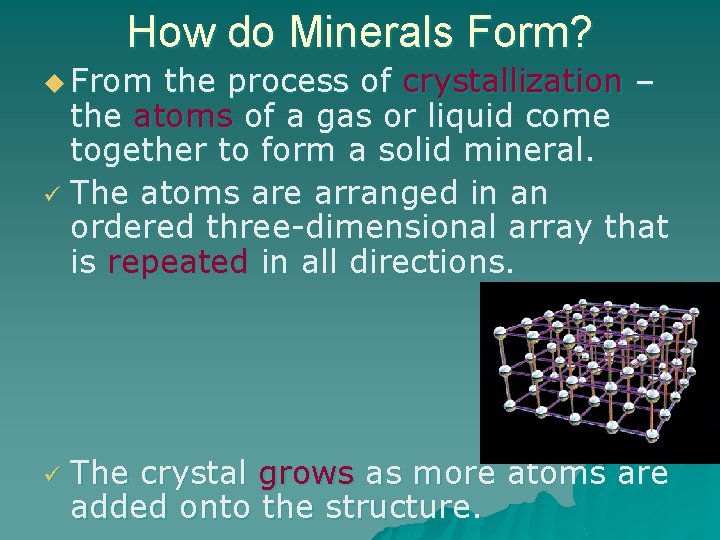

How do Minerals Form? u From the process of crystallization – the atoms of a gas or liquid come together to form a solid mineral. ü The atoms are arranged in an ordered three-dimensional array that is repeated in all directions. ü The crystal grows as more atoms are added onto the structure.

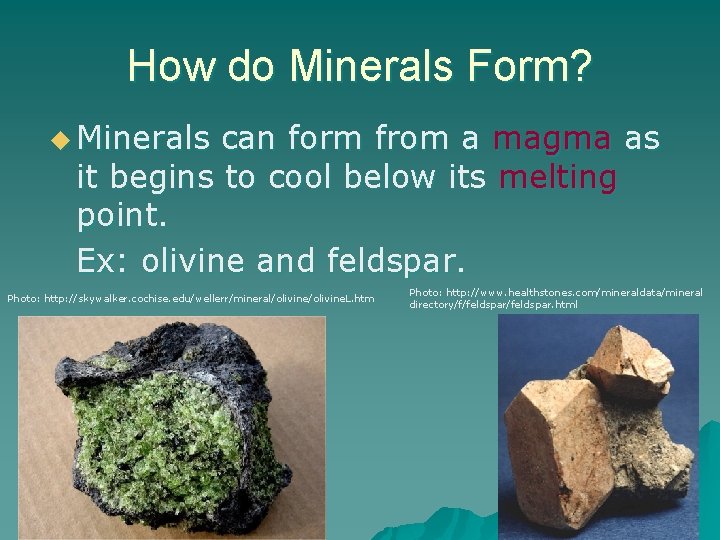

How do Minerals Form? u Minerals can form from a magma as it begins to cool below its melting point. Ex: olivine and feldspar. Photo: http: //skywalker. cochise. edu/wellerr/mineral/olivine. L. htm Photo: http: //www. healthstones. com/mineraldata/mineral directory/f/feldspar. html

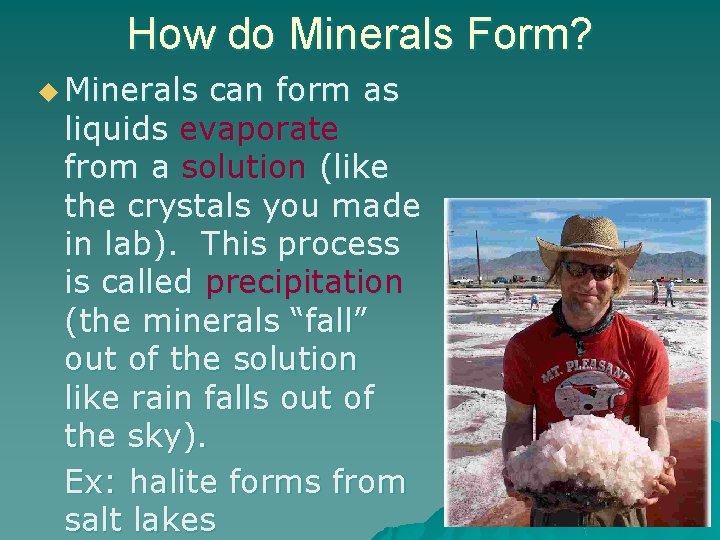

How do Minerals Form? u Minerals can form as liquids evaporate from a solution (like the crystals you made in lab). This process is called precipitation (the minerals “fall” out of the solution like rain falls out of the sky). Ex: halite forms from salt lakes

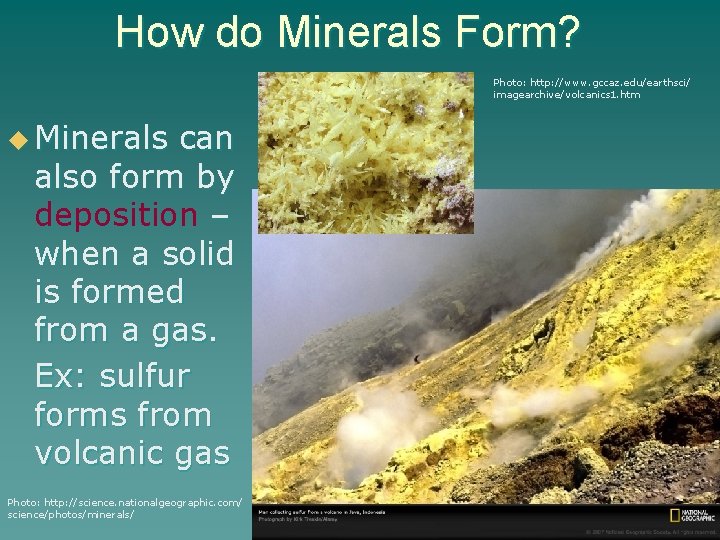

How do Minerals Form? Photo: http: //www. gccaz. edu/earthsci/ imagearchive/volcanics 1. htm u Minerals can also form by deposition – when a solid is formed from a gas. Ex: sulfur forms from volcanic gas Photo: http: //science. nationalgeographic. com/ science/photos/minerals/

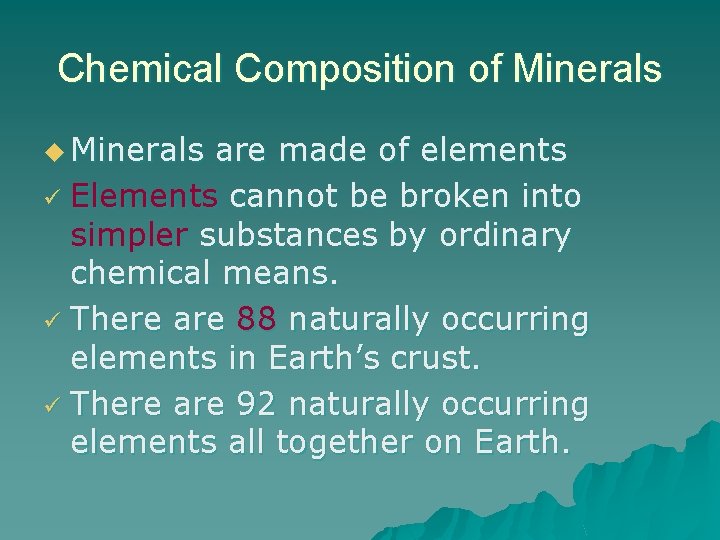

Chemical Composition of Minerals u Minerals are made of elements ü Elements cannot be broken into simpler substances by ordinary chemical means. ü There are 88 naturally occurring elements in Earth’s crust. ü There are 92 naturally occurring elements all together on Earth.

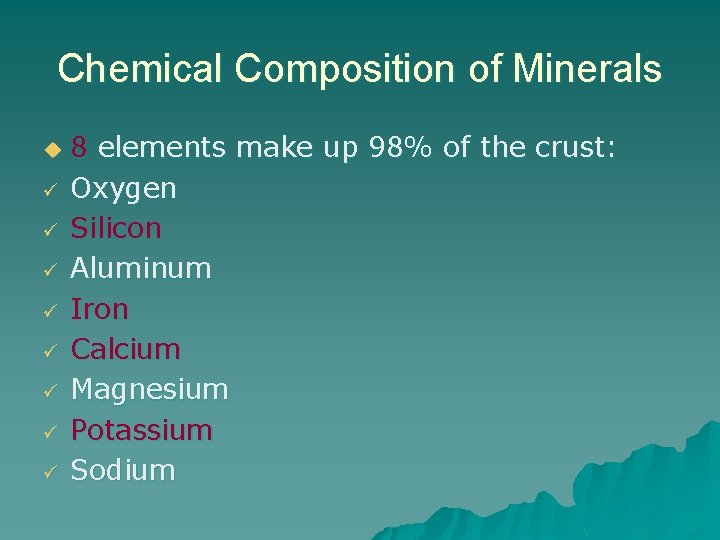

Chemical Composition of Minerals u ü ü ü ü 8 elements make up 98% of the crust: Oxygen Silicon Aluminum Iron Calcium Magnesium Potassium Sodium

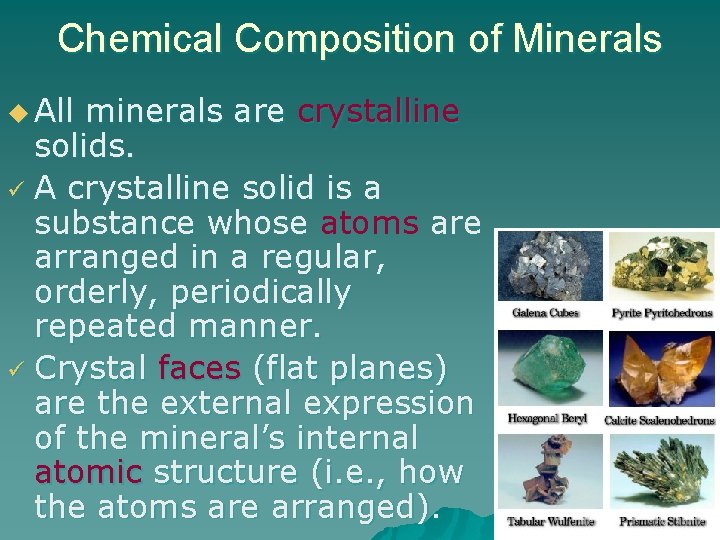

Chemical Composition of Minerals u All minerals are crystalline solids. ü A crystalline solid is a substance whose atoms are arranged in a regular, orderly, periodically repeated manner. ü Crystal faces (flat planes) are the external expression of the mineral’s internal atomic structure (i. e. , how the atoms are arranged).

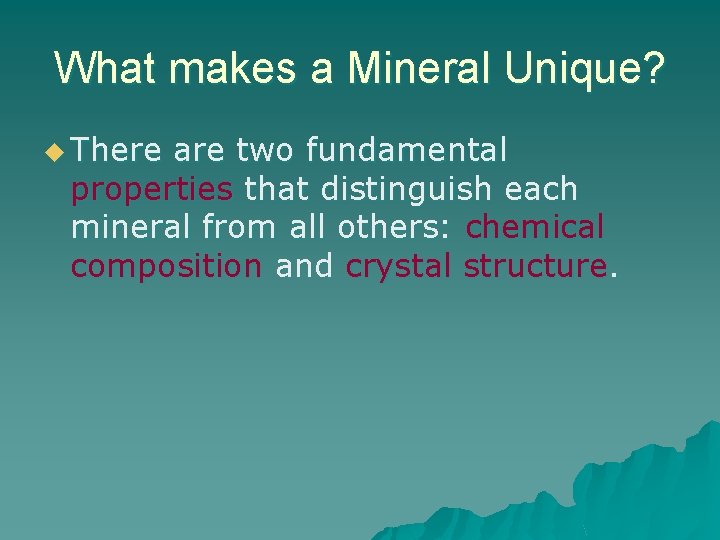

What makes a Mineral Unique? u There are two fundamental properties that distinguish each mineral from all others: chemical composition and crystal structure.

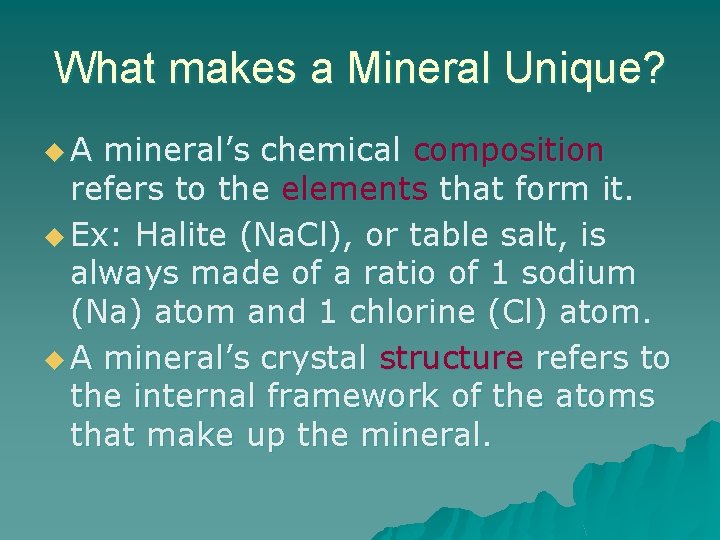

What makes a Mineral Unique? u. A mineral’s chemical composition refers to the elements that form it. u Ex: Halite (Na. Cl), or table salt, is always made of a ratio of 1 sodium (Na) atom and 1 chlorine (Cl) atom. u A mineral’s crystal structure refers to the internal framework of the atoms that make up the mineral.

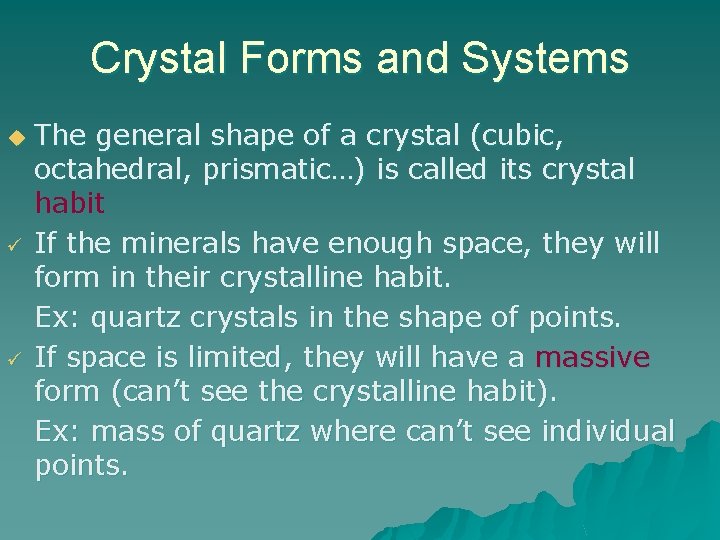

Crystal Forms and Systems u ü ü The general shape of a crystal (cubic, octahedral, prismatic…) is called its crystal habit If the minerals have enough space, they will form in their crystalline habit. Ex: quartz crystals in the shape of points. If space is limited, they will have a massive form (can’t see the crystalline habit). Ex: mass of quartz where can’t see individual points.

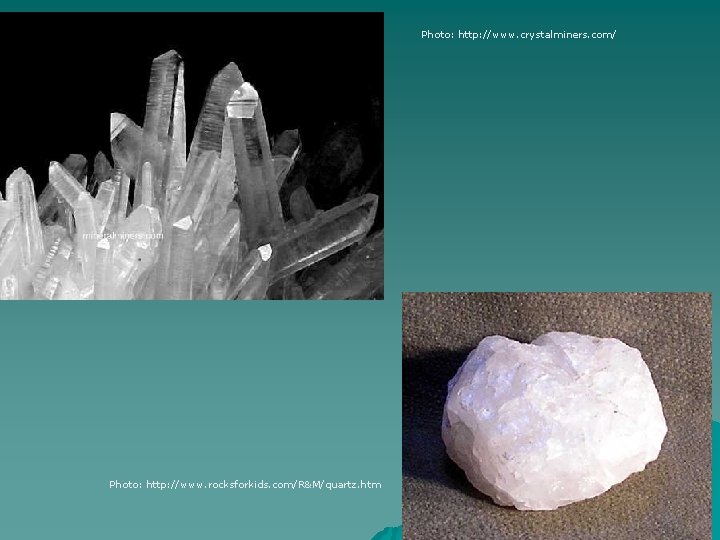

Photo: http: //www. crystalminers. com/ Photo: http: //www. rocksforkids. com/R&M/quartz. htm

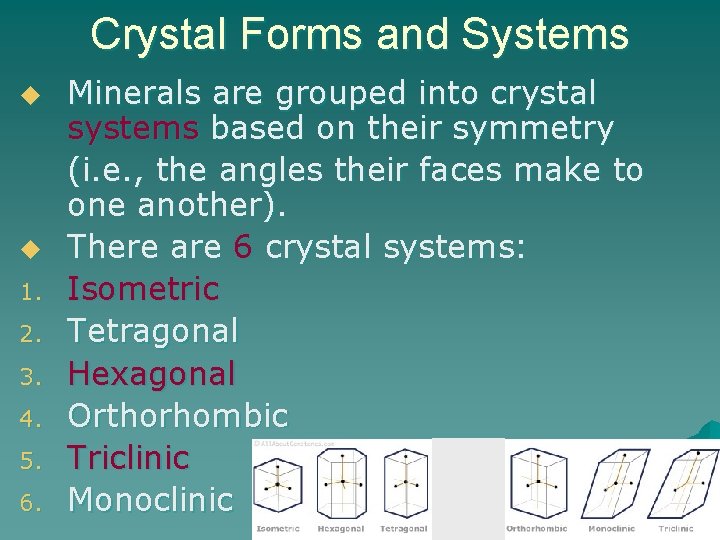

Crystal Forms and Systems u u 1. 2. 3. 4. 5. 6. Minerals are grouped into crystal systems based on their symmetry (i. e. , the angles their faces make to one another). There are 6 crystal systems: Isometric Tetragonal Hexagonal Orthorhombic Triclinic Monoclinic

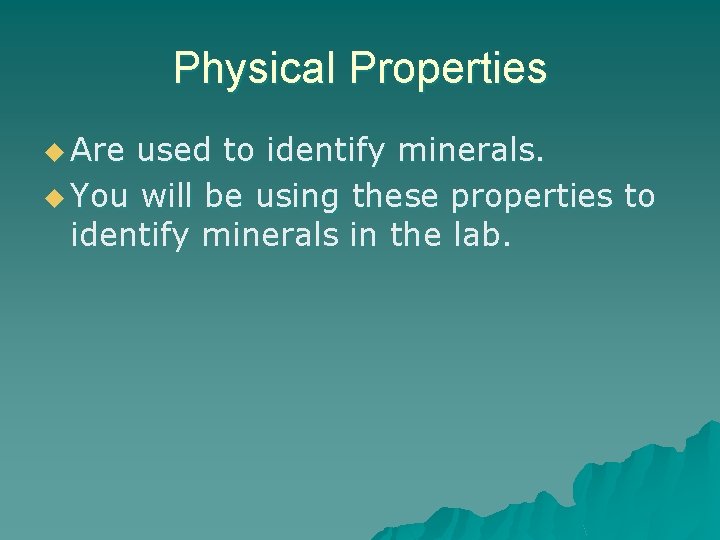

Physical Properties u Are used to identify minerals. u You will be using these properties to identify minerals in the lab.

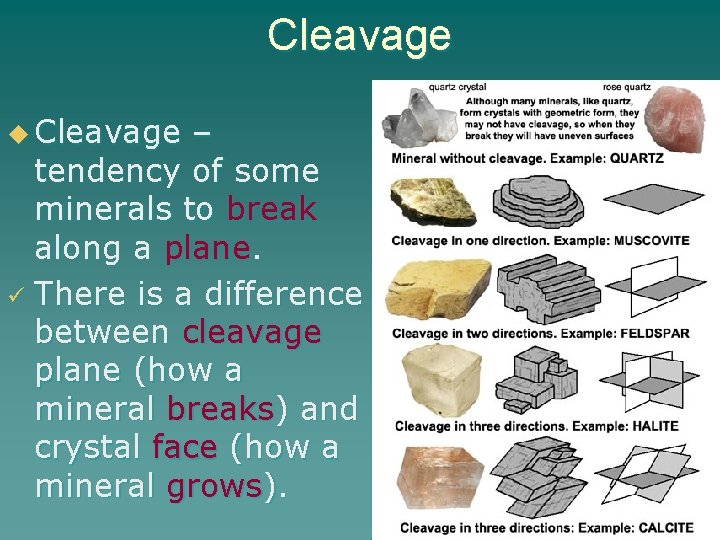

Cleavage u Cleavage – tendency of some minerals to break along a plane. ü There is a difference between cleavage plane (how a mineral breaks) and crystal face (how a mineral grows).

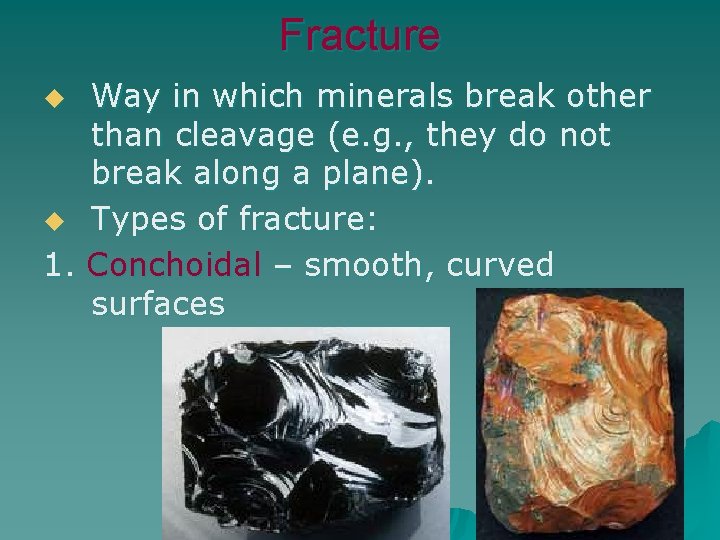

Fracture Way in which minerals break other than cleavage (e. g. , they do not break along a plane). u Types of fracture: 1. Conchoidal – smooth, curved surfaces u

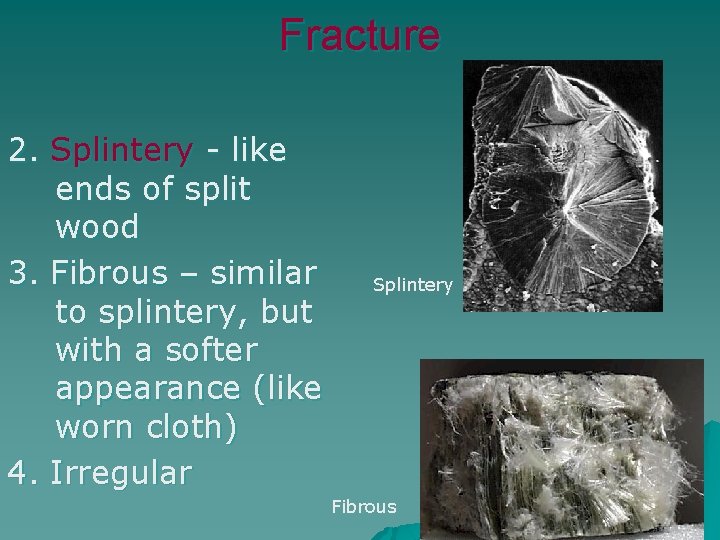

Fracture 2. Splintery - like ends of split wood 3. Fibrous – similar to splintery, but with a softer appearance (like worn cloth) 4. Irregular Splintery Fibrous

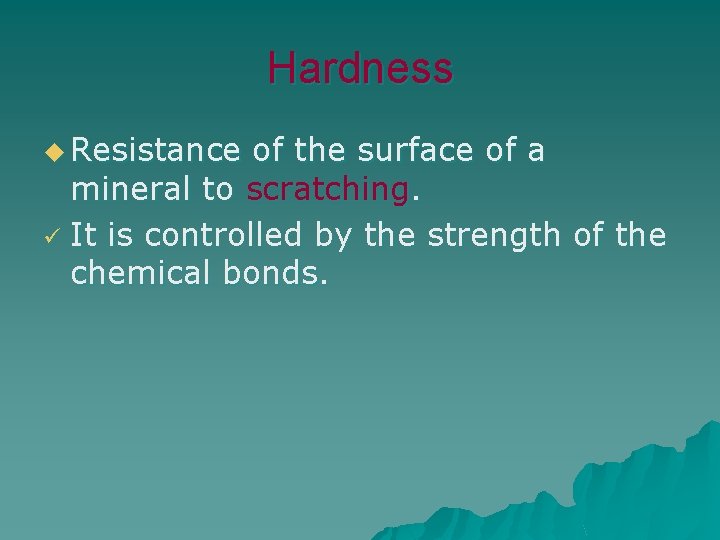

Hardness u Resistance of the surface of a mineral to scratching. ü It is controlled by the strength of the chemical bonds.

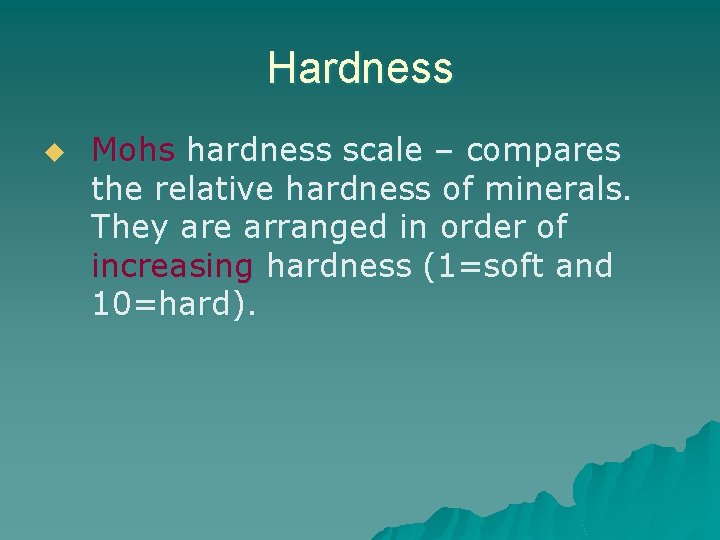

Hardness u Mohs hardness scale – compares the relative hardness of minerals. They are arranged in order of increasing hardness (1=soft and 10=hard).

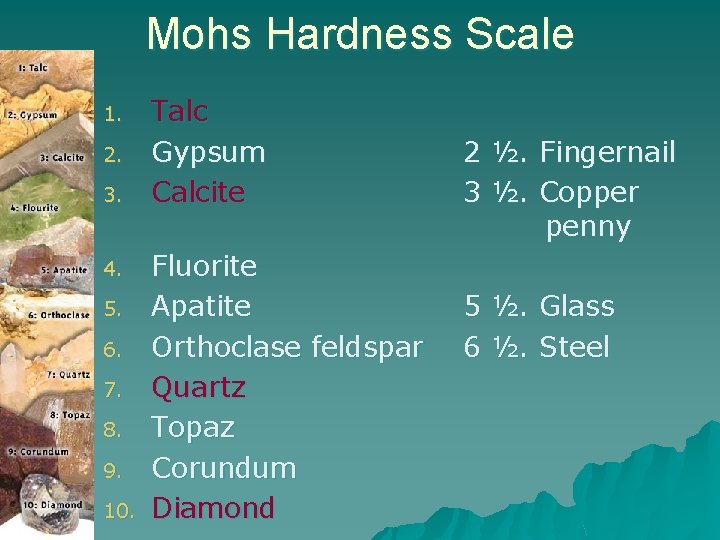

Mohs Hardness Scale 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Talc Gypsum Calcite Fluorite Apatite Orthoclase feldspar Quartz Topaz Corundum Diamond 2 ½. Fingernail 3 ½. Copper penny 5 ½. Glass 6 ½. Steel

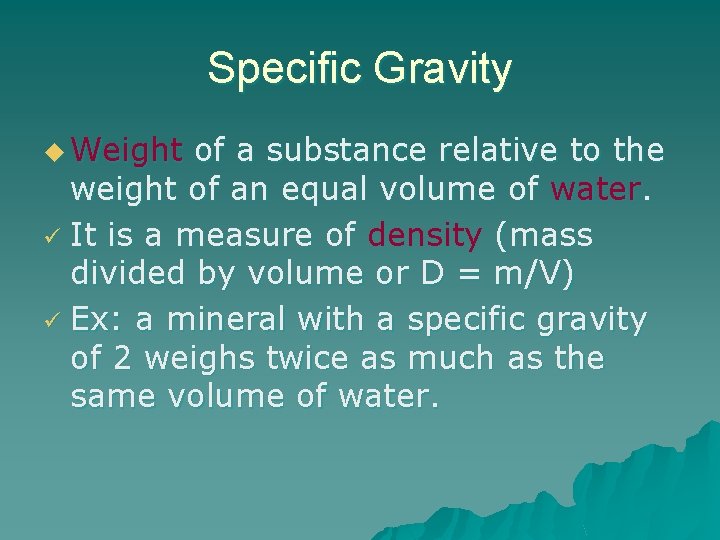

Specific Gravity u Weight of a substance relative to the weight of an equal volume of water. ü It is a measure of density (mass divided by volume or D = m/V) ü Ex: a mineral with a specific gravity of 2 weighs twice as much as the same volume of water.

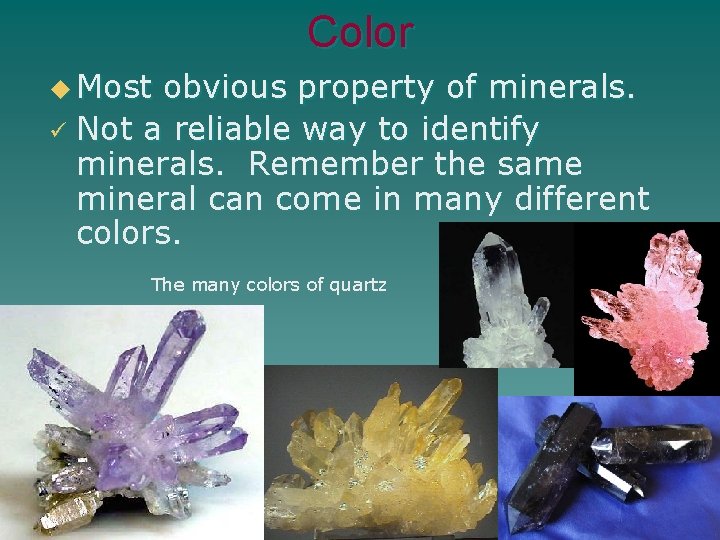

Color u Most obvious property of minerals. ü Not a reliable way to identify minerals. Remember the same mineral can come in many different colors. The many colors of quartz

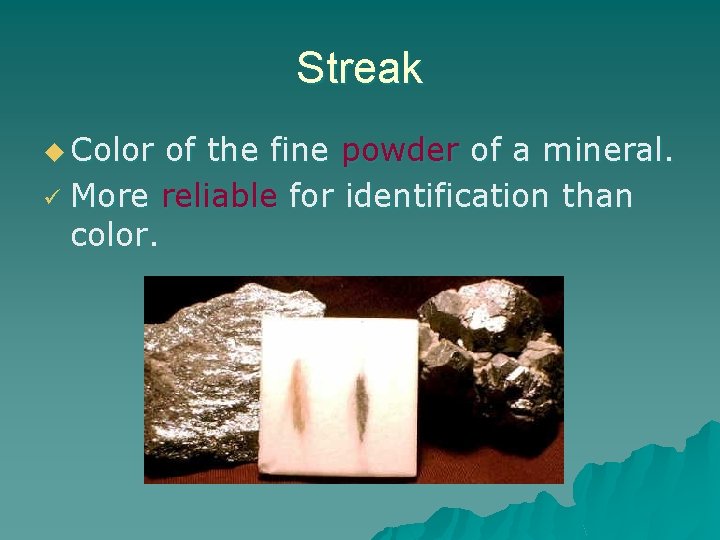

Streak u Color of the fine powder of a mineral. ü More reliable for identification than color.

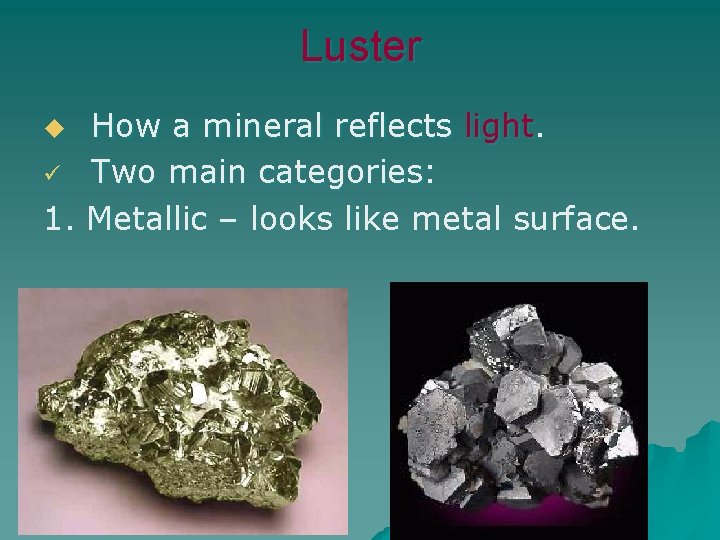

Luster How a mineral reflects light. ü Two main categories: 1. Metallic – looks like metal surface. u

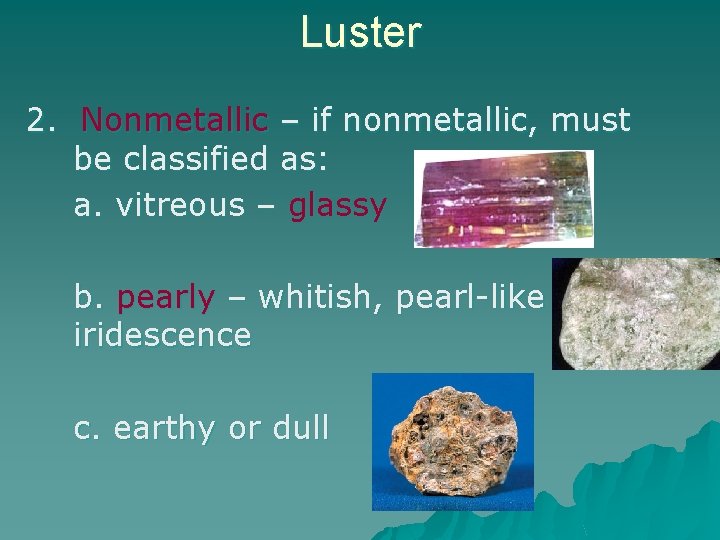

Luster 2. Nonmetallic – if nonmetallic, must be classified as: a. vitreous – glassy b. pearly – whitish, pearl-like iridescence c. earthy or dull

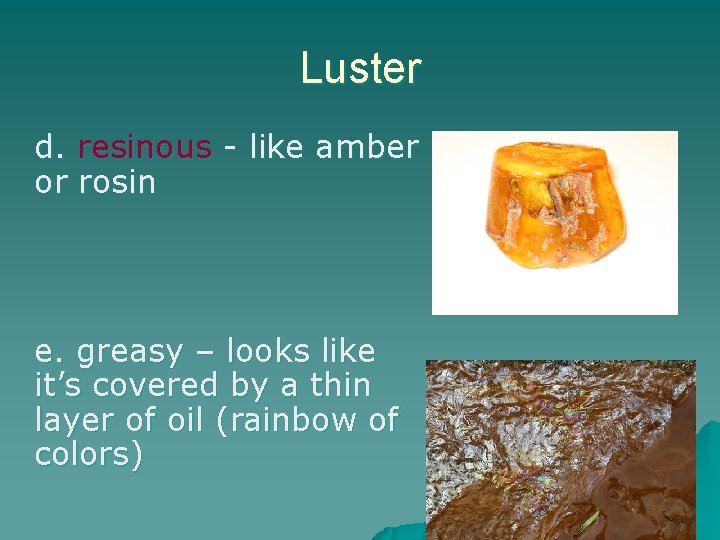

Luster d. resinous - like amber or rosin e. greasy – looks like it’s covered by a thin layer of oil (rainbow of colors)

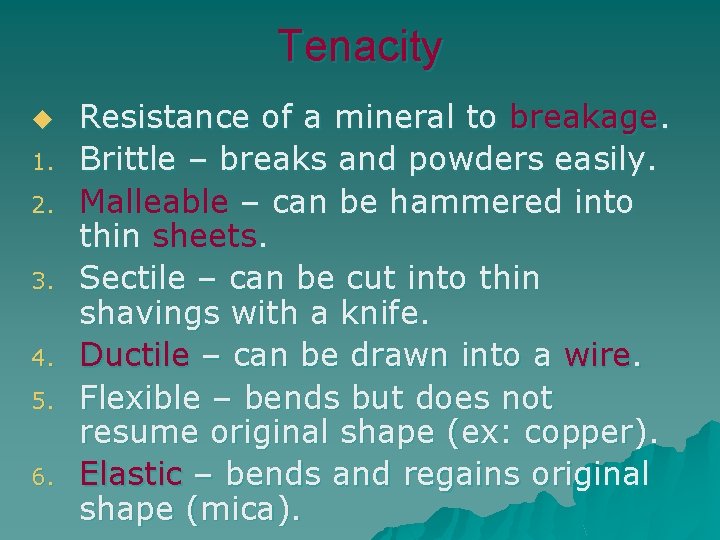

Tenacity u 1. 2. 3. 4. 5. 6. Resistance of a mineral to breakage. Brittle – breaks and powders easily. Malleable – can be hammered into thin sheets. Sectile – can be cut into thin shavings with a knife. Ductile – can be drawn into a wire. Flexible – bends but does not resume original shape (ex: copper). Elastic – bends and regains original shape (mica).

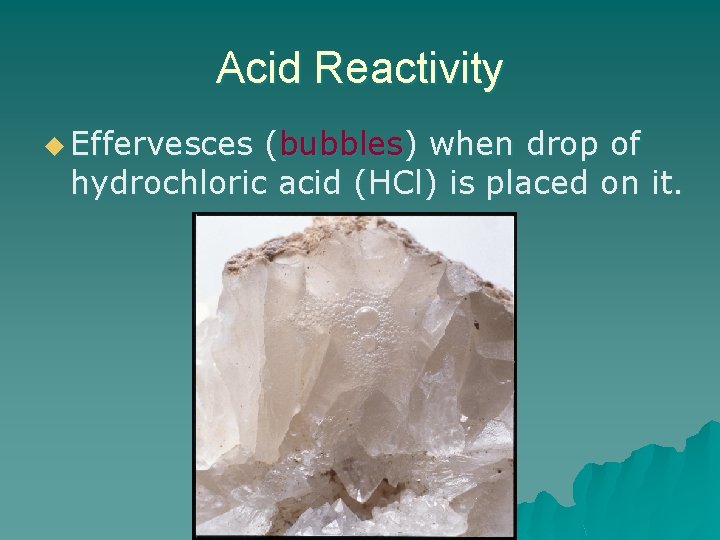

Acid Reactivity u Effervesces (bubbles) when drop of hydrochloric acid (HCl) is placed on it.

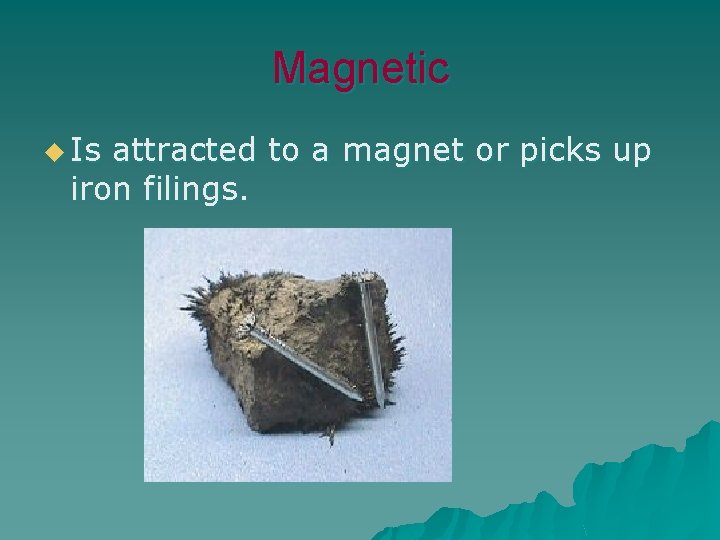

Magnetic u Is attracted to a magnet or picks up iron filings.

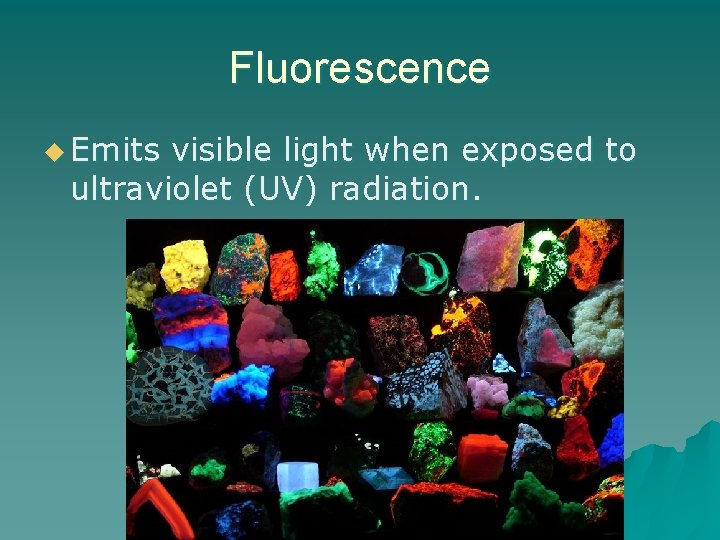

Fluorescence u Emits visible light when exposed to ultraviolet (UV) radiation.

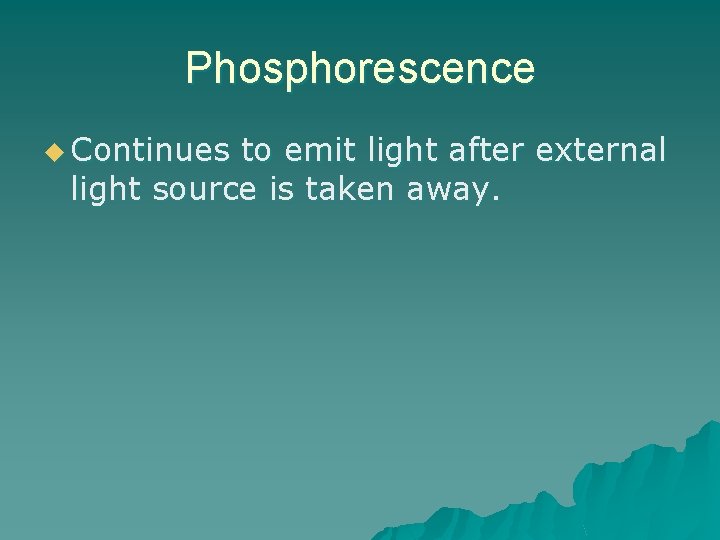

Phosphorescence u Continues to emit light after external light source is taken away.

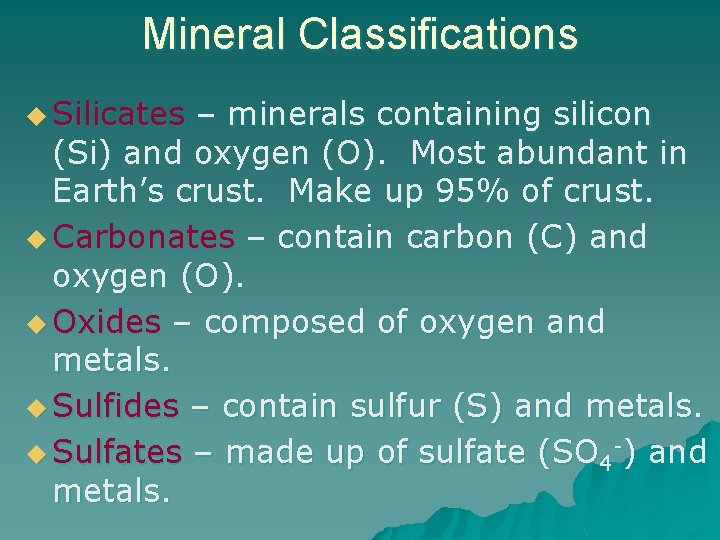

Mineral Classifications u Silicates – minerals containing silicon (Si) and oxygen (O). Most abundant in Earth’s crust. Make up 95% of crust. u Carbonates – contain carbon (C) and oxygen (O). u Oxides – composed of oxygen and metals. u Sulfides – contain sulfur (S) and metals. u Sulfates – made up of sulfate (SO 4 -) and metals.

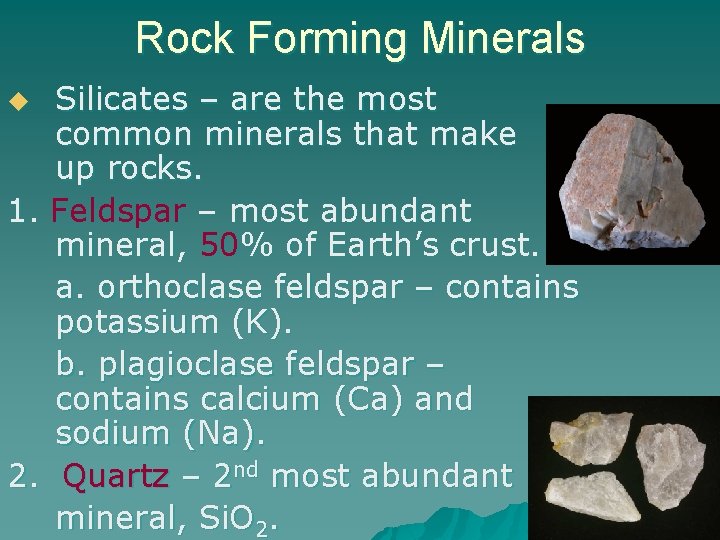

Rock Forming Minerals Silicates – are the most common minerals that make up rocks. 1. Feldspar – most abundant mineral, 50% of Earth’s crust. a. orthoclase feldspar – contains potassium (K). b. plagioclase feldspar – contains calcium (Ca) and sodium (Na). 2. Quartz – 2 nd most abundant mineral, Si. O 2. u

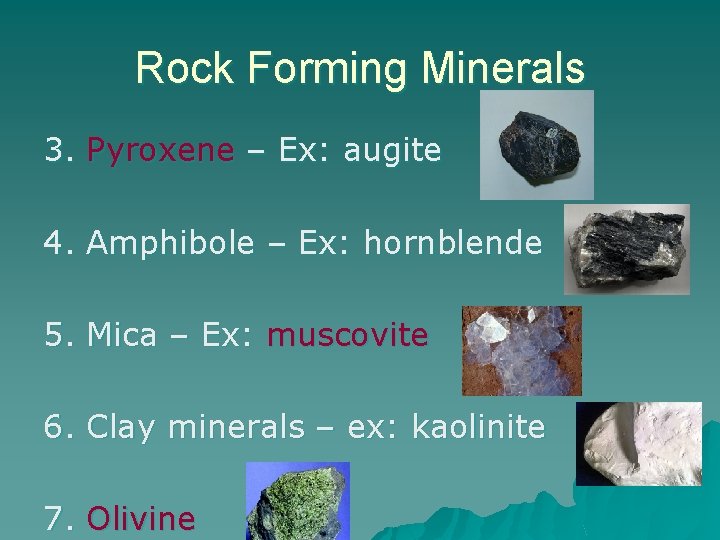

Rock Forming Minerals 3. Pyroxene – Ex: augite 4. Amphibole – Ex: hornblende 5. Mica – Ex: muscovite 6. Clay minerals – ex: kaolinite 7. Olivine
