MIN-COST ABORESCENCES YQ Lu

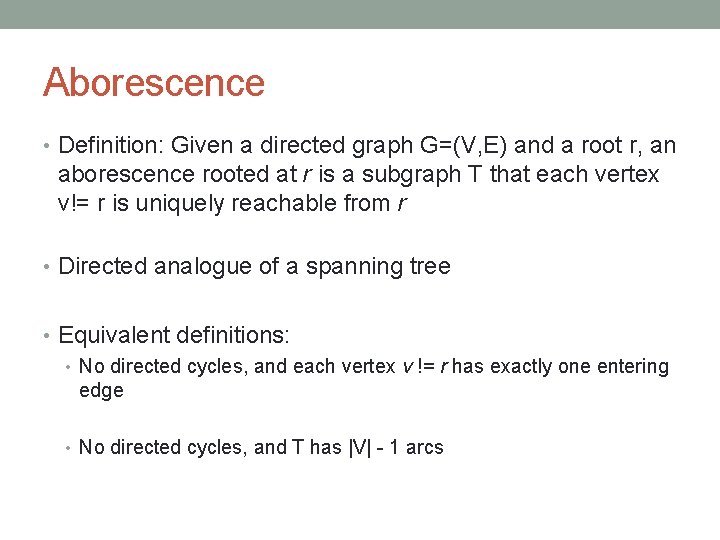

Aborescence • Definition: Given a directed graph G=(V, E) and a root r, an aborescence rooted at r is a subgraph T that each vertex v!= r is uniquely reachable from r • Directed analogue of a spanning tree • Equivalent definitions: • No directed cycles, and each vertex v != r has exactly one entering edge • No directed cycles, and T has |V| - 1 arcs
Min-cost aborescences • Given a directed graph G with: • non-negative costs on each edge • a root r such that each vertex is reachable from r: • Find an aborescence rooted at r of total min cost. • Distinct from other related problems: • Minimum spanning tree • Shortest paths tree • etc
Main Idea of Edmond’s Algorithm • Pick edges greedily • This might not work, but helps reduce to subproblem • Solve recursively

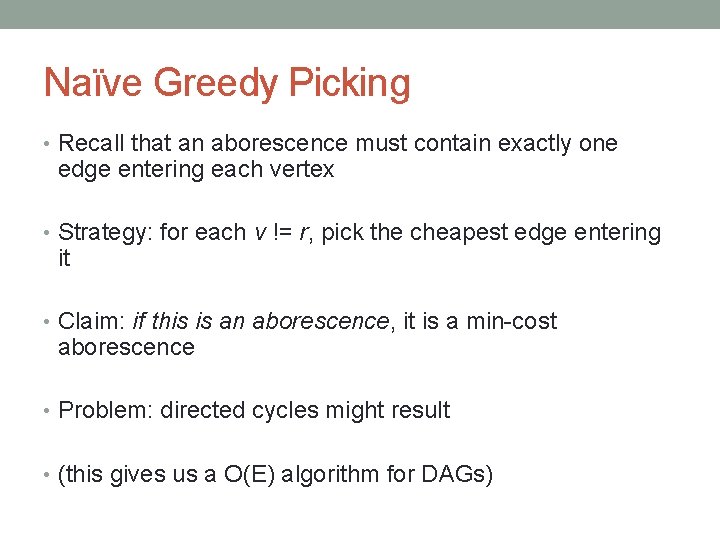

Naïve Greedy Picking • Recall that an aborescence must contain exactly one edge entering each vertex • Strategy: for each v != r, pick the cheapest edge entering it • Claim: if this is an aborescence, it is a min-cost aborescence • Problem: directed cycles might result • (this gives us a O(E) algorithm for DAGs)
Pre-processing graph • Label each vertex v != r by y(v), the min cost of any edge entering v • The reduced cost of an edge (u, v) is c’(u, v) = c(u, v) – y(v). • Equivalence: T is a min-cost aborescence in G with costs c iff T is a min-cost aborescence in G with costs c’. • Proof: (see board)
Edmond’s Algorithm • Relabel costs c in graph G by reduced costs c’ • Let F* = set of 0 -cost edges • If F* does not have a cycle: • F* is a min-cost aborescence, we are done! • If F* has cycles: • Shrink one cycle C={v_c} into one v’ • Call new graph G’ • Perform algorithm recursively on G’ to get T’ • Extend T’, min-cost aborescence in G’, to get T, min-cost aborescence in G

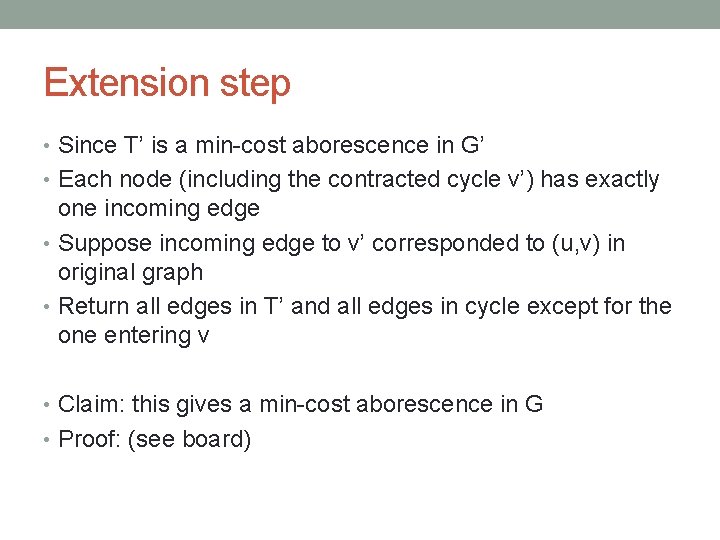

Extension step • Since T’ is a min-cost aborescence in G’ • Each node (including the contracted cycle v’) has exactly one incoming edge • Suppose incoming edge to v’ corresponded to (u, v) in original graph • Return all edges in T’ and all edges in cycle except for the one entering v • Claim: this gives a min-cost aborescence in G • Proof: (see board)
Runtime • Reducing costs takes O(E) time • Picking 0 -cost edges takes O(E) time • Cycle detection takes O(V) time • Recursive step is carried out at most O(V) times • Algorithm runs in O(VE) time • Possible to reduce to O(E + V log V) • (Gabow, Galil, Spencer, Tarjan 1985)
