Mimosa-18 (High Resolution Tracker) Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr Mini Telescope USB (TAPIS) Beam Test DESY June 2007, CERN September 2007 W. Dulinski, G. Claus, M. Goffe IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France

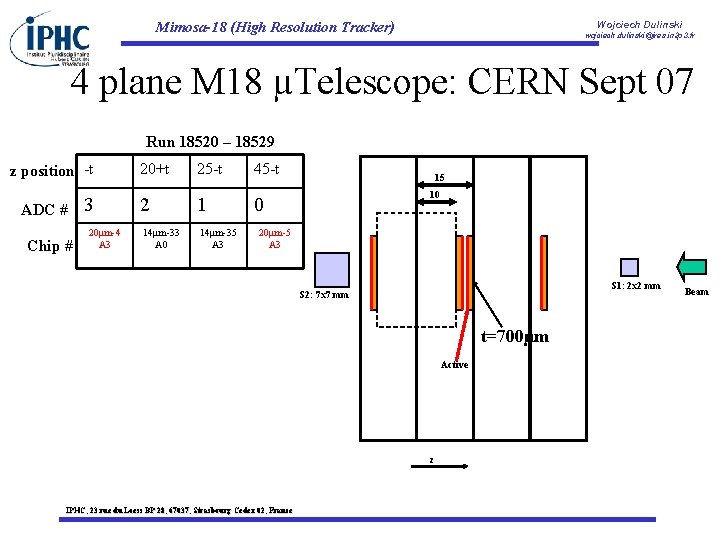

Wojciech Dulinski Mimosa-18 (High Resolution Tracker) wojciech. dulinski@ires. in 2 p 3. fr 4 plane M 18 µTelescope: CERN Sept 07 Run 18520 – 18529 z position -t ADC # Chip # 3 20µm-4 A 3 20+t 25 -t 45 -t 2 1 0 14µm-33 A 0 14µm-35 A 3 15 10 20µm-5 A 3 S 1: 2 x 2 mm S 2: 7 x 7 mm t=700µm Active z IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France Beam
Mimosa-18 (High Resolution Tracker) Mimosa 18 - 512 x 512 pixel array (4 analog outputs) - 5 x 5 mm 2 active area (7 x 7 mm 2 total) - 2 T, self-bias architecture, standard diodes - 10 µm pitch - 16 (25) MHz readout clock 66 4 (3) ms integration -Excellent yield: 19 sensors bonded to PCB, on all of them >99. 9% of pixels working correctly IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr
Mimosa-18 (High Resolution Tracker) Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr Mimosa 18 on PCB (from the chip side) Pixel(0, 0) A 1 A 2 Pixel(255, 255) (for all arrays) A 0 A 3 Pixel(0, 0) ERNI connector (opposite side) IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France Pixel(0, 0) cable
Mimosa-18 (High Resolution Tracker) Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr Noise ~ 1, 43 Uadc IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France

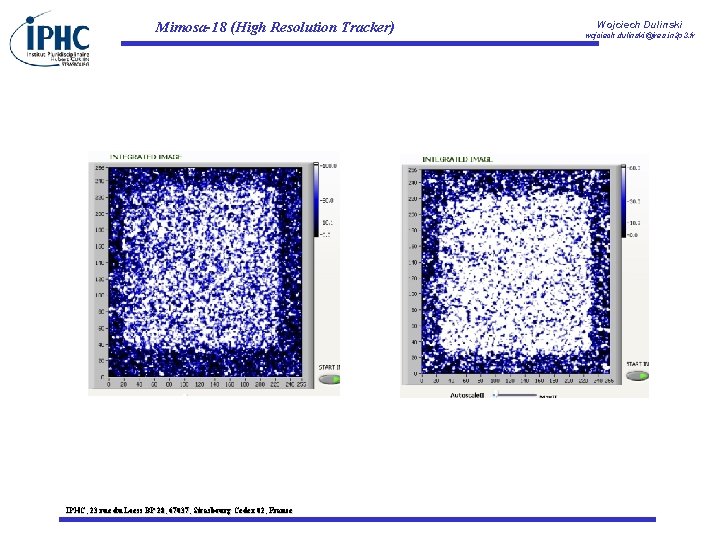

Mimosa-18 (High Resolution Tracker) IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr
Mimosa-18 (High Resolution Tracker) IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr
Wojciech Dulinski Mimosa-18 (High Resolution Tracker) wojciech. dulinski@ires. in 2 p 3. fr 4 -plane M 18 µTelescope: CERN Sept 07 µTelescope 14/20 µm Run Energy #events date 18520* 120 Ge. V 25 k 07. 09. 2007 18526 120 Ge. V 10 k 10. 09. 2007 0°, prel. adj. 18521* 120 Ge. V 12 k 08. 09. 2007 18527 120 Ge. V 10 k 10. 09. 2007 180°, prel. adj. 18522* 120 Ge. V 20 k 08. 09. 2007 18528 120 Ge. V 50 k 11. 09. 2007 0°, final adj. 18523* 120 Ge. V 40 k 08. 09. 2007 18529 120 Ge. V 10 k 11. 09. 2007 180°, final adj. 18524* 120 Ge. V 40 k 08. 09. 2007 18525* 120 Ge. V 5 k 10. 09. 2007 *NO COOLING, BEAM and SCINT. POSITION ADJUSTMENT Mimosa 18 (carte USB nº 26) Run effectue a 16 MHz τi = 4 ms Temperature liquide 15 º C IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France COOLING at 15°C
Mimosa-18 (High Resolution Tracker) Mimosa 17 (Mimo. TEL) - 256 x 256 pixel array (4 analog outputs) - 7. 5 x 7. 5 mm 2 active area (8 x 9 mm 2 total) - 2 T, self-bias architecture, rad-tol diodes - 30 µm pitch (STAR pixel design) - 16 (25) MHz readout clock 4 (3) ms integration -Yield: 15 sensors bonded to PCB (9 from 20 µm epi wafer 2006, 7 from 14 µm wafer 2006) - All OK, except two first 14 µm chips IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr

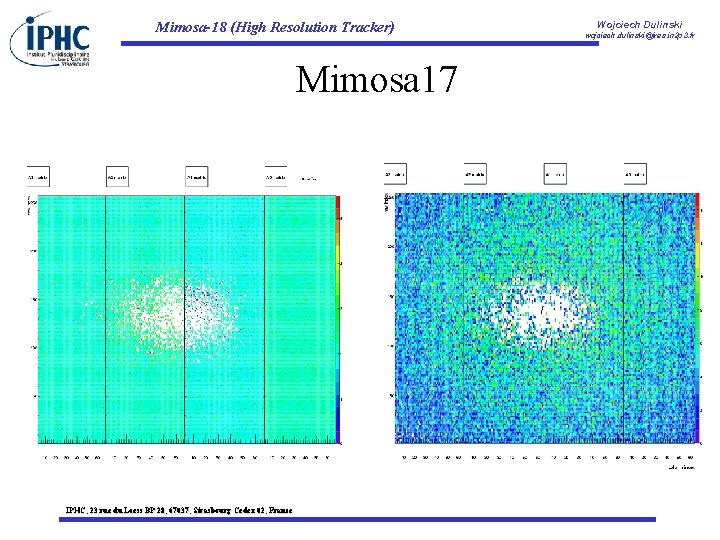

Mimosa-18 (High Resolution Tracker) Mimosa 17 IPHC, 23 rue du Loess BP 28, 67037, Strasbourg Cedex 02, France Wojciech Dulinski wojciech. dulinski@ires. in 2 p 3. fr
