Presentation Outline • What is MIMOSA? • Collaboration Activities & Synergies • What Problems Are We Solving With Open. O&M™? • Do. D – The Worlds Most Complex Fleets • Process Industries • The New Paradigm - Condition Based Operations (CBO) • MIMOSA Activities Highlights Copyright 2004 MIMOSA

WHAT IS MIMOSA? • MIMOSA is an Operations and Maintenance Information Open Systems Alliance • Organized as a Non-profit Trade Association • • • Vendors Integrators & Service Providers End-Users • Collaboratively Develops and Promotes Open Standards for Operations and Maintenance (Open. O&M™) ü Fleets ü Plants ü Facilities • Produces Vendor-Neutral Open Information Exchange Standards • Open Systems Architecture for Enterprise Application Integration (OSA-EAI™) • Open Systems Architecture for Conditioned-Based Maintenance (OSA-CBM™) ü Finalized standards are publicly available at www. mimosa. org Copyright 2004 MIMOSA

MIMOSA Mission Develop and encourage the adoption of open information standards for Operations and Maintenance Copyright 2004 MIMOSA

MIMOSA Strategy • Enable a win/win O&M Solutions Environment for end-users & solutions providers • Enable Condition Based Operations (CBO) through Asset Capabilities Management (ACM) • Enable Collaborative Asset Lifecycle Management (CALM) through use of OSA-EAI and OSA-CBM open asset management information standards • Strongly brand leverage Open. O&M™ Open Information Standards • A single branded “Language” for Operations and Maintenance integration • Enable Solutions that are Open & Interoperable • Achieve critical mass standards consensus both through organic efforts and through collaboration with other key industry and public sector associations. Avoid standards proliferation. • Collaboration strategy more fully defined in conjunction with collaboration partners • Horizontal Open. O&M™ strategy across all industries and public sector in conjunction with OPC Foundation • Choose other Open. O&M™ strategically aligned collaboration partners Copyright 2004 MIMOSA

MIMOSA Information Domain Summary Open Reliability Management Open Maintenance Management Open Physical Asset Registry Management Open Condition Management Copyright 2004 MIMOSA

END-TO-END Open. O&M™ SYSTEMS At Platform Diagnostics CBM Systems Portable Diagnostic Tools Maintenance Logistics EAM, CMMS Tightly Coupled Systems INFORMATION SYSTEMS EMBEDDED SYSTEMS MIMOSA & OPC Open. O&M™ Information Standards MIMOSA OSA-CBM Information Standards Loosely Coupled Systems Copyright 2004 MIMOSA

MIMOSA Open Systems Architecture for Enterprise Application Integration (OSA-EAI) Architecture Overview Open. O&M Tech-XML Tech-Doc OPC Tech-File Tech-CDE Tech-Web HTTP Import & Client & Server OPC Complex Data Export Server EAI Interoperability OPC DA & XMLDA Client & Server Tech-Doc Producer/Consumer Interface Schemas Tech-XML Client & Server Interface Schemas Terse Message Schema CRIS Reference Data Library Common Relational Information Schema (CRIS) OSA-EAI Common Conceptual Object Model (CCOM) OSA-EAI Terminology Dictionary Copyright 2004 MIMOSA XML Content Meta. Data Taxonomy Implementation Model Conceptual Model Semantic Definitions

Then Need For Standard Specialized Language For Operations & Maintenance (Open. O&M™) Increasing Complexity & Value Added By Language Elements Primitive Tokens Alphabet Grammar Rules Standard Vocabulary Standard Specialized Language Terminology Phraseology English U. S. Western European Standard English Operations & Maintenance Industry Language Natural Language English Hex Octal Binary Unicode Double-byte ASCII XML DTDs, Schema Computer Language Copyright 2004 MIMOSA Open. O&M™

What’s The MIMOSA Value Proposition? 1. The value of MIMOSA as a standards body 1. Condition Based Operations (CBO) is a fundamental paradigm shift that is applicable to all sectors. CBO requires open O&M interfaces. Open. O&M™ is the answer. 2. Collaborative Asset Lifecycle Management (CALM) requires open & interoperable O&M interfaces. Open. O&M is the answer. 3. Joint work with other consensus standards bodies and formal standards bodies 2. The value of MIMOSA as a trade association 1. External Education & Marketing 2. Internal Communication & Collaboration 3. Providing a focused way to interact with a critical mass of the organizations developing and promoting open and interoperable solutions for Operations & Maintenance Copyright 2004 MIMOSA

MIMOSA Collaboration For Open. O&M™ MIMOSA Center of Excellence – U. S. Army SED NAVSEA-TOSA Program – MIMOSA Member National Institute of Building Sciences (NIBS) MIMOSA/ISA-95/OPC Foundation - Joint Working Group NIST/FIATECH – Capital Project Standards Roadmap ISO/TC 184/SC 5/WG 7 - Diagnostics & Maintenance Application Integration Working Group • ISO STD 13374 -1 – TC 108/SC 5 - Condition Monitoring & Diagnostics- MIMOSA is the Informative Reference • • • Technical Committee 108 Sub-Committee 5 + Accredited Standards Committee S 2 = Open. O&M™ Copyright 2004 MIMOSA

A Look At A Complex Extended Enterprise Requiring Open. O&M™ The Modern Department of Defense Extended Supply Chain Incorporating Fleets, Plants and Facilities Copyright 2004 MIMOSA

Copyright 2004 MIMOSA

Copyright 2004 MIMOSA

Copyright 2004 MIMOSA

Copyright 2004 MIMOSA

Copyright 2004 MIMOSA

Open. O&M™ In Process Industries Collaboration between OPC Foundation, MIMOSA and ISA SP 95 To Enable The Real-Time Enterprise Copyright 2004 MIMOSA

What is OPC? • International Industry Standard Organization • 350+ Companies / 40+ end-users Members • 1500+ Companies Build OPC Products = 7500+ Products • The vision of OPC is to be the Foundation for inter. Operability • for moving information vertically from the factory floor through the enterprise of multi-vendor systems (with stops in between…) • For moving information between devices on different industrial networks from different vendors; • Not just data but information……. Copyright 2004 MIMOSA

OPC Provides Industry-Standard inter. Operability Performance & Connectivity ERP, SAP … Corporate Enterprise OPC –( XML &. NET) Manufacturing, Production and Maintenance (Rockwell, Emerson, Siemens, MRO, Indus…) OPC –( XML &. NET) HMI SCADA OPC Adv. Control MES OPC Batch PC-Based Control OPC PLC DCS Industrial Networks Data Acquisition Copyright 2004 MIMOSA ? ?

What Is ISA? • The Instrumentation, Systems & Automation Society (ISA), founded in 1945 as a nonprofit educational organization, www. isa. org. • Membership: 38, 000+ professionals involved in theory, design, manufacture, and use of sensors, instruments, computers, and systems for automation and control in a variety of industrial applications. • ISA annually hosts the largest conference and exhibit for automation and control in North America, and is a leading technical training organization and developer of books, journals, and ANSI-accredited standards. • ISA also serves the professional development and accreditation needs of Control Systems Engineers (CSE), instrument technicians, and others within the field of automation and control. Copyright 2004 MIMOSA

What is ISA-95 ? • ISA standard ISA-95 Enterprise - Control System Integration • Part 1: Models and Terminology • Part 2: Data Structures and Attributes • Part 3: Models of Manufacturing Operation Management • SP 95 Committee • Develops the standard • International Standard is ISO/IEC 62264 Vendors Copyright 2004 MIMOSA General Users

MIMOSA/OPC/ISA SP 95 JWG Activities • October 2003 • Formative Press Release • 2003 ISA EXPO – Open. O&M™ Interoperability Demo • February 2004 First Official Meeting and Press Release • White Paper “Open. O&M™ For Process Industries–In Draft” Copyright 2004 MIMOSA

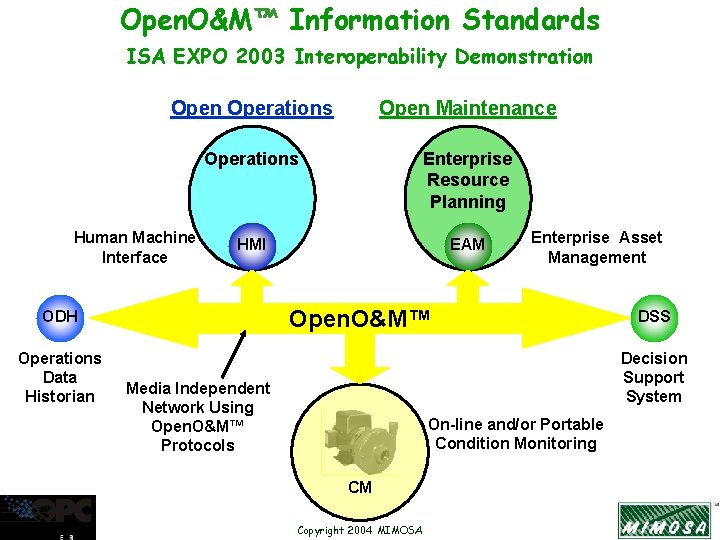

Open. O&M™ Information Standards ISA EXPO 2003 Interoperability Demonstration Operations Open Maintenance Operations Enterprise Resource Planning HMI EAM Human Machine Interface Open. O&M™ ODH Operations Data Historian Enterprise Asset Management DSS Decision Support System Media Independent Network Using Open. O&M™ Protocols On-line and/or Portable Condition Monitoring CM Copyright 2004 MIMOSA

ISA Expo 2003 Open. O&M™ Demonstration Operations Participating Companies

ISA Expo 2003 Open. O&M™ Demonstration Open Maintenance Participating Companies

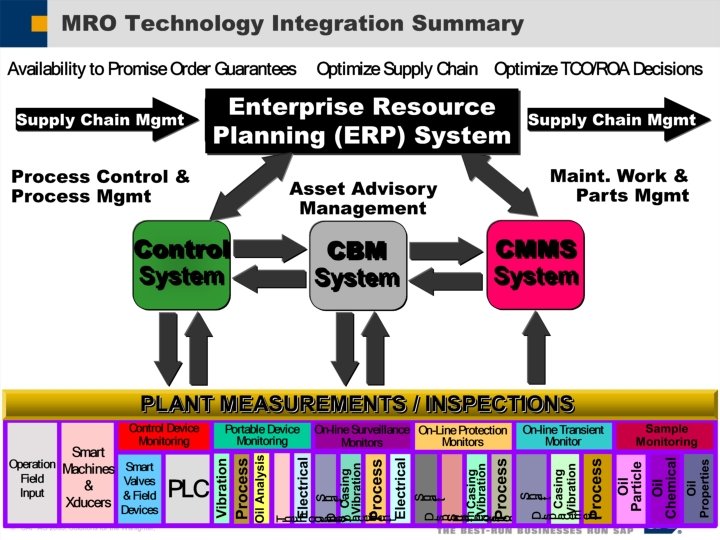

The New Paradigm– Enabling Condition Based Operations (CBO) (Process Industries Example) Supply Chain Mgmt ERP System Supply Chain Mgmt Prod. Forecasting & Scheduling / MES System Asset Capability Forecasting & Asset Optimization DSS Control Systems & HMIs Conditionbased Operational Advisories Asset Health DSS Conditionbased Maintenance Advisories EAM System Asset Registry, Maintenance Work & Parts Mgmt. DATA HISTORIANS / ASSET MEASUREMENTS & INSPECTIONS O&M Event Monitoring I &C Device Monitoring On-Line Protection. On-line Transient Portable Device. On-line Surveillance Monitors Monitoring Monitors Copyright 2004 MIMOSA Sample Monitoring

Production Capacity Forecast Total Capacity Lost To Maintenance Confidence 85% 90% 95% Capacity Available Capacity Time As we look further into the future, a production capacity forecast becomes more uncertain and the confidence of having a given amount of production capacity decreases. CBO seeks to determine a Capacity Forecast based on an optimal scenario where the definition of optimal is based on a balanced scorecard established by management. Copyright 2004 MIMOSA

2004 MIMOSA Activities Highlights • • • February 2004– 1 st Meeting MIMOSA/OPC/ISA SP 95 JWG March 2004 Control Engineering Magazine Cover Story April 2004 ARC In. Sight - Open. O&M™ a key CALM enabler April 26 -29 Open. O&M™ Week – Scottsdale Arizona May 2004 • • • MIMOSA Publishes OSA-EAI 3. 0 Standards European Federation of National Maintenance Societies - Barcelona MARTS • • NIST/FIATECH Collaboration Meetings ISO TC 184/SC 5/WG 7 Meetings • • • Next MIMOSA Technical Committee Meeting – August 16 -18 2004 ISA EXPO Open. O&M™ Interoperability Demonstration – October 5 -7 MIMOSA TC Meeting – In Conjunction With IMC, Naples FL, Dec. 6 -10 2005 National Manufacturing Week 2005 Open. O&M™ Week – April 11 -15 Scottsdale Arizona • June 2004 • Coming Events (Opportunities To Participate) Copyright 2004 MIMOSA

Keys To Success • Communicate – Continue to raise the enterprise visibility of integrated approaches to O&M, fully leveraging the knowledge of the associated industry professionals • Collaborate • Multi-disciplinary collaboration in MIMOSA membership • Proper collaboration with appropriate external partners • Develop – Continued development of the Open. O&M™ Information Standards Join and work with the Open. O&M™ Team Vendors Integrators & Service Providers End-User Council Copyright 2004 MIMOSA
