MIME media types for DPNSS Objects in SIP

MIME media types for DPNSS Objects in SIP {draft-mukundan-sipping-dpnss-02. txt : R Mukundan, V Seshasayee/ K Morneault/ R Shiroor/ N Mangalpally/ S Naganathan Wipro/ Cisco/ Sasken/ Nortel/ Hughes} Ranjith Mukundan Wipro Technologies 57 th IETF Vienna, Austria SIPPING WG 17 th July, 2003

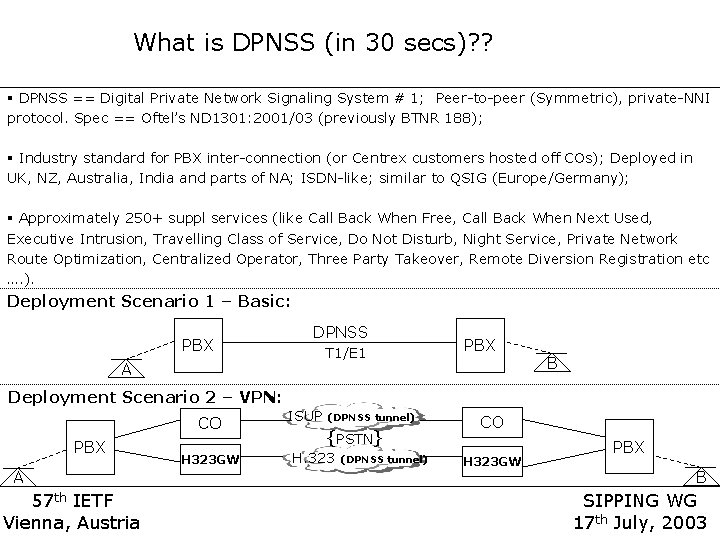

What is DPNSS (in 30 secs)? ? § DPNSS == Digital Private Network Signaling System # 1; Peer-to-peer (Symmetric), private-NNI protocol. Spec == Oftel’s ND 1301: 2001/03 (previously BTNR 188); § Industry standard for PBX inter-connection (or Centrex customers hosted off COs); Deployed in UK, NZ, Australia, India and parts of NA; ISDN-like; similar to QSIG (Europe/Germany); § Approximately 250+ suppl services (like Call Back When Free, Call Back When Next Used, Executive Intrusion, Travelling Class of Service, Do Not Disturb, Night Service, Private Network Route Optimization, Centralized Operator, Three Party Takeover, Remote Diversion Registration etc …. ). Deployment Scenario 1 – Basic: PBX DPNSS T 1/E 1 A PBX B Deployment Scenario 2 – VPN: CO PBX A 57 th IETF Vienna, Austria H 323 GW ISUP (DPNSS tunnel) {PSTN} H. 323 (DPNSS tunnel) CO H 323 GW PBX B SIPPING WG 17 th July, 2003

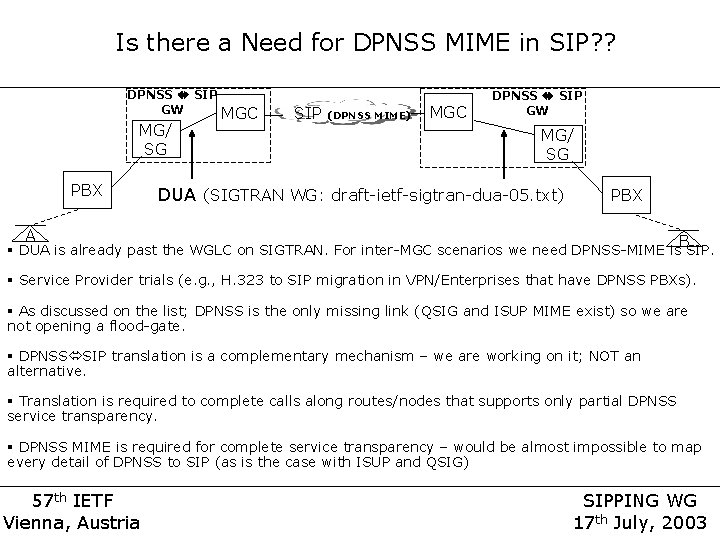

Is there a Need for DPNSS MIME in SIP? ? DPNSS SIP GW MG/ SG PBX MGC SIP (DPNSS MIME) MGC DPNSS SIP GW MG/ SG DUA (SIGTRAN WG: draft-ietf-sigtran-dua-05. txt) PBX A B § DUA is already past the WGLC on SIGTRAN. For inter-MGC scenarios we need DPNSS-MIME is SIP. § Service Provider trials (e. g. , H. 323 to SIP migration in VPN/Enterprises that have DPNSS PBXs). § As discussed on the list; DPNSS is the only missing link (QSIG and ISUP MIME exist) so we are not opening a flood-gate. § DPNSS SIP translation is a complementary mechanism – we are working on it; NOT an alternative. § Translation is required to complete calls along routes/nodes that supports only partial DPNSS service transparency. § DPNSS MIME is required for complete service transparency – would be almost impossible to map every detail of DPNSS to SIP (as is the case with ISUP and QSIG) 57 th IETF Vienna, Austria SIPPING WG 17 th July, 2003

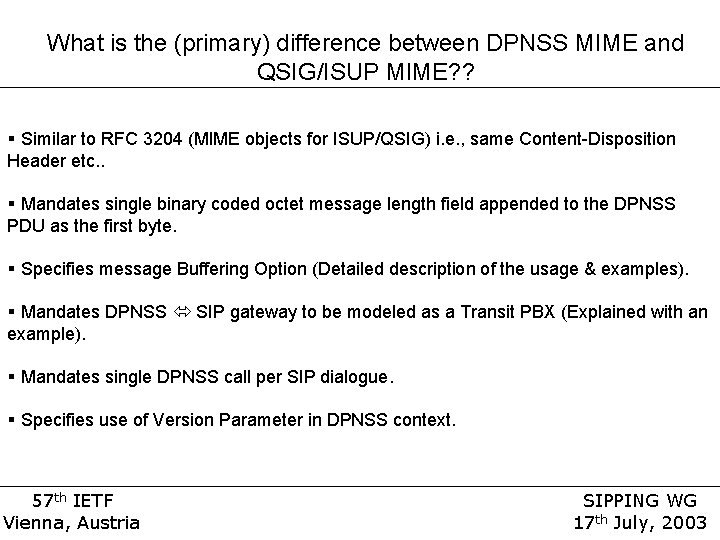

What is the (primary) difference between DPNSS MIME and QSIG/ISUP MIME? ? § Similar to RFC 3204 (MIME objects for ISUP/QSIG) i. e. , same Content-Disposition Header etc. . § Mandates single binary coded octet message length field appended to the DPNSS PDU as the first byte. § Specifies message Buffering Option (Detailed description of the usage & examples). § Mandates DPNSS SIP gateway to be modeled as a Transit PBX (Explained with an example). § Mandates single DPNSS call per SIP dialogue. § Specifies use of Version Parameter in DPNSS context. 57 th IETF Vienna, Austria SIPPING WG 17 th July, 2003

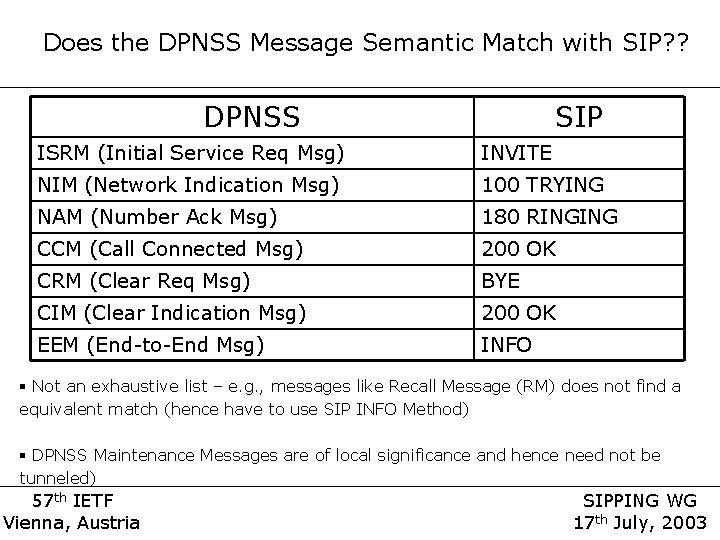

Does the DPNSS Message Semantic Match with SIP? ? DPNSS SIP ISRM (Initial Service Req Msg) INVITE NIM (Network Indication Msg) 100 TRYING NAM (Number Ack Msg) 180 RINGING CCM (Call Connected Msg) 200 OK CRM (Clear Req Msg) BYE CIM (Clear Indication Msg) 200 OK EEM (End-to-End Msg) INFO § Not an exhaustive list – e. g. , messages like Recall Message (RM) does not find a equivalent match (hence have to use SIP INFO Method) § DPNSS Maintenance Messages are of local significance and hence need not be tunneled) 57 th IETF Vienna, Austria SIPPING WG 17 th July, 2003

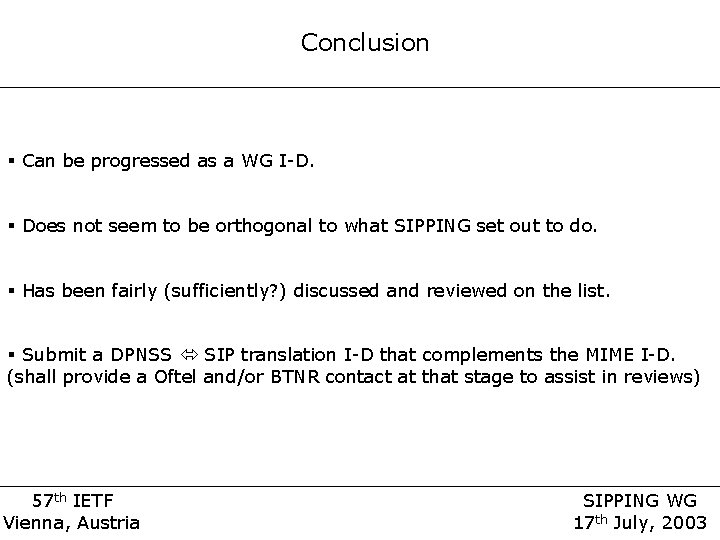

Conclusion § Can be progressed as a WG I-D. § Does not seem to be orthogonal to what SIPPING set out to do. § Has been fairly (sufficiently? ) discussed and reviewed on the list. § Submit a DPNSS SIP translation I-D that complements the MIME I-D. (shall provide a Oftel and/or BTNR contact at that stage to assist in reviews) 57 th IETF Vienna, Austria SIPPING WG 17 th July, 2003
