MIMD COMPUTERS G Alaghband Fundamentals of Parallel Processing

MIMD COMPUTERS G. Alaghband Fundamentals of Parallel Processing 1

MIMD Computers or Multiprocessors There are several terms which are often used in a confusing way. Definition: Multiprocessors are computers capable of running multiple instruction streams simultaneously to cooperatively execute a single program. Definition: Multiprogramming is the sharing of computing equipment by many independent jobs. They interact only through their requests for the same resources. Multiprocessors can be used to multiprogram single stream programs. Definition: A process is a dynamic instance of an instruction stream. It is a combination of code and process state, for example program counter and the status words. Processes are also called tasks, threads, or virtual processors. G. Alaghband Fundamentals of Parallel Processing 2

Definition: Multiprocessing is either: a) running a program on a multiprocessor (it may be a sequential one), [not of interest to us], or b) running a program consisting of multiple cooperating processes. G. Alaghband Fundamentals of Parallel Processing 3

Two main types of MIMD or multiprocessor architectures. Shared memory multiprocessor Distributed memory multiprocessors are also known as explicit communication multiprocessors. G. Alaghband Fundamentals of Parallel Processing 4

Notations: A summary of notations used in the following figures are given below: L: Link a component that transfers information from one place to another place. K: Controller, a component that evokes the operation of other components in the system. S: Switch, constructs a link between components. It has associated with it a set of possible links, it sets some and breaks other links to establish connection. T: Transducer, a component that changes the i-unit (information) used to encode a given meaning. They don’t change meaning, but format. G. Alaghband Fundamentals of Parallel Processing 5

Some Example Configurations Fully Shared Memory Architecture: G. Alaghband Fundamentals of Parallel Processing 6

Adding private memories to the previous configuration produces a hybrid architecture. Shared Plus Private Memory Architecture: G. Alaghband Fundamentals of Parallel Processing 7

If local memories are managed by hardware, they are called cache. NUMA (Non-uniform Memory Access ) Machines: There is an important impact on performance if some locations in shared memory take longer to access than others. UMA (Uniform Memory Access ) Machines: Cluster: Is referred to connecting few processor shared memory multiprocessors, often called clusters, using a communication network accessed by send and receive instructions. The shared memory of a cluster is private WRT other clusters G. Alaghband Fundamentals of Parallel Processing 8

Characteristics of Shared memory multiprocessors: Interprocessor communication is done in the memory interface by read and write instructions. Memory may be physically distributed, and reads and writes from different processors may take different amounts of time and may collide in the interconnection network. Memory latency (time to complete a read or write) may be long and variable. Messages through the interconnecting switch are the size of single memory words (or perhaps cache lines). Randomization of requests (as by interleaving words across memory modules) may be used to reduce the probability of collision. G. Alaghband Fundamentals of Parallel Processing 9

Characteristics of Message passing multiprocessors: Interprocessor communication is done by software using data transmission instructions (send and receive). Read and write refer only to memory private to the processor issuing them. Data may be aggregated into long messages before being sent into the interconnecting switch. Large data transmissions may mask long and variable latency in the communications network. Global scheduling of communications can help avoid collisions between long messages. G. Alaghband Fundamentals of Parallel Processing 10

Distributed memory multiprocessors are characterized by their network topologies Both Distributed and Shared memory multiprocessors use an Interconnection Network. The distinctions are often in the details of the low level switching protocol rather than in high level switch topology: Indirect Networks: often used in shared memory architectures, resources such as processors, memories and I/O devices are attached externally to a switch that may have a complex internal structure of interconnected switching nodes Direct Networks: more common to message passing architectures, associate resources with the individual nodes of a switching topology G. Alaghband Fundamentals of Parallel Processing 11

Ring Topology An N processor ring topology can take up to N/2 steps to transmit a message from one processor to another (assuming bi-directional ring). G. Alaghband Fundamentals of Parallel Processing 12

A rectangle mesh topology is also possible: An N processor mesh topology can take up to steps to transmit a message from one processor to another. G. Alaghband Fundamentals of Parallel Processing 13

The hypercube architecture is another interconnection topology: Each processor connects directly with log 2 N others, whose indices are obtained by changing one bit of the binary number of the reference processor (gray code). Up to log 2 N steps are needed to transmit a message between processors. G. Alaghband Fundamentals of Parallel Processing 14

Form of a four dimensional hypercube G. Alaghband Fundamentals of Parallel Processing 15

Classification of real systems Overview of CM* Architecture, An early system G. Alaghband Fundamentals of Parallel Processing 16

Five clusters with ten PEs each were built. The cm* system illustrates a mixture of shared and distributed memory ideas. There are 3 answers to the question: Is cm* a shared memory multiprocessor? 1. At the level of mcode in the K. map, there are explicit send and receive instructions and message passing software No it is not shared memory. 2. At the level of LSP-11 instruction set, the machine has shared memory. There are no send and receive instructions, any memory address could be accessed by any processor in the system Yes it is shared memory. 3. 2 operating systems were built for the machine. STAROS and MEDUSA. The processes which these operating systems supported could not share any memory. They communicated by making operating system calls to pass messages between processors No it is not shared memory. G. Alaghband Fundamentals of Parallel Processing 17

The architecture of the Sequent Balance system similar to Symmetry and Encore Multimax illustrates another bus based architecture. G. Alaghband Fundamentals of Parallel Processing 18

G. Alaghband Fundamentals of Parallel Processing 19

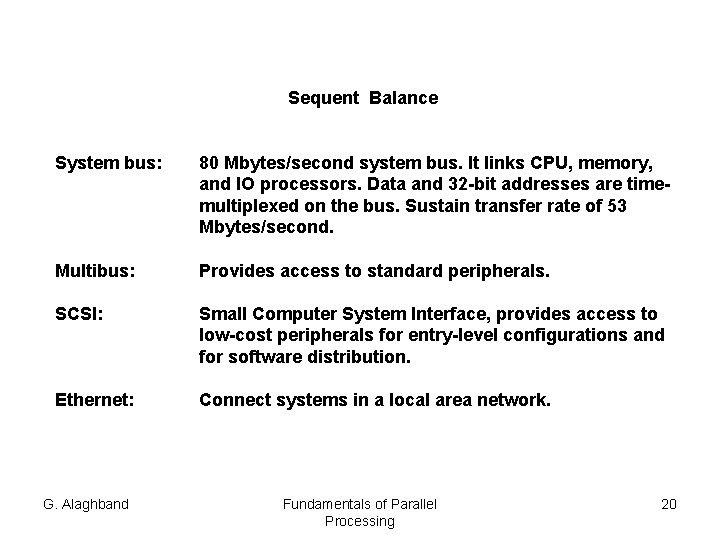

Sequent Balance System bus: 80 Mbytes/second system bus. It links CPU, memory, and IO processors. Data and 32 -bit addresses are timemultiplexed on the bus. Sustain transfer rate of 53 Mbytes/second. Multibus: Provides access to standard peripherals. SCSI: Small Computer System Interface, provides access to low-cost peripherals for entry-level configurations and for software distribution. Ethernet: Connect systems in a local area network. G. Alaghband Fundamentals of Parallel Processing 20

Sequent Balance Atomic Lock Memory, ALM: User accessible hardware locks are available to allow mutual exclusion of shared data structures. There are 16 K such hardware locks in a set. One or more sets can be installed in a machine, one/multibus adapter board. Each lock is a 32 -bit double word. The least significant bit determines the state of a lock: locked (1), and unlocked (0) Reading the lock returns the value of this bit and sets it to 1, thus locking the lock. Writing 0 to a lock, unlocks it. Locks can support a variety of synchronization techniques including: busy waits, Counting/queuing semaphores, and barriers. G. Alaghband Fundamentals of Parallel Processing 21

Alliant FX/8: Was designed to exploit parallelism found in scientific programs automatically. Up to 8 processors called Computational Elements (CE’s) and up to 12 Interactive Processors (IP’s) shared a global memory of up to 256 Mbytes. All accesses of CE’s and IP’s to the bus are through cache memory. There can be up to 521 Kbytes of cache shared by CE’s and up to 128 Kbytes of cache shared by IP’s. Every 3 Ip’s share 32 Kbytes of cache. CE’s are connected together directly through a concurrency control bus. Each IP contains a Motorola 68000 CPU. IP’s are used for interactive processes and IO. CE’s have custom chips to support M 68000 instructions and floating point instructions (Weitek processor chip), vector arithmetic instructions, and concurrency instructions. The vector registers are 32 -element long for both integers and floating point types G. Alaghband Fundamentals of Parallel Processing 22

G. Alaghband Fundamentals of Parallel Processing 23

Programming Shared Memory Multiprocessors Key Features needed to Program Shared memory MIMD Computers: • Process Management: – Fork/Join – Create/Quit – Parbegin/Parend • Data Sharing: – Shared Variables – Private Variables • Synchronization: – Controlled-based: » Critical Sections » Barriers – Data-based: » Lock/Unlock » Produce/Consume G. Alaghband Fundamentals of Parallel Processing 24

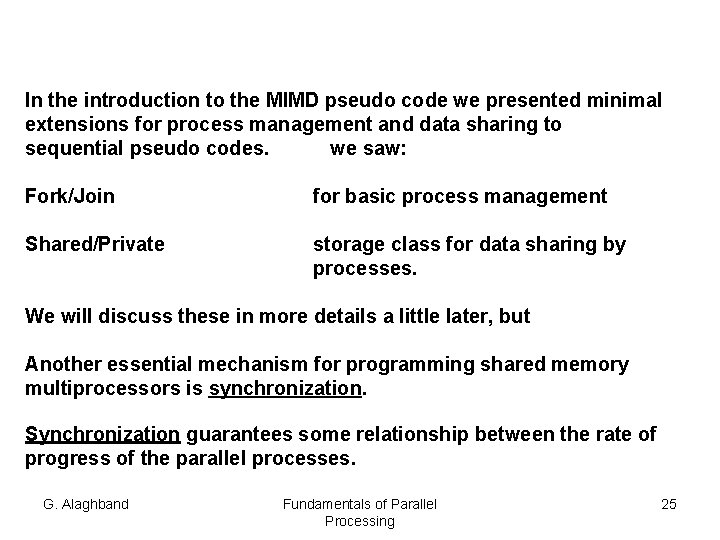

In the introduction to the MIMD pseudo code we presented minimal extensions for process management and data sharing to sequential pseudo codes. we saw: Fork/Join for basic process management Shared/Private storage class for data sharing by processes. We will discuss these in more details a little later, but Another essential mechanism for programming shared memory multiprocessors is synchronization. Synchronization guarantees some relationship between the rate of progress of the parallel processes. G. Alaghband Fundamentals of Parallel Processing 25

Lets demonstrate why synchronization is absolutely essential: Example: Assume the following statement is being executed by n processes in a parallel program: where Sum: Psum: Shared variable, initially 0 Private variable. Assume further that P 1 calculates Psum = 10 P 2 calculates Psum = 3 Therefore, the final value of Sum must be 13. G. Alaghband Fundamentals of Parallel Processing 26

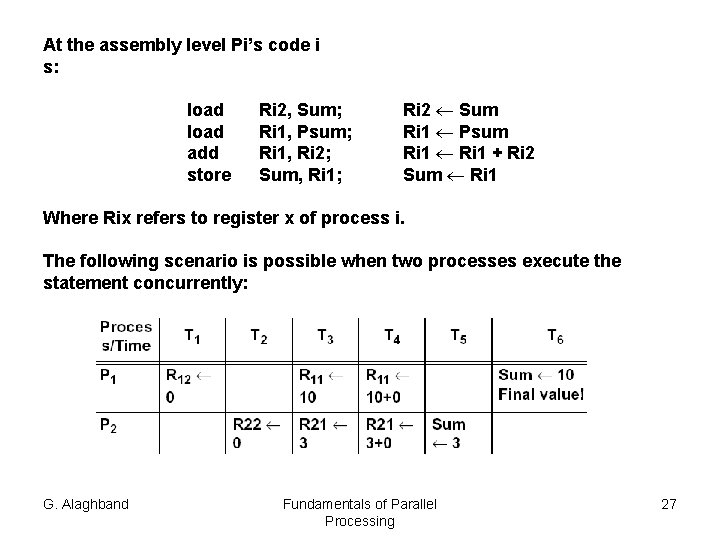

At the assembly level Pi’s code i s: load add store Ri 2, Sum; Ri 1, Psum; Ri 1, Ri 2; Sum, Ri 1; Ri 2 Sum Ri 1 Psum Ri 1 + Ri 2 Sum Ri 1 Where Rix refers to register x of process i. The following scenario is possible when two processes execute the statement concurrently: G. Alaghband Fundamentals of Parallel Processing 27

Synchronization operations can be divided into 2 basic classes: • Control Oriented: Progress past some point in the program is controlled. (Critical Sections) • Data Oriented: Access to data item is controlled by the state of the data item. (Lock and Unlock) An important concept is atomicity. The word atomic is used in the sense of invisible. Definition: Let S be a set of processes and q be an operation, perhaps composite. q is atomic with respect to S iff for any process P S which shares variables with q, the state of these variables seen by P is either that before the start of q or that resulting from completion of q. In other words, states internal to q are invisible to processes of S. G. Alaghband Fundamentals of Parallel Processing 28

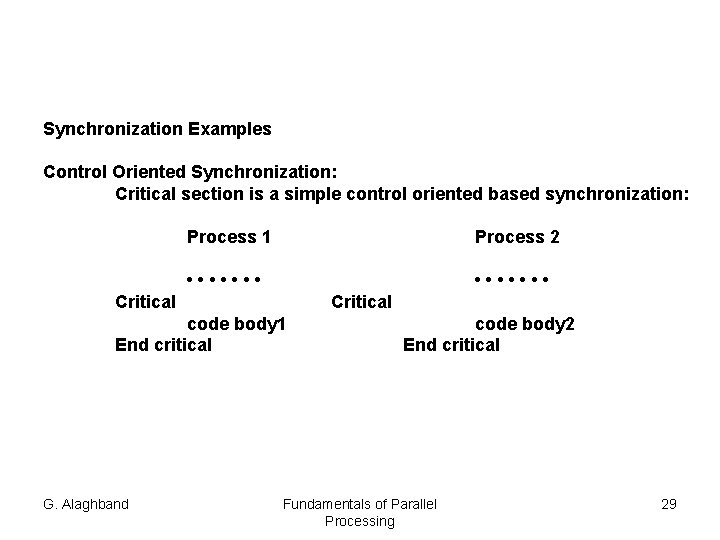

Synchronization Examples Control Oriented Synchronization: Critical section is a simple control oriented based synchronization: Process 1 Process 2 • • • • Critical code body 1 End critical G. Alaghband code body 2 End critical Fundamentals of Parallel Processing 29

Software Solution: We first implement the critical section using software methods only. These solutions are all based on the fact that read/write (load/ store) are the atomic machine level (hardware) instructions available. We must ensure that only one process at a time is allowed in the critical section, and once a process is executing in its critical section, no other process is allowed to enter the critical section. G. Alaghband Fundamentals of Parallel Processing 30

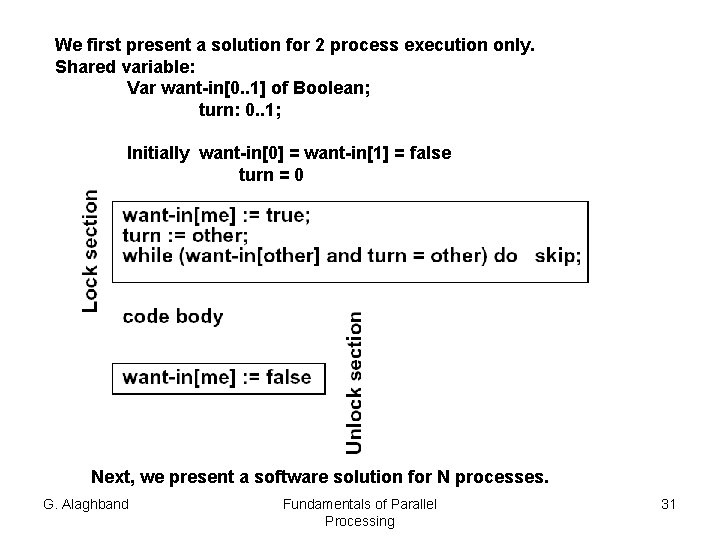

We first present a solution for 2 process execution only. Shared variable: Var want-in[0. . 1] of Boolean; turn: 0. . 1; Initially want-in[0] = want-in[1] = false turn = 0 Next, we present a software solution for N processes. G. Alaghband Fundamentals of Parallel Processing 31

Bakery Algorithm (due to Leslie Lamport) Definitions/Notations: • Before a process enters its critical section, it receives a number. The process holding the smallest number is allowed to enter the critical section. • Two processes Pi and Pj may receive the same number. In this case if i < j, then Pi is served first. • The numbering scheme generates numbers in increasing order of enumeration. For example: 1, 2, 2, 3, 4, 4, 4, 5, 6, 7, 7, . . . • (A, B) < (C, D) if: 1. A < C or 2. A = C and B < D G. Alaghband Fundamentals of Parallel Processing 32

Bakery Algorithm: Shared Data: VAR piknum: ARRAY[0. . N-1] of BOOLEAN; number : ARRAY[0. . N-1] of INTEGER; Initially piknum[i] = false, for i = 0, 1, . . . , N-1 number[i] = 0, for i = 0, 1, . . . , N-1 G. Alaghband Fundamentals of Parallel Processing 33

Hardware Solutions: Most computers provide special instruction to ease implementation of critical section code. In general an instruction is needed that can read and modify the contents of a memory location in one cycle. These instructions, referred to as rmw (read-modify-write), can do more than just a read (load) or write (store) in one memory cycle. Test&Set -- is a machine-level instruction (implemented in hardware) that can test and modify the contents of a word in one memory cycle. Its operation can be described as follows: Function Test&Set(Var v: Boolean): Boolean; Begin Test&Set : = v; v: = true; End. In other words Test&Set returns the old value of v and sets it to true regardless of its previous value. G. Alaghband Fundamentals of Parallel Processing 34

Swap -- Is another such instruction. This instruction swaps the contents of two memory locations in one memory cycle. This instruction is common in IBM computers. Its operation can be described as follows: Procedure Swap(Var a, b : Boolean); Var temp: Boolean; Begin temp: = a; a: = b; b: = temp; End Now we can implement the critical section entry and exit sections using Test&Set and Swap instructions: G. Alaghband Fundamentals of Parallel Processing 35

G. Alaghband Fundamentals of Parallel Processing 36

The implementation with Swap requires the use of two variables, one shared and one private: G. Alaghband Fundamentals of Parallel Processing 37

The above implementation suffer from Busy Waiting. That is while a process is in its critical section, the other processes attempting to enter their critical section are waiting in either the While loop (Test$Set case) or in the Repeat loop (Swap case). The amount of busy waiting by processes is proportional to the number of processes to execute the critical section and to the length of the critical section. When fine-grain parallelism is used, then busy-waiting of processes may be the best performance solution. However, if most programs are designed with coarse-grain parallelism in mind, then busy-waiting becomes very costly in terms of performance and machine resources. The contention problems resulting from busy-waiting of other processes, will result in degraded performance of even the process that is executing in its critical section. G. Alaghband Fundamentals of Parallel Processing 38

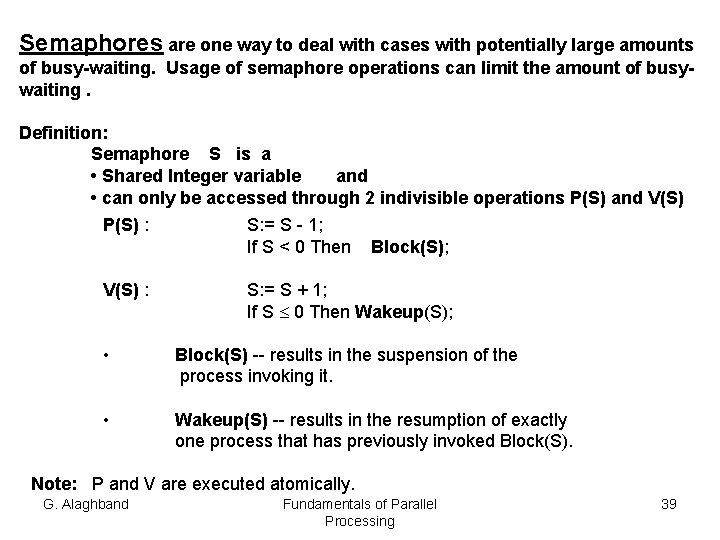

Semaphores are one way to deal with cases with potentially large amounts of busy-waiting. Usage of semaphore operations can limit the amount of busywaiting. Definition: Semaphore S is a • Shared Integer variable and • can only be accessed through 2 indivisible operations P(S) and V(S) P(S) : V(S) : S: = S - 1; If S < 0 Then Block(S); S: = S + 1; If S 0 Then Wakeup(S); • Block(S) -- results in the suspension of the process invoking it. • Wakeup(S) -- results in the resumption of exactly one process that has previously invoked Block(S). Note: P and V are executed atomically. G. Alaghband Fundamentals of Parallel Processing 39

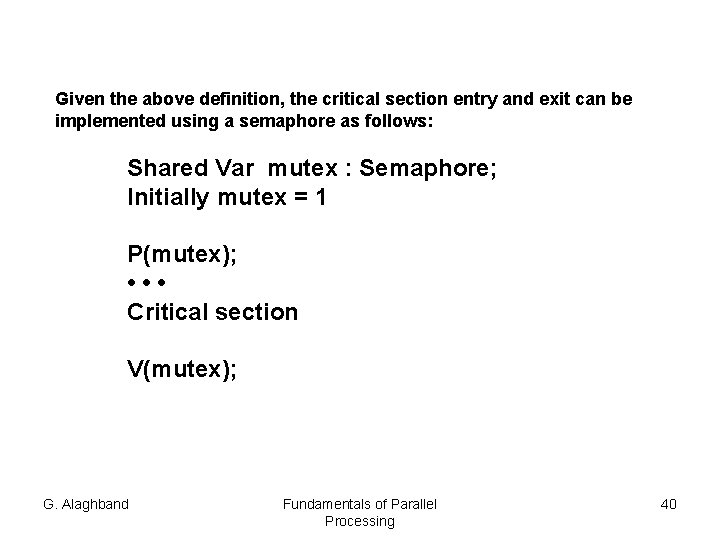

Given the above definition, the critical section entry and exit can be implemented using a semaphore as follows: Shared Var mutex : Semaphore; Initially mutex = 1 P(mutex); • • • Critical section V(mutex); G. Alaghband Fundamentals of Parallel Processing 40

G. Alaghband Fundamentals of Parallel Processing 41

Semaphores are implemented using machine-level instructions such as. Test&Set or Swap. Shared Var lock : Boolean Initially lock = false • P(S): While Test&Set(lock) Do { }; Begin S: = S - 1; If S < 0 Then Block process; lock : = flase; End • V(S): While Test&Set(lock) Do { }; Begin S : = S + 1; If S 0 Then Make a suspended process ready; lock : = flase; End G. Alaghband Fundamentals of Parallel Processing 42

Problem: Implement the semaphore operations using the Swap instruction. G. Alaghband Fundamentals of Parallel Processing 43

Shared Var lock Initially lock = false Private Var key • P(S): G. Alaghband key = true; Repeat Swap(lock, key); Until key = false; S : = S - 1; If S < 0 Then Block process; lock : = flase Fundamentals of Parallel Processing 44

Data Oriented Synchronization: • LOCK L - If LOCK L is set then wait; if it is clear, set it and proceed. • UNLOCK L - Unconditionally clear lock L. Using Test&Set LOCK and UNLOCK correspond to the following: LOCK L: Repeat y = Test&Set(L) Until y=0 UNLOCK L: G. Alaghband L=0 Fundamentals of Parallel Processing 45

Relationship between locks and critical sections: Critical sections are more like locks if we consider named critical sections. Execution inside a named critical section excludes simultaneous execution inside any other critical section of the same name. However there may be processes that are exectuing concurrently in critical sections of different names. A simple correspondance between locks and critical sections is: Critical max critical code End critical LOCK max critical code UNLOCK max Both synchronizations are used to solve the mutual exclusion problem. However, G. Alaghband Fundamentals of Parallel Processing 46

Locks are more general than critical sections, since UNLOCK does not have to appear in the same process as LOCK. G. Alaghband Fundamentals of Parallel Processing 47

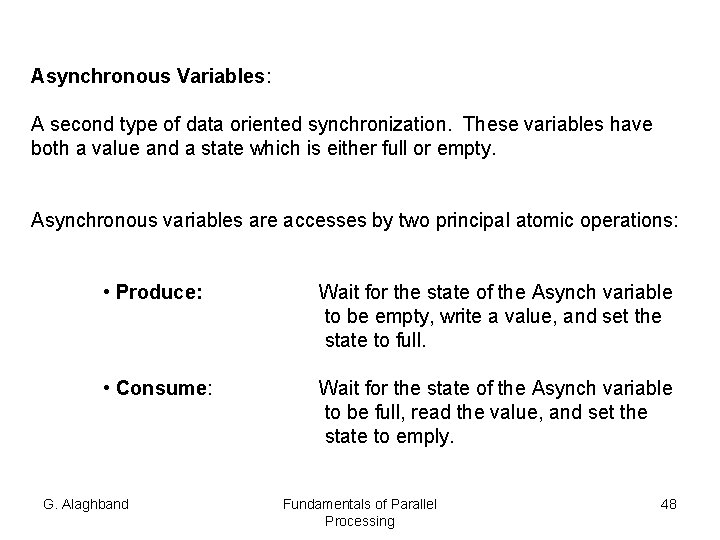

Asynchronous Variables: A second type of data oriented synchronization. These variables have both a value and a state which is either full or empty. Asynchronous variables are accesses by two principal atomic operations: • Produce: Wait for the state of the Asynch variable to be empty, write a value, and set the state to full. • Consume: Wait for the state of the Asynch variable to be full, read the value, and set the state to emply. G. Alaghband Fundamentals of Parallel Processing 48

A more complete set of operations on Asynchronous variables are those provided by the Force parallel programming language: Produce asynch var = expression Consume private var = asynch var Copy private var = asynch var Void asynch var - wait for full, read value, don’t change state. - Initialize the state to empty. Asynchronous variables can be imlemented in terms of critical sections. G. Alaghband Fundamentals of Parallel Processing 49

Represent an asynchronous variable by the following data structure: V Vf value state -- Vn name true corresponds to full, false corresponds to empty Pseudo code to implement the Produce operation is: 1. 2. 3. 4. 5. 6. 7. 8. 9. L: Critical Vn privf : = Vf If not(privf) Then Begin V : = vlue-of-expression; Vf : = true; End critical If privf Then goto L; Note: Private variable privf is used to obtain a copy of the shared Vf, the state of the asynch variable, before the process attempts to perform the Produce operation. This way if the test in statement number 3 reveals that the state is full, then the process returns to 1 and tries again. G. Alaghband Fundamentals of Parallel Processing 50

Problem (4 -11): A multiprocessor supports synchronization with lock/unlock hardware. The primitives are represented at the compiler language level by two subroutine calls, lock(q) and unlock(q). The lock(q) operation waits for the lock to be clear, sets it and returns, while unlock(q) clears the lock unconditionally. It is desired to implement produce and consume on full/empty variables where produce(x, v) waits for x empty, writes it with value v and sets full while consume(x, v) waits for x full, copies its value to v and sets x to empty. Using sequential pseudo code extended by the two operators lock(q) and unlock(q), write code sections which implement produce(x, v) and consume(x, v) on an asynchronous variable x and normal variable v. Carefully describe your representation for an asynchronous variable. No synchronization operations other than lock and unlock may be used. G. Alaghband Fundamentals of Parallel Processing 51

First Solution We will represent the asynchronous variable X by a record of three items: the value of X, a boolean full flag and a unique lock for the variable X. record X{value : real; full : boolean; l : lock } Produce and consume can then be implemented as follows: procedure produce(X, V) { R : lock(X. l) if X. full then { unlock(X. l) ; goto R else {X. full : = true ; X. value : = V ; unlock(X. l) } } G. Alaghband Fundamentals of Parallel Processing } 52

procedure consume(X, V) { R : lock(X. l) if not X. full then { unlock(X. l) ; goto R } else { V : = X. value ; X. full : = false ; unlock(X. l) } } G. Alaghband Fundamentals of Parallel Processing 53

(Alternate Solution) A simpler solution is possible by using only the lock operation to do a wait, but only if it is recognized that one lock is not enough. Two different conditions are being waited for in produce and consume, so two locks are needed. record X { value : real ; f : lock ; e : lock } State full empty locked unused procedure produce(X, V) { lock(X. f) ; X. value : = V; unlock(X. e) } G. Alaghband X. f 1 0 X. e 0 1 1 0 procedure consume(X, V) lock(X. e); V : = X. value; unlock(X. f) } Fundamentals of Parallel Processing { 54

Control oriented: Barrier Implementation: Initial state and values: unlock (barlock) lock (barwit) barcnt = 0 lock (barlock) if (barcnt < NP -1 ) then All processes except the barcnt : = barcnt +1 ; last will increment the unlock (barlock) ; counter and wait at the lock (barwit) ; lock(barwit). endif ; if (barcnt = NP -1) then Last process executes … the code body and code body unblocks barwit. endif ; if (barcnt = 0) then unlock (barlock) ; else All processes except the barcnt : = barcnt -1 ; last, will decrement the unlock (barwit) ; counter and unlock (barwit)The endif last process unlocks barlock for correct state of the next barrier execution. G. Alaghband Fundamentals of Parallel Processing 55

Alternatives for Process Management: Different systems provide alternative ways to fork and join processes. Some common alternatives are outlined bellow: • Instead of Fork Label, the Unix fork gives two identical processes returning from the fork call with a return value being the only distinction between the two processes. • The join operation may combine process management and synchronization. New processes can just quit when finished and some other operation may be used to synchronize with their completion. Therefore, if processes are to wait for other processes to complete before they can quit, we may use a barrier synchronization before the join. • Parameter passing can be included in a fork using a create statement (as was done in the HEP multiprocessor). The create statement is similar to a subroutine call, except that a new process executes the subroutine in parallel with the main program, which continues immediately. G. Alaghband Fundamentals of Parallel Processing 56

Multiprocessors provide some basic synchronization and process management tools (machine dependent). On these machines, sequential language must be extended so that parallel programming becomes possible. Fortran for example can be extended by a coherent set of synchronization and process management primitives to allow for parallel programming. Lets use: CREATE subr (A, B, C, . . . ) starts a subroutine in parallel with the main program. parameters are passed by reference. RETURN in a created subroutine means quit. While RETURN in a called subroutine means a normal return to the calling program. G. Alaghband Fundamentals of Parallel Processing 57

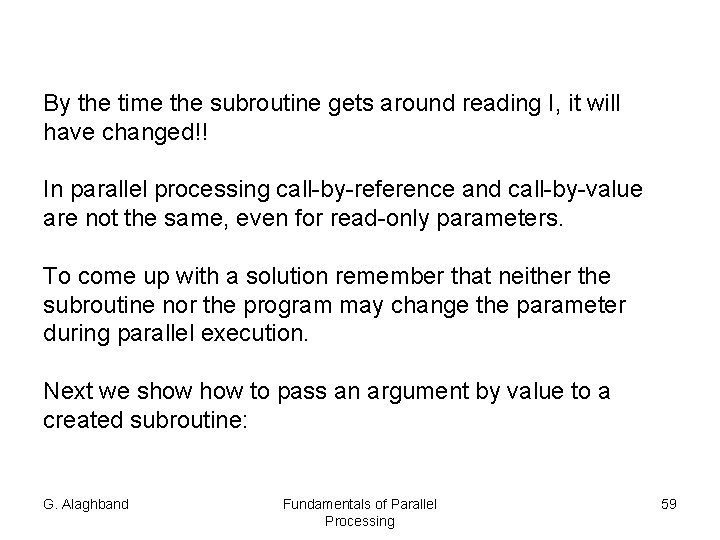

Parameter passing to parallel programs has some pitfalls: Consider the following: 10 Do 10 I = 1, N-1 CREATE sub(I) The intent is to assign and index value to each of the created processes. Problem? G. Alaghband Fundamentals of Parallel Processing 58

By the time the subroutine gets around reading I, it will have changed!! In parallel processing call-by-reference and call-by-value are not the same, even for read-only parameters. To come up with a solution remember that neither the subroutine nor the program may change the parameter during parallel execution. Next we show to pass an argument by value to a created subroutine: G. Alaghband Fundamentals of Parallel Processing 59

The main program: G. Alaghband The created subroutine Asych Integer II Private Integer I Shared Integer N Void II • • • Private Integer IP Do 10 I = 1, N-1 Produce II = I CREATE sub(II) Subroutine sub(II) Consume IP = II • • • Fundamentals of Parallel Processing 60

Implementing an N-way fork and join Assume integers IC, N and logical DONE are in Shared Common, the main program executes the code: 10 Void IC Void DONE Produce IC=N Do 10 I = 1, N-1 CREATE proc(. . . ) CALL proc(. . . ) forks N stream of processes calling process continues • • • C C The process doing the forking returns here and does part of the join operation. Consume F= DONE was voided initially G. Alaghband Fundamentals of Parallel Processing 61

… AT THE END OF SUBROUTINE … The rest of the join operation is done at the end of the subroutine proc. At the end of proc, processes will execute the following: Consume J= IC J=J-1 If (J. ne. 0) Then Produce IC = J RETURN Endif Produce DONE =. true. RETURN G. Alaghband IC was initialized to N. decrement number of processes in the critical section. quit if it was a created process, return if called. last process will execute the last 2 statements. Fundamentals of Parallel Processing 62

Single Program, Multiple Data, or SPMD We will decouple process creation from parallel program code. Processes can be created at the beginning of the program, execute a common set of code that distributes work in the parallel loop by either prescheduling or self scheduling, and terminate at the end of the program. Multiple processes, each with a unique process identifier, 0 id P-1, execute a single program simultaneously but not necessarily synchronously. Private data may cause processes to execute if-then-else statements differently or to execute a loop a different number of times. The SPMD style of programming is almost the only choice for managing many processes in a so-called massively parallel processor (MPP) with hundreds or thousands of processors. G. Alaghband Fundamentals of Parallel Processing 63

Process creation for a SPMD program P: id: shared, number of processes private, unique process identifier, available to all the processes executing the parallel main program (parmain), id is passed by value. processes may be required to synchronize before ending parmain, or exit may be able to automatically wait for processes that have not finished (join). shared P; private id; for id : = 0 step 1 until P-2 create parmain(id, P); id : = P-1; call parmain(id, P); call exit(); P and id make up a parallel environment in which the MIMD processes execute. G. Alaghband Fundamentals of Parallel Processing 64

SPMD program for the recurrence solver procedure parmain(value id, P) shared P, n, a[n, n], x[n], c[n]; private id, i, j, sum, priv; forall i : = 1 step 1 until n void x[i]; barrier; forall i : = 1 step 1 until n begin sum : = c[i]; for j : = 1 step 1 until i-1 {copy x[j] into priv; sum : = sum + a[i, j]*priv; } produce x[i] : = sum; end barrier; code to use x[] end procedure G. Alaghband Fundamentals of Parallel Processing In forall, no value of i should be assigned to a process before all preceding values have been assigned. This prevents infinite waits at the copy operation. Some use doacross this purpose and doall for completely independent body instances (forall here). 65

Work distribution Parallel regions are most often tied to a forall construct, Which indicates that all instances of a loop body for different index values can be executed in parallel. The potential parallelism is equal to the number of values of the loop index (N) and is usually much larger than the number of processors (P) (or processes if there is time multiplexing) used to execute the parallel region. G. Alaghband Fundamentals of Parallel Processing 66

Prescheduled loop code for an individual process Block mapping shared lwr, stp, upr, np; private i, lb, ub, me; /* Compute private lower and upper bounds from lwr, upr, stp, process number me and number np of processes. */ for i : = lb step stp until ub loop body(i) ; G. Alaghband Fundamentals of Parallel Processing 67

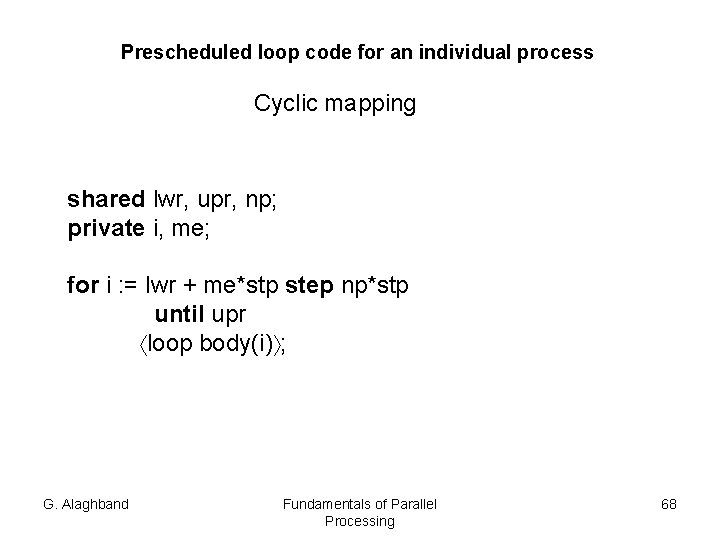

Prescheduled loop code for an individual process Cyclic mapping shared lwr, upr, np; private i, me; for i : = lwr + me*stp step np*stp until upr loop body(i) ; G. Alaghband Fundamentals of Parallel Processing 68

SPMD code for one of np processes having identifier me executing its portion of a prescheduled loop forall i : = lwr step stp until upr Block mapping requires computing lower and upper bounds for each process. G. Alaghband Fundamentals of Parallel Processing 69

self-scheduling code for one process executing the same forall shared lwr, stp, upr, np, isync; private i; barrier void isync; produce isync : = lwr; end barrier while (true) do begin consume isync into i; if (i > upr) then {produce isync : = i; break; }/* End while loop */ else {produce isync : = i + stp; loop body(i) ; } end G. Alaghband Fundamentals of Parallel Processing 70

Parallelizing a simple imperfect loop nest Serial imperfect two loop nest for i : = 0 step 1 until n-1 begin s : = f(i); for j : = 0 step 1 until m-1 loop body(i, j, s) ; end G. Alaghband Split into parallel perfect nests forall i : = 0 step 1 until n-1 s[i] : = f(i); forall k : = 0 step 1 until m*n-1 i : = k/m ; j : = k mod m; loop body(i, j, s[i]) ; Fundamentals of Parallel Processing 71

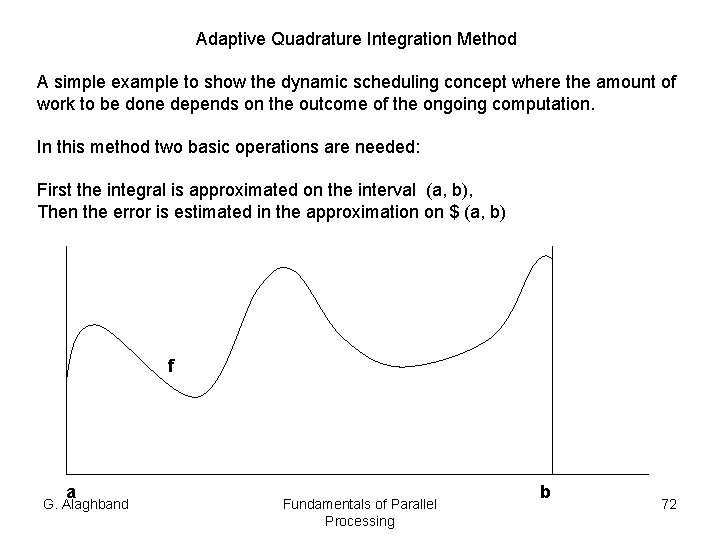

Adaptive Quadrature Integration Method A simple example to show the dynamic scheduling concept where the amount of work to be done depends on the outcome of the ongoing computation. In this method two basic operations are needed: First the integral is approximated on the interval (a, b), Then the error is estimated in the approximation on $ (a, b) f a G. Alaghband Fundamentals of Parallel Processing b 72

Sequential procedure for this integration can be described with the following steps: 1) Apply the approximation to the interval, approx(a, b, f) 2) Apply the error estimate. Accurate(a, b, f) 3) a. If the error is small enough add contribution to the integral. b. If not, split the interval in two and recursively do each half. 4) Return from this recursion level. G. Alaghband Fundamentals of Parallel Processing 73

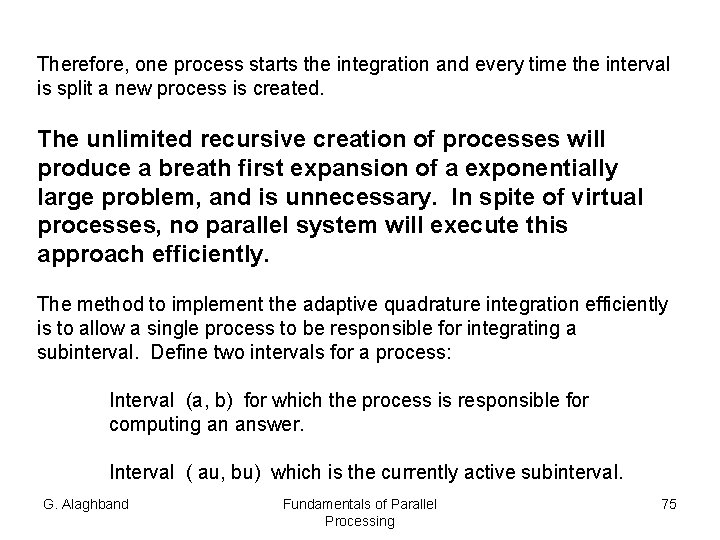

To parallelize this procedure, step 3 can be revised as follows: 3) a. If the error is small enough cooperatively add to the integral and quit. b. If not, split interval into two, create a process to do one half, and do the other half. G. Alaghband Fundamentals of Parallel Processing 74

Therefore, one process starts the integration and every time the interval is split a new process is created. The unlimited recursive creation of processes will produce a breath first expansion of a exponentially large problem, and is unnecessary. In spite of virtual processes, no parallel system will execute this approach efficiently. The method to implement the adaptive quadrature integration efficiently is to allow a single process to be responsible for integrating a subinterval. Define two intervals for a process: Interval (a, b) for which the process is responsible for computing an answer. Interval ( au, bu) which is the currently active subinterval. G. Alaghband Fundamentals of Parallel Processing 75

A high level description of the algorithm can now be presented. 0. Initialize (au, bu) to (a, b). 1. Apply approximation to (au, bu). 2. Estimate the error on (au, bu). 3. a. If the result is accurate add it to the total integral, report process free and quit. b. If not accurate enough, split (au, bu) and make the left half the new active interval. 4. Assign a free process, if there is one, to integrate a remaining inactive interval. 5. Go to step 1. G. Alaghband Fundamentals of Parallel Processing 76

approx(a, b, f): Returns an approximation to the integral of f over the interval (a, b), accurate(a, b, f): Returns true if the approximation is accurate enough and false otherwise. workready(): Returns true if the work list is not empty and false otherwise, getwork(task): Returns true and a task from the work list is not empty and false otherwise, putwork(task): Puts a new task on the work list, returning false if the list was full and true otherwise. task is a structure consisting of: Interval endpoints: and the function: G. Alaghband task. a and task. b, task. f. Fundamentals of Parallel Processing 77

Initially, the program starts with : one task, (a, b, f) on the shared work list & idle = P, number of idle processors, shared Other variable: Integral: Result of the integration of function f, shared More: true if work list is not empty, private T: approximate integral over an interval, private Ok: true if approximation is accurate enough, private Cent: midpoint for interval splitting, private Task, task 1, task 2: current task and the two tasks (1 & 2) resulting from task split, private shared P, idle, integral; private more, t, ok, cent, task 1, task 2; G. Alaghband Fundamentals of Parallel Processing 78

while (true) begin critical work; more : = workready() or (idle P); if (more) then idle : = idle - 1; end critical; if (not more) then break; while (getwork(task)) begin t : = approx(a, b, f); ok : = accurate(a, b, f); if (ok) then critical int; integral : = integral + t; end critical; else begin cent : = (task. a + task. b)/2. 0; task 1. a : = task. a; task 1. b : = cent; task 2. a : = cent; task 2. b : = task. b; task 1. f : = task 2. f : = task. f; if (not putwork(task 1) or not putwork(task 2)) then Report no room in task set. ; end; /* of while loop over available tasks */ critical work; idle : = idle + 1; end critical; end; /* of while loop over available tasks or active processes. */ G. Alaghband Fundamentals of Parallel Processing 79

The inner while loop terminates when there is no more work in the list, but there is a chance more work will be added if any processes are still executing tasks, so the outer while does not terminate until all processes have failed to find more work to do (break statement). The order of putting work onto, and taking it from, the list is important. This is similar to traversing a binary tree constructed as intervals are split in two. Managing the work list in last-in, first-out order gives depth-first traversal, while using first-in, first-out order gives breadth-first traversal. Breadth-first order adds more and more tasks to the work list, generating new work much faster than work is completed until the end of the computation nears. NOT DESIRABLE. Properly managed, the framework of a set of processes cooperatively accessing a shared work list can be a very effective form of dynamic scheduling. G. Alaghband Fundamentals of Parallel Processing 80

Open. MP • A language extension • Extensions exists for C, C++. And Fortran (API) • Open. MP constructs are limited to compiler directives and library subroutine calls (!$OMP), so the base language, so Open. MP programs also correspond to legal programs in the base language. G. Alaghband Fundamentals of Parallel Processing 81

Open. MP has • one process management construct, the parallel region, • three parallel variable scopes, shared, private, and threadprivate, • four work distribution constructs, loops, sections, single execution, and master execution, • six synchronization methods, locks, critical sections, barriers, atomic update, ordered sections, and flush. This moderate sized set of constructs is sufficient for simple parallelization of sequential programs, but may present challenges for more complex parallel programs. G. Alaghband Fundamentals of Parallel Processing 82

The Open. MP Fortran Applications Program Interface (API) Parallelism is introduced into an Open. MP program by the parallel region construct !$OMP PARALLEL [clause[[, ] clause ] block !$OMP END PARALLEL block is a single entry, single exit group of statements executed by all threads of the team created on entry to the parallel region in SPMD fashion. Branching into/out of the block is illegal, except for subroutine or function calls, but different threads may follow different paths through the block. G. Alaghband Fundamentals of Parallel Processing 83

The number of threads, num_threads, is set by calling SUBROUTINE OMP_SET_NUM_THREADS(integer) where the integer argument may be an expression. The number of running threads is returned by INTEGER FUNCTION OMP_GET_NUM_THREADS() Each thread gets its own unique integer between 0 and num_threads - 1 by calling INTEGER FUNCTION OMP_GET_THREAD_NUM() The integer 0 is always assigned to the master thread. G. Alaghband Fundamentals of Parallel Processing 84

The parallel scope of variables inside a parallel region is specified by clauses attached to the !$OMP PARALLEL directive, except that threadprivate common blocks are specified by a directive. A list of variables or labeled common blocks can be specified as private by the clause PRIVATE(list) or shared by the clause SHARED(list) All copies of private variables disappear at the end of the parallel region except for the master thread’s copy. G. Alaghband Fundamentals of Parallel Processing 85

A more complex parallel scope specification is that for reduction variables REDUCTION({operator | intrinsic}: list) A variable X in list will appear inside the parallel region only in reduction statements of the form X = X operator expression or X = intrinsic(X, expression) operator may be +, *, -, . AND. , . OR. , . EQV. , or. NEQV. and intrinsic may be MAX, MIN, IAND, IOR, or IEOR. The variable has shared scope, G. Alaghband Fundamentals of Parallel Processing 86

A Simple Example PROGRAM MAIN INTEGER K REAL A(10), X CALL INPUT(A) CALL OMP_SET_NUM_THREADS(10) !$OMP PARALLEL SHARED(A, X) PRIVATE(K) REDUCTION(+: X) K = OMP_GET_THREAD_NUM() X = X + A(K+1) !$OMPEND PARALLEL PRINT *, ‘Sum of As: ‘, X STOP END G. Alaghband Fundamentals of Parallel Processing 87

Constructs of the Open. MP Fortran API Thread management constructs in Open. MP Fortran G. Alaghband Fundamentals of Parallel Processing 88

Thread management constructs in Open. MP Fortran G. Alaghband Fundamentals of Parallel Processing 89

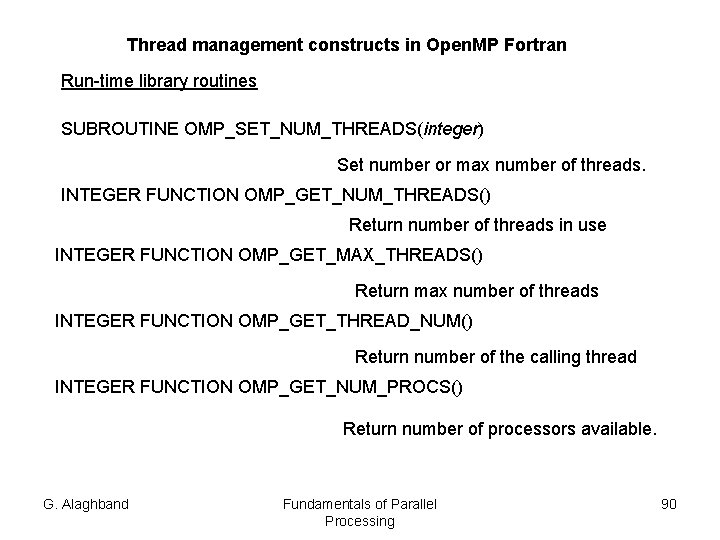

Thread management constructs in Open. MP Fortran Run-time library routines SUBROUTINE OMP_SET_NUM_THREADS(integer) Set number or max number of threads. INTEGER FUNCTION OMP_GET_NUM_THREADS() Return number of threads in use INTEGER FUNCTION OMP_GET_MAX_THREADS() Return max number of threads INTEGER FUNCTION OMP_GET_THREAD_NUM() Return number of the calling thread INTEGER FUNCTION OMP_GET_NUM_PROCS() Return number of processors available. G. Alaghband Fundamentals of Parallel Processing 90

Thread management constructs in Open. MP Fortran LOGICAL FUNCTION OMP_IN_PARALLEL() True if called from dynamic extent of a parallel region. SUBROUTINE OMP_SET_DYNAMIC(logical) Allow (true) or disallow (false) dynamic change in number of threads. LOGICAL FUNCTION OMP_GET_DYNAMIC() Return true or false setting of dynamic SUBROUTINE OMP_SET_NESTED(logical) Allow nested parallelism or not LOGICAL FUNCTION OMP_GET_NESTED() Return true if nested parallelism allowed G. Alaghband Fundamentals of Parallel Processing 91

Parallel data scope specification in Open. MP Fortran Directive !$OMP THREADPRIVATE(/cb/[, /cb/] ) Specifies that previously declared common blocks cb are private and persist across parallel regions Clauses PRIVATE(list) SHARED(list Variables or common blocks in list are private in block introduced by the directive. Variables or common blocks in list are shared DEFAULT(PRIVATE|SHARED|NONE) Default scope for all variables in block Private variables in list are initialized to values on entry to block LASTPRIVATE(list) The values of variables on list are set to values written by last iteration or section. REDUCTION({operator | intrinsic}: list) Reduce across threads by specified operation. FIRSTPRIVATE(list) COPYIN(list) G. Alaghband Initialize threadprivate variables or common blocks on list to master’s value on entry. Fundamentals of Parallel Processing 92

Open. MP Fortran work distribution constructs Allowed clauses: PRIVATE, FIRSTPRIVATE, LASTPRIVATE, REDUCTION, SCHEDULE, ORDERED G. Alaghband Fundamentals of Parallel Processing 93

Open. MP Fortran work distribution constructs setenv OMP_SCHEDULE "STATIC, 10 Prescheduling with chunk size of 10 iterations G. Alaghband Fundamentals of Parallel Processing 94

Open. MP Fortran work distribution constructs Allowed clauses: PRIVATE, FIRSTPRIVATE, LASTPRIVATE, REDUCTION, G. Alaghband Fundamentals of Parallel Processing 95

Open. MP Fortran work distribution constructs Allowed clauses: PRIVATE, FIRSTPRIVATE, G. Alaghband Fundamentals of Parallel Processing 96

Open. MP Fortran work distribution constructs G. Alaghband Fundamentals of Parallel Processing 97

Open. MP Fortran synchronization constructs G. Alaghband Fundamentals of Parallel Processing 98

Open. MP Fortran synchronization constructs Implicit in: BARRIER, CRITICAL, END DO, END SECTIONS, END PARALLEL, END SINGLE, ORDERED, END ORDERED (unless NOWAIT) G. Alaghband Fundamentals of Parallel Processing 99

Open. MP Fortran synchronization constructs G. Alaghband Fundamentals of Parallel Processing 100

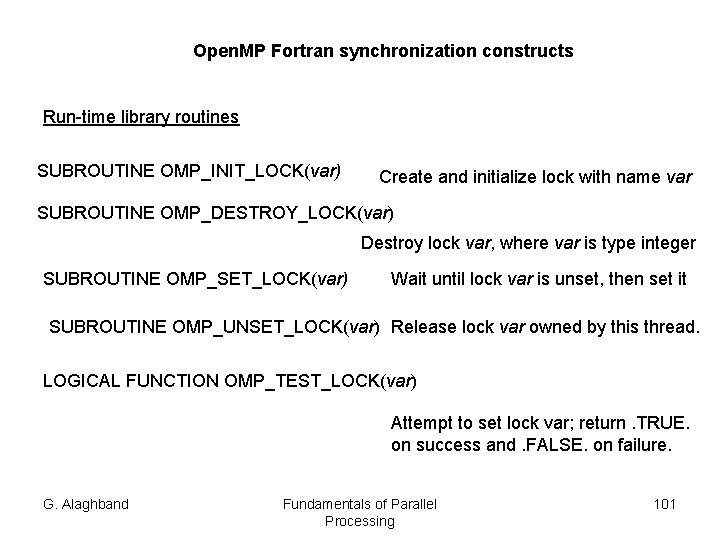

Open. MP Fortran synchronization constructs Run-time library routines SUBROUTINE OMP_INIT_LOCK(var) Create and initialize lock with name var SUBROUTINE OMP_DESTROY_LOCK(var) Destroy lock var, where var is type integer SUBROUTINE OMP_SET_LOCK(var) Wait until lock var is unset, then set it SUBROUTINE OMP_UNSET_LOCK(var) Release lock var owned by this thread. LOGICAL FUNCTION OMP_TEST_LOCK(var) Attempt to set lock var; return. TRUE. on success and. FALSE. on failure. G. Alaghband Fundamentals of Parallel Processing 101

Open. MP Fortran combined process management and work distribution Allowed clauses: PRIVATE, SHARED, DEFAULT, FIRSTPRIVATE, LASTPRIVATE, REDUCTION, SCHEDULE, ORDERED, IF, COPYIN G. Alaghband Fundamentals of Parallel Processing 102

Open. MP Fortran combined process management and work distribution Allowed clauses: PRIVATE, SHARED, DEFAULT, FIRSTPRIVATE, LASTPRIVATE, REDUCTION, IF, COPYIN G. Alaghband Fundamentals of Parallel Processing 103

An Open. MP Example A particle dynamics program to compute position, p, velocity, v, Acceleration, a, force, f, potential and kinetic energy pot and kin. n particles are represented by four 3 by n arrays First dimension for x, y, z space dimension Second for particles Time stepping loop central to the main particle dynamics program do i = 1, nsteps call compute(n, pos, vel, mass, f, pot, kin) call update(n, pos, vel, f, a, mass, dt) enddo G. Alaghband Fundamentals of Parallel Processing 104

pot = 0. 0 kin = 0. 0 Body of the compute subroutine !$OMP PARALLEL DO& !$OMP& DEFAULT(SHARED)& !$OMP& PRIVATE(i, j, k, rij, d)& !$OMP& REDUCTION(+: pot, kin) do i = 1, n do k = 1, 3 f(k, i) = 0. 0 enddo do j = 1, n if (i. ne. j) then call dist(pos(1, i), pos(1, j), rij, d) pot = pot + 0. 5*v(d) do k = 1, 3 f(k, i) = f(k, i) - rij(k)*dv(d)/d enddo endif enddo kin = kin + dot(vel(1, i), vel(1, i)) enddo !$OMP END PARALLEL DO kin = kin*0. 5*mass G. Alaghband Fundamentals of Parallel Processing 105

Body of the update subroutine !$OMP PARALLEL DO& !$OMP& DEFAULT(SHARED)& !$OMP& PRIVATE(i, k) do i = 1, n do k = 1, 3 pos(k, i) = pos(k, i) + vel(k, i)*dt + 0. 5*dt*dt*a(k, i) vel(k, i) = vel(k, i) + 0. 5*dt*(f(k, i)/mass + a(k, i)) a(k, i) = f(k, i)/mass enddo !$OMP END PARALLEL DO This is a minimal change to the program, but threads are created and terminated twice for each time step. If process management overhead is large, this can slow the program significantly. A better method is described in the text, see Program 4 -13, We will present the idea of global parallelism by introducing the FORCE Parallel Language G. Alaghband Fundamentals of Parallel Processing 106

Development of Parallel Programming Languages Issues to consider: • Explicit vs. Implicit Parallelism • Efficiency of Parallel Constructs • Portability of Programs to Multiprocessors of the Same Type G. Alaghband Fundamentals of Parallel Processing 107

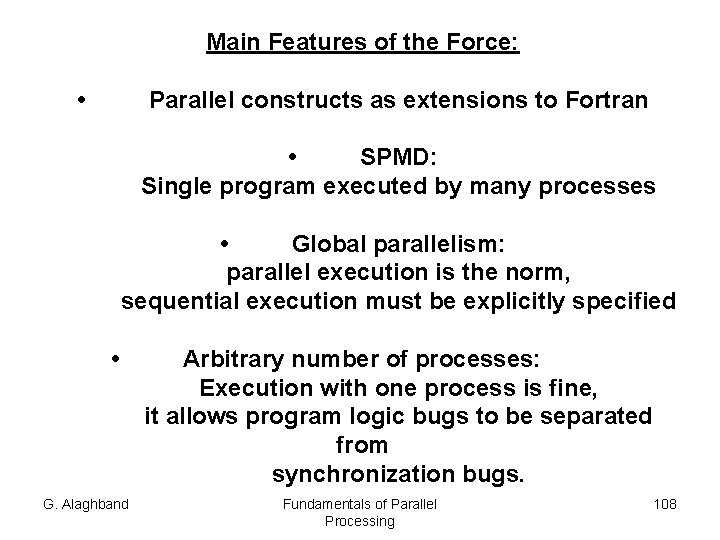

Main Features of the Force: • Parallel constructs as extensions to Fortran • SPMD: Single program executed by many processes • Global parallelism: parallel execution is the norm, sequential execution must be explicitly specified • G. Alaghband Arbitrary number of processes: Execution with one process is fine, it allows program logic bugs to be separated from synchronization bugs. Fundamentals of Parallel Processing 108

Main Features of the Force continued: • Process management is suppressed: There are no fork, Join, Create or Kill operations. Only the rate of progress is influenced by synchronizations. • • All processes are identical in their capability Data is either private to one, or uniformly shared by all processes. G. Alaghband Fundamentals of Parallel Processing 109

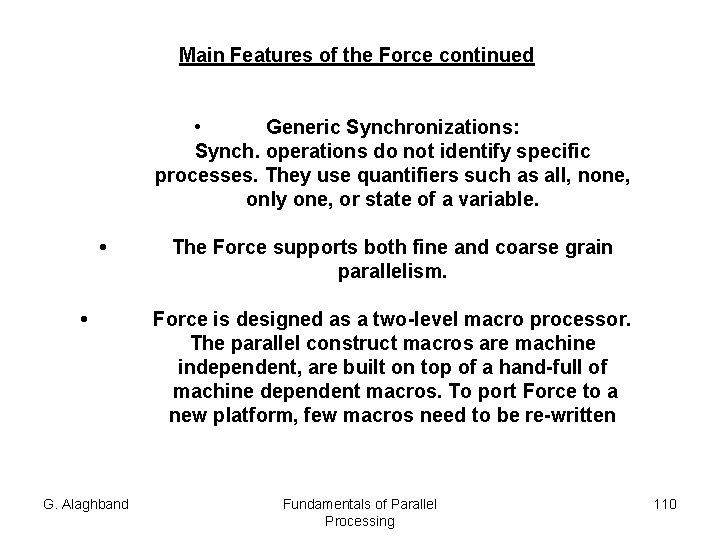

Main Features of the Force continued • Generic Synchronizations: Synch. operations do not identify specific processes. They use quantifiers such as all, none, only one, or state of a variable. • • G. Alaghband The Force supports both fine and coarse grain parallelism. Force is designed as a two-level macro processor. The parallel construct macros are machine independent, are built on top of a hand-full of machine dependent macros. To port Force to a new platform, few macros need to be re-written Fundamentals of Parallel Processing 110

Force has been ported to: HEP, Flex/32, Encore Multimax, Sequent Balance and Symmetry, Alliant Fx 8, Convex, IBM 3090, Cray multiprocessors, KSR-1 G. Alaghband Fundamentals of Parallel Processing 111

c c Establish the number of processes requested by the execute command, and set up the parallel environment. Force PROC of NP ident ME c Shared real X(1000), GMAX Private real PMAX Private integer I End Declarations c Barrier read(*, *)(X(I), I=1, 1000) GMAX=0. 0 End barrier G. Alaghband *********** Strictly sequential *********** Fundamentals of Parallel Processing 112

c *********** Replicated sequential PMAX=0. 0 cc Presched Do 10 I = 1, 1000 If ( X(I). gt. PMAX) PMAX = X(I) 10 *********** Multiple sequential *********** End presched do c Critical MAX *********** if (PMAX. gt. GMAX) GMAX = PMAX Strictly sequential End critical *********** c Barrier write(*, *) GMAX End barrier c Join End G. Alaghband Fundamentals of Parallel Processing 113

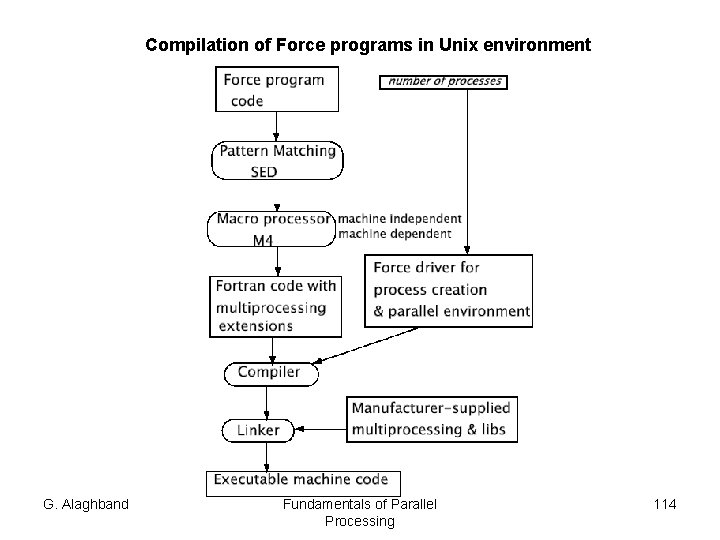

Compilation of Force programs in Unix environment G. Alaghband Fundamentals of Parallel Processing 114

Compilation of Force programs in Unix environment 1. The SED pattern matcher translates the Force statements into parameterized function macros. 2. The M 4 macro processor replaces the function macros with Fortran code and the specific parallel programming extensions of the target Fortran language. The underlying Fortran language must include mechanisms for process creation, memory sharing among processes, and synchronized access to shared variables. 3. The Fortran compiler translates the expanded code, links it with the Force driver and multiprocessing libraries. 4. The Force driver is responsible for creation of processes, setting up the Force parallel environment, and shared memory. G. Alaghband Fundamentals of Parallel Processing 115

Program Structure: " Force <name> of <NP> ident <process id> <declaration of variables> [Externf <Force module name>] End declarations <Force program> Join Forcesub <name> ([parameters]) of <NP> ident <process id> <declarations> [Externf <Force module name>] End declarations <subroutine body> Return Forcecall <name>([parameters]) G. Alaghband Fundamentals of Parallel Processing 116

Variable Declarations (6 Types): Private <Fortran type> <variable list> Private Common /<label>/ <Fortran type> <variable list> Shared Common /<label>/ <Fortran type> <variable list> Async Common /<label>/ <Fortran type> <variable list> G. Alaghband Fundamentals of Parallel Processing 117

Work Distribution Macros (9 Constructs, 2 commonly used): Presched Do <n> <var> = , [, ] <loop body> <n> End Presched Do Prescheduled DOALLs require no synchronization; Each process computes its own index values; Best performance is achieved when the amount of work for each index value is the same. Indices are allocated in a fixed way at compile time. Cyclic mapping: Shared i 1, i 2, np; Private var, me; for var : = i 1+ me*i 3 step np*i 3 until i 2, loop body G. Alaghband Fundamentals of Parallel Processing 118

<n> VPresched Do <n> <var> = , [, , ] <loop body> End Presched Do Block mapping: Shared i 1, i 2, i 3, np; Private var, lb, ub, me; /* Compute private lower & upper bounds (lb, ub) from i 1, i 2, i 3, me and np */ for var : = lb, i 3, until ub <loop body. G. Alaghband Fundamentals of Parallel Processing 119

<n> Selfsched Do <n> <var> = , [, ] <loop body> End Selfsched Do <n> Pre 2 do <n> <var 1> = , [, ]; <var 2> = <j 1>, <j 2> [, <j 3>] <doubly indexed loop body> End Presched Do Selfscheduled DOALLs adapt to varying workload. Synchronized access to a shared index is needed. Each process obtains the next index value by incrementing a shared variable at run time. G. Alaghband Fundamentals of Parallel Processing 120

G. Alaghband Fundamentals of Parallel Processing 121

Work Distribution Macros continued <n> Self 2 do <n> <var 1> = , [, ]; <var 2> = <j 1>, <j 2> [, <j 3>] <doubly indexed loop body> End Selfsched Do <n> Askfor Do <n> Init = /* # of initial work units*/ <loop body> Critical <var> More work <j> /* add j work units to loop*/ <put work in data structure> End critical <loop body> End Askfor Do G. Alaghband Fundamentals of Parallel Processing 123

Work Distribution Macros continued Pcase on <var> <code block> [Usect] <code block> [Csect (<condition>)]. . End Pcase G. Alaghband Scase on <var> <code block> [Usect] <code block> [Csect (<condition>)]. . End Scase Fundamentals of Parallel Processing 124

Resolve into <name> Component <name> strength <number or var>. . Component <name> strength <number or var> Unify G. Alaghband Fundamentals of Parallel Processing 125

Synchronization: Consume <async var> into <variable> Produce <async var> = <expression> Copy <async var> into <variable> Void <async var> Isfull (<async var>) Critical <lock var> <code block> End critical Barrier <code block> End barrier G. Alaghband Fundamentals of Parallel Processing 126

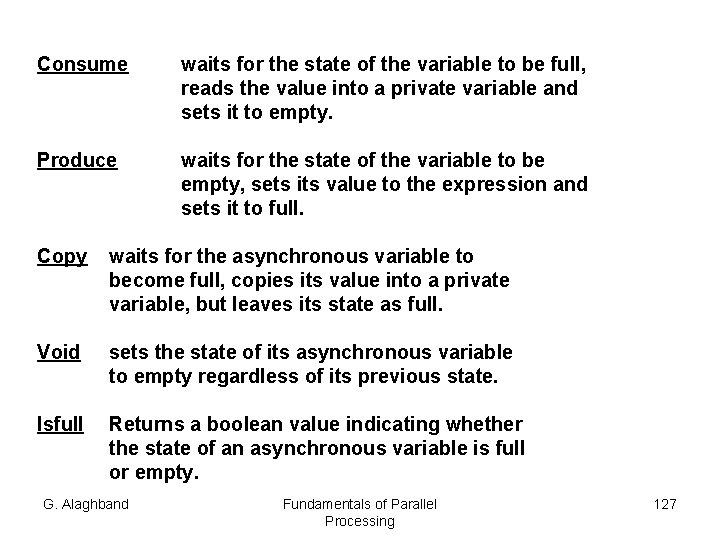

Consume waits for the state of the variable to be full, reads the value into a private variable and sets it to empty. Produce waits for the state of the variable to be empty, sets its value to the expression and sets it to full. Copy waits for the asynchronous variable to become full, copies its value into a private variable, but leaves its state as full. Void sets the state of its asynchronous variable to empty regardless of its previous state. Isfull Returns a boolean value indicating whether the state of an asynchronous variable is full or empty. G. Alaghband Fundamentals of Parallel Processing 127

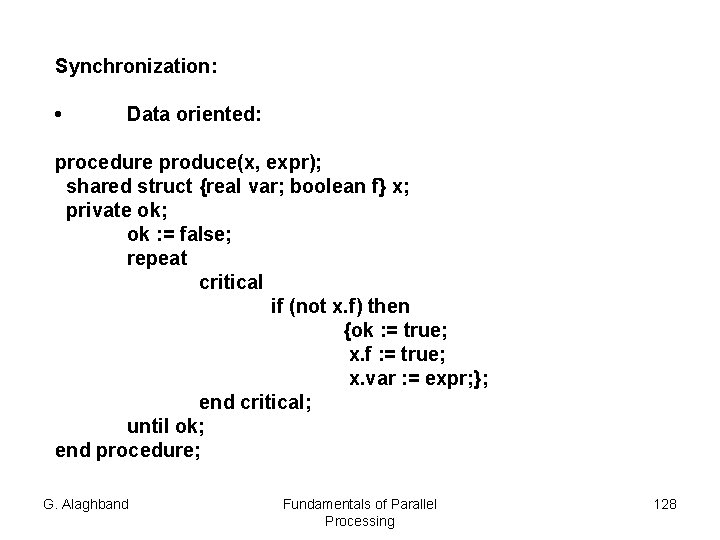

Synchronization: • Data oriented: procedure produce(x, expr); shared struct {real var; boolean f} x; private ok; ok : = false; repeat critical if (not x. f) then {ok : = true; x. f : = true; x. var : = expr; }; end critical; until ok; end procedure; G. Alaghband Fundamentals of Parallel Processing 128

G. Alaghband Fundamentals of Parallel Processing 129

Forcesub bsolve(n) of nprocs ident me Shared common /matrix/real a(500, 500), b(500) Async common /sol/ real x(500) Private integer i, j Private real psum, temp End declarations c Initialize the asynchronous vector x to empty. 100 Presched Do 100 i=1, n Void x(i) End presched do G. Alaghband Fundamentals of Parallel Processing 131

c The back solve process c Produce value of x(n) to be used in the first loop iteration Barrier Produce x(n)=b(n)/a(n, n) End Barrier Selfsched Do 200 i= n-1, 1, -1 psum=0. 0 c 150 c 200 c Do 150 j=n, i+1, -1 wait for X(j) to become full and copy its value Copy x(j) into temp psum = psum + a(i, j) * temp continue produce the value of x(i) and mark it as full. Produce x(i)=(b(i) -psum)/a(i, i) End Selfsched Do Return end G. Alaghband Fundamentals of Parallel Processing 132
