Midrapidity Dynamics Some facts and observations milestones Different
Midrapidity Dynamics - Some facts and observations (milestones? ) - Different approaches, same conclusions - Several calculations - STOCHASTIC MEAN-FIELD TRANSPORT APPROACH - Neck observables Update
136 Xe + 209 Bi at 28. 2 Me. V/nucleon, Simulations of collisions between nuclei at intermediate energy using the Boltzmann. Uehling. Uhlenbeck equation with neutron skin producing potentials L. G. Sobotka, Phys. Rev. C 50 (1994) R 1272 « The foundation of this work is Professor W. Bauer’s BUU code” b = 7 fm
J. Tõke et al.
Direct Measurement of Dissipation in the 35 Cl + 12 C Reaction at 43 Me. V/nucleon L. Beaulieu et al. , Phys. Rev. Lett. 77 (1996) 463 FIG. 2. Galilean invariant perpendicular vs parallel velocity in the c. m. frame for Z = 3 fragments. Parallel velocities are along the beam axis [(a), (c), (e)] and the main axis of the momentum tensor [(b), (d), (f)]. Cuts on Θflow < 30° [(a), (b)], Θflow > 75° [(c), (d)], and on E┴ > 135 Me. V (top 10% of the distribution: [(e), (f)]) are made.
Intermediate velocity source of intermediatemass fragments in the 40 Ca + 40 Ca reaction at Elab = 35 Me. V/nucleon P. Pawlowski et al. , Phys. Rev. C 57 (1998) 1771 Standard BNV code: A. Bonasera et al. , Phys. Lett. B 246 (1990) 337.
- Different approaches, same conclusions
Intermediate Mass Fragment Emission Pattern in Peripheral Heavy -Ion Collisions at Fermi Energies S. Piantelli el al. , Phys. Rev. Lett. 88 (2002) 052701 116 Sn + 93 Nb at 29. 5 A Me. V
« In conclusion, peripheral collisions are characterized by a sizable emission of IMF’s at midvelocity, successfully competing with LCP’s and greatly overcoming the IMF evaporative emission. The peculiar pattern of midvelocity IMF’s from peripheral collisions seems to require the emission from an “extended neck” which also includes a fast contribution of IMF’s emitted nearly at rest in the PLF or TLF reference frame. » The QMD code CHIMERA : J. ukasik and Z. Majka, Acta Phys. Pol. B 24, 1959 (1993).
Origins of intermediate velocity particle production in heavy ion reactions L. Gingras et al. , Phys. Rev. C 65 (2002) 061604(R) QP : vertical hatches QT : horizontal hatches IV: shaded histograms FIG. 1. c. m. parallel velocity distributions for charged particles
Conclusion: « With help of time-based cluster recognition algorithm applied to molecular dynamics simulation , it has been possible to determine the time scales associated to two different phenomena. The first origin is related to prompt nucleon-nucleon collisions that occur in the overlap zone of the two colliding nuclei. These processes will eject light particles and excited clusters out of the overlap on a very short time scale of the order of the reseparation time. Excited clusters ejected at this stage will however emit particles on a longer time scale. The second origin of IV particle production is related to the collective motion of nucleons at the perturbed ends of the QP and QT. Larger deformations will be carried by the heavier partner of the collision and will lead it to a mass asymmetric breakup aligned along the reseparation axis. This is expected to happen after a delay of the order of 150– 500 fm/c. »
- Several calculations
Quasiclassical model of intermediate velocity particle production in asymmetric heavy ion reactions A. Chernomoretz et al. Phys. Rev. C 65 (2002) 054613 • Within the framework of classical molecular dynamics • Availability of microscopic correlations at all times allowed a detailed study of the fragment formation process • The physical origin of fragments and emission timescales allow to disentangle the different processes involved in the midrapidity particle production. • Consequently, • A clear distinction between a prompt preequilibrium emission and a delayed aligned asymmetric breakup of the heavier partner of the reaction was achieved.
Energetics of Midvelocity Emissions in Peripheral Heavy Ion Collisions at Fermi Energies A. Mangiarotti el al. , , Phys. Rev. Lett. 93 (2004) 232701 “We present here, for the first time, a direct simultaneous determination of the energy involved in the midvelocity and in the evaporative emissions. ”
(a) Experimental yield of α particles, at TKEL ≈ 600 Me. V, in the (v┴ , v║) plane with respect to the PLF*-TLF* separation axis; the dot at v║ ≈ 32 mm/ns is the location of the PLF* source. (b) Corresponding angular distribution in the PLF frame (histogram) and results of simulations for an evaporating source with spin 0 h and 30 h (dashed and dotted lines, respectively, normalized in the range 0° ≤ θ ≤ 30°). Average total mass of (a) the PLF* evaporation, <Aevap>, and (b) the forwardgoing midvelocity emissions <Amidv>; average amount of energy involved in (c) the PLF* evaporation, <Eevap>, and (d) the forwardgoing midvelocity emissions, <Emidv>. The data are presented as a function of TKEL and the different curves correspond to different N=Z values for the midvelocity emissions.
Pre-equilibrium and Neck emission in HIPSE model Early Fragment Formation at the Contact (t=0 fm/c) Clusters are formed using a coalescence algorithm in the participant region that essentially mimics a random partition of nucleons in the two Fermi spheres distorted by nucleon-nucleon collisions. Strong reorganisation Of the partition due to Final State Interaction Here a possible fusion of fragments is tested two-by-two (t=50 fm/c). These two stage gives the specific properties of the pre-equilibrium emission Desexcitation
Neck emission: comparison INDRA data / HIPSE model Selection of complete events : Ztot >80%, Pztot>80% Parallel velocity Angular distribution Data HIPSE with n-n collisions HIPSE without collisions The interplay between pre- and post-equilibrium emission is well reproduced Leading to a proper account for the Neck emission.
Stochastic two-stage reaction model » Z. Sosin, Eur. Phys. J. A 11 (2001) 311 • A two-stage reaction scenario: first stage of mean field mechanism and a second stage of nucleon transfer i) First stage: a number of nucleons become reaction participants as a result of mean fieldeffects and/or two-nucleon (NN) interactions. Participating nucleons are transferred to definite states, creating finally a PLF, a TLF, or clusters. They can also escape into continuum. ii)
40 Ca + 40 Ca at 35 AMe. V AMPHORA Data Red Blue Green Pink Compound IVS PLF TLF CS : System
STOCHASTIC MEAN-FIELD TRANSPORT APPROACH VLASOV + COLLISION and PAULI CORRELATIONS Nucl. Phys. A 642 (1998) 449 gain loss FLUCTUATIONS Markov
STOCHASTIC MEAN-FIELD TRANSPORT APPROACH Equilibrium in a phase space cell OK if tot. number of collisions Initial: any time FLUCTUATION. -DISSIPATION THEOREM
Neck Fragmentation Mechanism 124 Sn+124 Sn 50 AMe. V, semi-central b=4 fm b=6 fm STOCHASTIC MEAN-FIELD Time-scale matching: Instability growth vs Interaction time Rise and Fall: - with impact parameter - with beam energy Freeze-out V. Baran et al. NPA 703 (2002)
NECK FRAGMENTATION: COMPRESSIBILITY EFFECTS the role of volume instabilities 124 Sn+64 Ni 35 AMe. V K=200 MEV b=6 fm K=380 MEV cube of 10 fm side soft stiff Central density evolution V. Baran et al. NPA 730 (2004)
NECK FRAGMENTATION EVENTS up-early stage of fragment formation 124 Sn+64 Ni ; 35 AMe. V; b=6 fm down- configurations close to freeze-out Nucleon-nucleon cross sections dependence free cross sections half free cross sections 124 Sn+64 Ni 112 Sn+58 Ni P=Nternary/Ntotal
DEVIATIONS FROM VIOLA SYSTEMATICS r- ratio of the observed PLF-IMF relative velocity to the corresponding Coulomb velocity; r 1 - the same ratio for the pair TLF-IMF The Neck-IMF is weakly correlated with both PLF and TLF Wilczynski-2 plot ! V. Baran, M. Colonna, M. Di Toro NPA 730 (2004)
REDUCED VELOCITY PLOTS: Note: BNV model accounts only for the “prompt” component of IMF’s BNV V. Baran et al. Nucl. Phys A 730 (2004) 329 Chimera 124 Sn+64 Ni 35 AMe. V data, same E_loss selections

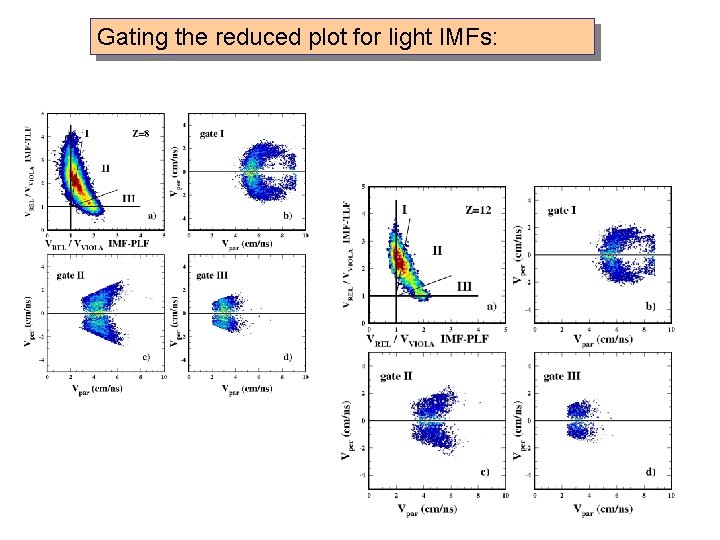

Gating the reduced plot for light IMFs:
NECK FRAGMENTATION: CM Vz-Vx CORRELATIONS Large dispersion also along transversal, x, direction TLF <0 IMF >0 124 Sn + 64 Ni 35 AMe. V PLF Alignement + Centroid at Clear Dynamical Signatures !
Angular distributions: alignment characteristics Out-of-plane angular distributions for the “dynamical” (gate 1) and “statistical” (gate 2) components: these last are more concentrated in the reaction plane is the angle, projected into the reaction plane, between the direction defined by the relative velocity of the CM of the system PLFIMF to TLF and the direction defined by the relative velocity of PLF to IMF
Mean Field & Chemical Potentials symmetry part of the mean field neutron proton neutron-proton chemical potentials neutron bulk proton neck 124 Sn “asymmetry” I = 0. 2
ISOSPIN COMPOSITION OF THE IMF’S PRODUCED IN NECK FRAGMENTATION: ASY-EOS EFFECT 124 Sn+64 Ni 35 AMe. V 124 Sn 64 Ni asysoft asystiff superasystiff
NECK ISOSCALING Z=1 Z=2 Z=3 Z=4 Z=5 ln. R 21 = 0. 95 Z=6 Z=7 Z=9 Z=8 at 35 Me. V/n (b=6, 7, 8 fm) asysoft 0. 69 N asystiff 0. 95 V. Baran, M. Colonna, M. Di Toro : NPA 370 (2004) 329 superasystiff 1. 10
NECK ISOSCALING N=7 N=5 N=6 N=8 ln R 21 N=4 = -1. 07 at 35 Me. V/n N=2 N=3 Z (b=6, 7, 8 fm) asysoft -0. 67 asystiff superasystiff -1. 07 -1. 16
58 Fe+58 Fe Fe vs. 58 Ni+58 Ni b=4 fm 47 AMe. V: Freeze-out Asymmetry distributions Ni Ni Fe Fe: fast neutron emission Ni: fast proton emission R. Lionti et al. , nucl-th/0501012 White circles: asy-stiff Black circles: asy-soft Asy-soft: small isospin migration
Neck Fragments: N/Z – angle correlation Fe. Fe vs Ni. Ni b=4 fm 47 AMe. V: 40% ternary - Isospin Migration for almost symmetric systems - Minimum N/Z around 90° : earlier formation? R. Lionti et al, nucl-th/0501012
Fe. Fe b=4 fm 47 AMe. V: density contour plots fm/c R. Lionti et al. nucl-th/0501012 PLF/TLF residues asymmetry (N-Z)/A System initial t=100 fm/c(after pre-eq) 58 Fe+58 Fe 1. 23 1. 22 freeze-out 1. 23 binary 1. 19 ternary 58 Ni+58 Ni 1. 07 1. 12 1. 17 binary n-enrichment of Neck-Fragments even for symmetric systems!
ISOSPIN DIFFUSION AT FERMI ENERGIES + 112 Sn at 50 AMe. V b=10 fm b=8 fm 124 Sn a) the neck region – low density interface b) pre-equilibrium particle emission Stochastic BNV - transport model b=8 fm b=9 fm b=10 fm 120 fm/c 100 fm/c 80 fm/c contact time
Neck Observables • • • Properties of Neck-Fragments Time-scale measurements Isospin Dynamics Isospin Diffusion “Pre-equilibrium” emissions FUTURE: • From transport simulations we presently get some indications of "asy-stiff" behaviors, i. e. increasing repulsive density dependence of the symmetry term, but not more fundamental details. • Moreover, all the available data are obtained with stable beams, i. e. within low asymmetries: more to come with accelerated unstable beams WCI UPDATE: M. Di Toro, A. Olmi, R. Roy
Properties of Neck-Fragments: • Midrapidity IMF produced in semicentral collisions: correlations between N/Z, alignement and size. • The alignement between PLF-IMF and PLFTLF directions: a very convincing evidence of the dynamical origin of the mid-rapidity fragments produced on short time scales. • The form of the Φ distributions (centroid and width) can give a direct information on the fragmentation mechanism.
