middle cranial fossa Posterior cranial fossa 4 temporal

  • Slides: 53
Download presentation

颅底和侧壁 一部分, 参与组成： 颅中窝 middle cranial fossa, 颅后窝 Posterior cranial fossa. 颅底内面 4

颅底和侧壁 一部分, 参与组成： 颅中窝 middle cranial fossa, 颅后窝 Posterior cranial fossa. 颅底内面 4

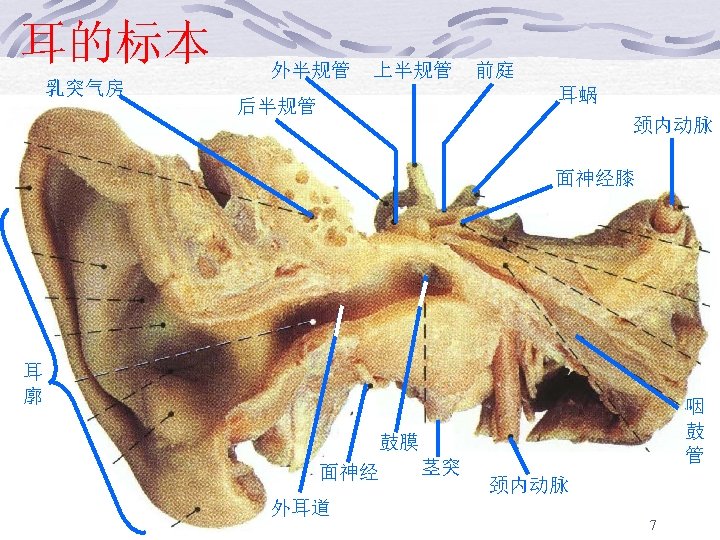

耳大部分在颞骨（temporal bone）内: 外耳道external acou 0 stic meatus骨部 中耳middle ear 内耳inner ear 内耳道Internal acoustic meatus

耳大部分在颞骨（temporal bone）内: 外耳道external acou 0 stic meatus骨部 中耳middle ear 内耳inner ear 内耳道Internal acoustic meatus 外中内耳示意图 6

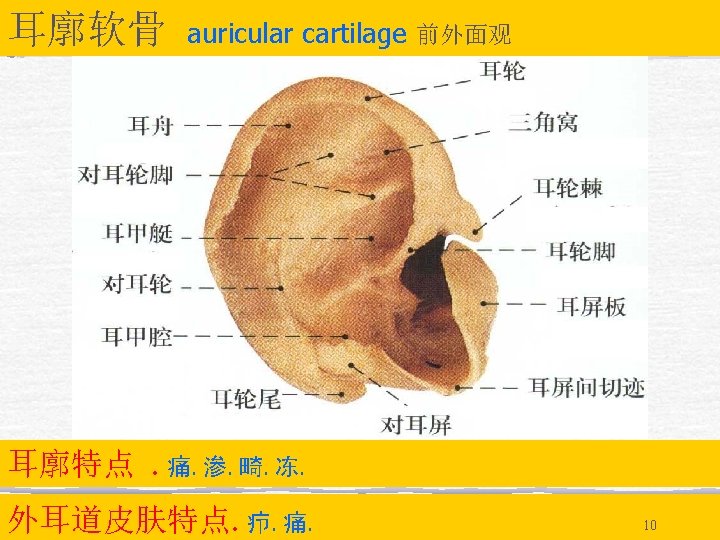

耳廓auricle表面标志 Helix Crus of helix Antihelix Cavum conchae tragus 正常耳廓形态 切迹 lobule 耳廓示意图 9

耳廓auricle表面标志 Helix Crus of helix Antihelix Cavum conchae tragus 正常耳廓形态 切迹 lobule 耳廓示意图 9

三. 中耳middle ear ： 四部分: 鼓室tympanic cavity 鼓窦 tympanic antrum 咽鼓管 乳突mastoid process 中耳示意图

三. 中耳middle ear ： 四部分: 鼓室tympanic cavity 鼓窦 tympanic antrum 咽鼓管 乳突mastoid process 中耳示意图 pharyngotympanic tube 11

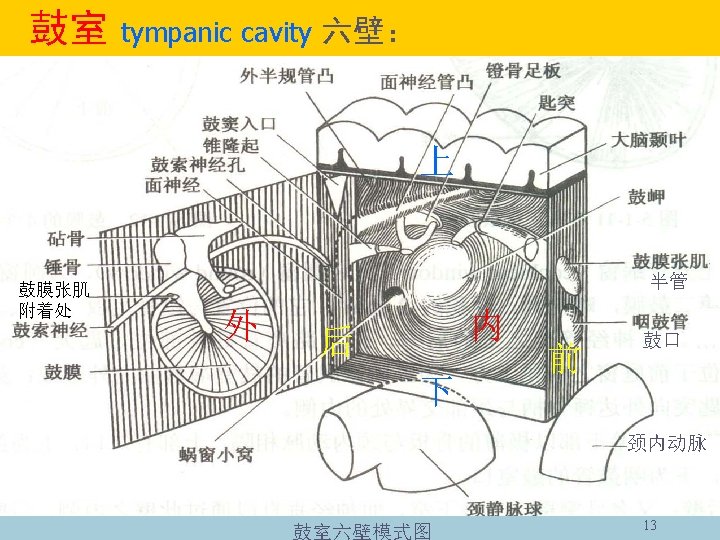

1. 鼓室: Tympanic cavity 上下径15 mm 前后径13 mm 容 积 1～ 2 ml 分三部：

1. 鼓室: Tympanic cavity 上下径15 mm 前后径13 mm 容 积 1～ 2 ml 分三部： 上鼓室 epitympanum 内外径6 mm. 中鼓室 mesotympanum 内外径2 mm. 下鼓室 hypotympanum 内外径4 mm. 鼓室冠状剖面图 12

鼓膜 tympanic membrane 感受增强和传导声压 形态 椭圆 大小 高 9 mm 宽 8 mm 厚度

鼓膜 tympanic membrane 感受增强和传导声压 形态 椭圆 大小 高 9 mm 宽 8 mm 厚度 0. 1 mm 三层 Pars flaccida Pars tensa Short process of malleus Handle of malleus umbo 光锥 Cone of light 鼓膜形态及外面标志 鼓膜四个象限 纤维软骨环 16

③前壁: 鼓膜张肌半管口 semicanalis orifice tensoris tympani 咽鼓管鼓口 ostium tympanicum tubae auditivae 颈内动脉管 internal carotid

③前壁: 鼓膜张肌半管口 semicanalis orifice tensoris tympani 咽鼓管鼓口 ostium tympanicum tubae auditivae 颈内动脉管 internal carotid artery canal 鼓室前壁外面观 19

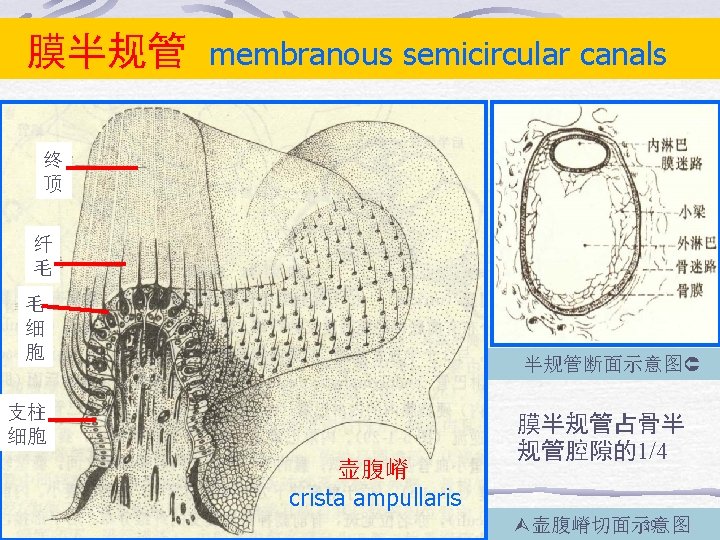

椭园囊utricle: 椭园囊斑macula utriculi 前庭感受器 球 囊saccule: 球囊斑macula sacculi vestibular 膜半规管 membranous semicircular canals: receptor

椭园囊utricle: 椭园囊斑macula utriculi 前庭感受器 球 囊saccule: 球囊斑macula sacculi vestibular 膜半规管 membranous semicircular canals: receptor 壶腹嵴crista ampullaris 囊腔 囊斑 膜囊断面示意图 囊斑(位觉斑maculae staticae)切面示意图 38

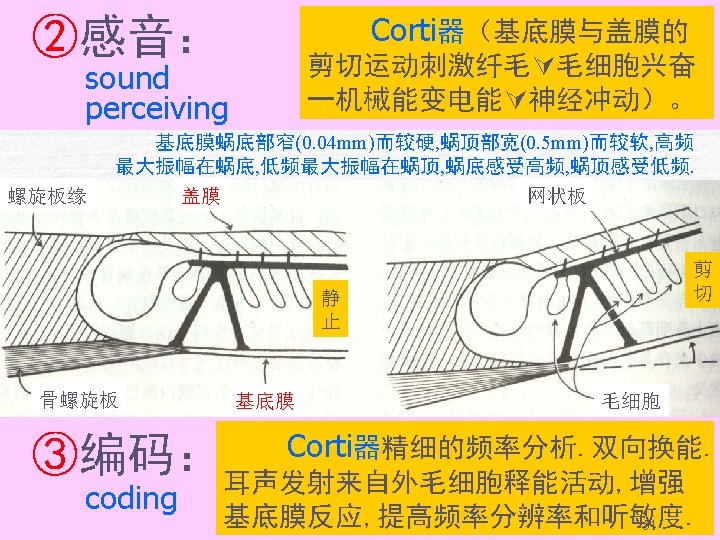

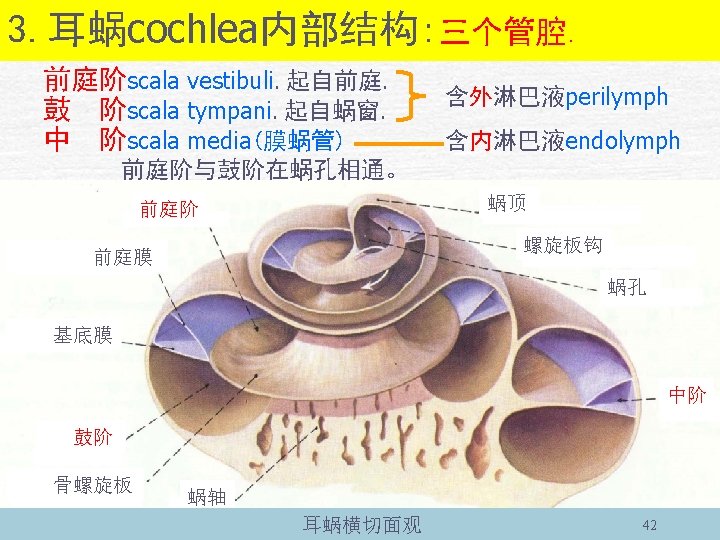

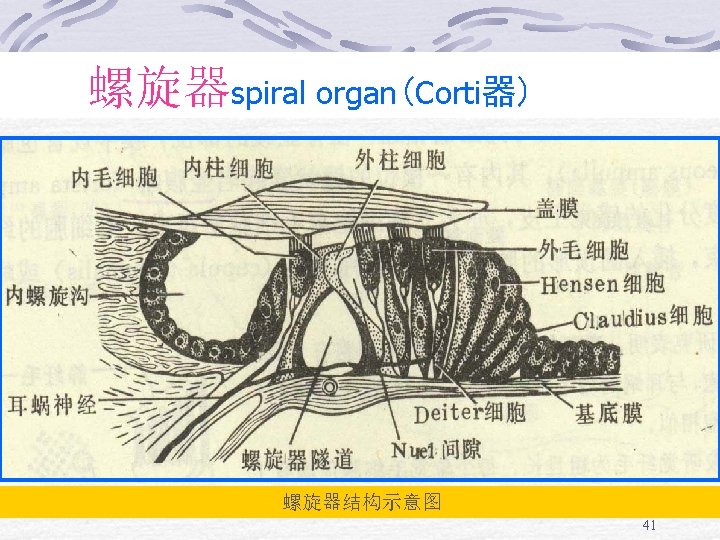

上壁-前庭膜vestibular membrane. 膜蜗管(中阶) 外壁-螺旋韧带spiral ligament. 血管纹 membranous 下壁-基底膜basilar membrane: cochlear duct 螺旋器spiral organ 听觉感受器

上壁-前庭膜vestibular membrane. 膜蜗管(中阶) 外壁-螺旋韧带spiral ligament. 血管纹 membranous 下壁-基底膜basilar membrane: cochlear duct 螺旋器spiral organ 听觉感受器 长 32 mm auditory receptor (高钠) (高钾) （螺旋器） (高钠) 耳蜗内部结构(横切面局部) 40

耳的生理功能 physiological function of ear 耳有什么 生理功能 ？ 43

耳的生理功能 physiological function of ear 耳有什么 生理功能 ？ 43

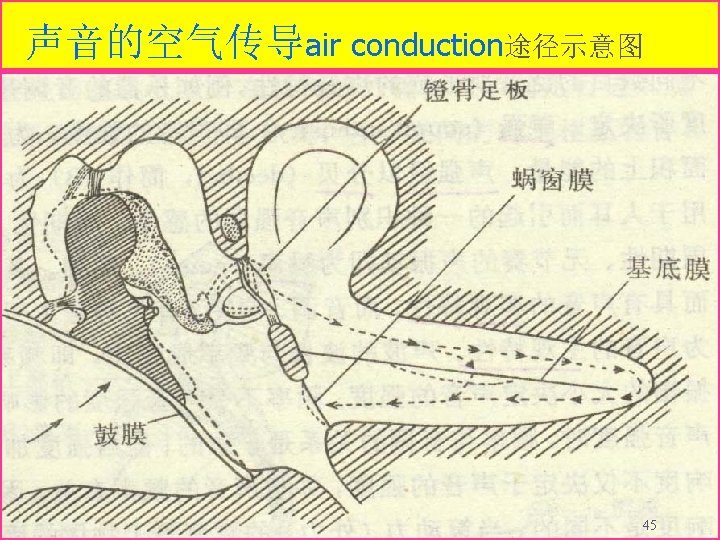

听 觉acouesthesia 平衡觉equilibrium 耳的生理功能： 一. 听觉生理auditory function ①空气传导air conduction 1. 声音传导：②骨传导bone conduction 声音传入内耳的空气传道过程 44

听 觉acouesthesia 平衡觉equilibrium 耳的生理功能： 一. 听觉生理auditory function ①空气传导air conduction 1. 声音传导：②骨传导bone conduction 声音传入内耳的空气传道过程 44

53

53
