MICROWAVE y b ted n e s n
MICROWAVE
: y b ted n e s n Pre Muadzin Al Anshori Nabil Hatomi 112 Nawang Pratiwi Nugroho Santoso
Electromagnetic Spectrum Definition The Inventors of Microwave Frequency Area Aplication in Daily Life Microwaves Oven Conclusion
Electromagnetic Spectrum
What is microwave? Microwave is electromagnetic wave with a wavelength between 1 mm - 1 m. Microwave moves at the speed of light, which is 300, 000 kilometers per second through empty space
The frequency of microwave is between 300 MHz (0. 3 GHz) up to 300 GHz. Microwave including wave with the super high frequency (Super High Frequency, SHF).
The Formula Description : d = Distance (m) c = Velocity Of Wave ( 3 x 108 m/s) ∆t = The difference in time (s)

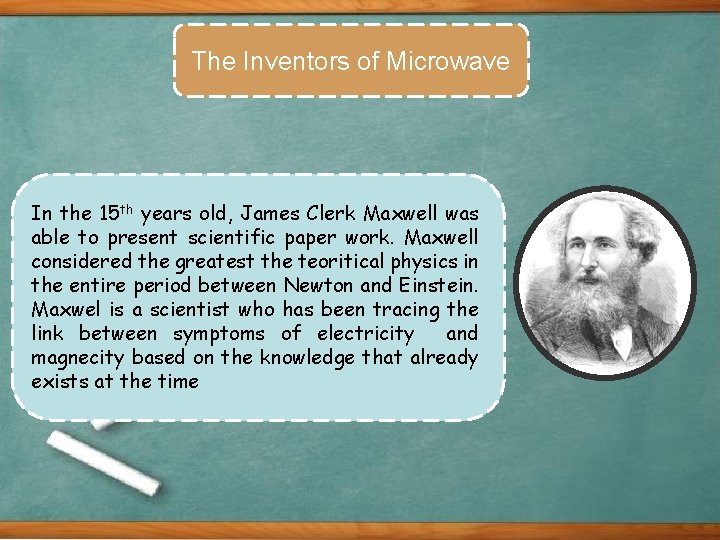

The Inventors of Microwave In the 15 th years old, James Clerk Maxwell was able to present scientific paper work. Maxwell considered the greatest the teoritical physics in the entire period between Newton and Einstein. Maxwel is a scientist who has been tracing the link between symptoms of electricity and magnecity based on the knowledge that already exists at the time
In 1864, he proved that electromagnetic waves are a combination of oscillating electric and magnetic fields. Maxwell found that light is a form of electromagnetic radiation. He also opened the understanding of the motion of the gas, by showing that the rate of the molecules in the gas depends on the temperature, respectively.
In 1888, Heinrich Hertz was the first to demonstrate the existence of radio waves by building a spark grap radio transmitter that produced microwaves with frequency 450 MHz In 1894 Jagdish Chandra Bose showed radio control of a bell using wavelength and research microwave propagation
Albert Walace Hull invented magnetron as transmitter of electromagnetic wave
Aplication in Daily Life
Microwave Oven Electric energy is changed to be microwave radiation A component which designed to arrow the microwave to food chamber Stirer A component which its function is to spread microwave in food chamber

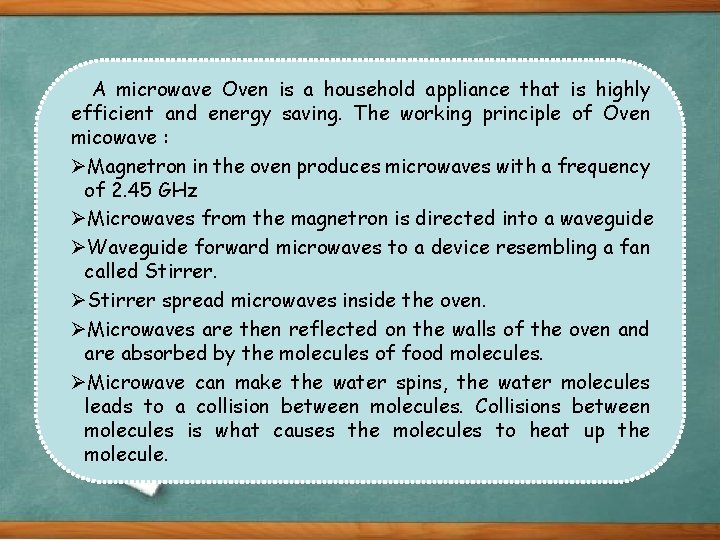

A microwave Oven is a household appliance that is highly efficient and energy saving. The working principle of Oven micowave : ØMagnetron in the oven produces microwaves with a frequency of 2. 45 GHz ØMicrowaves from the magnetron is directed into a waveguide ØWaveguide forward microwaves to a device resembling a fan called Stirrer. ØStirrer spread microwaves inside the oven. ØMicrowaves are then reflected on the walls of the oven and are absorbed by the molecules of food molecules. ØMicrowave can make the water spins, the water molecules leads to a collision between molecules. Collisions between molecules is what causes the molecules to heat up the molecule.
The microwave radiation of microwave oven and some radar applications is produced by a device called a magnetron
Conclusion Microwaves including waves with the super high frequency (Super High Frequency, SHF) This wave is very beneficial for human life in various fields especially in the field of communication
Thanks for your attention
References • http: //andinurrahmy 29. blogspot. com/2012/05/maka lah-gelombang-elektomagnetik. html • http: //inventors. about. com/library/inventors/bl_Ja mes_Maxwell. html • http: //www. stmary. ws/highschool/physics/micro_1. html • http: //fisikamemangasyik. wordpress. com/fisika 1/gerak-lurus/b-percepatan/2 -gelombang-mikro/ • http: //bisakimia. com/2013/03/23/prinsip-kerjamicrowave/
