Microwave Motion Sensor Modules DNS000C Series Features XBand

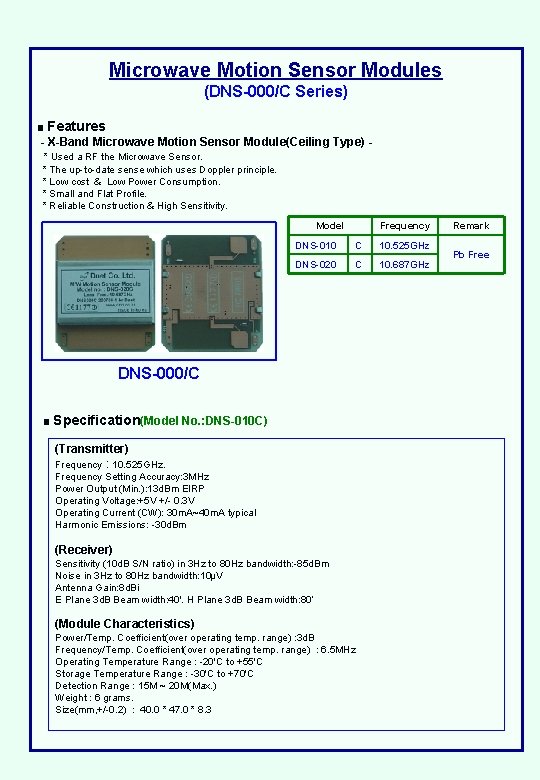

Microwave Motion Sensor Modules (DNS-000/C Series) ■ Features - X-Band Microwave Motion Sensor Module(Ceiling Type) * Used a RF the Microwave Sensor. * The up-to-date sense which uses Doppler principle. * Low cost & Low Power Consumption. * Small and Flat Profile. * Reliable Construction & High Sensitivity. Model Frequency DNS-010 C 10. 525 GHz DNS-020 C 10. 687 GHz DNS-000/C ■ Specification(Model No. : DNS-010 C) (Transmitter) Frequency : 10. 525 GHz. Frequency Setting Accuracy: 3 MHz Power Output (Min. ): 13 d. Bm EIRP Operating Voltage: +5 V +/- 0. 3 V Operating Current (CW): 30 m. A~40 m. A typical Harmonic Emissions: -30 d. Bm (Receiver) Sensitivity (10 d. B S/N ratio) in 3 Hz to 80 Hz bandwidth: -85 d. Bm Noise in 3 Hz to 80 Hz bandwidth: 10μV Antenna Gain: 8 d. Bi E Plane 3 d. B Beam width: 40'. H Plane 3 d. B Beam width: 80‘ (Module Characteristics) Power/Temp. Coefficient(over operating temp. range) : 3 d. B Frequency/Temp. Coefficient(over operating temp. range) : 6. 5 MHz Operating Temperature Range : -20'C to +55'C Storage Temperature Range : -30'C to +70'C Detection Range : 15 M ~ 20 M(Max. ) Weight : 6 grams. Size(mm, +/-0. 2) : 40. 0 * 47. 0 * 8. 3 Remark Pb Free

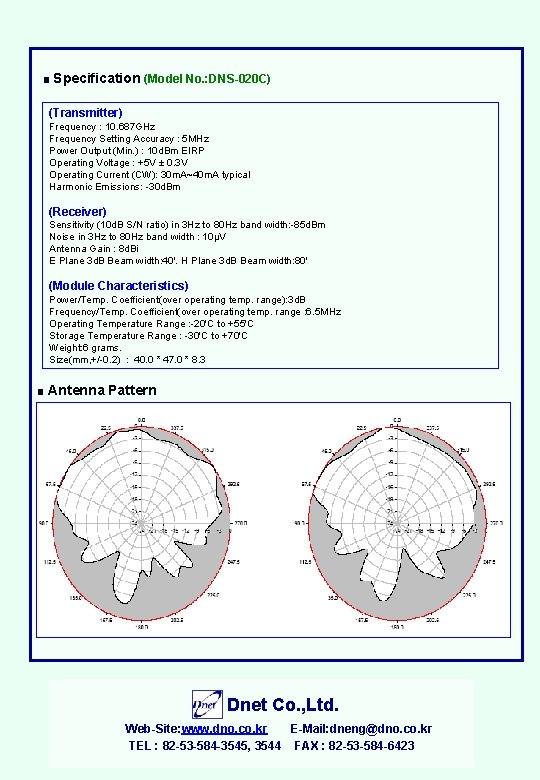

■ Specification (Model No. : DNS-020 C) (Transmitter) Frequency : 10. 687 GHz Frequency Setting Accuracy : 5 MHz Power Output (Min. ) : 10 d. Bm EIRP Operating Voltage : +5 V ± 0. 3 V Operating Current (CW): 30 m. A~40 m. A typical Harmonic Emissions: -30 d. Bm (Receiver) Sensitivity (10 d. B S/N ratio) in 3 Hz to 80 Hz band width: -85 d. Bm Noise in 3 Hz to 80 Hz band width : 10μV Antenna Gain : 8 d. Bi E Plane 3 d. B Beam width: 40'. H Plane 3 d. B Beam width: 80' (Module Characteristics) Power/Temp. Coefficient(over operating temp. range): 3 d. B Frequency/Temp. Coefficient(over operating temp. range : 6. 5 MHz Operating Temperature Range : -20'C to +55'C Storage Temperature Range : -30'C to +70'C Weight: 6 grams. Size(mm, +/-0. 2) : 40. 0 * 47. 0 * 8. 3 ■ Antenna Pattern Dnet Co. , Ltd. Web-Site: www. dno. co. kr E-Mail: dneng@dno. co. kr TEL : 82 -53 -584 -3545, 3544 FAX : 82 -53 -584 -6423
