Microwave Motion Sensor Modules DNS000 Series Features XBand

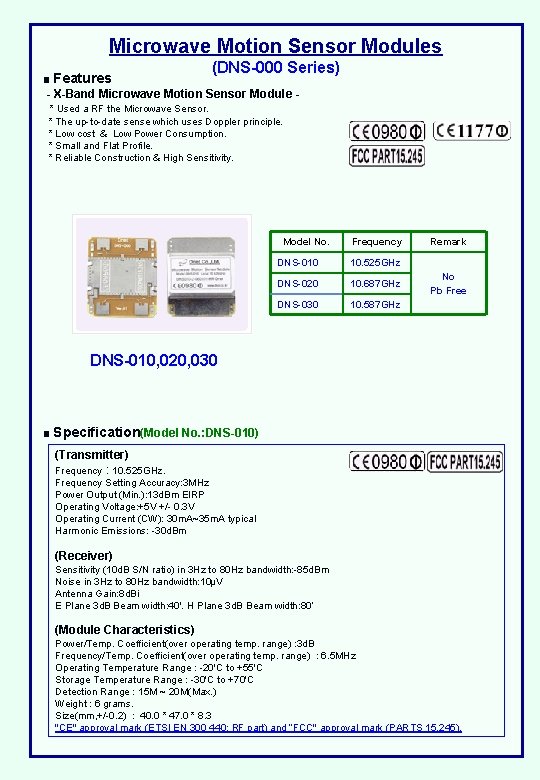

Microwave Motion Sensor Modules (DNS-000 Series) ■ Features - X-Band Microwave Motion Sensor Module * Used a RF the Microwave Sensor. * The up-to-date sense which uses Doppler principle. * Low cost & Low Power Consumption. * Small and Flat Profile. * Reliable Construction & High Sensitivity. Model No. Frequency DNS-010 10. 525 GHz DNS-020 10. 687 GHz DNS-030 10. 587 GHz Remark No Pb Free DNS-010, 020, 030 ■ Specification(Model No. : DNS-010) (Transmitter) Frequency : 10. 525 GHz. Frequency Setting Accuracy: 3 MHz Power Output (Min. ): 13 d. Bm EIRP Operating Voltage: +5 V +/- 0. 3 V Operating Current (CW): 30 m. A~35 m. A typical Harmonic Emissions: -30 d. Bm (Receiver) Sensitivity (10 d. B S/N ratio) in 3 Hz to 80 Hz bandwidth: -85 d. Bm Noise in 3 Hz to 80 Hz bandwidth: 10μV Antenna Gain: 8 d. Bi E Plane 3 d. B Beam width: 40'. H Plane 3 d. B Beam width: 80‘ (Module Characteristics) Power/Temp. Coefficient(over operating temp. range) : 3 d. B Frequency/Temp. Coefficient(over operating temp. range) : 6. 5 MHz Operating Temperature Range : -20'C to +55'C Storage Temperature Range : -30'C to +70'C Detection Range : 15 M ~ 20 M(Max. ) Weight : 6 grams. Size(mm, +/-0. 2) : 40. 0 * 47. 0 * 8. 3 "CE" approval mark (ETSI EN 300 440: RF part) and “FCC" approval mark (PARTS 15. 245).

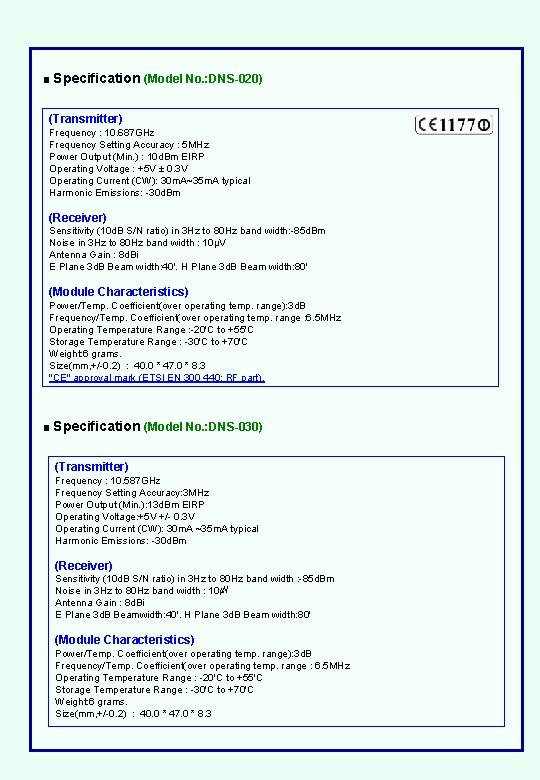

■ Specification (Model No. : DNS-020) (Transmitter) Frequency : 10. 687 GHz Frequency Setting Accuracy : 5 MHz Power Output (Min. ) : 10 d. Bm EIRP Operating Voltage : +5 V ± 0. 3 V Operating Current (CW): 30 m. A~35 m. A typical Harmonic Emissions: -30 d. Bm (Receiver) Sensitivity (10 d. B S/N ratio) in 3 Hz to 80 Hz band width: -85 d. Bm Noise in 3 Hz to 80 Hz band width : 10μV Antenna Gain : 8 d. Bi E Plane 3 d. B Beam width: 40'. H Plane 3 d. B Beam width: 80' (Module Characteristics) Power/Temp. Coefficient(over operating temp. range): 3 d. B Frequency/Temp. Coefficient(over operating temp. range : 6. 5 MHz Operating Temperature Range : -20'C to +55'C Storage Temperature Range : -30'C to +70'C Weight: 6 grams. Size(mm, +/-0. 2) : 40. 0 * 47. 0 * 8. 3 "CE" approval mark (ETSI EN 300 440: RF part). ■ Specification (Model No. : DNS-030) (Transmitter) Frequency : 10. 587 GHz Frequency Setting Accuracy: 3 MHz Power Output (Min. ): 13 d. Bm EIRP Operating Voltage: +5 V +/- 0. 3 V Operating Current (CW): 30 m. A ~35 m. A typical Harmonic Emissions: -30 d. Bm (Receiver) Sensitivity (10 d. B S/N ratio) in 3 Hz to 80 Hz band width : -85 d. Bm Noise in 3 Hz to 80 Hz band width : 10㎶ Antenna Gain : 8 d. Bi E Plane 3 d. B Beamwidth: 40'. H Plane 3 d. B Beam width: 80' (Module Characteristics) Power/Temp. Coefficient(over operating temp. range): 3 d. B Frequency/Temp. Coefficient(over operating temp. range : 6. 5 MHz Operating Temperature Range : -20'C to +55'C Storage Temperature Range : -30'C to +70'C Weight: 6 grams. Size(mm, +/-0. 2) : 40. 0 * 47. 0 * 8. 3

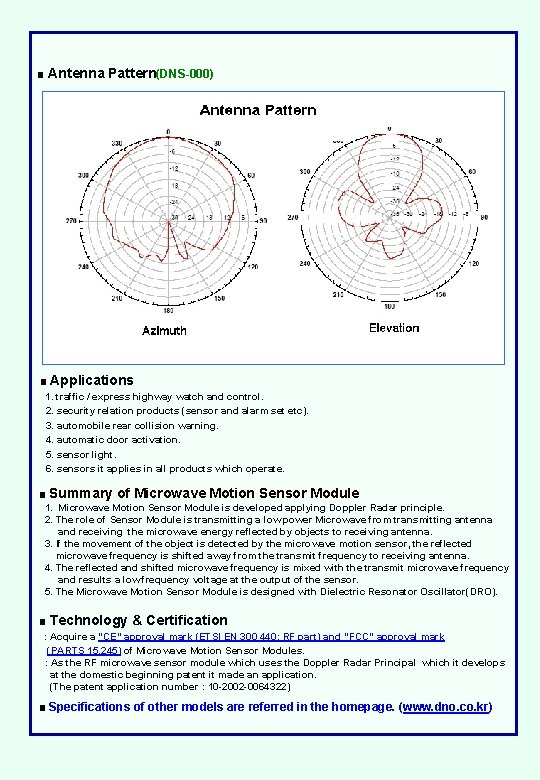

■ Antenna Pattern(DNS-000) ■ Applications 1. traffic / express highway watch and control. 2. security relation products (sensor and alarm set etc). 3. automobile rear collision warning. 4. automatic door activation. 5. sensor light. 6. sensors it applies in all products which operate. ■ Summary of Microwave Motion Sensor Module 1. Microwave Motion Sensor Module is developed applying Doppler Radar principle. 2. The role of Sensor Module is transmitting a low power Microwave from transmitting antenna and receiving the microwave energy reflected by objects to receiving antenna. 3. If the movement of the object is detected by the microwave motion sensor, the reflected microwave frequency is shifted away from the transmit frequency to receiving antenna. 4. The reflected and shifted microwave frequency is mixed with the transmit microwave frequency and results a low frequency voltage at the output of the sensor. 5. The Microwave Motion Sensor Module is designed with Dielectric Resonator Oscillator(DRO). ■ Technology & Certification : Acquire a "CE" approval mark (ETSI EN 300 440: RF part) and “FCC" approval mark (PARTS 15. 245) of Microwave Motion Sensor Modules. : As the RF microwave sensor module which uses the Doppler Radar Principal which it develops at the domestic beginning patent it made an application. (The patent application number : 10 -2002 -0064322) ■ Specifications of other models are referred in the homepage. (www. dno. co. kr)
