Microsoft Small Basic Branches and Subroutines Estimated time

Microsoft® Small Basic Branches and Subroutines Estimated time to complete this lesson: 1 hour

Code Branches and Subroutines In this lesson, you will learn how to: Branch your code by using Goto statements. Create subroutines by using Sub and End. Sub statements.

Branching As you know, the computer runs a program by reading and processing the statements line by line, one at a time. Sometimes, you may want the computer to break the flow and jump to another line of code while the program is running. You can instruct the computer to process a line of code out of sequence if you use the Goto statement.

Branching in Small Basic Programs Let’s examine the Goto statement and its various parts by writing a program. OUTPUT In this program, the line. Q: statement is called a label, which is similar to a bookmark. You can add as many labels as you want and name them whatever you want, as long as you don’t use the same name more than once. The Goto statement instructs the computer to run the statements after the line. Q: label again only if the condition in the If statement is true.

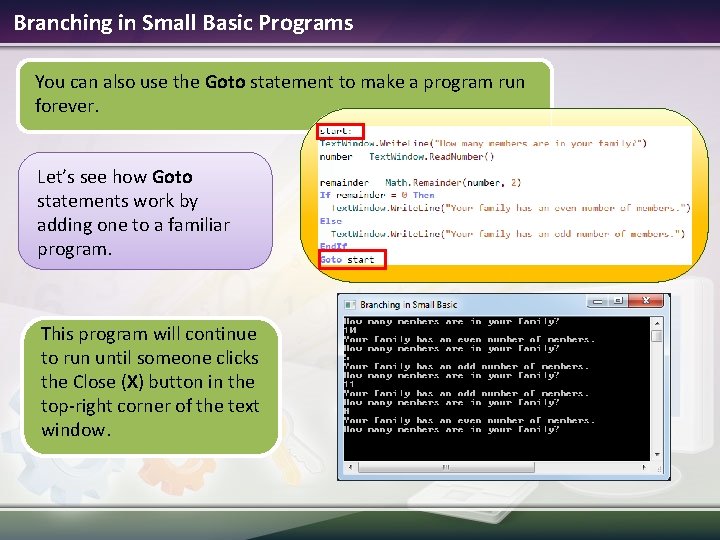

Branching in Small Basic Programs You can also use the Goto statement to make a program run forever. Let’s see how Goto statements work by adding one to a familiar program. This program will continue to run until someone clicks the Close (X) button in the top-right corner of the text window.

Subroutines in Small Basic Programs When we write programs, we often want the computer to run certain statements more than once. You can avoid writing the same statements over and over if you use subroutines in your programs. By using a subroutine, you can run one or more statements with a single instruction. To create a subroutine, you use the Sub keyword, and then you give the subroutine a specific name. You end the subroutine by using the End. Sub keyword. Look at the following subroutine named Print. Hour, which opens a text window and displays the current hour.

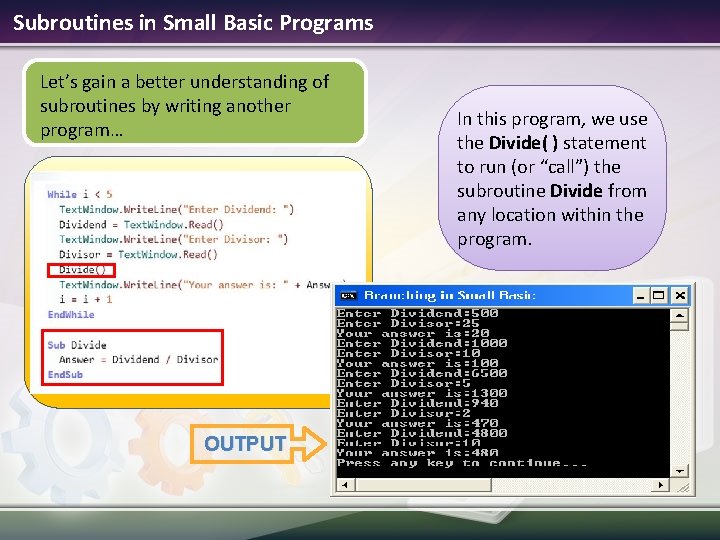

Subroutines in Small Basic Programs Let’s gain a better understanding of subroutines by writing another program… OUTPUT In this program, we use the Divide( ) statement to run (or “call”) the subroutine Divide from any location within the program.

Let’s Summarize… Congratulations! Now you know how to: Create a branch by using a Goto statement. Create a subroutine by using a Sub. . End. Sub statement.

Show What You Know Write a program that opens a text window and then performs the following steps: v Asks the user for the name, temperature, rain status, and wind status of 10 cities. v Uses branching and subroutines to determine and display the total number of: Ø Cold Cities Ø Cool Cities Ø Warm Cities Ø Hot Cities Ø Rainy Cities Ø Windy Cities
